USER MANUAL Power Titanblack 1500 Xl Totalmix CECOTEC

Safety instructions 7

1. Parts and components 34

2. Before use 35

3. Operation 36

4. Cleaning and maintenance 39

5. Technical specifications 40

6. Disposal of old electrical and electronic appliances 40

7. Technical support and warranty 41

8. Copyright 41

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• WARNING: incorrect or improper use can be dangerous for

POWER TITANBLACK 1500 XL TOTALMIX

the user and damage the appliance. Use the appliance only for the purposes described in this manual.

• Be careful when handling the blades, especially when changing accessories, cleaning and emptying the jug.
• The appliance is not intended to be used by children. Keep this appliance and its power cable out of their reach.
• The appliance can be used by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.
• Ensure that the mains voltage matches the voltage specified on the device rating label and that the plug is earthed.
• Do not immerse the cable, plug, or any other non-removable part of the device in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the device.
• Unplug the appliance from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be repaired by the official Cecotec Technical Support Service in order to avoid any type of danger.
• Do not use the product outdoors, close to electric or gas hobs, flames, or inside an oven.
• Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the working surface or worktop.

• Do not plug the appliance into the power supply until it is fully assembled and make sure it is unplugged before disassembling the appliance or handling its blade.

• Do not use the hand blender with hot food.

• Do not insert utensils into the product during operation to reduce the risk of splashing or injury. Please handle it with care.

INSTRUCTIONS DE SÉCURITÉ

Fix Plus System: facilitates assembly and disassembly of the blender and its attachments.

Main body

Fig. 1

1. Speed knob
2. Power button
3. Turbo button
4. Main housing

Fig. 2

1. Blades

Fig. 3

1. Blender jug

Fig. 4

1. Balloon whisk coupling system
2. Balloon whisk

Fig. 5.

1. Potato masher
2. Blades

Fig. 6.

1. Beaters coupling system
2. Beaters

Food processor

Fig. 7

1. Tamper
2. Food processor cover
3. Gears
4. Reversible grinding/slicing disc
5. Grinding blade
6. Locking ring
7. Spindle
8. Food processor container

34

POWER TITANBLACK 1500 XL TOTALMIX

ENGLISH

Spiraliser

Fig. 8

1. Coupling system
2. Main body
3. Coupling system bracket

Fig. 8.1

1. Interchangeable blades

2. BEFORE USE

• This hand blender has a packaging designed to protect it during transport. Unpack the appliance and keep the original packaging box and other packaging materials in a safe place. It will help you prevent any damage if the product needs to be transported in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, contact the official Cecotec Technical Support Service immediately.
• Before using this hand blender or any of its accessories, you must clean all the parts that will touch food.

Box content

• Hand blender
• 800-ml jug with lid
• Food processor
• Chopping blade
• Reversible grinding and slicing discs
• Balloon whisk
• Beaters
• Potato masher
• Spiraliser
• Instruction manual

POWER TITANBLACK 1500 XL TOTALMIX

ENGLISH

3. OPERATION

Bakery mixer

Fig. 0

Fig. 1

Fig. 2

Suitable for preparing baby food, soups, sauces, shakes and mayonnaise.

Blending food in the jug

Fig. 3

Do not fill the jug with more than 800 ml.

Blending in pots, pans and casseroles

1. Take the pot away from the heat source and allow it cool down. Otherwise, the device could overheat.
2. Place the handle inside the blending arm shaft.
3. Plug the device in. To avoid any splashing, place the blade inside the food before switching it on.
4. Hold the handle steadily, then press the power button.
5. Do not allow any liquid to cover the joint between the handle and the stick shaft.
6. Move the blade slowly through the food, moving it upwards, downwards and in circles.
7. If the device gets jammed, unplug it before cleaning it.
8. After using the device, unplug it and disassemble it.

Balloon whisk/beaters

Fig. 4

Fig. 6.

• Approximate usage time: 15 seconds.
• Suitable for whipping soft ingredients such as egg whites, cream, instant desserts, eggs, and sugar.

• Do not try to whisk harder mixtures like margarine, as you may damage the balloon whisk.

• Assemble the balloon whisks with the coupling system.

• Fit the blender handle inside the balloon whisks coupling system, then lock it with a click.
• Place the food in a container. Do not whisk more than 6 egg whites or 1000 ml of cream at the same time. Do not let any liquid get above the balloon whisks.
• Plug the device in and press the power button.
• After use, unplug and disassemble it.

ENGLISH

Food processor

Fig. 7

• Suitable for mincing meat, cheese, vegetables, spices, bread, biscuits and nuts.
• Do not try to cut hard foods such as coffee beans, ice cubes, chocolate ounces, etc. Otherwise, the blade may get damaged.
• Install the motor with the gears.

Assembling the food-processor container, accessories, and cover

1. Place the food-processor container on a clean, stable surface, such as a countertop or table.
2. Choose one of the following food processor accessories:

- Grinding blade

- Reversible grinding disc

- Reversible slicing disc

You will find a shaft that can be used with all three processor accessories.

How to use the reversible grinding disc

1. Place the shaft in the centre of the food-processor container. Use caution when handling the grinding disc. Be careful not to cut yourself.
2. One side of the grinding disc is for coarse grinding and the other for fine grinding. Use the one that best suits the type of food you are going to prepare. Align the hole in the centre of the disc with the shaft and make sure to properly fix it by carefully pushing downwards.
3. Close the cover of the food-processor container and make sure it is properly fitted and closed.

How to use the reversible slicing disc

1. Place the shaft in the centre of the food-processor container. Handle it with care.
2. One side of the slicing disc is for cutting thick food and the other for cutting thin food. Use the one that best suits the type of food you are going to prepare. Align the hole in the centre of the disc with the shaft and make sure to properly fix it by carefully pushing downwards.
3. Close the cover of the food-processor container and make sure it is properly fitted and closed.

How to use the grinding blade

1. Carefully hold the grinding blade with one hand and, with the other hand, place the shaft through the centre of the blade. Be careful not to cut yourself. The blade must be placed at the base of the spindle. The blade shall be loosely loosened on the shaft but shall remain fixed while the appliance is in operation.
2. Handle the grinding blades with care, as they are very sharp.
3. Place the grinding blade and the shaft in the centre of the food-processor container. Place the food inside the food-processor container without exceeding the MAX mark.

POWER TITANBLACK 1500 XL TOTALMIX

ENGLISH

1. Close the cover of the food-processor container and make sure it is properly fitted and closed.

How to use the food processor

1. Plug the appliance to a power supply.
2. Choose the speed using the speed knob.
3. Press the power button to switch on the appliance.
4. Insert the food through the hopper using the tamper. Do not insert fingers or any other object into the food processor. Use only the tamper provided.
5. When you have finished using it, switch it off by releasing the power button and unplug the device.
6. Remove the main body from the food processor cover and remove the cover from the container.

Recommendations on how to use the blender in the food processor container

• Do not use the blender when the container is empty.
• Cut food into uniformly sized pieces for better and faster results.
• The blender cuts and mixes foods and liquids quickly, making them easier to process. Do not forget to check the condition of the food during operation.

Spiraliser

Fig. 8

1. Insert the blender handle into the drive unit.
2. Remove the cover and mount the blade. Place the vegetables (e.g. carrots, cucumbers, potatoes...) in the food processor. You can choose between coarse, fine and looped blades. Place the hopper inside the container.
3. Press the operating button to cut the vegetables into a spiral shape.

How to assemble the blade

Fig. 8.1

1. Remove the locking ring.
2. Remove the fixing clamp.
3. Place the blade in the slot, then use the clamp to fix the blade.

Potato masher

Fig. 5.

1. Place the food inside a blending jug or a sufficiently large mixing container.
2. Plug the appliance to a power supply.
3. Attach the potato masher using the coupling system.
4. Select high speed on the speed knob.
5. Place the potato masher inside the ingredients and press the power button to activate it.

38

POWER TITANBLACK 1500 XL TOTALMIX

ENGLISH

1. Move the potato masher gently through the ingredients until the desired texture is achieved.
2. Turn the motor off by releasing the power button before taking the potato masher out of the container and unplug the device.

Turbo button

Press this button while using the device to run the device at maximum power and speed.

Note

The blender may overheat if this function is used for a long time.

Speed knob

Turn the speed knob to change the blades speed and choose whichever suits you best.

Comparison table

Food	Maximum amount (in grams)	Approximate time (in seconds)
Meat	300	10-15
Spices	80	15
Nuts	250	15
Cheese	250	15
Bread	1 loaf	15
Hard boiled eggs	6	5
Onion	300	10

These data are approximate and depend on many different factors.

4. CLEANING AND MAINTENANCE

Fig. 9

• Disconnect the appliance from the power supply and allow it to cool down before cleaning.
• After processing very salty food, rinse the blades with water immediately.
• Use a soft, damp cloth to clean the product motor and container lid.
• The following parts are dishwasher safe: jug, blending arm, balloon whisk, beaters, processor container, grinding blade, reversible grinding disc, reversible slicing disc and spiraliser container.
• Do not use too much cleaning agent or descaler in your dishwasher.

POWER TITANBLACK 1500 XL TOTALMIX

ENGLISH

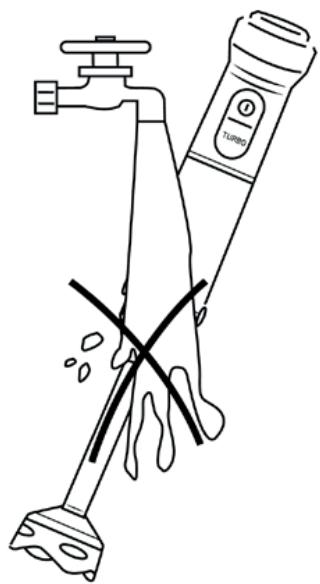

• Never immerse the main body in water or other liquids.
• Do not use abrasive cleaners or scouring pads to clean the device.
• Please handle the blades carefully, they are very sharp.
• After processing coloured food, the plastic parts of the appliance may lose colour. It is suggested to clean these parts with vegetable oil before washing them in the dishwasher.

Cleaning the blades

To clean the blending arm properly, place 300 ml of lukewarm water in the blender jug with a little dishwashing soap, insert the blending arm into the soapy water up to the bottom of the blender jug, and run the blender in turbo mode in 10-second intervals. Empty the contents of the blender jug and refill it with 300 ml of clean water and repeat the same operation for rinsing. Repeat this process if necessary. Be cautious of splashes.

5. TECHNICAL SPECIFICATIONS

Product reference: 04275

Product: Power TitanBlack 1500 XL TotalMix

Rated power (except food processor): 1500 W

Rated power (food processor): 800 W

Voltage: 220-240 V\~

Frequency: 50 Hz

The appliance power consumption when off is 0.14 W, following the guidelines of EN 50564:2011 and the European regulations 1275/2008/EC and 801/2013/EC. For this purpose, the device is connected to the mains without performing any function.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

ENGLISH

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

POWER TITANBLACK 1500 XL TOTALMIX

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 0

Fig./Img./Abb./Afb./Rys. 0

Fig./Img./Abb./Afb./Rys. 1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./ Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

POWER TITANBLACK 1500 XL TOTALMIX

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 8.1

Fig./Img./Abb./Afb./Rys. 9

POWER TITANBLACK 1500 XL TOTALMIX
