USER MANUAL Juicelive 2500 Easyclean Brush CECOTEC

Safety instructions 7

1. Parts and components 37

2. Before use 37

3. Product assembly 37

4. Operation 38

5. Cleaning and maintenance 38

6. Troubleshooting 39

7. Technical specifications 39

8. Disposal of old electrical and electronic appliances 40

9. Technical support and warranty 40

10. Copyright 40

SOMMAIRE

• Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.
• All safety instructions must be closely followed when using the appliance.
• Check the power cord regularly for visible damage. If the power cord is damaged, it must be repaired by the official Cecotec Technical Support Service or similarly qualified personnel to avoid hazards.
• The appliance is not intended to be used by children. Keep this appliance and its power cord out of reach of children.
• This appliance can be used by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance. Supervise children to prevent them from playing with the appliance. Close supervision is necessary if the appliance is used near children.
• Cleaning and user maintenance should not be carried out by unsupervised children.

• Unplug the appliance if it's left unattended and before assembly, disassembly, or cleaning.

• Do not let unsupervised children use the appliance.

• Switch off and unplug the appliance before changing accessories or related parts that move during use.
• Make sure that the blade has stopped rotating and that the product is unplugged before assembling or disassembling any part of the appliance.
• Do not use the appliance if the cord, plug, main body, or any part is damaged or malfunctioning, or if it has been dropped or damaged in any way. Contact the official Cecotec Technical Support Service.
• Do not use the appliance if the sieve is damaged.
• Incorrect or improper use can be dangerous for both the appliance and the user. Use the appliance only for the purposes described in this manual.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• Do not twist, bend, pull, or damage the power cord. Protect it from sharp edges and heat sources. Do not allow the cord to touch hot surfaces. Do not let the cord hang over the edge of the working surface or worktop.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

• Make sure all parts are properly installed before plugging in the appliance.

• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.

• Place the appliance on a dry, stable, flat, heat-resistant surface.
• Do not use the appliance under the following circumstances:
• On or near a gas or electric hob, in heated ovens, or near open flames.
• On soft surfaces (such as carpets) or where it may tip over during use.
• Outdoors or in areas with high humidity levels.
• Do not cover the appliance while in use.
• Do not insert any body part or sharp objects into the ingredients inlet of the juicer. No object can replace the tamper that comes with the appliance. Keep your eyes away from the ingredients inlet.
• Make sure no object touches the moving components of the appliance while in use to prevent injuries or damage to the product.
• If the fruits and vegetables that you use have hard seeds, thick skin, or hard shells, please remove them before putting them into the ingredients inlet of the appliance.
• If the product stops working, it may be caused by the temperature control protection of the motor. Please, turn off the power and let it cool down for 20-30 minutes before resuming operation.
• Unplug the juicer immediately if fire or smoke is observed.
• Do not try to repair the product by yourself. Contact the official Cecotec Technical Support Service.
• Do not wash the appliance in the dishwasher.
• No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.

INSTRUCTIONS DE SÉCURITÉ

1. Tamper
2. Top dosing cover
3. Screw conveyor
4. Filter
5. Juice container
6. Residue container
7. Juice collector
8. Main body (Motor)
9. Cleaning brush

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Thoroughly clean all parts of the juicer that come into contact with ingredients before first use.

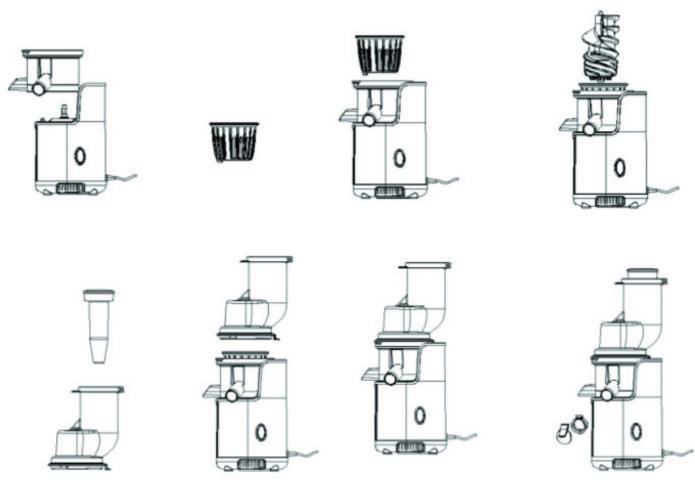

3. PRODUCT ASSEMBLY

1. Assemble the juice collector in the main body.
2. Place the filter inside the juice collector, making the arrow on the filter point at the juice collector's arrow. Then, assemble the screw conveyor firmly inside the filter.
3. Assemble the tamper into the top dosing cover. Then, install the top dosing cover on the

juice collector. Fasten the top cover until the Lock mark to hold it firmly in place. Fig. 3

Removing the rubber piece:

Fig. 4

Warning

The juice collector is equipped with a rubber piece. Make sure that the rubber piece is attached to the juice collector before using the appliance. Remove the rubber part before cleaning the device.

4. OPERATION

1. Clean and cut the fruit into pieces that fit inside the dosing tube.
2. Remove the stone, core, or seeds from the fruit.
3. Place the food to be blended into the dosing tube and push gently, using the tamper.

Tips

The device will give better results if fresh fruit is inserted.

If the device stops working:

1. If you have been using the device for 15 minutes at a time, allow it to cool down.
2. Press the REV button for 2-5 seconds to push the fruit upwards. After this, press ON and continue squeezing.

Note

• Do not force the fruit into the device to prevent damage to the screw conveyor and filter.
• Do not attempt to squeeze cereals or cane sugar.
• Do not use the device for more than 15 minutes at a time.

5. CLEANING AND MAINTENANCE

• The device includes a juice collector and a filter, both made of plastic, which are very easy to clean. Disconnect the device.
• Disconnect the device from the power supply and allow it to cool down before cleaning.
• Turn the top dosing cover to the unlocking mark and remove it.
• Disassemble the parts of the device by removing the juice collector.
• Remove and rinse the screw conveyor and filter.

• Use a soft, damp cloth to clean the surface of the device.

• Do not immerse the device in water or other liquids.

• Do not use abrasive cleaners or scouring pads to clean the product.
• The cover, the tamper, the screw conveyor, the filter, the containers, and the juice collector are all dishwasher safe.

6. TROUBLESHOOTING

Problem	Possible solutions
The appliance does not start working.	Check if the appliance is correctly plugged in.Make sure all parts of the device are correctly assembled.
Not much juice comes out of the appliance.	Make sure that the rubber part is correctly attached to the juice collector.Fresh fruit gives a better result in the juice.
The appliance suddenly stops working.	Check that there is not too much food inside the appliance.Check if there is any food causing the blockage.Press the REV button for 2 to 5 seconds and then press the power button. If the device does not work after this, switch it off and wait for 15 minutes before switching it on again.
The appliance emits a sound and vibrates during operation.	This is perfectly normal. Hard foods, such as carrots, potatoes, beets, radishes, etc. may cause the device to emit louder sounds than with soft foods.

7. TECHNICAL SPECIFICATIONS

Product reference: 04276

Product: Juice&Live 2500 EasyClean

Voltage: 220-240 V\~

Frequency: 50/60 Hz

Rated power: 200 W

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or cells must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Img. 2

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys./Obr. 1

ON / OFF

REV.

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

②

Fig./Img./Abb./Afb./Rys./Obr. 4
