USER MANUAL WFW97HEXL BAUKNECHT

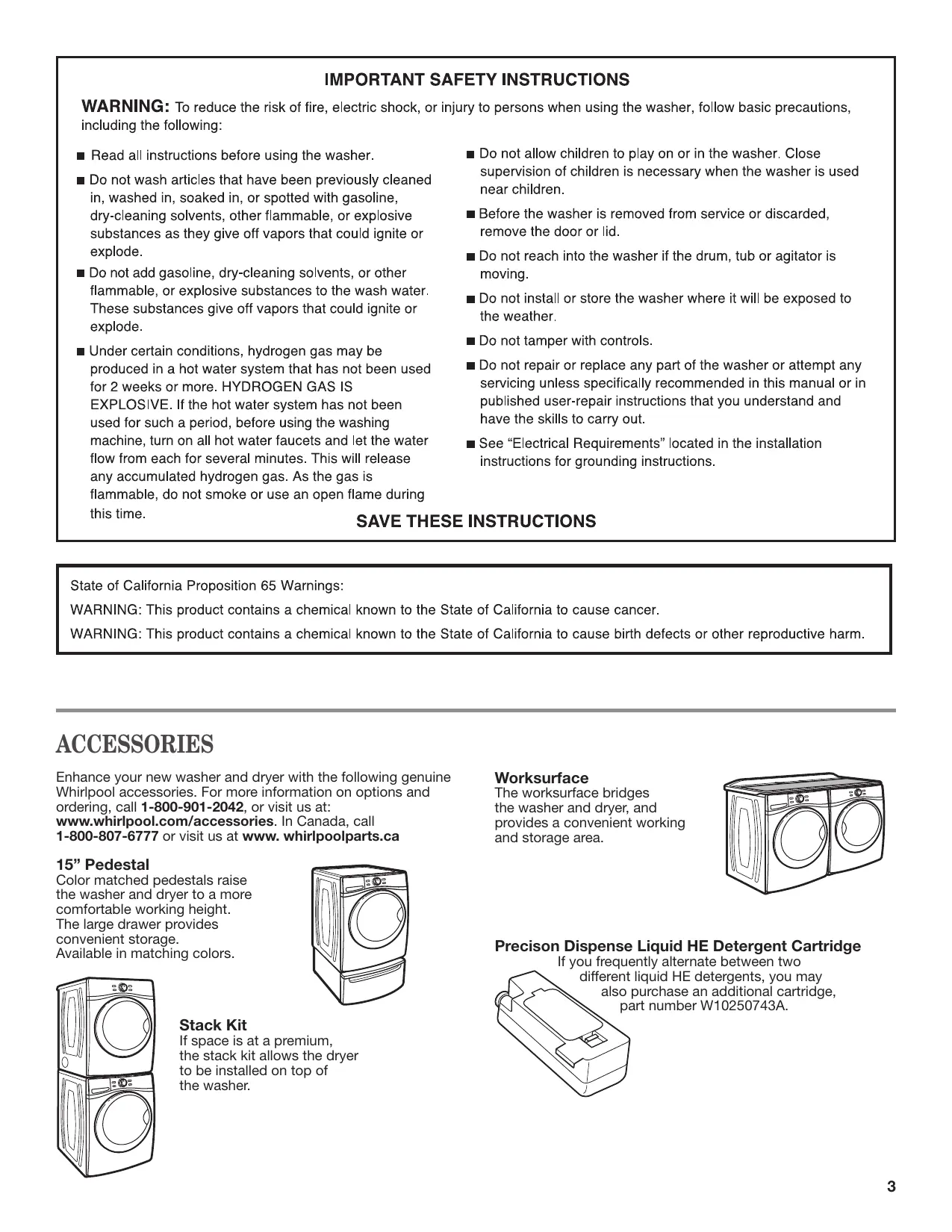

ACCESSORIES Enhance your new washer and dryer with the following genuine Whirlpool accessories. For more information on options and ordering, call 1-800-901-2042, or visit us at: www.whirlpool.com/accessories. In Canada, call 1-800-807-6777 or visit us at www. whirlpoolparts.ca Worksurface The worksurface bridges the washer and dryer, and provides a convenient working and storage area. 15” Pedestal Color matched pedestals raise the washer and dryer to a more comfortable working height. The large drawer provides convenient storage. Available in matching colors. Precison Dispense Liquid HE Detergent Cartridge If you frequently alternate between two different liquid HE detergents, you may also purchase an additional cartridge, part number W10250743A. Stack Kit If space is at a premium, the stack kit allows the dryer to be installed on top of the washer.

Estimated Cycle Time Normal/Casual

min Press and hold START/PAUSE to begin cycle. Warm/Cold Temperature

A Precision Dispense Ultra liquid HE detergent cartridge B Powdered HE detergent compartment C Liquid fabric softener D Chlorine bleach

POWER Press to turn the washer on and off. Press to stop/cancel a cycle at any time. NOTE: When the washer is turned on for the first time after being plugged in or after a power outage, please allow a minute or so for the washer display to start up.

Press and hold to start a cycle, or press once while a cycle is in process to pause it for up to 5 minutes. This button is used to adjust the dispenser settings, including adjustments for detergent concentration and water hardness level. IMPORTANT: When using the dispenser cartridge with concentrated liquid detergent, be sure to change the detergent concentration settings in the control if the detergent used is different than factory preset of 2x concentration. This screen will display current options and settings, cycle information, and estimated time remaining. You can also use the navigation buttons below and on either side of the screen to access helpful laundry and troubleshooting tips, as well as other information.

SYSTEM SETTINGS The System Settings button allows you to adjust the LCD display settings, including brightness and other preferences. Under System Settings, you can access the following functions: Control Lock Allows you to disable all controls except the power button to avoid unauthorized use or changes to running cycles. End of Cycle Adjusts the volume of the End of Cycle signal, or turns it off. Button Sound Adjusts the volume of the button sounds, or turns them off. Brightness Adjusts the brightness of the LCD screen. Language Displays information in English, French, or Spanish. Themes Select between two different display color and background themes.

LCD CONTROLS Use these buttons to select options displayed in the LCD screen, and to navigate through options. BACK Press the BACK button to go back to the previous screen without accepting any changes made on the current screen. Press and hold for 1 second to return to the start-up screen for the selected cycle.

10 PRECISION DISPENSE ULTRA DRAWER

The Precision Dispense Ultra drawer gives you the convenience of automatically adding HE detergent, liquid chlorine bleach, and fabric softener to the wash load at the proper time. See “Using the Dispenser” for information on using the dispenser drawer. A Precision Dispense Ultra Cartridge Each dispenser cartridge holds up to 20 oz. of liquid HE detergent, enough for up to 36† loads, depending on cycle and detergent concentration. The cartridge fits into compartment B of the dispenser drawer for convenient loading. n Change detergent concentration setting if detergent used is different than factory preset of 2x concentration. n Change water hardness setting if desired level is different than factory preset of normal. MORE INFO Press to get more information on a setting or option. Press MORE INFO again to return to the previous screen. and BUTTONS Button Press the button when the arrow is lit to go back to the previous set of options or settings. Button Many screens have more than 4 selections. Press the button when the arrow is lit to show additional options or settings.

compartment This compartment holds powdered HE detergent for a single load.

C Liquid fabric softener compartment ECOBOOST Automatically dilutes and dispenses liquid fabric softener at the optimum time in the cycle. n Use only liquid fabric softener in this dispenser. Press to activate the EcoBoost option. The EcoBoost™ option provides additional energy savings through reduced hot water usage and maintains cleaning performance by lengthening the wash time on some cycles. NOTE: Press and hold the EcoBoost button for 3 seconds to turn the drum light on or off. D Liquid chlorine bleach compartment Automatically dilutes and dispenses liquid chlorine bleach at the optimum time during the first rinse after the wash cycle. This compartment cannot dilute powdered bleach.

Use your Wash Cycle Knob to select available cycles on your washer. Turn the knob to select a cycle for your laundry load. See “Cycle Guide” for detailed descriptions of cycles. FANFRESH Select the FanFresh option to periodically tumble the load after the end of the cycle for up to 16 hours while the integrated fan removes moisture from the washer. FanFresh may also be started immediately without running a cycle first by pressing the power button then the FanFresh button and following the on-screen instructions. When to use FanFresh:

• When you can’t remove the load from the washer right away to help avoid musty odor build-up.
• Combined with the Quick Wash cycle, you can wash and dry a small load of many common lightweight items overnight to save time and energy. Press and Warm/Cold Temperature B Powdered High Efficiency “HE” detergent SELECTION BUTTONS Use the four selection buttons to choose options or settings displayed on the LCD screen. Normal/Ca Choosing the Right Detergent Use only High Efficiency detergents. The package will be marked “HE” or “High Efficiency.” Low-water washing creates excessive sudsing with a regular non-HE detergent. Using regular detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component failure and, over time, build-up of mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use. Use only High Efficiency (HE) detergent. The number of loads will vary, depending on detergent concentration, load size, cycle used, and soil level. The maximum capacity of up to 36 loads requires use of 6x concentration detergent.

For additional cycle details and options, refer to the LCD display. Settings and options shown in bold are default settings for that cycle. For best performance, not all settings are available with each cycle, and some options cannot be used together. Items to wash: Cycle: Wash/Rinse Temperature: Spin Speed: Soil Level: Available Options: Cycle Details: Sturdy colorfast Heavy Sanitize†/Cold Extra High Heavy fabrics and heavily Duty Hot/Cold High Normal soiled garments Warm/Warm Medium Light Warm/Cold Low Cool/Cold No Spin Cold/Cold

Extra Rinse Deep Clean* Prewash Presoak EcoBoost FanFresh Delay Start High-speed tumbling and a high-speed final spin help provide optimal cleaning and reduce drying times. Normally soiled cottons, Normal/ Hot/Cold Extra High Heavy linens, sheets, and Casual Warm/Cold High Normal mixed garment loads Cool/Cold Medium Light Cold/Cold No Spin

Extra Rinse Deep Clean* Prewash Presoak FanFresh Delay Start This cycle combines medium-speed tumbling, a high-speed spin, and a load cooling process to reduce wrinkling. This cycle is designed to provide the most energy efficiency. Heavily soiled white Whitest Sanitize†/Cold Extra High Heavy fabrics Whites Hot/Cold High Normal Warm/Warm Medium Light Warm/Cold Low Cool/Cold No Spin Cold/Cold

Extra Rinse Deep Clean* Prewash Presoak EcoBoost FanFresh Delay Start Hot wash temperatures ensure liquid chlorine bleach action. An Extra Rinse helps remove any bleach residue in clothes. Blankets, comforters Extra Rinse Deep Clean* Prewash Presoak EcoBoost FanFresh Delay Start Uses an initial soak to completely saturate the load, followed by medium wash speeds and a medium-speed spin to maintain load balance. Bulky Sanitize†/Cold High Heavy Items Hot/Cold Medium Normal Warm/Warm Low Light Warm/Cold Extra Low Cool/Cold No Spin Cold/Cold Lightly soiled cotton Quick Wash Hot/Cold or synthetic garments Warm/Cold Cool/Cold Cold/Cold

Extra High Heavy Extra Rinse High Normal FanFresh Medium Light Delay Start Low Extra Low For small loads (3-4 items) needed quickly. This cycle combines high-speed tumbling, a shortened wash time, and a high-speed spin for reduced drying times. Sheer fabrics Delicate Warm/Warm and lingerie Warm/Cold Cool/Cold Cold/Cold

Extra High Normal Extra Rinse High Light FanFresh Medium Delay Start Low Extra Low No Spin This cycle combines low-speed tumbling and low-speed spin for gentle fabric care. Small loads of items Hand Wash Warm/Warm labeled “handwash”: Warm/Cold undergarments, Cool/Cold bras, silks Cold/Cold

Extra High Normal Extra Rinse High Light FanFresh Medium Delay Start Low Extra Low No Spin Similar to the way garments are hand-washed in a sink, this cycle combines periods of low-speed tumbling and soaking. NOTE: Use mesh garment bags as needed.

• Deep Clean with Steam adds steam to assist in removing tough stains. Load Size Recommendations For best results, follow the load size recommendations noted for each cycle. For cycles without a load size recommendation, follow on-screen instructions or see the Cycle Details. Small load: Fill the washer drum with 3-4 items, not more than 1/4 full. Medium load: Fill the washer drum up to about 1/2 full. Large load: Fill the washer drum up to about 3/4 full. Extra-large load: Fill the washer drum, but make sure clothes can tumble freely. For best results, avoid packing tightly.

For additional cycle details and options, refer to the LCD display. Settings and options shown in bold are default settings for that cycle. For best performance, not all settings are available with each cycle, and some options cannot be used together. Items to wash: Cycle: Wash/Rinse Temperature: Spin Speed: Soil Level: Available Options: Cycle Details: Swimwear, items Rinse/Drain, Warm/Warm Extra High N/A Fan Fresh that need rinsing only & Spin Warm/Cold Medium High Low Cool/Cold Extra Low

The default cycle is Rinse, Drain, & Spin. This cycle adds water, then uses high-speed tumbling and an extra high-speed spin. For some fabrics, you may wish to set the spin speed to a lower setting. Extra High N/A Fan Fresh High Medium Low Extra Low No Spin Select “None” for rinses. Use this cycle to spin excess water out of a load. This cycle drains the water and spins at an extra-high speed. speed. Spin speed can be set to a lower setting. Wet load of clothes Rinse/Drain, N/A & Spin

Custom My Cycle Custom

Save your favorite cycle/setting combinations. See the My Cycle and Specialty Cycle section of this guide. No clothes in washer Clean Washer

Make sure no clothes are in washer. Use monthly with Affresh to clean the interior of the washer. Cottons, linens Allergen†† Sanitize†/Cold Extra High Heavy exposed to possible Hot/Cold High Normal allergens. Medium Light

Extra Rinse Uses more water to flush out Deep Clean allergens such as dust mites and pet Prewash dander from normally-soiled items. Presoak FanFresh Jeans and denims Jeans Warm/Cold Cool/Cold Cold/Cold

Extra Rinse Prewash Presoak FanFresh Medium Heavy Low Normal Extra Low Light No Spin Blankets/Comforters Specialty Varies by cycle. See the My Cycle and Specialty Pillows Cycles Cycle section of this guide. Sheets/Linens Wool Sweaters Kidswear Sportswear Intimates Business Wear Cycle combines low-speed tumbling and medium-speed spins to provide gentle care for jeans and denims. Specialty Cycles provide custom cycles for tackling common household cleaning tasks. Refer to the on-screen description for the individual cycles for additional details and available settings. † Sanitize Cycles certified by NSF International, an independent, third party testing and certification organization are those with the sanitize temperature selection available. The certification verified that these cycles reduce 99.9% of bacteria typically found on clothing, bedding, and towels. There is no carryover of bacteria between loads after the cycle is complete. Only cycles with sanitize wash temperature selected have been designed to meet the requirements of NSF Protocol P172 for Sanitizing Effectiveness. †† Allergen Allergen cycle certified by NSF International, an independent, third party testing and certification organization. The certification verified that this cycle reduced tested allergens by at least 95.0% and maintained the water temperature necessary to kill dust mites. Only the allergen cycle has been designed to meet the requirements of NSF Protocol P351 for Allergen Reduction Performance effectiveness.

First wash cycle without laundry Before washing clothes for the first time, fill the HE liquid dispenser cartridge and install in the dispenser drawer. Choose the QUICK WASH cycle and run it without clothes. Use only HE detergent. This initial cycle serves to ensure the interior is clean and the dispenser drawer is ready for use before washing clothes. Choosing the Right Detergent Use only High Efficiency detergents. The package will be marked “HE” or “High Efficiency.” Low-water washing creates excessive sudsing with a regular non-HE detergent. Using regular detergent will likely result in longer cycle times and reduced rinsing performance. It may also result in component failure and, over time, build-up of mold or mildew. HE detergents are made to produce the right amount of suds for the best performance. Follow the manufacturer’s instructions to determine the amount of detergent to use. IMPORTANT: n Empty pockets. Loose change, buttons, or any small object can plug pumps and may require a service call. n Close zippers, fasten hooks, tie strings and sashes, and remove non-washable trim and ornaments. n Mend rips and tears to avoid further damage to items during washing. n Turn knits inside out to prevent pilling. Separate lint-takers from lint-givers. Synthetics, knits, and corduroy fabrics will pick up lint from towels, rugs, and chenille fabrics. n Do not dry garments if stains remain after washing, because heat can set stains into fabric. n Always read and follow fabric care labels and laundry product instructions. Improper usage may cause damage to your garments.

2. Load laundry into washer

Use only High Efficiency (HE) detergent.

1. Sort and prepare your laundry

Sort items by recommended cycle, water temperature, and colorfastness. Separate heavily soiled items from lightly soiled. Separate delicate items from sturdy fabrics. Treat stains promptly and check for colorfastness by testing stain remover products on an inside seam.

Open the washer door. If desired, add Oxi product or color-safe bleach to the basket before loading clothes. Place a load of sorted clothes loosely in the washer. Items need to move freely for best cleaning and to reduce wrinkling and tangling. Close the washer door by pushing it firmly until the latch clicks. n Depending on load type and cycle, the washer can be fully loaded, but not tightly packed. Washer door should close easily. See “Cycle Guide” for loading suggestions. n Mix large and small items and avoid washing single items. Load evenly. n Wash small items in mesh garment bags. For multiple items, use more than one bag and fill bags equally. Using the Precision Dispense Dispenser To use the dispenser drawer:

1. Open the dispenser drawer.

2. Add laundry products as described in steps 3–6.

3. Slowly close the dispenser drawer. Make sure it is

completely closed. NOTE: A small amount of water may remain in the dispensers from the previous wash cycle. This is normal.

3. A dd HE detergent to dispenser

Powdered HE detergent single-load compartment Precision Dispense Ultra cartridge Tab Powdered HE detergent compartment Use only HE High Efficiency liquid detergents. The dispenser cartridge will hold about 20 oz. (590 ml) of HE liquid detergent, or enough for up to 36 loads†. To Fill: Pull back on the tab and lift the fill door. Fill to the “MAX” line with HE liquid detergent. Close fill door. It will click into place. Lift out the cartridge and set aside. Place a measured amount of detergent in the powdered HE detergent compartment. Use only High Efficiency (HE) detergent. Use only High Efficiency (HE) detergent. To Install the Dispenser Cartridge:

1. Pull out the dispenser drawer.

2. Insert the dispenser cartridge completely in detergent

compartment as shown. It should click into position.

3. Slowly slide the dispenser drawer in until it is completely

closed. The washer will automatically detect the dispenser cartridge.

4. Adjust the detergent concentration and water hardness

settings, if needed. Default settings are 2x detergent concentration and normal water hardness. If the detergent concentration is not listed on the package, see “About Detergent Concentration” to calculate the concentration. To Adjust Dispenser Settings:

1. Press PRECISION DISPENSE.

2. Select the desired settings using the

LCD control buttons. Powdered detergent: Add directly to the compartment. IMPORTANT:

• Do not use liquid detergents in the single-load compartment; liquid detergents may seep out of the detergent compartment before the main wash begins.
• If you are using the Delay Wash option, use of the dispenser cartridge is recommended, or powdered detergent may be used in the HE powdered detergent compartment. NOTE: n T he dispenser cartridge should be rinsed out when changing detergents or when the washer will not be used for extended periods. For instructions on cleaning the dispenser cartridge, see “Washer Maintenance”. The number of loads will vary, depending on detergent concentration, load size, cycle used, and soil level. The maximum capacity of up to 36 loads requires use of 6x concentration detergent.

4. Add fabric softener to dispenser

(if desired) 6.Add Oxi or color safe bleach (if desired) Liquid fabric softener compartment Pour a measured amount of liquid fabric softener into liquid fabric softener compartment. Always follow manufacturer’s directions for correct amount of fabric softener based on your load size. Fabric softener is always dispensed in the last rinse, even if Extra Rinse is selected. IMPORTANT: Do not overfill, dilute, or use more than 1/4 cup (60 mL) of fabric softener. Do not fill past the MAX line. Overfilling dispenser will cause fabric softener to immediately dispense into washer. n Do not spill or drip any fabric softener onto the clothes. n Do not use liquid fabric softener dispenser balls in this washer. They will not dispense correctly.

5. Add liquid chlorine bleach

to dispenser (if desired) Oxi-type boosters or color-safe bleach can be added to the drum prior to adding laundry.

7. Press POWER to turn on washer

Slowly close the Precision Dispense drawer. Make sure the drawer is closed completely, then press POWER to turn on the washer.

Liquid chlorine bleach compartment Add liquid chlorine bleach to the bleach compartment. Do not overfill, dilute, or use more than 2/3 cup (165 mL). Do not use color-safe bleach or Oxi in the same cycle with liquid chlorine bleach. n Always measure liquid chlorine bleach. Use a measuring cup with a pour spout; do not guess. n Do not fill beyond the “MAX” level. Overfilling could cause garment damage. n Do not add color-safe bleach or oxi-product to this dispenser. Add Oxi product or color-safe bleach to the basket before loading clothes.

Turn cycle knob to choose your wash cycle. The cycle name and options will appear in the display. See “Cycle Guide” for details on cycle features, or press More Info. Not all options and settings are available on all cycles. When selecting My Cycle or Specialty Cycles, refer to the LCD display for additional options and settings. For more information on using My Cycle and Specialty Cycles, see “My Cycle and Specialty Cycles”.

9. Adjust settings, if desired

Estimated Cycle Time Normal/Casual

11. Setting a delayed start

Estimated Estimated Cycle Time Cycle Time min Normal/Casual min Delay Start: 6 hours Press and hold START/PAUSE to begin cycle. Off 20 hours Use the arrows to increase or decrease the delay start time Warm/Cold Temperature Extra High Spin Speed Normal Soil Level

Off Stain Treat The display will show the default settings for the selected cycle. If desired, press the button beneath each setting to adjust the Temperature, Soil Level, and Spin Speed, and to add options such as an additional Rinse. Use the and arrow keys to page to additional options. For more information on a cycle, press MORE INFO. NOTE: Not all settings are available on all cycles. See “Cycle Guide” for available settings.

10. Select any additional options

If you do not want to begin a cycle immediately, you may choose the DELAY START option. This will delay the start of the wash cycle by up to 20 hours. To set a delayed Start:

1. Select the Delay Start option using the LCD control buttons.

Use the buttons to adjust the delay time up or down.

2. Press START/PAUSE to set the delay. The delay countdown

has started when the START/PAUSE light stops blinking. IMPORTANT: If you are using the Delay Wash option, use of the dispenser cartridge is recommended, or powdered detergent may be used in the HE powdered detergent compartment.

12. Press and hold START/PAUSE

to begin wash cycle Press the FanFresh button or EcoBoost button to add these options to the selected cycle. If FanFresh is selected, the washer will automatically activate the vent fan and tumble the load periodically for up to 16 hours. This is useful if you are unable to remove a load immediately after the cycle has finished. The EcoBoost™ option provides additional energy savings through reduced hot water usage and maintains cleaning performance by lengthening the wash time on some cycles. NOTE: Not all options are available with all cycles. Press and hold the START/PAUSE button to start the wash cycle. To pause a cycle in progress, press the START/PAUSE button once, then press and hold again to continue the cycle. To cancel a cycle, press the POWER button. Once you press and hold START/PAUSE, you will hear the door lock, unlock, and lock again. The washer door will remain locked during the wash cycle. Unlocking the door to add garments: If you need to open the door to add 1 or 2 missed garments, you may do so while “Door Locked - To unlock and add a garment, press START/Pause button” is displayed. Press START/PAUSE once; the door will unlock once the washer movement has stopped. This may take several minutes. Then close door and press START/PAUSE again to restart the cycle.

after cycle is finished Promptly remove garments after cycle has completed to avoid odor and rusting of metal objects on garments. When unloading garments, pull back the door seal and check for small items between the tub and the basket. If you will be unable to remove the load promptly, use the FanFresh™ option. If the FanFresh™ option is selected, the washer will automatically activate the fan and tumble the load periodically for up to 16 hours. NOTE: n After any wash cycle is completed, the door must be opened and then closed before a new cycle can begin. n A small amount of water may remain in the dispensers after the wash cycle is complete. This is normal. n This washer has a tight seal to avoid water leaks. To avoid odors, leave the door open to allow the washer to dry between uses.

MY CYCLE AND SPECIALTY CYCLES

MY CYCLE You may store up to 7 frequently used custom cycles in My Cycle for quick access. To save a custom cycle:

1. Select My Cycle with the Wash Cycle knob.

2. Follow the on-screen prompts.

If you try to add another custom cycle and all 7 custom storage spaces are filled, you will need to delete a saved custom cycle before saving the new one. To retrieve a custom cycle using My Cycle:

1. Select My Cycle with the Wash Cycle knob.

2. Use the and arrow keys to scroll through the saved

custom cycles until the desired cycle is displayed.

3. Press the selector button under the desired cycle.

SPECIALTY CYCLES Specialty cycles are designed for a specific purpose, such as washing pillows or comforters. To select a specialty cycle, turn the Wash Cycle knob to Specialty, then select the desired cycle from the display screen using the selection buttons. Specialty Cycles Blankets/ Comforter Pillows Sheets/Linens Wool Sweaters Specialty Cycles include: Blankets/Comforters – Cotton Blanket Blankets/Comforters – Synthetic Blanket Blankets/Comforters – Comforter Pillows – Feather Pillows – Fiberfill Pillows – Decorative Sheets/Linens – Cotton Sheets/Linens – Synthetics Wool Sweaters Kidswear Sportswear – Cotton Sportswear – Performance Intimates Business Wear

CLEANING YOUR WASHER

Keep your washer as clean and fresh as your clothes. To keep washer interior odor-free, follow this recommended cleaning procedure at least once a month:

1. Make sure laundry drum is empty.

2. Using recommended AFFRESH® washer cleaner, add

one tablet to washer basket If using liquid chlorine bleach, add 1 cup (250 mL) to liquid chlorine bleach dispenser. IMPORTANT: Do not add detergent to CLEAN WASHER cycle. Do not use more than recommended amount of bleach to avoid damaging product over time.

3. Close washer door.

5. Select CLEAN WASHER with Affresh™ cycle.

6. Press and hold START/PAUSE.

NOTE: The basket will rotate, then the door will unlock, lock again, and then the cycle will continue. The washer will add some water, and the basket will rotate while the washer runs a short sensing cycle. This will take approximately 3 minutes.

7. The cycle will determine whether clothing or other items

are in the washer. If no items are detected in the washer, it will proceed to Step 8. If any items are detected in the washer, a reminder will be displayed on the screen and the door will unlock. Open and remove any garments in the wash drum. Press POWER to cancel the error message. Then repeat steps 3–6 to start the cycle again.

8. Once the cycle has started, allow it to finish. If START/

PAUSE or POWER is pressed before the cycle is complete, it may take up to 10 minutes for the door to unlock.

9. After the cycle has ended, leave the door open slightly,

to allow for better ventilation and drying of washer interior. To clean exterior:

1. Use a soft, damp cloth or sponge to wipe up any spills.

2. Use mild soap and water if needed.

IMPORTANT: To avoid damaging washer finish, do not use abrasive products.

CLEANING THE PRECISION DISPENSE

ULTRA CARTRIDGE It is recommended that you rinse out the Precision Dispense Ultra cartridge when changing detergent types or concentrations, or when the washer will not be used for an extended period.

1. Pull dispenser out until it stops.

2. Lift out the Precision Dispense Ultra cartridge.

3. Lift cover on cartridge and flush interior thoroughly with

4. Allow to air dry or wipe with a clean, soft towel.

IMPORTANT: Cartridge is not dishwasher safe.

CLEANING THE DISPENSER

You may find laundry product residue leftover in your dispenser compartments. To remove residue, follow this recommended cleaning procedure:

1. Pull dispenser drawer out until it stops.

2. Press down on the release tab and pull straight out to

remove the dispenser.

2. Inspect the gray colored seal between the door opening

and the basket for stained areas. Pull back the seal to inspect all areas under the seal and to check for foreign objects. Seal

3. Lift off cover panel by

pulling straight up.

4. Wash dispenser and

cover panel in warm, soapy water, using a mild detergent.

5. Rinse with warm water.

6. Air dry or wipe with a

clean towel, slide cover panel back onto posts on dispenser.

7. Align edges of dispenser

with guides in washer, then slide dispenser back into slot. IMPORTANT: Dispenser is not dishwasher safe.

3. If stained areas are found, wipe down these areas of the

seal, using the procedure that follows. a) Mix a dilute solution, using 3/4 cup (177 mL) of liquid chlorine bleach, and 1 gal. (3.8 L) of warm tap water. b) Wipe the seal area with the dilute solution, using a damp cloth. c) Let stand 5 minutes. d) Wipe down area thoroughly with a dry cloth and let the washer interior air dry with door open. IMPORTANT: Wear rubber gloves when cleaning for prolonged periods. n Refer to the bleach manufacturer’s instructions for proper use.

NON-USE AND VACATION CARE

Operate your washer only when you are home. If moving, or not using your washer for a period of time, follow these steps:

1. Unplug or disconnect power to washer.

2. Turn off water supply to washer to avoid flooding due

to water pressure surges.

REINSTALLING/USING WASHER AGAIN

To reinstall washer after non-use, vacation, winter storage, or moving:

1. Refer to Installation Instructions to locate, level, and

2. Before using again, run washer through the following

recommended procedure: To use washer again:

1. Flush water pipes and hoses. Reconnect water inlet

hoses. Turn on both water faucets. IMPORTANT: To avoid damage, install and store washer where it will not freeze. Because some water may stay in hoses, freezing can damage washer. If storing or moving during freezing weather, winterize your washer. To winterize washer:

1. Shut off both water faucets, disconnect and drain water

2. Put 1 qt. (1 L) of R.V.-type antifreeze in basket and run

washer on RINSE AND SPIN cycle for about 30 seconds to mix antifreeze and remaining water.

3. Unplug washer or disconnect power.

IMPORTANT: To reduce risk of hose failure, replace inlet hoses every five years and periodically inspect for kinks, cuts, wear or water leaks. HELPFUL TIP: When replacing your inlet hoses, mark replacement date on label with a permanent marker.

TRANSPORTING YOUR WASHER

1. Shut off both water faucets. Disconnect and drain water

2. If washer will be moved during freezing weather, follow

WINTER STORAGE CARE directions before moving.

3. Disconnect drain hose from drain system and from back

4. Unplug power cord.

5. Place inlet hoses and drain hose inside washer basket.

6. Bundle power cord with a rubber band or cable tie to

keep it from hanging onto the ground. IMPORTANT: Call for service to install new transport bolts. Do not reuse transport bolts. Washer must be transported in the upright position. To avoid structural damage to your washer, it must be properly set up for relocation by a certified technician.

2. Plug in washer or reconnect power.

3. Run washer through BULKY ITEMS cycle to clean

washer and remove antifreeze, if used. Use only HE detergent. Use half the manufacturer’s recommended amount for a medium-size load.

ABOUT DETERGENT CONCENTRATION

Today’s liquid HE detergents are concentrated. Most brands of concentrated HE detergent will show the level of concentration on the bottle. If so, simply set the concentration level in the Precision Dispense menu to match the level shown on the bottle. However, if the detergent bottle does not give the concentration, it can be easily calculated. Just divide the package size in fluid ounces by the number of loads. Then refer to the chart below to find the concentration. If you do not get your desired cleaning results, try using a lower concentration number. If you have excess suds, try using a higher concentration number. Concentration

Number of ounces ÷ number of loads >2.5

USING THE BUILT-IN TROUBLESHOOTING FEATURE

Est. Cycle Time Normal/Casual

min Press and hold START/PAUSE to begin cycle. Warm/Cold Temperature Extra High Spin Speed Normal Soil Level Off Stain Treat With the washer on, press MORE INFO to access the built-in TROUBLESHOOTING feature. Use the LCD control buttons to select TROUBLESHOOTING. Then use the LCD control buttons to select the TROUBLESHOOTING topic. The and buttons can be used to advance through the different options. TROUBLESHOOTING First try the solutions suggested here or visit our website at www.whirlpool.com/help for assistance and to possibly avoid a service call. If you experience Solution Possible Causes Washer Operation Washer will not run Door not closed completely. Make sure the washer door is closed completely. START/PAUSE button not pressed firmly or held long enough. Press and hold the START/PAUSE button 2-5 seconds. Household fuse is blown or circuit breaker has tripped. Check that the household fuse is intact and tight, or that the circuit breaker has not tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. Incorrect power supply. This washer requires a 120-volt power supply. Check with a qualified electrician. Wrong type of fuse. Use a time-delay fuse. Fill hoses not attached tightly. Tighten fill-hose connections. Fill hose washers missing. Make sure all 4 fill hose washers are installed correctly. Drain hose connection not correct. Properly secure drain hose to drainpipe or laundry tub. Refer to the Installation Instructions for additional information. Water Leaks Water leaks Do not place tape over drain opening. Check household plumbing for leaks or clogged sink or drain. Water can backup out of a clogged sink or drainpipe. Check all household plumbing for leaks (laundry tubs, drain pipe, water pipes, and faucets.) Door seal is dirty. Clean the door seal. See “Washer Maintenance.” Not using HE detergent or using too much HE detergent. Use only HE High Efficiency detergents and follow the manufacturer’s recommendations. Dispenser is clogged. Remove and clean the dispenser. See “Washer Maintenance.” Refer to the built-in TROUBLESHOOTING feature on the washer. See the instructions above to access the built-in TROUBLESHOOTING menus using the MORE INFO button. Other Issues Other performance or operation issues

LIMITED WARRANTY For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased. Service must be provided by a Whirlpool designated service company. YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover: 1. Replacement parts or repair labor if this major appliance is used for other than normal, single-family household use or when it is used in a manner that is inconsistent to published user or operator instructions and/or installation instructions. 2. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing. 3. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage. 4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of products not approved by Whirlpool. 5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.

6. Pick up and delivery. This major appliance is intended to be repaired in your home.

7. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.

8. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available. 9. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with Whirlpool’s published installation instructions. 10. Replacement parts or repair labor on major appliances with original model/serial numbers that have been removed, altered, or cannot be easily determined.

DISCLAIMER OF IMPLIED WARRANTIES

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. LIMITATION OF REMEDIES; EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province. If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies. If you think you need repair service, first see the “Troubleshooting” section of the Use & Care Guide. If you are unable to resolve the problem after checking “Troubleshooting,” additional help can be found by checking the “Assistance or Service” section or by calling . In Canada, call 7/08 Whirlpool. In the U.S.A., call Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service. Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Normal/Ca Press an Warm/Cold Temperature

Est. Cycle Time Normal/Casual

WHIRLPOOL CORPORATION

Before calling for assistance or service, please check “Troubleshooting” or visit www.whirlpool.com/help. It may save you the cost of a service call. If you still need help, follow the instructions below. When calling, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request. If you need replacement parts or to order accessories We recommend that you use only FSP® Factory Specified Parts. These parts will fit right and work right because they are made with the same precision used to build every new WHIRLPOOL® appliance. To locate FSP® replacement parts, assistance in your area, or accessories: Whirlpool Canada LP Customer eXperience Centre Whirlpool Corporation Customer eXperience Center 1-800-253-1301 www.whirlpool.com 1-800-807-6777 1-800-442-9991 (Accessories) www.whirlpool.ca www.whirlpool.com/accessories or call your nearest designated service center or refer to your Yellow Pages telephone directory. Our consultants provide assistance with In the U.S.A. N Features and specifications on our full line of appliances. N Installation information. N Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.). In the U.S.A. and Canada Use and maintenance procedures. N Accessory and repair parts sales. N Referrals to local dealers, repair parts distributors, and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States and Canada.

You can write with any questions or concerns at: Whirlpool Corporation Customer eXperience Centre Customer eXperience Center Whirlpool Canada LP 553 Benson Road Unit 200 - 6750 Century Ave. Benton Harbor, MI 49022-2692 Mississauga, ON L5N 0B7 Please include a daytime phone number in your correspondence.
