Brand	BAUKNECHT
Model	UXG7480VDS
Product type	Range hood
Installation type	Wall-mounted with external evacuation (round duct 10 in)
Width	76.2 cm (30 in)
Depth	30.5 cm (12 in)
Height (duct cover included)	Duct cover adds 30.5 cm (12 in) – total height varies with ceiling
Power supply	120 V, 60 Hz, 15 A, fuse-protected circuit
Exterior material	Stainless steel
Number of fan speeds	2 (low and high)
Lighting	2 halogen GU10 lamps, 35 W each
Grease filter type	Metallic, dishwasher-safe
Number of grease filters	2
Evacuation diameter	25.4 cm (10 in) round – metal duct required

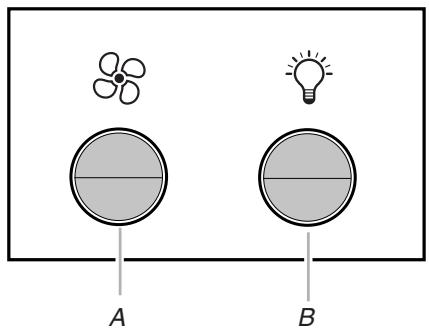

Control	Push buttons for fan and lighting
Safety device	Thermal protection – automatic shut-off in case of overheating
Included accessories	2 grease filters, metal connection duct, bulb removal tool

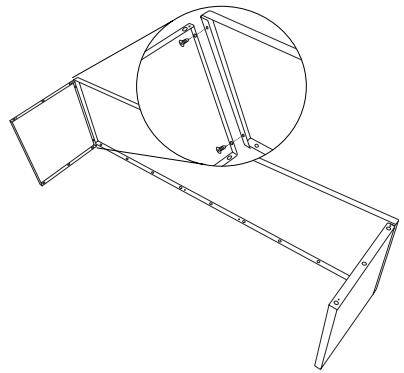

Optional accessories	Duct cover (ref. W10153151 for 30 in)
Warranty	1 year parts and labor

Frequently Asked Questions - UXG7480VDS BAUKNECHT

What is the minimum installation height between the cooktop and the BAUKNECHT UXG7480VDS hood?

The minimum distance between the cooking surface and the bottom of the hood is 76.2 cm (30 inches). The suggested maximum distance is 91.4 cm (36 inches).

How to clean the metal grease filters of the hood?

The metal grease filters can be washed in the dishwasher or in a hot detergent solution. Let them dry completely before reinstalling. Clean frequently to avoid grease buildup.

How to replace a defective halogen lamp?

Cut off the power. Wait for the bulb to cool. Use the provided removal tool to turn the bulb counterclockwise and remove it. Replace with a 120 V, 35 W GU10 halogen lamp. Ensure the pins are fully inserted, then turn clockwise to secure.

What are the duct requirements for evacuation?

Use only rigid metal duct of 10 inches (25.4 cm) diameter. The system must exhaust air outdoors. Limit the number of 90° elbows to a maximum of 3. The total equivalent length must not exceed 35 feet (10.7 m).

How to install the hood on a wall?

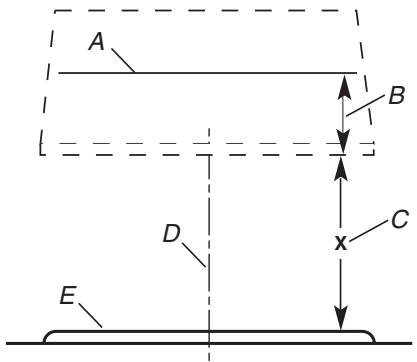

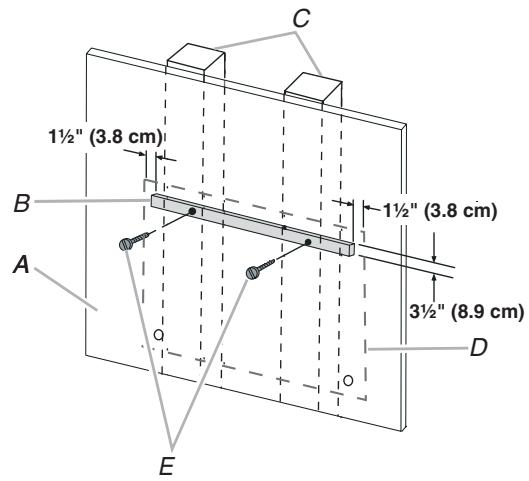

Attach a wood mounting bracket (1x4 inches) to wall studs at the appropriate height. Two people lift the hood and hang it on the bracket. Secure it with 4 #10 screws through the hood into the bracket and wall. Then connect the duct and electrical wiring according to instructions.

What to do if the hood stops suddenly during use?

This may be due to the thermal overload device. Turn off the hood with the on/off button. Wait about 60 minutes for it to cool down, then restart. If the problem persists, check the circuit breaker.

What types of cleaners are recommended for stainless steel?

Use a stainless steel cleaner and polish (ref. 31462B) or a mild liquid detergent. Avoid soap-filled scouring pads, abrasive cleaners, steel wool, and chlorine-containing products. Always rub in the direction of the grain.

Can the hood be used in recirculation mode?

No, the BAUKNECHT UXG7480VDS hood is factory-configured for external evacuation only (through roof or wall). It cannot operate in recirculation mode (charcoal filter not provided).

What is the required electrical power for installation?

The hood requires a 120 V, 60 Hz, 15 amp supply on a fuse-protected circuit. Wiring must be done by a qualified electrician in accordance with local codes.

How to remove and reinstall the grease filters?

Pull the filter forward using the handle, pivot the rear edge downward, then release the front edge. To reinstall, first insert the rear edge into the slot, then push the front edge until it clicks into place.

USER MANUAL UXG7480VDS BAUKNECHT

30" (76.2 CM), 36" (91.4 CM) AND 48" (121.9 CM) WALL-MOUNT CANOPY GRILL VENT HOOD

Suitable for Use in Damp Locations

Installation Instructions and Use & Care Guide

HOTTE DE CUISINIÈRE POUR MONTAGE MURAL 30" (76,2 CM), 36" (91,4 CM), ET 48" (121,9 CM)

Line drawing of a 3D kitchen chimney with two circular cutouts on top (no text or symbols)

IMPORTANT: READ AND SAVE THESE INSTRUCTIONS.

FOR RESIDENTIAL USE ONLY.

IMPORTANT : LIRE ET CONSERVER CES INSTRUCTIONS.

POUR UTILISATION RÉSIDENTIELLE UNIQUEMENT.

TABLE OF CONTENTS

GRILL VENT HOOD SAFETY....2

INSTALLATION REQUIREMENTS......4

Tools and Parts 4

Location Requirements....4

Venting Requirements....5

Electrical Requirements ....5

INSTALLATION INSTRUCTIONS....6

Prepare Location....6

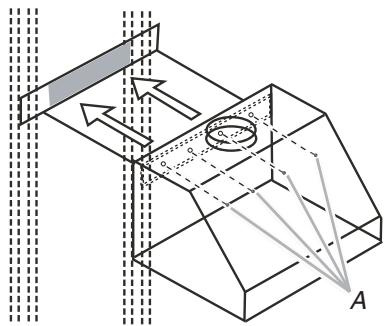

Install Grill Vent Hood....7

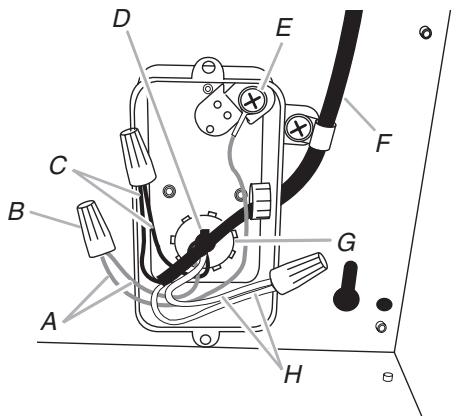

Make Electrical Connection....7

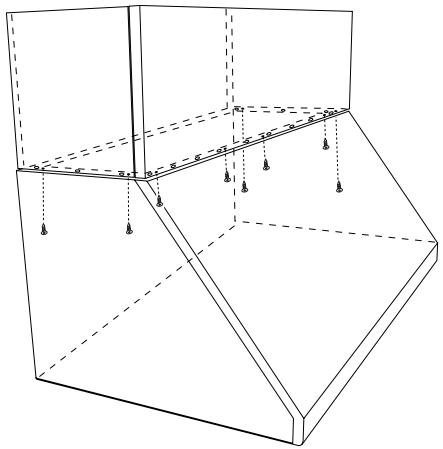

Install Duct Cover 8

Reinstall Grease Filters 8

Complete Installation 8

GRILL VENT HOOD USE 9

GRILL VENT HOOD CARE....9

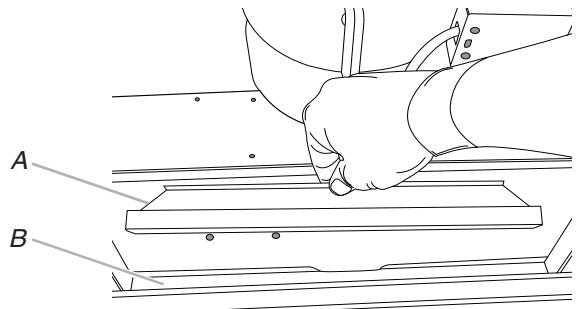

Cleaning....9

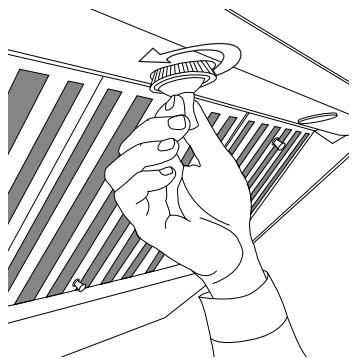

Replacing a Halogen Lamp....10

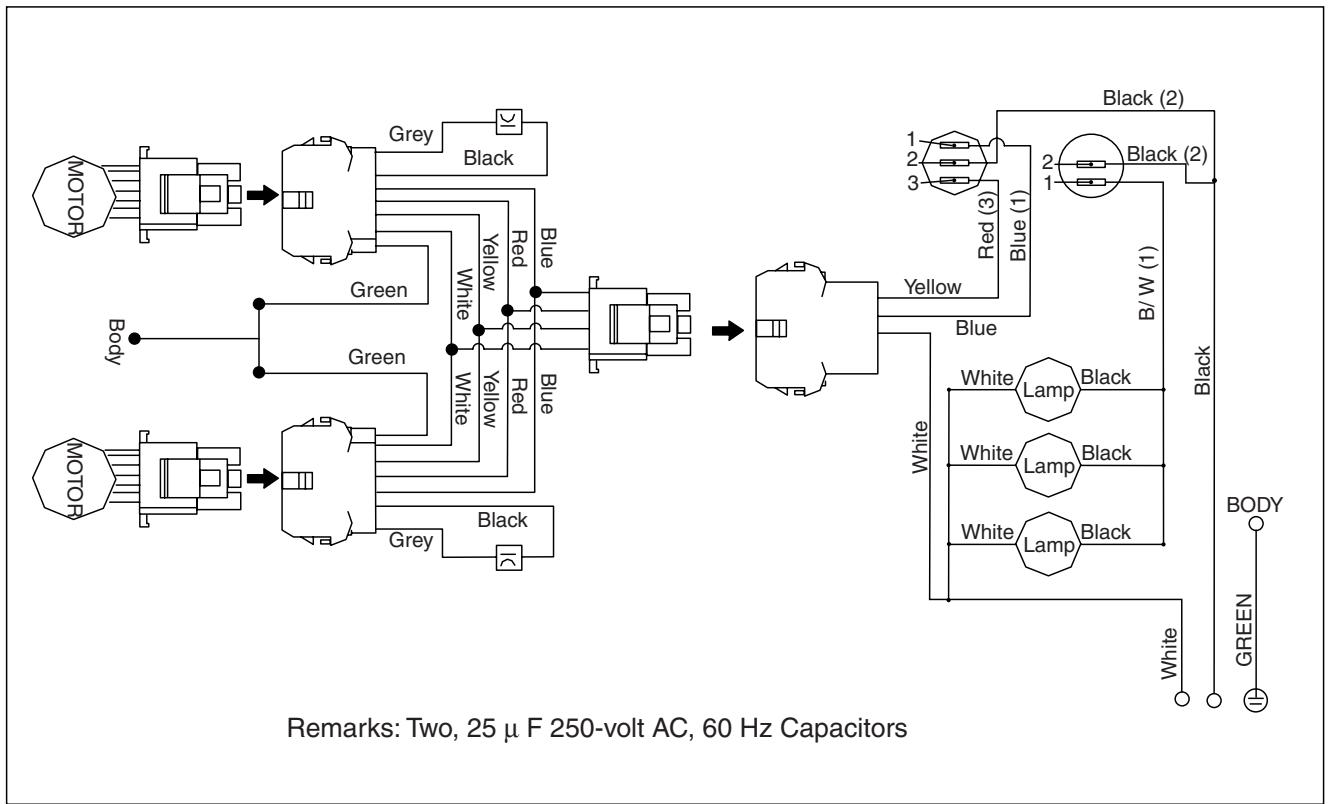

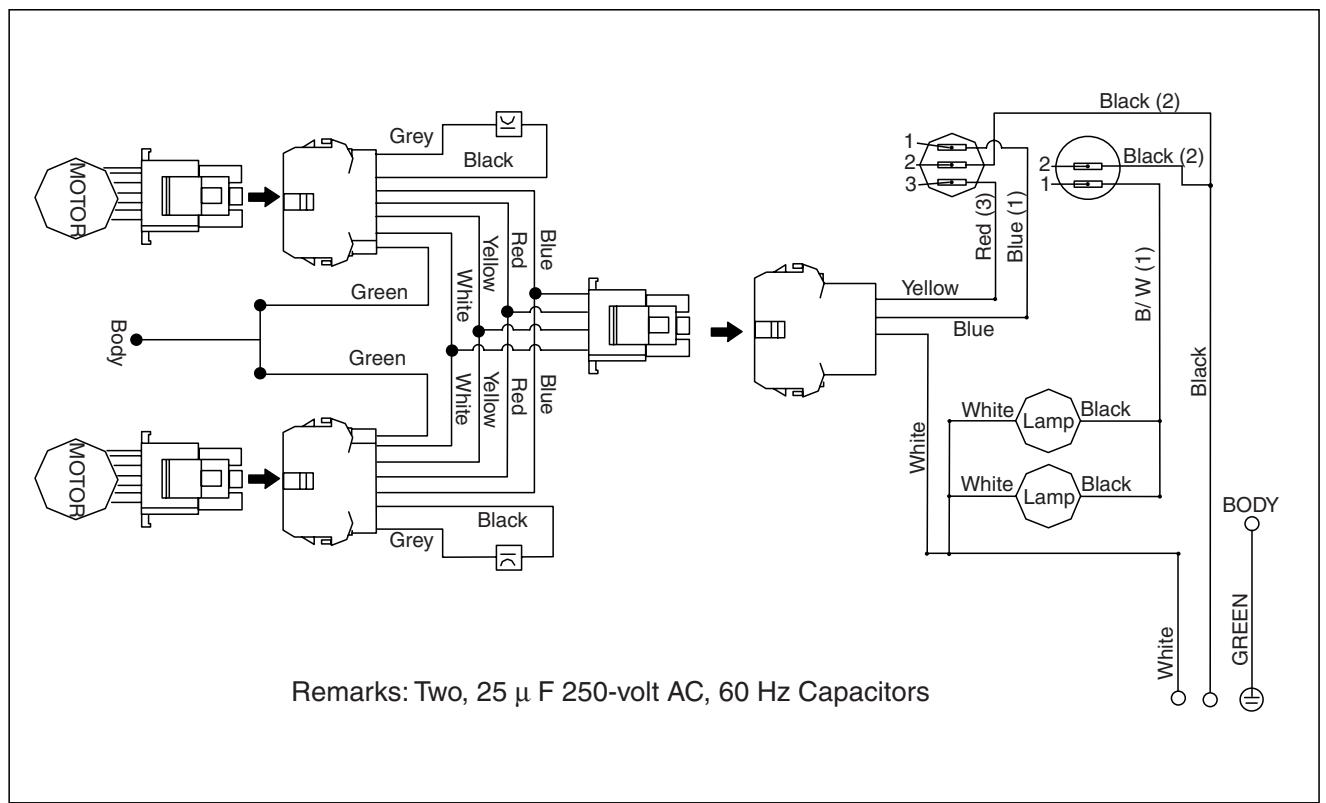

WIRING DIAGRAMS....11

ASSISTANCE OR SERVICE....12

In the U.S.A. 12

Accessories 12

In Canada....12

WARRANTY 13

TABLE DES MATIÈRES

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE .....15

EXIGENCES D'INSTALLATION....17

INSTRUCTIONS D'INSTALLATION....20

ASSISTANCE OU SERVICE....26

Accessoires....26

GARANTIE......27

GRILL VENT HOOD SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

! DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

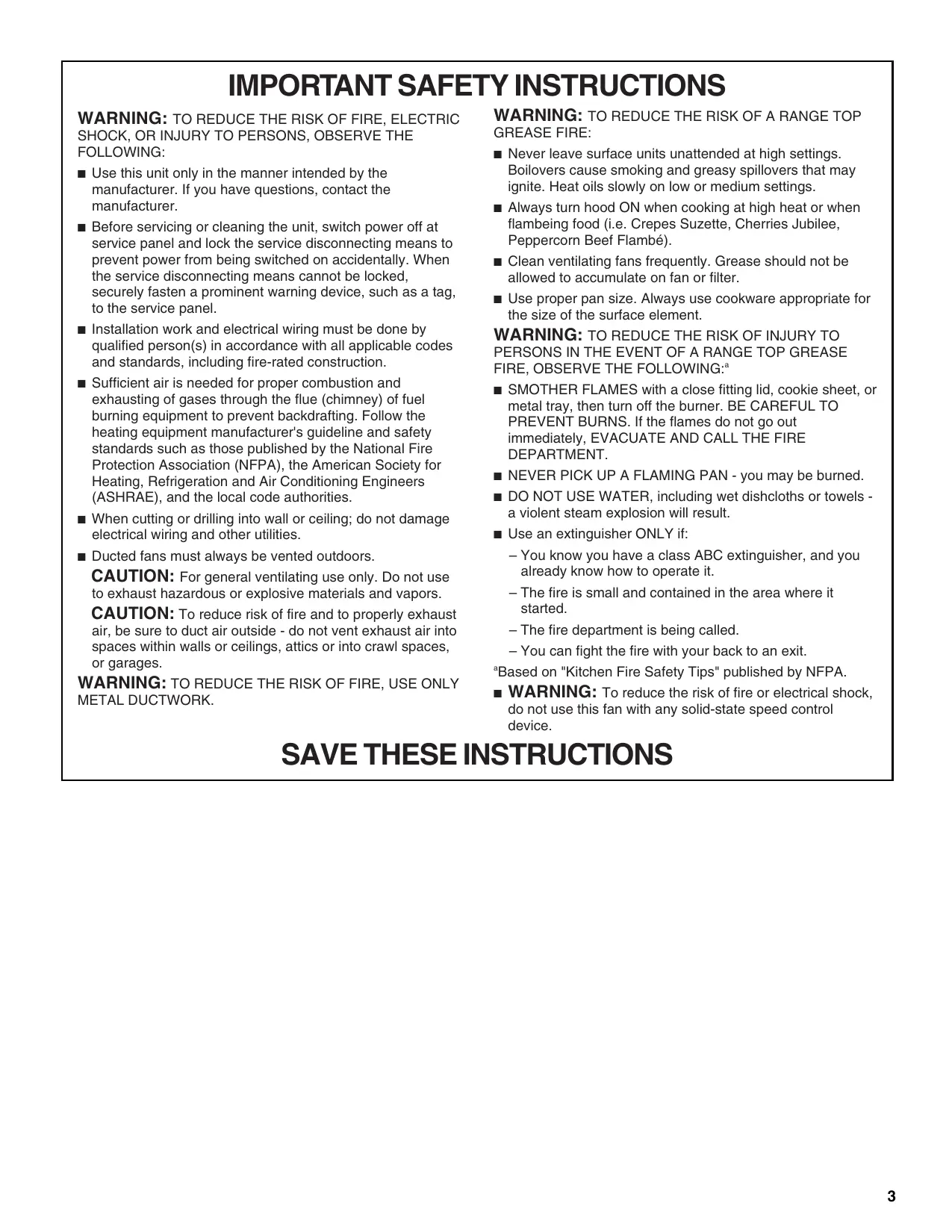

IMPORTANT SAFETY INSTRUCTIONS

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

■ Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
■ Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
■ Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
■ Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
■ When cutting or drilling into wall or ceiling; do not damage electrical wiring and other utilities.
■ Ducted fans must always be vented outdoors.

CAUTION: For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air outside - do not vent exhaust air into spaces within walls or ceilings, attics or into crawl spaces, or garages.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

■ Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
■ Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
■ Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.
■ Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING: ^a

■ SMOTHER FLAMES with a close fitting lid, cookie sheet, or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.

■ NEVER PICK UP A FLAMING PAN - you may be burned.

■ DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.

■ Use an extinguisher ONLY if:

• You know you have a class ABC extinguisher, and you already know how to operate it.
• The fire is small and contained in the area where it started.
  – The fire department is being called.
• You can fight the fire with your back to an exit.

^a Based on "Kitchen Fire Safety Tips" published by NFPA.

■ WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state speed control device.

SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools needed

Level
■ Drill with 1¼" (3.0 cm) drill bit
Pencil
■ Wire stripper or utility knife
■ Tape measure or ruler
Pliers
■ Caulking gun and weatherproof caulking compound
■ Jigsaw or keyhole saw
■ Flat-blade screwdriver
■ Metal snips
■ Phillips screwdriver
Scissors

Parts needed

■ Home power supply cable
■ 1 - ½" (12.7 mm) UL listed or CSA approved strain relief
■ 1 wall or roof cap
■ Metal vent system
■ Vent clamps
■ 6 to 8 #10 or larger screws to mount grill vent hood and wood mounting strip (quantity and type determined by size of grill vent hood and wall type). If larger screws are used, the holes in the grill vent hood may need to be enlarged.
■ 1" x 4" (2.5 cm x 10.2 cm) wood mounting strip (length determined by grill vent hood width)

Parts supplied

Remove parts from packages. Check that all parts are included.

■ 2 metal grease filters for 30" (76.2 cm) models
3 metal grease filters for 36" (91.4 cm) models
4 metal grease filters for 48" (121.9 cm) models

■ Metal transition duct piece

■ 8 - #10 Phillips transition duct screws

■ UL listed wire connectors (3)

■ Light bulb removal tool

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

Have a qualified technician install the grill vent hood. It is the installer's responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located inside the grill vent hood on the rear wall of the grill vent hood.

Canopy grill vent hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

Grounded electrical outlet is required. See “Electrical Requirements” section.

The canopy grill vent hood is factory set for venting through the roof or wall.

All openings in ceiling and wall where canopy grill vent hood will be installed must be sealed.

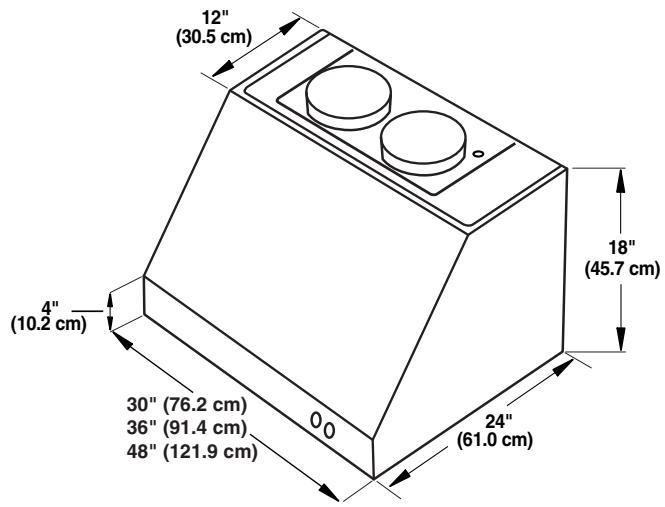

Product Dimensions

Vented Installations

12" (30.5 cm) 4" (10.2 cm) 30" (76.2 cm) 36" (91.4 cm) 48" (121.9 cm) 0 24" (61.0 cm) 18" (45.7 cm)

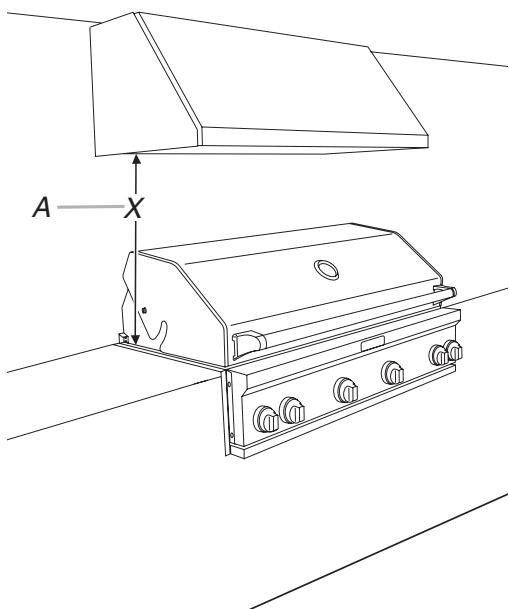

Installation Dimensions

A—X

A. Distance "X" (30" [76.2 cm] min, suggested 36" [91.4 cm] max)

*NOTE: The grill vent hood duct cover is designed to add 12" (30.5 cm) to meet the ceiling or soffit height. Depending on your model, order: Part Number W10153151 for 30" (76.2 cm) models, Part Number W10153152 for 36" (91.4 cm) models, and Part Number W10153153 for 48" (121.9 cm).

IMPORTANT:

Minimum distance "X": 30" (76.2 cm)

Suggested maximum distance "X": 36" (91.4 cm)

Venting Requirements

■ Vent system must terminate to the outdoors.
■ Do not terminate the vent system in an attic or other enclosed area.
■ Do not use 4" (10.2 cm) laundry-type wall caps.
■ Use metal vent only. Rigid metal vent is recommended. Plastic or metal foil vent is not recommended.
■ The length of vent system and number of elbows should be kept to a minimum to provide efficient performance.

For the most efficient and quiet operation:

■ Use no more than three 90° elbows.
■ Make sure there is a minimum of 24" (61.0 cm) of straight vent between the elbows if more than 1 elbow is used.
■ Do not install 2 elbows together.
■ Use clamps to seal all joints in the vent system.
■ The vent system must have a damper. If the roof or wall cap has a damper, do not use the damper supplied with the grill vent hood.
■ Use caulking to seal exterior wall or roof opening around the cap.
■ The size of the vent should be uniform.

Venting Methods

This canopy grill vent hood is factory set for venting through the roof or through the wall.

A 10" (25.4 cm) round vent system is needed for installation (not included). The hood exhaust opening is 10" (25.4 cm) round.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that greatly reduce performance.

Vent system can terminate either through the roof or through the wall. To vent through a wall, a 90° elbow is needed.

Rear discharge

A 90° elbow may be installed immediately above the hood.

Roof Venting

C B A D

A. Optional decorative duct cover

B. 10" (25.4 cm) round vent

C. Roof cap

D. 10" (25.4 cm) round vent transition

Wall Venting

B A C D

A. Optional decorative duct cover

B. 10" (25.4 cm) round vent and elbow

C. Wall cap

D. 10" (25.4 cm) round vent transition

Calculating Vent System Length

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Vent Piece	10" (25.4 cm) Round
45° elbow	2.5 ft(0.8 m)
90° elbow	5.0 ft(1.5 m)

Maximum equivalent vent length is 35 ft (10.7 m).

Example vent system

90° elbow 6 ft (1.8 m) Wall cap 2 ft (0.6 m)

The following example falls within the maximum recommended vent length of 35 ft (10.7 m).

1 - 90° elbow	= 5.0 ft (1.5 m)
1 - wall cap	= 0.0 ft (0.0 m)
8 ft (2.4 m) straight	= 8.0 ft (2.4 m)
Length of system	= 13.0 ft (3.9 m)

Electrical Requirements

Observe all governing codes and ordinances.

Ensure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

■ A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

■ If the house has aluminum wiring follow the procedure below:

1. Connect a section of solid copper wire to the pigtail leads.
2. Connect the aluminum wiring to the added section of copper wire using special connectors and/or tools designed and UL listed for joining copper to aluminum.
   Follow the electrical connector manufacturer's recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

■ Wire sizes and connections must conform with the rating of the appliance as specified on the model/serial rating plate. The model/serial plate is located behind the filter on the rear wall of the hood.

■ Wire sizes must conform to the requirements of the National Electrical Code, ANSI/NFPA 70 (latest edition), or CSA Standards C22. 1-94, Canadian Electrical Code, Part 1 and C22.2 No. 0-M91 (latest edition) and all local codes and ordinances.

INSTALLATION INSTRUCTIONS

Prepare Location

■ It is recommended that the vent system be installed before hood is installed.
■ Before making cutouts, make sure there is proper clearance within the ceiling or wall for exhaust vent.
■ Check your ceiling height and the hood height maximum before you select your hood.

1. Disconnect power.

2. Determine which venting method to use: roof or wall.

3. Select a flat surface for assembling the grill vent hood. Place covering over that surface.

WARNING

Excessive Weight Hazard

Use two or more people to move and install grill vent hood.

Failure to do so can result in back or other injury.

1. Using 2 or more people, lift grill vent hood onto covered surface. Tip the hood on its back and remove filters and set aside.

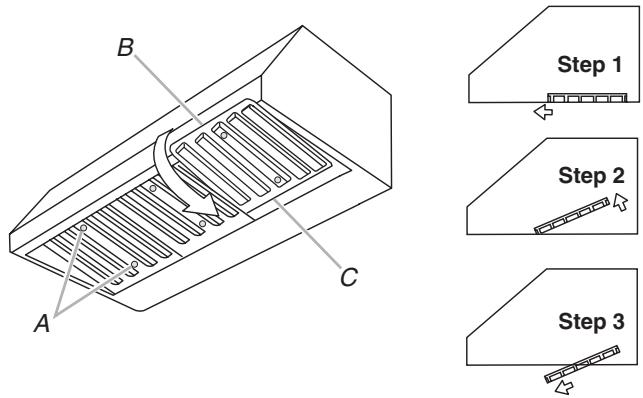

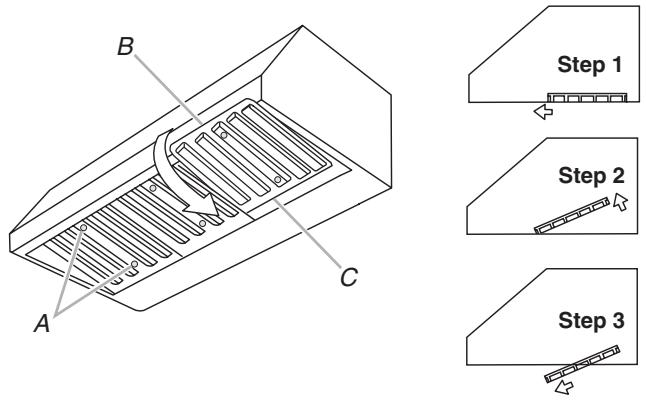

To Remove Filters:

1. Using the filter handles, pull filter towards the front of the grill vent hood.

B A C Step 1 Step 2 Step 3

A. Filter handles
B. Front edge of filter
C. Back edge of filter

1. Pivot the back edge of the filter towards the back of the grill vent hood.
2. Drop the front edge of the filter down and remove.

Wood Mounting Strip Installation

1. Determine and mark the centerline on the wall where the grill vent hood will be installed.

Based on the ceiling or soffit height, determine the distance "X" (30" [76.2 cm] min, 36" [91.4 cm] max) needed between the cooking surface and the bottom of the grill vent hood. To this distance, add 15½" (43.8 cm) and draw a horizontal line (A) about 24" (61.0 cm) long centered on the vertical centerline (B) at this distance for the wood mounting strip.

A B D C x E

A. Horizontal line - mounting strip location
B. 15 18 " (43.8 cm) - bottom of vent hood to mounting strip location
C. Distance "X" (30" [76.2 cm] min, suggested 36" [91.4 cm] max) - cooking surface to bottom of vent hood
D. Vertical centerline
E. Cooking surface

1. Locate and mark the wall studs along the horizontal line.

2. Center the 1" x 4" (2.5 x 10.2 cm) wood mounting strip above the horizontal line.

3. Use 2 - #10 Phillips head screws to secure the mounting strip to the wall. Tighten screws securely.

IMPORTANT: Ensure that the wood mounting strip is attached to every available wall stud.

C 1½" (3.8 cm) B A Q O D 3½" (8.9 cm) E

A. Non-combustible material
B. Wood mounting strip
C. Wall studs
D. Back of hood outline
E. 2 - #10 mounting screws

Attach Metal Transition Duct Piece

1. Place the metal transition duct piece over the vent openings in the top of the grill vent hood.
2. Securely fasten with 4 - #10 sheet metal screws using a #2 Phillips screwdriver.

A B

A. Transition duct piece
B. #10 sheet metal screws

Complete Preparation

1. Determine and make all necessary cuts for the vent system. Install the vent system before installing the grill vent hood. See the “Venting Requirements” section.
2. Determine the location where the power supply cable will be run.
3. Drill a 1 ^1/4 " (3.2 cm) hole at this location.
4. Pull enough power supply cable through to allow for easy connection to the terminal box.

Install Grill Vent Hood

1. Using 2 or more people, lift the grill vent hood onto the mounting strip.

3D diagram of a mechanical or optical setup with labeled components and directional arrows, no readable text or symbols present.

A. 4 - #10 mounting screws

1. Center and level the recess on the back of the grill vent hood onto the mounting strip.
2. Securely fasten 4 - #10 mounting screws (not supplied) through the grill vent hood, mounting strip and into the wall.

Optional Step:

After the grill vent hood is attached to the wood mounting strip, it may be further secured by installing 2 screws into the wall from the inside of the grill vent hood. It may be necessary to drill through the back wall of the grill vent hood to do so.

Make Electrical Connection

WARNING

Electrical Shock Hazard

Disconnect power before servicing.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

1. Disconnect power.
2. Remove terminal box cover.

3. Remove the knockout in the terminal box cover and install a UL listed or CSA approved 12 " strain relief.

4. Run 3 wires, black, white and green, in 12 " conduit from service panel to terminal box. Use caulking to seal openings.

Technical diagram of an electrical socket with labeled components including power, wires, and connectors

A. Green (or bare) ground wire from home power supply connected to green ground screw
B. UL listed wire connectors (3)
C. Black wires
D. Home power supply cable
E. Green ground screw
F. Grill vent hood power supply cable
G. Strain relief
H. White wires

1. Use UL listed wire connectors and connect black wires (B) together.
2. Use UL listed wire connectors and connect white wires (H) together.

WARNING

Fire Hazard

Electrically ground the blower.

Use copper wire.

Connect ground wire to green ground screw in terminal box.

Failure to do so can result in death, fire, or electrical shock.

1. Connect green (or bare) ground wire from home power supply to the unused green ground wire (A) in the terminal box.
2. Tighten strain relief screws.
3. Install terminal box cover.
4. Using the light bulb removal tool, check all light bulbs to make sure they are secure in their sockets.
5. Reconnect power.

Install Duct Cover

(Optional Accessory)

1. Use 4 - #10 sheet metal screws to assemble the duct cover sides to duct cover front.

Technical line drawing of a mechanical bracket assembly with an inset circular detail (no text or symbols)

1. From inside the grill vent hood, attach duct cover to the top of the grill vent hood using 8 - #10 sheet metal screws.

Isometric line drawing of a 3D geometric structure with dashed and solid lines, no text or symbols present

Reinstall Grease Filters

See “Metal Grease Filters” in “Grill Vent Hood Care” section.

Complete Installation

Check Grill Vent Hood Operation

1. Press the light button (B) to turn on the light, press again to turn light off.
2. Press fan button (A) "up" to turn fan on Low Speed. Press the fan button "down" to turn fan to High Speed.
3. Press fan button (A) to the middle position to turn off the fan.
4. If grill vent hood does not operate, check to see whether a circuit breaker has tripped or a household fuse has blown.

GRILL VENT HOOD USE

The grill vent hood is designed to remove smoke, cooking vapors and odors from the grill area. For best results, start the hood before cooking and allow it to operate several minutes after the cooking is complete to clear all smoke and odors from the area.

Control Panel

The grill vent hood controls are located on the right-hand front surface of the grill vent hood.

A B

A. Fan on/off and low/high fan speed
B. Lights on/off

Operating the Light

1. Press the light ON/OFF button (B) to turn on the light.
2. Press the light ON/OFF button (B) to turn off the light.

Operating the Fan and Adjusting Fan Speed

The fan has 2 speeds, Low and High.

1. Press fan button (A) "up" to turn fan on Low Speed. Press the fan button "down" to turn fan to High Speed.
2. Press fan button (A) to the middle position to turn off the fan.

Thermal Overload

The grill vent hood is equipped with a thermal overload to avoid overheating conditions. If the grill vent hood shuts off while in use, press the on/off button to turn off the grill vent hood. Wait approximately 60 minutes, then press the on/off button to restart the grill vent hood.

GRILL VENT HOOD CARE

Cleaning

IMPORTANT: Clean the hood, grease filters and grease trays frequently according to the following instructions. Replace grease filters before operating hood.

Be sure lights are cool before cleaning the hood.

STAINLESS STEEL

IMPORTANT: Do not use soap-filled scouring pads, abrasive cleaners, Cooktop Polishing Creme, steel wool, gritty wash cloths or paper towels.

To avoid damage to the stainless steel, do not use cleaners that contain chlorine.

Food soils should be cleaned as soon as entire grill is cool. Soils may cause permanent discoloration.

Cleaning Method:

■ Rub in direction of grain to avoid scratching or damaging the surface.
■ Stainless Steel Cleaner and Polish Part Number 31462 (not included):
See “Assistance or Service” section to order.
■ Liquid detergent or all-purpose cleaner: Rinse with clean water and dry with soft, lint-free cloth.
■ Glass cleaner to remove fingerprints.

EXTERIOR

The quality of this material resists most stains and pitting, providing that the surface is kept clean and protected.

■ Apply stainless steel polish to all areas before first use. Reapply after each cleaning to avoid permanent damage to surface.

■ Cleaning should always be followed by rinsing with clean warm water.
■ Wipe the surface completely dry with a soft cloth.
■ For tough spots or baked-on grease, use Heavy Duty Degreaser Part Number 31552 (not included), a commercial degreaser designed for stainless steel.
See “Assistance or Service” section to order.

INTERIOR

Discoloration of stainless steel on these parts is to be expected, due to heat from the grill. Always rub in the direction of the grain. Cleaning should always be followed by rinsing with clean, warm water.

Cleaning Method:

■ Liquid detergent or all-purpose cleaner.
■ Rinse with clean water and dry completely with a soft, lint-free cloth.
■ A heavy-duty scrub sponge can be used with mild cleaning products.

For small, difficult-to-clean areas, use Heavy Duty Degreaser Part Number 31552 (not included), a commercial degreaser designed for stainless steel.

See “Assistance or Service” section to order.

METAL GREASE FILTERS

The grease filters should be washed frequently. Place grease filters in dishwasher or hot detergent solution to clean.

Drain water and let each filter dry thoroughly before replacing it.

To Remove Metal Grease Filters

1. Turn off fan and lights. Check that halogen lamp is cool. Using the filter handles, pull filter towards the front of the grill vent hood.

B A C Step 1 Step 2 Step 3

A. Filter handles
B. Front edge of filter
C. Back edge of filter

1. Pivot the back edge of the filter towards the back of the grill vent hood.
2. Drop the front edge of the filter down and remove.

To Replace Metal Grease Filters

1. Insert the back edge filter into the filter opening.
2. Place the front edge up into place in the channel and firmly press forward, depressing the springs while positioning the back edge of the filter into place in the rear channel.

METAL GREASE TRAYS

Metal grease trays should be cleaned along with the metal grease filters.

To Clean:

1. Remove metal grease filters. See "Metal Grease Filters" section.
2. Remove grease trays from the back channel as shown in following illustration. Clean and replace.

A B

A. Grease tray
B. Back channel of grill vent hood

Replacing a Halogen Lamp

Turn off the grill vent hood and allow the halogen lamp to cool. Replace using the light bulb removal tool (provided).

If new lamps do not operate, make sure the lamps are inserted correctly before calling service.

1. Disconnect power.
2. Using the light bulb removal tool, twist the halogen bulb counterclockwise to remove.
3. Replace with a GU10, 120-volt, 35-watt, halogen lamp.
   Check that the 2 pins on the light bulb are properly inserted in the lamp holder socket holes.

Illustration of a hand holding a small object against a striped background (no text or symbols)

1. Using the light bulb removal tool, replace halogen bulb by twisting it clockwise into the socket.
2. Reconnect power.

WIRING DIAGRAMS

30" (76.2 cm) and 36" (91.4 cm) Models

48" (121.9 cm) Model

ASSISTANCE OR SERVICE

When calling for assistance or service, please know the purchase date and the complete model and serial number of your appliance. This information will help us to better respond to your request.

If you need replacement parts

If you need to order replacement parts, we recommend that you use only factory specified parts. Factory specified parts will fit right and work right because they are made with the same precision used to build every new appliance. To locate factory specified parts replacement parts in your area, call us or your nearest Whirlpool designated service center.

In the U.S.A.

Call the Whirlpool Customer eXperience Center toll free: 1-800-253-1301.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.
■ Installation information.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Specialized customer assistance (Spanish speaking, hearing impaired, limited vision, etc.).
■ Referrals to local dealers, repair parts distributors and service companies. Whirlpool designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in the United States.

To locate the Whirlpool designated service company in your area, you can also look in your telephone directory Yellow Pages.

For further assistance

If you need further assistance, you can write to Whirlpool Corporation with any questions or concerns at:

Whirlpool Brand Home Appliances Customer eXperience Center 553 Benson Road Benton Harbor, MI 49022-2692

Please include a daytime phone number in your correspondence.

Accessories

Outdoor Grill Vent Hood Duct Covers

30" (76.2 cm): Order Part Number W10153151

36" (91.4 cm): Order Part Number W10153152

48" (121.9 cm): Order Part Number W10153153

In Canada

Call the Whirlpool Canada LP Customer Interaction Centre toll free: 1-800-807-6777.

Our consultants provide assistance with:

■ Features and specifications on our full line of appliances.
■ Use and maintenance procedures.
■ Accessory and repair parts sales.
■ Referrals to local dealers, repair parts distributors, and service companies. Whirlpool Canada LP designated service technicians are trained to fulfill the product warranty and provide after-warranty service, anywhere in Canada.

For further assistance

If you need further assistance, you can write to Whirlpool Canada LP with any questions or concerns at:

Customer Interaction Centre Whirlpool Canada LP 1901 Minnesota Court Mississauga, Ontario L5N 3A7

Please include a daytime phone number in your correspondence.

WHIRLPOOL CORPORATION MAJOR APPLIANCE WARRANTY

LIMITED WARRANTY

For one year from the date of purchase, when this major appliance is operated and maintained according to instructions attached to or furnished with the product, Whirlpool Corporation or Whirlpool Canada LP (hereafter “Whirlpool”) will pay for Factory Specified Parts and repair labor to correct defects in materials or workmanship. Service must be provided by a Whirlpool designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. Outside the 50 United States and Canada, this limited warranty does not apply. Proof of original purchase date is required to obtain service under this limited warranty.

ITEMS EXCLUDED FROM WARRANTY

This limited warranty does not cover:

1. Service calls to correct the installation of your major appliance, to instruct you on how to use your major appliance, to replace or repair house fuses, or to correct house wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs, air filters or water filters. Consumable parts are excluded from warranty coverage.
3. Repairs when your major appliance is used for other than normal, single-family household use or when it is used in a manner that is contrary to published user or operator instructions and/or installation instructions.
4. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper installation, installation not in accordance with electrical or plumbing codes, or use of consumables or cleaning products not approved by Whirlpool.
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.
6. Any food loss due to refrigerator or freezer product failures.
7. Costs associated with the removal from your home of your major appliance for repairs. This major appliance is designed to be repaired in the home and only in-home service is covered by this warranty.
8. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
9. Expenses for travel and transportation for product service if your major appliance is located in a remote area where service by an authorized Whirlpool servicer is not available.
10. The removal and reinstallation of your major appliance if it is installed in an inaccessible location or is not installed in accordance with published installation instructions.
11. Major appliances with original model/serial numbers that have been removed, altered or cannot be easily determined. This warranty is void if the factory applied serial number has been altered or removed from your major appliance.
    The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

If outside the 50 United States and Canada, contact your authorized Whirlpool dealer to determine if another warranty applies.

If you need service, first see the “Troubleshooting” section of the Use & Care Guide. After checking “Troubleshooting,” you may find additional help by checking the “Assistance or Service” section or by calling Whirlpool. In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777. 9/07

Keep this book and your sales slip together for future reference. You must provide proof of purchase or installation date for in-warranty service.

Write down the following information about your major appliance to better help you obtain assistance or service if you ever need it. You will need to know your complete model number and serial number. You can find this information on the model and serial number label located on the product.

Dealer name

Address

Phone number

Model number

Serial number

Purchase date

Notes

SÉCURITÉ DE LA HOTTE DE CUISINIÈRE

National Fire Protection Association

One Batterymarch Park

Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

3D geometric diagram showing a 3D object with projection lines and directional arrows, no text or symbols present.

Technical diagram of an electrical socket with labeled components A through H and grounding symbols

Technical line drawing of a mechanical bracket assembly with an inset circular detail (no text or symbols)

Isometric line drawing of a 3D geometric structure with dashed and solid lines, no text or symbols present

Line drawing of a hand holding a small object against a striped background (no text or symbols)

ASSISTANCE OU SERVICE

1901 Minnesota Court

Mississauga, Ontario L5N 3A7

GARANTIE DES GROS APPAREILS MÉNAGERS WHIRLPOOL CORPORATION

GARANTIE LIMITÉE
