Juicelive 2000 Easyclean - Washing machine CECOTEC - Free user manual and instructions

Product type	Centrifugal juice extractor
Brand	Cecotec
Model	Juicelive 2000 Easyclean
Power	2000 W
Pulp container capacity	2 L
Juice pitcher capacity	1 L
Speeds	2 speeds + Pulse function
Power supply	220-240 V ~ 50/60 Hz
Dimensions (L x W x H)	300 x 280 x 420 mm
Weight	4.2 kg
Main functions	Juice extraction from fruits and vegetables, automatic pulp separation
Safety system	Safety lock preventing operation if the lid is not properly closed
Maintenance and cleaning	Removable parts washable with soapy water or in the dishwasher
Cutting	Pre-cut food into pieces of maximum 1.5 cm
Non-slip feet	Yes
Overheating protection	Yes
Repairability	Spare parts available through the official Cecotec after-sales service

Frequently Asked Questions - Juicelive 2000 Easyclean CECOTEC

How to use the Juicelive 2000 Easyclean centrifugal juicer?

Place the appliance on a flat and stable surface, plug it in, insert the fruits or vegetables cut into pieces of maximum 1.5 cm, then select the desired speed. The juice is automatically separated from the pulp.

What to do if the appliance does not work?

Check that the lid is correctly locked, that the plug is connected, and that the voltage matches. If the problem persists, contact the official Cecotec after-sales service.

How to clean the appliance after use?

Unplug the appliance, disassemble the removable parts and wash them with soapy water or in the dishwasher. Avoid touching the bottom of the bowl with metal objects to avoid damaging the blades.

Can I put hot foods in the juicer?

No, do not put foods above 40 °C to avoid malfunction of the appliance. Do not heat the appliance.

How to avoid damage to the appliance?

Use only the supplied accessories to push the ingredients, do not run the appliance empty, and do not place it near heat sources or flammable substances.

Is it safe to touch the appliance with wet hands?

No, do not touch or use the appliance with wet hands. Make sure your hands are dry and that the appliance is unplugged when cleaning.

Can I wash the parts in the dishwasher?

Yes, most removable parts are dishwasher-safe. Check the manual for specific parts and use a gentle cycle.

What is the required voltage?

The appliance operates on a voltage of 220-240 V at 50/60 Hz. Make sure your mains voltage matches the one indicated on the rating label.

What to do in case of a damaged cable?

If the power cord has visible damage, it must be repaired by the Official Cecotec After-Sales Service to avoid any danger. Do not use the appliance in this condition.

Where can I get the appliance repaired?

Contact the Official Cecotec After-Sales Service for any repair or replacement of parts. Do not repair the appliance yourself.

USER MANUAL Juicelive 2000 Easyclean CECOTEC

1. Safety instructions 14
2. Parts and components 16
3. Before use 16
4. Product assembly 17
5. Operation 17
6. Cleaning and maintenance 18
7. Troubleshooting 19
8. Technical specifications 20
9. Disposal of old electrical appliances 20
10. Technical support service and warranty 20

SOMMAIRE

Fig./Img./Abb./Afb./Rys./Obr.1

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

MORE

NORMAL

LESS

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9

Fig./Img./Abb./Afb./Rys./Obr. 10

Fig./Img./Abb./Afb./Rys./Obr. 11

Fig./Img./Abb./Afb./Rys./Obr. 12

ESPAÑOL

1. SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.

Always use the device on a flat, stable surface.

This appliance is for household use only. Do not use it for commercial or industrial purposes.

Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by the official Technical Support Service of Cecotec in order to avoid any type of danger.

Always turn off and disconnect the appliance from the power supply before assembling, disassembling, cleaning it or if it is not going to be used for a long period of time. Pull from the plug and not the cord to disconnect it.

When pushing ingredients inside the device, use only the accessory provided. Do not use other utensils.

Do not introduce hot ingredients above 40 °C to avoid malfunction. Do not heat the device directly.

Do not introduce any utensil or body parts inside the product during operation in order to reduce risk of injuries to persons or damage to the product.

Do not touch or operate the device with wet hands.

Do not repair or remove any fixed part of the product. Contact the Technical Support Service of Cecotec for help or advice.

Always make sure all the detachable parts are properly placed and fixed before operating it. If any of the parts are damaged, do not use it.

Turn off and disconnect the product from the power supply before installing, adjusting or cleaning any of its parts.

ENGLISH

Do not operate the device when empty.

After using the device, make sure to turn off and disconnect the product from the power supply.

Do not place the device close to heat sources, flammable or explosive substances.

When using hard or thick fruits and vegetables, cut into pieces of a maximum size of 1.5 cm and introduce then slowly to ensure no damage occurs to the product.

Do not use fruits or vegetables with bone, pips, solid shell or thick skin. Remove any of these before introducing them in the product.

When using foods with much fibres, cut them it into small pieces about 3-4 cm long before juicing them, or it may cause stunk and damage of components, which will affect the appliance's life.

Do not squeeze lemon or introduce sugar cane directly or in the device.

When using the device with frozen ingredients, leave them at room temperature for 10 minutes before introducing them. Cut them into pieces of 3 cm.

If the machine overloads or blocks during operation, it will stop automatically. After a few seconds, the device will beep indicating it can be used again.

The device counts on a safety system which stops it from operating in case of overheating. If this happens, allow the device to rest for 20—30 minutes before using it again.

The appliance is not intended to be used by children under the age of 8. It can be used by children over the age of 8, as long as they are given continuous supervision.

This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, as long as they have

ENGLISH

been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Supervise young children to make sure that they do not play with the appliance. Close supervision is necessary when the appliance is being used by or near children.

NOTE: This product has undergone a quality control previous to its commercialization with the aim of ensuring its correct operating. After the quality control testing, the appliance is cleaned thoroughly, therefore, although it is unlikely to occur, there could be rests of water drops in its inner parts.

2. PARTS AND COMPONENTS

Fig. 1

1. Main body
2. Start/stop/reverse function button
3. Lock button
4. Fruit adjuster
5. Food inlet
6. Pusher
7. Screw
8. Pulp outlet adjuster
9. Juice outlet lid
10. Juice container
11. Residue outlet
12. Residue container

3. BEFORE USE

Take the product out of the box and remove all packaging materials.

Make sure all parts and accessories are present and in good conditions. If not, contact immediately the Technical Support Service of Cecotec.

Clean thoroughly all the product's parts that come into contact with ingredients before operating it for the first time.

JUICE&LIVE 2000 EASYCLEAN

ENGLISH

4. PRODUCT ASSEMBLY

Install the food inlet into the machine.

Fig. 2

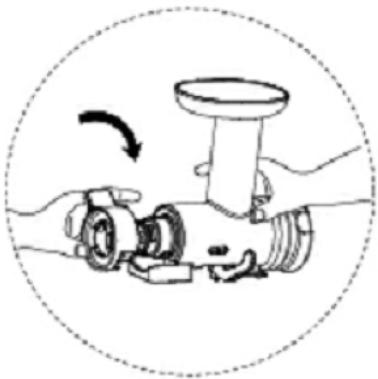

Install the pulp outlet adjuster into the food inlet and close it anticlockwise.

Fig. 3

Install the type of fruit adjuster in the back of the food inlet at an angle of 60° . Close it clockwise.

Fig. 4

Install it into the main body and fix it when you hear a "pa" sound.

Fig. 5

Finally, install the cups and the residue container correctly.

Fig. 6.

5. OPERATION

Cut the fruits and vegetables into suitable-sized pieces and introduce them in the juicer.

Make sure the pulp adjuster is properly installed in place.

Thin slots (LESS): Pulp-free juice

Medium slots (NORMAL): Juice with some pulp

Thick slots (MORE): Juice with pulp, or for tomato and pitaya.

Make sure the fruit adjuster is properly installed in place.

Apple icon: For apple, pear, watermelon, carrot and other similar fruit.

Pineapple icon: For celery, ginger and other fruit with long fibres.

Ice cream icon: For frozen fruits or cooked vegetables.

Use the pusher to help introduce fruits in the device.

Note: When fruits or vegetables start getting blocked, press the reverse button to unclog.

When juicing several fruits or vegetables, it is suggested to juice soft fruits first, such as orange or pineapple) and harder ones last, for example apples.

When you have finished operating the device, press the reverse button for 4 seconds to ensure all juice is served and all residues are cleared. This will make it easier to clean and disassemble.

ENGLISH

Ice cream

Remove hard seeds and thick peels from fruits and vegetables.

Cut fruits and vegetables into pieces of 30 cm x 30 cm and store them in the freezer for 4-5 hours.

Take them out of the freezer and leave them at room temperature for 10 minutes.

Adjust the fruit adjuster to the ice cream setting.

Place the residue container under the residue outlet.

Turn the device on and introduce fruit gradually.

Purée

The device can be used to prepare purée of the following ingredients: Banana, strawberry, mango, pawpaw, avocado, cooked potato and sweet potato.

Adjust the fruit adjuster to the ice cream setting.

Place the residue container under the residue outlet.

Turn the device on and introduce fruit gradually.

6. CLEANING AND MAINTENANCE

Disconnect the product from the power supply before cleaning the product's surface. Use a soft, dry cloth to clean it.

Clean the juicer immediately after each use. Dot not immerse the product's main body or power cord in water or other liquids.

After cleaning the device, make sure you dry it thoroughly before storing it.

After using the product, store it in a dry, safe place. Avoid direct exposure to sun light.

Make sure it is stored in a place out of the reach of children.

All detachable parts are dishwasher safe.

Disassembling

Fig. 7.

Long press the reverse function button for the screw to rotate in opposite direction. This way, clogged rests of food will be removed.

Fig. 8.

Press the lock button and take out the food inlet tube.

Fig. 9.

Turn the pulp adjuster clockwise to remove it.

Fig. 10.

JUICE&LIVE 2000 EASYCLEAN

ENGLISH

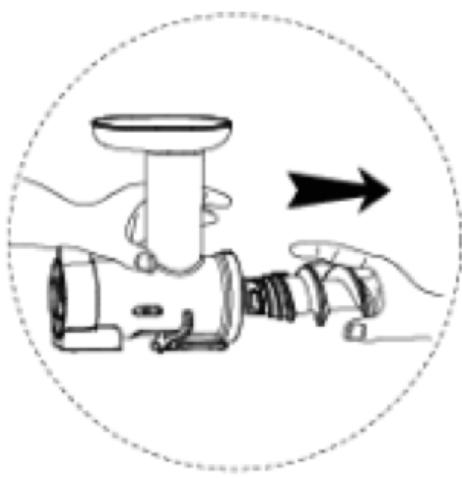

Take out the screw.

Fig. 11.

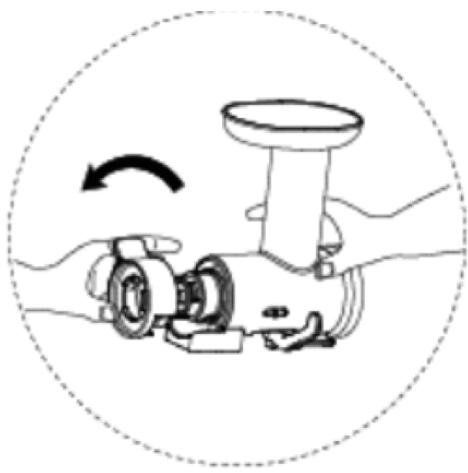

Turn the fruit adjuster anticlockwise to remove it.

Fig. 12.

Wash all the parts of the device and reinstall them back.

7. TROUBLESHOOTING

Problem

1. The machine doesn't work when plugging it to an electrical outlet and pressing the power button.
2. The device emits a peculiar smell when used for the first several times.
3. The machine does not work.
4. There's too much juice residue.
5. Abnormal vibration or noise.

Cause

1.1. Power plug is not completely inserted.
1.2. The machine has been used for too long.
2. That smell is normal when using the device for the first time.
3.1. There is too much food blocking the device.
3.2. The motor's temperature regulator does not work.
4. The pulp outlet adjuster is not installed correctly.
5.1. Some parts are installed incorrectly.
5.2. The motor is damaged.

Solution

1. Connect the power plug correctly.
   1.2. Restart the device after 20 minutes
2. If the smell persists after using the appliance a few times, please send it to be repaired to the Technical Support Service of Cecotec.
   3.1. Introduce the food in the appliance slower and in a gentle way.
   3.2. Restart the device after leaving it rest for 20-30 min.
3. Install it correctly.
   5.1 Reinstall the pieces.
   5.2. Send it to be repaired to the Technical Support Service of Cecotec.

ENGLISH

8. TECHNICAL SPECIFICATIONS

Product name: Juice&Live 2000 EasyClean

Product reference: 04134

150 W, 220-240 V\~, 50-60 Hz

Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly. If the product has a built-in battery or uses batteries, they should be removed from the appliance and disposed of appropriately.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

10. TECHNICAL SUPPORT SERVICE AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

• The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.
• The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.
- Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

If at any moment you detect any problem with your product or have any doubt, do not hesitate

JUICE&LIVE 2000 EASYCLEAN

FRANÇAIS

to contact Cecotec Technical Support Service at [phone].

1. INSTRUCTIONS DE SÉCURITÉ

7. PROBLEEMOPLOSSING

Probleem

Quart de Poblet, Valencia (Spain)

LB200113
