Product type	Microwave oven
Brand	Cecotec
Model	Grandheat 2000 Built In
Use	Domestic
Installation type	Freestanding, not built-in
Cooking mode	Microwave and combination mode
Turntable	Yes
Viewing window	Yes
Door locking system	Yes
Power supply	Mains with earth connection
Clear space above	100 cm minimum
Cleaning	By hand, without steam cleaner
Repairability	Spare parts via official after-sales service
Warranty	Official Cecotec after-sales service
Certification	ISM Group 2 Class B
Power cable	Replaceable by a qualified professional
Use of containers	Only microwave-safe ones

Frequently Asked Questions - Grandheat 2000 Built In CECOTEC

Can I install this microwave in a built-in cabinet?

No, according to the manual, this microwave is not intended to be built-in or installed in a cabinet. It must be placed on a stable surface leaving a clear space of 100 cm above.

What types of containers can I use in this microwave?

Use only microwave-safe utensils. Avoid metal containers, as they can cause sparks or damage the appliance. Make sure the containers do not come into contact with the internal walls.

What should I do in case of fire or smoke inside the appliance?

Keep the door closed, turn off the appliance and unplug it immediately from the power outlet. Do not open the door until the fire is under control.

Can I heat liquids in sealed containers?

No, liquids or food in sealed containers can explode due to pressure. Always remove lids or pierce bags before heating.

How to clean the inside and outside of the microwave?

Use a damp cloth and a mild detergent. Do not use a steam cleaner. Regular cleaning prevents surface deterioration and extends the lifespan.

Can I use plastic or paper containers?

Yes, but with caution as they can ignite if the contents overheat. Use only packaging suitable for microwave and supervise cooking.

How to avoid burns when removing hot dishes?

Use kitchen gloves to handle containers, as the heat can be intense. For liquids, stir before removing to avoid sudden boiling.

Can eggs be cooked in this microwave?

No, eggs with shells or hard-boiled eggs can explode due to microwaves, even after cooking. Do not heat them whole.

Is the combination mode safe for children?

The combination mode produces high temperatures. It should be used by children only under adult supervision. Make sure the child understands the risks.

The power cable is damaged, can I repair it myself?

No, the cable must be replaced by the manufacturer, its after-sales service or a qualified professional to prevent any danger. Contact the official Cecotec technical service.

USER MANUAL Grandheat 2000 Built In CECOTEC

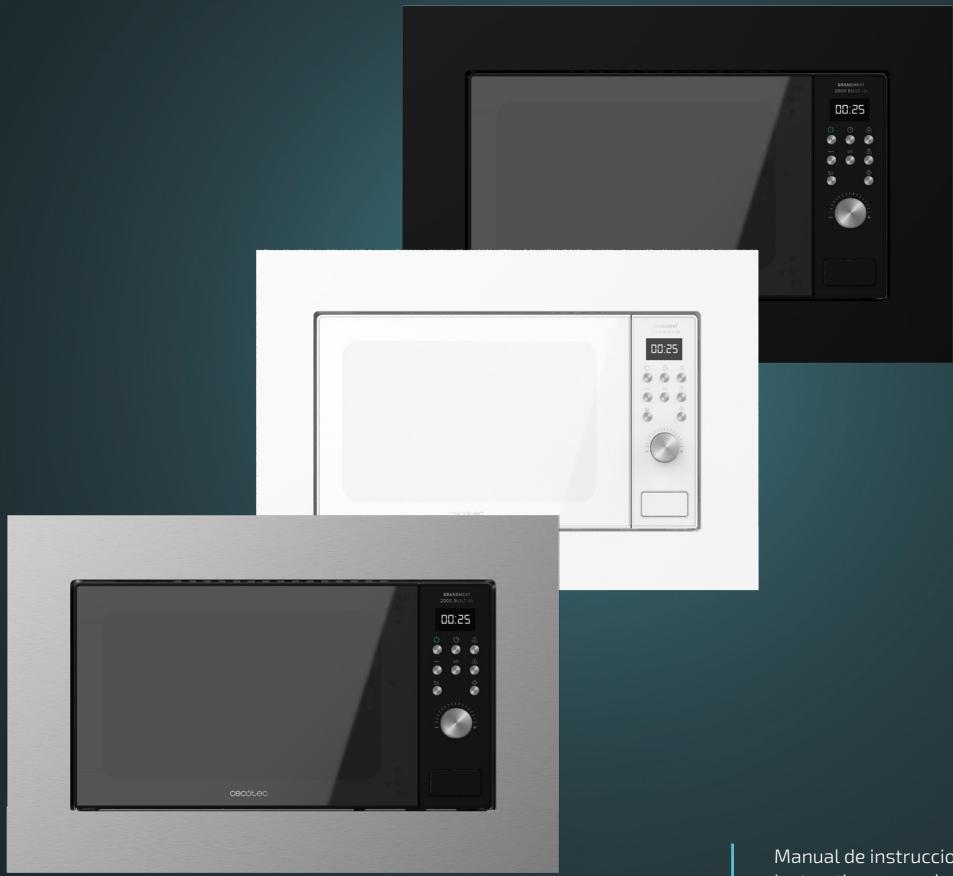

GRANDHEAT 2000 BUILT-IN WHITE

GRANDHEAT 2000 BUILT-IN BLACK

Microondas encastrable/ Built-in microwave.

Safety instructions 8

1. Parts and components 51

2. Before use 51

3. Appliance installation 52

4. Operation 53

5. Tips 57

6. Cleaning and maintenance 59

7. Technical specifications 60

8. Disposal of old electrical and electronic appliances 60

9. Technical support and warranty 61

10. Copyright 61

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Check the appliance and its packaging for damage. Do not operate the appliance if it is not working properly or if the cord or plug are damaged. In case of malfunction or breakdown, please contact official Cecotec Technical Support Service.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or similar qualified personnel to avoid risks.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is earthed.

- Caution: hot surface.

• WARNING: if the door or door seals are damaged, do not operate the appliance until it has been repaired by a qualified person.
• WARNING: it is dangerous for any unqualified person to perform maintenance or repair operations involving the removal of the cover which provides protection against exposure to microwave energy.
• This appliance is exclusively designed for household use. It is not suitable for commercial or industrial use. Do not operate it outdoor.
• WARNING: you should not heat up liquids or other food in sealed or closed containers, as they are likely to explode.
• Only use utensils that are suitable for use in the microwave. Make sure that utensils do not come into contact with the inside walls of the appliance during use.
• Care should be taken when heating up food in plastic or paper containers, as there is a risk of ignition.
• Use this appliance only for the purposes described in this manual. Do not use corrosive chemicals or vapours in this appliance. It is not designed for industrial or laboratory use.
• This appliance is intended for heating up beverages and food. Drying of food or clothing and heating of pillows, shoes, sponges, wet clothes and similar items may involve risk of injury, ignition, or fire.
• In case of smoke or fire inside the device, keep the door closed, turn the device off, and unplug it from the power supply to extinguish the flames.
• Heating up beverages may cause them to boil. For this reason, precautions must be taken when handling the container.

• The contents of bottles and jars of baby food should be swirled or shaken, and the temperature should be checked before consumption to avoid burns.

• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance, since they may explode even after microwave heating has ended.

• WARNING: the combi mode may only be used by children under adult supervision due to the temperatures generated.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep this appliance and its power cable out of reach of children under the age of 8.
• Metal containers must not be used during microwave operation.
• This microwave is intended to be built-in or installed in a piece of furniture. You must leave at least 100 cm of free space on top of the appliance. If the appliance is installed at a distance of more than 900 mm, care must be taken to ensure that the turntable does not shift when removing containers from inside the appliance.
• The appliance is not intended to be operated by means of external timers or separate remote control systems.
• Do not operate the microwave when empty.
• Do not place hot or frozen food or cookware on the turntable to prevent breakage.
• After using the microwave, the container used may be very hot. Use gloves to avoid burns and injuries.

• The appliance cannot be cleaned with steam.

• Failure to keep the microwave clean could lead to deterioration of the surface and could adversely affect the shelf life of the device and lead to a dangerous situation.

• This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is a type of equipment suitable for use in domestic establishments and in establishments directly connected to a low-voltage power supply network supplying buildings used for domestic purposes.

INSTRUCTIONS DE SÉCURITÉ

1. Door lock system
2. Viewing window
3. Turntable shaft
4. Door opening button
5. Control panel
6. Magnetron (do not remove the mica plate protecting the magnetron)
7. Glass turntable
8. Grill
9. Rack

Control panel

Fig. 2.

1. Display
2. Power level
3. Clock
4. Weight
5. Grill
6. Combi
7. Defrost by weight
8. Default
9. Pause/Cancel
10. Menu/Timer
11. Start/QuickStart

2. BEFORE USE

• This microwave features a packaging designed to protect it during transport. Take the microwave out of the box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the microwave when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• The appliance must be placed on a flat, stable, and dry place and kept away from corrosive materials, heat, and humidity-producing substances or appliances, such as burners or water.

ENGLISH

• The appliance must be placed at least 5 m away from TVs, radios, or antennas.
• The appliance must be placed in such way that the plug is accessible, and the socket must be properly earthed to avoid electric shocks.
• Make sure to close the microwave door for proper operation.
• In case there are any manufacturing remains in the microwave cavity or on the heating elements, leave the microwave open to ensure good ventilation. In such case, it is recommended to heat a glass of water at high power for several times.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Warning

Do not try to remove the mica plate. This component is essential for the appliance to work properly. The mica plate must be clean to ensure its proper operation.

Box content

• Microwave
• Turntable
• Rack
• Instruction manual

3. APPLIANCE INSTALLATION

Follow the order of the following figures to proceed with the installation of the microwave.

Fig. 3

1. Cabinet
2. Rear fan filter
3. Microwave
4. Upper ventilation guide
5. Frame

Fig. 4

1. 4x8 mm screw (x4)
2. 4x10 mm screw (x4)
3. 3x25 mm screw (x4)

Fig. 5

1. Space for ventilation

Make sure that the cabinet has the correct dimensions.

Fig. 6

Fig. 7

Attach the 4 decorative rings to the support feet at the bottom of the appliance.

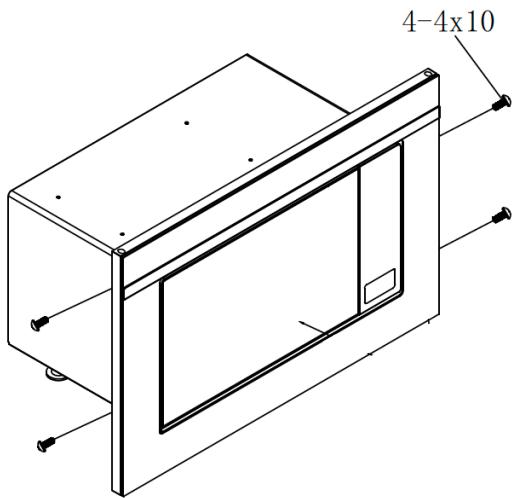

Fig. 8

Fix the frame using the 4 screws.

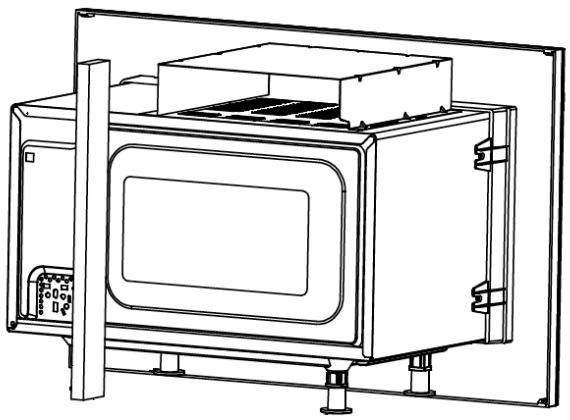

Fig. 9

Secure the upper ventilation guide with 4 screws.

Pay attention to the opening at the back.

Align.

Fig. 10

Rear fan filter

Align.

Fig. 11

Insert the microwave in the cabinet.

Fig. 12

Make sure that the microwave is installed in the centre of the cabinet.

Fig. 13

Use 4 screws to fix the microwave to the cabinet.

Fig. 14

The microwave is fully installed.

4. OPERATION

Display

The display will show the cooking time, power, mode, and time.

Power level

Press the power level button to select the desired microwave power level.

Clock

Press the clock button to set the microwave time.

ENGLISH

Weight

Press this button to select the weight of the food or the number of servings.

Grill

Press this button to use the grill cooking programme for up to 95 minutes.

Combi

Select this function to combine the microwave and grill function.

Defrost by weight

Select this programme to defrost food by weight.

Timer

Set the microwave to start cooking automatically at the set time.

Pause/Cancel

Press the Pause/Cancel button to cancel the settings or restart the microwave before setting a cooking programme.

Press once to stop operation, press twice to cancel.

It can also be used to activate the child lock function.

Menu/Timer

Turn the knob to enter the time.

Turn the knob to select a preset cooking programme.

Using the microwave

Every time you press a button, the microwave will beep.

When the cooking programme has finished, the appliance will beep, and the display will show "End". Press any button or open the door to reset it before setting the next function.

Setting the time

The microwave has a 24-hour clock. While the appliance is in operation, press the Clock button to see the time. The time will be shown on the display for a while.

Example: set the microwave time to 8:30.

Press the Clock button.

Turn the Menu/Timer knob to select 8 hours.

Press the Clock button once to confirm the time.

Turn the Menu/Timer knob to select 30 minutes.

Press the Clock button once to confirm the settings.

QuickStart

When this programme is selected, the appliance will cook the food in a short time at maximum power (100% microwave power).

Press the button once to start the cooking programme.

Press the Start/QuickStart button repeatedly to select the desired cooking time, the microwave will start cooking immediately at full power.

The maximum cooking time for this programme is 10 minutes.

Microwave cooking

To cook in microwave mode, simply select the power level by pressing the power level button repeatedly, then use the Menu/Timer knob to set the desired cooking time.

NOTE: the maximum cooking time for this mode is 95 minutes.

Press the power button to select the desired power level.

Press the power level button	Cooking power level
1 time	100%
2 times	80%
3 times	60%
4 times	40%
5 times	20%
6 times	0%

Example: cooking for 10 minutes at 60% microwave power. Press the power level button repeatedly until 60% is selected. Turn the Menu/Timer knob to set it to 10:00. Press the Start/QuickStart button.

Combi 1

The maximum cooking time for this mode is 95 minutes.

Example: setting combi 1 for 25 minutes.

Press the Combi button. The display will show "CO-1".

Turn the Menu/Timer knob to set 25:00.

Press the Start/QuickStart button.

Grill cooking

The maximum cooking time for this mode is 95 minutes.

ENGLISH

The grill is particularly useful for cooking thin cuts of meat, cutlets, chops, sausages, and chicken. It can also be used to heat sandwiches or grill dishes.

Example: grilling for 12 minutes.

Press the Grill button.

Turn the Menu/Timer knob to set 12:00.

Press the Start/QuickStart button.

Default cooking programmes

These programmes have default power and cooking time. When using these programmes, only select the type of food and the weight. Press the Start/QuickStart button to start the appliance.

Example:

In Standby mode, turn the Menu/Timer knob counterclockwise to select the code for the food to be cooked.

Press the Weight button repeatedly until selecting the desired weight.

Press the Start/QuickStart button.

Default programmes

Code	Food	Dish
01	Coffee/milk (200 ml/cup)	When heating or cooking milk, coffee or potatoes, the display will show the number of servings instead of the weight when the weight button is pressed.
02	Rice (g)	When cooking food corresponding to codes 07, 08 and 09 in the list, the appliance will stop working and beep during the cooking process to turn the food over, allowing it to cook evenly.The results of the preset programmes will depend on the size of the food, the individual cooking preferences and how the food is arranged on the turntable. If the results are not to your liking, adjust the cooking time.To cook spaghetti, add boiling water before cooking.
03	Spaghetti (g)
04	Potato (per 230 g)
05	Reheat (g)
06	Fish (g)
07	Chicken (g)
08	Beef/lamb (g)
09	Meat skewer (g)

Defrost by weight

The appliance allows defrosting food based on the set weight.

The power level and defrosting time are automatically adjusted according to the weight of the food to be defrosted.

The weight range of frozen food is 100-1800 g.

Example: defrosting 600 g of prawns.

Press the Defrost by weight button once.

Press the Weight button to select the weight of the food to be defrosted.

Press the Start/QuickStart button.

Warning: the appliance will stop during the defrosting cycle to turn the food over. Turn the food over and press the Start/QuickStart button.

Timer function

This function allows you to set a cooking programme to be activated at the desired time.

Example: it is 09:00 and you want the microwave to start cooking at 11:30.

Set the desired cooking programme.

Press the Timer button once.

Turn the Menu/Timer knob to set it to 11:00 (hours).

Press the Timer button once.

Turn the Menu/Timer knob to set it to 11:30 (select 30 minutes).

Press the Start/QuickStart button once.

Note: once a preset function has been selected, the buttons cannot be used, except to see the set time by pressing the Timer button, or to cancel by pressing the Pause/Cancel button. At 11:30, the selected programme will be activated automatically.

Child lock

This function is designed to prevent small children from operating the appliance. The child lock indicator light will light up on the display and the microwave will be locked.

To activate this function, press and hold the Pause/Cancel button for 3 seconds. The appliance will beep, and the display will show the lock indicator light.

To deactivate this function, press and hold the Pause/Cancel button for 3 seconds until the indicator light switches off.

5. TIPS

• Placing the food: place the thickest parts of the food towards the edge of the turntable. Try to avoid overlapping food.
• Watch the cooking time: cook for the shortest amount of time at first and add more minutes if necessary. Excessive heating of food can lead to smoking or burning.
• Cover food while cooking: covering the food you are going to cook avoids spattering and allows for a more even cooking.
• Flip or stir food once during the cooking process.
• Follow the recommended pre-heating time. Pre-heating time specified on the food label must not be exceeded.

ENGLISH

• Shell eggs or boiled eggs should not be heated in the microwave, as they may explode even after they have been cooked.
• Lightly pierce foods with tough skins such as potatoes, pumpkins, apples, or chestnuts before cooking.
• It is important to use materials and containers which are suitable and safe for microwave cooking. The table below shows which materials are suitable and which are not:

Container material	Suitable	Warnings
Browning dish	Yes	Follow the manufacturer's instructions. The bottom of the browning dish must be at least 5 mm above the turntable. A misuse may break the turntable.
Cookware	Yes	Suitable for microwaves only. Follow the manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Yes	Always remove the lid. Use them only to slightly heat food. Most glass jars are not heat resistant and may break.
Glassware	Yes	Heat-resistant microwave glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Microwave cooking bags	Yes	Follow the manufacturer's instructions. Do not close with a metal tie. Make slits to allow steam to escape.
Paper towels	Yes	Use to cover food for reheating and absorbing fat. Use with care for short-term cooking/warming only.
Baking paper	Yes	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Yes	Microwave-safe only. Follow the manufacturer's instructions. It must be labelled as “microwave safe”. Some plastic containers soften, as the food inside gets hot. Boil-in bags and closed plastic bags should be cut or punctured slightly if indicated on the appliance.
Plastic wrap	Yes	Microwave-safe only. Use it to cover food during cooking and retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Yes	Microwave-safe only (meat and candy thermometers).
Aluminium tray	No	May cause arcing. Move food into a microwave-safe dish or container.
Food carton with metal handle	No	May cause arcing. Move food into a microwave-safe dish or container.
Metal or metal-trimmed cookware	No	The metal diverts energy away from the food. The metal trim could cause an electric arc.
Metal twist ties	No	May cause arcing. Move food into a microwave-safe dish or container.
Paper bags	No	May cause a fire in the microwave.
Plastic foam	No	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	No	Wood may dry out inside the microwave and may split or crack.

6. CLEANING AND MAINTENANCE

• The appliance, as well as food remains, must be cleaned and removed regularly.
• Unplug the cord from the power supply before cleaning. Do not immerse the appliance in water or any other liquid during cleaning.
• The lack of maintenance and cleaning of the product may cause a deterioration on its surface and affect its lifespan. Keep the inside of the appliance clean.
• Wipe up splashes or spilled liquids with a damp cloth.
• Do not use strong detergents, powder abrasives, or metal brushes to clean the appliance.
• Do not allow the control panel to get wet.
• Do not remove the mica plate cover.
• If steam builds up inside or around the outside of the microwave door, wipe it with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and is normal.
• The turntable ring assembly and surface of the microwave should be cleaned regularly to avoid excessive noise. Clean the microwave base with a cloth and mild detergent.

ENGLISH

• Use a soft, damp cloth to clean the gaskets, door, interior walls, and turntable.
• When the microwave has been used for a long time, some strong odours may arise from inside. To get rid of them, follow one of the steps below:
• Place several lemon slices in a cup and heat them at high power for 2 or 3 minutes.
  Place a cup of red tea inside the microwaves and heat it at high power for 2 or 3 minutes.
• Place orange peels inside the microwave and heat them at high power for 1 minute.

7. TECHNICAL SPECIFICATIONS

Model: 01375/ 01378/ 01380

Product reference: GrandHeat 2000 Built-In Black/ GrandHeat 2000 Built-In White/ GrandHeat 2000 Built-In Steel Black

Voltage: 230 - 240 V \~

Frequency: 50 Hz

Rated power: 1200 W (Microwave), 900 W (Grill)

Microwave power: 700 W

Microwave frequency: 2450 MHz

Capacity: 20 l

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the

local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

3. INSTALLATION DU PRODUIT

Built-In Steel Black

Voltage: 230 - 240 V\~

Fréquence : 50 Hz

Puissance nominale : 1200 W (Micro-ondes); 900 W (Grill)

Referência: GrandHeat 2000 Built-In Black/ GrandHeat 2000 Built-In White/ GrandHeat 2000 Built-In Steel Black

Tensão: 230-240 V\~

Frequência: 50 Hz

Fig. / Img. / Rys. / Obr. 1

Fig. / Img. / Rys. / Obr. 2

Fig. / Img. / Rys. / Obr. 3

A 4x8mm

B 4x10mm

c 3x25mm

Fig. / Img. / Rys. / Obr. 4

Fig. / Img. / Rys. / Obr. 5

Fig. / Img. / Rys. / Obr. 6

Fig. / Img. / Rys. / Obr. 7

Fig. / Img. / Rys. / Obr. 8

Fig. / Img. / Rys. / Obr. 9

Fig. / Img. / Rys. / Obr. 10

Fig. / Img. / Rys. / Obr. 11

Fig. / Img. / Rys. / Obr. 12

Fig. / Img. / Rys. / Obr. 13

Fig. / Img. / Rys. / Obr. 14

www.cecotec.es
