Grandheat 2350 Built In Stellblack - Microwave Oven CECOTEC - Free user manual and instructions

Brand	Cecotec
Model	Grandheat 2350 Built In Stellblack
Product type	Built-in microwave oven
Capacity	23 litres
Microwave output power	900 W
Microwave input power	1400 W
Grill power	1000 W
Rated voltage	230-240 V / 50 Hz
Microwave frequency	2450 MHz
Control type	Digital panel with buttons and rotary selector
Clock	Yes, 12 h or 24 h setting
Timer	Yes, with delayed start
Cooking modes	Microwave, grill, combi 1 and combi 2
Automatic programs	9 preset programs (milk/coffee, rice, spaghetti, potatoes, reheating, fish, chicken, veal/lamb, skewers)
Defrost	Yes, by weight from 100 g to 1800 g
QuickStart	Yes, quick cooking at maximum power
Multi-sequence cooking	Up to 2 programmable sequences
Child safety	Yes, automatic panel lock
Turntable	Yes, glass
Grill	Yes, with metal rack
Door	Security locking system
Installation	Built-in, frame and ventilation guide included
Cleaning and maintenance	Smooth interior surface, removable turntable and rack
After-sales service and repairability	Official Cecotec after-sales service at [phone], repairs by qualified personnel
Origin	Designed in Spain, manufactured in China

Frequently Asked Questions - Grandheat 2350 Built In Stellblack CECOTEC

How to set the time on the microwave?

In standby mode, press the Clock button once or twice to choose the 12 h or 24 h format. Turn the Menu/Time selector to set the hours, confirm with Clock, then set the minutes and confirm again.

What is the maximum power of the microwave?

The output power is 900 W. The input power is 1400 W. The oven offers 11 power levels, from 0% to 100%.

How to use the grill?

Press the Grill button, turn the Menu/Time selector to choose the duration (maximum 95 minutes), then press Start. Ideal for steaks, sausages, skewers or for gratinating.

How does the Combi mode work?

Press Combi once or twice to choose Combi 1 (30% microwave, 70% grill) or Combi 2 (55% microwave, 45% grill), set the time and start cooking with Start.

How to defrost food?

Turn the Menu/Time selector counterclockwise to select code 10. Press Weight to indicate the weight (100 g to 1800 g), then start with Quick Start. Remember to turn the food over during the cycle.

How to program a delayed start with the timer?

Select your cooking program, press Timer, set the start time with the selector, confirm, then press Start. The oven will start automatically at the chosen time. Note that QuickStart and Defrost are not programmable.

What containers can be used in the microwave?

Use microwave-safe dishes, heat-resistant glass, suitable plastic, baking paper or paper towel. Avoid metal, aluminium, wood, cardboard with a metal handle and polystyrene.

How to clean the microwave?

Unplug the appliance, clean the interior with a damp cloth, never immerse the oven in water and do not use abrasive products or steam. Clean the rotating ring and base regularly.

What foods should not be heated in the microwave?

Do not heat eggs in their shell, hard-boiled eggs, closed or sealed containers, and never dry clothes, shoes or sponges. These uses can cause explosions, burns or fire.

How to activate child safety?

Child safety locks automatically after one minute in standby mode or if the door is left open. All buttons are inactive. To deactivate it, open or close the door.

USER MANUAL Grandheat 2350 Built In Stellblack CECOTEC

GRANDHEAT 2350 BUILT-IN WHITE

GRANDHEAT 2350 BUILT-IN STEEL BLACK

Microondas encastrable / Built-in microwave

1. Parts and components 57
2. Before use 57
3. Installation 58
4. Operation 58
5. Recommendations for use 63
6. Cleaning and maintenance 65
7. Technical specifications 65
8. Disposal of old electrical and electronic appliances 66
9. Technical support and warranty 66
10. Copyright 66
11. Simplified eu declaration of conformity 67

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

These safety instructions are important. Please read them carefully before using the appliance. Keep this instruction manual for future reference or new users. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.

• Check the appliance and its packaging for damage. Do not operate the appliance if it is not working properly or if the cord or plug are damaged. In case of malfunction or breakdown, please contact the official Cecotec Technical Support Service.
• If the power cord is damaged, it must be replaced by the Technical Support Service of Cecotec or similar qualified personnel to avoid risks.
• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is earthed.

Caution: hot surface.

• WARNING: if the door or door seals are damaged, do not operate the appliance until it has been repaired by a qualified person.
• WARNING: it is dangerous for any unqualified person to perform maintenance or repair operations involving the removal of the cover which provides protection against exposure to microwave energy.
• This appliance is exclusively designed for household use. It is not suitable for commercial or industrial use. Do not operate it outdoor.
• WARNING: you should not heat up liquids or other food in sealed or closed containers, as they are likely to explode.
• Only use utensils that are suitable for use in the microwave. Make sure that utensils do not come into contact with the inside walls of the appliance during use.
• Care should be taken when heating up food in plastic or paper containers, as there is a risk of ignition.
• Use this appliance only for the purposes described in this manual. Do not use corrosive chemicals or vapours in this appliance. It is not designed for industrial or laboratory use.
• This appliance is intended for heating up beverages and food. Drying of food or clothing and heating of pillows, shoes, sponges, wet clothes, and similar items may involve risk of injury, ignition, or fire.
• In case of smoke or fire inside the device, keep the door closed, turn the device off, and unplug it from the power supply to extinguish the flames.
• Heating up beverages may cause them to boil. For this reason, precautions must be taken when handling the container.
• The contents of bottles and jars of baby food should be

swirled or shaken, and the temperature should be checked before consumption to avoid burns.

• Eggs in their shell and whole hard-boiled eggs should not be heated in the appliance since they may explode even after microwave heating has ended.
• WARNING: the combined mode may only be used by children under adult supervision due to the temperatures generated.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. However, the combination mode should not be used by unsupervised children, due to the temperatures generated.
• Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Keep this appliance and its power cable out of reach of children under the age of 8.
• Metal containers must not be used during microwave operation.
• This microwave is intended to be built-in or installed in a piece of furniture. You must leave at least 100 cm of free space on top of the appliance. If the appliance is installed at a distance of more than 900 mm, care must be taken to ensure that the turntable does not shift when removing containers from inside the appliance.
• The appliance is not intended to be operated by means of external timers or separate remote-control systems.
• Do not operate the microwave when empty.

• Do not place hot or frozen food or utensils on the turntable to prevent breakage.

• After using the microwave, the container used may be very hot. Use gloves to avoid burns and injuries.

• The appliance cannot be cleaned with steam.
• Failure to keep the microwave clean could lead to deterioration of the surface and could adversely affect the shelf life of the device and lead to a dangerous situation.
• This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific, and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. Class B equipment is a type of equipment suitable for use in domestic establishments and in establishments directly connected to a low-voltage power supply network supplying buildings used for domestic purposes.

INSTRUCTIONS DE SÉCURITÉ

1. Door lock system
2. Viewing window
3. Turntable shaft
4. Axis
5. Door opening button
6. Control panel
7. Magnetron (do not remove the mica panel protecting the magnetron)
8. Glass turntable
9. Grill
10. Metal grille

Control panel Fig. 2.

1. Display
2. Power level
3. Clock
4. Weight
5. Grill
6. Combi
7. Timer
8. Start/QuickStart
9. Stop/Cancel
10. Menu/time knob

NOTE:

the graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This microwave features a packaging designed to protect it during transport. Take the microwave out of the box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the microwave when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

ENGLISH

• The appliance must be placed on a flat, stable, and dry place and kept away from corrosive materials, heat, and humidity-producing substances or appliances, such as burners or water.
• The appliance must be placed at least 5 m away from TVs, radios, or antennas.
• The appliance must be placed in such way that the plug is accessible, and the socket must be properly earthed to avoid electric shocks.
• Make sure to close the microwave door for proper operation.
• In case there is any manufacturing remains in the microwave cavity or on the heating elements, leave the microwave open to ensure good ventilation. In such case, it is recommended to heat a glass of water at high power for several times.
• Warning: do not remove the mica plate.

3. INSTALLATION

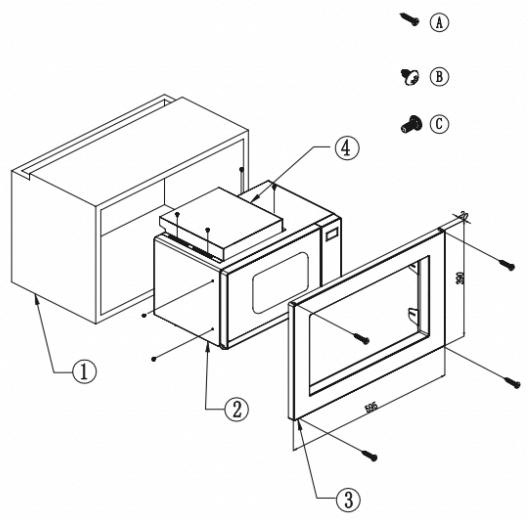

Fig. 3 key:

1. Cabinet
2. Microwave
3. Frame

4. Upper ventilation guide
   A. 3x25 mm screw
   B. 4x8 mm screw
   C. 4x10 mm screw

5. Screw the 4 support feet into the bottom of the microwave. Fig. 4

6. Attach the decorative rings to the support feet at the bottom of the microwave. Fig. 4

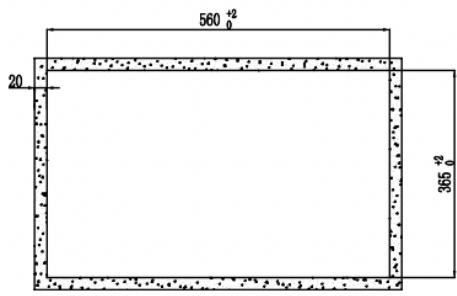

7. In figure 5, you can see the dimensions required for the installation. Make sure that the cabinet has the correct dimensions.
8. Secure the upper ventilation guide with 4 screws. Pay attention to the opening at the back. Fig. 6.
9. Fix the frame using the 4 screws. Fig. 7
10. Insert the microwave in the cabinet. Fig. 8
11. Make sure that the microwave is installed in the centre of the cabinet. Fig. 9
12. Use 4 screws to fix the microwave to the cabinet. Fig. 10
13. The microwave is fully installed. Fig. 11

4. OPERATION

Display

The display will show the cooking time, power, mode, and time.

Power level

Press the power level button to select the desired microwave power level.

Clock

Press the clock button to set the microwave time.

Weight

Press this button to select the food weight.

Grill

Press this button to use the grill cooking programme.

Combi

Select this function to combine the microwave and grill function.

Timer

Set the microwave to start cooking automatically at the set time.

Start/QuickStart

Press this button to start a cooking programme or to select the QuickStart programme.

Stop/Cancel

Press this button to cancel settings or to stop a programme.

Menu/time knob

Turn the selection knob to set the cooking time or to select a menu programme.

Using the microwave

• During the setting configuration, the microwave will return to Standby mode after 20 seconds of inactivity.
• During the cooking process, press Stop/Cancel to pause the microwave, and press Start/QuickStart to restart the microwave or Stop/Cancel to cancel the programme.
• Once a programme has finished, the device will beep every 2 minutes until the door is opened or a button is pressed.

Setting the time

The microwave has a 24-hour or 12-hour clock. During operation, press the Clock button to check the current time.

Example: set the microwave time to 8:30.

1. In standby mode, press the Clock button once or twice to select the 24- or 12-hour system.
2. Turn the Menu/Time knob to select 8 hours.

ENGLISH

1. Press the Clock button once to confirm the time.
2. Turn the Menu/Time knob to select 30 minutes.
3. Press the Clock button once to confirm the settings.
4. Press the Clock button during operation: the current time will be shown on the display for 3 seconds.

Microwave cooking

• To cook in Microwave mode, simply select the power level by pressing the power level button repeatedly, then use the Time/Menu knob to set the desired cooking time. The maximum cooking time for this programme is 95 minutes.
• Press the power button to select the desired power level.

Press the power level button:	Cooking power level
1 time	100%
2 times	90%
3 times	80%
4 times	70%
5 times	60%
6 times	50%
7 times	40%
8 times	30%
9 times	20%
10 times	10%
11 times	0%

Example: cooking for 5 minutes at 60% microwave power.

1. Press the power level button repeatedly until 60% is selected.
2. Turn the Menu/Time knob to select 05:00.
3. Press the Start/QuickStart button.

Note:

Check the power level during operation by pressing the power level button.

Once the programme is finished, the microwave will beep and show End on the display. Before operating the microwave again, press Stop/Cancel to reboot the system and clear the display settings.

Grill cooking

The maximum cooking time for this mode is 95 minutes.

The grill is particularly useful for cooking thin cuts of meat, cutlets, chops, sausages, and chicken. It can also be used to heat sandwiches or grill dishes.

Example: grilling for 12 minutes.

1. Press the Grill button.
2. Turn the Menu/Time knob to set 12:00.
3. Press the Start/QuickStart button.

Combi

The maximum cooking time for this mode is 95 minutes.

Example: setting combi 1 for 25 minutes.

1. Press the Combi button once or twice to select the desired combination mode.
2. Turn the Menu/Time knob to set 25:00.
3. Press the Start/QuickStart button.

Press the Combi button.	Combination	Cooking time		Use
		Microwave	Grill
1 time	COMBI 1	30%	70%	Fish, potatoes, or gratin.
2 times	COMBI 2	55%	45%	Pudding, omelette, roasted potato, or poultry.

Timer function

This function allows you to set a cooking programme to be activated at the desired time.

Example: it is 11:10 and you want the microwave to start cooking at 11:30.

1. From Standby mode, select the desired cooking programme.
2. Press the Timer button once.
3. Turn the Menu/Time knob to select 11 hours (time).
4. Press the Timer button once.
5. Turn the Menu/Timer knob to set it to 11:30 (select 30 minutes).

6. Press the Start/QuickStart button once.

7. Press the Timer button to check the set time. The display will show it for 5 seconds. During these 5 seconds, press Stop/Cancel to cancel the timer.

Note: the QuickStart and Defrost functions cannot be programmed.

QuickStart

- When this programme is selected, the microwave will cook the food in a short time at maximum power (100% microwave power). The maximum cooking time for this programme is 10 minutes.

ENGLISH

- Press the Start/QuickStart button repeatedly to select the desired cooking time, the microwave will start cooking immediately at full power.

Default cooking programmes

• These programmes have default power and cooking time. When using these programmes, only select the type of food and the weight.
• Open the door and place the food in the microwave. Close the door.
• In Standby mode, turn the Menu/Timer knob counterclockwise to select the code for the food to be cooked.
• Press the Weight button repeatedly until selecting the desired weight or number of servings.
• Press the Start/QuickStart button.

Default programmes

Code	Food	Cooking mode
01	Coffee/milk (200 ml/cup)	Microwave
02	Rice (g)	Microwave
03	Spaghetti (g)	Microwave
04	Potato (per 230 g)	Microwave
05	Automatic heating (g)	Microwave
06	Fish (g)	Microwave
07	Chicken (g)	Grill and microwave
08	Beef/lamb (g)	Grill and microwave
09	Meat skewer (g)	Grill and microwave

Note:

• The user must set the weight, and the microwave will automatically set the time.
• For milk or coffee and potatoes, number of servings are used instead of weight.
• For chicken, lamb, beef and beef brochette, the microwave will stop during the process to remind you to turn the food over for even cooking.

Automatic defrosting

The microwave allows defrosting food based on the set weight. The power level and defrosting time are automatically adjusted based on the set weight. The weight range of frozen food is 100-1800 g.

Example: defrosting 600 g of prawns.

1. In standby mode, turn the Menu/Timer knob counterclockwise to select "10".
2. Press the Weight button to select the weight of the food to be defrosted: 600 g.
3. Press the Start/QuickStart button.

Warning: the microwave will stop during the defrosting cycle to turn the food over. Turn the food over and press the Start/QuickStart button.

Multi-sequence cooking

A maximum of 2 sequences can be set for a cooking process. If one of the sequences included is defrosting, it should be set as the first one.

Note: Quick Start, Auto Defrost and Auto Menu cannot be configured as one of the multiple sequences.

Example: cooking in microwave mode and then in grill mode.

1. Press the Stop/Cancel button to reset the system.
2. Set the Microwave mode.
3. Set the Grill mode.
4. Press Start/QuickStart to start cooking.
5. The respective indicator lights will light up to indicate which sequence is in operation. When it is completely finished, the microwave will beep.

Child lock

• This function is designed to prevent small children from operating the appliance. The child lock indicator light will light up on the display and the microwave will be locked.
• If the appliance is not used for 1 minute and the door is left open, or when entering Standby mode, this function will be enabled automatically. All buttons will be disabled. The lock indicator light will come on.
• To disable the child lock, open or close the door. The lock indicator light will switch off.

5. RECOMMENDATIONS FOR USE

• Food arrangement: place the thickest food parts towards the edge of the turntable. Do not put food on top of other food if possible.
• Watch the cooking time: cook for the shortest amount of time at first and add more minutes if necessary. Over-cooking may result in smoke and burns.
• Cover food while cooking: covering the food you are going to cook avoids spattering and allows for a more even cooking.
• Flip or stir food during the cooking process.
• It is important to use materials and containers which are suitable and safe for microwave cooking. The table below shows which materials are suitable and which are not:

Container material	Microwave	Warnings
Browning dish	Yes	Follow the manufacturer's instructions. The bottom of the browning dish must be at least 5 mm above the turntable. A misuse may break the turntable.
Dinnerware	Yes	Suitable for microwaves only. Follow the manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Yes	Always remove the lid. Use them only to slightly heat food. Most glass jars are not heat resistant and may break.
Glassware	Yes	Heat-resistant microwave glassware only. Make sure there is no metallic trim.Do not use cracked or chipped dishes.
Microwave cooking bags	Yes	Follow the manufacturer's instructions. Do not close with a metal tie. Make slits to allow steam to escape.
Paper towels	Yes	Use to cover food for reheating and absorbing fat. Use with care for short-term cooking/warming only.
Baking paper	Yes	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Yes	Microwave-safe only. Follow the manufacturer's instructions. It must be labelled as "Microwave-safe". Some plastic containers soften, as the food inside gets hot. Boil-in bags and closed plastic bags should be cut or punctured slightly if indicated on the appliance.
Plastic wrap	Yes	Microwave-safe only. Use it to cover food during cooking and retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Yes	Microwave-safe only (meat and candy thermometers).
Aluminium tray	No	May cause arcing. Move food into a microwave-safe dish or container.
Food carton with metal handle	No	May cause arcing. Move food into a microwave-safe dish or container.
Metal or metal-trimmed utensils	No	Metal shields the food from microwave energy. The metal trim could cause an electric arc.
Metal twist ties	No	May cause arcing. Move food into a microwave-safe dish or container.
Paper bags	No	May cause a fire in the microwave.
Plastic foam	No	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	No	Wood will dry out when used in the microwave and may split or crack.

6. CLEANING AND MAINTENANCE

• The microwave, as well as food remains, must be cleaned, and removed regularly.
• Unplug the cord from the power supply before cleaning. Do not immerse the appliance in water or any other liquid during cleaning.
• The lack of maintenance and cleaning of the product may cause a deterioration on its surface and affect its lifespan. Keep the inside of the microwave clean.
• Wipe up splashes or spilled liquids with a damp cloth.
• Do not use strong detergents, powder abrasives, or metal brushes to clean the appliance.
• Do not allow the control panel to become wet.
• Do not remove the mica plate cover.
• If steam builds up inside or around the outside of the microwave door, wipe it with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and is normal.
• The turntable ring assembly and surface of the microwave should be cleaned regularly to avoid excessive noise. Clean the microwave base with a cloth and mild detergent.
• Use a soft, damp cloth to clean the gaskets, door, interior walls, and turntable.
• When the microwave has been used for a long time, some strong odours may arise from inside. To eliminate these odours, you can use any of the following options:
  a. Place several lemon slices in a cup and heat them at high power for 2 or 3 minutes.
  b. Place a cup of red tea inside the microwaves and heat it at high power for 2 or 3 minutes.
  c. Place orange peels inside the microwaves and heat them at high power for 1 minute.

7. TECHNICAL SPECIFICATIONS

Model: GrandHeat 2350 Built-In Black / GrandHeat 2350 Built-In White / GrandHeat 2350

Built-In Steel Black

Reference: 01387 / 01388 / 01389

Rated input power (microwave): 1400 W

Rated input power (Grill): 1000 W

ENGLISH

Rated output power (microwave): 900 W

Rated voltage: 230-240 V

Rated frequency: 50 Hz

Microwave frequency: 2450 MHz

Capacity: 23 L

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

Built-In Steel Black

Modell-Referenz: 01387 / 01388 / 01389

Built-In Steel Black

Model: GrandHeat 2350 Built -In Black / GrandHeat 2350 Built -In White / GrandHeat 2350 Built - In Steel Black

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

www.cecotec.es
