Conga Rockstar Wet Dry Compact Garden - Vacuum Cleaner CECOTEC - Free user manual and instructions

Brand	Cecotec
Model	Conga Rockstar Wet Dry Compact Garden
Product type	Vacuum for solids and liquids
Use	Domestic use only; not suitable for bars, restaurants, hotels, etc.
Functions	Solid suction, liquid suction, blower function
Solid filter	High-efficiency filter
Liquid filter	Special liquid filter
Tank	Removable tank with fixing tabs
Wheels	Wheels attached to the base for mobility
Flexible hose	Yes, with rotating connector
Rigid tube	Yes, for extended suction
Floor brush	Included
2-in-1 accessory	Included
Crevice tool	Included
Handle	Integrated for comfortable carrying
Connections	Wet&Dry inlet and blower inlet
Safety	Do not vacuum flammable liquids, burning or smoking materials
Power supply	Mains via power cable with ground
Maintenance	Clean the tank, filters and main unit after each use
Warranty and after-sales service	Official Cecotec technical support

Frequently Asked Questions - Conga Rockstar Wet Dry Compact Garden CECOTEC

How to assemble the Conga Rockstar Wet Dry Compact Garden vacuum?

To assemble the device, first attach the wheels to the base. Then insert the high-efficiency filter for solids or the liquid filter depending on the use. Place the main unit on the tank and secure it with the side tabs. Finally, insert the hose into the designated connector and turn it clockwise to lock it.

Which filters should be used to vacuum solids or liquids?

To vacuum solids, use the high-efficiency filter. To vacuum liquids, replace it with the liquid filter. Make sure the appropriate filter is correctly installed before each use.

How to connect the hose and accessories?

Insert the hose into the Wet&Dry connector for suction or into the blowing connector for blower mode. Then attach the desired accessory (brush, 2-in-1 accessory, etc.) to the end of the hose, making sure everything is properly connected.

Can I use the vacuum to vacuum water or liquids?

Yes, thanks to its Wet&Dry function, the device can vacuum solids and liquids. To vacuum liquids, install the liquid filter and regularly empty the tank to prevent any overflow.

How to maintain the device after each use?

Always unplug the device before cleaning. Carefully clean the water tank, the filters, and the main unit after each use. Also check that the cable is not damaged.

What accessories are included in the box?

The box contains the vacuum, a rigid tube, a flexible hose, a floor brush, a 2-in-1 accessory, and a crevice tool.

Is the vacuum suitable for professional use?

No, this vacuum is designed for household use only. It must not be used in bars, restaurants, farms, hotels, motels, or offices.

What to do if the power cable is damaged?

If the cable is damaged, it must be replaced by the manufacturer, its distributor, or a similarly qualified person to avoid any danger. Never attempt to repair the cable yourself.

Can I vacuum hot or flammable materials?

No, never vacuum burning or smoking materials such as cigarette butts, matches, hot ashes, flammable or combustible liquids. This could damage the device and pose a fire hazard.

How to use the blower function?

To use the blower function, insert the hose into the blowing connector on the main unit. The air blast can help move light debris or clean hard-to-reach areas.

USER MANUAL Conga Rockstar Wet Dry Compact Garden CECOTEC

cecòtec

Safety instructions 8

1. Parts and components 42

2. Before use 42

3. Assembly 43

4. Operation 43

5. Cleaning and maintenance 43

6. Troubleshooting 44

7. Technical specifications 44

8. Disposal of old electrical and electronic appliances 45

9. Technical support and warranty 45

10. Copyright 45

SOMMAIRE

EU01_100011 Conga Rockstar Wet & Dry Compact Garden

ES • La codificación de este manual es genérica y se aplica a todas las variantes de códigos del aparato.
EN • The coding in this manual is generic and applies to all code variants of the appliance.
FR • Le codage figurant dans ce manuel est générique et s'applique à toutes les variantes de code de l'appareil.
DE • Die Codierung in dieser Bedienungsanleitung ist allgemein und gilt für alle Codevarianten des Geräts.
IT • La codifica riportata nel presente manuale è generica e si applica a tutte le varianti di codici dell'apparecchio.
PT • A codificação apresentada neste manual é genérica e aplica-se a todas as variantes de código do aparelho.
NL • De codering in deze handleiding is algemeen en geldt voor alle codevarianten van het apparaat.
PL • Kody podane w niniejszej instrukcji są ogólne i mają zastosowanie do wszystkich wariantów kodowych urządzenia.
CZ • Kódování obsažené v tomto návodu je generické a platí pro všechny kódové varianty spotřebiče.
TR • Bu kılavuzdaki kodlama geneldir ve cihazın tüm kod varyantları için geçerlidir.
GR • H κωδικοποίηση σε αυτό το εγχειρίδιο είναι γενική και ισχύει για όλες τις παραλλαγές κώδικα της συσκευής.
CAT • La codificació del manual és genèrica i s'aplica a totes les variants de codis de l'aparell.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• When using electrical and electronic appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Check the power cable for visible damage. If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary if the device is used by or near children.

• The plug of the power cord must be removed from the base before cleaning or servicing the device.

• Make sure that the mains voltage matches the voltage stated on the rating label of the device and that the wall outlet is earthed.

• Avoid operating the appliance under extremely high or low temperatures.
• If the appliance does not work as described in this manual, has suffered a major impact, falls from a height, is damaged, or falls into water, do not use it and contact the official Cecotec Technical Support Service
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Keep the packaging materials out of the reach of children, as they could be dangerous.
• Do not allow the cable to touch hot surfaces. Pay special attention when cleaning stairs. Do not run the vacuum cleaner over the cord. Do not use the device if the cord or plug is damaged.
• Keep hair, clothing, fingers, and other body parts away from openings and moving or suction parts.
• The device is not intended to be operated by means of an external timer or separate remote-control system.
• Do not vacuum burning or smouldering materials such as cigarette butts, matches, hot ashes, flammable liquids, or combustible materials such as gasoline.
• Switch the vacuum cleaner off before unplugging it. Do not leave the vacuum cleaner unattended during operation. Unplug the cord when not in use and before cleaning.
  Liability for damages resulting from non-compliance with these operating instructions or any other improper use is excluded.

INSTRUCTIONS DE SÉCURITÉ

1. Hose connector
2. Flexible hose
3. Wey&Dry connector inlet
4. Main body
5. Power button
6. Handle
7. Blowing connector inlet
8. Hooks
9. Tank
10. Wheels
11. Floor brush
12. High-efficiency filter
13. Filter for liquids
14. 2-in-1 accessory
15. Rigid tube
16. Flexible hose
17. Accessory for corners

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the device if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Box content:

- Conga Rockstar Wet&Dry Compact Wet & Dry vacuum cleaner

• Rigid tube
• Flexible hose
• Floor brush
• 2-in-1 accessory
• Accessory for corners

3. ASSEMBLY

1. Attach the wheels to the base as shown in Figure 2.
2. Insert the high-efficiency filter if you want to vacuum solids or the filter for liquids you want to vacuum liquids.

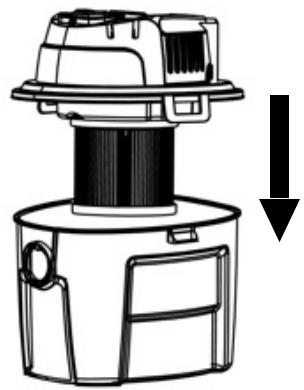

3. Place the main body on top of the tank and use the hooks on both sides to secure it in place. Fig. 3
4. Insert the hose into the Wet&Dry or blowing connector and turn it clockwise to secure it. Fig. 4
5. Choose the accessory you wish to use and attach it to the flexible hose connector.

4. OPERATION

Before switching on the appliance, make sure that the high-efficiency filter for solids or the filter for liquids is properly installed.

1. Insert the end of the hose into the suction or blowing connector, depending on which you wish to use. Make sure that the hose assembly is properly installed to ensure correct operation of the device.
2. Connect the device to a mains socket and switch it on by pressing the on/off button.
3. Unplug the device after every use.

5. CLEANING AND MAINTENANCE

• Make sure the appliance is not plugged to a mains socket before cleaning it or carrying out maintenance on it.
• Clean the water tank, filters, and main body after every use.
• If the water tank fills up during operation, empty it immediately so that it does not affect the correct operation of the appliance.
• It is recommended to replace the filter after 30-50 hours of use (depending on how it is used).
• If the device is not going to be used for a long period of time, it is recommended to store it as described above, in a cool and dry place. Do not store it under direct sunlight or in damp places.

Cleaning the tank

1. Unlock the hooks and take out the main body and the high-efficiency filter or the one for liquids.
2. Empty the tank.
3. Vacuum and shake the filters to remove any particle of dirt that may block them and hinder proper air circulation. Avoid using the vacuum cleaner without the filter properly assembled.

6. TROUBLESHOOTING

Before contacting the official Cecotec Technical Support Service, please check the following section.

Problem	Possible cause	Possible solution
The motor does not start	The power cable is not plugged into a socket. The power socket is damaged. The vacuum cleaner has not been switched on.	Plug in the appliance properly. Check that the socket is not damaged. Switch on the appliance.
Suction power has decreased	The appliance is obstructed. It's necessary to change the filter.	Clear the obstruction. Replace the filter.
Water comes out of the blowing connector	The filter for liquids is not in place or the maximum tank capacity has been exceeded.	Unplug the power cord. Place the filter in its place.

7. TECHNICAL SPECIFICATIONS

Model: Conga Rockstar Wet & Dry Compact Garden

Product reference: EU01_100011

Voltage: 220-240V\~

Frequency: 50/60 Hz

Power: 1000 W

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for

information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs are carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

11

15

12

16

13

10

14

17

Fig./Img./Abb./Afb./ Rys. 1

Fig./Img./Abb./Afb./ Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./ Rys. 4

www.cecotec.es
