Conga Rockstar Micro Animal - Vacuum Cleaner CECOTEC - Free user manual and instructions

Product type	Robot vacuum cleaner
Model	Conga Rockstar Micro Animal
Brand	Cecotec
Dimensions (approx.)	34 x 34 x 9 cm
Weight (approx.)	3 kg
Power supply	Rechargeable lithium-ion battery via low-voltage adapter
Input voltage	100-240 V AC (adapter)
Operating voltage	Very low safety voltage (according to the manual)
Approximate runtime	100 minutes
Charging time	4 to 5 hours
Tank capacity	300 ml
Main functions	3-in-1 vacuuming, sweeping, and mopping
Filtration system	High-efficiency HEPA filter
Special pet brush	Anti-tangle main brush with Micro Animal technology
Sensors	Drop detection, dirt sensor, and obstacle avoidance
Connectivity	Integrated Wi-Fi, control via Cecotec app, compatible with Alexa and Google Assistant
Scheduling	Scheduled programming and spot cleaning via app
Noise level	Approximately 65 dB
Maintenance and cleaning	Removable dust tank, washable filters, cleanable brushes
Safety	Automatic shutdown in case of overheating or blockage, drop detection
Spare parts	Brushes, filters, and tank available from Cecotec after-sales service
Repairability	Repairs only by the official Cecotec technical service
Usage	Household use only, do not use outdoors
Warranty	Official Cecotec warranty (see manual)

Frequently Asked Questions - Conga Rockstar Micro Animal CECOTEC

How do I start the Conga Rockstar Micro Animal?

To start, press the On/Off button on the device. The robot will automatically begin cleaning. See the Operation section of the manual for more details.

Can I schedule cleaning with the mobile app?

Yes, thanks to Wi-Fi connectivity and the Cecotec app, you can schedule cleaning times, select power modes, and control the robot remotely.

How do I maintain the main brush for pet hair?

The special Micro Animal main brush is designed to prevent hair tangles. Remove it regularly and take off accumulated hair using the provided cleaning tool. Rinse with water if necessary and let it dry completely before reinstalling.

What should I do if the vacuum cleaner does not recharge?

Check that the power adapter is properly plugged in and that the charging contacts on the robot and the station are clean. Let the robot recharge for several hours. If the problem persists, contact official Cecotec after-sales service.

How do I clean the HEPA filter?

The HEPA filter should be cleaned regularly to maintain the robot's efficiency. Remove the tank, take out the filter, and tap it to remove dust. Rinse it under cold water, let it air dry for 24 hours before reinstalling.

Can the robot fall down stairs?

Yes, the robot is equipped with drop detection sensors that prevent it from falling down stairs or steps. However, make sure the sensors remain clean for optimal performance.

What is the battery life?

The average runtime is about 100 minutes in standard mode, depending on floor type and usage. The lithium-ion battery automatically recharges on its docking station when the level is low.

Does the device work with voice assistants?

Yes, the Conga Rockstar Micro Animal is compatible with Alexa and Google Assistant. You can start, stop, or send it for spot cleaning using voice commands.

How do I empty the dust tank?

Release the dust tank by pressing the latch, remove it from the robot, and open the lid over a trash bin. The transparent tank lets you check the fill level. Close and reattach the tank.

What should I do if the robot vacuum makes an abnormal noise?

If an abnormal noise occurs, stop the robot immediately and check that the main brush and wheels are not blocked by debris. Consult the Troubleshooting section of the manual or contact technical support.

USER MANUAL Conga Rockstar Micro Animal CECOTEC

Safety instructions 7

1. Parts and components 37
2. Before use 37
3. Operation 38
4. Cleaning and maintenance 39
5. Troubleshooting 40
6. Technical specifications 40
7. Disposal of old electrical and electronic appliances 41
8. Technical support and warranty 41
9. Copyright 41

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Inspect the power cable regularly for visible damage, especially the cable, plug, and charger casing. If the power cable is damaged, it must be replaced with a special cable or set to be supplied by the official Cecotec Technical Support Service. The power adapter is to be properly discarded.

- The appliance must be powered at a low safety voltage as stated on the marking.

- Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.

- Ensure that the mains voltage matches the voltage specified on the appliance marking and that the mains plug is earthed.

- Do not use the appliance if it has been dropped or if there are any visible signs of damage.

- Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.

- Do not place the appliance close to heat sources, flammable

substances, or wet surfaces where it could fall, nor allow it to come into contact with water or other liquids. Do not use outdoors.

• Do not use the appliance to vacuum liquids, lighted matches, cigarette ends, hot ash, or on wet surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Keep the air outlet unblocked to avoid losing suction power.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Do not pull on the cable to disconnect the appliance. Pull from the plug.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

Battery instructions

• WARNING: to recharge the battery, use only the power supply included with the appliance, with reference TYGSDC1800500.
• The appliance contains a battery that should only be replaced by qualified personnel.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose the battery to heat or fire. Avoid storage in direct sunlight.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets

into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Do not use any charger other than the one supplied specifically for this appliance.
• Secondary batteries must be charged before use. Always use the specified charger and refer to these instructions.
• Do not leave the battery on prolonged charge when not in use.
• After long periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
• Keep this instruction manual for future reference.
• Use the battery only for its intended purpose, i.e., for use with this appliance.
• Non-rechargeable batteries should not be recharged.

INSTRUCTIONS DE SÉCURITÉ

1. Rope
2. Power button
3. Speed-control button
4. Dust tank
5. Power adapter
6. Accessory for upholstery
7. Accessory for corners and furniture
8. Accessory for pets
9. Extensible tube

NOTE:

The graphics in this manual are schematic representations and may not exactly match the appliance.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Conga Rockstar Micro + Animal handheld vacuum cleaner.
• Power adapter
• Accessory for upholstery
• Accessory for corners and furniture
• Accessory for pets
• Extensible tube
• Charging base
• Instruction manual

3. OPERATION

Warning:

Do not use the vacuum cleaner with the adapter connected.

Using the handheld vacuum cleaner

1. Make sure the vacuum cleaner's adapter is not connected.
2. Press the power button to turn the vacuum cleaner on.
3. Use the speed-control button to set the desired speed.

Accessories

This appliance includes different accessories that allow cleaning different types of surfaces, objects, and dirt.

Accessory for upholstery. Fig. 2

This accessory is used for an intense cleaning of upholstered furniture.

1. To attach the accessory for upholstery to the main body, align and fit both until the accessory clicks into place.
2. To remove the accessory, pull the accessory for upholstery with one hand while holding the main body firmly with the other.

Accessory for corners and furniture. Fig. 3

This accessory allows cleaning furniture without damaging it and reaching less accessible dirt in corners.

1. To attach the accessory for corners and furniture to the main body, align and fit both until the accessory clicks into place.
2. To remove the accessory, pull the accessory for corners and furniture with one hand while holding the main body firmly with the other.

Accessory for pets. Fig. 4

This accessory allows you to effortlessly brush your pet.

1. To attach the accessory for pets to the main body, align and fit both until the accessory clicks into place.
2. To remove the accessory, pull the accessory for pets with one hand while holding the main body firmly with the other.
3. Press the head release button to remove the head so that the desired head can be fitted. To attach the head, insert the lower tabs and then press the upper part until it clicks into place.
4. Press the trigger to release the hair and instantly vacuuming it.

Fig. 4 key:

1. Head release button

2. Trigger

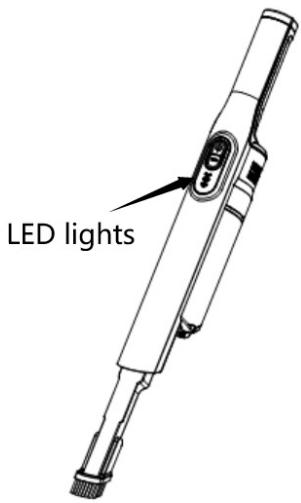

Indicator light. Fig. 5

• When the vacuum cleaner is charging, the indicator will light up and keep flashing.
• When the vacuum cleaner is fully charged, the indicator will stop flashing and light up steady.
• When using the vacuum cleaner, the indicator will stay lit.
• When the vacuum cleaner's battery is low, the indicator will flash.

Charging the vacuum cleaner. Fig. 6

1. Make sure the vacuum cleaner is switched off.
2. Plug the adapter into a socket and the vacuum cleaner.
3. An indicator light will light up and keep flashing once the adapter is connected to the vacuum cleaner.

It's normal for the adapter to become warm during charging.

4. CLEANING AND MAINTENANCE

• Always turn off and unplug the appliance before cleaning it.
• Use a soft, slightly dampened cloth to clean the surface of the appliance.
• Never immerse the appliance in water or other liquids, do not allow liquids to enter the appliance.
• Do not use abrasive cleaners or scouring pads to clean the appliance.
• Do not leave the appliance in a place with direct sunlight.
• Do not leave the appliance in a wet place after cleaning it.

Cleaning the filters and tank. Fig. 7

• To avoid the appliance from overheating and losing suction power, it is suggested to clean the filters frequently. To make the most of the suction power, it is suggested to clean the filter after every use.

• The filters shelf life will depend on the accumulated use and the type of particles which are frequently vacuumed. It is recommended to replace the filters approximately every 6 months.

• Make sure the vacuum cleaner is switched off and is not connected to a mains socket.

• Press the dust-tank release button and remove it.

• Remove the filter system from inside the tank and separate the filters for cleaning.

• Put the filters back in their original position inside the dust tank.

ENGLISH

5. Refit the dust tank.

Vacuum and shake the filters to remove every dirt that may block them and hinder correct air circulation. Remember not to use the vacuum cleaner without the filters properly assembled.

Filters cannot be washed inside a washing machine nor dried with a hair dryer.

Do not brush the high-efficiency filter.

5. TROUBLESHOOTING

Problem	Possible cause	Possible solution
The vacuum cleaner does not work.	The battery is exhausted.	Charge the battery.
No suction or low suction power.	The dust tank is full or clogged.The dust tank was not installed correctly.The filter needs to be cleaned.	Empty the dust tank and clean the filter.Install the dust tank properly.Clean the filters.
The vacuum cleaner does not charge.	The power adapter was not plugged in correctly.You are not using the appropriate charger.	Check that the adapter and the plug are properly connected.Use only the charger provided with the vacuum cleaner.

6. TECHNICAL SPECIFICATIONS

Conga Rockstar Micro + Animal

Product reference: 08378

Motor rated power: 200 W

Charger output: 18 V = 0.5 A

Battery data:

14,8 V = 2500 mAh 37 Wh

Reference: Rockstar Micro + Animal Battery Pack

Input: 18 V, 0.5 A

Type: SF18650NR-22

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on the most appropriate way to dispose of electrical and electronic equipment and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

5. PROBLEEMOPLOSSING

Reference: Rockstar Micro + Animal Battery Pack

Vstup: 18 V, 0.5 A

Typ: SF18650NR-22

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7
