USER MANUAL USB PERIPHERAL SWITCH BELKIN

Share a USB device with up to four computers

Share a USB device with up to four computers

Congratulations on your purchase of the Belkin USB Peripheral Switch (the Switch). The Switch gives multiple computers access to a single USB 1.1-compliant device—such as a printer, camera, scanner, or an external storage device. The Switch makes peripheral sharing simpler and easier than ever. It offers a convenient design and easy-to-use switching software that gives you immediate access to your USB device. Once connected, your device stays available to all connected computers, eliminating the need for you to unplug and reconnect it to another computer. The Belkin USB Peripheral Switch is backed by a Belkin One-Year Warranty and free technical support.

This manual will provide details about your new Switch, from installation and operation, to troubleshooting—in the unlikely event of a problem.

For easy installation, please refer to the Quick Installation Guide included with your Switch.

Technical Specifications

USB Device Port Connector: USB Type A Receptacle

USB Computer Port Connector: USB Type B Receptacle

LED Indicators: 4 (F1U401), 2 (F1U201)

Enclosure: High-Impact Plastic

Dimensions: F1U201 27.5 (H) x 58 (W) x 81.25mm (D)

F1U401 27.5 (H) x 82 (W) x 81.25mm (D)

Weight: F1U401 0.07 lbs.

F1U201 0.05 lbs.

Operating Temp: 41^ to 104^ F (5 40^)

Storage Temp: -4° to 140° F (-20~60°C)

Warranty: 1 Year

Package Contents

• Belkin USB Peripheral Switch
• Software Installation CD
• User Manual
• Quick Installation Guide
• Registration Card

System Requirements

• Windows® 98 SE, Me, 2000, XP
  Mac OS X.x

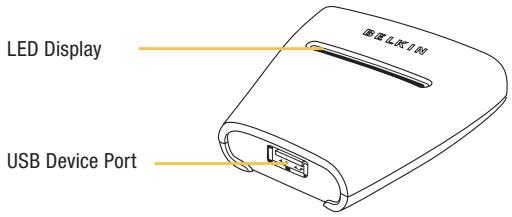

Unit Display Diagrams

Software Installation for Windows

Before you begin, be sure that:

1. The Switch is not connected to your computer;
2. The Switch supports your operating system; and
3. Your USB devices are compatible with your connected computers.

To install the software:

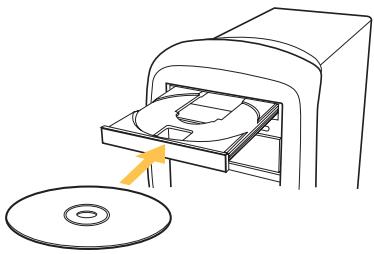

1. Place the CD in the CD tray in your PC.

1. Double-click on "My Computer".
2. Double-click on the CD-ROM drive.

3. Double-click on the file name "Setup.exe".

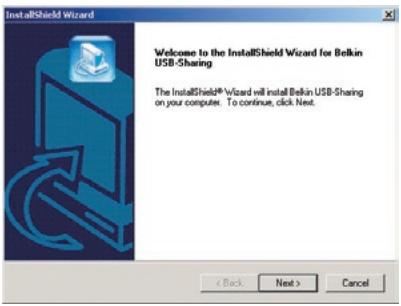

4. In order to begin installation, click on "Next".

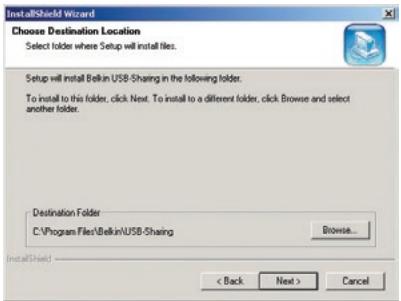

1. Setup will install the files in the folder listed under "Destination Folder". To install to this folder, click "Next". To install to a different folder, click "Browse" and select another folder.

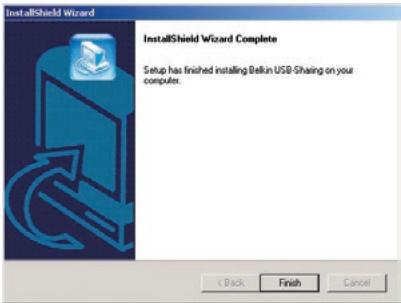

1. When the InstallShield Wizard is complete, click "Finish".

Setup will create a shortcut icon on your desktop.

Hardware Installation

Connecting a USB Device to the Switch

1. Connect the A-type connector of your USB device to the A-type USB port on the Switch.
2. Install the drivers for your USB device. Refer to the device's user manual for additional information on installing the driver.

Connecting Computers to the Switch

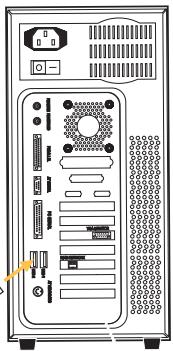

1. Connect the USB cable's A-type connector to an available USB port on your USB computer.
2. Connect the USB cable's B-type connector to an available port on your Switch.

Repeat steps 1 and 2 for each additional USB computer you wish to connect.

You are now ready to use your Belkin USB Peripheral Switch.

Legend

The device is connected to another computer.

The device is currently connected to your computer or the Switch is not properly installed.

Another computer is using the device; the device is not allowed to switch between PCs at this moment (busy status).

Accessing the USB Device

There are two ways to gain control of the USB device:

1. Right-click on the USB status icon on your taskbar and select "Switch".
2. Use hot key commands: Ctrl + F11, or for Mac OS, Alt + F11.

You are now able to use the connected USB device.
