BELKIN

BLUETOOTH™ PC CARD

USER MANUAL

CARTE PC BLUETOOTH™

MANUEL DE L'UTILISATEUR

BLUETOOTH™ PC CARD

BENUTZERHANDBUCH

BLUETOOTH™ PC-KAART

HANDLEIDING

SCHEDA PER PC BLUETOOTH™

MANUALE UTENTE

TARJETA DE PC BLUETOOTH™

MANUAL DEL USUARIO

Bluetooth™

F8T001

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 2 BELKIN® BLUETOOTH™ PC CARD USER MANUAL Bluetooth™ F8T002

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 1

TABLE OF CONTENTS

Introduction 2

Product Features 3

Package Contents 5

PC Card Specifications 6

System Requirements 7

Supported Profiles....8

Software Setup 9

Installing the PC Card 13

Bluetooth Configurations Settings 17

"My Bluetooth Places" Program.... 20

Uninstalling the Software 24

Glossary....26

FCC/CE Statement 27

Information 30

INTRODUCTION

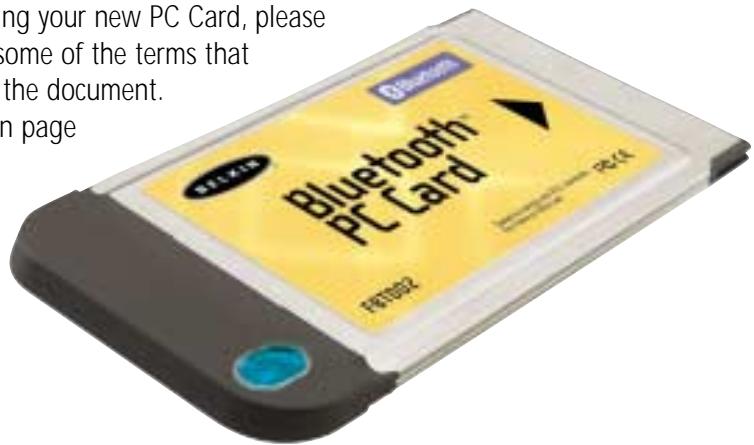

Thank you for purchasing the new Bluetooth PC Card (the PC Card) from Belkin featuring Bluetooth wireless technology. Now you can connect your peripherals and computing devices up to 10 meters away without cables in your home, office, or while on the road. Establish ad-hoc connections between devices without having to configure a network.

Before you install and start using your new PC Card, please take a few minutes to review some of the terms that you will be seeing throughout the document. You will find a brief glossary on page 26 of this manual.

ng your new PC Card, please some of the terms that the document. n page Bluetooth PC Card 181002

PRODUCT FEATURES

The PC Card is compliant with Bluetooth standard version 1.1 and provides the following features:

• Support for Microsoft® Windows® 98 SE, Me, 2000, and XP
• Operating distance of up to 10 meters
• Point-to-multipoint connections
  • Support for data rates up to 721Kbps
  • Built-in security: up to 128-bit encryption and authentication

PRODUCT FEATURES (CONT'D)

Your PC Card gives you the ability to do the following—without cables:

• Transfer files
• Access dial-up networks
• Connect to local area networks
• Perform an ActiveSync® session
• Connect to serial ports
• Exchange PIM data
• Send or exchange business cards

The basic functions of the Bluetooth neighborhood include:

• Device discovery
• Service discovery
  • Establishing links with remote devices

PACKAGE CONTENTS

• Bluetooth PC Card
  • CD-ROM for installation software and documentation
• User Manual
• Quick Installation Guide

PC CARD SPECIFICATIONS

Bluetooth Compliance: Version 1.1

Physical Interface: CardBus Type II

Operating Frequency: 2.4 to 2.4835GHz

Output Power: 0 dBm (1mW), Class 2

Sensitivity: -80 dBm @ 1E-3 BER

Data Rate: 723/57.6Kbps

Operating Range: 10-meter radius indoors

Network Topology: Point-to-Multipoint

Packet Support: 1/3/5 Slots Packet

Operation: Master/Slave

Frequency Stability: +/- 10PPM

LED Indicator: Power On, Data Traffic

Antenna Type: Internal

Dimensions: 100.7mm (L) x 54mm (W)

x 5mm (H)

Weight: 1.35oz.

Operating Temp: 0 to 50 degrees Celsius

Storage Temp: -33 to 55 degrees Celsius

Humidity: 93% (non-condensing)

Supply Voltage: 5.0VDC

Nominal Current: 350mA

Support Profiles: Service Discovery, File Transfer,

Serial Port, DUN, LAN, Generic

Object Exchange, Business

Card, Push, Pull & Exchange

OS Support: Windows 98 SE, Me, 2000,

and XP

Specifications subject to change without notice

SYSTEM REQUIREMENTS

• PC-compatible computer, CPU speed 200MHz or above
• Memory: 64MB or above, 128MB recommended
- One available CardBus Type II-compatible PCMCIA slot
• Windows 98 SE, Me, 2000, and XP

SUPPORTED PROFILES

The services supported by your PC Card are defined as "Profiles". Available profiles include:

• Generic Access
• Service Discovery
• Serial Port
• LAN Access
• Dial-Up Networking
• Generic Object Exchange
• Object Push
• File Transfer
• Synchronization

SOFTWARE SETUP

Do not insert the PC Card into your notebook computer prior to installation.

Software Setup for Windows 98 SE, Me, 2000, and XP

1. Insert the software installation CD-ROM into the PC's CD-ROM drive.

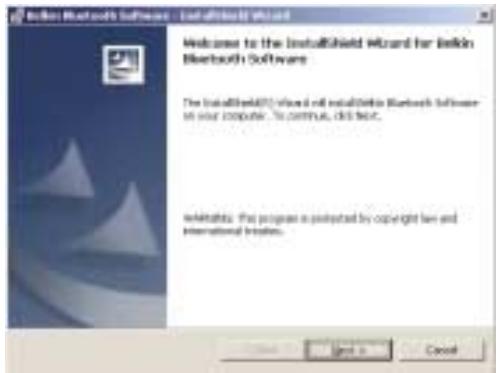

2. The "Software InstallShield Wizard" window appears. Click on "Next" to begin the installation process.

Install Bluetooth Wizard Welcome to the InstallShield Wizard for Bellin Bluetooth Software The InstallShield Wizard will install this Bluetooth software in your computer. To continue, do not use. Initiate: The program is projected by copyright law and international treaties.

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 10

SOFTWARE SETUP (CONT'D)

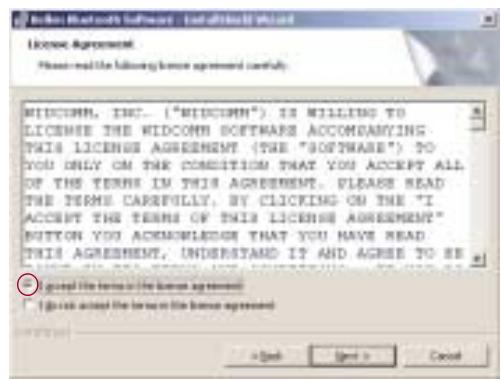

1. Choose "I accept the terms in the license agreement" to accept the license agreement. Click on "Next".

License Agreement Please read the following license agreement carefully. MIDCOMN, INC. ("MIDCOMN") IS WILLING TO LICENSE THE MIDCOMN SOFTWARE ACCOMEBYING THIS LICENSE AGREEMENT (THE "SOFTWARE") TO YOU ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THIS TERMS IN THIS AGREEMENT. PLEASE READ THE TERMS CAREFULLY, BY CLICKING ON THE "I ACCEPT THE TERMS OF THIS LICENSE AGREEMENT" BUTTON YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE √ Yes! Please call the terms to the license agreement! □ I check about the term in the license agreement.

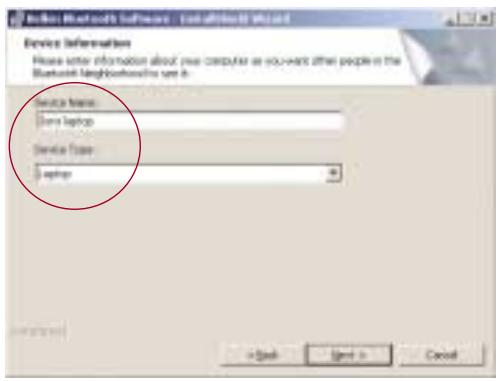

1. Name your device and select the type of computer you are installing your PC Card in. Click on "Next".

Bluetooth Bluetooth Software - Text file (B) Wizard Device Information Please enter information about new computer as you want other people in the Bluetooth Bluetooth software. See it. Service Name: Derry Laptop Device Type: Laptop + Back Next > Cancel

SOFTWARE SETUP (CONT'D)

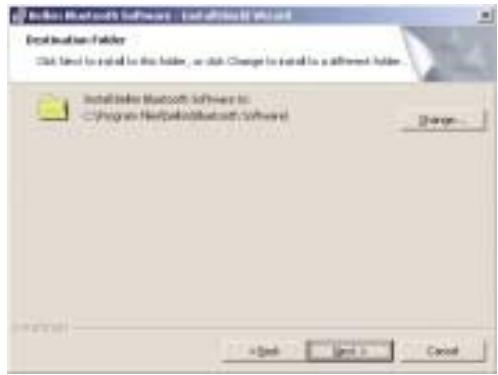

1. Specify the location where the software and driver will be installed on your hard drive. It is recommended that you install the software and driver to the default directory "C:\Program Files\belkin\Bluetooth Software". Click on "Next".

Installation Folder Click to set up to this folder, or click Change to set up to a different folder. Install existing Microsoft Software to: - Program New Microsoft Software Change... + Back Next > Cancel

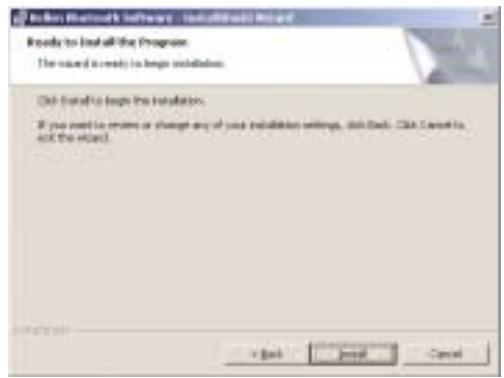

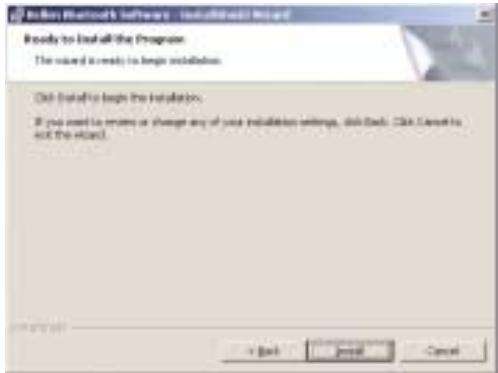

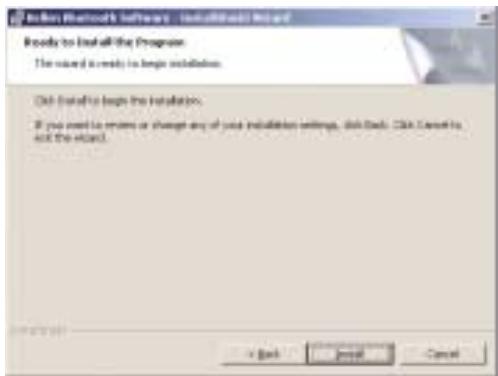

1. Confirm that the device software and driver are ready to be installed and click on "Install".

Ready to install the program The name of a ready to begin installation. Click to install to begin the installation. If you need to create or change any of your installation settings, this Back. Click Next to and the next.

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 12

SOFTWARE SETUP (CONT'D)

Note: If at any time during the installation process you receive a "Device Signature Notice", click "Yes" or "OK" to continue the installation process.

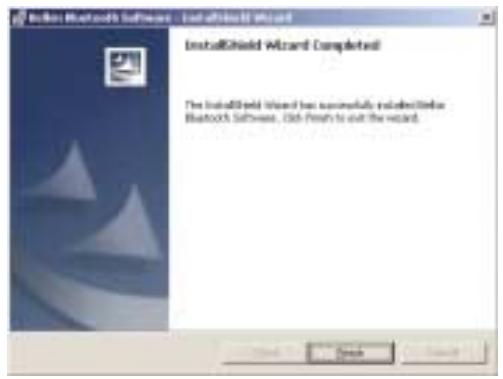

1. Confirm the completion of installation. Click "Finish" and then restart the system.

Installation Wizard Completed The InstallShield Wizard has successfully installed before Bluetooth Software, 36th Prime to exit the wizard.

INSTALLING THE PC CARD

Note: The PC Card is sensitive to static electricity, which can damage its delicate electrical components. To protect your device, always touch the metal chassis of your computer before handling the PC Card. This will ground any potential electrostatic discharge. Dry weather conditions or walking across carpeted floors may cause you to acquire an electrostatic charge.

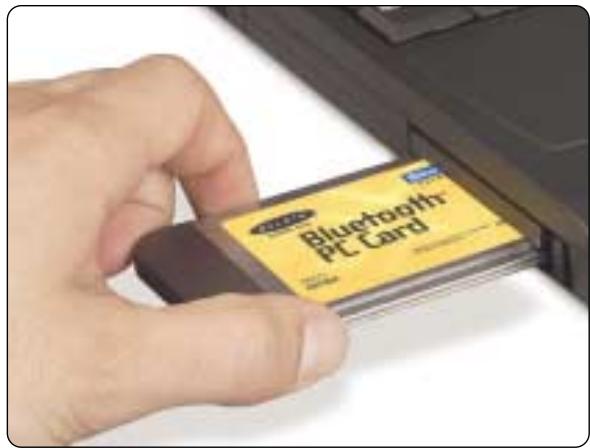

1. After installing the software and restarting the system, insert the PC Card into an available PCMCIA slot of your notebook computer with the color label facing up.

Bluetooth PC Card

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 14

INSTALLING THE PC CARD (CONT'D)

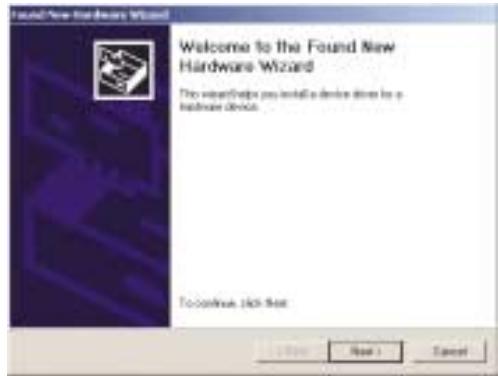

1. You should see your system register a new hardware device found.

Found New Hardware Wizard Welcome to the Found New Hardware Wizard This software helps you install a device drive to a Institute device. To continue click next

1. Choose "Search for a suitable driver for my device". Click on "Next".

Install Hardware Driver Drivers A device drive in a software program that problems a hardware device to work with an operating system. This record will complete the installation into this device. PT2 SecretFirst A device drive is a software program that makes a hardware device to work. Windows needs drivers like for your new device. To locate drivers like and complete the installation click Next. Which do you select the load to do? Search for a suitable drive for my devices (recommended) Display a list of the known drives for this device as that I can choose a specific drive. < Back Next > Cancel

INSTALLING THE PC CARD (CONT'D)

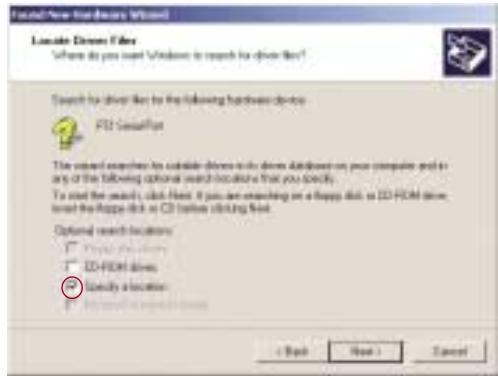

1. Choose "Specify a location". Click on "Next".

Lozenable Direct Files Where do you want Windows to search for private files? Search for driver files for the following hardware devices: PT2 SocialFirst The selected search for available drives in its drive database on your computer and in any of the following optional search locations that you specify. To find the user(s), click Next. If you are searching on a floppy disk, so ED-FROM drive, insert the floppy disk at CD Safari starting next. Optional search locations: □ Digital drive □ ED-FROM drive ● Security location ○ Additional information ( Back Next > Cancel)

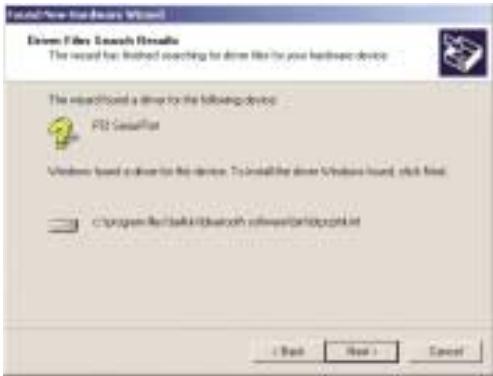

1. Confirm that the device driver was found and click on "Next".

Created New Hardware Wizard Created Files Search Emails The record has installed searching for drive files for your hardware device The expanded drive for the following device: PT2 Software Windows speed to drive for this device. To install the drive Windows hard, which found. C:\Program Files\Backslash\Software\Apache\Apache\setminus3\setminus4\setminus5\setminus6\setminus7\setminus8\setminus9\setminus10\setminus11\setminus12\setminus13\setminus14\setminus15\setminus16\setminus17\setminus18\setminus19\setminus20 < Back Next > Cancel

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 16

INSTALLING THE PC CARD (CONT'D)

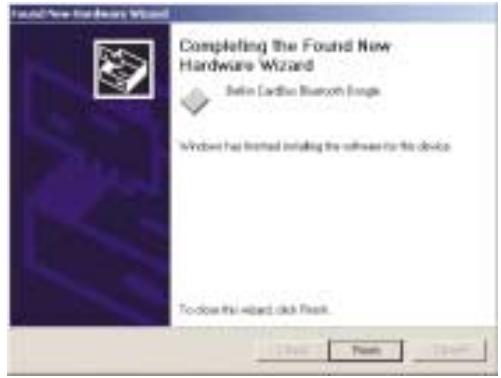

1. A window will appear that confirms the completion of the hardware installation. Click on "Finish".

Found New Hardware Wizard Completing the Found New Hardware Wizard Delin Cardinal Bluetooth (Dogs) Windows has limited installing the software for this device To download the wizard click Slack. Finish Finish

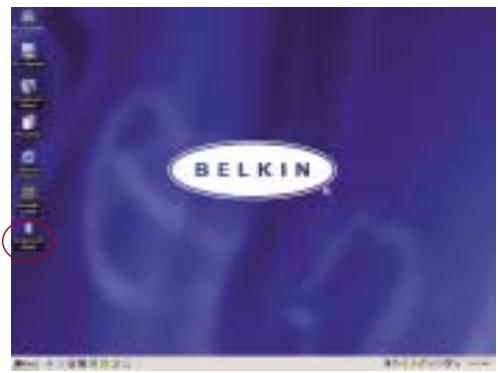

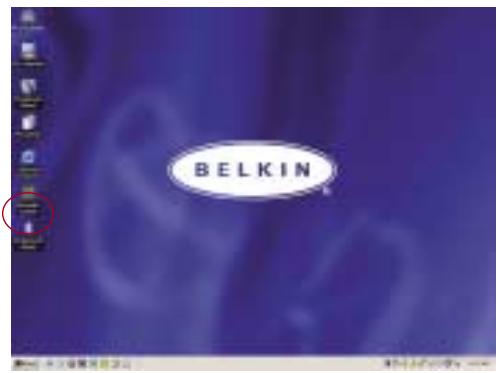

1. "My Bluetooth Places" should appear on your screen. Your installation process is now complete.

BELKIN

BLUETOOTH CONFIGURATION SETTINGS

To customize the configuration settings of Bluetooth software for Windows operating systems, follow the instructions described below:

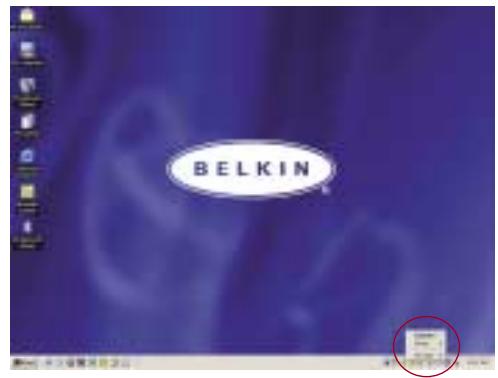

1. Click on the Bluetooth icon on the lower right-hand side of the task bar of your screen. The "Bluetooth Configuration" window appears to allow you to customize the Bluetooth

configuration settings of "Explore", "Setup", or "Services". In the "Setup" menu, there are two extended items: "Security" and "Configuration".

BELKIN

BLUETOOTH CONFIGURATION SETTINGS (CONT'D)

1. Click on "Configuration".

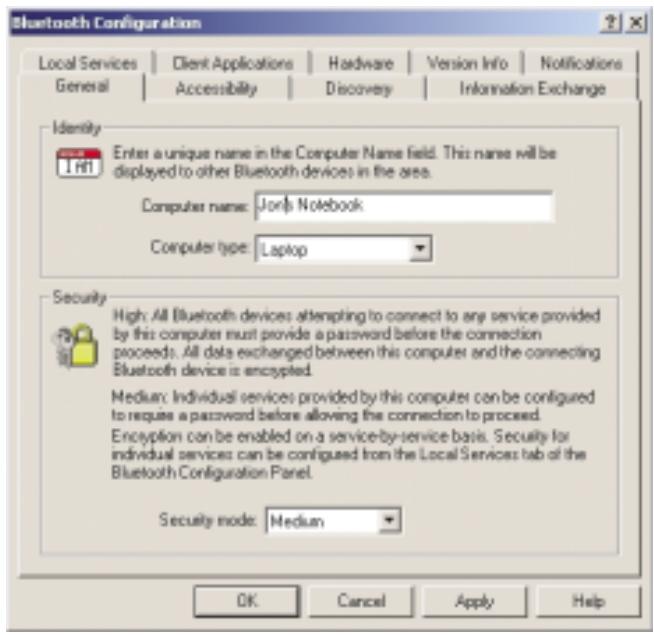

a) The "General" tab of "Configuration" allows you to customize the computer's user name, type, and security type.
b) The "Accessibility" tab allows you to specify which individual devices are allowed to access the user's computer.
c) The "Discovery" tab allows you to specify which individual devices, type of, or class of device the user's computer is allowed access to.

Bluetooth Configuration Local Services | Client Applications | Hardware | Version Info | Notifications General | Accessibility | Discovery | Information Exchange Identity I H1 Enter a unique name in the Computer Name field. This name will be displayed to other Bluetooth devices in the area. Computer name: Joint Notebook Computer type: Laptop Security High: All Bluetooth devices attempting to connect to any service provided by this computer must provide a password before the connection proceeds. All data exchanged between this computer and the connecting Bluetooth device is encrypted. Medium: Individual services provided by this computer can be configured to require a password before allowing the connection to proceed. Encryption can be enabled on a service-by-service basis. Security for individual services can be configured from the Local Services tab of the Bluetooth Configuration Panel. Security mode: Medium OK Cancel Apply Help

BLUETOOTH CONFIGURATION SETTINGS (CONT'D)

d) The "Information Exchange" tab allows you to specify the location of different types of files.
e) The "Local Services" tab indicates the services this computer makes available to other computers.
f) The "Client Applications" tab indicates the properties of each application.
g) The "Hardware" tab indicates device information of the user's hardware.
h) The "Version Info" tab indicates the module version of the user's software component.
i) The “Notifications” tab lets you associate a sound (Windows*.wav file) with specific Bluetooth events.

"MY BLUETOOTH PLACES" PROGRAM

The “My Bluetooth Places” program provides a quick and easy way to perform different application services through Bluetooth connections. A variety of Bluetooth services and explanations of each service can be found in the Help file of the “My Bluetooth Places” program.

Bluetooth Services

Dial-up Networking: Allows your computer (as client) to establish a Bluetooth wireless connection to a Bluetooth device (as server) to access the server's modem service to the Internet.

Generic Serial: Allows your computer (as client) to establish a Bluetooth wireless connection to a Bluetooth device (as server) using a temporary serial port connection to allow legacy applications to utilize the Bluetooth connection.

LAN Access: Allows your computer (as client) to establish a Bluetooth wireless connection to a Bluetooth device (as server) to access the server's connected LAN network service.

FAX Client: Allows your computer (as client) to establish a Bluetooth wireless connection to a Bluetooth device (as server) to utilize the fax facility attached to the server.

"MY BLUETOOTH PLACES" PROGRAM (CONT'D)

FTP: Allows your computer (as client) to establish a Bluetooth wireless connection to a Bluetooth device (as server) to perform file system actions.

Inbox: Allows your computer (as client) to establish a Bluetooth wireless connection to a Bluetooth device (as server) to send files, e.g. business card, e-mail, etc., through server's personal information manager (PIM) actions.

OBEX IrMC Sync: Allows your computer (as client) to establish a Bluetooth wireless connection to a Bluetooth device (as server) to synchronize the two devices' mailing address book.

"MY BLUETOOTH PLACES" PROGRAM (CONT'D)

To use the “My Bluetooth Places” program, follow the instructions described below:

1. Click "My Bluetooth Places" on your screen. Three icons—"My Device", "Entire Bluetooth Neighborhood", and "Add Bluetooth Connection"—appear inside the window.

2. Click "My Device" to see which of your application services are available to other devices. The icons without "X" indicate the available Bluetooth services.

My Documents File Edit View Insert Options Help Help File Edit View Insert Options Help Help Help 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Scanned screenshot of a legacy software interface with menu bar, toolbar icons, and status bar text in Chinese.

"MY BLUETOOTH PLACES" PROGRAM (CONT'D)

1. Click "Entire Bluetooth Neighborhood" from the "My Bluetooth Places" window to search for devices available to you. Once Bluetooth devices are detected, icons with device names will be displayed on your screen. You may initiate a search for devices by selecting "Bluetooth" from the toolbar of the "Entire Bluetooth Neighborhood" window

Add Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. YOU're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the Computer.

1. Click on each available device, for example, a device name "Jon's Desktop" to see which services are available to you. Double click on each icon to begin the different services window.

File Edit View Edit View Favorites Help Print 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 DESIGN Microsoft Windows Microsoft Excel Microsoft Word Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Express Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Explorer Microsoft Internet Exchange

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 24

UNINSTALLING THE SOFTWARE

This section contains instructions for uninstalling the software required to use your PC Card.

1. Insert the CD-ROM included with your PC Card.

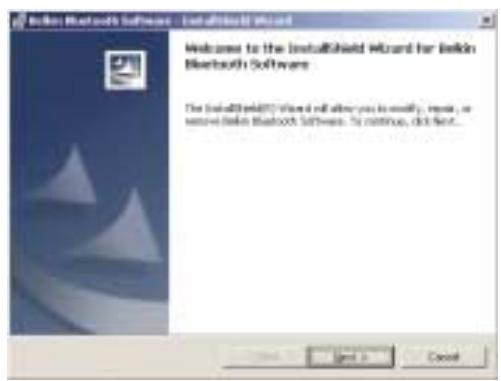

2. The "InstallShield Wizard" should automatically load. If it does not load, explore the CD and run the "Setup.exe" file.
3. The "InstallShield" window should now appear. Click "Next".

InstallShield Wizard Welcome to the InstallShield Wizard for Beakin Bluetooth Software The InstallShield Wizard will allow you to modify, replace, or remove Beakin Bluetooth Software. To continue, click next...

UNINSTALLING THE SOFTWARE (CONT'D)

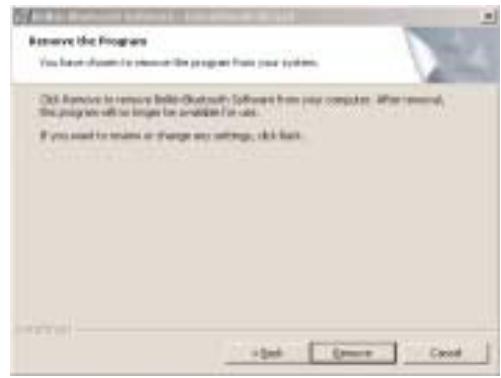

1. Click "Remove" to initiate the UninstallShield and remove the software from your PC.

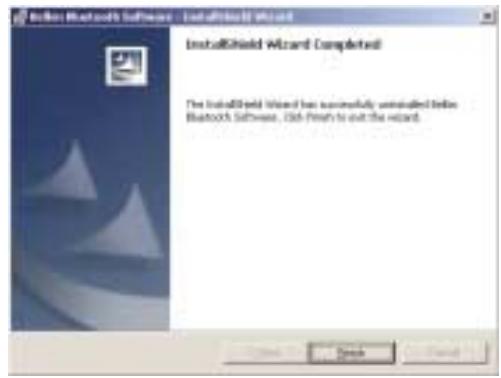

2. Click "Finish" to complete the uninstall.

Remove the Programs You have chosen to remove the program from your system. Click Remove to remove local Bluetooth Software from your computer. After removal, this program will be longer for installation for use. If you need to remove or change any settings, click back.

InstallShield Wizard Completed The InstallShield Wizard has successfully installed below Bluetooth Software. Click Finish to exit the wizard.

GLOSSARY

Authentication	Security feature that requires users to verify a numeric password before exchanging data.
Authorization	Security feature that requires user approval before another user is allowed to share data.
Bluetooth Neighborhood	A collection of Bluetooth devices.
Bonded Device	Recognized by your device so as not to require authentication or authorization.
Device	Bluetooth device.
Device Address	Unique electronic address of a Bluetooth device.
Device Discovery	The location and recognition of one Bluetooth device by another.
Device Group	Compilation of several Bluetooth devices into a group, normally to conduct related tasks.
Device Name	Name that a Bluetooth device provides when discovered by another device.
Service Discovery	Determines which applications other devices have in common with yours.

FCC/CE STATEMENT
DECLARATION OF CONFORMITY WITH FCC RULES FOR ELECTROMAGNETIC COMPATIBILITY

We, Belkin Components, of 501 West Walnut Street, Compton, CA 90220, declare under our sole responsibility that the product,

F8T002

to which this declaration relates, complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Exposure to Radio Frequency Radiation.

The radiated output power of this device is far below the FCC radio frequency exposure limits. Nevertheless, the device shall be used in such manner that the potential for human contact normal operation is minimized.

When connecting an external antenna to the device, the antenna shall be placed in such a manner to minimize the potential for human contact during normal operation. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.

Federal Communications Commission Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions,

FCC/CE STATEMENT (CONT'D)

it may cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help.

Modifications

The FCC requires the user to be notified that any changes or modifications to this device that are not expressly approved by Belkin Components may void the users authority to operate the equipment.

Canada- Industry Canada (IC)

The wireless radio of this device complies with RSS 139 & RSS 210 Industry Canada. This Class B digital complies with Canadian ICES-003.

Radio products with the CE 0682 or CE alert marking comply

with the R&TTE Directive (1995/5/EC) issued by the Commission

of the European Community.

FCC/CE STATEMENT (CONT'D)

Compliance with this directive implies conformity to the following European Norms (in brackets are the equivalent international standards).

• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment.
To determine the type of transmitter, check the identification label on your Belkin product.

Products with the CE marking comply with the EMC Directive (89/336/EEC) and the Low Voltage Directive (72/23/EEC) issued by the Commission of the European Community. Compliance with these directives implies conformity to the following European Norms (in brackets are the equivalent international standards).

• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11)- Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) - Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety

Products that contain the radio transmitter are labeled with CE 0682 or CE alert marking and may also carry the CE logo.

CE 0682!

CE

P74072ea_F8T002_man.qxd 18-03-2003 14:09 Page 30

INFORMATION

Belkin Components Limited One Year Product Warranty

Belkin Components warrants this product against defects in materials and workmanship for its warranty period. If a defect is discovered, Belkin will, at its option, repair or replace the product at no charge provided it is returned during the warranty period, with transportation charges prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of purchase may be required.

This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication; if the product has been modified without the written permission of Belkin; or if any Belkin serial number has been removed or defaced.

THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

No Belkin dealer, agent, or employee is authorized to make any modification, extension, or addition to this warranty.

BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN, OR USED WITH, BELKIN PRODUCTS.

Some states do not allow the exclusion or limitation of incidental or consequential damages or exclusions of implied warranties, so the above limitations of exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from state to state.

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 31 BELKIN® CARTE PC BLUETOOTH™ MANUEL DE L'UTILISATEUR Bluetooth™ F8T002

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 1

TABLE DES MATIÈRES

Introduction....2

Caractéristiques 3

Install Bluetooth Wizard Welcome to the InstallShield Wizard for Bellin Bluetooth Software The InstallShield Wizard will install this Bluetooth software in your computer. To continue, do not use. Initiate: The program is projected by copyright law and international treaties.

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 10

INSTALLATION DU LOGICIEL (SUITE)

Bidcom Software - Last office of which License Agreement. Please read the following license agreement carefully. MIDCOM, INC. ("MIDCOM") IS WILLING TO LICENSE THE MIDCOM SOFTWARE ACCOMATING THIS LICENSE AGREEMENT (THE "SOFTWARE") DO YOU ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THIS TERM IN THIS AGREEMENT. PLEASE READ THE TERMS CAREFULLY. BY CLICKING ON THE "I ACCEPT THE TERMS OF THIS LICENSE AGREEMENT" BUTTON YOU ACKNOWLEDGE THAT YOU HAVE HEAD THIS AGREEMENT, UNDERSTAND IT AND AGREE TO SEE 3 agreed the terms of this license agreement! I go back about the term in the license agreement

Bolton Microsoft Software - Text & Web Wizard Device Information Have any information about new computer as you want other people in the Microsoft Office/Windows setup it. Service Name: Store Laptop Service Type: Laptop + Back Next > Cancel

INSTALLATION DU LOGICIEL (SUITE)

Installation Folder Add: Next to add to this folder, or Add: Change to add to a different folder. Install existing Microsoft Software to: C:\Program New\Microsoft\Software\ Change... A Dash Next > Cancel

Ready to install the program The name of a ready to begin installation. Click to install to begin the installation. If you need to create or change any of your installation settings, this Back. Click Next to and the next.

INSTALLATION DU LOGICIEL (SUITE)

InstallShield Wizard Completed The InstallShield Wizard has successfully installed or Bluetooth Software. Click Finish to exit the wizard.

INSTALLATION DE LA CARTE PC

Bluetooth® PC Card

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 14

INSTALLATION DE LA CARTE PC (SUITE)

Found New Hardware Wizard Welcome to the Found New Hardware Wizard This will encourage you install a device drive to a Institute Wizard. To continue this next.

Found New Hardware Wizard Install Hardware Device Drives A device drive in a software program that enables a hardboxy device to work with an operating system. This record will complete the installation into the devices. PT2 SecretFirst A device drive is a software program that makes a hardboxy device work. Windows is not like to your new driver. To calculate driver size and complete the new client head. What do you want the related to do? • Search for a suitable drive to my devices (recommended) • Display a list of the known drives to this device as that I can choose a specific drive < Back Next > Cancel

INSTALLATION DE LA CARTE PC (SUITE)

Latest New Hardware Files Lovable Drive Files Where do you want Windows to search for private files? Search for driver files for the following hardware devices: PTS Software The most searched is available drives in its drive database on your computer and to any of the following optional search locations that you specify. To find the user's click next. If you are searching on a floppy disk, so ED-HDMI drive, insert the floppy disk as CD Safari starting next. Optional search locations: □ Display destinations □ ED-HDMI drives ● Specify a location ■ Microsoft Windows < Back Next > Cancel

Found New Hardware Wizard Drive Files Search Results The record has installed searching for drive files for your hardware device The expand found a drive for the following devices: PTD SmartGrid Windows based on drive for this device. To install the drive /Windows issued, click next C:\Program Files\bit\biotech\software\projectbook3.d < Back Next > Cancel

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 16

INSTALLATION DE LA CARTE PC (SUITE)

Found New Hardware Wizard Completing the Found New Hardware Wizard Berlin Cardbox Bluetooth (RGB) Windows has installed installing the software for this device To download this wizard click Flash.

BELKIN

PARAMÈTRES DE CONFIGURATION BLUETOOTH

Bluetooth Configuration Local Services | Client Applications | Hardware | Version Info | Notifications General | Accessibility | Discovery | Information Exchange Identity I H1 Enter a unique name in the Computer Name field. This name will be displayed to other Bluetooth devices in the area. Computer name: Joint Notebook Computer type: Laptop Security High: All Bluetooth devices attempting to connect to any service provided by this computer must provide a password before the connection proceeds. All data exchanged between this computer and the connecting Bluetooth device is encrypted. Medium: Individual services provided by this computer can be configured to require a password before allowing the connection to proceed. Encryption can be enabled on a service-by-service basis. Security for individual services can be configured from the Local Services tab of the Bluetooth Configuration Panel. Security mode: Medium OK Cancel Apply Help

PARAMÈTRES DE CONFIGURATION BLUETOOTH (SUITE)

Scanned screenshot of a legacy Windows application interface with menu bar, toolbar icons, and text fields visible.

PROGRAMME « MY BLUETOOTH PLACES » (FAVORIS BLUETOOTH) (SUITE)

Enable Bluetooth Software - InstallShield Wizard Welcome to the InstallShield Wizard for Horizon Bluetooth Software The InstallShield Wizard will allow you to modify, repair, or remove Horizon Bluetooth Software. To continue, click next...

DÉSINSTALLATION DU LOGICIEL (SUITE)

Remove the Programs You have chosen to remove the program from your system. Click remote to remove Bolti-Bluetooth Software from your computer. After removal, this program will be longer for available for use. If you need to review or change any settings, click back.

InstallShield Award Completed The InstallShield Award has successfully installed Install Bluetooth Software, 365-978 to exit the award.

GLOSSAIRE

Canada-Industry Canada (IC)

InstallShield Wizard Welcome to the InstallShield Wizard for Beclin Bluetooth Software The InstallShield Wizard will install Beclin Bluetooth software in your computer. To continue, do not. Initiate: The program is projected by copyright law and international division.

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 10

License Agreement Please read the following license agreement (currently) MIDCOMN, INC. ("MIDCOMN") IS WILLING TO LICENSE THE MIDCOMN SOFTWARE ACCOMEBYING THIS LICENSE AGREEMENT ("THE "SOFTWARE") TO YOU ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THIS TENSIE IN THIS AGREEMENT. PLEASE READ THE TERMS CAREFULLY, BY CLICKING ON THE "I ACCEPT THE TENSIE OF THIS LICENSE AGREEMENT" BUTTON YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE Approved the terms in the license agreement! I check about the term in the license agreement

Bolton Microsoft Software - Text & Web Wizard Device Information Please enter information about new computer as you want other people in the Microsoft Lab/Workshop. See it. Service Name: Store Laptop Service Type: Laptop + Back Next > Cancel

File1: Bluetooth Software - Installable Wizard Installation Folder Can be found to install to this folder, or click Change to install to a different folder. Install existing Bluetooth software to: C:\Program Newark\Bluetooth\software\ Change... A Book Get 1 Cancel

Ready to install the program The name of a ready to begin installation. Click to install to begin the installation. If you need to create or change any of your installation settings, this Back. Click Next to and the next.

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 12

InstallShield Wizard Completed The InstallShield Wizard has successfully installed in order Bluetooth Software. Click Finish to exit the wizard.

INSTALLIEREN DER PC-CARD

Bluetooth® PC Card

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 14

INSTALLIEREN DER PC-CARD (FORTS.)

Found New Hardware Wizard Welcome to the Found New Hardware Wizard This software helps you install a device drive to a hardware device. To continue click next

Install Hardware Driver Drivers A device driver is a software program that makes a hardware device to work with an operating system. This record will complete the installation by the device. F22 SecretFirst A device driver is a software program that makes a hardware device to work. "Instructions needs drive this for your new driver. To locate driver this and complete the installation clock head." What do you select the related to do? Search for a suitable drive to my devices (unrecommended) Display a list of the known drivers for this device so that I can choose a specific drive < Back Next > Cancel

INSTALLIEREN DER PC-CARD (FORTS.)

Lozenable Direct Files Where do you want Windows to search for private files? Search for driver files for the following hardware devices: PT2 SocialFirst The selected search for available drives in its drive database on your computer and in any of the following optional search locations that you specify. To find the user(s), click Next. If you are searching on a floppy disk, so ED-FROM drive, insert the floppy disk at CD Safari starting next. Optional search locations: □ Digital drive □ ED-FROM drive ● Security location ○ Additional information ( Back Next > Cancel)

Created New Hardware Wizard Created Files Search Emails The record has installed searching for drive files for your hardware device The expanded drive for the following device: PT2 Software Windows speed to drive for this device. To install the drive Windows hard, which failed. C:\Program Files\Backslash\Software\Apache\Apache\stock < Back Next > Cancel

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 16

INSTALLIEREN DER PC-CARD (FORTS.)

Found New Hardware Wizard Completing the Found New Hardware Wizard Delin Cardinal Bluetooth (Dogs) Windows has limited installing the software for this device To download the export disk disk.

BELKIN

BLUETOOTH-KONFIGURATIONSEINSTELLUNGEN

Bluetooth Configuration Local Services | Client Applications | Hardware | Version Info | Notifications General | Accessibility | Discovery | Information Exchange Identity I H1 Enter a unique name in the Computer Name field. This name will be displayed to other Bluetooth devices in the area. Computer name: Joint Notebook Computer type: Laptop Security High: All Bluetooth devices attempting to connect to any service provided by this computer must provide a password before the connection proceeds. All data exchanged between this computer and the connecting Bluetooth device is encrypted. Medium: Individual services provided by this computer can be configured to require a password before allowing the connection to proceed. Encryption can be enabled on a service-by-service basis. Security for individual services can be configured from the Local Services tab of the Bluetooth Configuration Panel. Security mode: Medium OK Cancel Apply Help

BLUETOOTH-KONFIGURATIONSEINSTELLUNGEN (FORTS.)

PROGRAMM "MY BLUETOOTH PLACES"

PROGRAMM "MY BLUETOOTH PLACES" (FORTS.)

PROGRAMM "MY BLUETOOTH PLACES" (FORTS.)

Scanned screenshot of a legacy Windows application interface showing menu bar, toolbar icons, and status bar with Chinese text.

PROGRAMM "MY BLUETOOTH PLACES" (FORTS.)

Windows System Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Settings Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions: Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Instructions:\ Requests: Options:

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 24

DEINSTALLIEREN DER SOFTWARE

Enable Bluetooth Software - InstallShield Wizard Welcome to the InstallShield Wizard for Horizon Bluetooth Software The InstallShield Wizard will allow you to modify, repair, or remove Horizon Bluetooth Software. To continue, click next...

DEINSTALLIEREN DER SOFTWARE (FORTS.)

Remove the Programs You have chosen to remove the program from your system. Click Remove to remove local Bluetooth Software from your computer. After removal, this program will be longer for installation for use. If you need to remove or change any settings, click back.

InstallShield Wizard Completed The InstallShield Wizard has successfully installed below Bluetooth Software. Click Finish to exit the wizard.

GLOSSAR

Install Bluetooth Wizard Welcome to the InstallShield Wizard for Bellin Bluetooth Software The InstallShield Wizard will install this Bluetooth software in your computer. To continue, do not use. Initiate: The program is projected by copyright law and international treaties.

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 10

SOFTWARE INSTALLEREN (VERVOLG)

License Agreement Please read the following license agreement (currently) MIDCOMN, INC. ("MIDCOMN") IS WILLING TO LICENSE THE MIDCOMN SOFTWARE ACCOMEBYING THIS LICENSE AGREEMENT (THE "SOFTWARE") TO YOU ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THIS TENSIE IN THIS AGREEMENT. PLEASE READ THE TERMS CAREFULLY, BY CLICKING ON THE "I ACCEPT THE TENSIE OF THIS LICENSE AGREEMENT" BUTTON YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE Approved the terms in the license agreement! I check about the term in the license agreement

Bolton Microsoft Software - Text & Web Wizard Device Information Please enter information about new computer as you want other people in the Microsoft Lab/Workshop. See it. Service Name: Store Laptop Service Type: Laptop + Back Next > Cancel

SOFTWARE INSTALLEREN (VERVOLG)

File1: Bluetooth Software - Installable Wizard Installation Folder Can be found to install to this folder, or click Change to install to a different folder. Install existing Bluetooth software to: C:\Program Newark\Bluetooth\software\ Change... A Book Next > Cancel

Boll's Network Software Installable Wizard Ready to Install the Program The wizard is ready to begin installation. Ask Settings to begin the installation. If you need to create or change any of your installation settings, ask Back. Ask Cancel to and the Wizard.

SOFTWARE INSTALLEREN (VERVOLG)

InstallShield Wizard Completed The InstallShield Wizard has successfully installed in order Bluetooth Software. Click Finish to exit the wizard.

PC-KAART INSTALLEREN

Bluetooth® PC Card

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 14

PC-KAART INSTALLEREN (VERVOLG)

Found New Hardware Wizard Welcome to the Found New Hardware Wizard This software helps you install a device drive to a hardware device. To continue click next

Install Hardware Driver Drivers A device driver is a software program that makes a hardware device to work with an operating system. This record will complete the installation by the device. F22 SecretFirst A device driver is a software program that makes a hardware device to work. "Instructions needs drive this for your new driver. To locate driver this and complete the installation clock head." What do you select the related to do? Search for a suitable drive to my devices (unrecommended) Display a list of the known drivers for this device so that I can choose a specific drive < Back Next > Cancel

PC-KAART INSTALLEREN (VERVOLG)

Lozenable Direct Files Where do you want Windows to search for private files? Search for driver files for the following hardware devices: PT2 SocialFirst The selected search for available drives in its drive database on your computer and in any of the following optional search locations that you specify. To find the user(s), click Next. If you are searching on a floppy disk, so ED-FROM drive, insert the floppy disk at CD Safari starting next. Optional search locations: □ Digital drive □ ED-FROM drive ● Security location ■ Open Search Engine < Back Next > Cancel

Created New Hardware Wizard Created Files Search Emails The record has installed searching for drive files for your hardware device The expanded drive for the following device: PT2 Software Windows speed to drive for this device. To install the drive Windows hard, which failed. C:\Program Files\Backslash\Software\Apache\Apache\stock < Back Next > Cancel

P74072ea_F8T002_man.qxd 18-03-2003 14:10 Page 16

PC-KAART INSTALLEREN (VERVOLG)

Found New Hardware Wizard Completing the Found New Hardware Wizard Berlin Cardinal Bluetooth Group Windows has limited installing the software for this device To download the export disk disk.

BELKIN

Bluetooth Configuration Local Services | Client Applications | Hardware | Version Info | Notifications General | Accessibility | Discovery | Information Exchange Identity I H1 Enter a unique name in the Computer Name field. This name will be displayed to other Bluetooth devices in the area. Computer name: Joint Notebook Computer type: Laptop Security High: All Bluetooth devices attempting to connect to any service provided by this computer must provide a password before the connection proceeds. All data exchanged between this computer and the connecting Bluetooth device is encrypted. Medium: Individual services provided by this computer can be configured to require a password before allowing the connection to proceed. Encryption can be enabled on a service-by-service basis. Security for individual services can be configured from the Local Services tab of the Bluetooth Configuration Panel. Security mode: Medium OK Cancel Apply Help

BLUETOOTH CONFIGURATIE-INSTELLINGEN (VERVOLG)

PROGRAMMA 'MY BLUETOOTH PLACES'

Scanned screenshot of a legacy Windows application interface with menu bar, toolbar icons, and text fields visible.

PROGRAMMA 'MY BLUETOOTH PLACES' (VERVOLG)

Add Add to: 100% or more Add to: 100% or more Add to: 100% or more Add to: 100% or more Add to: 100% or more Add to: 100% or more Add to: 100% or more Add to: 100% or more Add to: 100% or more Add to: 100% or more

Beloir Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir System Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir Systems Beloir System

P74072ea_F8T002_man.qxd 18-03-2003 14:11 Page 24

Enable Bluetooth Software - InstallShield Wizard Welcome to the InstallShield Wizard for Horizon Bluetooth Software The InstallShield Wizard will allow you to modify, repair, or remove Horizon Bluetooth Software. To continue, click next... Get it Cancel

Remove the Programs You have chosen to remove the program from your system. Click Remove to remove Bottle-Bluetooth Software from your computer. After removal, this program will be longer for installation for use. If you need to remove or change any settings, click back.

InstallShield Wizard Completed The InstallShield Wizard has successfully installed below Bluetooth Software. Click Finish to exit the wizard.

VERKLARENDE WOORDENLIJST

Canada-Industry Canada (IC)

Tensione erogata: 5,0 V DC

Install Bluetooth Wizard Welcome to the InstallShield Wizard for Bellin Bluetooth Software The InstallShield Wizard will install this Bluetooth software in your computer. To continue, do not use. Initiate: The program is projected by copyright law and international division.

P74072ea_F8T002_man.qxd 18-03-2003 14:11 Page 10

INSTALLAZIONE DEL SOFTWARE (CONTINUA)

Bidcom Software - Last office of which License Agreement. Please read the following license agreement carefully. MIDCOM, INC. ("MIDCOM") IS WILLING TO LICENSE THE MIDCOM SOFTWARE ACCOMATING THIS LICENSE AGREEMENT (THE "SOFTWARE") TO YOU ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THIS TERM IN THIS AGREEMENT. PLEASE READ THE TERMS CAREFULLY. BY CLICKING ON THE "I ACCEPT THE TERMS OF THIS LICENSE AGREEMENT" BUTTON YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO SEE 3 agreed the terms of this license agreement! I go back about the term in the license agreement

Bolton Microsoft Software - Text & Web Wizard Device Information Have any information about new computer as you want other people in the Microsoft Office/Windows setup it. Service Name: Store Laptop Service Type: Laptop + Back Next > Cancel

INSTALLAZIONE DEL SOFTWARE (CONTINUA)

Installation Folder Click to set up to this folder, or click Change to set up to a different folder. Install existing Microsoft Software to: - Program New Microsoft Software Change... + Back Next > Cancel

Action Microsoft Software - Installable Wizard Ready to install the Program The need is ready to install installation. Click to install to install the installation. If you need to install or change any of your installation settings, click Back. Click Next to and the Wizard. + Back Cancel

INSTALLAZIONE DEL SOFTWARE (CONTINUA)

InstallShield Wizard Completed The InstallShield Wizard has successfully installed or Bluetooth Software. Click Finish to exit the wizard.

Bluetooth® PC Card

P74072ea_F8T002_man.qxd 18-03-2003 14:11 Page 14

INSTALLAZIONE DELLA SCHEDA PC (CONTINUA)

Found New Hardware Wizard Welcome to the Found New Hardware Wizard This software helps you install a device drive to a hardware device. To continue click next

Install Hardware Driver Drivers A device driver is a software program that makes a hardware device to work with an operating system. This record will complete the installation by the device. F22 ControlFirst A device driver is a software program that makes a hardware device such as "Inhibits needs drive this for your new driver. To locate driver this and complete the installation which Head." You can you select the related to do? Search for a suitable drive to my device (unrecommended) Display a lot of the known drivers for this device so that I can choose a specific drive < Back Next > Cancel

INSTALLAZIONE DELLA SCHEDA PC (CONTINUA)

Lozenable Direct Files Where do you want Windows to search for private files? Search for driver files for the following hardware devices: PT2 SocialFirst The selected search for available drives in its drive database on your computer and in any of the following optional search locations that you specify. To find the user(s), click Next. If you are searching on a floppy disk, so ED-FROM drive, insert the floppy disk at CD Safari clienting disk. Optional search locations: □ Digital drive □ ED-FROM drive ● Security location ○ Additional information ( Back Next > Cancel)

Created New Hardware Wizard Created Files Search Emails The record has installed searching for drive files for your hardware device The expanded drive for the following device: PT2 Software Windows speed to drive for this device. To install the drive Windows hard, which failed. C:\Program Files\Backslash\Software\Apache\Apache\stock < Back Next > Cancel

P74072ea_F8T002_man.qxd 18-03-2003 14:11 Page 16

INSTALLAZIONE DELLA SCHEDA PC (CONTINUA)

Found New Hardware Wizard Completing the Found New Hardware Wizard Delin Cardinal Bluetooth (Dogs) Windows has limited installing the software for this device To download the export disk disk.

BELKIN

Bluetooth Configuration Local Services | Client Applications | Hardware | Version Info | Notifications General | Accessibility | Discovery | Information Exchange Identity I H1 Enter a unique name in the Computer Name field. This name will be displayed to other Bluetooth devices in the area. Computer name: Joint Notebook Computer type: Laptop Security High: All Bluetooth devices attempting to connect to any service provided by this computer must provide a password before the connection proceeds. All data exchanged between this computer and the connecting Bluetooth device is encrypted. Medium: Individual services provided by this computer can be configured to require a password before allowing the connection to proceed. Encryption can be enabled on a service-by-service basis. Security for individual services can be configured from the Local Services tab of the Bluetooth Configuration Panel. Security mode: Medium OK Cancel Apply Help

IL PROGRAMMA "MY BLUETOOTH PLACES"

IL PROGRAMMA "MY BLUETOOTH PLACES" (CONTINUA)

IL PROGRAMMA "MY BLUETOOTH PLACES" (CONTINUA)

Scanned screenshot of a legacy software interface with menu bar, toolbar icons, and status bar text in Chinese.

IL PROGRAMMA "MY BLUETOOTH PLACES" (CONTINUA)

Enable Bluetooth Software - InstallShield Wizard Welcome to the InstallShield Wizard for Horizon Bluetooth Software The InstallShield Wizard will allow you to modify, repair, or remove Horizon Bluetooth Software. To continue, click next...

DISINSTALLAZIONE DEL SOFTWARE (CONTINUA)

Remove the Programs You have chosen to remove the program from your system. Click remote to remove Bolti-Bluetooth Software from your computer. After removal, this program will be longer for available for use. If you need to review or change any settings, click back.

InstallShield Wizard Completed The InstallShield Wizard has successfully installed below Bluetooth Software. Click Finish to exit the wizard.

GLOSSARIO

Canada- Industry Canada (IC)

Dimensiones: 100.7mm (L) x 54mm (A) x 5mm (Alt)

Peso: 1,35oz. (38,3 grs)

Install Bluetooth Wizard Welcome to the InstallShield Wizard for Bellin Bluetooth Software The InstallShield Wizard will install this Bluetooth software in your computer. To continue, do not use. Initiate: The program is projected by copyright law and international treaties.

P74072ea_F8T002_man.qxd 18-03-2003 14:11 Page 10

Bidcom Software - Last office of which License Agreement. Please read the following license agreement carefully. MIDCOM, INC. ("MIDCOM") IS WILLING TO LICENSE THE MIDCOM SOFTWARE ACCOMATING THIS LICENSE AGREEMENT (THE "SOFTWARE") DO YOU ONLY ON THE CONDITION THAT YOU ACCEPT ALL OF THIS TERM IN THIS AGREEMENT. PLEASE READ THE TERMS CAREFULLY. BY CLICKING ON THE "I ACCEPT THE TERMS OF THIS LICENSE AGREEMENT" BUTTON YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO SEE 3 agreed the terms of this license agreement! I go back about the term in the license agreement

Bolton Microsoft Software - Text & Web Wizard Device Information Have any information about new computer as you want other people in the Microsoft Office/Windows setup it. Service Name: Store Laptop Service Type: Laptop + Back Next > Cancel

Installation Folder This is not to add to this folder, or click Change to add to a different folder. Install existing Microsoft Software to: C:\Program New\Microsoft\Software Change... A Dash Finish 2 Cancel

Ready to install the program The name of a ready to begin installation. Click to install to begin the installation. If you need to create or change any of your installation settings, this Back. Click Next to and the next.

P74072ea_F8T002_man.qxd 18-03-2003 14:11 Page 12

InstallShield Wizard Completed The InstallShield Wizard has successfully installed these Bluetooth Software. Click-Finish to exit the wizard.

Bluetooth PC Card

P74072ea_F8T002_man.qxd 18-03-2003 14:11 Page 14

Found New Hardware Wizard Welcome to the Found New Hardware Wizard This software helps you install a device drive to a Institute device. To continue click next

Install New Hardware Wizard Install Hardware Service Drivers A device drive in a software program that enables a hardware device to work with an operating system. This record will complete the installation by the devices. PT2 ControlFirst A device drive is a software program that makes a hardware device to work. Windows needs drivers like your new driver. To locate drivers like and complete the installation click Next. What can you select the related to do? ● Search for a suitable drive to my devices (unrecommended) ○ Display a list of the known drives for this device so that I can choose a specific drive < Back Next > Cancel

Lozenable Direct Files Where do you want Windows to search for private files? Search for driver files for the following hardware devices: PT2 SocialFirst The selected search for available drives in its drive database on your computer and in any of the following optional search locations that you specify. To find the user(s), click Next. If you are searching on a floppy disk, so ED-FROM drive, insert the floppy disk at CD Safari starting next. Optional search locations: □ Digital drive □ ED-FROM drive ● Security location ○ Additional information ( Back Next > Cancel)

Created New Hardware Wizard Created Files Search Emails The record has installed searching for drive files for your hardware device The expanded drive for the following device: PT2 Software Windows speed to drive for this device. To install the drive Windows hard, which failed. ©program FilesBankBluetooth software\prinkpns.net < Back Next > Cancel

Found New Hardware Wizard Completing the Found New Hardware Wizard Berlin Cardinal Bluetooth Series Windows has limited installing the software for this device To download this wizard click Slack. Finish Finish

Bluetooth Configuration Local Services | Client Applications | Hardware | Version Info | Notifications General | Accessibility | Discovery | Information Exchange Identity I H1 Enter a unique name in the Computer Name field. This name will be displayed to other Bluetooth devices in the area. Computer name: Joint Notebook Computer type: Laptop Security High: All Bluetooth devices attempting to connect to any service provided by this computer must provide a password before the connection proceeds. All data exchanged between this computer and the connecting Bluetooth device is encrypted. Medium: Individual services provided by this computer can be configured to require a password before allowing the connection to proceed. Encryption can be enabled on a service-by-service basis. Security for individual services can be configured from the Local Services tab of the Bluetooth Configuration Panel. Security mode: Medium OK Cancel Apply Help

Scanned screenshot of a legacy Windows application interface showing menu bar, toolbar icons, and status bar with Chinese text.

PROGRAMA "MY BLUETOOTH PLACES" (LUGARES DE MI BLUETOOTH) (CONT.)

Add Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. YOU're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You're in your home. You're in your home. Add to: You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the computer. You've been done by the computer, but you have been done by the Computer.

Enable Bluetooth Software - InstallShield Wizard Welcome to the InstallShield Wizard for Horizon Bluetooth Software The InstallShield Wizard will allow you to modify, repair, or remove Horizon Bluetooth Software. To continue, click next... Get it Cancel

Remove the Programs You have chosen to remove the program from your system. Click Remove to remove local Bluetooth Software from your computer. After removal, this program will be longer for installation for use. If you need to remove or change any settings, click back.

InstallShield Wizard Completed The InstallShield Wizard has successfully installed below Bluetooth Software. Click Finish to exit the wizard.

GLOSARIO

501 West Walnut Street

Belkin Components, Ltd.

Express Business Park • Shipton Way

Rushden • NN10 6GL • United Kingdom

Tel: [phone]

Fax: [phone]

Belkin Components B.V.

rparc Building • Boeing Avenue 333

1119 PH Schiphol-Rijk • The Netherlands

Tel: [phone]

Fax: [phone]

Belkin Components, Ltd.

7 Bowen Crescent • West Gosford

NSW 2250 • Australia

Tel: [phone]

Fax: [phone]

P74072ea

© 2002 Belkin Components. All rights reserved. All trade names are registered trademarks of respective manufacturers listed.

The Bluetooth name and the Bluetooth trademarks are owned by Bluetooth SIG, Inc., and are used by Belkin Components under license.
