Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning

use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• The appliance shall be installed in accordance with national electrical installation regulations
• This symbol means: CAUTION, risk of fire.

- This symbol means: CAUTION, read the instruction manual before using the appliance.

- This symbol means: CAUTION, read the instruction manual before using the appliance.

- i This symbol means: refer to the instructions for use. - This symbol means: CAUTION, read the instruction manual.

- i This symbol means: refer to the instructions for use. - This symbol means: CAUTION, read the instruction manual.

- This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.

- Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed.

- Check the power cord regularly for visible damage. If the cord is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger.

- To avoid electric shocks, do not clean the product with water, flammable substances, or other liquids, and do not allow them to enter the appliance.

- Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

- The device must be installed, operated, and stored in a room with a floor area larger than 4 m² .

- This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices. - Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed. - Check the power cord regularly for visible damage. If the cord is damaged, it must be repaired by the official Cecotec Technical Support Service to avoid any type of danger. - To avoid electric shocks, do not clean the product with water, flammable substances, or other liquids, and do not allow them to enter the appliance. - Do not immerse the cord, plug, or any non-removable part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance. - The device must be installed, operated, and stored in a room with a floor area larger than 4 m².

• Switch off the device immediately in the event of defects or malfunctions.
• Do not use the device if its cord or any other part is damaged. In this case, contact the official Cecotec Technical Support Service.
• Do not use insecticides, perfumes, or other flammable substances near the product. Do not operate the device with odour-producing products.
• Do not install the device near heat-generating appliances or flammable and dangerous materials.
• This product cannot replace normal ventilation products.
• Make sure the product is kept and stored in well-ventilated areas.
• During operation, leave at least 20 cm of free space on the back and sides of the product.
• Install the drain piping at a grade that allows condensed water to be drained continuously.
• The device must be placed so that the plug is accessible.
• The device must be installed in accordance with local national wire and gas regulations.
• Operate the device in places with a temperature range between 5 °C and 35 °C. Operating it outside of this range could cause the device not to operate properly.
• Ensure the filter and the product cover are properly installed before operation.
• Do not sit or stand on the device.
• Make sure the tank of the device is emptied after each use to ensure proper operation.
• Do not operate the device in closed areas such as inside closets. Do not use outdoors.
• Do not insert fingers or other objects in the air inlet or outlet to prevent injuries and product damage.

- Do not twist, bend, pull, or damage the power cord. Protect it from sharp edges and heat sources. Do not allow the cord to touch hot surfaces. Do not let the cord hang over the edge of the surface or worktop.

INSTRUCTIONS DE SÉCURITÉ

Producto: BigDry 9000 Professional Connected/BigDry 9000 Professional Black Connected

Potencia: 320 W

Voltaje: 220-240 V 50 Hz

1. Top panel
2. Left housing
3. Wheels
4. Display
5. Right housing
6. Base plate
7. Power cord
8. Filter
9. Water tank

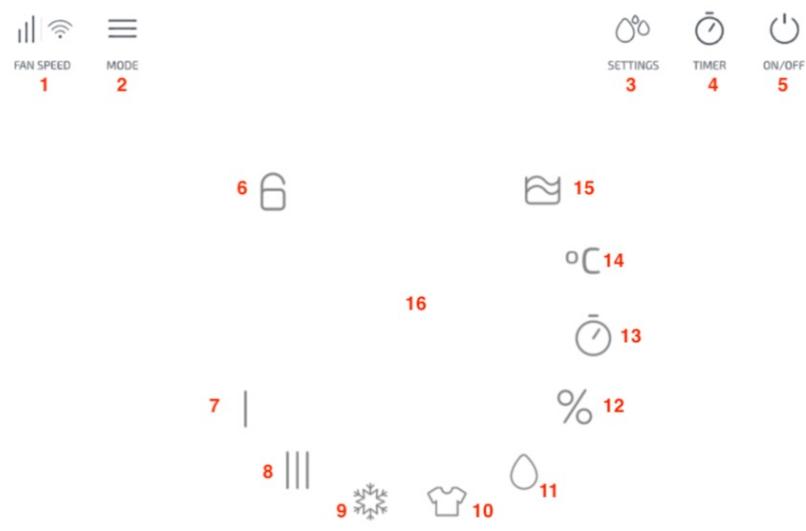

Control panel. Fig. 2

Touch icons

1. Dehumidification speed
2. Mode
3. Settings
4. Timer
5. On/Off

LED indicators

1. Child Lock
2. Low speed
3. High Speed
4. Safety system
5. Drying mode
6. Dehumidification mode
7. Humidity percentage
8. Timer
9. Temperature
10. Full tank indicator
11. Display

The display of the appliance will show:

• Room humidity level (when plugged in).
• Once the humidity level is set, it will display it.

• The time set for automatic switch-off.

• When ambient humidity is lower than 35%, it will show "35".

• When ambient humidity is higher than 95%, it will show "95".

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

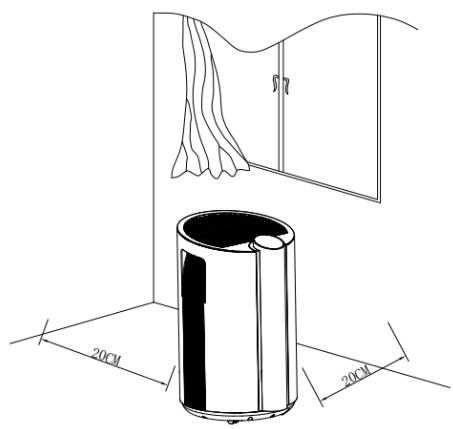

• When installing the device, ensure a minimum safety distance of 20 cm on each of its sides. Fig. 3

3. OPERATION

On/Off

• The device will beep when it is turned on, and the LED will display the room humidity level for 3 seconds. Then, the display will turn automatically off.
• Press the On/Off icon to start operation. Press it again to stop operation.

Lock

Press the On/Off icon for 3-5 seconds to activate the child lock system. Press and hold it again for 3-5 seconds to deactivate it.

Dehumidification speed

• Press the "dehumidification speed" icon to enable this function. Press the same icon to select between low or high speed. The fan indicator light will come on.
• The fan speed can be adjusted in Drying mode.
• When humidity level is 55 % or over, the speed will automatically operate at high speed.
• When humidity level is under 50 %, the fan will automatically operate at low speed.
• When humidity level is 50-55 %, then fan speed will switch between high/low speed automatically.

Humidity settings

• Press the Settings touch icon to adjust the humidity level.
• The default humidity in dehumidifying mode is 40%.

ENGLISH

• Press the settings touch icon to adjust humidity from 40 to 80%, in intervals of 5%. The display will show the selected setting.
• The device will automatically stop running when the ambient humidity is 2% below the selected humidity and will automatically resume operation after 3 minutes.
• If after 3 minutes, the room humidity level is still below the set one, the device will automatically turn off.
• Humidity cannot be adjusted in dry mode. The humidity level by default is 30%.

Timer

• Press the timer icon to set the timer function.
• When the device is switched on and in standby mode, press this icon set the automatic turn-on time, from 1 to 12 hours. The set time will be displayed, and the device will turn on after the selected time.
• With the device already running, press this icon again to programme the automatic switch-off from 1 to 12 hours. The set time will be displayed, and the device will turn off after the selected time.
• If the device is turned on or off manually, the automatic turn-on or turn-off will be cancelled.

Safety system

In order to avoid risk of damage to the device:

• The device will stop operating after every 30 minutes when it is operating in a room between 5 and 12 °C.
• The device will stop operating after every 45 minutes when it is operating in a room between 12 and 20 °C.
• If the device is below 5 °C or above 35 °C, it will switch off to protect itself.

Mode

Press the Mode icon to select the desired operating mode:

• Drying mode: suitable for drying clothes or for removing humidity from environments. In this mode, humidity level and air speed cannot be selected, and the device will dehumidify at maximum power.
• Dehumidification mode: this mode is suitable for removing humidity from the environment. The device runs automatically while in this mode. You can select both the speed and the desired humidity percentage.

All these options can be set from the App too.

App manual

In order to link your product with our App, please follow the steps below.

1. Download Cecotec's app from Google Play or App Store.

2. If it is the first time you use it, register an account. If not, log in.

3. Once inside the app, tap the "+" on the top right-hand side. Plug BigDry 9000 to the power supply (without pressing the On/Off icon) and tap on the Dehumidification Speed icon for 5 seconds until the device beeps and the Wi-Fi icon flashes. If the indicator blinks slowly, this operation must be repeated.

4. Enter your Wi-Fi password and press confirm. Remember the Wi-Fi network must be 2.4 GHz.
5. Then, pairing will start automatically.

Draining collected water

When the water tank is full, the full-tank indicator light will turn on, the device will automatically stop running, and it will beep 15 times to alert the user that the tank needs to be emptied.

Emptying the water tank

• Gently press both parts of the tank with your hands and carefully pull the tank outwards to remove it. Fig. 4
• Empty water inside the tank. Fig. 5

Note: Do not remove the float from the water tank. The water-full sensor will no longer be able to detect the water level correctly without the float and water may leak from the water tank.

- To install the tank back in place, press it firmly into place with both hands. If the tank is not properly installed, the full-tank indicator will turn on and the device will not work. Fig. 6

Continuous water drainage

• The unit features a continuous-drainage port. Using a plastic pipe (with an inner diameter of 10 mm), insert it into drain hole (on intermediate plate), reach out from side of water tank, install it in place, and arrange the drain pipe. Fig. 7
• The water in the tank can be continuously drained out from the continuous port on the unit.

4. CLEANING AND MAINTENANCE

• Turn off and unplug the device from the power supply before cleaning or repairing it.
• Use a soft, damp cloth with some neutral cleaning agent to clean the product's outside.
• If the product is not going to be used for a long time, pour out the remaining water, dry thoroughly all the parts and store it in a safe and well-ventilated place.
• If the water tank is dirty, wash it with cold or lukewarm water. Do not use detergent, scouring pads, chemically-treated cloths, petrol, benzene, thinner, or other solvents, as these can scratch and damage the tank and cause water leakage.

Cleaning the filter

• Open the filter compartment and remove the filter. Fig. 8
• Run a vacuum cleaner lightly over the surface of the air filter to remove dirt. If the air filter is exceptionally dirty, wash it with warm water and a mild cleanser. Dry thoroughly. Fig. 9
• To attach the air filter, insert it into the grill smoothly, and place the compartment into its right place. Fig. 10-11

Storage

• Before storing the device for a long period of time:
• Empty any water left in the tank.
• Wind the power supply cord and put it in the water tank.
• Clean the filter edge.

• Store it in a cool and dry place.

• TROUBLESHOOTING

Problem	Possible cause	Possible solution
The device does not work.	The power cord is not connected.	Plug the power cord into the outlet.
	Full-tank indicator is on (tank is full or not installed correctly).	Empty the water in the tank and then reinstall the tank.
	Ambient temperature is above 35 °C or below 5 °C.	The protection device is activated, and the unit cannot run.
The dehumidifying function does not work	The filter is clogged.	Clean the filter as described in this manual.
	The inlet or outlet duct is clogged.	Remove the obstruction from the discharge duct or intake duct.
No air is discharged	The filter is clogged.	Clean the filter as described in the manual.
The device produces strange noises when operating	The appliance is tilted or unsteady.	Move the appliance to a stable location.
	The filter is clogged.	Clean the filter as described in the manual.
Displays ‘E1’	The humidity or room temperature sensor does not work.	Contact the official Cecotec Technical Support Service.

1. Service information

1.1 Area verification

Before starting work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. Before repairing the cooling system, the following precautions must be observed:

1.2. Work procedure

The work must be carried out in accordance with a controlled procedure to minimise the risk of a flammable vapour or gas being present while the work is being carried out.

1.3. General workspace

All maintenance personnel and others working in the area should be briefed on the nature of the work to be carried out. Work in confined spaces must be avoided. The area around the workspace should be divided into sections. Ensure that conditions within the workspace are safe by keeping flammable material under control.

1.4. Refrigerant verification

The area should be checked with an appropriate refrigerant detector before and during work to ensure that the technician is warned of potentially flammable atmospheres. Ensure that the leak-detection equipment used is suitable for use with flammable refrigerants, i.e., non-sparking, adequately sealed, or intrinsically safe.

1.5. Presence of fire extinguishers

If any high-temperature work is to be carried out on the refrigeration equipment or any associated parts, suitable extinguishing equipment must be available. Always have a dry-powder or CO2 fire extinguisher nearby the load area.

1.6. Absence of ignition sources

No person carrying out work related to a refrigeration system involving the exposure of piping containing or having contained flammable refrigerant should use any source of ignition in such a manner as to create a risk of fire or explosion. All possible sources of ignition, including cigarette smoking, should be kept far enough away from the installation, repair, pick-up, and disposal site, where flammable refrigerant can be released into the surrounding space. Before work starts, the area around the equipment must be thoroughly examined to ensure that no danger or risk of ignition is present. "No Smoking" signs must be displayed.

1.7. Ventilation

Ensure that the area is outdoors or adequately ventilated before intervening in the system or carrying out any work at high temperature. Proper ventilation must be kept at all times during work. Ventilation should safely disperse any refrigerant released and preferably expel it externally to the atmosphere.

1.8. Verification of refrigeration equipment

When electrical components are replaced, they must be fit for purpose and to the correct specification. The manufacturer's maintenance and service guidelines must be followed at all times. In case of doubt, refer to the manufacturer's technical department for assistance.

The following checks must be applied to installations using flammable refrigerants:

• The load size is in accordance with the size of the room where refrigerant-containing parts are installed.
• Ventilation machinery and outlets can be properly operated and are unobstructed.
• If an indirect cooling circuit is used, the secondary circuit must be checked for refrigerant presence.
• Equipment marking remains visible and legible. Illegible markings and symbols should be corrected.
• The components or refrigerant piping are installed in a position where they are not susceptible to exposure to any substance that may corrode the refrigerant-containing components, unless the components are made of materials that are inherently resistant to corrosion or are properly protected against it.

1.9. Verification of electrical devices

Repair and maintenance of electrical components should include initial safety checks and component-inspection procedures. If there is a fault that may compromise safety, then no power supply should be connected to the circuit until the fault is satisfactorily dealt with. If the fault cannot be corrected immediately, but continued operation is necessary, a suitable temporary solution must be used. This should be reported to the owner of the equipment so as to inform all parties.

During initial safety checks, make sure

• that capacitors are unloaded—this must be done in a safe manner to avoid sparks;
• that no live wiring or electrical components are exposed while loading, recovering, or purging the system;
• that there is continuity in the earth connection.

2. Repair of sealed components

• During the repair of sealed components, all power supplies should be disconnected from the equipment being worked on prior to any removal of sealed covers, etc. If it is absolutely necessary to have a power supply to the equipment during service, then a permanently operating form of leak detection should be placed at the most critical point to warn of a potentially hazardous situation.
• Particular attention must be paid to the following to ensure that, when working on electrical components, the housing is not altered in such a way as to affect safety. This must include damage to cords, an excessive number of connections, terminals not conforming to the initial specification, damage to seals, incorrect fitting of the stuffing box, etc.
• Ensure that the instrumentation is securely mounted.

- Ensure that seals or sealing materials have not degraded until no longer being useful to preventing the penetration of flammable atmospheres. Spare parts must be in accordance with the manufacturer's specifications.

NOTE: the use of silicone sealant may inhibit the effectiveness of some types of leak-detection equipment. Intrinsically safe components do not have to be isolated before work.

3. Repair of intrinsically safe components

• Do not apply any permanent inductive or capacitive load to the circuit without ensuring that it will not exceed the permissible voltage and current rating for the equipment in use.
• Intrinsically safe components are the only type of components that can be worked on in a flammable atmosphere. The test instrumentation must have the correct assigned features.
• Replace components only with parts specified by the manufacturer. Other parts can ignite the refrigerant in the atmosphere from a leak.

4. Wiring

Verify that the wiring is not subject to wear, corrosion, excessive pressure, vibration, sharp edges, or any other environmental effects. The effects of ageing or continuous vibration from sources such as compressors or fans should also be taken into account.

5. Detection of flammable refrigerants

Under no circumstances should potential ignition sources be used in the search for or detection of refrigerant leaks. Do not use a halide lamp or any other detector using a naked flame.

6. Leak-detection methods

• The following leak-detection methods are considered acceptable for systems containing flammable refrigerants.
• Electronic leak detectors should be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration (the detection equipment should be calibrated in a refrigerant-free area). Ensure that the detector is not a potential ignition source and that it is suitable for the refrigerant used. The leak-detection equipment must be set to a percentage of the lower flammability limit of the refrigerant and calibrated for the refrigerant used with the appropriate percentage of gas (maximum 25%) confirmed.
• Leak-detection fluids are suitable for use with most refrigerants, but the use of detergents containing chlorine must be avoided, as chlorine can react with the refrigerant and corrode copper pipes.
• If a leak is suspected, all naked flames must be eliminated/extinguished.
• If a refrigerant leak is found and requires brazing, all refrigerants must be recovered from the system, or isolated (by means of shut-off valves) in a part of the system far away from the leak. Oxygen-free nitrogen must then be purged through the system both before and during the brazing process.

7. Removal and evacuation

When intervening in the cooling circuit for repairs or any other purpose, conventional procedures must be followed. However, it is important that best practices are followed, as flammability is a matter to be taken seriously. The following procedure is to be followed:

1. Remove the refrigerant.
2. Purge the circuit with inert gas.
3. Evacuate.
4. Purge again with inert gas.

5. Open the circuit by cutting or brazing.

6. The refrigerant charge must be recovered from the correct recovery cylinders. The system must be flushed with oxygen-free nitrogen to render the unit safe. This process may need to be repeated several times. Oxygen or compressed air must not be used for the task.

7. Cleanliness must be achieved by breaking the vacuum in the system with oxygen-free nitrogen and continuing to fill until working pressure is reached, then venting to atmosphere, and finally pushing to a vacuum. This process must be repeated until there is no refrigerant left in the system. When using the oxygen-free nitrogen end-charge, the system must be vented to atmospheric pressure to allow for work. This operation is absolutely vital if brazing operations are to take place on pipes.
8. Ensure that the vacuum pump outlet is not near any source of ignition and that ventilation is available.

8. Loading procedure

In addition to conventional loading procedures, the following requirements must be followed.

• Ensure that no contamination of different refrigerants occurs when using the loading equipment. Hoses or lines should be kept as short as possible to minimise the amount of refrigerant contained in them.
• Cylinders must be kept in an upright position.
• Ensure that the refrigeration system is grounded before loading the system with refrigerant.
• Tag the system when charging is complete (if not already).
• Extreme care must be taken to avoid overfilling the cooling system.

Before reloading, the system must be pressure-tested with oxygen-free nitrogen. The system shall be leak-tested upon completion of loading, but prior to commissioning. A subsequent leakage test must be carried out before leaving the site.

9. Commissioning

Before performing this procedure, it is essential that the technician is thoroughly familiar with the equipment and all its details. It is recommended good practice that all refrigerants are safely recovered. Before the task is carried out, a sample of oil and refrigerant should be taken in case an analysis is required before the recovered coolant is reused. It is essential for there to be power before starting with the task.

A. It is important to get familiar with the equipment and its operation.
B. Electrically isolate the system.
C. Before attempting the procedure, ensure that
- the mechanical-handling equipment is available, if required, for the handling of refrigerant cylinders;
- all personal protective equipment is available and correctly used;
- the recovery process is supervised at all times by a competent person;
- cylinders and recovery equipment conform to appropriate standards.
D. Pump the cooling system, if possible.
E. If vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
F. Ensure that the cylinder is positioned on the scale before recovery takes place.
G. Switch on the recovery machine and operate it according to the manufacturer's instructions.
H. Do not overfill cylinders (no more than 80% of the liquid charge by volume).
I. Do not exceed the maximum working pressure of the cylinder, even temporarily.
J. When the cylinders have been correctly filled and the process is complete, ensure that the cylinders and equipment are promptly removed from the site and that all equipment isolation valves are closed.
K. Recovered refrigerant must not be charged to another refrigeration system, unless cleaned and checked.

10. Labelling

The equipment must be labelled stating that it has been taken out of service and drained of refrigerant. The labelling must be dated and signed. Ensure that there are labels on the equipment stating that the equipment contains flammable refrigerant.

11. Recovery

• When refrigerant is removed from a system, either for service or decommissioning, it is recommended good practice that all refrigerants are removed safely.
• When transferring refrigerant to cylinders, ensure that only suitable refrigerant-recovery cylinders are used. Ensure that the correct number of cylinders is available to support the total load of the system. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e., special refrigerant recovery cylinders). Cylinders must be completed with pressure-relief valves and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery takes place.
• Recovery equipment must be in good working order with a set of instructions concerning the equipment at hand and must be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales must be available and in good working order. Hoses must be complete with disconnect couplings free of leakage and in good running order. Before using the recovery machine, check that it is in good running order, properly

maintained, and that all associated electrical components are sealed to prevent ignition in the event of refrigerant release. Consult the manufacturer in case of doubt.

• The flammable refrigerant must be returned to the refrigerant supplier in the correct recovery cylinder, and the applicable waste transfer note must be provided. Do not mix refrigerants in recovery units and especially not in cylinders.
• If compressors and compressor oils are to be removed, ensure that they have been drained to an acceptable level so that no flammable refrigerant remains within the lubricant. The evacuation process must be carried out before returning the compressor to the suppliers. Only electrical heating of the compressor body should be used to accelerate this process. When oil is drained from a system, it must be done in a safe manner.

6. TECHNICAL SPECIFICATIONS

Product reference: 05654/05655

Product: BigDry 9000 Professional Connected/BigDry 9000 Professional Black Connected

Power: 320 W

Voltage: 220-240 V 50 Hz

Frequency band: 2.4 GHz

Emission power: 13-14,5-17 dBm

Dehumidification capacity: 20 L / 24 h

Refrigerant gas/charge: R290/90 g

Allowable excessive operating pressure (suction): 0,6 MPa

Allowable excessive operating pressure (discharge): 1,8 MPa

Allowable maximum pressure: 3.0 MPa

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

10. DECLARATION OF CONFORMITY

Cecotec Innovations hereby declares that these dehumidifiers, models 05654 BigDry 9000 Professional Connected y 05655 BigDry 9000 Professional Black Connected are in conformity with the Radio Equipment Directive 2014/53/EU. The completetextoftheEUdeclarationofconformityisavailableinthefollowingInternetaddress: www.cecotec.es.

1. PIÈCES ET COMPOSANTS

Img. 1

5. PROBLEEMOPLOSSING

Product: BigDry 9000 Professional Connected/BigDry 9000 Professional Black Connected

Vermogen: 320 W

Voltage: 220-240 V 50 Hz

Frequentieband: 2,4 GHz

Emissievermogen: 13-14,5-17 dBm

Fig./Img./Abb./Afb./Rys./Obr.1

Fig./Img./Abb./Afb./ Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./ Rys./Obr. 8

Fig./Img./Abb./Afb./ Rys./Obr. 9

Fig./Img./Abb./Afb./ Rys./Obr. 10

Fig./Img./Abb./Afb./Rys./Obr. 11

www.cecotec.es
