RK-6114 - Rice cooker TRISTAR - Free user manual and instructions

USER MANUAL RK-6114 TRISTAR

You can find all information and spare parts at service.tristar.eu

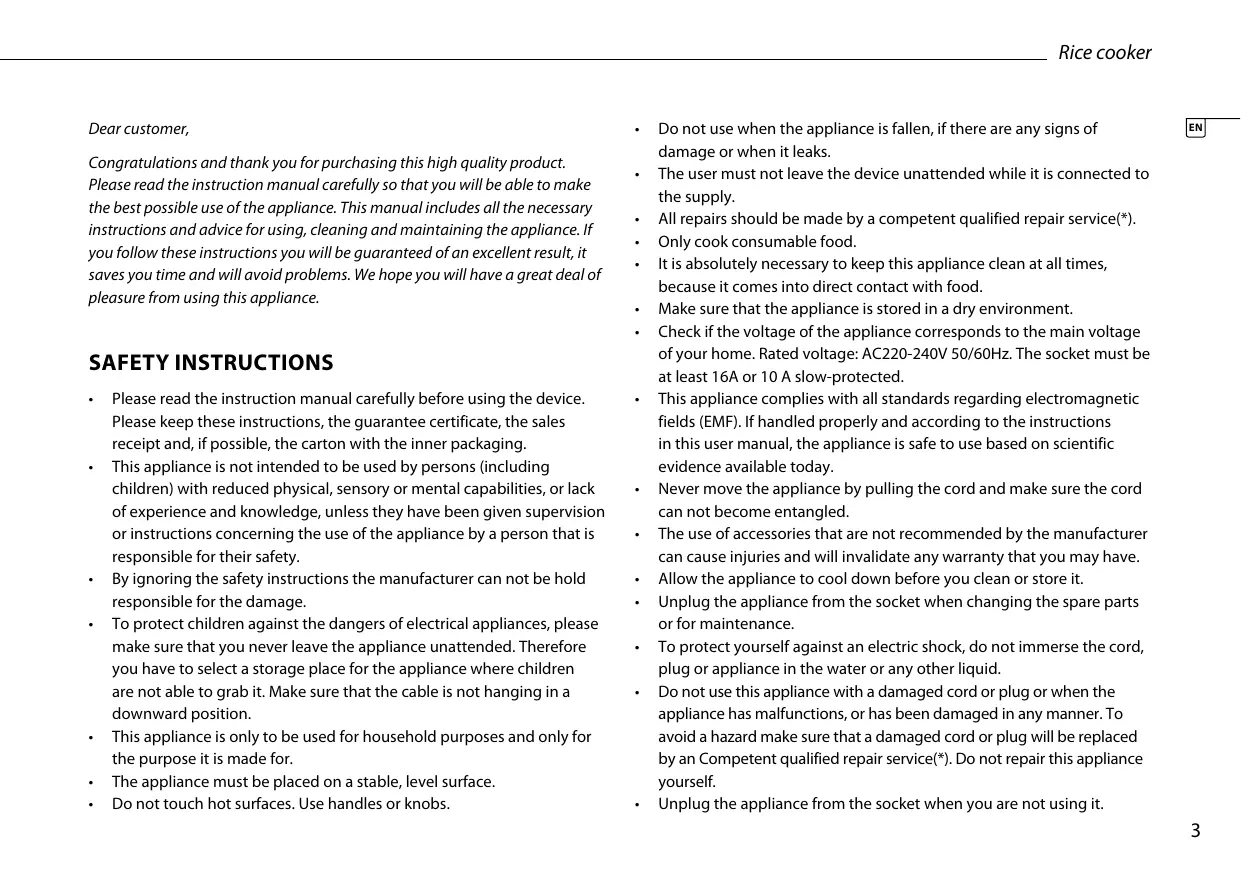

Dear customer,

Congratulations and thank you for purchasing this high quality product. Please read the instruction manual carefully so that you will be able to make the best possible use of the appliance. This manual includes all the necessary instructions and advice for using, cleaning and maintaining the appliance. If you follow these instructions you will be guaranteed of an excellent result, it saves you time and will avoid problems. We hope you will have a great deal of pleasure from using this appliance.

SAFETY INSTRUCTIONS

• Please read the instruction manual carefully before using the device. Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging.
• This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person that is responsible for their safety.
• By ignoring the safety instructions the manufacturer can not be hold responsible for the damage.
• To protect children against the dangers of electrical appliances, please make sure that you never leave the appliance unattended. Therefore you have to select a storage place for the appliance where children are not able to grab it. Make sure that the cable is not hanging in a downward position.
• This appliance is only to be used for household purposes and only for the purpose it is made for.
  The appliance must be placed on a stable, level surface.

• Do not touch hot surfaces. Use handles or knobs.

• Do not use when the appliance is fallen, if there are any signs of damage or when it leaks.

• The user must not leave the device unattended while it is connected to the supply.
• All repairs should be made by a competent qualified repair service ^(*) .
  Only cook consumable food.
  It is absolutely necessary to keep this appliance clean at all times, because it comes into direct contact with food.
• Make sure that the appliance is stored in a dry environment.
• Check if the voltage of the appliance corresponds to the main voltage of your home. Rated voltage: AC220-240V 50/60Hz. The socket must be at least 16A or 10 A slow-protected.
• This appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.
• Never move the appliance by pulling the cord and make sure the cord can not become entangled.
• The use of accessories that are not recommended by the manufacturer can cause injuries and will invalidate any warranty that you may have.
• Allow the appliance to cool down before you clean or store it.
• Unplug the appliance from the socket when changing the spare parts or for maintenance.
• To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.
• Do not use this appliance with a damaged cord or plug or when the appliance has malfunctions, or has been damaged in any manner. To avoid a hazard make sure that a damaged cord or plug will be replaced by an Competent qualified repair service(*) Do not repair this appliance yourself.

• Unplug the appliance from the socket when you are not using it.

• Note: To avoid danger by accidental resetting the thermal protection, this appliance may not be powered through an external switching device, such as a timer, or connected to a circuit that regularly will be switched on or off.

• Do not use this appliance near direct heat sources.
• Make sure the cord does not touch the hot parts of the appliance.
• We advise to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth).
• Do not use this appliance in the bathroom or near a sink filled with water. If this appliance has fallen into the water do not under no circumstances directly grab this appliance, but first pull the plug from the socket.
• Make sure that the cord is not hanging over the edge of the table or counter, does not touch any hot surfaces or is coming directly into contact with the hot parts of the appliance. Do not place the appliance underneath or close to curtains, window coverings etc.
• Children should be supervised to ensure that they do not play with the appliance.
• Competent qualified repair service: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this repair service.

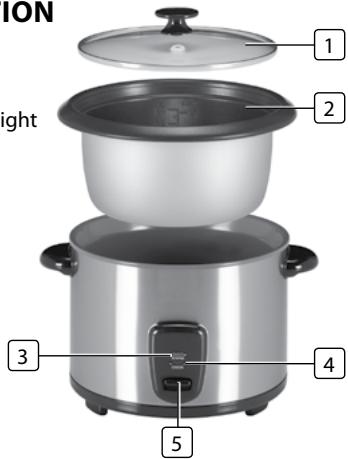

PARTS DESCRIPTION

1. Lid
2. Inner bowl
3. Keep warm indicator light
4. Cook indicator light
5. Control lever
6. Measuring cup
7. Spatula

BEFORE THE FIRST USE

• Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.
• Place the device on a flat stable surface and ensure a minimum of 10cm . free space around the device. This device is not suitable for installation in a cabinet or for outside use.
  Always place the inner pot inside the outer pot before plugging in the rice cooker.
• When plugging in the cooker, always make sure that the inner pot contains liquid, or be ready to immediately ad oil, butter or margarine to the inner pot.

• Always dry the outer surface of the inner pot before placing it inside the cooker. Any moisture remaining on the inner pot surface may cause a cracking noise while the unit is heating up.

• Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 220V-240V 50/60Hz)

• When the device is turned on for the first time, a slight odor will occur. This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.

USE

Cooking rice

• Use the measuring cup provided to measure the desired quantity of rice. As a guide one cup of rice is sufficient for one person, but this will vary according to individual tastes. Fill the cup with rice leveling the top.
• Thoroughly wash the rice in several changes of clean water and drain. Failure to do so may cause poor results and/or a buildup of steam within the appliance. Do not wash the rice in the inner bowl as you may damage it.
• Transfer the rice to the inner bowl and level the surface of the rice. Add sufficient cold water to the corresponding level marked on the bowl e.g. to cook 3 cups of rice, place the washed rice into the inner bowl and then fill with water up to the 3 cup level. You may find that for your own personal taste you need to slightly adjust the amount of water added. For a softer rice add a little more water, and for a firmer rice a little less water.

Model no.	Uncooked Rice	Water	Cooking Time
RK-6111	1 cup	2 cups	23 minutes
	2 cups	3 cups	25 minutes
	3 cups	3.5 cups	26 minutes
	4 cups	5 cups	29 minutes
	5 cups	6 cups	31 minutes

Model no.	Uncooked Rice	Water	Cooking Time
RK-6112	2 cups	3 cups	18 minutes
	4 cups	5 cups	24 minutes
	6 cups	7 cups	27 minutes
	8 cups	9 cups	30 minutes
RK-6113	4 cups	5 cups	19 minutes
	6 cups	7 cups	23 minutes
	8 cups	9 cups	25 minutes
	10 cups	11 cups	29 minutes
RK-6114	6 cups	7 cups	20 minutes
	8 cups	9 cups	23 minutes
	10 cups	11 cups	25 minutes
	12 cups	13 cups	28 minutes
	14 cups	15 cups	30 minutes

• Transfer the inner bowl to the rice cooker ensuring that there is no rice or any moisture on the outside of the bowl.
• Cover with the lid, ensuring that the vent hole in the lid is situated away from the operator.
• Connect the appliance to the power supply. Depress the control lever to the COOK position and the cook light will glow.
• Once the rice is cooked, the appliance will automatically switch to the WARM position and the keep warm light will glow.
• Carefully lift the lid and allow any condensation to drip into the rice cooker. Use the spatula provided to fluff up the rice which is then ready to eat. Replace the lid as quickly as possible. Consume the stirred rice within 1 hour.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Never immerse the device in water or any other liquid. The device is not dishwasher proof.

GUARANTEE

• This product is guaranteed for 24 months granted. Your warranty is valid if the product is used in accordance to the instructions and for the purpose for which it was created. In addition, the original purchase (invoice, sales slip or receipt) is to be submitted with the date of purchase, the name of the retailer and the item number of the product.
• For the detailed warranty conditions, please refer to our service website: www.service.tristar.eu

GUIDELINES FOR PROTECTION OF THE ENVIRONMENT

This appliance should not be put into the domestic garbage at the end of its durability, but must be offered at a central point for the recycling of electric and electronic domestic appliances. This symbol on the appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product will be correctly processed into waste, it will help prevent possible negative consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC", the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC. This appliance is designed to come into contact with food and is designed in accordance with EC Directive1935/2004/EEC

Geachte klant,

Modèle	Riz cru	L'Eau	Temps
RK-6111	1 tasse	2 tasses	23 minutes
	2 tasses	3 tasses	25 minutes
	3 tasses	3.5 tasses	26 minutes
	4 tasses	5 tasses	29 minutes
	5 tasses	6 tasses	31 minutes

Modèle	Riz cru	L'Eau	Temps
RK-6112	2 tasses	3 tasses	18 minutes
	4 tasses	5 tasses	24 minutes
	6 tasses	7 tasses	27 minutes
	8 tasses	9 tasses	30 minutes
RK-6113	4 tasses	5 tasses	19 minutes
	6 tasses	7 tasses	23 minutes
	8 tasses	9 tasses	25 minutes
	10 tasses	11 tasses	29 minutes
RK-6114	6 tasses	7 tasses	20 minutes
	8 tasses	9 tasses	23 minutes
	10 tasses	11 tasses	25 minutes
	12 tasses	13 tasses	28 minutes
	14 tasses	15 tasses	30 minutes
