RK6109 - Rice cooker TRISTAR - Free user manual and instructions

Product type	Rice cooker
Brand	TriStar
Model	RK6109
Capacity	Approximately 1.2 L (for 5 to 6 cups of rice)
Power supply	220-240 V ~ 50/60 Hz, 500 W (estimated)
Inner pot material	With non-stick coating
Functions	Cooking, keep warm, steaming
Automatic keep warm	Yes (switches to warm mode after cooking)
Automatic shut-off	Yes (switch automatically pops up)
Included accessories	Measuring cup, spoon (depending on model)
Safety	Overheat protection, do not immerse, hot surface
Maintenance and cleaning	Pot and lid washable with soapy water; exterior wiped with a damp cloth; heating plate cleaned with steel wool
Environmental information	Recyclable, do not dispose with household waste
Usage	Household use only

Frequently Asked Questions - RK6109 TRISTAR

How to use the TriStar RK6109 rice cooker?

Add rice and water to the inner pot using the measuring cup. Place the pot in the appliance, close the lid, plug it in, and press the switch. The cooking indicator lights up. After cooking, the switch automatically pops up.

How to clean the rice cooker?

Remove the inner pot and lid, wash them with warm soapy water and rinse. Wipe the exterior with a damp cloth. For the heating plate, use steel wool to remove residue, then wipe with a damp cloth. Never immerse the appliance body.

Why is the switch difficult to press?

This usually happens if the inner pot is not properly inserted into the appliance or just after cooking finishes. Ensure the pot is properly seated and turn it slightly. Do not force the switch.

Can I steam with this cooker?

Yes, you can steam. Make sure the water level does not exceed 70% of the volume. Place the food in a suitable steamer basket, close the lid, and start cooking.

How to prevent rice from drying after cooking?

The appliance automatically switches to keep warm mode. To prevent drying, keep the lid closed after serving. If you need to keep the rice for a long time, add a little water before reheating.

What to do if the rice is not cooked properly?

Check the rice/water ratio (usually 1 volume of rice to 1.2 volumes of water). Make sure the pot is properly seated and the switch is pressed. If the problem persists, clean the heating plate and check that no residue is obstructing contact.

Can I open the lid during cooking?

It is not recommended to open the lid during cooking as it releases steam and may affect cooking. Wait until the cycle ends or use the stop function if necessary.

How to remove bad odors from the cooker?

Improper cleaning can cause odors. Wash the pot and lid thoroughly. For stubborn odors, boil water with lemon juice or white vinegar, then rinse.

What is the capacity of the cooker?

The capacity is approximately 1.2 liters, enough to prepare 5 to 6 cups of cooked rice (according to the included measuring cup).

Can I cook other grains besides rice?

Yes, you can cook quinoa, barley, or other grains by adjusting the water quantities and cooking times. Refer to cooking guides for each type of grain.

USER MANUAL RK6109 TRISTAR

Tasses de riz

15 tasses

14 tasses

12 tasses

10 tasses

8 tasses

6 tasses

4 tasses

2 tasses

Eau à ajouter au riz

15 – 15 1/2 tasses

14 – 14 1/2 tasses

12 – 12 1/2 tasses

11 – 11 1/2 tasses

9 – 9 1/2 tasses

7 – 7 1/2 tasses

5 – 5 1/2 tasses

3 – 3 1/2 tasses

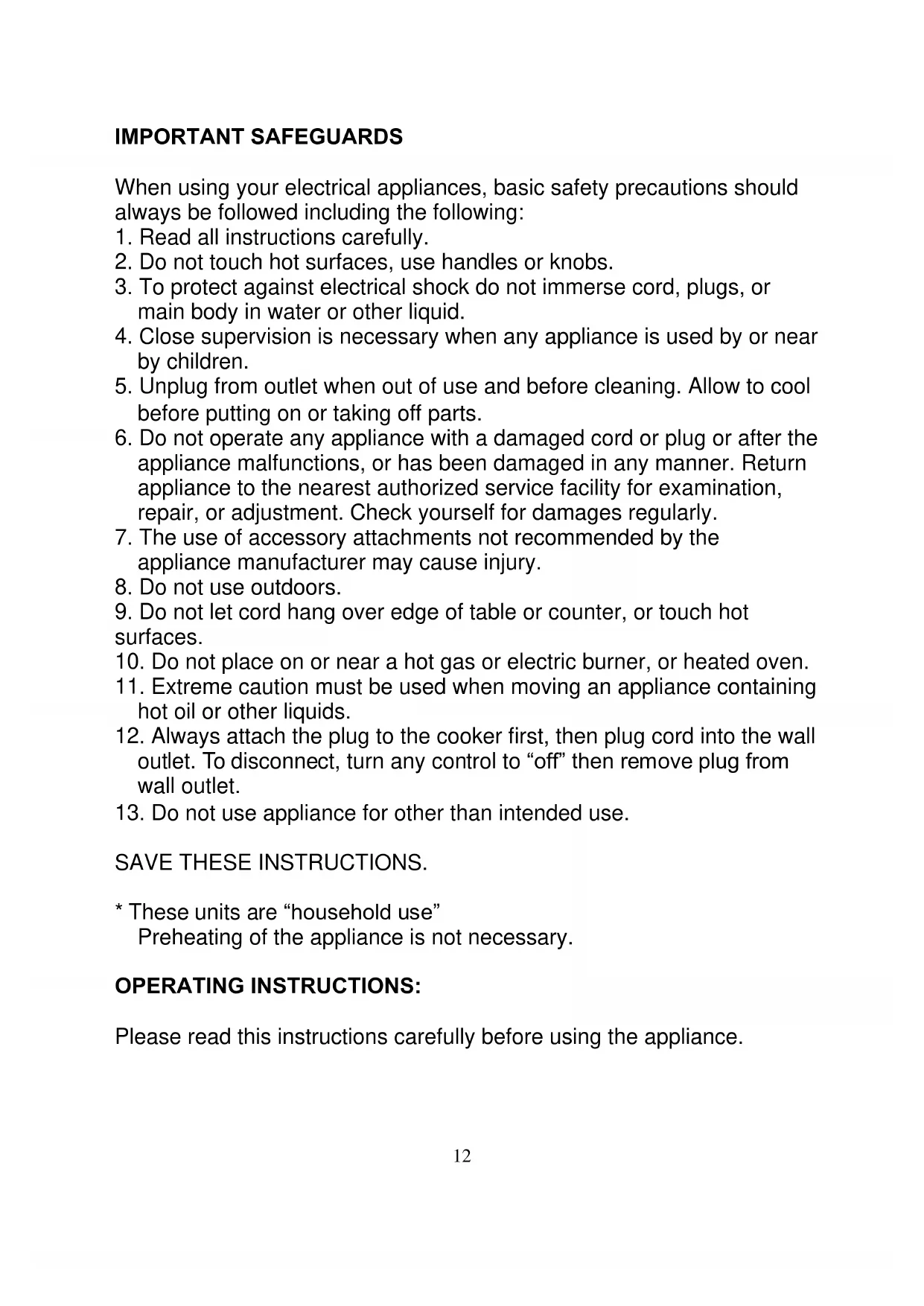

When using your electrical appliances, basic safety precautions should always be followed including the following:

1. Read all instructions carefully.
2. Do not touch hot surfaces, use handles or knobs.
3. To protect against electrical shock do not immerse cord, plugs, or main body in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near by children.
5. Unplug from outlet when out of use and before cleaning. Allow to cool before putting on or taking off parts.
6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment. Check yourself for damages regularly.
7. The use of accessory attachments not recommended by the appliance manufacturer may cause injury.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electric burner, or heated oven.
11. Extreme caution must be used when moving an appliance containing hot oil or other liquids.
12. Always attach the plug to the cooker first, then plug cord into the wall outlet. To disconnect, turn any control to "off" then remove plug from wall outlet.
13. Do not use appliance for other than intended use.

SAVE THESE INSTRUCTIONS.

• These units are "household use" Preheating of the appliance is not necessary.

OPERATING INSTRUCTIONS:

Please read this instructions carefully before using the appliance.

CAUTIONS TO READ BEFORE USING RICE COOKER:

• Only use this product with the correct AC voltage outlet.(Correct rated voltage see box and label at the bottom of rice cooker.)
• Be sure to unplug AC cord when pan is not in cooker, or when cooker is not being used. Remember the "KEEP WARM" feature operates whenever the cord is plugged in
• Place the inner pot inside the cooker before operating. Turn the pot gently to right and left.
• If the switch button is difficult to press to the "cook" position, do not try to force it down. This difficulty usually occurs when inner pot is of fully inserted in cooker or when cooking has just finished.
• Place the lid on your inner pot while cooking, keep the lid in place after serving to prevent your rice from drying out or discoloring.
• Keep bottom of inner pot and surface of heater plate free of foreign matter to prevent operating malfunctions.

MAINTENANCE PROCEDURES

Remove inner pot and lid and wash them in hot soapy water, taking care to rinse completely, then dry with a soft cloth.
Clean outside of cooker with a clean damp cloth. Never clean any part of the cooker with abrasive cleaner. Use a damp cloth or sponge with water and mild dish detergent. Do not submerge any part of cooker in water. Wash only inner pot and lid.
To clean the beating plate and thermo-control plate, use steel wool to polish or remove any residue. Then wipe with a damp cloth. Allow to dry completely before re-using. You must keep the heating plate and thermo-control plate free from any foreign objects, otherwise the cooker will not operate properly.
✓ Improper cleaning of cooker may cause unpleasant odors.
✓ Any residue to the vinegar or salt may cause pan to corrode.

HOW TO USE

1. Using the measuring cup provided in the package, measure and add rice to the inner pot.

1. By measuring cup, add amount to water to the rice inside the inner pot according to the following standard:

Cups of Raw Rice

15 cups
14 cups
12 cups
10 cups
8 cups
6 cups
4 cups
2 cups

Water add to the line on pot
15 - 15 1/2 cups
14 - 14 1/2 cups
12-12 1/2 cups
11 - 11 1/2 cups
9-9 1/2 cups
7-7 1/2 cups
5-51/2 cups
3-31/2 cups

1. Set inner pot in cooker. Place rice and water in inner pot. Close the lid firmly. Turn pan gently to right and left. Close the cover firmly.
2. Plug in power cord. Do not plug in until ready to cook. Otherwise, rice may be spoiled. If pot is not in cooker, cooking will not begin.
3. Press switch. "cook" indicator tells you cooking has started.
4. When rice is done, the switch will pop up. After the switch pops up, leave covered for at least 15 minutes to steam rice.
5. Unplug after each use. Grasp the plug, not the cord.
6. When you stew, the water level should not be more than 70% of the volume.
7. Do not attach the ventilating hole for fear scaling.

*****

AVVERTENZE IMPORTANTI

Whenever you want to use the following instructions, please use the following instructions.
- Whenever you want to use the following instructions, please use the following instructions:
- How many times can you use these instructions?
- How many times can you use these instructions?

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for

information regarding the point of recollection..
