FO-1105 - Fondue maker TRISTAR - Free user manual and instructions

USER MANUAL FO-1105 TRISTAR

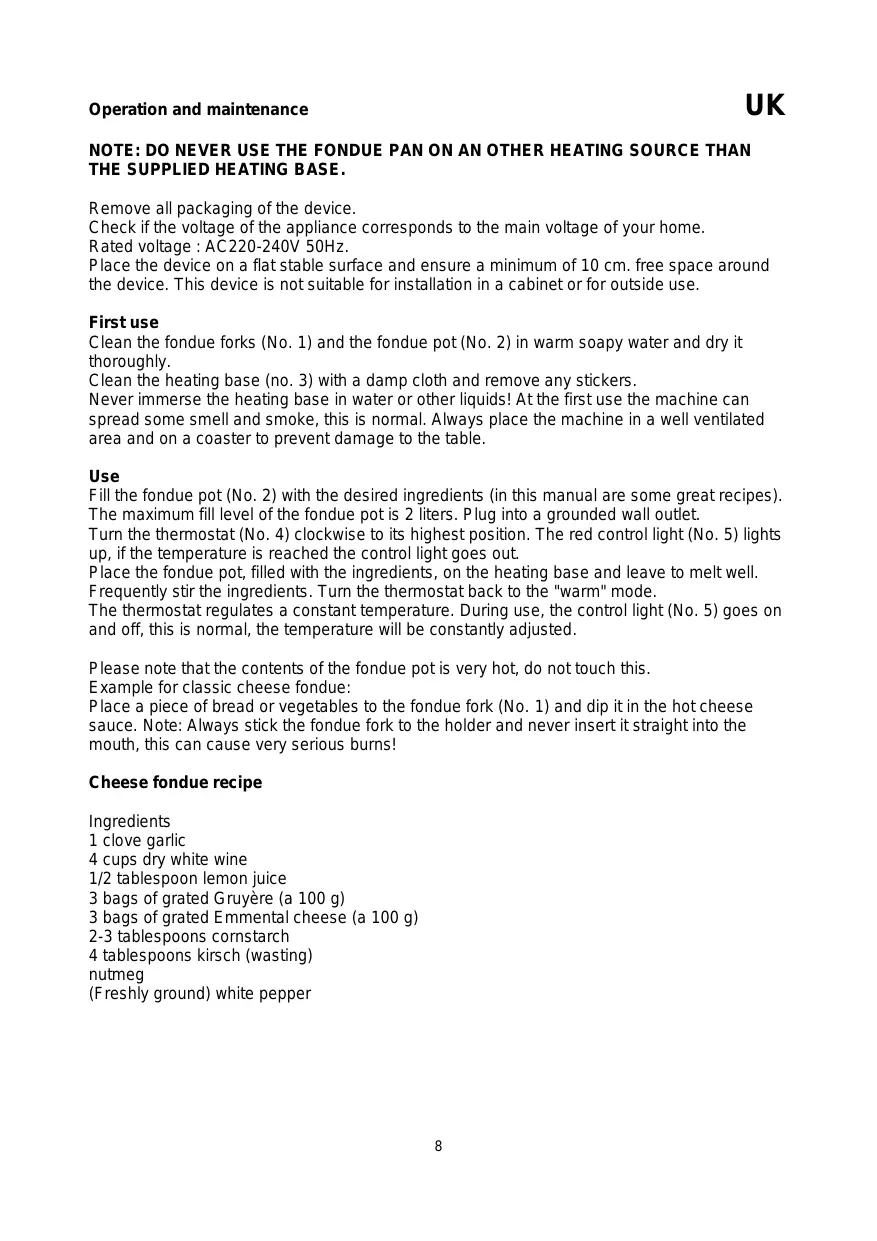

Remove all packaging of the device.

Check if the voltage of the appliance corresponds to the main voltage of your home.

Rated voltage : AC220-240V 50Hz.

Place the device on a flat stable surface and ensure a minimum of 10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.

First use

Clean the fondue forks (No. 1) and the fondue pot (No. 2) in warm soapy water and dry it thoroughly.

Clean the heating base (no. 3) with a damp cloth and remove any stickers.

Never immerse the heating base in water or other liquids! At the first use the machine can spread some smell and smoke, this is normal. Always place the machine in a well ventilated area and on a coaster to prevent damage to the table.

Use

Fill the fondue pot (No. 2) with the desired ingredients (in this manual are some great recipes). The maximum fill level of the fondue pot is 2 liters. Plug into a grounded wall outlet.

Turn the thermostat (No. 4) clockwise to its highest position. The red control light (No. 5) lights up, if the temperature is reached the control light goes out.

Place the fondue pot, filled with the ingredients, on the heating base and leave to melt well.

Frequently stir the ingredients. Turn the thermostat back to the "warm" mode.

The thermostat regulates a constant temperature. During use, the control light (No. 5) goes on and off, this is normal, the temperature will be constantly adjusted.

Please note that the contents of the fondue pot is very hot, do not touch this.

Example for classic cheese fondue:

Place a piece of bread or vegetables to the fondue fork (No. 1) and dip it in the hot cheese sauce. Note: Always stick the fondue fork to the holder and never insert it straight into the mouth, this can cause very serious burns!

1 clove garlic
4 cups dry white wine
1/2 tablespoon lemon juice
3 bags of grated Gruyère (a 100 g)
3 bags of grated Emmental cheese (a 100 g)
2-3 tablespoons cornstarch
4 tablespoons kirsch (wasting) nutmeg
(Freshly ground) white pepper

Preparation and Tips

Half the garlic and rub the inside of the fondue pan. Add wine and lemon juice into the fondue pot. Plug into a grounded wall outlet. Turn the thermostat (No. 4) clockwise to its highest position. The red control light (No. 5) lights up, if the temperature is reached the control light goes out. Place the fondue pot, filled with the ingredients, on the heating base. Stir the grated cheese sections with a wooden spoon into the hot wine, until all cheese is melted. Stirr cornstarch with kirsch in a cup until a smooth paste arises. Mix the cornflour paste into the cheese fondue mix and stir to bind. Season with nutmeg and pepper. Incidentally, you can make cheese fondue recipes with all types of cheese. If only it would melt. You can also add a little lemon juice to this recipe, this helps to counteract lumps.

Tips for cheese fondue for dipping:

All types of bread
- paprikaslices
- Mushroom
Cucumber Pieces
- Nacho Chips
- Pineapple Pieces
Broccoli, first dipped in hot water
Silver onions
Gherkins
Grapes
Salami Pieces
- Show Pieces Serve Sausage
- halved small tomatoes

Ready-made cheese fondue is also very good and tasty!

Cleaning the device

First remove the plug from the socket and allow all the parts to cool down before cleaning them. Clean the heating base (No. 3) with a damp cloth. If necessary, with some detergent.

Never use harsh and abrasive cleaners, steel wool or a scouring pad as this will damage the device. Do not immerse in water or other liquid. Let the fondue pot (No. 2) week in warm water and remove the remains with a dishwashing brush. Was the forks in warm soapy water or clean in the dishwasher. The fondue pot (No. 2) is not dishwasher safe.

IMPORTANT SAFEGUARDS

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.
• Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have.
• Do not use outdoors, or on or near direct heat sources
• Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc.
  This appliance is for household use only and only for the purpose it is made for.
  The appliance must be placed on a stable, level surface.
• This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
  This device is not intended for use with an external timer or a remote control system.
• Note: To avoid danger by the accidental resetting thermal protection, the device may not be powered through an external switching device, such as a timer, or connected to a circuit and is turned regularly by the subject.
  This device is not intended for use with an external timer or a remote control system.
• Note: To avoid danger by the accidental resetting thermal protection, the device may not be powered through an external switching device, such as a timer, or connected to a circuit and is turned regularly by the subject.
• A damaged cord or plug must be replaced by an authorized technician to avoid a hazard. Do not repair the device yourself.
  Using an extension cord or something similar is not allowed.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee

• The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt).
• During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
  Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
  If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
  The guarantee lapses in case of unauthorized tampering.
  After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

REMARQUE: UTILISEZ LE CAQUELON UNIQUEMENT SUR LA BASE DE CHAUFFAGE FOURNIE.
