CYBORG V.1 MOUSE - Gaming Mouse SAITEK - Free user manual and instructions

Product type	Gaming Mouse
Brand	SAITEK
Model	CYBORG V.1 MOUSE
System compatibility	Windows XP/XP64/Vista/Windows 7, Mac OS X
Connection	Wired USB
Optical resolution	800 / 1600 dpi (selectable)
Navigation buttons	Previous page, Next page
Dimensions (approx.)	120 x 70 x 40 mm
Weight (approx.)	100 g
Power supply	Via USB port (5V)
Warranty	2 years
Ergonomic advice	Regular breaks, upright posture, relaxed wrists
Maintenance	Clean with a soft, dry cloth
Safety	Do not open, avoid shocks, use as intended
Recycling	Do not dispose of with household waste, follow WEEE disposal guidelines
Additional information	Made in China, compliant with Canadian NMB-003 standard

Frequently Asked Questions - CYBORG V.1 MOUSE SAITEK

How to connect the CYBORG V.1 mouse?

Simply plug the USB cable into a USB port on your computer. The mouse is automatically recognized under Windows XP/XP64/Vista/Windows 7 or Mac OS X.

What to do if the mouse is not detected?

Check that the cable is firmly inserted into a working USB port. Try another USB port. Ensure your operating system is compatible. If the problem persists, test the mouse on another computer.

How to change the DPI resolution?

Use the DPI selector located on the mouse to instantly switch between 800 dpi and 1600 dpi.

Is the mouse compatible with Windows 10?

No, compatibility is limited to Windows XP/XP64/Vista/Windows 7 and Mac OS X. It may work on Windows 10 with generic drivers, but without guarantee.

What to do in case of wrist or arm pain?

Take regular breaks, stand up and walk. Adopt an ergonomic posture: relaxed shoulders, elbows close to the body, straight wrists. Consult a doctor if symptoms persist.

What is the warranty period?

The warranty is two years from the date of purchase, upon presentation of proof of purchase.

How to clean the mouse?

Use a soft, dry cloth to wipe the surface. Do not use liquids or abrasive products. Unplug the mouse before cleaning.

Can I use the mouse wirelessly?

No, the CYBORG V.1 MOUSE model is a wired mouse with USB connection. There is no wireless version.

Where can I find technical support?

Visit www.saitek.com in the Technical Support section. You can also contact the local technical support center, whose contact details are provided in the packaging.

How to recycle the mouse at end of life?

Do not throw the mouse in household waste. Dispose of it at a collection point for waste electrical and electronic equipment (WEEE) in accordance with local regulations.

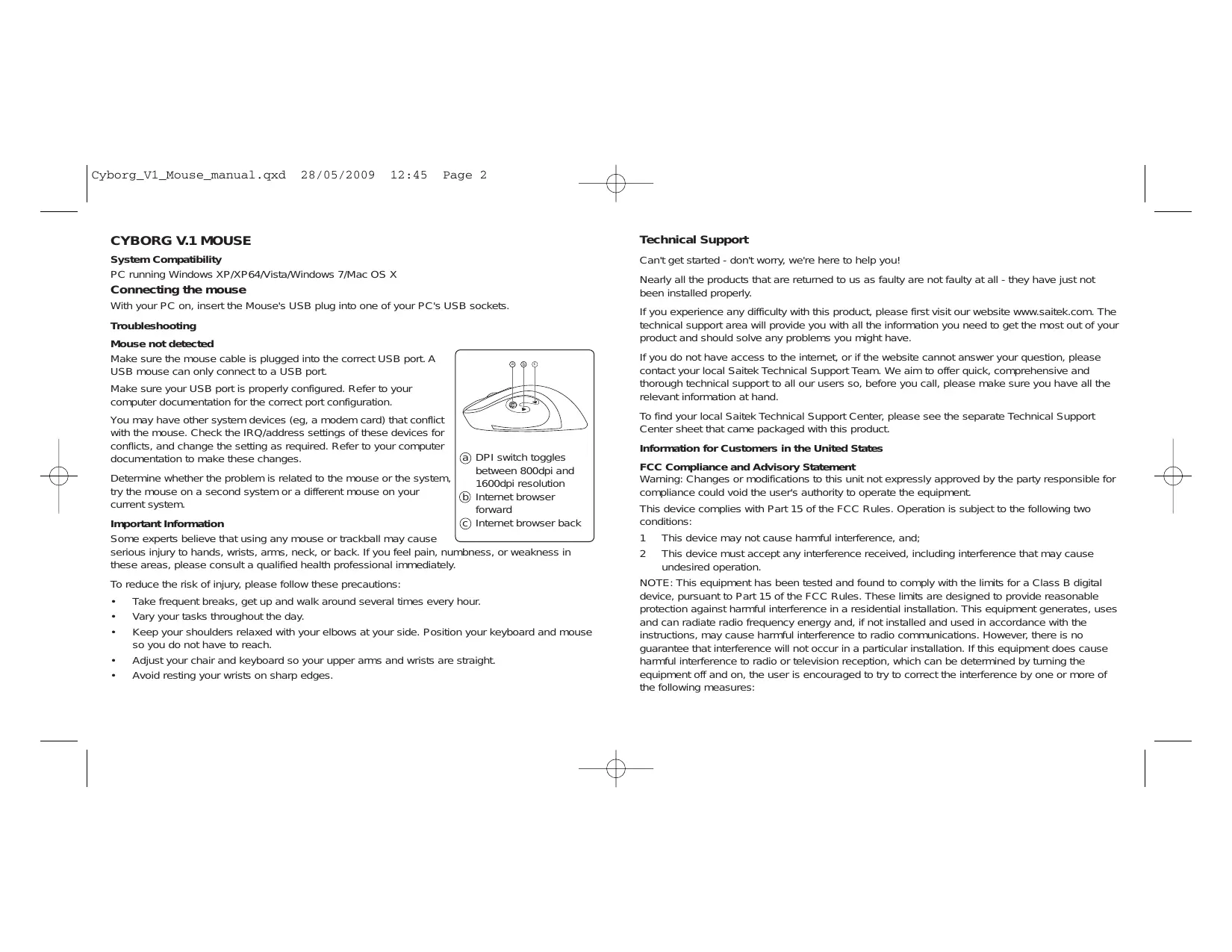

USER MANUAL CYBORG V.1 MOUSE SAITEK

Connecting the mouse

With your PC on, insert the Mouse's USB plug into one of your PC's USB sockets.

Troubleshooting

Mouse not detected

Make sure the mouse cable is plugged into the correct USB port. A USB mouse can only connect to a USB port.

Make sure your USB port is properly configured. Refer to your computer documentation for the correct port configuration.

You may have other system devices (eg, a modem card) that conflict with the mouse. Check the IRQ/address settings of these devices for conflicts, and change the setting as required. Refer to your computer documentation to make these changes.

Determine whether the problem is related to the mouse or the system, try the mouse on a second system or a different mouse on your current system.

Important Information

Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, please consult a qualified health professional immediately.

To reduce the risk of injury, please follow these precautions:

Take frequent breaks, get up and walk around several times every hour.
- Vary your tasks throughout the day.
- Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach.
- Adjust your chair and keyboard so your upper arms and wrists are straight.
- Avoid resting your wrists on sharp edges.

DPI switch toggles between 800dpi and 1600dpi resolution
Internet browser forward
Internet browser back

Technical Support

Can't get started - don't worry, we're here to help you!

Nearly all the products that are returned to us as faulty are not faulty at all - they have just not been installed properly.

If you experience any difficulty with this product, please first visit our website www.saitek.com. The technical support area will provide you with all the information you need to get the most out of your product and should solve any problems you might have.

If you do not have access to the internet, or if the website cannot answer your question, please contact your local Saitek Technical Support Team. We aim to offer quick, comprehensive and thorough technical support to all our users so, before you call, please make sure you have all the relevant information at hand.

To find your local Saitek Technical Support Center, please see the separate Technical Support Center sheet that came packaged with this product.

Information for Customers in the United States

FCC Compliance and Advisory Statement

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1 This device may not cause harmful interference, and;
2 This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna;
- Increase the separation between the equipment and receiver;
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected;
- Consult the dealer or an experienced radio/TV technician for help.

Mad Catz Inc., 7480 Mission Valley Rd, Suite 101, San Diego, CA 92108-4406

Canada ICES-003

Operation is subject to the following two conditions:

1 This device may not cause interference, and;
2 This device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Conditions of Warranty

1 Warranty period is 2 years from date of purchase with proof of purchase submitted.
2 Operating instructions must be followed.
3 Specifically excludes any damages associated with leakage of batteries.

Note: Batteries can leak when left unused in a product for a period of time, so it is advisable to inspect batteries regularly.

4 Product must not have been damaged as a result of defacement, misuse, abuse, neglect, accident, destruction or alteration of the serial number, improper electrical voltages or currents, repair, alteration or maintenance by any person or party other than our own service facility or an authorized service center, use or installation of non-Saitek replacement parts in the product or the modification of this product in any way, or the incorporation of this product into any other products, or damage to the product caused by accident, fire, floods, lightning, or acts of God, or any use violative of instructions furnished by Saitek plc.
5 Obligations of Saitek shall be limited to repair or replacement with the same or similar unit, at our option. To obtain repairs under this warranty, present the product and proof of purchase (eg, bill or invoice) to the authorized Saitek Technical Support Center (listed on the separate sheet packaged with this product) transportation charges prepaid. Any requirements that conflict with any state or Federal laws, rules and/or obligations shall not be enforceable in that particular territory and Saitek will adhere to those laws, rules, and/or obligations.
6 When returning the product for repair, please pack it very carefully, preferably using the original packaging materials. Please also include an explanatory note.

7 IMPORTANT: To save yourself unnecessary cost and inconvenience, please check carefully that you have read and followed the instructions in this manual.

This warranty is in lieu of all other expressed warranties, obligations or liabilities. ANY IMPLIED WARRANTYES, OBLIGATIONS, OR LIABILITIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS WRITTEN LIMITED WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you. IN NO EVENT SHALL WE BE LIABLE FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. Some states do not allow the exclusion or limitation of special, incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

CYBORG V.1 MOUSE

© 2009 Mad Catz Interactive Asia. Saitek and Saitek logo are trademarks or registered trademarks of Mad Catz Interactive Asia, its subsidiaries and affiliates. Saitek is owned by Mad Catz Interactive, Inc., a publicly-listed company. Mad Catz, and the Mad Catz logo are trademarks or registered trademarks of Mad Catz, Inc., its subsidiaries and affiliates. All other trademarks or registered trademarks are the property of their respective owners.

31 Shenley Pavilions,

21, Rue dHauteville

Chalkdell Drive,

Esc.B, 4ème Etage,

Shenley Woods.

F-75010 Paris

Milton Keynes,

Buckinghamshire MK5 6LB

Germany

USA

Saitek Eleftronik

Mad Catz Inc.

Vertriebs GmbH

7480 Mission Valley Rd

Landsberger Strase 400

Suite 101

81241 Munchen, Germany

San Diego, CA 92108-4406

Mad Catz is a publicly traded company on the TSX/AMEX, symbol MCZ.

Help center call numbers:

www.saitek.com / www.madcatz.com

[phone] (USA)

[phone]

[phone] (UK)
