XS BOOK WIRELESS - Wireless Speaker FOCAL - Free user manual and instructions

Product type	2-way bass-reflex active speaker
Drivers	Polyglass 10 cm mid/bass driver, 19 mm aluminum tweeter
Frequency response (+/- 3 dB)	60 Hz - 22 kHz
Response at -6 dB	44 Hz
Power	2 x 20 Watts RMS
Standby power consumption	< 0.5 Watt
Crossover frequency	3000 Hz
Inputs	RCA (630 mV), 3.5 mm jack (315 mV)
Dimensions (H x W x D)	281 x 114 x 200 mm
Weight	5 kg
Wireless range	10 m without obstacles
Audio codec used	aptX
Compatible audio formats	16-bit / 44.1 kHz
Power supply	Mains via included cable
Main features	Bluetooth wireless playback, wired RCA and jack inputs, wireless connectivity with universal receiver
Maintenance and cleaning	Clean with a dry cloth, do not use liquids
Safety	Read instructions, do not use near water, do not block ventilation grilles, maintenance by qualified personnel
Warranty	2 years (France) - Terms according to local distributor
Spare parts and repairability	Contact Focal dealer or authorized after-sales service - Maintenance by qualified personnel mandatory
Included accessories	2 speakers, jack/jack cable, RCA cables, power cables, optional wall mount kit (Vogel's VLB500)

Frequently Asked Questions - XS BOOK WIRELESS FOCAL

How to pair the Focal XS Book Wireless speaker via Bluetooth?

Make sure the receiver is free (no pairing in progress). Go to the Bluetooth menu of your source (smartphone, computer) and select 'Focal XS Book Wireless'. Once connected, start playing your music.

What to do if the speaker does not turn on?

Check that the power cable is properly connected to the speaker and a functional electrical outlet. Press the On/Standby button on the back. If the problem persists, contact Focal customer service.

Can I connect multiple sources simultaneously?

No, the aptX Bluetooth technology allows wireless connection of only one source to one receiver. To change the source, first disconnect the first, then connect the new one.

How to clean the Focal XS Book Wireless speaker?

Use a soft, dry cloth to dust the speaker. Never use liquid or abrasive products, as they could damage the finish or the drivers.

What is the power of the speaker?

Each speaker delivers 20 Watts RMS, i.e., 2 x 20 Watts total. This provides powerful and clear sound for indoor use.

Can I use the speaker with a television?

Yes, you can connect the speaker to a TV via the RCA or 3.5 mm jack inputs. If your TV does not have these outputs, you can use an adapter. Bluetooth connection is also possible if the TV is compatible.

How to connect the speaker with wires?

Use the supplied stereo RCA cable to connect a source (CD player, TV) to the speaker's RCA input, or the 3.5 mm jack cable for a smartphone, tablet, or computer. Make sure the speaker is powered on and the source is outputting sound.

What is the Bluetooth range?

The range is about 10 meters without obstacles. Walls or other obstacles can reduce this range.

What to do if the sound is saturated or distorted?

Reduce the volume on the source and/or the speaker. Check that the cables are properly connected and undamaged. Avoid setting the volume to maximum, especially with sources that have high output levels.

Where to find spare parts?

Contact your Focal dealer or Focal after-sales service. The warranty does not cover damage due to misuse. For repairs, contact a qualified technician.

USER MANUAL XS BOOK WIRELESS FOCAL

FOCAL XS BOOK WIRELESS

clal jia jiao le jiaol Jaiwui 5

.6

jaiy jie ci aaii ciai iai yaii 7

(1) (2)

a 9

y 1

aill wlll lwl 1

10

j_4 = 8

aalb jy jlll lal bai .11

auiiie aiee plaiiie iie. jglal gao gai gill dgl gaiailgaiiall gaiell caiall gai gill caiill ciaea 12

Lg 0 gBjewcljydu jill ydi

JnJn JnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJnJn

glll llll

jlll l (aill) ailll l jlll l 2g jlll jlll jlll

.

1

111111111111111111111111111 2

jlll jilw l 12 w y. gall

y jn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nannn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn nnnn nn

m : x = 1 或 3x + 4y + 1 = 0

AaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaBaaa

1

J 5

1 6

Lai 11111111111111111111111111111111111111111111111

.8

Thank you for choosing Focal loudspeakers. We are pleased to share with you our philosophy : "the Spirit of Sound". These high-performance speakers feature the latest technical developments from Focal in terms of speaker design, whether it is for high fidelity or home theater systems. In order to enjoy the maximum of their performance, we advise you to read this user's manual and to keep it carefully so that you can consult it later.

ES

Wall/ceiling compatible mounting kit - Vogel's VLB500 (option)

Placement on furniture or shelf

Left speaker

Right speaker

FOCAL XS BOOK WIRELESS

User manual

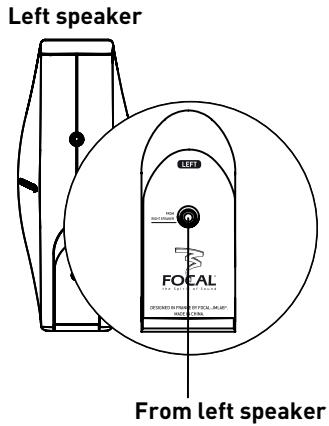

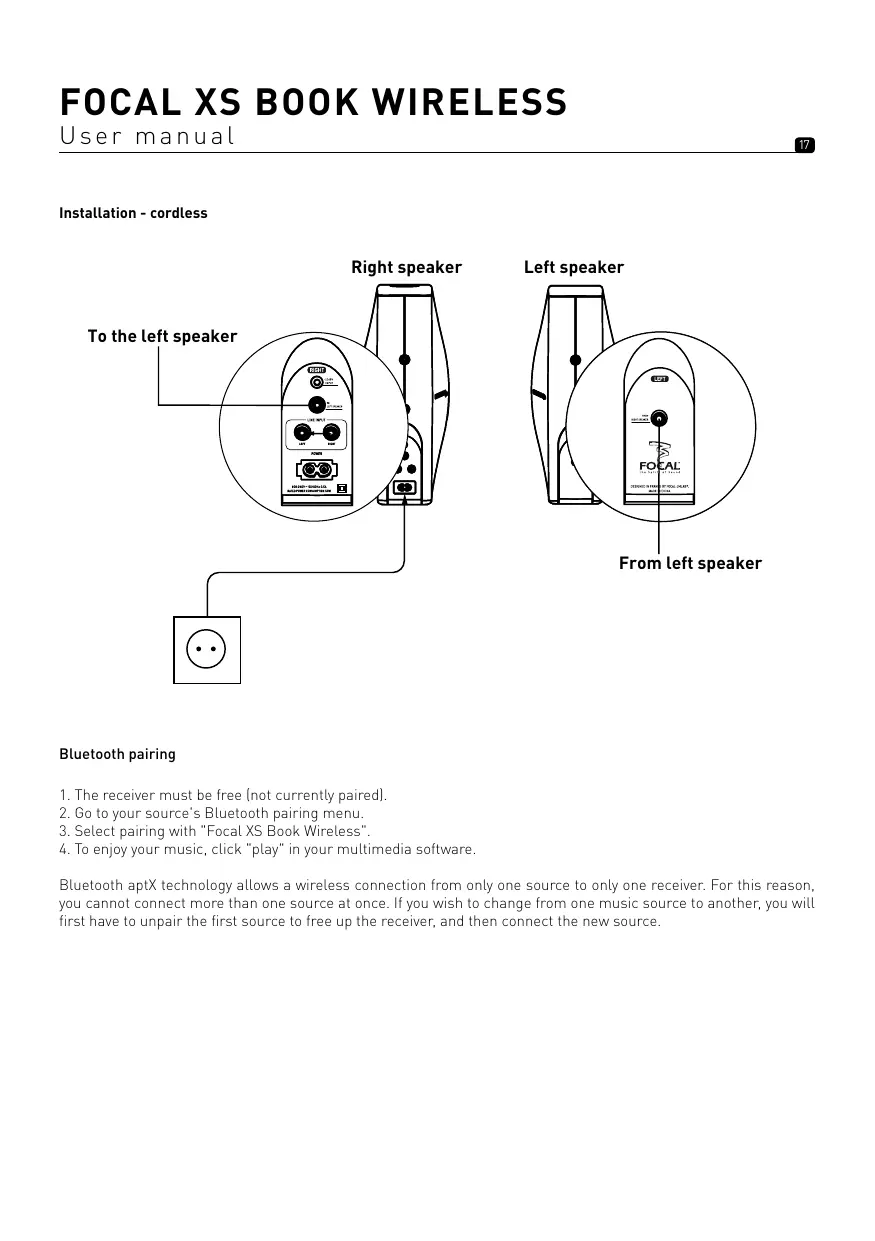

Installation - cordless

Bluetooth pairing

1. The receiver must be free (not currently paired).
2. Go to your source's Bluetooth pairing menu.
3. Select pairing with "Focal XS Book Wireless".
4. To enjoy your music, click "play" in your multimedia software.

Bluetooth aptX technology allows a wireless connection from only one source to only one receiver. For this reason, you cannot connect more than one source at once. If you wish to change from one music source to another, you will first have to unpair the first source to free up the receiver, and then connect the new source.

FOCAL XS BOOK WIRELESS

User manual

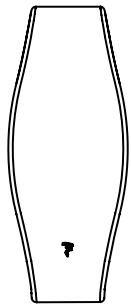

Controls

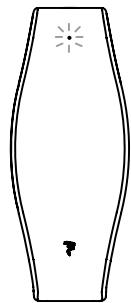

On/Standby mode

Left speaker

Right speaker

Volume

FOCAL XS BOOK WIRELESS

User manual

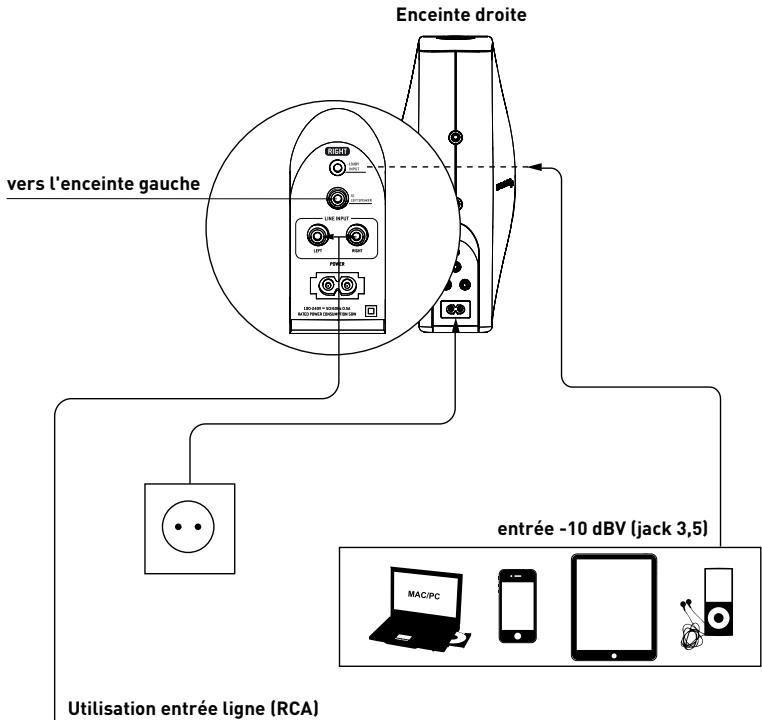

Line inputs

DSLBOX

Safety instructions

FOCAL XS BOOK WIRELESS

User manual

Technical specifications

Focal XS Book
Type	2-way active bass-reflex speaker
Drivers	10 cm Polyglass bass/midrange 19 mm aluminium tweeter
Frequency response (+/- 3 dB)	60Hz - 22kHz
Response at -6 dB	44Hz
Output	2 x 20 Watts RMS
Stand-by power consumption	< 0,5 Watt
Crossover frequency	3 000Hz
Inputs	RCA (630 mV) 3.5 mm jack (315 mV)
Dimensions (H x W x D)	11 x 41/2 x 77/8" (281 x 114 x 200mm)
Weight	5kg

Universal Wireless Receiver
Range	10m unobstructed
Codec used	aptX
Codec compression ratio	4:1
Compatible audio formats	16 bits - 44,1kHz
Frequency response	10Hz to 22kHz
Latency	<1,89ms @ Fs 48KHz
Radio transmission power	2,5mW (4dBm)
Radio transmission frequency band	2,4GHz (Bandes ISM)

FOCAL XS BOOK WIRELESS

User manual

21

Conditions of guarantee

All Focal loudspeakers are covered by guarantee drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

FOCAL XS BOOK WIRELESS

International Guarantee

The Focal guarantee only applies if this page is returned to us within 10 days of purchase, to the following address:

Now it's possible to register on line: www.focal.com/warranty

Model:

Serial number:

Name of dealer:

Town:

Date of purchase:

Purchase price:

Your name:

Age: _ Occupation: _

Your complete address:

Your email address:

Details of your installation (brand, model):

• iPod, iPad, iPhone®:

Other music players:

Your decision for purchasing this Focal model was made according to:

Dealer's advice

□ Friend's advice

□ Visit to an exhibition, show

Press article

□ Listening in auditorium

□ Already own Focal products

Reliability / Quality

□ Documentation

Reputation

French produce

Guarantee

Quality / Price ratio

Design / Finishes

□ Other

Sound

In case of purchase of new equipment, what were your former speakers?

Explain in a few words why you choose Focal...

Further comments:
