CHORUS OD706V, CHORUS OD706V - Outdoor Speakers FOCAL - Free user manual and instructions

Type	Outdoor 2-way speaker
Drivers	16.5 cm Polyglass woofer-midrange, 25 mm TNV Al/Mg inverted dome tweeter
Frequency response (±3 dB)	60 Hz - 28 kHz
Response at -6 dB	52 Hz
Sensitivity (2.83 V/1 m)	90 dB
Nominal impedance	8 ohms
Minimum impedance	3.6 ohms
Crossover frequency	3000 Hz
Recommended amplifier power	25 - 150 W
Dimensions (H x W x D)	304 x 216 x 192 mm
Weight (unit)	3.2 kg
Use	Indoor/outdoor, wall mounting with anti-vibration system
Package contents	1 speaker, 4 screws, 4 wall plugs, 1 metal bracket with 2 anti-vibration mounts, 2 fixing screws, 1 grille, 1 logo
Break-in	Break-in period of a few weeks; recommendation: 20 hours at medium level with bass-rich music
Warranty	2 years (France), non-transferable; conditions vary by country
Maintenance	Avoid prolonged exposure to sun and weather; disassembly recommended in winter
Safety	Respect connection polarity; use a suitable amplifier (25-150 W)

Frequently Asked Questions - CHORUS OD706V, CHORUS OD706V FOCAL

How to install the Focal Chorus OD706V speaker?

Remove the knobs and bracket, pass the cable through the wall, fix the bracket to the wall, then reassemble the speaker orienting it towards the listening area. Respect the polarity of the connections.

What is the recommended amplifier power?

The recommended power is 25 to 150 W per speaker.

Can I use the speaker outdoors permanently?

Yes, but avoid prolonged exposure to sun and weather. It is recommended to install it under an awning in summer and to disassemble it in winter to preserve its lifespan.

How to break in the speakers?

The speakers require a break-in period of a few weeks. To speed up break-in, run the speakers for 20 hours at medium level with bass-rich music programs.

What is the speaker impedance?

The nominal impedance is 8 ohms, with a minimum impedance of 3.6 ohms.

What cables to use for connection?

Use a good quality speaker cable. Respect polarity: the connector marked '+' on the speaker must be connected to the positive terminal of the amplifier.

Is the speaker delivered with all installation necessary?

Yes, the package contains the speaker, 4 screws, 4 wall plugs, a metal bracket with anti-vibration mounts, 2 fixing screws for the bracket, a grille and a logo.

What is the warranty period?

The warranty is 2 years in France from the date of purchase, non-transferable. For other countries, conditions are set by the local distributor.

How to clean the speaker?

Use a soft, dry cloth. Do not use abrasive products or solvents. Avoid touching the speaker membrane.

What to do in case of sound problem or malfunction?

Contact your Focal-JMlab dealer. If the speaker is under warranty, it will be repaired or replaced. In case of damage due to misuse (e.g., burnt coil), a repair quote will be provided.

USER MANUAL CHORUS OD706V, CHORUS OD706V FOCAL

Thank you for choosing the Chorus V on-wall loudspeakers. We are pleased to share with you our philosophy : "the Spirit of Sound". These high-performance speakers feature the latest technical developments from Focal in terms of speaker design, whether it is for high fidelity or home theater systems. In order to enjoy the maximum of their performance, we advise you to read this user's manual and to keep it carefully so that you can consult it later.

To ensure optimal performance from your on-wall loudspeakers, we highly recommend that installation is carried out by a professional. They will be able to advise on the best placement within your listening environment and adjust your system to achieve the highest possible sound quality.

The Focal-JMlab guarantee only applies if the enclosed guarantee card is returned to us within 10 days of purchase.

Included inside:

• 1x loudspeaker
• 4x screws
• 4x plugs
• 1x metallic bar with 2 silent-blocks
• 2x fixing screws for the bar
• 1x grille
• 1x logo

Main features:

• All weather Polyglass cone woofer.
• Al/Mg tweeter with anti-drop frame.
• Punched aluminum grille.
• Weather resistant
• Low directivity
• Wall fixing on anti-vibration rubber foam.

Français page 5

C E

A

B

C

E

D

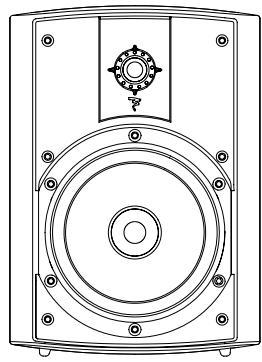

Chorus 0D 706 V

Installation

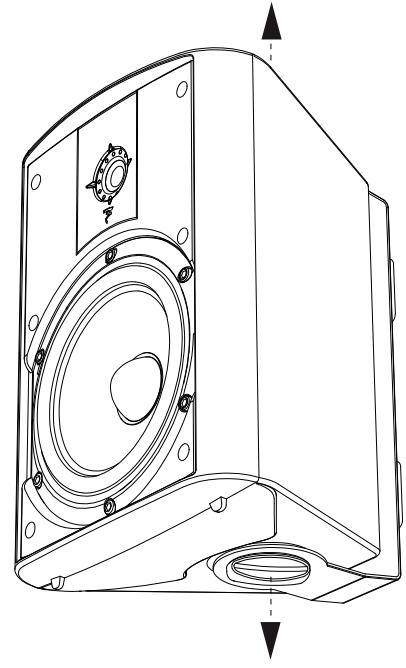

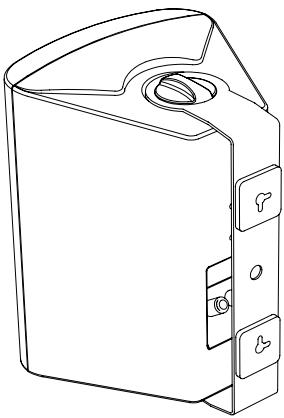

Loosen the two knobs. Remove the bracket from speaker (pic.A). Run the appropriate gauge wire from your amplifier (pic. B). Mount the C-bracket to the wall surface by running screws through the holes located in the bracket (pic.C).

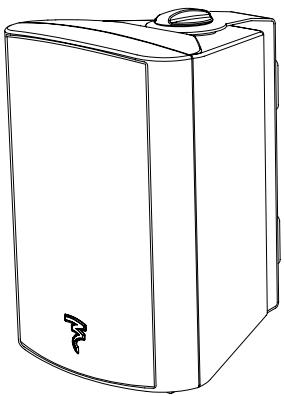

Install the speaker into the C-bracket. Turn the bracket knobs into the cabinet. Point the speaker toward the listening area (pic.D). You must respect the connector polarity of both loudspeaker and amplifier. The positive terminal "+" must be connected to the corresponding amplifier terminal and the negative terminal "-" to the negative terminal (pic.E).

Running-in period

The drivers used in the Chorus V loudspeaker are complex mechanical devices and require a run-in period before they deliver their best performance. They must get adapted to the temperature and humidity conditions of their environment. This breaking-in period depends on the encountered conditions and can last several weeks. In order to shorten this period, we advise you to let your loudspeakers operate for about twenty hours at medium level, playing standard musical programmes, but with a large amount of bass. Once the components of the loudspeakers are completely stabilized, it is possible to enjoy the real performance of your Chorus V loudspeakers.

Conditions of guarantee

All Focal-JMlab loudspeakers are covered by guarantee drawn up by the official Focal-JMlab distributor in your country. Your distributor can provide all details concerning the conditions of guarantee. Guarantee cover extends at least to that granted by the legal guarantee in force in the country where the original purchase invoice was issued.

Warning!

Long sun and/or bad weather exposure can damage your loudspeakers.

We recommend that you place your OD 706 V loudspeakers under a penthouse in summer and to remove them in winter.

Specifications

OD 706 V

Type	2-way closed outdoor/indoor speaker
Drivers	61/2'' (16.5cm) Polyglass mid-bass1'' (25mm) TNV Al/Mg inverted dome tweeter
Frequency response (+/- 3dB)	60Hz - 28kHz
Low frequency point (- 6dB)	52Hz
Sensitivity (2.83V/1m)	90dB
Nom. impedance	8 ohms
Minimum impedance	3.6 ohms
Crossover frequency	3 000Hz
Recommended amplifier power	25 - 150W
Dimensions (HxWxD)	1115/16x81/2x79/16''(304x216x192mm)
Net weight	7lbs (3.2kg)

Validation guarantee

The Focal guarantee only applies if this page is returned to us within 10 days of purchase, to the following address:

Model: Serial number:
Name of dealer: Town:
Date of purchase: Purchase price:
Your name: _，Age: _，Occupation: __
Your complete address:
Your email address:

Details of your installation (brand, model):

• CD/DVD recorder: _. - CD: _.
  ■ Tuner: ■Satellite / cable:
  DVD: Amp. Preamp. Receiver:
• Other elements:

Your decision for purchasing this Focal model was made according to:

□ Dealer's advice □ Friend's advice
□ Visit to an exhibition, show □ Press article
□ Listening in auditorium □ Already own Focal products
□ Reliability / Quality □ Documentation
□ Reputation □ French produce
Guarantee Quality/Price ratio
Design/Finishes Other

Sound

In case of purchase of new equipment, what were your former speakers?

Explain in a few words why you choose Focal...

Further comments:
