USER MANUAL HPE-635 - INSTALATION MANUAL TEKA

Front view of a stainless steel oven with digital dials and a central vent (no visible text or symbols)

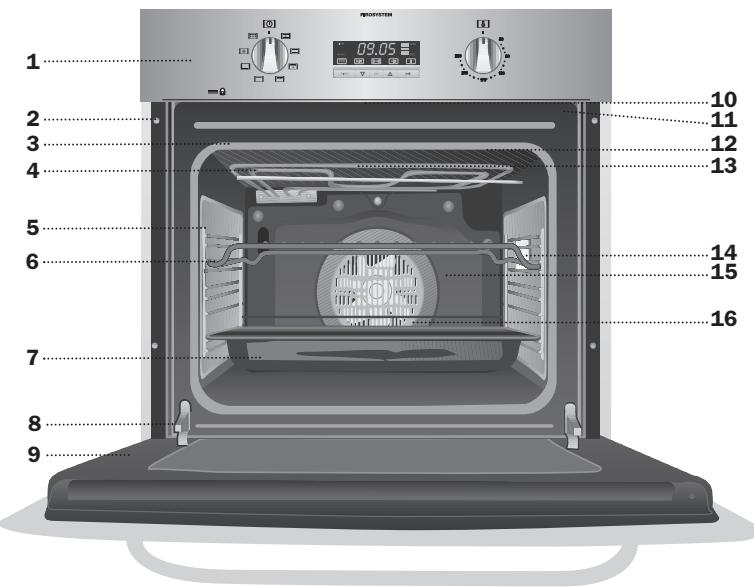

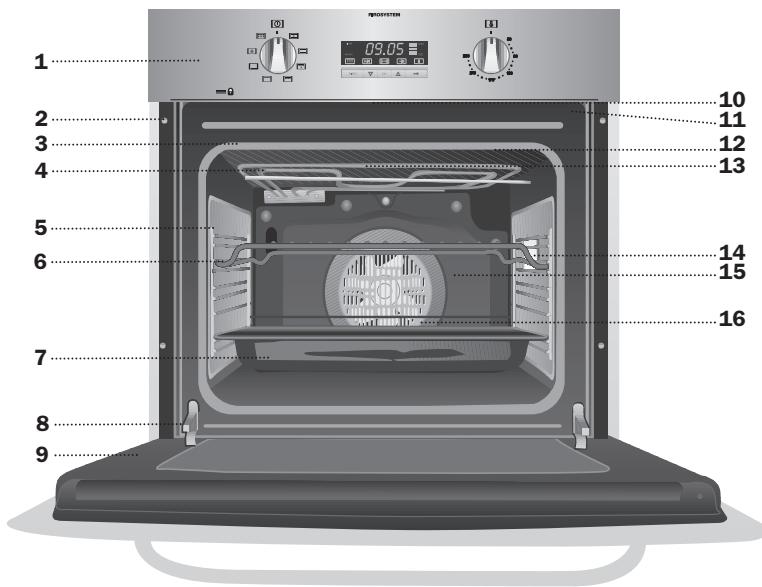

1 Frente de Mandos

1 Control Panel
2 Fixing to Unit
3 Oven Seal
4 Grill element
5 Chrome Support
6 Grid
7 Roasting Tray
8 Hinge
9 Door
10 Air cooling outlet
11 Door switch-lock
12 Grill Screen
13 Smoke Outlet
14 Light
15 Rear Panel
16 Fan

CONTROL PANEL

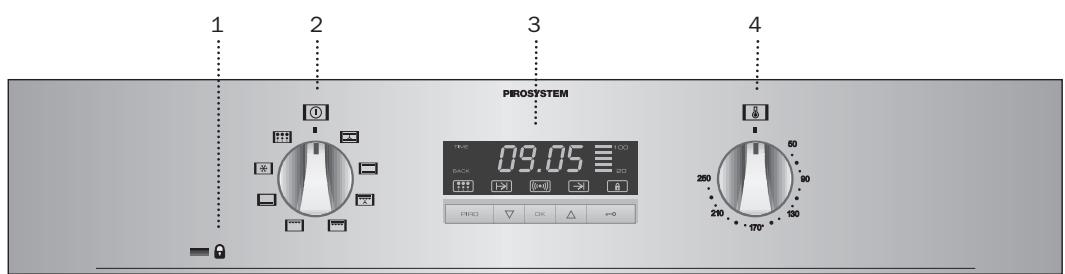

1 Door lock. When this pilot light is on, it indicates that the oven door is locked and cannot be opened.

2 Function selector.
3 Electronic clock.
4 Temperature selector.

□ Switch off oven

Conventional with fan

Appropriate for roasts and cakes. The fan spreads the heat uniformly inside the oven.

Conventional

It is used for sponges and cakes where the heat received must be uniform to achieve a spongy texture.

MaxiGrill with fan

Allows uniform roasting at the same time as surface browning. Ideal for grills. Special for large volume pieces, such as poultry, game, etc. It is recommended to put the item on a rack with a tray beneath to collect the stock and juices.

MaxiGrill

Allows greater surfaces to be prepared, than with the grill, together with higher power reducing the time required for browning of the food.

Grill

For preparing dishes with superficial roasting. It allows the outer layer to be browned without affecting the inside of the food. Ideal for flat food, such as steaks, ribs, fish, toast.

Caution

While using the Grill, MaxiGrill or MaxiGrill with fan, the door must be kept closed.

Lower element

Heats only from beneath. Suitable for heating dishes and raising pastry and similar.

Defrosting

This cooking mode is suitable for gently defrosting of food. In special food to be consumed unwarmed, e.g.: cream, custard, pastry, tarts, cakes, fruit, etc.

Pyrolytic Function

This programme allows you to carry out a pyrolytic cleaning cycle which involves the oxidisation and carbonisation of grease accumulated during cooking, through the high temperatures that are reached inside the oven. During the cleaning cycle the light inside the oven will remain off.

NB

The light remains on through all cooking functions except the pyrolytic function.

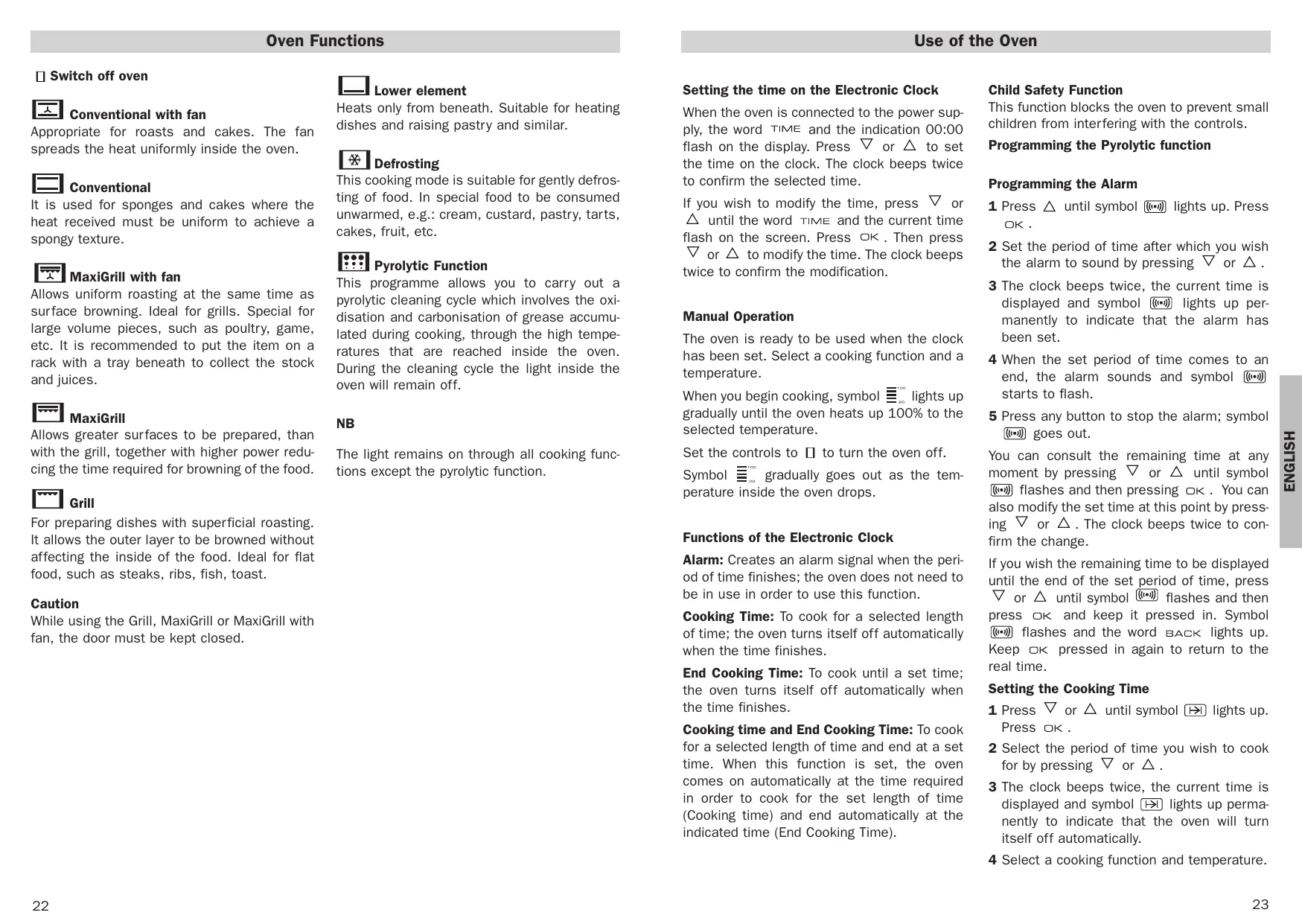

Setting the time on the Electronic Clock

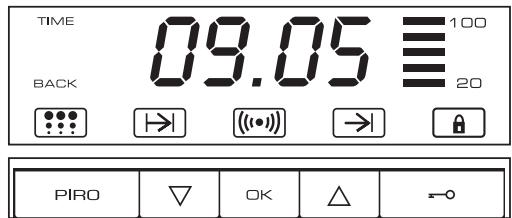

When the oven is connected to the power supply, the word TIME and the indication 00:00 flash on the display. Press ∇ or △ to set the time on the clock. The clock beeps twice to confirm the selected time.

If you wish to modify the time, press or until the word TIME and the current time flash on the screen. Press OK. Then press or to modify the time. The clock beeps twice to confirm the modification.

Manual Operation

The oven is ready to be used when the clock has been set. Select a cooking function and a temperature.

When you begin cooking, symbol lights up gradually until the oven heats up 100% to the selected temperature.

Set the controls to ☐ to turn the oven off.

Symbol _100 gradually goes out as the temperature inside the oven drops.

Functions of the Electronic Clock

Alarm: Creates an alarm signal when the period of time finishes; the oven does not need to be in use in order to use this function.

Cooking Time: To cook for a selected length of time; the oven turns itself off automatically when the time finishes.

End Cooking Time: To cook until a set time; the oven turns itself off automatically when the time finishes.

Cooking time and End Cooking Time: To cook for a selected length of time and end at a set time. When this function is set, the oven comes on automatically at the time required in order to cook for the set length of time (Cooking time) and end automatically at the indicated time (End Cooking Time).

Child Safety Function

This function blocks the oven to prevent small children from interfering with the controls.

Programming the Pyrolytic function

Programming the Alarm

1 Press △ until symbol (●) lights up. Press OK.
2 Set the period of time after which you wish the alarm to sound by pressing or .
3 The clock beeps twice, the current time is displayed and symbol (()) lights up permanently to indicate that the alarm has been set.
4 When the set period of time comes to an end, the alarm sounds and symbol (()) starts to flash.
5 Press any button to stop the alarm; symbol (()) goes out.

You can consult the remaining time at any moment by pressing or until symbol ([ ( )] flashes and then pressing K . You can also modify the set time at this point by pressing or . The clock beeps twice to confirm the change.

If you wish the remaining time to be displayed until the end of the set period of time, press or until symbol (()) flashes and then press OK and keep it pressed in. Symbol (()) flashes and the word BACK lights up. Keep OK pressed in again to return to the real time.

Setting the Cooking Time

1 Press ∇ or △ until symbol ➔ lights up. Press OK.
2 Select the period of time you wish to cook for by pressing or .
3 The clock beeps twice, the current time is displayed and symbol lights up permanently to indicate that the oven will turn itself off automatically.
4 Select a cooking function and temperature.

5 When the cooking time comes to an end, the oven turns itself off, the alarm sounds and symbol flashes.
6 Press any button to stop the alarm and turn the oven back on again.
7 Set the controls to ☐ to turn the oven off.

You can consult the remaining cooking time at any moment by pressing or until symbol flashes and then pressing K . You can also modify the set time at this point by pressing or . The clock beeps twice to confirm the change.

If you wish the remaining time to be displayed until the end of the set period of time, press ▽ or △ until symbol → flashes and then press OK and keep it pressed in. Symbol → flashes and the word BACK lights up. Keep OK pressed in again to return to the real time.

Setting the End Cooking Time

1 Press ∇ or △ until symbol → lights up. Press OK.
2 Select the time you wish the cooking process to finish at by pressing or .
3 The clock beeps twice, the current time is displayed and symbol → lights up permanently to indicate that the oven will turn itself off automatically.
4 Select a cooking function and temperature.
5 When the set time is reached, the oven turns itself off, the alarm sounds and symbol → flashes.
6 Press any button to stop the alarm and turn the oven back on again.
7 Set the controls to to turn the oven off. You can consult the end cooking time at any moment by pressing or until symbol flashes and then pressing K . You can also modify the end cooking time at this point by pressing or . The clock beeps twice to confirm the change.

This function can be used even when you are already using the oven. To do this, follow the instructions indicated above except point number 4.

Setting the Cooking Time and the End Cooking Time

1 Press ∇ or △ until symbol ➔ lights up. Press □K.
2 Select the period of time you wish to cook for by pressing or .
3 The clock beeps twice, the current time is displayed and symbol lights up permanently.
4 Press ∇ or △ until symbol → lights up. Press □K.
5 Select the time you wish the cooking process to finish at by pressing or .
6 The clock beeps twice, the current time is displayed and symbol → lights up permanently.
7 Select a cooking function and temperature.
8 The oven remains off with symbols and lit up. Your oven is set.
9 When the time to start cooking is reached, the oven starts up and cooks for the set period of time.
10 When the set end cooking time is reached, the oven turns itself off, the alarm sounds and symbols and flash.
11 Press any button to stop the alarm and turn the oven back on again.
12 Set the controls to [] to turn the oven off. You can modify the end cooking time by pressing ∇ or △ until symbol → lights up and then pressing OK. You can now modify the end cooking time by pressing ∇ or △. The clock beeps twice to confirm the change.

Child Safety Function.

Keep pressed in to activate this function. The clock beeps twice and symbol lights up. The clock is blocked.

If the child safety function is activated when the oven is off (function control set to []), then the oven cannot be turned on until the function is deactivated. If the child safety function is activated when the oven is set to a cooking function, then the clock settings cannot be modified until the function is deactivated.

Keep → pressed in to deactivate this function. The oven beeps twice and symbol 🔒 goes out.

Important

In the event of a power cut, all the electronic clock settings are deleted and the indication 00:00 flashes on the display. It is necessary to set the time and programme the clock again.

PROGRAMMING AND OPERATING THE PYROLYTIC FUNCTION

Follow the instructions below to carry out a pyrolytic cleaning cycle:

1 IMPORTANT: Remove all accessories (shelves, grids, side supports to hold up the shelves, telescopic guide rails) from inside the oven.
2 Turn the cooking control dial to Pyrolysis position 🐘.
3 Next, press the PIRO key, the word PIRO should appear on the timer display.
4 After a few seconds, P2 (pyrolysis programme 2) will appear on the timer display, the BACK symbol will also remain lit up.
5 You can now change the pyrolysis programme to P1, P2 or P3 by pressing the + or - keys:

P1: Minimum programme. Duration 1 hour P2: Standard programme. Duration 1 hour and 30 minutes

P3: Maximum programme. Duration 2 hours

6 You will hear 2 consecutive beeps after several seconds or by pressing the PIRO key confirming the chosen programme.
7 You can still change the pyrolysis programme by pressing the PIRO key and the + or - keys.
8 After a short time, you will see the time remaining for the selected programme to end and the symbols 🎨 and BACK lit up on the timer display. The pilot light 🔒 will turn on and the oven door cannot be opened, as the heating will have begun.

IMPORTANT: At this point, the oven is programmed and the pyrolytic cleaning cycle is underway. During the cycle, none of the timer functions can be selected, except the child lock. Do not try to open the oven door as it may interrupt the cleaning process.

9 When the pyrolytic cleaning cycle has finished, an alarm will sound, the symbol will flash and you will see the correct time on the display.
10 Press any of the timer's keys to disable the alarm.
11 Set the cooking control dial to position □.
12 The oven's heating process has ended, however the oven is extremely hot and cannot be used. The cooling motor will operate until the oven cools down, pilot light will remain on and the symbol will flash on the timer display.

IMPORTANT

The cooling process may last up to 2 hours owing to the high temperatures inside the oven.

13 Once the oven has cooled down, pilot light will automatically turn off.
14 Press the PIRO key to stop symbol 9 flashing.

IMPORTANT

To open the door (pilot light ⏻ on), the control dial must be in position ☐. If you did not follow instruction 11 set the control dial to position ☐ and wait a few minutes until the door unlocks and the pilot light switches off.

15 Open the oven door and wipe the inside with a damp cloth, cleaning up the ash from the cleaning cycle. Areas in the oven that are difficult to access will need to be cleaned with a non-metallic fibre scourer.
16 Once the oven is clean, do not forget to replace the supports and accessories.
17 The oven is now ready to be used.

IMPORTANT: If any incidents are detected in the programming and operating of this function, consult the section “Incidents while Operating the Pyrolytic Function”.

CANCELLING THE PYROLYTIC CYCLE

Pyrolysis is an automatic function and therefore can only be activated from the timer programme. To cancel a cleaning cycle it is necessary to reset the oven, following the instructions below:

1 Set the control dial to position □.
2 Unlock the oven door.
3 Cancel the pyrolysis programme.

1 Set the control dial to position ☐. The oven will no longer heat up. Wait a few minutes before continuing with the instructions to unlock the door.
2 Unlock the oven door. To cancel the cleaning cycle, the oven door must be unlocked. To do so, consider the following:

a) Unlocking the door 30 minutes after the cleaning cycle. If the oven has been operating for more than 30 minutes, the door will unlock automatically once the oven has cooled down to the safe temperature. Then, pilot light 🔒 will switch off.

b) Unlocking the door in the first 30 minutes (at a low temperature). Within the first 30 minutes the oven door will unlock automatically. Follow the instructions below:

1 Turn the control dial to position ☐.
2 Wait for approximately 1 minute.
3 Turn the control dial to position □.
4 Approximately, 1 minute later pilot light ⏻ will turn off and the oven door can be opened.

3 Cancel the pyrolysis programme. To cancel the programme you must:

1 Turn the control dial to position ☐ and then to position ☐.
2 Press the PIRO key for 3 seconds.
3 Next, the timer display will show the correct time and symbol 🐘 will disappear.

INCIDENT	CAUSE	SOLUTION
My accessories and shelf supports are damaged.	You have not removed the accessories and supports during the pyrolytic cleaning cycle.	You must replace them and remove them in later cleaning cycles.
The enamel colour has changed and stains have appeared.	The chemical composition of some foodstuffs may cause changes in the enamel.	This is normal and does not damage the properties of the enamel.
The oven door is locked, pilot light 🔒 is lit up but the oven is not hot.	You have turned the control dial to position 🎯 and no other additional operation has been performed.	Switch off the oven and follow the instructions to unlock the door in the first 30 minutes at a low temperature. Next, select the pyrolytic function, carefully following the instructions.
I have turned the control dial to position 🎯, pressed the PIRO key, I can see the P1, P2 or P3 on the display but the pilot light 🔒 is not lit up and the oven is not heating up.	The oven door is not closed properly, so the door cannot be locked.	Check the door and make sure that it is closed properly.
I have turned the control dial to position 🎯, pressed the PIRO key, I can see the P1, P2 or P3 on the display but the pilot light 🔒 is not lit up and the oven is not heating up.	The door switch is not working even though the door is properly closed.	Call Technical Assistance Service as there is a fault in the door switch.
I have programmed the pyrolysis function, the oven is working properly but pilot light 🔒 is not lit up.	Pilot light 🔒 does not work properly.	Call the Technical Assistance Service.
The pyrolysis programme has ended and the oven is cold, but the door is locked and symbol 🎯 is flashing.	You did not turn the control dial to position □ when the pyrolysis programme ended.	1. Turn the control dial to position □ and wait for 1 minute.2. Turn the control dial to position 🎯 and wait for 1 minute.3. Turn the control dial to position □ again and wait until pilot light 🔒 turns off.4. Press the PIRO key for 3 seconds.

INCIDENT	CAUSE	SOLUTION
The control dial is in position and the door is still locked.	The oven has not cooled down to the safe temperature.	Wait until the temperature lowers and pilot light turns off. Then, cancel the pyrolysis programme.
The control dial is in position , the oven is cold and the door is still locked.	You have not followed the instructions to cancel the operation correctly.	1. Turn the control dial to position and wait for 1 minute.2. Turn the control dial to position and wait for 1 minute.3. Turn the control dial to position again and wait until pilot light turns off.
I have put the control dial in position and the door is unlocked, however symbol is still lit up and the remaining time of the cleaning cycle can be seen on the display.	You have not followed the instructions to cancel the operation correctly.	Follow the instructions to cancel the pyrolysis programme.
