USER MANUAL CJE1000E CUISINART

1. INTRODUCTION 13
   2.PRODUCT FEATURES 14
2. USE 15

a.Before using for the first time 15
b. Assembling the juice extractor. 15
c. Foam management system 15
d. Dismantling the juice extractor 16

1. USING THE JUICE EXTRACTOR 16
2. QUESTIONS/ANSWERS 17
   6.CLEANING AND MAINTENANCE 18
   7.SAFETY PRECAUTIONS. 18

INHALTSVERZEICHNIS

2. CHARACTERISTIQUES PRODUIT

5. QUESTIONS/RESPONSES :

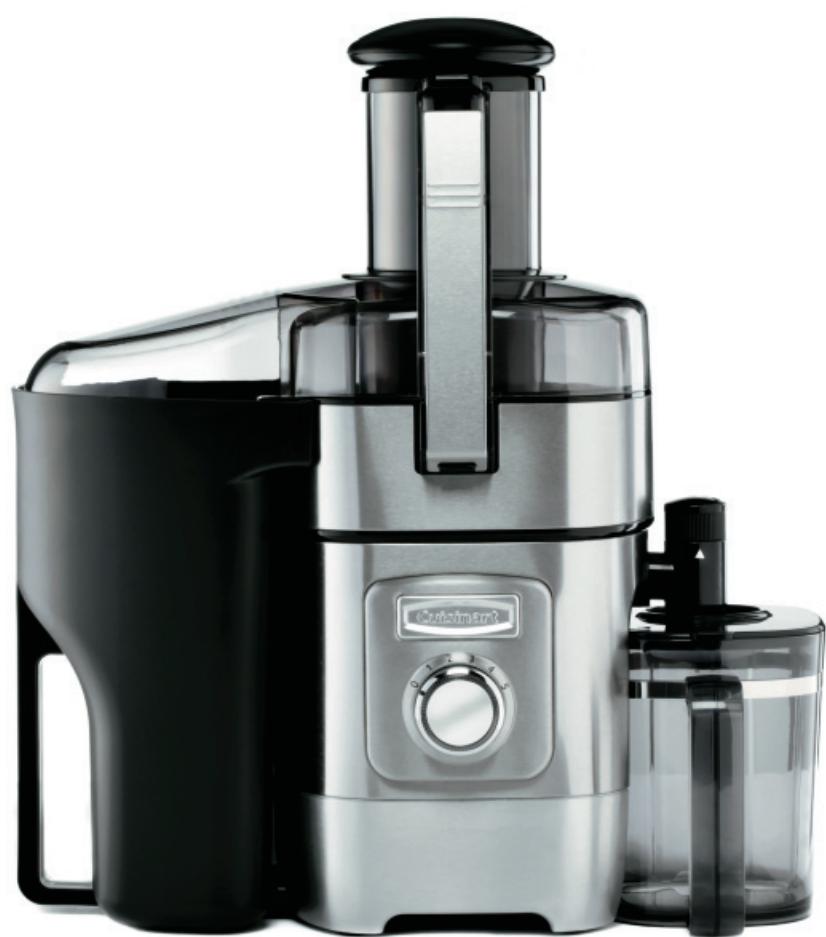

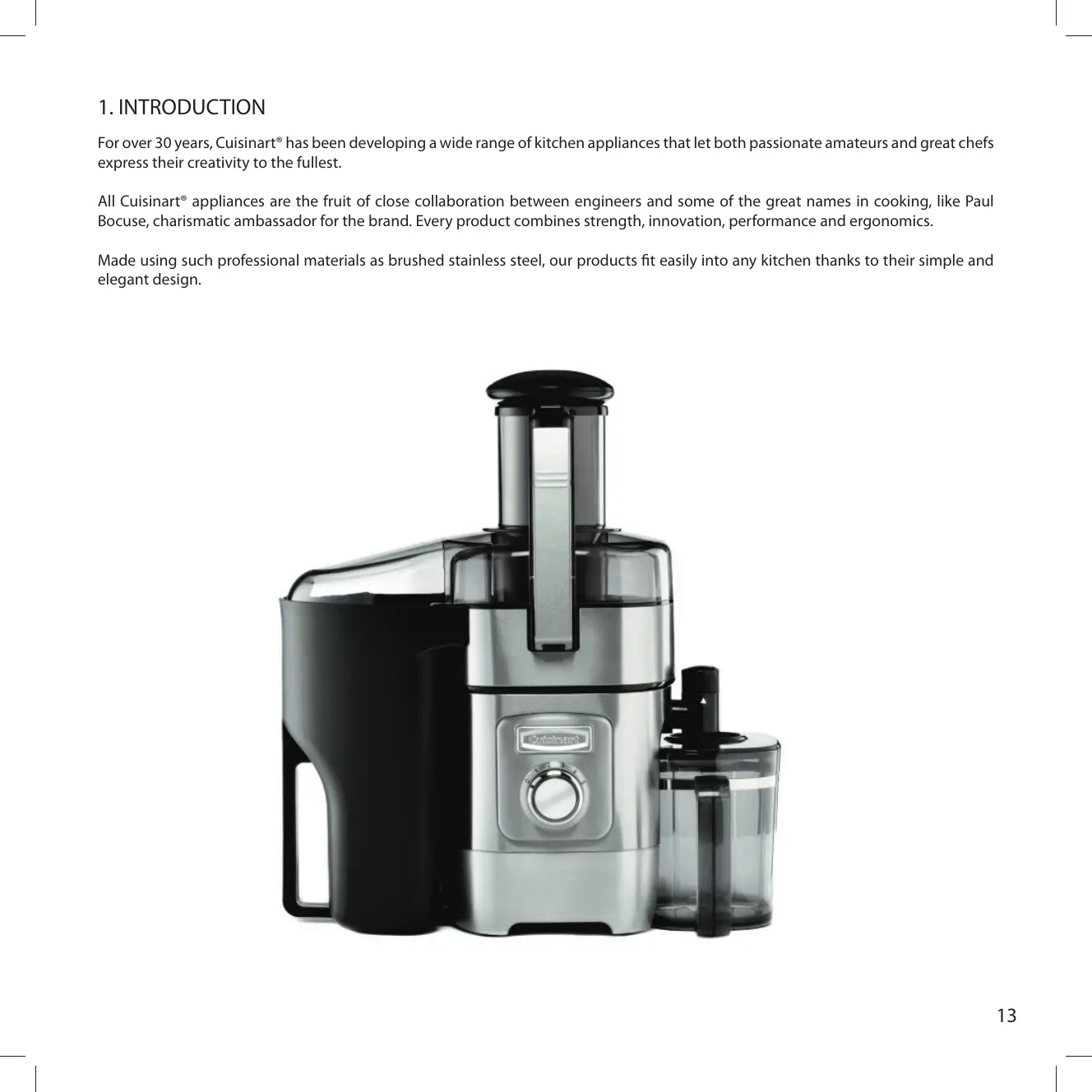

For over 30 years, Cuisinart® has been developing a wide range of kitchen appliances that let both passionate amateurs and great chefs express their creativity to the fullest.

All Cuisinart® appliances are the fruit of close collaboration between engineers and some of the great names in cooking, like Paul Bocuse, charismatic ambassador for the brand. Every product combines strength, innovation, performance and ergonomics.

Made using such professional materials as brushed stainless steel, our products fit easily into any kitchen thanks to their simple and elegant design.

2.PRODUCT FEATURES

1. Housing base
2. Speed control and ON/OFF switch
3. Stainless steel filter
4. Bowl (Not shown)
5. Foam management disk (Not shown)
6. Extra large (7.5cm) feed tube (Not shown)

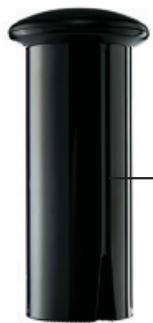

7. Pusher

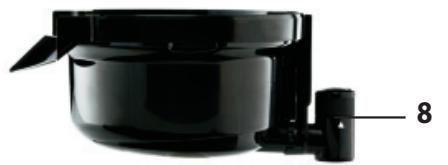

8. Adjustable flow spout

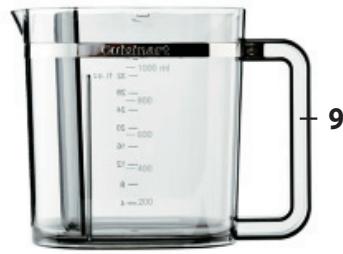

9. Juice pitcher (1L)
10. Pulp container (2L)
11. Cleaning brush

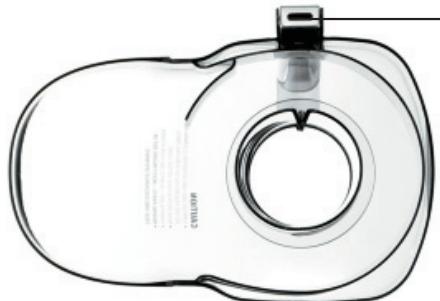

12. Easy unlock handle

7

8

12

2

3. USE

A. Before using for the first time

• Remove all packaging materials and all labels from your juice extractor. Make sure all the parts (see section 2) of your new appliance have been unpacked before discarding the packaging.

We recommend you carefully wash all the accessories and bowls before using the appliance for the first time.

B. Assembling the juice extractor

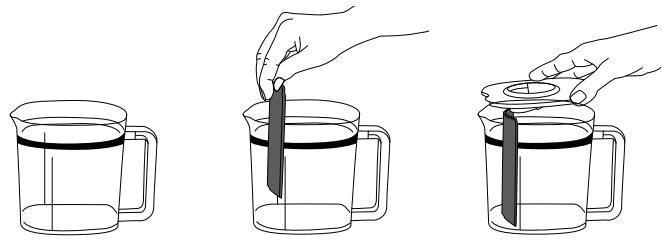

Assemble the juice pitcher

1. Place the juice pitcher on a level surface.
2. Insert the foam filter.
3. Put the lid in place.
4. Place the pitcher below the juice extractor's flow spout.

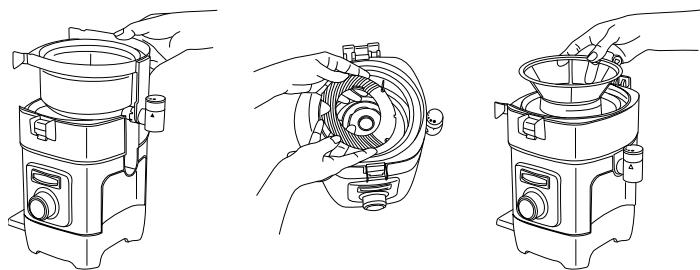

Assemble the juice extractor

1. Place the juice extractor housing base on a level surface.
2. Place the bowl on the housing base.
3. Place the foam management disk in the bowl by aligning the notches.
4. Firmly lock the filter in the bowl.

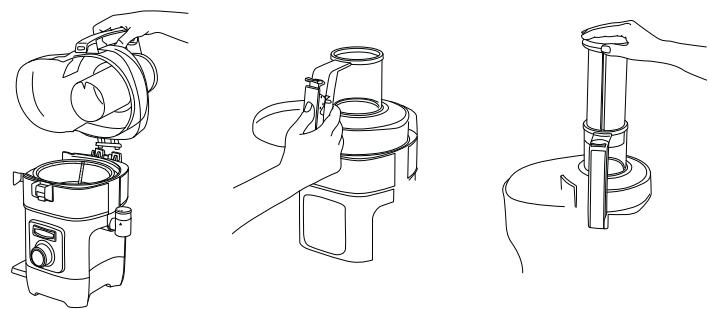

1. Press the button in the handle to unlock.
   Hold the lid by the handle, hinge facing down. Fit the hinge and the housing base together and tilt the lid.
2. Press down on the handle to lock.
3. Slide the pusher into the feed tube and line up the slot of the pusher with the small recess located inside the feed tube.

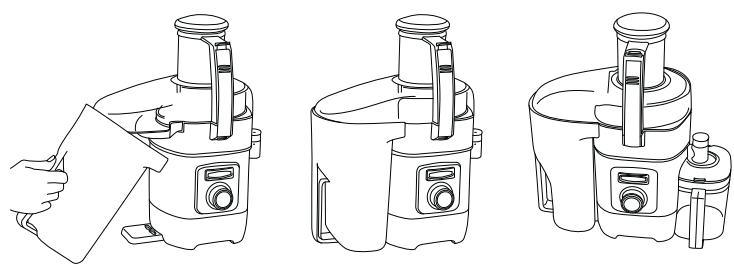

1. Put the container for the pulp in place by slightly tilting its opening to slide under the lid.
2. Place the juice pitcher under the flow spout with the handle facing the front.
3. Make sure that the pour spout is open properly. Never press fruit when the pour spout is closed.

C. Foam management system

If you prefer juice without too much foam, use the foam management disk by setting the pour spout to a smaller opening.

If you prefer more foam, do not use this disk and set the pour spout to a larger opening

D. Dismantling the juice extractor

1. Unplug the juice extractor
2. Remove the pusher.
3. Press the button in the handle to unlock.
4. Tilt and remove the lid.
5. Gently remove the filter by pulling up on one of the sides. Careful not to touch the blades at the bottom of the filter.
6. Remove the foam management filter disk.
7. Remove the bowl by pulling up on one of the sides.

1. Make sure that the juice extractor is properly assembled (Section 3b).
2. Plug the unit into a 230V electrical outlet.
3. Check that the flow spout is open. NEVER PRESS FRUIT WHEN THE POUR SPOUT IS CLOSED.
4. Wash the selected fruit or vegetables.
5. Select the desired speed. The ring of blue light will start to flash.
6. Press the ON/OFF button to start the fruit extractor. The ring of blue light will remain lit.
7. Lift the pusher and remove it from the feed tube. Insert the food and push the food using the pusher, pressing firmly.
8. Adjust the speed of the juice extractor to suit the food being pressed. The harder the food, the higher the speed used.
9. The juice will flow into the juice pitcher and the pulp will collect in the pulp container.
10. When all the juice has been extracted, press the ON/OFF button and turn the speed control to «0» to turn off the juice extractor.
11. Before removing the juice pitcher, close the pour spout.

5. QUESTIONS/ANSWERS :

WHAT DO I DO IF:	ANSWERS
The juice extractor doesn’t turn on?	The safety mechanism in the handle has not been unlocked. Set the speed to between 1 and 5. Press the ON/OFF button.
The flow is weak?	Make sure the flow spout is fully opened. Too much pulp in the filter can slow the flow of juice. Turn the extractor off and clean the filter basket.
The lid does not lock?	Press on the button in the handle to unlock then press on the handle to lock.

6. CLEANING AND MAINTENANCE

All the pieces that can be removed from the unit may be washed in water. They are also dishwasher safe.

Never immerse the housing base in water nor spray it with water. Clean it using a damp sponge, cloth or household paper towel only. When doing so, use washing up liquid, never use abrasive cleaning products which could scratch the surface.

To make cleaning easier, always wash the unit immediately after use. Vegetables and fruit will harden if you leave them to dry on the appliance parts, which will make it more difficult to clean.

1. Make sure the extractor is unplugged.
2. Remove the parts of the extractor by following the dismantling instructions (Section 3D).

First rinse in cold water. Then clean the pulp container, the juice pitcher, the pusher, the lid and the filter in warm, soapy water or place these parts in the dishwasher. Do not use metal brushes or sponges.

CAUTION: Handle the filter with care when washing, because the blades at the base of the basket are very sharp.

For more juice, always carefully clean the filter using the brush provided. (See sketch.)

1. Dry all parts with a towel.

7. SAFETY INSTRUCTIONS

As with all domestic electrical appliances, this juice extractor must be handled with care. Follow the instructions below to avoid any risk of injury.

ATTENTION: The plastic bags used to wrap this

appliance or the packaging may be dangerous. To avoid risk of suffocation, keep these bags out of the reach of babies and children. These bags are not toys.

• Handle the filter very carefully. Avoid touching the sharp metal parts.
• Before turning the appliance on, make sure the filter is firmly pressed onto the motor shaft, and that the lid is correctly placed. Do not force or block the mechanism of the lid.
• To push the food, always use the pusher. Never push with your fingers or any utensil.
• Always wait until the filter has stopped turning before removing the pusher or the lid.
• Turn the unit off and unplug it before cleaning, attaching or removing the pulp container or handling the parts that move when operating.
• Do not use the unit if the rotating filter is damaged.
• Only use this appliance with accessories provided or sold by Cuisinart®.
• Never immerse the housing base of the unit in water or any other liquid.
• Unplug the appliance after each use, before assembling or dismantling, before removing food and before cleaning. Never leave the appliance unattended when plugged in. To unplug, pull the plug and never the lead.
• Do not allow the lead to hang over the kitchen table or worktop, and keep it away from hot surfaces.
• This unit is not intended for use by people (including children) whose physical, sensory or mental capacities are reduced, or by persons who lack experience or knowledge, unless they are supervised or have been given instructions beforehand on the use of the unit and are adequately supervised. Children should be supervised to ensure they do not use the appliance as a toy.
• Do not use the appliance if the lead is damaged or if the appliance has been dropped or appears to be damaged.

• If the lead is damaged, it must be replaced by the manufacturer, its after-sales service or similarly qualified professionals to avoid danger.

• No repair should be carried out by the user.

• This appliance complies with the basic requirements of Directives 2004/108/EEC (Electromagnetic Compatibility) and 2006/95/EEC (Safety of domestic electrical appliances).
• This appliance should be used only for preparing food and drink following the instructions in this booklet.
• For indoor use only.
• For domestic use only.

Electrical and electronic equipment at the end of life.

In everybody's interest and to participate actively in protecting the environment:

• Do not discard these products with your household waste.
• Use return and collection systems available in your country.

Some materials can in this way be recycled or recovered.
