Bolero Coolmarket Combi Bi D Mc 232 E - Refrigerator CECOTEC - Free user manual and instructions

Product Type	Combined Refrigerator
Brand	Cecotec
Model	Bolero Coolmarket Combi Bi D Mc 232 E
Total Capacity	232 L
Refrigerator Capacity	170 L
Freezer Capacity	62 L
Energy Class	E
Dimensions (H x W x D)	1850 x 600 x 650 mm
Net Weight	60 kg
Power Supply	220-240 V, 50 Hz
Refrigerant	R600a
Cooling Type	Dynamic Air (Partial No Frost)
Noise Level	42 dB
Controls	Electronic with Digital Display
Interior Lighting	LED
Defrost	Automatic (refrigerator), Manual (freezer)
Number of Doors	2
Door Material	Painted Steel
Color	White
Child Safety	Yes (control lock)
Maintenance and Cleaning	Soft cloth and soapy water
Spare Parts and Repairability	Repairability Index: 7.5/10
Warranty	2 years

Frequently Asked Questions - Bolero Coolmarket Combi Bi D Mc 232 E CECOTEC

How to adjust the refrigerator temperature?

Use the electronic control panel. Press the Temperature button to cycle through settings (usually from 1 to 5 or 2°C to 8°C).

Why is my refrigerator making noise?

Normal noises include the compressor, fan, and gas circulation. Make sure it is level and not touching furniture. If the noise is unusual, check for objects on top.

How to defrost the freezer?

Unplug the appliance, remove food, and leave the door open. Place towels to absorb water. Do not use sharp objects to scrape off frost.

What to do if the door does not close properly?

Check that shelves and bins are not blocking the door. Clean the door gasket with soapy water. If the gasket is damaged, replace it.

How to clean the interior of the refrigerator?

Unplug the appliance, remove all food and shelves. Wash with a soft cloth soaked in warm water and mild soap. Rinse and dry before putting back into service.

Can I install my refrigerator in an unheated garage?

The ambient temperature must be between 10°C and 43°C. Below 10°C, the refrigerator may not work properly. Check the manual.

What does the flashing red light mean?

A flashing red light indicates a temperature anomaly (e.g., door open too long). If the light remains solid, contact technical service.

How to save energy with this refrigerator?

Place the appliance away from heat sources, do not leave the door open for long, set the temperature to 4°C for the refrigerator and -18°C for the freezer, and defrost regularly.

What to do before first use?

Let the appliance stand upright for 2 hours after transport. Clean the interior, plug it in, and set the temperature. Wait for the temperature to stabilize before placing food inside.

How to transport the refrigerator safely?

Unplug and empty the appliance. Secure shelves with tape. Do not tilt the appliance more than 45° to avoid damaging the cooling circuit.

USER MANUAL Bolero Coolmarket Combi Bi D Mc 232 E CECOTEC

1. Parts and components 86
2. Before use 86
3. Installation 87
4. Operation 89
5. Instructions on food storage 90
6. Cleaning and maintenance 90
7. Troubleshooting 91
8. Technical specifications 94
9. Disposal of old electrical and electronic appliances 94
10. Technical support and warranty 95
11. Copyright 95

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the operation and safety features of the appliance to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Keep the packaging material away from children, as there is a risk of suffocation.

WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own.

- WARNING: when positioning the appliance, make sure the power cable does not get trapped or damaged. A crushed or damaged connector may heat up and cause a fire.

- Make sure the appliance plug is accessible after installation.

- Do not place food directly against the air outlet on the interior of the appliance.

- Keep the ventilation openings clear from obstructions.

- Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.

• WARNING: do not use mechanical appliances or other means to accelerate the defrosting process other than those recommended by Cecotec.
• WARNING: do not damage the refrigeration circuit.
• If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING: do not use electrical appliances inside the refrigerator.
• We recommend you check the power cable regularly to detect any sign of possible damage. Do not use the appliance if the cable is damaged.
• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this refrigerator with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• Do not place any other appliance on the refrigerator and do not wet it.
• Do not store explosive substances such as aerosols or flammable propellants in this appliance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.

• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.

• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Always handle the appliance carefully to avoid any damage on it.
• Frozen food can cause frostbites if consumed right after removing it from the freezer compartment.
• Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.

• To avoid food contamination, please follow the instructions below:

• Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments.

• Regularly clean the surfaces that come into contact with food and with the accessible draining systems.
  Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.
  The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
• Compartments with one, two, or three stars are not

suitable for freezing fresh food.

If the appliance is not going to be used or be empty for a long period of time, switch it off, allow it to defrost, clean it, dry it, and leave the doors open to prevent interior mould growth.

• Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions.
• Make sure that the plug is accessible after installation of the appliance.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.
• Use the appliance only for the purposes described in this manual. Incorrect or improper use can damage the appliance and be dangerous for the user.

Temperature range

- The appliance temperature range information can be found on its marking. It indicates the optimum room temperature for proper operation of the appliance.

Climate range	Optimum room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16 °C to +43 °C

Note:

• Taking into account the limiting values of the room temperature range for the climates for which the appliance is designed and that internal temperatures may be affected by factors such as the location of the appliance, room temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.
• If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired indoor temperatures.

Refrigerant

• Isobutane refrigerant (R600a), contained within the refrigeration circuit of the appliance, is a natural gas with a high level of environmental compatibility; however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.

• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.

• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.
  This symbol means: warning, risk of fire/flammable materials.

• If the refrigeration circuit is damaged:

• Avoid open flames and sources of ignition.

• Completely air the room where the appliance is located.

INSTRUCTIONS DE SÉCURITÉ

1. Refrigerator compartment shelves
2. Crisper-drawer cover
3. Crisper drawer
4. Freezer compartment's top drawer
5. Freezer compartment's bottom drawer
6. Refrigerator compartment door top shelf
7. Refrigerator compartment door bottom shelf

NOTE:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the device if you need to transport it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Box content

• Refrigerator
• Installation kit
• Instruction manual

Before using the refrigerator

• Remove all transport packaging.
• Wipe the inside and outside of the refrigerator with a cloth dampened with lukewarm water (you can add a little neutral detergent if you wish).
• After positioning, levelling and cleaning the refrigerator, wait at least 1 hour before connecting it to the mains. Then wait about 3 hours until the interior has cooled down

completely. After this time, you can place the food inside the refrigerator.

Note: before starting the refrigerator, please read the instruction manual carefully.

3. INSTALLATION

Installation considerations

• Place the refrigerator in a stable place where vibrations do not occur. In places where earthquakes occur frequently, the refrigerator must be secured so that it does not fall to the ground and cause accidents.
• If the space around the refrigerator is small or if objects are placed on the top or side of the appliance, heat dissipation may be impaired and cause unnecessary waste of electrical energy.
• Contact between the rear surface of the appliance and the wall can cause vibrations and noises.
• If the refrigerator is placed too close to a wall or other objects, they may burn due to heat dissipation.
• If the refrigerator is placed near heat sources or in a place where it is exposed to direct sunlight, the cooling effect will be reduced, resulting in extra electricity consumption.
• Adjust the feet at the front of the refrigerator to place it in an upright position. If it is not properly levelled, noise and vibrations may occur.
• If the refrigerator is placed on a carpet or any other soft object, place a cushion mat under the refrigerator, otherwise it may tip over and cause injury.
• Make sure that the refrigerator is connected to an earthed socket, otherwise an electric shock may occur.
• Do not place the refrigerator in wet or humid places.
• During transport, make sure that the refrigerator door does not come into contact with any object that could damage it, and that the inclination of the refrigerator does not exceed 45^ .
• Place the refrigerator in a well-ventilated dry place, where it is not exposed to direct sunlight. Additionally, avoid placing it near heat sources.
• Do not expose the refrigerator to low temperatures.
• Installation dimensions of the refrigerator: sufficient space must be provided for the installation of the refrigerator and for proper ventilation and heat dissipation, so please first ensure that the dimensions of the space in which you intend to install the refrigerator meet the requirements before installation. In figure 2, you can see the dimensions required for the installation.
• Be sure to leave a space of at least 200 cm2 at the back of the cabinet where the appliance is to be fitted for proper ventilation, as this is a fully panelled appliance and ventilation will need to be provided in this way. Air will circulate from the rear and exit from the top, so a

ENGLISH

space of at least 200 cm2 must also be left at the top for the air to exit.

- It is recommended that the height of the refrigerator trim panel is 710-720 mm.

Please, perform the following two steps before installation:

1. Fit the rubber gasket on the rear cover of the compressor. To fix it, use screws. Fig. 3
2. Insert the power plug of the refrigerator into the power socket. Next, place the refrigerator in the corresponding recess by fitting it to the left-side wooden panel. Fig. 4

Specifications for built-in installation

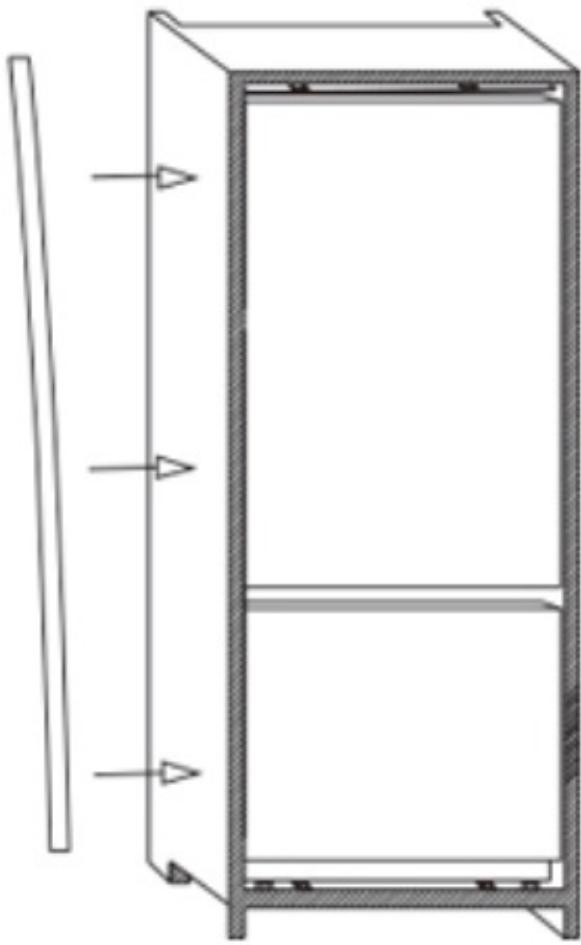

1. First, adjust the distance between the front and rear of the refrigerator. Then, fix the top and bottom part of the appliance to the cabinet in which it is installed by means of two ST3.9*1 screws on the top part and two more on the bottom part. Finally, fit the corresponding protector. Fig. 5
2. Next, place the refrigerator support feet about 4 mm away from the cabinet. To measure the distance, use the corresponding tool that is in the accessory bag. Finally, after tightening the screws, fit the caps to cover the holes. Fig. 6.

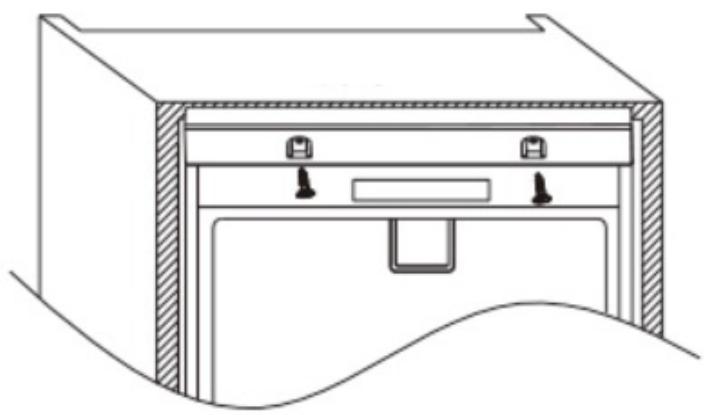

3. Align the trim on the top of the refrigerator horizontally with the top of the cabinet.
4. Secure the sides of the refrigerator to the sides of the cabinet using the left and right-side brackets.
5. After that, insert the sealing tape into the gap between the side of the refrigerator and the cabinet. Fig. 7
6. Bring the left and right-side brackets of the refrigerator close to the right side of the cabinet and fix the left and right-side brackets to the centre of the refrigerator with an M5 screw. Next, attach the hinge to the inside of the cabinet with an ST3.9*16 screw. Fig. 8
7. Secure the refrigerator to the cabinet door using the sliding base.
8. Fix the refrigerator door to the cabinet door:

8.1. Open the cabinet door to the maximum angle (about 100 degrees).
8.2. Move the refrigerator door closer to the cabinet door.

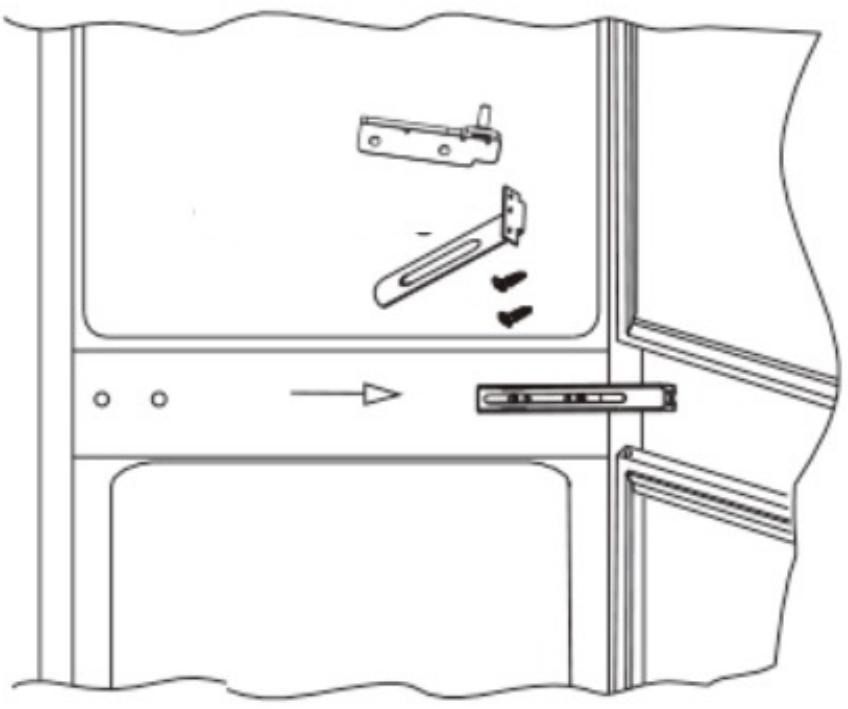

8.3. Place the sliding base of the door on the sliding guide. Please note that the sliding base must protrude 12 mm from the refrigerator door in order to be able to fix the screws. Fig. 9
8.4. Secure the refrigerator door sliding base to the cabinet door using two screws.
8.5. There are 4 positions in total.

Final checks

• Check that all parts are secure, and that the refrigerator is correctly levelled.
• Check whether the refrigerator and the cabinet are well aligned with each other by means of the guide and the sliding base. If you notice any strange noises when the parts slide, use petroleum jelly to lubricate them.
• Make sure to leave 2-3 mm of space between the cabinet door and the refrigerator door to be able to open it.

4. OPERATION

• Connect the refrigerator to the mains. When you connect the refrigerator to the mains (either for the first time or after unplugging it) it will operate with the default settings.
• The factory setting of this refrigerator is 5/-18 °C.
• You can set the refrigerator to the temperature range you require using the corresponding icons.
• After a certain period of time, the refrigerator will have cooled down completely, so you can place the food you wish to store inside.

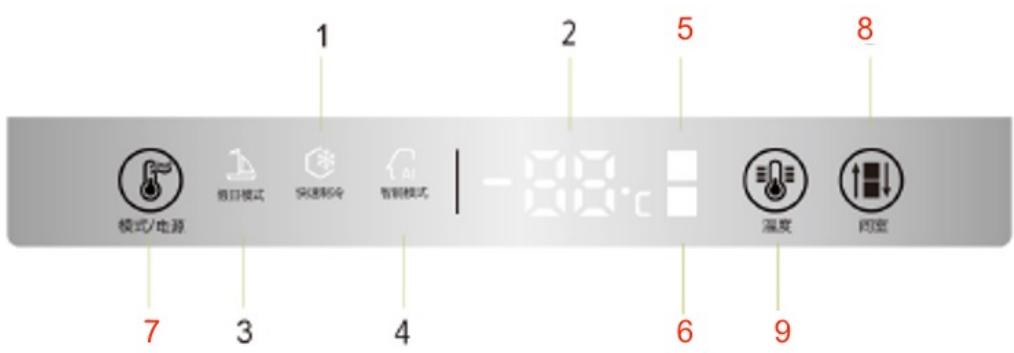

Control panel

Fig. 10

1. Fast Cooling mode indicator light
2. Temperature display
3. Holiday mode indicator light
4. Smart mode indicator light
5. Refrigerator compartment icon
6. Freezer compartment icon
7. Mode selection icon
8. Compartment selection icon
9. Temperature icon

Mode selection

Press the mode selection icon and choose from the following: Holiday mode, Fast Cooling mode or Smart mode. The indicator light corresponding to the selected mode will light up.

Compartment selection

Press the compartment selection icon to choose between the refrigerator compartment or the freezer compartment. When doing so, the temperature on the display will start flashing.

Temperature setting

When the temperature on the display is flashing, press the temperature icon to adjust the temperature. After 3 seconds, the temperature will stop flashing, indicating that the setting has been made correctly. If the temperature is still flashing after this time, press the temperature icon again to switch to the other compartment and set the temperature correctly.

Switching on/off the refrigerator

Press and hold the mode selection icon for three seconds. When "OF" appears on the display, the refrigerator will switch off. To switch it back on, press and hold the same icon for another three seconds.

ENGLISH

Fitting and removing the shelves and drawers

The height of the shelves can be adjusted to comfortably store food of different sizes. To remove the shelves, pull them slightly outwards.

To remove the crisper drawer, pull it slightly outwards.

Note: the freezer drawers can also be removed, but we recommend that you do not do this.

- To remove the door shelves from the refrigerator compartment door, lift them slightly without exerting too much pressure.

5. INSTRUCTIONS ON FOOD STORAGE

Refrigerator compartment (0 °C \~ 10 °C)

• The refrigerator compartment is suitable for storing food for a short period of time.
• Before putting the food in the refrigerator compartment, cut it into small pieces and put it in an airtight food container properly. Distribute the food evenly.
• We recommend that you store fruit and vegetables in the crisper drawer provided for this purpose.
• If you store cooked food in the refrigerator compartment, we recommend that you put it in an airtight food container properly.

Freezer compartment (below -18 °C)

• The freezer compartment is used to store food for a long time.
• Pack food separately before putting it in the freezer compartment and distribute it evenly.
• Do not insert glass containers.
• Fresh food should be stored separately from frozen food.

Using the ice cube tray

- Fill the ice cube tray almost to the top and put it in the freezer compartment. When the water has frozen, turn it upside down and remove the ice cubes. Do not bend the ice cube tray.

6. CLEANING AND MAINTENANCE

• You should clean the refrigerator at least once a month.
• Unplug the refrigerator to avoid electrical shock.

• In case of oil stains, wipe with a damp cloth and a little neutral liquid soap. When cleaning is complete, make sure that no product residue remains.

• Do not clean the refrigerator with alkaline liquid detergent, washing powder, petrol alcohol or talcum powder to avoid damaging the coating and plastic.

• Remove dust from the back and bottom of the refrigerator periodically to keep it clean.

Checks required after maintenance

• Check the power cable and plug for damage.
• Check the plug for dust.
• Check if the plug is too hot.
• Check that the cable is properly plugged to the power socket.

Note: if the power cable or plug is damaged or dusty, it may cause an electric shock.

7. TROUBLESHOOTING

Warning

This appliance will beep if a fault occurs. When the refrigerator sensor detects a fault, the display may show the following error codes:

Code	Meaning
E1	Refrigerator compartment fault
E2	Freezer compartment fault
E4	Freezer compartment defrost sensor fault
E6	Communication fault
E7	Fault of the freezer compartment fan locking system

If any of the above error codes are displayed, the refrigerator will continue to operate, but you should contact the official Cecotec Technical Support Service as soon as possible.

Troubleshooting

Problem	Checks	Solution
The cooling effect of the refrigerator is poor	Check if the appliance is properly connected.	Plug the refrigerator into a mains socket.
	Check if the refrigerator is exposed to direct sunlight or if it is placed near a heat source.	Place the refrigerator in a place where it is not exposed to direct sunlight or near heat sources.
	Check whether the refrigerator has space around it for heat dissipation.	Check whether the cabinet in which the refrigerator is built in has ventilation openings.
Food stored in the refrigerator compartment freezes	Check whether the temperature is too low.	Increase the temperature.
	Check whether food containing a lot of water is placed too close to the rear wall.	Move food containing a lot of water closer to the door.
The refrigerator makes strange noises	Check if the refrigerator is correctly levelled.	Place the refrigerator correctly in the designated space.
	Check if the refrigerator is in contact with any object.	Remove objects with which the refrigerator makes contact.
The refrigerator gives off bad smells	Check that all food is packaged.	Hot food must be cooled before being placed in the refrigerator.
	Check if the refrigerator is clean.	Clean the refrigerator regularly.
	Check if any food has been in the refrigerator for too long.	Do not store food for a long time.

Phenomena that are not a problem

Problem	Possible causes
The front of the refrigerator is hot	The refrigerator pipe (anti-condensation pipe) is placed at the front of the refrigerator to dissipate heat and prevent condensation.
The refrigerator door cannot be opened easily	The refrigerator door cannot be opened easily immediately after closing it, as warm air enters the refrigerator and, as a result, a pressure difference is generated by the sudden cooling of the air. After some seconds, the refrigerator door can be opened easily again.
There is a kind of noise	When the compressor starts or stops, the refrigerator piping can cause this noise.
	Water generated after defrosting can also cause this noise.
A repetitive sound is heard	This sound is produced by the contraction and expansion of the refrigerator body.
	When the refrigerator door is opened, this sound may be produced.
A buzzing sound is heard	Such a sound may be produced during compressor operation.
The door of the refrigerator compartment or the food is condensed or covered with frost	The refrigerator is placed in a humid or high temperature environment.
	The refrigerator door has been left open for a long time.
	Food contains a lot of water and is not properly packaged.
Condensation occurs inside the light	The light becomes hot when it is switched on, so if the refrigerator door is open for a long time, condensation may occur.
Condensation occurs on the outside surface of the refrigerator	If there is excess moisture around the refrigerator, it may accumulate in the body of the refrigerator and cause condensation.

8. TECHNICAL SPECIFICATIONS

Appliance	Bolero CoolMarket Combi BI-S DF 232 E	Bolero CoolMarket Combi BI-D MC 232 GREY E
Reference	EU01_100595	EU01_100596
QR code
Rated voltage	220 - 240 ~ V
Rated frequency	50 Hz
Rated current	1.0 A
Climate class (*)	SN / N / ST / T
Refrigerant	R600a (40 g)
Insulator	Cyclopentane

(*) Refrigerator intended for use at room temperatures between 10 °C and 43 °C.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

7. PROBLEEMOPLOSSING

Alarm

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr. 7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9
