Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 495
Blade diameter	132 cm (52 inches)
Blade material	ABS (plastic)
Motor type	Quiet DC (direct current)
Power	40 W
Number of speeds	6 speeds
Voltage	220-240 V ~ 50/60 Hz
Weight	5.5 kg
Functions	Summer/winter ventilation, timer, night function
Control	Infrared remote control included
Summer/winter reverse switch	Yes, via switch on motor or remote control
Sound level	Below 35 dB (quiet)
Warranty	2 years
Maintenance	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Overheating protection, balanced blades
Spare parts	Available from Cecotec customer service
General information	Ceiling installation recommended by a professional

Frequently Asked Questions - Ventilador Techo Energysilence Aero 495 CECOTEC

How to install the Cecotec Energysilence Aero 495 ceiling fan?

Installation should be carried out by a qualified electrician. Follow the instructions in the manual: attach the mounting plate to the ceiling, connect the wires (live, neutral, ground), then attach the blades and housing.

How to use the fan remote control?

The remote control allows you to control the speeds, the direction (summer/winter) and the timer. Insert the batteries (AAA) and point it at the fan's receiver.

How to switch from summer mode to winter mode?

Use the reverse button on the remote control or the switch on the motor. In summer, the blades rotate counterclockwise for cool breeze; in winter, clockwise to redistribute heat.

The fan is making noise, what to do?

Check that the blades are properly attached and balanced. Tighten the screws. If the noise persists, contact Cecotec customer service.

How to clean the ceiling fan?

Use a soft, dry cloth or slightly damp. Never use chemical or abrasive products. Make sure the device is turned off.

The fan is not spinning, why?

Check the power supply (fuse/circuit breaker). Make sure the remote has batteries and the receiver is not obstructed. If the problem persists, contact a professional.

What is the warranty for this Cecotec fan?

The warranty is 2 years from the date of purchase, covering manufacturing defects. Keep the receipt.

Can I use the fan without the remote control?

No, the fan is designed to work only with the remote control. If lost, you can order a replacement remote.

How to adjust the fan speed?

Press the speed button on the remote control to cycle through 6 speeds. The current speed is indicated by a sound or light signal.

Is the fan suitable for damp rooms like a bathroom?

This model is designed for dry indoor use. Do not install in a damp room without appropriate IP protection.

USER MANUAL Ventilador Techo Energysilence Aero 495 CECOTEC

55-W and 42" ceiling fan with LED light

1. Parts and components 42
2. Before use 42
3. Product assembly 42
4. Operation 44
5. Cleaning and maintenance 45
6. Technical specifications 45
7. Disposal of old electrical and electronic appliances 46
8. Technical support and warranty 46
9. Copyright 47

SOMMAIRE

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

- Keep a minimum distance of 2.3 cm between the fan blades and the floor.

- Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.

• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage stated on the product marking and that the wall outlet is grounded.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any type of danger.
• Do not use the appliance if its cord or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The device must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.
• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with the local regulations.
• The cord must be properly earthed to avoid possible accidents.
• The device must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.

• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.

• Do not bend the blade-attachment system during the installation or cleaning process.

• Cleaning and maintenance must be carried out according to this instruction manual to make sure the device works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the product.
• This product is designed for indoor use.

Instructions on batteries

• Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.
• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.

• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.

• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals with a clean, dry cloth if they become dirty.
• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

INSTRUCTIONS DE SÉCURITÉ

1. Canopy
2. Downrod and hanging ball
3. Downrod
4. Mounting bracket
5. Decorative cover
6. Motor
7. Blade
8. Lamp holder
9. Lamp glass
10. Remote control
11. Screws
12. LED plate

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

3. PRODUCT ASSEMBLY

General assembly instructions

• If you hang the fan on a hook, the latter must withstand at least 100 kg.
• To prevent personal injury and damage, make sure that the location where the device is

going to be installed allows a 2.3-metre clearance from the blades to the floor and a 76-cm clearance from the blades to any wall or object. Fig. 2

• Make sure that the building structure can hold the full weight of the fan.
• This fan can be installed on a normal or vaulted ceiling with a downrod. The hanging length can be extended by using a longer downrod.

Assembling the fan based on ceiling type (Fig. 3):

1. Normal ceilings
2. Sloped ceilings (might require a longer downrod, not supplied by Cecotec)
3. Wooden ceiling. Fig. 4
4. Concrete ceiling. Fig. 5

To assemble this ceiling fan, follow the steps below (Fig. 3-12):

1. Remove the lower and upper pins from the downrod and release the hanging ball at the top of the rod. Fig. 6
2. Pass the wiring from the main body through the downrod. Fig. 6
3. Attach the downrod to the body by inserting the pin through the downrod and the main-body attachment. Tighten the screws provided on the main-body attachment to properly secure the downrod.
4. Remove the 4 screws that fix the upper canopy and the installation bracket. Insert the upper canopy through the downrod. Fig. 6
5. Insert the pin through the pin holes located on the upper end of the downrod. Once inserted, slide the hanging ball upward to the upper end of the downrod and fix it with one of the screws provided.
6. Make sure the pin fits in the slots located inside the hanging ball before screwing it.
7. Mark the centre of the installation bracket and use both self-tapping screws provided with their corresponding washers and pressure washers to fix the installation bracket to a wooden ceiling.

Warning

Self-tapping screws are only suitable for wooden ceilings. In case of installing the ceiling fan to concrete ceilings or joists, use a drill for making the holes and plugs or expansion screws (not included).

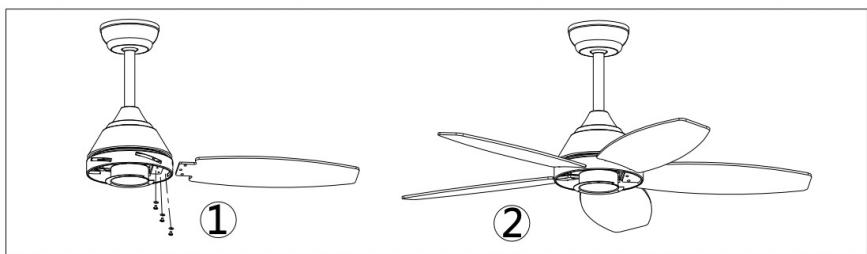

1. Remove the screws located on the lower part of the motor through the lamp holder. Fig. 9
2. Insert the blades through the slots in the main body of the motor. Fig. 9
3. Screw the blades to the blade brackets using the screws, washers, and nuts provided. Given that the blades are reversible, choose the side you want to screw them on.
4. Fix the LED-light bracket to the main body of the motor by means of the screws on the bottom of the main body. Fig. 10

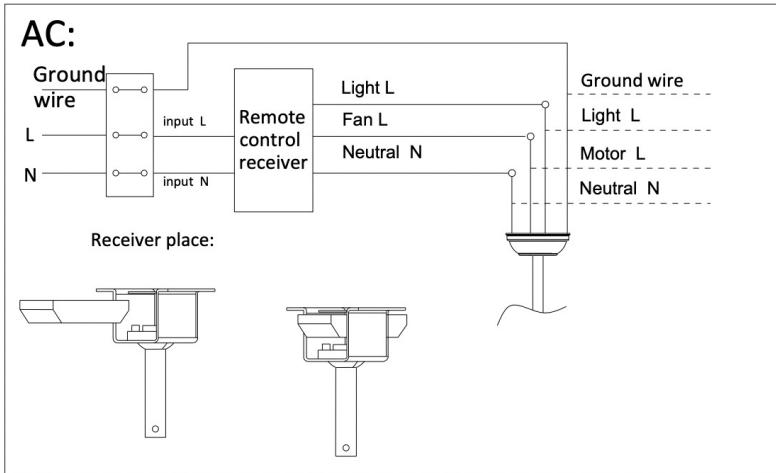

5. Once the installation bracket is screwed, connect the wiring. First connect the quick-

ENGLISH

connect cord to the terminal block on the installation bracket following the colour code (Fig. 7). From the opposite end of the terminal block, connect the wiring from the installation of your home.

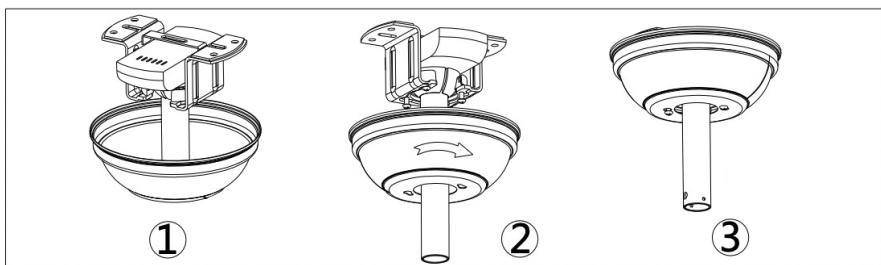

1. Lift the fan previously mounted to the installation bracket and insert the hanging ball through the installation-bracket hole.
2. Connect the cords that come out from the downrod to those from the installation bracket using both quick connectors. Fig. 7
3. Slide the canopy upwards so that all the connections are stored inside it and screw it to the installation bracket using the 4 screws (2 to each side) removed at the beginning of the installation process. Fig. 8
4. Connect the LED board to the quick connector on the main body and attach it to the LED-light bracket with the three built-in magnets. Fig. 11
5. Place the lamp on the bottom of the appliance, using the tabs of the lamp holder to clamp the glass and fully secure it. Fig. 12

Please note

The reversible blades have 2 different high-quality finishes.

By inverting the blades, the device produces a decorative effect and adapts to different room designs.

4. OPERATION

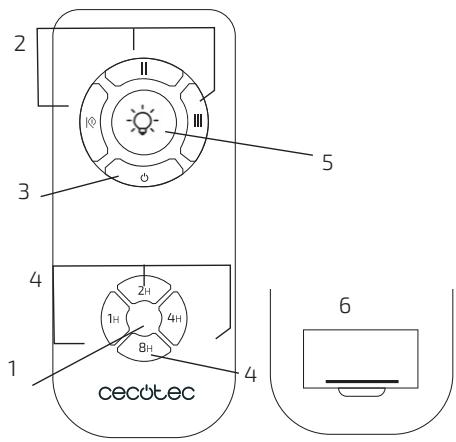

Remote control. Fig. 12

1. Power indicator
2. Speed control
3. Power button
4. Timer
5. Light

6. Remote control battery

7. The indicator will light up while the product is in operation.

8. Use the 3 speed buttons to select the air power level: low, medium, or high.
9. Press the power button to turn the device off.
10. Use the 4 timer buttons to select the fan's operation time: 1, 2, 4, or 8 hrs. The fan will turn off once the selected time has elapsed.
11. Press the light button to turn the fan's lamp on and off. Select the desired light tonality by pressing the button repeatedly.
12. The remote control is powered by 2 x 1.5V-3AAA batteries.

Warnings

• The remote control operates through RF Wireless digital transmission technology. If both the fan and the lamp are equipped with a switch, turn on the fan at top speed and turn the light on before using the remote control.
• If the fan or the light cannot be controlled through the remote control, check if the batteries in the remote control are in good conditions and if they make good contact, that the positive and negative electrodes are in the correct position, and if the batteries are charged.
• If the fan or the light cannot be controlled through the remote control, check if there are other remote-controlled products in the same area and check if the transmitter buttons are pressed. Product with similar remote-control systems may cause interference. This does not include infrared remote controls.
• Pay attention to the product voltage. Too low a voltage may cause the remote control to not work. The technical specifications are indicated in this manual.
• If the remote control is not going to be used for a long time, remove the batteries.

5. CLEANING AND MAINTENANCE

• Do not immerse any of the parts of the device in water or splash them with any other liquid.
• Do not use solvents or any other chemical products for cleaning it.
• Use a soft, damp cloth to clean the surface of the device.

6. TECHNICAL SPECIFICATIONS

Model: EnergySilence Aero 495

Product reference: 05896

Power: 55 W

Voltage and frequency: 220-240 V \~ 50/60 Hz

18 W (max.) LED

Description	Symbol	Value	Unit
Fan maximum flow	F	155.6	m^3/min
Fan power consumption	P	55.2	W
Service value	SV	2.8	(m3/min)/W
Power consumption on standby mode	P_SB	0.5	W
Fan sound power level	L_WA	46	dB (A)
Maximum air speed	C	2.7	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

This product features a light source with an energy efficiency grade E.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1.

Fig./Img./Abb./Rys./Obr. 4

Fig./Img./Abb./Rys./Obr. 5

Fig./Img./Abb./Rys./Obr. 6

Fig./Img./Abb./Rys./Obr. 7

Fig./Img./Abb./Rys./Obr. 8

Fig./Img./Abb./Rys./Obr. 9

Fig./Img./Abb./Rys./Obr. 10

Fig./Img./Abb./Rys./Obr. 11

Fig./Img./Abb./Rys./Obr. 12

Fig./Img./Abb./Rys./Obr. 13
