Product type	Combined refrigerator (refrigerator + freezer)
Brand	Cecotec
Model	Bolero Coolmarket Combi 322i Wd E
Total capacity	322 liters
Refrigerator capacity	228 liters
Freezer capacity	94 liters
Energy class	E (old label A+++ to D)
Annual energy consumption	About 250 kWh
Noise level	41 dB (A)
Type of cooling (refrigerator)	Static (automatic defrost)
Type of cooling (freezer)	Static (manual defrost)
Dimensions (H x W x D)	185 x 60 x 65 cm
Net weight	68 kg
Power supply	220-240 V, 50 Hz
Main functions	Refrigeration, freezing, LED lighting, adjustable shelves, vegetable drawer
Maintenance and cleaning	Clean with a soft cloth and soapy water, avoid abrasive products
Safety	Automatic door closing, automatic shutdown in case of overheating
Spare parts and repairability	Parts available through Cecotec after-sales service (repairability index: 7.5/10)
Warranty	2 years
General information	Built-in appliance? No, freestanding. Color: white

Frequently Asked Questions - Bolero Coolmarket Combi 322i Wd E CECOTEC

What is the total capacity of the Cecotec Bolero Coolmarket Combi 322i refrigerator?

The total capacity is 322 liters, including approximately 228 liters for the refrigerator and 94 liters for the freezer.

How to adjust the refrigerator temperature?

Use the thermostat knob located inside the refrigerator compartment. Turn it to a setting between 1 (least cold) and 5 (coldest). The ideal temperature is about 4°C.

How to defrost the freezer?

The freezer has manual defrosting. To defrost it, unplug the appliance, remove the food, and leave the door open. Use a container to collect the melting water. Never use sharp tools to remove ice.

What is the energy class of this refrigerator?

This model is rated E according to the European energy label (old scale A+++ to D). Its annual consumption is about 250 kWh.

Why is my refrigerator making noise?

A noise level up to 41 dB is normal. Noises may come from the compressor, fan, or refrigerant circulation. If the noise becomes excessive, check that the appliance is level and not touching a wall.

How to clean the inside of the refrigerator?

Unplug the appliance and remove all food. Clean the surfaces with a soft cloth dampened with warm water and mild soap. Rinse and dry thoroughly. Avoid abrasive or alcohol-based products.

What to do in case of a power outage?

Keep the doors closed to maintain cold. The refrigerator maintains its temperature for about 4 hours, and the freezer for up to 12 hours. Do not refreeze thawed food without cooking it.

How to install the refrigerator correctly?

Place the appliance in a dry, well-ventilated area, away from direct sunlight and heat sources. Leave at least 5 cm of space at the back for air circulation. Adjust the feet so that it is level.

Are spare parts available?

Yes, Cecotec offers spare parts through its after-sales service. The repairability index is 7.5/10, indicating good repairability.

How long does the warranty last?

The legal warranty is 2 years from the date of purchase. Keep the proof of purchase for any claims.

USER MANUAL Bolero Coolmarket Combi 322i Wd E CECOTEC

bolero

1. Parts and components 9
2. Before use 9
3. Operation 10
4. Cleaning and maintenance 10
5. Copyright 10
6. Simplified EU Declaration of Conformity 11

SOMMAIRE

Read the instructions carefully before using the appliance for the first time and keep this instruction manual for future reference or new users.

• It is important to make sure all users are familiar with the appliance's operation and safety features to prevent faults and unnecessary accidents.
• Make sure that the mains voltage in your house matches the voltage stated on the rating label of the appliance.
• This appliance can be used by children aged 8 and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance should not be carried out by children without supervision.
• To avoid the risk of suffocation, keep the packaging material away from children.

- WARNING: If the interior lighting is damaged, please contact Cecotec's Official Technical Support Service. Do not try to repair it yourself.

- WARNING: when positioning the appliance, make sure the power cord does not get trapped or damaged. A crushed or damaged plug may heat up and cause a fire.

- WARNING: keep the ventilation grilles on the appliance body unobstructed.

- Make sure the appliance plug is accessible after installation.

- Do not place food directly against the air outlet on the interior of the appliance.

WARNING: If the interior lighting is damaged, please contact Cecotec's Official Technical Support Service. Do not try to repair it yourself.

- WARNING: when positioning the appliance, make sure the power cord does not get trapped or damaged. A crushed or damaged plug may heat up and cause a fire.

- WARNING: keep the ventilation grilles on the appliance body unobstructed.

- Make sure the appliance plug is accessible after installation.

- Do not place food directly against the air outlet on the interior of the appliance.

• Keep the ventilation openings clear from obstructions.
• Do not place carbonated or soft drinks in the freezer compartment, as this creates pressure in the can, which could explode and damage the appliance.
• WARNING: do not use mechanical devices or other means to speed up the defrosting process other than those recommended by Cecotec.
• WARNING: do not damage the cooling circuit.
• If the cord is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING: do not use electrical appliances inside the refrigerator.
• It is recommended to regularly check the power cord for any signs of damage. Do not use the appliance if the cord is damaged.
• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• Do not use the appliance with an extension cable or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place hot food or drinks in the refrigerator, allow them to cool down to room temperature beforehand.
• Do not place any other appliance on the refrigerator and do not wet it.
• Do not store explosive substances such as aerosols or flammable propellants in this appliance.

• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

• WARNING: to avoid any risk due to the instability of the refrigerator, you must install it according to the instructions.

• This appliance has a built-in earthed plug. Make sure the power supply in your house is properly earthed.
• Wait 5 minutes after a power failure before turning the appliance back on. Otherwise, the compressor may get damaged.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Always handle the appliance carefully to avoid damaging it.
• Frozen food can cause frostbites if consumed right after removing it from the freezer compartment.
• Do not remove or touch items in the freezer compartment with your hands wet, as it could cause skin abrasions or frost/freeze burns.
• Never use the base, drawers, or door as support.
• Do not overload the door shelves or place too much food on the drawers to prevent items from falling off and damaging the appliance.
• WARNING: do not attach multi-socket adaptors or multiple power supplies to the rear part of the appliance.
• To avoid food contamination, please follow the instructions below:
• Opening the door for a long period of time may cause a significant increase in temperature in the appliance compartments.
• Regularly clean the surfaces that come into contact with food and with the accessible draining systems.

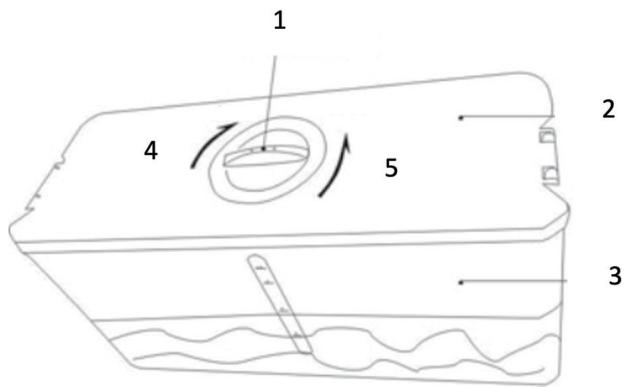

• Clean the water tank if it has not been used for 48 hours.
• Store raw meat and fish in proper containers in the freezer, so they do not come into contact with or leak on other food.

• The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.

• Compartments with one, two, or three stars are not suitable for freezing fresh food.

• Before carrying out any maintenance and cleaning task, turn off the appliance and unplug it.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.
• Air must flow around the appliance. Lack of air leads to overheating. To achieve good ventilation, follow the installation instructions.
• Whenever possible, the rear part of the appliance should not be too close to the wall to prevent it from touching or reaching the hot parts (the compressor and the condenser). To avoid risk of fire, follow the installation instructions.
• Make sure that the plug is accessible after installation of the appliance.
• All electrical work required to maintain this appliance must be carried out by a qualified electrician.
• To avoid food contamination, please follow the instructions below:

A Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.

B Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.

C If the appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.

D Store raw meat and fish in suitable containers so that they do not come into contact with or drip onto other food items.

E The two-star frozen food compartments are suitable for storing pre-frozen food, ice cream and ice cubes*.

F The 1, 2 and 3 star compartments are not suitable for freezing fresh food*.

G For appliances without a 4-star compartment: not suitable for freezing foodstuffs*.

*Please verify the applicability based on your product's compartment type. This feature varies according to the model purchased.

"4-star" symbol: Freezer compartment at -18°C or below, capable of fast-freezing a specified quantity of food.

"3-star" symbol: Freezer compartment at -18°C or below.

"2-star" symbol: Freezer compartment at -12^ or below.

"1-star" symbol: Freezer compartment with target temperature and storage conditions of -6^ .

Refrigerant

• Isobutane refrigerant (R600a), contained within the refrigeration circuit of the appliance, is a natural gas with a high level of environmental compatibility; however, it is flammable. Make sure that no components of the refrigeration circuit have been damaged during the transport and installation of the appliance.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.
• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of

professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

• WARNING: risk of fire. If the refrigeration circuit is damaged:
• Avoid open flames and sources of ignition.
• Fully ventilate the room where the appliance is located.

Temperature range

- The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate class	Optimal room temperature
SN	From +10 °C to +32 °C
N	From +16 °C to +32 °C
ST	From +16 °C to +38 °C
T	From +16°C to +43°C

Notes:

• Taking into account the limiting values of the ambient temperature range for the climates for which the freezer is designed and that internal temperatures may be affected by factors such as freezer location, ambient temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.
• If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated room temperature range), it may not be able to maintain the

desired compartment temperatures.

INSTRUCTIONS DE SÉCURITÉ

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Nota:

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

1. Temperature indicator and LED light
2. Refrigerator compartment shelves
3. Crisper box/Humidity box
4. Crisper box/Humidity box
5. Freezer-compartment drawers
6. Adjustable feet
7. Door shelves/bottle holder
8. Water dispenser

*Available only in the following models:

EU01\_111274 Bolero CoolMarket Combi 322i WD Inox E

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Note:

• The graphics in this manual are schematic representations and may not exactly match the device.
• To improve quality, our products are constantly updated and their appearance and specifications may change.
• To ensure the most efficient energy usage, maintain all internal components such as trays, drawers, shelves, etc. in the position specified in this manual.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

• Refrigerator
• Instruction manual
• Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

Levelling

• Make sure you level your refrigerator with the front levelling feet. If it is not levelled, the refrigerator performance will be affected, or it can even cause a malfunction.
• After installing the refrigerator, wait 4 hours before using it to allow the refrigerant to stabilise.

3. INSTALLATION

Place of installation

Ventilation condition

- The location you choose for the installation of the refrigerator must be properly ventilated and away from heat sources. Do not place the refrigerator near heat sources, like a cooker or pot, and avoid direct sunlight to ensure the cooling effect and save on energy consumption. Do not place the refrigerator in a damp place to avoid rust or loss of power. The result of dividing the total space of the room in which the refrigerator is installed by the amount of refrigerant load in the refrigerator must not be less than 8 g/m ^3 .

- Note: The amount of refrigerant used by the refrigerator is specified on the rating plate.

Heat dissipation space

During operation, the refrigerator releases heat into the environment. Therefore, you should leave at least 30 mm of free space at the top, more than 100 mm on both sides, and more than 50 mm at the rear of the refrigerator. Fig. 2

W id t h (mm)	Depth (mm)	H e i g h t (mm)	A (mm)	B (mm)	C(°)	E (mm)	F (mm)
595	615	1855	966	1176	130	50	100

Note: figure 2 only illustrates the space required for the product.

Stable surface

Place the refrigerator on a solid, flat surface (the floor) to keep it stable, otherwise vibrations and noises will occur. When the refrigerator is placed on a carpet, straw mat, or polyvinyl chloride, solid support plates should be placed under the refrigerator to avoid colour change due to heat dissipation.

Preparing for use

Waiting time

ENGLISH

Once the refrigerator is properly installed and cleaned, do not switch it on immediately. Be sure to wait at least one hour before switching the refrigerator on to ensure normal operation.

Cleaning

Check the placement of the interior accessory parts and clean the inside with a soft cloth.

Switching on

Connect the plug into a power socket to switch on the compressor. After one hour, open the freezer door: if the temperature inside the freezer compartment has dropped, the cooling system is running normally.

Food storage

After the refrigerator has been in operation for some time, the user may adjust its internal temperature. Once the refrigerator has reached a suitable interior temperature, put in the food. These will take 2 to 3 hours to cool down completely. In summer, when the temperature is high, it may take more than 4 hours for food to cool down completely (try to open the refrigerator

as rarely as possible).

If the refrigerator is installed in a wet place, be sure to check if the earthed cord and the leakage breaker are working normally. If vibration noises occur due to contact of the refrigerator with the wall or if the wall turns black due to air convection around the compressor, keep the refrigerator further away from the wall. The installation of the refrigerator may cause noise interference or image problems in mobile phones, landline phones, radio receivers, or televisions near the device, so in this case, keep the refrigerator as far away from these objects as possible.

Changing the opening direction of the door

If desired, you can change the direction in which the door opens, from the right side (by default) to the left side.

Warning

• The refrigerator must not be connected to the power socket when you change the opening direction of the door. Make sure to disconnect the plug from the power socket.
• See figure 5 to check the tools you will need.
• It is advisable that two people change the opening direction of the door.
• If the appliance has been positioned upright or on its side during transport, it must be kept in an upright position for 6 hours before plugging in to prevent damage to internal components.

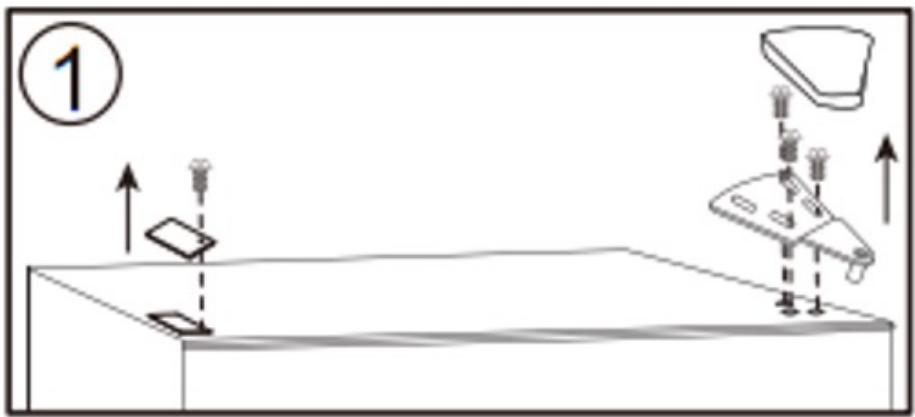

• Remove the screw hole cover on the top left-hand side of the device. Remove the top hinge cover and the top hinge from the upper right side of the appliance. Remove the refrigerator door (Figure 5).
• Remove the centre hinge on the right side of the appliance. Remove the screw hole covers

on the left side of the appliance. Remove the freezer door (Figure 6).

1. Remove the lower hinge from the bottom right of the appliance (Figure 7).
2. Remove the shaft pin from the right hole of the lower hinge, then insert the shaft pin into the left hole of the lower hinge (Figure 8).

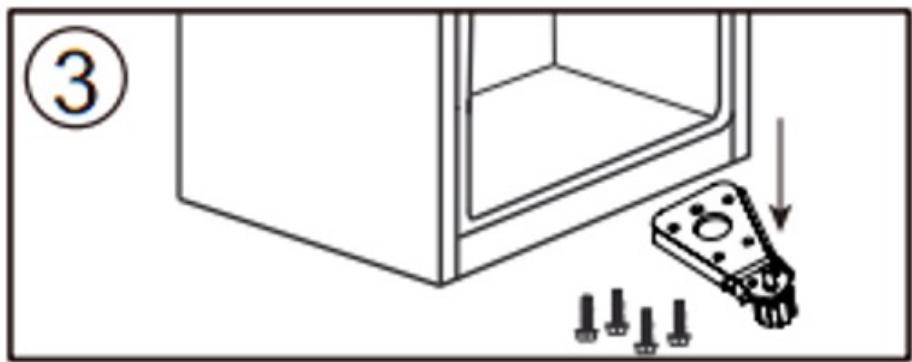

3. Install the lower hinge on the bottom left of the appliance (Figure 9).

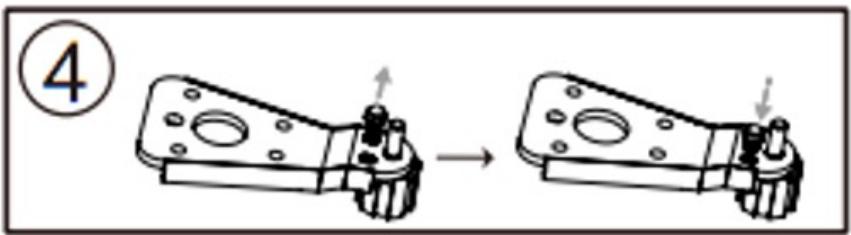

4. Remove the freezer door stop from the bottom right side of the freezer and place it on the left side of the door. Remove the refrigerator door stopper from the bottom right side and place it on the left side of the door (Figure 10).

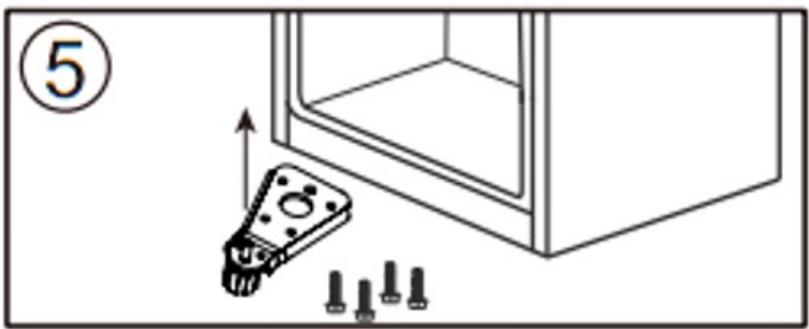

5. Move the door bushing from the upper right side of the refrigerator door and remove the hinge hole cover from the upper left side of the door. Exchange their positions (Figure 11).

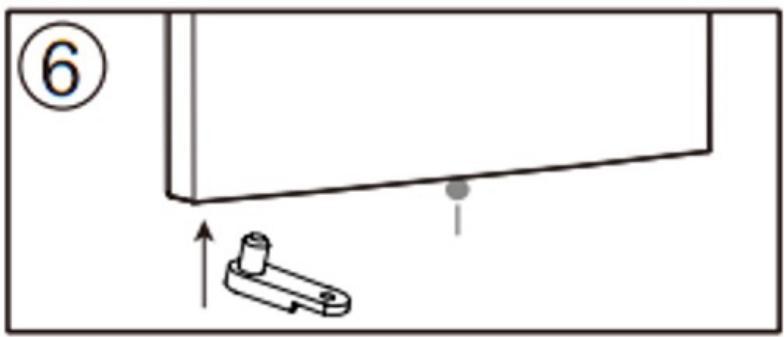

6. Install the freezer door on the appliance. Install the centre hinge on the left side of the appliance. Remove the screw hole covers from the right side of the appliance (Figure 12).
7. Install the refrigerator door on the appliance. Install the top hinge on the upper left side of the appliance. Install the screw hole covers on the upper right side of the appliance. (Fig. 13).

Note: these instructions refer to models that come from the factory with a right-hand hinged door. If your appliance comes with a left-hand opening, reverse the «left» and «right» in these instructions.

4. OPERATION

The display panel is located inside the refrigerator, at the top.

The temperature can be adjusted by pressing the key ‘≡’. Every time — is pressed, the indicator light of the current mode will switch off while the indicator light of the next mode will light up, and the mode setting will be confirmed if no icon is pressed within 5 seconds (otherwise the mode setting will be invalid). After the setting has been made, the temperature will be immediately controlled according to the mode setting.

Fig. 3

1. Fast Cooling function icon
2. Temperature level icons
3. Temperature level selection

The temperature mode cycle is as follows: "5→4→3→2→1→FAST COOL→5"

5	When you need a cooler temperature.
4
3	Normal use.
2	When you don't need a cooler temperature.
1

ENGLISH

• When the temperature mode remains unchanged, set the temperature control from left to right—the refrigerator temperature decreases while the freezer temperature increases.
• When the temperature mode remains unchanged, set the air regulator from right to left—the refrigerator temperature increases while the freezer temperature decreases.
• It is recommended that the air regulator be set to the middle position. When you need a lower temperature in the freezer compartment, correctly set the air regulator to the left—the temperature in the freezer compartment decreases while the temperature in the refrigerator compartment increases. When the temperature meets the requirements, set the air regulator back to the middle position.

The refrigerator thermostat and the temperature control must be used together.

Temperature settings
Ambient	Recommended mode setting on the display panel	Recommended air regulator position	Notes
Over 15 °C	Level 3	Fig. 4.1	1) It is recommended to set medium mode.2) The temperature modes can be adjusted as recommended in the table on the left in case ambient temperature around the refrigerator changes.
16°C-15 °C	Level 3	Fig. 4.2
Under 16 °C	Level 3	Fig. 4.3

Figure legend 4.1, 4.2, 4.3 and 4.4:

MIN: Minimum

MAX: Maximum

REFRIGERATOR: Refrigerator compartment

FREEZER: Freezer compartment

RECOMMEND TEMP. CONTROL: Recommended temperature control

• When room temperature around the refrigerator is over 15 °C, do not set the thermostat to Mode 5 and set the temperature control to the leftmost position, so as not to affect the normal cooling process of the refrigerator.
• Do not set the thermostat to mode 5 and set the air regulator to the rightmost position, to prevent the refrigerator compartment from cooling down below normal.
• If the refrigerator temperature is not cold or is low, set the thermostat to the medium mode and the air regulator to the middle position. In case the Fast Cool function is active, set the air regulator to the middle position.

Fast Cooling

• The Fast Cool function is useful to avoid losing food nutrients and preserve its freshness.
• After a cumulative operating period of 30 hours, the Fast Cool function will be automatically deactivated and the temperature mode will be reset to the one set before activating the Fast Cool function.

Function memory after power failure

In the event of a power failure, the refrigerator will save the functions set before the power failure and will activate them when the power is restored.

Delayed start after power failure

To prevent damage to the refrigerator compressor in the event of a short power failure (i.e. less than 5 minutes), the compressor will not start immediately after switch-on.

Open door alarm

If the door stays open for more than 3 minutes, the refrigerator will emit an alarm sound, which can be shut off by pressing any key, but will sound again if the door is still open 3 minutes later. The alarm sound will not stop until the door is closed.

Fault alarm

When Mode 5, Mode 3, or Mode 1 indicator light flashes continuously, it indicates a fault in the refrigerator. Contact the official Cecotec Technical Support Service.

5. FOOD STORAGE INSTRUCTIONS

Use precautions

• The refrigerator may not operate consistently (there may be some defrosting of the contents or the temperature may become too hot in the freezer compartment) if placed in locations with a temperature outside of the temperature range for which it's designed for a long period of time.
• The internal temperature may be affected by factors such as the location of the refrigerator, room temperature, and door opening frequency, etc., and you should take these factors into account if you decide to use any temperature-control device.
• Effervescent or carbonated drinks should not be stored in the freezer compartment or drawer of the refrigerator.

Food location

• Due to the circulation of cold air in the refrigerator, the temperature in each zone is different, so food must be placed in different zones.
• The refrigerator compartment is suitable to store food that does not need to be frozen,

ENGLISH

cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc. The crisper box is the best place to store fruit and vegetables.

- The freezer compartment is suitable to store ice cream, frozen foods, and foods that need to be kept for a long time.

Using the refrigerator compartment (Crisper Box/Humidity Box)

• Shelves: To remove the shelves, first lift them up and then pull them out; to put them back, put them into their position before lowering them. (For the two-section shelf, push the first section towards the rear end and pull the second section out). Keep the rear edge of the shelf facing upwards to prevent food from coming into contact with the wall. When removing and fitting shelves, hold them firmly and handle them carefully to avoid damage.
• Crisper drawer: Pull out the crisper drawer to access the food. After using or cleaning the bottom shelf of the refrigerator (the drawer cover), put it back in place so that the internal temperature of the drawer is not affected.

Drawer humidity control\*

• The humidity regulator of the drawer is designed to preserve the humidity and freshness of the vegetables.
• If you slide the humidity regulator to the right, more gaps will be exposed and the drawer will have a lower humidity level.
• If you slide the humidity regulator to the left, less gaps will be exposed and the drawer will have a higher humidity level.
  *Availability depends on refrigerator model.

Using the ice cube tray

Place the ice cube tray in the upper part of the freezer compartment so that it freezes as quickly as possible.

Care for food storage

• Clean and dry food completely before storing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, leave a distance from the interior wall; do not place water-rich food too close to the inner wall of the refrigerator to prevent it from freezing on the interior wall.
• Food storage by category: place daily food items at the front of the shelf so that you can reduce the door opening time and avoid food spoilage due to expiry.
• Energy saving tips: let hot food cool down to room temperature before putting it in the refrigerator. Place frozen food in the refrigerator compartment to defrost it.

Storing fruits and vegetables

Please note that some types of fresh vegetables and fruits are sensitive to cold and therefore not suitable for storage in the refrigerator crisper box.

Using the freezer compartment

• The freezer-compartment temperature is kept at -18 °C, so it is advisable to store food that you wish to keep for a long period of time in the freezer compartment, always respecting the storage time indicated on the food packaging.
• The freezer-compartment drawers are suitable to store food which needs to be frozen. Large fish and meat should be cut into small pieces and placed in freezer bags before placing them in the freezer-compartment drawers.
• Let hot food cool down to room temperature before putting it in the freezer compartment.
• Do not place a glass container with liquid or sealed canned liquid in the freezer compartment to prevent them from exploding due to volume expansion after freezing the liquid.
• Divide food into small portions.
• Food should be packed or covered with suitable materials that are firm, tasteless, impermeable to air and water, non-toxic, and non-polluting to avoid cross-contamination and odour transfer.

6. CLEANING AND MAINTENANCE

If the refrigerator will not be used for a long period of time:

• Turn off the refrigerator and unplug it from the power supply.
• Remove all the food.
• Clean and dry the interior completely. To prevent mould or unpleasant odours, leave the door slightly open: lock it open or remove it if necessary.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• The unit must be kept out of the reach of children to prevent them from playing with it.
• Before cleaning, disconnect the power plug; do not connect or disconnect the power plug with your hands wet, as there is a risk of electric shock and injury. Do not spill water directly on the refrigerator to avoid rust, electrical leakage and accidents. Do not reach into the bottom of the refrigerator, as you may get scratched by the sharp metal corners.

Cleaning the interior and exterior

• Food residues in the refrigerator can cause undesired odours, so you should clean the refrigerator regularly. The refrigerator compartment should be cleaned once a month.
• Remove all shelves, the crisper box, etc., and clean them with a soft cloth or sponge dampened with warm water or neutral detergent.
• Clean the dust that accumulates on the rear panel and side plates of the refrigerator regularly.

ENGLISH

• After using detergent, make sure you rinse it with clean water, and then dry it with a cloth.
• Do not use bristle brushes, steel wire brushes, detergent, soap powder, alkaline detergent, benzine, petrol, acid, hot water, or other corrosive elements to clean the refrigerator surface, door gasket, plastic decorative parts, etc. to avoid damage.
• Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. After cleaning, fix the four corners of the door gasket and then gradually push it into the slot in the door.

Power failure or cooling system fault

• If you receive an early power failure warning :
• Activate the Fast Freeze function, so that food is completely frozen. Set the temperature back to the original setting when the power supply returns to normal.

Note:

It is advisable to run the refrigerator uninterruptedly once you start using it.

Defrosting

• This refrigerator includes an automatic defrost function, so there is no need to defrost it manually.
• Although your appliance defrosts automatically, over time, a layer of frost may form on the inside walls of the freezer compartment if the door is opened frequently or kept open too long. If frost build-up becomes excessive, choose a time when food storage levels are low and proceed as follows:
  1.- Disconnect the appliance from the mains.
• Remove all food items and internal accessories, leaving the doors open. Ventilate the room well to speed up the defrosting process.
  3.- After defrosting is complete, clean the freezer compartment as described above.
• Thoroughly dry the interior before replacing accessories and food items.

CAUTION! Do not use sharp objects to remove frost from the freezer compartment. Do not reconnect the appliance to the mains until the interior is completely dry.

Replacing the light bulb

- The refrigerator has a LED light with low consumption and a long shelf life. In the event of an anomaly, please contact the technical support service. Lights or other parts of the appliance may only be replaced by the manufacturer.

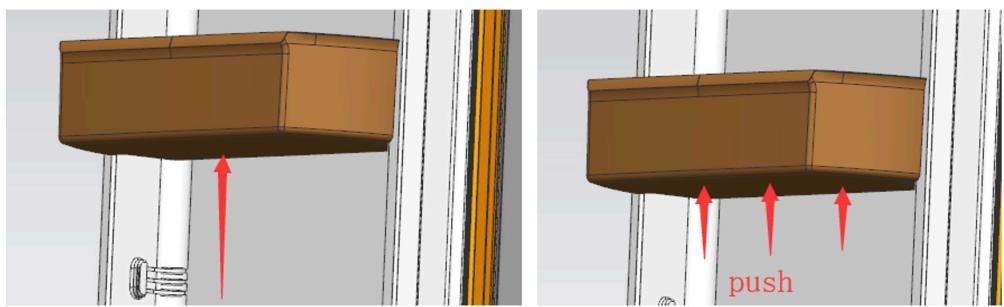

Removing the shelves

Hold the shelves with both hands and push them upwards.

Hold one end of the shelf and lift it up while pulling it out. (Fig. 14)

Water dispenser\*

*Available only in the following models:

EU01\_111274 Bolero CoolMarket Combi 322i WD Inox E

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

These refrigerator models are designed with a built-in water dispenser. The dispenser includes a 2.5-litre* water tank that requires filling. To use the water dispenser, follow the instructions below:

*Capacity may vary according to refrigerator model.

1. Open the refrigerator door.
2. Open the tank filling cap, slowly fill the tank with drinking water until full. Ensure the tank does not overflow (do not exceed the Maximum line). Close the cap (Figure 15).

Fig. 15 key:

1. Tank filling cap
2. Tank cover
3. Water tank
4. Close (turn clockwise)

5. Open (turn anticlockwise)

6. Once the water tank is filled, wait a few hours for the water to cool. To dispense water, push a glass against the dispenser lever (Figure 16).

Fig. 16 key:

1.- Water dispenser
2.- Dispenser lever

NOTE: Water may drip from the bottom of the dispenser during use. Please wipe with a dry cloth when necessary.

NOTE: Fill tank with drinking water only.

NOTE: For hygiene purposes, clean the tank before first use. You may fill with water and discard initially for cleaning purposes.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Fault	Possible causes	Possible solutions
The refrigerator does not work	The refrigerator is not connected to the mains.The circuit breakers or fuses are damaged.There is no power or the fuse trips.	Plug the refrigerator into the mains.Open the door and check the light is on.
Abnormal noise	The refrigerator is not stable.The refrigerator is in contact with the wall.	Set the adjustable feet of the refrigerator.Separate the refrigerator from the wall.
Low cooling efficiency.	The food inside is hot or there is too much food.You open the door too often.The door gasket has objects that do not allow to close it completely.The refrigerator receives direct sunlight or is close to a heat source.The refrigerator is not well ventilated.The selected temperature is too high.	Store food in the refrigerator when at room temperature.Check and close the door.Remove the refrigerator from the heat source.Keep the recommended distances in the installation section so the refrigerator is well ventilated.Set a suitable temperature.
Unpleasant smells in the refrigerator.	There is spoiled food inside.The refrigerator is dirty.Food with a strong odour stored inside the refrigerator.	Dispose of food which is spoiled.Clean the refrigerator.Pack food, especially if it has a strong smell.
The LED light flashes.	The door has been open for more than 10 minutes.	Close the refrigerator door, open it again within 2 seconds, checking if the LED light is working normally.

Note: If none of these situations match your problem, do not attempt to disassemble or repair the device by yourself. Repairs carried out by unqualified people may result in injury or serious malfunctions. Please contact the local store where you made your purchase. Repairs must be carried out by an authorised technician using only original spare parts.

When the appliance is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

These instructions are intended for qualified technicians, do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by an incorrect repair will void the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

NOTE:

• Certain sounds during normal operation are expected and do not affect proper operation.
• Avoidable sounds:

Noise from unlevelled appliance: adjust position using front adjustable feet (not available on all models).
Noise from contact with adjacent furniture or cabinet: move appliance away.
➢ Creaking from drawers or shelves: remove and reinsert.
➢ Clinking bottle sounds: separate bottles.

• Normal operating sounds are primarily due to compressor operation (start-up) and the cooling system (thermal expansion and contraction caused by refrigerant flow).
• When operating the appliance for the first time, it will run at high speed to cool quickly and the compressor noise may seem louder. When the internal temperature drops below a certain level, the noise will decrease.
• Normal sounds will occur when the compressor starts up or shuts down, when various components expand or contract, when control devices are operating, when temperature changes occur within the refrigerator.
• During operation, the compressor's external temperature exceeds 80°C. Do not touch it, as this could cause serious injury.
• If room temperature is too high, compressor start-up time may be extended. This is a normal phenomenon.

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its useful life, you should remove the batteries/accumulators and take them to a collection point designated by local authorities. For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their

local authorities.

Compliance with the above guidelines will help to protect the environment.

ENGLISH

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Note :

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Hinweis:

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Nota:

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Opmerking:

7. PROBLEEMOPLOSSING

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Uwaga:

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Poznámka:

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Not:

EU01\_119898 Bolero CoolMarket Combi 322i WD Inox D

Nota:

Fig./Img./Abb./Afb./Rys.1

Fig. 1

Fig. 2
Fig./Img./Abb./Afb./Rys.2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4.1

Fig./Img./Abb./Afb./Rys. 4.2

RECOMMEND TEMP.CONTROL

Fig./Img./Abb./Afb./Rys. 4.3

RECOMMEND TEMP.CONTROL
Fig./Img./Abb./Afb./Rys. 4.4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

Fig./Img./Abb./Afb./Rys. 14

Fig./Img./Abb./Afb./ Rys. 15

Fig./Img./Abb./Afb./Rys. 16

www.cecotec.es
