USER MANUAL BT150 JABRA

© 2005 GN Netcom A/S. All rights reserved. Jabra is a registered trademark, wholly owned by GN Netcom Inc., and MiniGels is a trademark of GN Netcom Inc. in the USA, and these trademarks may be registered in other countries. US and foreign patents pending. Design and specifications subject to change without notice. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by the companies in the GN Netcom Group is under license.

www.jabra.com

C∈

RELEASE YOUR JABRA

Jabra

Bluetooth® Headset

User Manual

Jabra

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 5

English 1

Francais 11

Espanol 22

English

Thank you. 2

Getting started 3

1. Charge your headset.. 3
2. Turn on your headset 4
3. Pair it with your phone 4
4. Wear it how you like it 4
5. How to.... 5
6. What the lights mean. 5
7. Using a Jabra Bluetooth adapter 6
8. Troubleshooting & FAQ 6
9. Need more help? 7
10. Taking care of your headset 7
11. Warranty 8
12. Certification and safety approvals 9
13. Glossary 10

Thank you

Thank you for purchasing the Jabra BT150 Bluetooth® Headset. We hope you enjoy it!

This instruction manual will get you started and ready to make the most of your headset.

! Remember, driving comes first, not the call!

Using a mobile phone while driving can distract you and increase the likelihood of an accident. If driving conditions demand it (such as bad weather, high traffic density, presence of children in the car, difficult road conditions), pull off the road and park before making or answering calls. Also, try to keep conversations short and do not make notes or read documents.

Always drive safely and follow local laws.

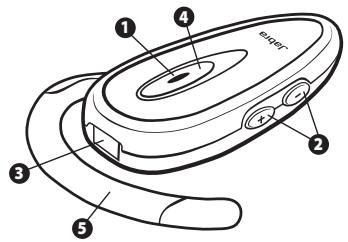

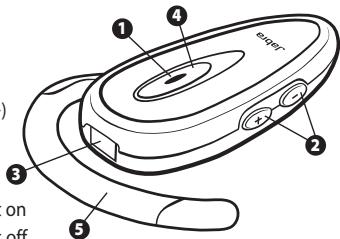

About your Jabra BT150

1 LED light

Blue indicates mode

(pairing, active or standby)

and battery charging

Red indicates low battery level

2 Volume up (+), volume down (-)
3 Charging socket
4 Answer/end button

Press and hold to turn headset on

Press and hold to turn headset off

Tap to answer or end a call

Press this, and press volume up (+) button at same time, to put

headset in pairing mode

5 Earhook - gently flip and rotate 180^ to fit left ear. (See fig. 2)

What your headset can do

Your Jabra BT150 lets you do all this:

• Answer calls

Voice dialing (phone dependent)

End calls

• Last number redialing

• Reject calls (phone dependent)

Specifications:

• Talk time/standby time up to 6 hours talk time (subject to phone), 110 hours standby
• Rechargeable battery with charging option from AC power supply or car charger (not included)
  Weight 16 g
• Operating range up to 33 feet / 10 m
• Headset and hands-free Bluetooth profiles
• Bluetooth ^1 specification (see glossary) version 1.2

Getting started

The Jabra BT150 is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it.

Instruction:	Duration of press:
Tap	Press briefly
Press	Approx: 1 second
Press and hold	Approx: 5 seconds

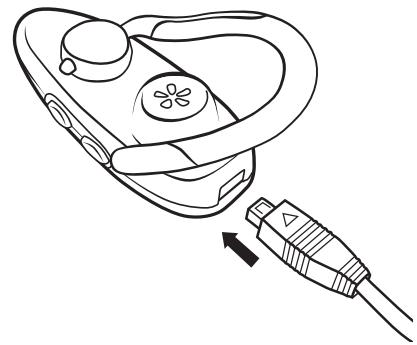

1 Charge your headset

Make sure that your Jabra BT150 headset is fully charged for two hours before you start using it. Use the AC adapter to charge from a power socket. Connect your headset as shown in fig. 3. When the LED is solid blue, your headset is charging. When the solid blue LED turns off, it is fully charged.

2 Turn on your headset

• Press and hold the answer/end button to turn on your headset.
• Press and hold the answer/end button to turn off your headset.

3 Pair it with your phone

Before you use your Jabra BT150, you need to pair it with your mobile phone.

1. Put the headset in pairing ^2 mode

Make sure that the headset is on.

Press the answer/end button and press the volume up (+) button at the same time, until a solid blue light comes on.

1. Set your Bluetooth phone to 'discover' the Jabra BT150

Follow your phone's instruction guide. This usually involves going to a 'setup,' 'connect' or 'Bluetooth' menu on your phone and selecting the option to 'discover' or 'add' a Bluetooth device.* (See example from a typical mobile phone in fig. 4)

1. Your phone will find the Jabra BT150

Your phone then asks if you want to pair with it. Accept by pressing 'Yes' or 'OK' on the phone and confirm with the passkey or PIN³ = 0000 (4 zeros).

Your phone will confirm when pairing is complete. In case of unsuccessful pairing, repeat steps 1 to 3.

4 Wear it how you like it

The Jabra BT150 is ready to wear on your right ear. If you prefer the left, gently flip and rotate the earhook 180^ . (See fig. 2)

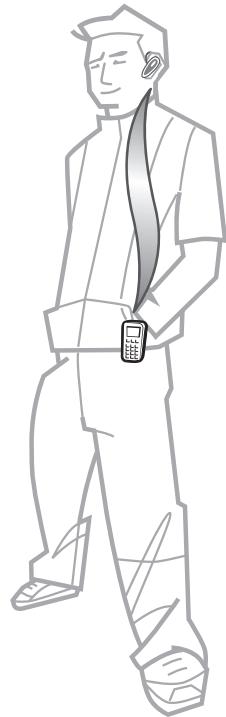

For optimal performance, wear the Jabra BT150 and your mobile phone on the same side of your body or within line of sight. In general, you will get better performance when there are no obstructions between your headset and your mobile phone. (See fig. 5)

5 How to...

Answer a call

• Tap the answer/end button on your headset to answer a call

End a call

• Tap the answer/end button to end an active call

Reject a call (Dependent on your phone supporting this feature)

• Press the answer/end button when the phone rings to reject an incoming call. Depending on your phone settings, the person who called you will either be forwarded to your voice mail or hear a busy signal

Make a call

• When you make a call from your mobile phone, the call will (subject to phone settings) automatically transfer to your headset

Activate voice dialing (Dependent on your phone supporting this feature)

• Tap the answer/end button. For best results, record the voice-dialing tag through your headset. Please consult your phone's user manual for more information about using this feature

Redial last number (Dependent on your phone supporting this feature)

Press the answer/end button

Adjust sound and volume

• Press the volume up or down (+ or -) to adjust the volume (See fig. 1)

6 What the lights mean

What you see	What this means about your headset
Flashing blue light	Flashing every second: active on a call
Flashing blue light	Flashing every three seconds: in standby mode4
Flashing red light	Running low on battery
Solid blue light	Charging
Solid blue light off	Fully charged
Solid blue light	In pairing mode – (See section 3)

7 Using a Jabra Bluetooth adapter

If you want to use the Jabra BT150 with a non Bluetooth mobile phone, the Jabra A210 adapter is the answer.

It gives you a cordless connection with the following headset features:

answer/end call and voice dial function (if supported by the phone).

Rejecting a call and last number radial might not be supported through the headset jack in the mobile phone.

To pair the Jabra BT150 with the Jabra A210

The pairing process is a little different:

• Put your Jabra BT150 in pairing mode
• Put the Jabra A210 adapter in pairing mode
• Place them close together. You do not need a dedicated pin code to pair the two Jabra products. Consult the Jabra A210 user manual for more information

Making/answering a call when using the Jabra A210

• When you make a call from your mobile phone, the call will automatically transfer to the headset (if it is turned on)
• To answer a call: either tap the answer/end button on your headset or press the answer button on your mobile phone

8 Troubleshooting & FAQ

I hear crackling noises

For the best audio quality, always wear your headset on the same side of the body as your mobile phone.

I cannot hear anything in my headset

• Increase the volume on the headset
• Ensure that the headset is paired with the phone
• Make sure that the phone is connected to the headset – if it does not connect either from the phone's Bluetooth menu or by tapping the answer/end button, follow the pairing procedure (See section 3)

I have trouble pairing BT150 with my phone

1. You may have deleted your headset pairing in your mobile phone.

Follow the pairing instructions in section 3

1. You can pair your BT150 with up to four different phones or bluetooth devices. If your BT150 is connected to another phone or other bluetooth device, disconnect the BT150 from the previously used phone using the phone set up menu.
2. There is also the possibility that the BT150 is searching for a device to connect to. Wait 30 seconds and try again.
3. Check the phone screen to ensure that the BT150 is not awaiting a response from your mobile phone set up menu.

I cannot use Reject call, Call on hold, Redial or Voice dialing

These functions are dependent on your phone supporting them. Please check your phone's manual for further details.

Will the Jabra BT150 work with other Bluetooth equipment?

The Jabra BT150 is designed to work with Bluetooth mobile phones. It can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1 or 1.2 and support a headset and/or hands-free profile.

9 Need more help?

1. Web: www.jabra.com (for the latest support info and online User Manuals)
2. E-mail: Tech Support: [e-mail]
   Information: [e-mail]
3. Phone: [phone] (toll-free in USA and Canada)

10 | Taking care of your headset

1. Always store the Jabra BT150 with power off and safely protected.
2. Avoid storage at high temperatures (above 60^ / 134^ - such as in a hot vehicle or in direct sunlight. (Storage at high temperatures can degrade performance and reduce battery life).
3. Do not expose the headset or any of its supplied parts to rain or other liquids.

11 Warranty

Jabra limited product warranty. Jabra is a wholly owned trademark of GN Mobile (GN Netcom A/S). Jabra warrants to Purchaser that for a period of one (1) year after the date of purchase (the "Warranty Period") of any Jabra Product ("Product") by Purchaser, the Product will substantially conform to Jabra's published specifications for the Product on the date of Purchaser's purchase of the Product, subject to the terms herein. Purchaser shall notify Jabra of any nonconformance during the Warranty Period and obtain a written return material authorization ("RMA") and an RMA number for the nonconforming Product from Jabra and return the nonconforming Product to Jabra, freight prepaid, with a statement describing the nonconformity. Jabra's exclusive obligation with respect to nonconforming Product shall be, at Jabra's option and expense, to repair or replace such Product so that it substantially conforms with its published specifications on the date of Purchaser's purchase, or, if Jabra, in Jabra's sole discretion, determines that it is not possible to repair or replace the Product, Jabra may, at Jabra's option, refund to Purchaser the purchase price paid for the Product. THE FOREGOING IS PURCHASER'S SOLE AND EXCLUSIVE REMEDY FOR BREACH OF WARRANTY BY JABRA WITH RESPECT TO THE PRODUCT. The warranty set forth above shall not apply to any Product which has not been properly used or handled in accordance with the instructions supplied by Jabra, lost or misplaced for any reason, or which has been modified, repaired or altered, except by Jabra or at a Jabra authorized service facility, or which has been subjected to faulty installation, misuse, abuse, or which the Product defect is attributable to any failure or damage which is beyond the reasonable control of Jabra. This warranty is available only to Purchaser, and does not extend to any distributors, retailers, or other resellers of the Product. This warranty applies only to new Jabra products purchased from authorized retail sellers. This warranty does not apply to: "open box purchases", resales by private parties or any other third party purchases by unauthorized distributors. Transfer of Jabra products through any unauthorized distributor renders our manufacturer's warranty null and void. BUYER BEWARE: any Jabra product sold by a private party or unauthorized distributor and not by an authorized Jabra retail seller is sold on an "as is" or "with all faults" basis with respect to Jabra. As such, the entire risk as to the quality and performance of such products will be with the buyer if the unauthorized distributor will not cover the costs of repairing defects. Should such products prove defective following their purchase, the buyer or unauthorized distributor, and not the manufacturer or its authorized retail sellers, assumes the entire cost of all necessary servicing or repair. Therefore, buyers are strongly encouraged to purchase Jabra products only from Jabra authorized retail sellers. THE FOREGOING WARRANTY ARE THE SOLE WARRANTYES, EXPRESS OR IMPLIED, GIVEN BY JABRA IN CONNECTION WITH THE PRODUCT, AND JABRA DISCLAIMS ALL OTHER WARRANTYES, INCLUDING WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRAGEMENT OF THIRD PARTY RIGHTS. JABRA SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES IN CONNECTION WITH

THE PRODUCT, EVEN IF JABRA HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. THE LIABILITY OF JABRA HEREUNDER FOR ALL CLAIMS SHALL NOT EXCEED THE AMOUNT PAID BY PURCHASER TO JABRA FOR THE PRODUCT GIVING RISE TO JABRA'S LIABILITY.

12 Certification and safety approvals

FCC

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra will void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

The device and its antenna must not be co-loaded or operating in conjunction with any other antenna or transmitter.

Industry Canada

Operation is subject to the following two conditions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

The term "IC:" before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment.

CE

This product is CE marked according to the provisions of the R & TTE Directive (99/5/ EC)

Hereby, Jabra, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

For further information please consult http://www.jabra.com.

Bluetooth

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Jabra is under license. Other trademarks and trade names are those of their respective owners.

13 Glossary

1 Bluetooth: is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance (approx. 30 feet). Get more information at www/bluetooth.com Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support either the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone's software.
2 Pairing: creates a unique and encrypted link between two Bluetooth devices and lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired.
3 Passkey or PIN: is a code that you enter on your mobile phone to pair it with your Jabra BT150. This makes your phone and the Jabra BT150 recognize each other and automatically work together.
4 Standby mode: is when the Jabra BT150 is passively waiting for a call. When you 'end' a call on your mobile phone, the headset goes into standby mode.

Dispose of the product according to local standards and regulations.
