Energysilence Aero 4600 Arctic Whitewhite - Ceiling fan CECOTEC - Free user manual and instructions

Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 4600 Arctic Whitewhite
Color	Arctic white
Blade diameter	132 cm (52 inches)
Number of blades	5
Blade material	ABS plastic
Motor type	Silent direct current (DC) motor
Speeds	3 adjustable speeds
Reverse function	Summer/winter mode (reverse direction)
Remote control	Included, with speed and light control
Lighting	Integrated LED bulb (non-replaceable)
Maximum power	60 W
Power supply	220-240 V ~ 50/60 Hz
Maximum airflow	4600 m³/h
Noise level	≤ 35 dB (A)
Weight	6.5 kg
Dimensions (H × L × l)	45 × 132 × 132 cm
Protection rating	IP20
Timer function	Yes, stop timer (1/2/4 h)
Installation	Sloped ceiling up to 30° possible
Maintenance	Clean blades with a soft, dry cloth
Safety	Overheat protection
Spare parts	Remote control, mounting kit, blades (available separately)
Warranty	2 years

Frequently Asked Questions - Energysilence Aero 4600 Arctic Whitewhite CECOTEC

How to install the Energysilence Aero 4600 ceiling fan?

Follow the provided manual: attach the bracket to the ceiling, connect the cables according to the color codes, then mount the motor and blades. Make sure to turn off the power before installation.

The remote control is not working, what should I do?

Check the remote control batteries. If the problem persists, reset the receiver by turning off the fan's power for 10 seconds. The range is about 10 meters.

How to reverse the rotation direction (summer/winter mode)?

Use the reverse button on the remote control or the housing. In summer, the blades rotate counterclockwise to create a cooling breeze. In winter, clockwise to redistribute heat.

What is the power and airflow?

The DC motor consumes up to 60 W and generates a maximum airflow of 4600 m³/h. It offers 3 adjustable speeds for optimal comfort.

The fan makes noise when running, is this normal?

At full speed, the noise level is below 35 dB. If abnormal noises appear, check that the blades are well balanced and the screws are tight. A slight clicking may indicate play.

How to clean the fan?

Use a soft, dry cloth to dust the blades and motor. Avoid harsh chemicals. Unplug the device before any cleaning.

Can I install the fan on a sloped ceiling?

Yes, the fan supports an inclination of up to 30 degrees. If the slope is steeper, a sloped ceiling mounting kit may be needed.

The LED bulb no longer lights up, can I change it?

The lighting is an integrated non-replaceable LED module. If the light stops working, contact Cecotec support for a possible replacement part or warranty coverage.

Does the timer work with all speeds?

Yes, the timer (1/2/4 hours) can be activated independently of the selected speed. The fan will stop automatically after the chosen delay.

Where can I find spare parts?

Parts such as the remote control, mounting kit, or blades are available from the customer service, they are not supplied in the box. You can order via the Cecotec website or contact their support.

USER MANUAL Energysilence Aero 4600 Arctic Whitewhite CECOTEC

Safety instructions 9

1. Parts and components 73

2. Before use 73

3. Installation 74

4. Operation 76

5. Cleaning and maintenance 77

6. Technical specifications 78

7. Recycling of electrical and electronic equipment 79

8. Technical support and warranty 80

9. Copyright 80

10. Simplified EU Declaration of Conformity 80

SOMMARIE

EU01_127938_EnergySilence Aero 4600 Arctic White&Sand EU01_127939_EnergySilence Aero 4600 Arctic Steel&Sand EU01_127940_EnergySilence Aero 4600 Arctic Black&Chocolate EU01_127941_EnergySilence Aero 4600 Arctic Black&Black EU01_127942_EnergySilence Aero 4600 Arctic White&White

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Please read these instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• Keep a minimum distance of 2.3 cm between the fan blades and the floor.
• Keep a minimum distance of 76 cm between the fan blades and the wall or any other object.
• Make sure the appliance is unplugged from the power supply before cleaning or user maintenance.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.
• Do not use the appliance if its cable or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• The appliance must be installed in accordance with national wiring regulations.
• Never insert objects or body parts between the rotating fan blades.
• To reduce the risk of injury, attach the fan directly to

the support structure of the building as indicated in this manual and use only parts and components provided and recommended by Cecotec.

• Cut off the power completely before installing or repairing the fan to avoid the risk of electric shock.
• The electrical wiring must be in accordance with local regulations.
• The cable must be properly earthed to avoid possible accidents.
• The appliance must be installed in accordance with national wiring regulations.
• Never install the fan in a damp or wet room.
• Be careful when near the rotating fan blades.
• To adjust the speed of the fan blades, only use the means for speed control provided by Cecotec.
• Do not bend the blade-attachment system during the installation or cleaning process.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance works properly. Turn off and unplug the appliance before cleaning it.
• Make sure the fan is not placed close to curtains or other objects it may become entangled with.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) out of their reach.
• It is recommended that two people install the appliance.
• This appliance is designed for indoor use.

Instructions on batteries

- Battery ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the ingestion.

• In case of battery ingestion, please seek medical attention immediately.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or damage the batteries.
• Keep the batteries out of the reach of children. Pay particular attention to small batteries. In case of battery ingestion, please seek medical attention immediately.
• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit an element or a battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, rinse them immediately with clean water for at least 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Pay attention to the positive (+) and negative (-) marks on the batteries and the remote-control compartment to ensure they are inserted correctly.
• Do not use any batteries that are not designed for use with the appliance.
• Do not mix batteries of different manufacture, capacity, or size. Supervise children to prevent them from playing with batteries.
• Always buy recommended batteries.
• Keep the batteries clean and dry. Wipe the battery terminals

with a clean, dry cloth if they become dirty.

• Keep the original instruction manual for future reference.
• Whenever possible, remove the batteries when not in use.

1. Motor
2. Mounting bracket
3. Remote control + receiver
4. Blades
5. LED holder
6. LED
7. Lampshade
8. Blade locking screws
9. Expansion screws / wood screws / "connection" cable
10. Balancing kit

Tools required (not included)

• Phillips screwdriver
• Flat-head screwdriver
• Step ladder
• Wire cutter
• Electrical adhesive

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Product
• Remote control
• Instruction manual

ENGLISH

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

In figure 2, you can see the dimensions of the fan.

1. Before starting the installation of the fan, turn off the power supply at the main switchboard.
2. Positioning the Mounting Bracket (see figure 3)

A. Concrete ceiling: mark the four holes on the ceiling according to the pattern on the mounting bracket (2). Then drill in those positions and insert the corresponding anchors/fixings.
B. Wooden ceiling: attach the Mounting Bracket (2) to the ceiling following the hole pattern.

1. First pass the ceiling wires and the protective (ground) conductor through the center hole of the Mounting Bracket (2). Then install the Mounting Bracket (2) and connect the conductors to the indicated connection terminal (see figure 4).

2. Connection on Mounting Bracket (see figure 5)

3. Hang the Motor (1) from the hook of the Mounting Bracket (2).

4. Connect the Receiver cable (3), the ground conductor (green/yellow) and the recessed ceiling cable, respecting the conductor marking: brown L (phase), blue N (neutral) and ground. Keep identified the groups of wires marked in the figure as motor output and lower light source line.

5. Receiver housing (3) and preparation of the fastening (see figure 6)

6. Place the Receiver (3) in the free recess of the Mounting Bracket (2) and arrange the remaining cables, securing them with cable ties without clamping them.

7. Remove the four side screws from the mounting bracket (2). Keep them for the next step.

8. Attaching the Motor (1) to the Mounting Bracket (see figure 7)

9. Align the side holes of the Motor (1) with the side holes of the Mounting Bracket (2) and secure them with the screws removed in step 5 until they are tight, without forcing the assembly.

10. Blade assembly (see Figure 8)

11. Install each blade in position and loosely tighten the blade locking screws (8).

12. Mount the three blades and then tighten the screws of each blade gradually and crosswise until the blade assembly is complete.

13. Installation of the LED holder (5) and connection of the LED (6) (see figure 9)

14. Pass the light source cable through the hole in the LED holder (5).

15. Firmly secure the LED Bracket (5) to the Motor Assembly (1) as shown in Figure 9.

16. Connect the LED cable (6) to the corresponding equipment assembly (bottom light source line), ensuring a correct and stable connection.

17. Centre the LED (6) in relation to the LED holder (5) and fix it until it is firmly attached.

18. Lampshade assembly (7) (see Figure 10)
19. Align the clamp/socket of the lampshade (7) with that of the LED bracket (5).
20. Lift the lampshade (7) and turn it anticlockwise to secure it in place.
21. The installation is now complete.
22. Restore the power supply to the main switchboard and check the operation of the LED light (6).

Fig. 5 key:

A. Yellow-green earth wire
B. Brown wire L
C. Blue wire N
D. Motor output
E. Bottom light source line

Blade balancing adjustment (use of Balancing Kit (10))

(See Figure 11)

Important: perform the tests with the fan connected to the power, but any placement or removal of the Swing Kit (10) must always be done with the power off and the Blades (4) completely stopped.

1. Identify the blade to be improved

2. Set the fan to the highest speed to make the oscillation more noticeable. Observe the sway.

3. Disconnect the power supply and, on one of the blades (4), temporarily place the clip of the Balancing Kit (10) on the middle edge of the blade (approx. half of its length).

4. Comparison between blades

- Restore power and observe if the oscillation improves.

- Cut the feed again, remove the clip and place it on the next blade. Repeat the process until all the blades (4) have been compared and find out where the greatest improvement is obtained.

1. Searching for the optimum position on the selected blade

- On the blade that has shown the greatest improvement, conduct several tests by moving the clip to different positions along it (closer to the centre, towards the tip, etc.), until you find the point where vibration is minimal.

1. Final attachment of the counterweight

2. Taking the optimum position of the clip as a reference, remove the clip and attach the weight of the Balancing Kit (10) on the centreline of the blade, aligned with the previously found position.

3. Secure the counterweight firmly and check that it is properly attached and will not interfere with the lampshade (7) or any other component.

4. Final verification

- Reconnect power and test the fan at various speeds. If oscillation is still felt, repeat fine

ENGLISH

tuning by slightly moving the counterweight or adding/removing weight according to the contents of the Balance Kit (10) until stable operation is achieved.

Figure 11:

A. Weight
B. Clip

4. OPERATION

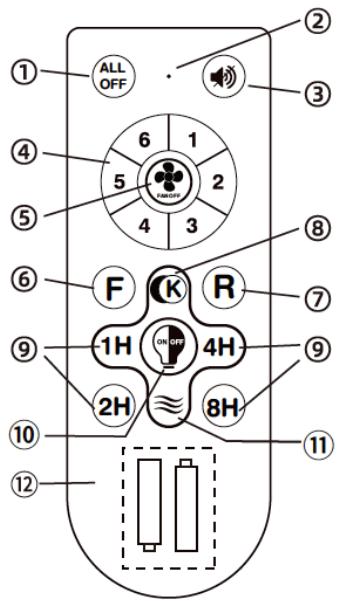

Remote control

Fig. 12.

1. Off button: this button allows you to turn off light and fan at the same time.
2. Remote control indicator light
3. Sound cancel button: press and hold for 3 seconds to remove the sound emitted when a button is pressed.
4. Speed control buttons: Speed selection 1-6.
5. Fan off button: this button turns off the fan.
6. Clockwise rotation button: when the fan rotates clockwise, summer mode is active.
7. Counterclockwise rotation button: when the fan rotates clockwise, winter mode is active.
8. 3CCT colour temperature switching: this button allows you to switch the light between the 3 available shades.
9. Timer buttons: these buttons allow you to program the automatic shutdown of the fan.
10. Light On/Off button
11. Breeze mode button.
12. The remote control includes two AAA 1.5 V batteries.

Receiver wiring diagram (3) Power supply inputs

Fig. 13

A. Power supply/live wire (L): phase.
B. Power supply neutral wire (N): neutral.
C. Grounds wire: ground/protection (PE).

Outputs:

D. To Motor wire: output to Motor (1).

E. For Light: output to the LED (6).

Others:

F. Antenna wire: receiver antenna wire.

Warnings:

1. In case of remote control problems, try replacing the batteries first.
2. If the remote control does not control the receiver, check the battery compartment

contacts, correct polarity (+/-) and battery charge status.

1. Remove the batteries if they are not going to be used for a long period of time to avoid degradation and leakage that may damage the controller.
2. Do not disassemble the controller to avoid damage to the internal electronics.

Reminders and pairing

• The Remote Control and Receiver are factory coded. If the remote does not control the receiver, check contacts, polarity and battery status. If it persists, perform the pairing again.
• Pairing: within 10 seconds after power is restored, press and hold the Fan Off Button for more than 3 seconds. If the buzzer sounds three times, the pairing has been successful.

Notes

1. During installation, the power supply must be switched off.
2. Do not disassemble the controller to avoid damaging the internal electronics.
3. If the remote control does not control the receiver, check for other similar remote-controlled products nearby. Devices on the same frequency may interfere with each other.
4. Low battery voltage reduces the sensitivity of the remote control. The indicator light (2) will flash as a warning. Replace the batteries if the voltage is low.
5. When installing the fan, the lampshade/ceiling cover must not press on the antenna cable (or other cables). It could damage the wiring and cause short circuits.

5. CLEANING AND MAINTENANCE

Before starting, turn off the power at the main switchboard and wait until the blades (4) come to a complete stop.

- Cleaning the exterior

• Motor (1) and mounting bracket (2): soft cloth, dry or slightly dampened with water and neutral soap. Dry afterwards.
• Blades (4): remove dust with microfiber. If there is dirt, use a slightly damp cloth and wipe dry. Do not bend or deform the blades.
  o Lampshade (7): disassemble it, clean with a damp cloth and mild soap. Dry thoroughly before reassembling.

- Light assembly

☐ LED (6) and LED holder (5): remove only accessible dust with a dry cloth. Do not wet or disassemble beyond what is described in this manual.

ENGLISH

- Periodic maintenance

Every 3-6 months: basic cleaning and tightness check of blade locking screws (8) and visible hardware.
- Check for pinched wires.
- If vibrations appear, use the Balancing Kit (10) as previously described.

- Remote control + receiver (3)

- Replace the AAA 1.5 V batteries when the range decreases. Remove them if it is not going to be used for an extended period.

- Never do

• Do not use solvents or abrasive cleaners.
  Do not apply direct water or spray cleaners on the Motor (1), connectors or the Receiver.
  Do not open the motor (1) or receiver, they do not contain any user-serviceable parts.

- After cleaning

- Restore power and test at low speed. If noises or vibrations are detected, stop the equipment and check tightening and balancing.

6. TECHNICAL SPECIFICATIONS

Product: EnergySilence Aero 4600 Arctic White&Sand / EnergySilence Aero 4600 Arctic Steel&Sand / EnergySilence Aero 4600 Arctic Black&Chocolate / EnergySilence Aero 4600 Arctic Black&Black / EnergySilence Aero 4600 Arctic White&White

Product reference: EU01_127938 / EU01_127939 / EU01_127940 / EU01_127941 / EU01_127942

Voltage: 220-240 V\~

Frequency: 50/60 Hz

Rated power: 38 W

LED power: 18 W LED

IP20

T

Description	Symbol	Value	Unit
Maximum fan airflow	F		m^3/min
Fan power consumption	P		W
Service value	SV		(m^3/min)/W
Power consumption on standby mode	P_SB		W
Fan sound power level	L_WA		dB (A)
Maximum air speed	C		m/sec
Seasonal electricity consumption	Q		kWh/a
Service value measurement standard	IEC 60879
Contact details for further information	Cecotec Innovaciones SL.Av. Reyes Católicos, 60, 46910Alfafar, Valencia (Spain)

The power consumption in "off" mode is X, X W, measured according to EN 50564:2011 guidelines and European regulations 1275/2008/EC and 801/2013/EC. This measurement is taken with the appliance connected to the mains without performing any function. The switch/knob of the appliance was set to the OFF position.

Technical specifications may change without prior notice to improve product quality. Made in China | Designed in Spain

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and

ENGLISH

electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Information regarding national packaging recycling systems and their marking can be found on our website.

Compliance with the above guidelines will help protect the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If you detect any problem with the product or have any queries, please contact Cecotec's Official Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Image 1

6. TEKNIK ÖZELLIKLER

Ürün: EnergySilence Aero 4600 Arctic White&Sand / EnergySilence Aero 4600 Arctic Steel&Sand / EnergySilence Aero 4600 Arctic Black&Chocolate / EnergySilence Aero 4600 Arctic Black&Black / EnergySilence Aero 4600 Arctic White&White

Ürün referansı: EU01_127938 / EU01_127939 / EU01_127940 / EU01_127941 / EU01_127942

Voltaj: 220-240 V\~

Frekans: 50/60 Hz

Nominal Güç: 38 W

LED Gücü: 18 W LED

IP20

T

es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys. 1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./Rys. 11

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

www.cecotec.es
