Product type	Built-in dishwasher
Brand	Cecotec
Model	Bolero Aguazero 6250 Full Bi
Capacity	14 place settings
Dimensions (W x H x D)	59.8 x 81.5 x 57.5 cm
Net weight	45 kg
Power supply	220-240 V ~ 50 Hz, 10 A
Energy class	A+
Energy consumption (standard cycle)	0.95 kWh
Water consumption (standard cycle)	10 L
Noise level	44 dB(A) re 1 pW
Number of programs	6
Programs	Eco, Automatic, Intensive, Quick, Glass, Pre-wash
Additional functions	Delayed start (3-6-9 h), Anti-leak safety, Half-load
Interior material	Stainless steel
Installation type	Built-in / Free-standing
Repairability index	8.5 / 10
Spare parts available	Yes (basket, arms, filters, etc.)
Warranty	2 years
Color	White / Stainless steel (depending on version)

Frequently Asked Questions - Bolero Aguazero 6250 Full Bi CECOTEC

How to install the Cecotec Bolero Aguazero 6250 dishwasher?

Installation must be carried out by a qualified professional. Make sure the appliance is level and that the water connections (inlet and drain) are correct. Plug the power cord into a grounded outlet. Consult the manual for the built-in diagram.

What to do if the dishwasher does not start?

Check that the door is properly closed, that a program is selected, and that power is supplied. If the problem persists, consult the error code displayed and the troubleshooting table in the manual.

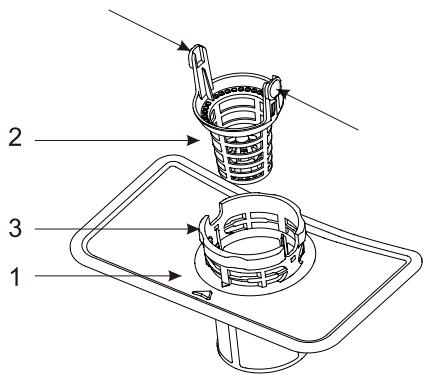

How to clean the dishwasher filter?

The filter is located at the bottom of the tub. Turn it counterclockwise to remove it, rinse under running water, and replace. Clean it at least once a month to prevent clogs.

How to use the rinse salt?

Open the cap of the salt reservoir (located under the lower basket), pour the salt using a funnel until the reservoir is full, then close. Use specific dishwasher salt. The salt indicator will turn off after a few cycles.

How to adjust the rinse aid?

The rinse aid dispenser is usually adjustable from 1 to 6. Open the lid of the rinse aid compartment and turn the dial. A higher setting increases the dosage. Start at 4 and adjust according to results.

Which program to choose for very dirty dishes?

Use the Intensive (or Automatic) program. This program heats the water to a high temperature (65-70 °C) and extends the cycle to remove stubborn residues. Do not overload the dishwasher.

How to activate the delayed start?

Press the Delayed start button until the display shows the desired time (3h, 6h or 9h). Close the door and the cycle will start automatically at the set time.

Why is the dishes not dry at the end of the cycle?

Make sure the rinse aid is sufficient and the dosage is correct. Use a program with drying. Also check that the filter is clean and that the dishwasher is not overloaded.

Which detergent to use?

Use a powder, gel, or tablet detergent suitable for dishwashers. Follow the recommended doses. For better performance, we recommend all-in-one tablets with integrated salt and rinse aid.

How to maintain my Cecotec dishwasher?

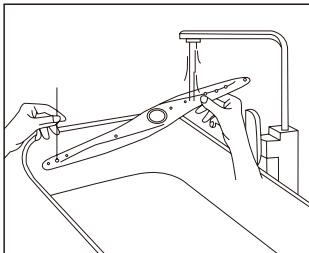

Regularly clean the filter, spray arms, and door seal. Use a dishwasher cleaner once a month. Leave the door slightly open after each cycle to prevent odors. Descale periodically with white vinegar or a descaling product.

USER MANUAL Bolero Aguazero 6250 Full Bi CECOTEC

Safety instructions 8

1. Parts and components 66

2. Before use 66

3. Installation 66

4. Operation 69

5. Cleaning and maintenance 77

6. Troubleshooting 80

7. Recycling of electrical and

electronic equipment 84

1. Copyright 84

2. Simplified EU Declaration of Conformity 85

SOMMAIRE

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• Read these instructions carefully before assembling or using the appliance. These instructions contain important information that will help you get the best out of your equipment. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• Warning: Knives and other utensils with sharp points should be loaded in the basket with the points facing downwards or placed in a horizontal position.
• The maximum number of cutlery to be washed is 14.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Check the power cable regularly for visible damage. If the power cord is damaged, it must be replaced by Cecotec's Official Technical Support Service or similar qualified personnel to avoid risks.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children must not play with the appliance.
• Cleaning and user maintenance must not be carried out by children without supervision.
• After using the dishwasher, there may be remains in the

interior. Keep children away from the appliance when it is open.

- WARNING: check the dishwasher and package are not damaged. Never use the dishwasher if it is damaged, contact the official Cecotec Technical Support Service immediately.

- Packaging material may be dangerous to children. Remove it and place it out of their reach.

- Choose a suitable and safe place to install the dishwasher.

- Never use an extension cord or a multi-socket connection.

- The socket must be accessible after the dishwasher installation.

- After the installation, the first time you run the dishwasher, do it while it is empty.

- Always use the plug provided with the dishwasher. Do not modify the plug provided with the appliance if it does not match the power socket.

- Do not operate the appliance if its cable, plug, or structure show visible damage, do not operate properly, or have been dropped.

- In case of malfunctioning, repairs must be carried out by the official Cecotec Technical Support Service; otherwise, the warranty will be void. Before repairing the dishwasher, you must disconnect it from the power supply and close the stopcock.

- To unplug the dishwasher, pull from the socket, never from the cord.

- During use, the dishwasher uses less energy and water than washing dishes by hand, provided that the household dishwasher is used according to these instructions.

- Do not misuse it, do not stand, sit or place any heavy object on the door or baskets of the dishwasher.

- Do not use the dishwasher if all interior elements are not correctly placed.

• Only use detergents and rinse aids specific for dishwashers.
• Some dishwasher detergents are very alkaline. They may be extremely dangerous if you ingest them. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
• Due to the danger of explosion, do not place chemical solvents in the interior of the machine.
• Do not place tableware which is not dishwasher safe in the appliance.
• Do not fill the baskets over their capacity.
• Cecotec shall not be held liable for any deformation that may occur inside the dishwasher due to misuse.
• Do not open the door while the dishwasher is running, as it could spill hot water.
• Do not leave the door open, as it could cause accidents.
• To avoid electric shock, do not disconnect the dishwasher with your hands wet.
• Cecotec shall not be held liable for any damage, accident, or incident resulting from the misuse of this dishwasher. It is the user's responsibility to operate and maintain the dishwasher according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in personal injury, property damage, or loss of product warranty.

INSTRUCTIONS DE SÉCURITÉ

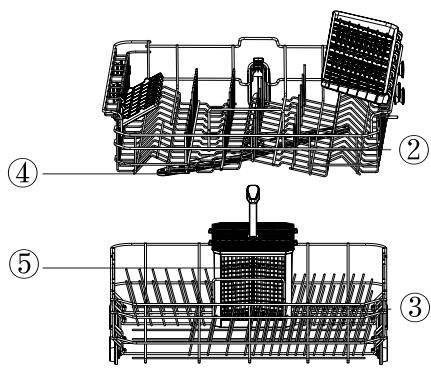

1. Detergent dispenser
2. Upper basket
3. Lower basket
4. Upper spray arm
5. Cutlery basket
6. Lower spray arm
7. Salt tank

Note:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Dishwasher
• Lower basket
• Upper basket
• Cutlery basket
• Drain hose
• Salt funnel
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Tips:

- Each dishwasher has undergone thorough quality control testing before leaving the factory to ensure reliability.

• Water drops or water marks may be present in your new dishwasher as a result of quality control testing.
• The cutlery basket should be placed in the lower rack. For optimal performance, it is recommended to position it along the centre.
• All packaging materials must be removed from both the exterior and interior of the dishwasher before installation.

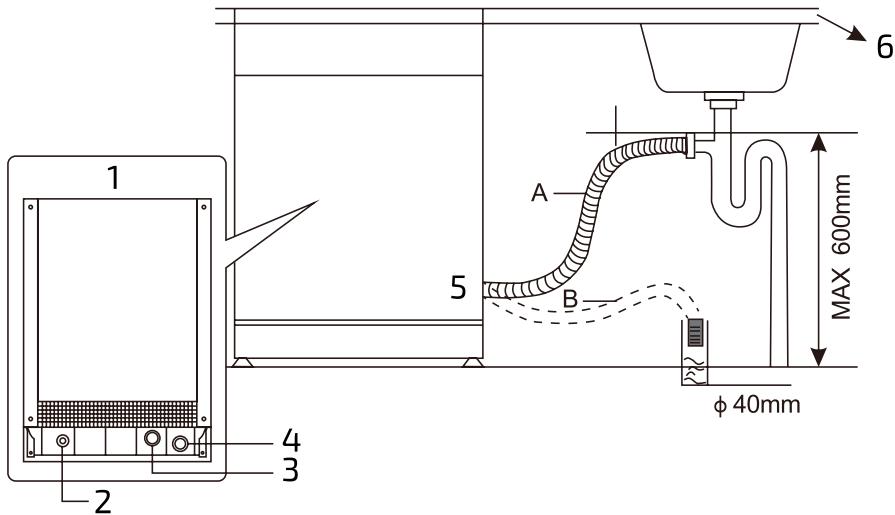

Drain hose connection

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crushing it. The drain pipe height must not exceed 600 mm. The free end of the hose must not be immersed in water to prevent backflow.

Ensure the drain hose is securely fixed in either position A or position B. Fig. 2

Figure 2 key

1. Dishwasher rear
2. Power cord
3. Drain pipe
4. Water inlet
5. Drain hose
6. Worktop

How to drain excess water from hoses

If the drain pipe connection is positioned higher than 600 mm, excess water may remain in the drain hose. It will be necessary to drain excess water from the hose into a suitable container positioned outside and lower than the sink.

Water outlet

Connect the water drain hose. The hose must be properly fitted to prevent water leakage. Ensure it is neither bent nor compressed.

Extension hose

Should a drain-hose extension be required, ensure you use a similar hose. It must not exceed 4 metres; otherwise, the cleaning effectiveness of the dishwasher may be reduced.

Siphon connection

The drainage connection must be at a height less than 600 mm (maximum) from the base of the dishwasher.

Positioning the appliance

Position the appliance in the desired location. The rear must rest against the wall behind it, and

ENGLISH

the sides should be positioned next to adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned on the right or left side to facilitate proper installation.

Warning!

• Place the dishwasher on a firm, flat floor.
• Do not install the dishwasher on an elevated surface.

Dishwasher front panel installation

This section details the steps for installing a decorative front panel on your built-in dishwasher. A template with measurements and illustrations for drilling installation holes is supplied with the dishwasher. Use this template to mark and drill holes before panel installation.

Tools required

• 2 mm diameter drill bit
• Torx screwdriver bit (T15)
• Phillips screwdriver bit

Installation procedure

1. Mark the centre line on the wooden furniture panel.
2. Draw a line directly above the arrow (along its upper edge). If the arrow already touches the top edge, skip this step.
3. Cut along the newly marked line.
4. Align the top edges of the paper template and wooden panel, matching their centre lines.
5. Smooth the paper template and secure firmly with adhesive tape.
6. Drill a hole approximately 15 mm deep using the 2 mm drill bit into the wooden furniture panel.

NOTE: Do not drill through the entire thickness of the wooden panel.

1. Drill a total of 12 holes in the wooden furniture panel following the marks on the template. Ensure you do not drill through the entire panel thickness.
2. Secure two ST420 screws in the marked positions to fasten the components. Use four 412 screws to complete fixation in the designated areas.
3. Remove the six screws located around the perimeter of the dishwasher compartment to proceed with disassembly.
4. First align the panel's upper frame with the dishwasher frame. Then slide the panel downwards until it clicks into place correctly.
5. Install the six screws in the corresponding holes to secure the dishwasher's lower panel. Ensure they are properly tightened for stability.
6. Adjust the front screws to balance the dishwasher door. This will ensure proper and even closure.

4. OPERATION

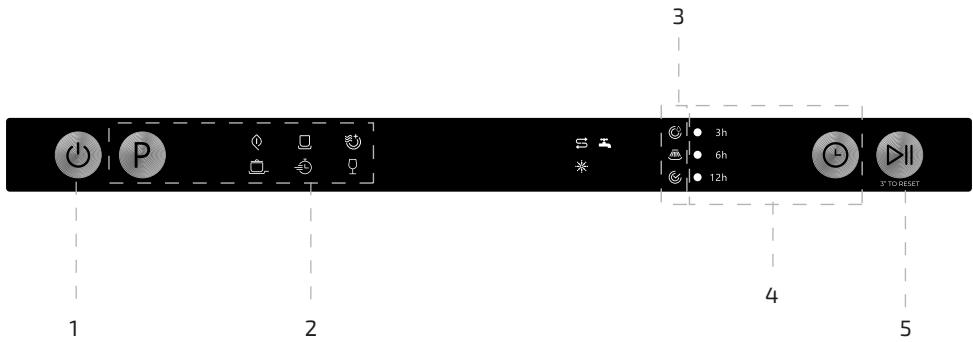

Control panel

Fig. 3

1. Power touch icon
2. Programmes
3. Washing cycle indicator lights
4. Timer touch icon
5. Start/Pause touch icon

Touch icon operation

Touch icon	Description
Power	Press this icon to switch on the dishwasher.
Programme	Press this icon to select the appropriate washing programme; the programme indicator will illuminate.
Timer	Press the icon to set the timer.
Child Lock	Delays the start of the cycle by 3h/6h/12h. Press the Timer touch icon to change the delay time, then press the Start/Pause touch icon.Note: To change the delay time once the dishwasher has started, press the Power touch icon and restart the dishwasher.
Start/Pause	To start a programme, press this icon before closing the door.*Reset: Press and hold for 3 seconds to cancel the current programme and drain the appliance, then select the new required programme.

Indicator lights

Programme	ECO: Ecological mode, saves energy and water, suitable for general cleaning needs.Daily: Daily cleaning mode, suitable for moderately soiled dishes.Quick: Suitable for cleaning fresh, slightly sticky food residues at maximum speed.Intensive: Powerful cleaning mode, suitable for dishes, pots and pans with stubborn stains.Hygiene: Suitable for heavily soiled dishes requiring hygienic washing.Glassware: Suitable for washing delicate glassware.
Wash cycle indicator light	Start/Wash: The indicator flashes while the programme is in the washing cycle.Rinse: The indicator flashes while the programme is in the rinse cycle.End: After programme completion, the indicator illuminates for three minutes.
Warning indicator light	Rinse aid: If the indicator light is lit, it means the dishwasher is low on rinse aid and requires refilling.Salt: If the indicator light is lit, it means the dishwasher is low on salt and requires refilling.Water inlet: If the indicator light is lit, it means that the water inlet is closed or blocked.Child lock: If the indicator light is lit, it means that the water inlet is closed or blocked.

Initial setup

1. Adjust the water softener level according to your area's water hardness.
2. Add 500 g of salt to the salt compartment, then fill with water to the compartment's brim.
3. Refill the rinse aid dispenser.
4. Fill with detergent.

A. Water softener (Water hardness level setting)

The dishwasher is designed to allow adjustment of salt consumption based on the hardness of the water used. This is intended to optimise salt consumption.

To adjust salt consumption, proceed as follows:

1. Switch on the appliance.
2. Within 60 seconds of switching on, press and hold the Start/Pause touch icon for 5 seconds while the machine is in standby mode. This will activate the adjustment mode, and all wash cycle lights will flash three times before returning to the default softener level.
3. Press the Start/Pause touch icon to select the appropriate level for your local environment. Settings will change in the following sequence:

$$ \mathrm{H} 1 \rightarrow \mathrm{H} 2 \rightarrow \mathrm{H} 3 \rightarrow \mathrm{H} 4 \rightarrow \mathrm{H} 5 \rightarrow \mathrm{H} 6 $$

1. Finally, switch off the machine to save the settings.

It is recommended that adjustments be made according to the following table.

*Factory setting is H3.

Setting	Water hardness			Indicators when setting the water hardness	Salt consumption (g/cycle)
	dH	dF	dE
H1	0 - 5	0 - 9	0 - 6	^ H1	0
H2	6 - 11	10 - 20	7 - 14	^ ,	20
H3 (Default)	12 - 17	21 - 30	15 - 21	^[S4CD] +	30
H4	18 - 22	31 - 40	22 - 28	^	40
H5	23 - 34	41 - 60	29 - 42	^ +	50
H6	35 - 55	61 - 98	43 - 69	^[BH4X] +	60

Contact your local water supplier for information about your water supply hardness.

ENGLISH

B. Loading salt into the water softener

Water hardness varies from location to location. If hard water is used in the dishwasher, deposits will form on dishes and utensils. The appliance is equipped with a special water softener that uses salts specifically designed to remove lime and minerals from the water.

Always use salt intended for dishwasher use. The salt compartment is located beneath the lower basket and should be filled as follows:

Instruction manual

Fig. 4.

A. Remove the lower basket, then unscrew and remove the salt compartment cap.
B. Place the end of the funnel (supplied) into the hole and introduce approximately 500 g of salt. It is normal for a small amount of water to come out of the salt compartment.
C. For first-time filling, completely fill the compartment with water (approximately 700 ml).
D. Carefully screw the cap back on.
E. Typically, the salt warning light will switch off after the salt compartment has been filled.

Warning!

• Only use salt specifically designed for dishwasher use. Any other type of salt, especially table salt, will damage the water softener. In case of damage caused by the use of unsuitable salt, Cecotec offers no warranty nor accepts responsibility for any damage caused.
• Only fill with salt just before starting one of the complete washing programmes. This will prevent any grains of salt or salt water that may have been spilled from remaining on the machine's bottom for any extended period, which could cause corrosion.

NOTE:

• The salt tank must be refilled when the salt warning light illuminates on the control panel. Even when the tank is filled, the indicator light may remain lit until the salt has fully dissolved.
• For models without a salt warning light on the control panel, you can estimate when to refill the water softener salt based on the number of completed washing cycles.
• Take care not to overfill the salt tank and ensure any spillage is cleaned up.

C. Detergent usage

All dishwasher cycles require detergent in the corresponding compartment. Add the correct amount of detergent for the selected cycle to ensure optimal performance.

Only use detergents specifically designed for dishwashers. Keep detergent fresh and dry.

Do not put powder detergent into the dispenser until you are ready to wash dishes.

⚠️ Never use soap, laundry detergent or hand washing-up liquid in your dishwasher.
Do not ingest dishwasher detergent. Avoid inhaling the vapours. Dishwasher detergent contains irritants and caustic chemicals that can cause respiratory problems. If dishwasher detergent has been ingested or vapours inhaled, seek medical attention immediately.
⚠️ Keep dishwasher detergent out of children’s reach.

Filling the detergent dispenser

Fig. 5

1. Open the detergent compartment by pressing the button.
2. Add the recommended amount of detergent to the main wash compartment. The main compartment has lines for measuring specific amounts of detergent, marked at 15 ml or 25 ml, according to dish soil level. If your dishes require intensive washing, add 5 ml of detergent to the pre-wash section of the compartment.
3. Close the detergent compartment by sliding the lid in the direction of the arrow.

NOTE:

Please follow the manufacturer's recommendations on the detergent packaging.

D. Rinse aid usage

Fig. 6

Filling the rinse aid dispenser helps ensure better washing quality and improved drying performance.

• To fill the rinse aid compartment, open the compartment lid.
• Fill the compartment with rinse aid to the MAX level, then close the lid. Take care not to overfill the compartment and ensure any spillage is wiped clean.
• Close the lid to lock the rinse aid compartment.
• Rinse aid is automatically added during the final rinse, ensuring thorough rinsing and streak-free drying.

Warning!

Use only branded rinse aid for dishwashers. Never fill the rinse aid dispenser with any other substances (e.g., dishwasher cleaning agent, liquid detergent). This could damage the tool.

To change the rinse aid level, follow these steps before switching on the machine:

1. Touch the power touch icon to activate the dishwasher.
2. Within 60 seconds after switching on the appliance, touch the Timer touch icon for 5 seconds while the machine is in standby mode to enter setting mode. All wash cycle lights will flash three times, then change to the default rinse aid level. The factory setting is R3.

ENGLISH

1. To adjust the rinse aid level, press the Timer touch icon, and with each press, the level will change in the sequence:

$$ " R 1 \rightarrow R 2 \rightarrow R 3 \rightarrow R 4 \rightarrow R 5". $$

1. After selecting the appropriate level, press the Power touch icon to save the settings.

Indicators during rinse aid level setting
R1	R3	R5 +
R2	R4

Turning the buzzer sound on and off

By default, the buzzer sound is activated.

1. Switch on the appliance.
2. Press the Programme and Start touch icons simultaneously for 3 seconds; the buzzer sound will be deactivated, and the interior lamp will not illuminate when opening the door.
3. Press the Programme and Start touch icons simultaneously again for 3 seconds to activate the buzzer sound.

Note: This function can only be configured in standby mode. After switching off and reconnecting the appliance, the buzzer sound will be activated by default.

Loading the dishwasher baskets

To achieve the best performance from your dishwasher, follow these loading guidelines.

Warning!

Items not suitable for dishwasher cleaning:

1. Temperature-sensitive plastic items, copper and tin-coated items, aluminium and silver cutlery.
2. Delicate glassware, hand-painted decorative porcelain; items with crystal elements, etc.
3. Items with absorbent properties (sponges, household cloths).

Caution before or after loading the dishwasher baskets

• Remove any large food remnants.
• It is not necessary to rinse dishes under running water.
• For dishes or utensils with baked-on, burnt-on or stubborn food particles that are difficult to remove, soaking before washing is recommended.

• Place items in the dishwasher in the following order:

• Items such as cups, glasses, pots/pans, etc. should be placed upside down.

• Curved items or those with recesses should be loaded at an angle so water can drain.

• All items must be stacked securely and cannot tip over.

• They must not prevent the spray arms from rotating during washing.

• Place cutlery, chopsticks and small items in the cutlery basket. Very small items should not be washed in the dishwasher as they could easily fall from the baskets.

Removing dishes

To prevent water from dripping from the upper rack to the lower rack, we recommend emptying the lower rack first, then the upper rack.

Loading the upper basket

The upper rack is designed to hold more delicate and lighter tableware such as glasses, coffee and teacups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too soiled). Position dishes and cookware so they do not move under the water spray. Always place glasses, cups and bowls upside down.

Upper basket

Fig. 7

1. Cup
2. Saucer
3. Wineglass
4. Dessert bowl
5. Glass
6. Serving spoon
7. Fork
8. Table knife

Adjusting the upper basket

• If needed, the height of the upper basket can be adjusted to create more space for large utensils in either the upper or lower basket.
• The upper basket can be height-adjusted by placing wheels of different heights on the rails. Fig. 8
• Long items, serving cutlery, salad servers or knives should be placed on the shelf, so they do not obstruct the rotation of the spray arms. The shelf can be folded or removed when not required.

CAUTION:

We recommend adjusting the basket height before loading dishes. Adjusting the basket after loading dishes could damage them.

Lower rack

Loading the lower basket

- We recommend placing larger items which are more difficult to clean in the lower basket: pots, pans, lids, serving dishes and bowls, as shown in figure 9.

ENGLISH

• It is preferable to place serving dishes and lids at the sides of the racks to avoid blocking the rotation of the upper spray arm. Pots, serving bowls, etc., must always be placed upside down. Deep pots should be slanted to allow water to flow out.
• The lower basket features fold-down tine rows to accommodate more large pots and pans.

Fig. 9 key

1. Soup plate
2. Oven pot
3. Glass bowl
4. Small casserole
5. Melamine bowl
6. Shallow plate
7. Oval platter
8. Dessert serving dish
9. Dessert plate

Programmes

Starting a washing programme

1. Pull out both the upper and lower racks, load the dishes and push them back in. It is recommended to load the lower rack first, then the upper rack.
2. Pour in the detergent.
3. Ensure the water supply is fully turned on, press the Power icon, then the Programme icon to select your desired washing programme.
4. Press the Start/Pause icon to begin the programme, close the door applying gentle pressure to ensure it is properly sealed.

NOTE: You will hear a click when the door is correctly closed.

Changing the programme

1. Notice: A cycle in progress can only be modified if it has been running for a short time. Otherwise, the detergent may have already been released and the appliance may have already drained the washing water. If this is the case, the detergent dispenser must be refilled.
2. During the washing process, press the Power touch icon to switch off the appliance.
3. Press the Power touch icon again to switch on the appliance, then you can change the programme to the desired cycle.

NOTE: If you open the door during washing, the machine will pause, and the status light will flash. When you close the door, the machine will resume operation after 10 seconds.

The indicator light shows the dishwasher status:

a) Programme light steady --> Cycle running
b) Programme light flashing --> Pause

NOTE: If all lights begin to flash, this indicates the machine is out of order. Please turn off the main power and water supply before calling for service.

Forgetting to add a dish

A forgotten dish can be added any time before the detergent dispenser opens.

1. Press the Start/Pause touch icon to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add the forgotten dishes.
4. Close the door; the dishwasher will start running after ten seconds.

WARNING!

It is dangerous to open the door during washing, as hot water may scald you. If the door is opened whilst the dishwasher is operating, the machine will stop automatically.

End of washing programme

After the programme has finished, the buzzer will sound three short beeps, sounding like "beep, beep, beep". At the same time, the indicator light will remain on for 3 minutes and automatically turn off if no further operation is performed, also switching off the machine.

Open the door carefully. Hot steam may escape when opening the door!

• Hot dishes are sensitive to knocks. Therefore, they should be allowed to cool for about 15 minutes before removing from the appliance.
• Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes. This way, they will be cooler and drying will improve.

Unloading the dishwasher

It is normal for the dishwasher interior to be damp. Empty the lower basket first, then the upper basket. This will prevent water from dripping from the upper basket onto dishes in the lower one.

5. CLEANING AND MAINTENANCE

Before beginning any care or maintenance, you must always disconnect the appliance from the electrical supply and also close the water supply.

ENGLISH

Filtration system

Fig. 10

The filtration system consists of a coarse filter, flat filter and microfilter.

1. Flat filter: Food and debris will be trapped by a special jet on the lower spray arm.
2. Coarse filter: Large debris, such as bone or glass that could clog the drain, will be trapped in this filter. To remove an item caught in this filter, gently squeeze the tabs on top of the filter and lift it out.
3. Microfilter: This filter holds soil and food waste in the sump area and prevents it from being redeposited on dishes during a cycle.

Check the filters for blockages every time the dishwasher is used.

By unscrewing the coarse filter, you can remove the filtration system. Remove any food is and clean the filters under running water.

• The filter effectively prevents food residue from the dishes from falling into the washing system. However, food residue can sometimes clog the filter, affecting washing performance. It is recommended to check the flat filter for food residue immediately after finishing the washing programme and clean it if necessary.

• Additionally, it is advisable to disassemble and clean the filter at least once a week. The steps for cleaning the filter are shown in figure 11:

• Remove the coarse filter from the microfilter.

• Turn the microfilter counterclockwise.

• Remove the microfilter and flat filter assembly from the dishwasher compartment.

• Clean the filters under running water.

Note: You must clean and rinse the filters thoroughly before replacing all sections in the reverse order to that mentioned above.

To be considered:

• A programme should not be run without the filters in place.
• Incorrect filter placement can reduce washing performance and damage the appliance.
• When cleaning the filters, they should not be knocked. Otherwise, they could become deformed and dishwasher performance could decrease.

Cleaning the spray arms

It is necessary to clean the spray arms regularly, as hard water minerals can clog the jets and bearings.

To clean the spray arms, follow these steps shown in figure 12:

1. Pull the lower spray arm upwards to remove it.

2. To remove the upper spray arm, first remove the lock by turning it.

3. The spray arms must be cleaned and rinsed thoroughly before replacing them.

Note: Ensure the upper spray arm lock is properly tightened when reinstalling.

Dishwasher care

To clean the control panel, use a slightly damp cloth and then dry thoroughly.

To clean the exterior, use a specific appliance cleaner.

Never use sharp objects, scouring pads or abrasive cleaners on any part of the dishwasher.

Cleaning the door

To clean around the door, use only a soft, warm, damp cloth.

To prevent water penetration into the door lock and electrical components, do not use spray cleaners of any kind. Also, never use abrasive cleaners or scouring pads on outer surfaces as they will scratch the finish. Some paper towels can also scratch or leave marks on the surface.

WARNING! Never use a spray cleaner to clean the door panel, as this may damage the door latch and electrical components. The use of abrasive agents or paper towels is not permitted due to the risk of scratching or leaving marks on the stainless steel surface.

Frost protection

If the dishwasher is left in an unheated location during winter, ask a service technician to:

• Cut off electrical power to the dishwasher.
• Turn off the water supply and disconnect the water inlet pipe from the water valve.
• Drain water from the inlet pipe and water valve. (Use a tray to collect the water)
• Reconnect the water inlet pipe to the water valve.
• Remove the filters and use a sponge to remove water in the sump.

How to maintain your dishwasher

After every wash

After each wash, turn off the water supply to the appliance and leave the door slightly ajar so moisture and odours are not trapped inside.

Unplug it

Before cleaning or performing maintenance, always unplug the appliance. Do not take risks.

Do not use solvents or abrasive cleaners

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Use only a cloth with warm soapy water. To remove spots from the interior surface, use a cloth dampened with water and a little white vinegar, or a cleaning product specifically made for dishwashers.

ENGLISH

When going on holiday

When going on holiday, it is recommended to run a wash cycle with the dishwasher empty and then unplug it, turn off the water supply and leave the appliance's door slightly ajar. This will help the seals last longer and prevent odours from forming in the appliance.

Moving the appliance

If the appliance must be moved, try to keep it in a vertical position. If absolutely necessary, it can be positioned on its back.

Gaskets

One of the factors that cause odours in the dishwasher is food trapped in the seals. Regular cleaning with a damp sponge will prevent this.

6. TROUBLESHOOTING

Before contacting technical service, reviewing the information on the following pages might save you from needing to do so.

Problem	Possible cause	Possible solution
The dishwasher does not work.	Blown fuse or circuit breaker tripped.	Replace the fuse or reset the circuit breaker. Remove any other appliance sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Ensure the dishwasher is switched on and the door is securely closed. Make sure the power cord is properly plugged into the wall socket.
	Water pressure is too low.	Check that the water supply is properly connected and the water is opened.
The drain pump does not stop.	Overflow.	The system is designed to detect an overflow. When doing so, it turns off the circulation pump and turns on the drain pump.
Noise.	Some audible sounds are normal.	Sound from detergent compartment opening.
	Utensils are not secure in the baskets or something small has dropped into the basket.	Ensure everything is securely loaded in the dishwasher.
	The motor hums.	The dishwasher has not been used regularly. If you do not use it often, remember to programme it to fill and pump out every week, which will help keep the seal moist.
There is foam inside the dishwasher.	Unsuitable detergent.	The dishwasher has not been used regularly. If this occurs, open the dishwasher and let the foam evaporate. Add 4 litres of cold water inside the dishwasher. Close and secure the dishwasher, then start the "pre-rinse" wash cycle to drain the water. Repeat if necessary.
	Rinse aid spilled.	Always clean up rinse aid spills immediately.
Stained dishwasher interior.	Detergent with colourant was used.	Ensure the detergent is free of colourant.
Dishes and cutlery not clean.	Incorrect programme Improper basket loading.	Select a stronger programme. Ensure the detergent dispenser and spray arms are not blocked by large dishes.
Spots and filming on glasses and cutlery.	1. Extremely hard water.2. Low inlet temperature.3. Dishwasher overloading. Improper loading.4. Old or damp powder detergent.5. Empty rinse aid dispenser.6. Incorrect detergent dosage.	To remove spots from glassware:1. Remove all metal utensils from the dishwasher.2. Do not add detergent.3. Choose the longest cycle.4. Start dishwasher and let it run for about 18-22 minutes, then it will be in the main wash.5. Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher.6. Close the door and let the dishwasher finish the cycle. If vinegar does not work: Repeat as above except use 1/4 cup (60 ml) of citric acid crystals instead of vinegar.
Cloudiness on glassware.	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shorter cycle to wash glassware and clean it.
Yellow or brown film on internal surfaces.	Tea or coffee stains.	Use a solution of 1/2 cup of bleach mixed with 3 cups of warm water to remove stains manually.WARNING: Wait 20 minutes after a cycle for the heating elements to cool before cleaning the interior to avoid the risk of burns.
White film on the interior surface.	Hard water minerals.	To clean the interior, use a damp sponge with dishwasher detergent and rubber gloves. Never use any other cleaner to avoid suds.
The detergent dispenser lid cannot close properly.	Detergent residue is blocking the opening.	Clean the detergent from the lock.
Detergent left in the dispenser.	Dishes blocking the detergent compartments.	Reload the dishes properly.
Steam.	Normal phenomenon.	Some steam comes through the vent by the door latch during drying and water draining.
Black or grey marks on dishes.	Aluminium utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
There is water in the bottom of the dishwasher interior.	This is normal.	A small amount of clean water around the outlet on the tub bottom keeps the water seal lubricated.
Dishwasher leaks.	Overfilled dispenser or rinse aid spills.	Take care not to overfill the rinse aid dispenser. Spills can cause oversuding and overflow. Wipe any spills with a damp cloth.
	Dishwasher is not level.	Ensure the dishwasher is level.

NOTE: Olive pits or similar objects can pass through the filter system and reach the drain pump area. In this case, the drain pump becomes blocked and needs cleaning. Please remove the pump cover by pushing the tail outwards, then you can clean the pump impeller yourself. After that, put the cover back in position. Fig. 13

Improper machine maintenance may endanger users' safety. Any repairs must be carried out by professionals.

Error codes

After starting the wash cycle, if there is a malfunction, the dishwasher will display an error code.

The following table shows possible error codes and the faults they represent, and the error indicator will keep flashing and beeping.

Error code	Indicator light	Problem
E1		Overflow/leakage.
E2		Water inlet malfunction.
E4		Water distribution valve malfunction.
E5		Fan malfunction.
E6		Abnormal heating.
E7		Thermistor open/short circuit.
EA		Abnormal communication.

Warning!

• For E2, first check the troubleshooting tips before calling Cecotec's Official Technical Support Service.
• For E1, turn off the main water supply before contacting Cecotec's Official Technical Support Service.
• For E4, E5, E6, E7, EA, please contact Cecotec's Official Technical Support Service.

7. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

Information regarding national packaging recycling systems and their marking can be found on our website.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Image 1

6. PROBLEEMOPLOSSING

H1 → H2 → H3 → H4 → H5 → H6

“.R1 → R2 → R3 → R4 → R5”

استخدام #: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer: Manufacturer :

حماية من التجمد

https://cecotec.es/es/information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2

Fig./Img./Abb./Afb./Rys. 3

A

B

C

D

E
Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./Rys. 7

1

2

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./Rys. 9

Fig./Img./Abb./Afb./ Rys. 10

1

2

3

4
Fig./Img./Abb./Afb./Rys. 11

1

2

3

Fig./Img./Abb./Afb./Rys. 12

Fig./Img./Abb./Afb./Rys. 13

www.cecotec.es
