Product type	Ceiling fan
Brand	Cecotec
Model	Energysilence Aero 4280 Invisible Steel
Blade diameter	132 cm
Net weight	5,8 kg
Power supply	220-240 V ~ 50 Hz
Maximum power	50 W
Number of speeds	3
Summer/winter reverse function	Yes, via switch or remote control
Control type	Infrared remote control included
Maximum noise level	< 35 dB(A)
Blade material	ABS with brushed steel finish
Color	Stainless steel
Installation required	Ceiling mounting (not included)
Maintenance and cleaning	Dust with a soft dry cloth
Safety	Do not use without properly installed blades
Spare parts available	Remote control, mounting kit, replacement blades
Repairability	Repairability index: 8,2/10

Frequently Asked Questions - Energysilence Aero 4280 Invisible Steel CECOTEC

How to install the Energysilence Aero 4280 Invisible Steel ceiling fan?

Installation requires attaching the mounting plate to the ceiling using the provided screws and wall plugs, then connecting the electrical wires (phase, neutral, ground) according to the diagram in the manual. Finally, attach the fan body and blades. It is recommended to call a qualified electrician.

How to reverse the rotation direction for summer and winter?

Use the small switch on the motor housing (or the dedicated button on the remote control) to switch from summer mode (counterclockwise rotation, cooling breeze) to winter mode (clockwise rotation, warm air circulation). Make sure the fan is turned off before changing direction.

What to do if the remote control stops working?

First check the remote control batteries (type CR2032). If the problem persists, ensure no obstacle is blocking the infrared signal and that the fan receiver is not obstructed. As a last resort, contact Cecotec customer service for a replacement.

How to clean the fan?

Unplug the appliance before cleaning. Use a soft dry or slightly damp cloth to wipe the blades and housing. Never use abrasive products or solvents. Avoid water entering the motor.

The fan is noisy, what to do?

Check that all blades are properly attached and balanced. A grinding noise may come from misalignment. Tighten the mounting screws. If the noise persists, it may indicate a motor bearing problem; contact customer service.

What is the electrical power of the fan?

The maximum power is 50 W during operation. This corresponds to very low power consumption, ideal for prolonged use.

Can an external light dimmer be used?

No, this fan is not compatible with an external dimmer. Use only the supplied remote control or its dedicated wall switch. Using a dimmer could damage the motor.

How to replace the fan blades?

Unplug the appliance. Unscrew the defective blades using a screwdriver. Install the new blades following the order and direction of attachment indicated in the manual. Be careful not to overtighten to avoid cracking the plastic.

The fan wobbles during operation, is this normal?

Slight wobbling is normal for a ceiling fan. If the amplitude is excessive, check the blade balance. Use the provided balancing kit (adhesive weights) or adjust the blade positions. Ensure the ceiling mounting is secure.

Where can I find the complete user manual?

The complete user manual is available for free download in PDF format on the website notice-facile.com. You can also view it directly from the product page of your Cecotec Energysilence Aero 4280 Invisible Steel fan.

USER MANUAL Energysilence Aero 4280 Invisible Steel CECOTEC

1. Parts and components 27
2. Before use 27
3. Installation 28
4. Operation 29
5. Cleaning and maintenance 30
6. Troubleshooting 30
7. Technical specifications 30
8. Disposal of old electrical appliances 31
9. Technical support and warranty 31
10. Copyright 31

SOMMAIRE

Read these instructions thoroughly before using the fan. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• Do not use the appliance if its cord, plug or housing are damaged, nor after it malfunctions or has been dropped or damaged in any way.
• Do not use the fan in spaces with explosive or toxic vapours.
• Do not try to repair the fan by yourself. Contact the official Technical Support Service of Cecotec for advice.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure it operates properly. Turn off and unplug the fan before cleaning it.
• Make sure the fan is not placed close to curtains or other objects that could tangle.
• Install the fan only in the ceiling.
• The minimum distance between the fan blades and the floor must be 2.3 m. If you hang the fan on a hook, it must withstand at least 100 kg.
• Switch off the power before connecting or repairing the fan.
• The electrical wiring must be in accordance with the local regulations.
• Never install the fan in a moist or wet room.
• Be careful when working near the rotating blades.
• The appliance shall be installed in accordance with national wiring regulations.
• In order to ensure your children safety, please keep all packaging (plastic bags, boxes, polystyrene, etc.) away from their reach.

• This fan is designed for indoor use. Do not use it for industrial or commercial purposes.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• The installation of an earthed socket must be carried out by a qualified electrician.
• The order of the installation of the wires should be earthed wire, live (power) wire / neutral wire, and the order of the de-installation of the wires should be neutral wire / live (power) wire, earthed wire.
• Make sure all screws are firmly tightened during assembly.
• To reduce the risk of injury, do not touch the blades when the fan is operating.

INSTRUCTIONS DE SÉCURITÉ

1. Mounting bracket
2. Hanging ball
3. Down rod
4. Canopy
5. Canopy screws
6. Pin
7. R clip
8. Trim
9. Main body
10. Glass shade
11. LED light bracket
12. Remote control

2. BEFORE USE

• This product includes a package designed to protect it during transport. Take the fan out of the box and store the original box and other elements in a safe place, this will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the Technical Support Service of Cecotec.

Box contents

• EnergySilence Aero 4280 Invisible White/ Black/ Steel ceiling fan
• Remote control
• Assembly kit

3. INSTALLATION

Necessary tools for the installation (not included)

Fig. 2

A. Electrical tape
B. 14-mm spanner
C. Flat-blade screwdriver
D. Crosshead screwdriver
E. Step ladder
F. Pliers

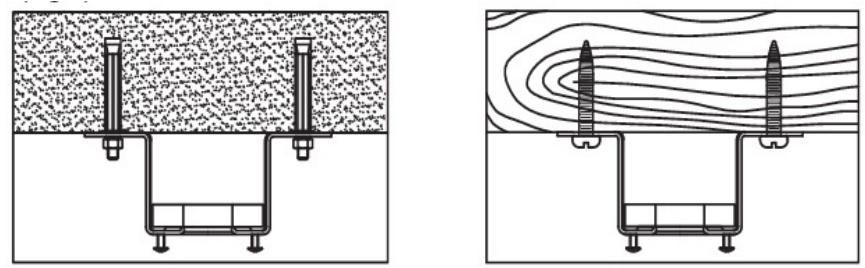

1. Bracket installation

Concrete ceiling

Drill two holes of a proper depth (an 8-mm diameter) and introduce two expansion screws on the holes; then, fix the installation bracket (1) to the expansion screws with the wood screws and tighten them with the expansion screws nuts. Fig. 3

Wooden ceiling

Fix the installation bracket (1) to the wooden ceiling with 4 wood screws (of at least 7-cm thickness). Fig. 4

2. Lamp bracket installation

• Loosen the four screws located on the lower surface of the main body (9) of the fan and remove a screw for later use. Fig. 5
• Join the LED light bracket (11) to the main body (9) of the fan by turning the bracket (11) until it is fixed and aligned with the three screws of the main body (9) of the fan; then, tighten the screws and the previously removed screw. Fig. 6

3. Installation of the hanging system

1. Remove the pin (6) from the down rod (3) by removing the R clip (7) and pass the power cable through the down rod (3), the canopy (4) and the trim (8). Next, fix the down rod (3) in the main body (9) of the fan and turn it until the holes match the holes in the main body of the fan. Finally, pass the pin (6) through the holes and fix it with the R clip (7) in the other end. Fig. 7-8
2. Place the down rod (3) with the hanging ball (2) in the installation bracket (1), turn it all until the 'tab' on the installation bracket (1) is placed in the 'slot' of the down rod (3) and it is fixed properly. Fig. 9
3. Lift the canopy (4) to the ceiling to cover the installation bracket (1) (make sure the canopy (4) is fixed in the two bracket screws), turn the canopy (4) to ensure the screw head is in the narrow end of the canopy holes and tighten the screws. Fig. 10

4. Electric installation

To carry out the electric installation, follow the steps shown in figure 11. Follow the colour code and be especially careful with the following indications:

1. Connect the 3-pin connection (3P) to the 3-pin connection.
2. Connect the 2-pin connection (2P) to the 2-pin connection.
3. Connect the 1-pin connection (1P) to the 1-pin connection.

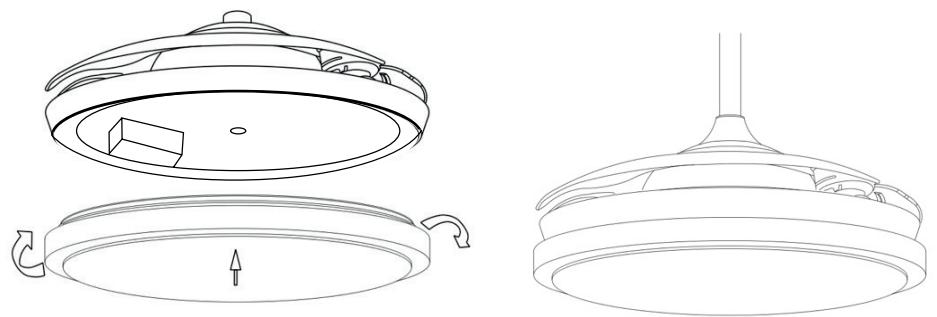

5. Lamp glass shade assembly

Align the slot on the glass shade (10) with the slot on the main body (9) of the fan, then, turn the glass shade (10) smoothly until it is fixed. Fig. 12

6. How to balance the fan

The fan has been balanced before shipping, but this balance may be affected during transport. Balance the fan following the following steps if the fan is unstable during the installation:

1. Take the two magnetic parts from the balance kit and place them in the upper surface of the fan, and turn on the fan to check if it is still unstable. Repeat the process until you find the position in which it is stable.
2. Remove the magnetic parts and stick the other part of the balance kit in place.

4. OPERATION

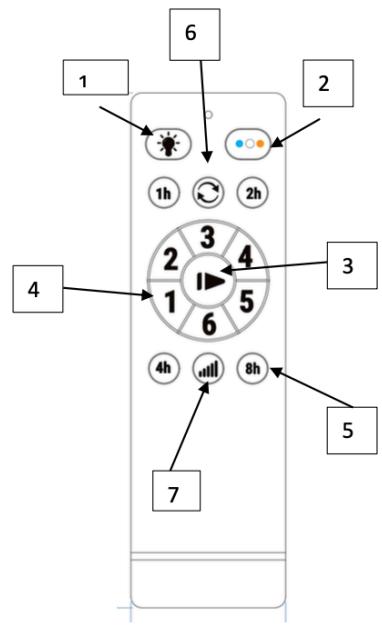

Fig.13

1. On/off light button
2. Change of light tone (warm, neutral or cold).
3. On/off fan button
4. Fan speed (1-6)
5. Timer (1-2-4-8 h)
6. Winter-summer function

7. Breeze mode

8. Once you have installed the ceiling fan, you can start using it.

9. Press the on/off button (3) and the blades will start moving. Press the button (4) to choose the desired fan speed, so you can set the blades spin speed.
10. Press the on/off light button (1) to turn the LED light on or off. You can also modify the light shade, from neutral, warm or cold, by pressing the light shade modification button (2).
11. This ceiling fan is fitted with a timer, press the button with the desired time, the different options are 1, 2, 4 or 8 hours.
12. Finally, this fan also has winter-summer function, press the winter-summer function button (6) to reverse the direction of rotation of the blades. In the summer mode, the blades generate a nice breeze. However, in the winter mode the blades push the hot air concentrated in the ceiling down to the floor.
13. Press the button (7) to select the breeze mode, in which the fan will generate an air flow similar to breeze.

5. CLEANING AND MAINTENANCE

• Disconnect the fan from the power supply and allow it to cool down before cleaning it.
• Never immerse the fan in water or other liquid.
• Clean with a soft, dry cloth.
• Do not use any cleaning chemicals such as detergents and abrasives.
• Do not allow condensation to come into contact with any of the electrical parts of the fan.
• Do not use a wet cloth to clean the motor. Keep the fan clean and dry.
• We recommend using neutral detergent and a soft cloth. Do not use solvents, acid detergents, petrol, alcohol, etc. to clean the plastic parts, as they may be damaged.
• Do not allow water to enter the motor or touch the cord during cleaning.

6. TROUBLESHOOTING

The fan does not operate

1. Make sure the cable connections on the fan are correct.
2. Make sure the power inlet is suitable.

The fan is noisy

1. Check all the screws are tightened.
2. Make sure that the cable nut connections do not rub against each other or against the interior wall of the switch housing.

If you have any questions, please contact Cecotec Customer Service.

7. TECHNICAL SPECIFICATIONS

Product reference: 05992/05993/05994

Product: EnergySilence Aero 4280 Invisible White/ Black/ Steel

Motor power: 40 W / LED power: 36 W

220-240 V AC, 50/60 Hz

Description	Symbol	Value	Unit
Fan maximum flow	F	97.0	m3/min
Fan power consumption	P	25.4	W
Service value	SV	3.8	(m3/min)/W

Power consumption on standby mode	PSB	0.4	W
Fan sound power level	LWA	47	dB (A)
Maximum air speed	C	2.9	m/seg
Service value measurement standard	IEC 60879
Contact details to obtain more information	Cecotec Innovaciones S.L.C/ de la Pinadeta s/n, 46930Quart de Poblet, Valencia (Spain)

This product features a light source with an energy efficiency grade E.

Technical specifications may change without prior notification to improve product quality.

Manufactured in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help to protect the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3
Fig./Img./Abb./Afb./Rys./Obr. 4

Fig./Img./Abb./Afb./ Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

Fig./Img./Abb./Afb./Rys./Obr.7

Fig./Img./Abb./Afb./Rys./Obr. 8

Fig./Img./Abb./Afb./Rys./Obr. 9

Fig./Img./Abb./Afb./Rys./Obr. 10

Fig./Img./Abb./Afb./Rys./Obr. 11

Fig./Img./Abb./Afb./ Rys./Obr. 12

Fig./Img./Abb./Afb./ Rys./Obr. 13
