USER MANUAL G420 ALERTEGPS

G-420 Thanks for choosing the AlerteGPS G420 speed camera warning system, the most innovative product in its category. The G420 features a revolutionary digital head-up-display (HUD):The different indications are displayed on the windscreen of your vehicle, to ensure you the best possible driving comfort and visibility, night and day. The HUD is coupled to a vocal warning system:The G420 warns you as you approach a speed control (fixed and mobile speed cameras) or a danger zone (dangerous curve, dangerous intersection, black spot ..). The G420 speed detection system is a driving assistant: it works with the well known satellite network Global Positioning System (GPS).It allows you to know the speed of your vehicle, and the distance between your vehicle and the control zone. It also features a speed limiter func- tion, and an internal memory to save your own points of interest. Please read this manual carefully so that you can feel familiar with all functionalities of the G420. Have a good trip! CONTENTS

Overview G420 Unit © Digital Head-Up-Display - speed of your vehicle - speed limit - distance between your vehicle and the speed control - speed control end - overspeed visual warnings @ On/0ff Button () To turn the device On or Off © USB & cigar-lighter connector Connection to a PC or to the cigar-plug in the vehicle @ External antenna* connector K © Infrared receiver © Function indicator Fix = connected to the satellite network Blinking = connection lost © Light sensor The sensor controls the brightness level automatically *Optional As you approach a control or a danger The G420 indicates the exact speed of your vehicle thanks to the GPS. As you approach a control D) zone the G420 will emit a vocal alert indicating the speed limit. As you approach a fixed speed camera, the G420 will emit"beeps” if you are driving over the speed limit. zone in addition to the vocal alerts,the display of the G420 shows different indication:

Overview Remote Control © Button: Brightness + To increase the brightness of the display @ Button: Brightness- To decrease the brightness of the display ® Button: Speed limiter ON To activate the speed limiter function @ Button: Speed limiter OFF To desactivate the speed limiter function © Button: Save 0° To save or cancel a user location © Button:Volume + <) To increase the volume © Button: Volume” # To decrease the volume Button: Comfort Mode EF The speed of the vehicle is not displayed anymore. The display lights up as you approach an alert.

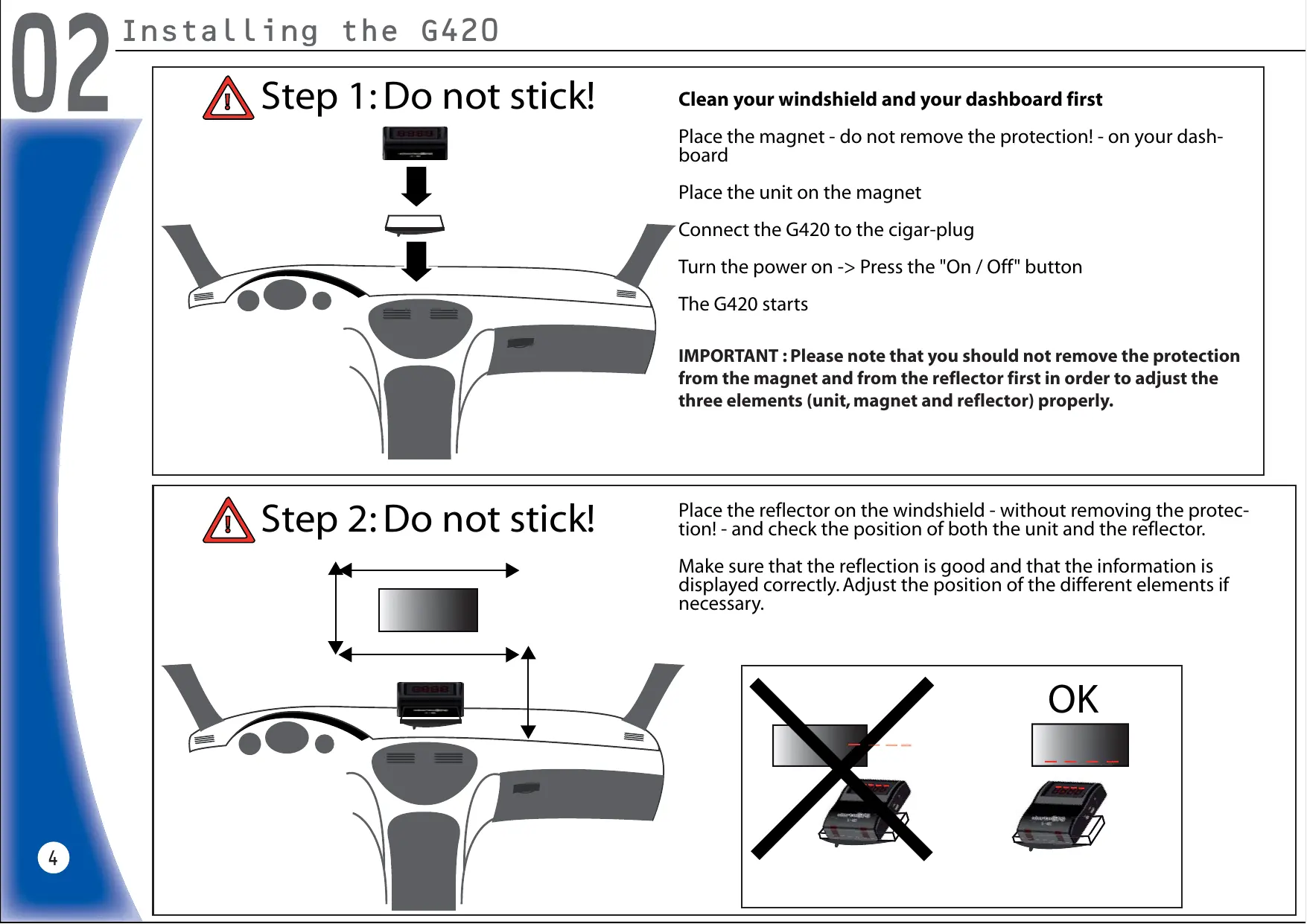

Installing the G420 À Step 1:Do not stick! Clean your windshield and your dashboard first Place the magnet - do not remove the protection! - on your dash- board Place the unit on the magnet Connect the G420 to the cigar-plug Turn the power on -> Press the "On / Off" button The G420 starts IMPORTANT : Please note that you should not remove the protection from the magnet and from the reflector first in order to adjust the three elements (unit, magnet and reflector) properly. Place the reflector on the windshield - without removing the protec- tion! - and check the position of both the unit and the reflector. Make sure that the reflection is good and that the information is displayed correctly. Adjust the position of the different elements if necessary.

Installing the G420 Remove the protection from the magnet and place it on the dash- Step 3: board at the selected place Place the G420 on the magnet Connect the G420 to the cigar-plug again and press the power 7 . y button Remove the protection from the reflector and place it on the winds- creen using the squeegee. Make sure that the reflector is flat. Your vehicle may have an athermic windscreen which may affect the satellite Important... connection. In that case, you will need to use an optional external antenna. Installing the G420 with an external antenna: - remove the device from the magnet before you leave your vehicle to avoid degradations and thefts - fix the external antenna on the roof of your vehicle and make sure to place the cable inside the Cabin of the vehicle. - climatic conditions may influence the satellite connection - connect the antenna to the external antenna connector of the G420.

Operating instructions

a short animation will be displayed. Turn the power on by pressing the "On/Off" button: Satellite connection: The G420 will then start to acquire satellite connection. You can follow the satellite connection on the display. L A vocal alert will warn you when the connection is done. The display will then show the update number in that Then, the default information displayed is the speed format : month/day (4 numbers). of your vehicle (over 10 Mph). Important: please note that the G420 will perform a quicker satellite connection if the vehicle is stopped. Using the remote control

& ADJUSTING THE VOLUME

To increase the volume, press 4;) To descrease the volume, press # Please note that the volume changes automatically according to the speed of your vehicle. Æ COMFORT MODE Pressthe button FA to activate the comfort mode. The speed of the vehicle will not be displayed anymore. As you approach a speed control, the display will light up.

- ADJUSTING THE BRIGHTNESS

The display of the G420 features five brightness levels: To increase the brightness, pressthe “ét button. To decrease the brightness, press the -& button. Please note that the light sensor controls the brightness level automatically.

Press S toactivate the speed limiter function. - If you drive 50 mph on a highway, press that button , and a beep will warn you every time you exceed 50 mph. - If you drive then 30 mph on a minor road, press that button again and a beep will warn you every time you exceed that speed. Press @ to desactivate the speed limiter function. Important :The speed is rounded up or down by the speed limier. So, if you drive 55 mph, the speed will be rounded up to 60 mph. If you drive 54 mph, the speed will be rounded down to 50 mph. ao POINTS OF INTEREST The G420 includes a user memory to save your own points of interests: a danger zone for example. To save a point of interest, press the save button @o app.two seconds as you pass the point of interest.The location of your vehicle is saved. To cancel a POI: as you pass the point, and after the alert has started to sound, press the save button @o app.two seconds. This can be done during 15 seconds after the beginning of the vocal alert.

Operating instructions Starting the G420 Power on À Welcome fasten your seat belt Update version : month/day Satellite connection is starting. The connection is quicker ifthe vehicle is stopped. One satellite found. Two satellites found... Three satellites found... Real speed of the vehicle. Can differ from tachometer. Vehicle is stopped or you drive under 10 mph. As you approach a fixed speed camera An animation is displayed 600 meters before the control zone. À Harnina fred speed camera. Maximüm speed is. AS you approach a mobile speed camera Speed limit and frequency of the speed camera. Warning, mobile camera. Maximum speed is DEPENDING FROM THE MOBILE CAMERA TYPE: @ Warning, mobile camera... À Warning, mobile laser gun... @ Warning, laser camera vans.. © Warning, mini Gatso … As you approach a danger zone Real speed of the vehicle, and the distance between your vehicle and the control zone. DEPENDING FROM THE DANGER ZONES : @ Warning, dangerous curve © Warning, black spot @ Warning, dangerous intersection À Warning, congestion charging zone Mobile camera frequency: one time per week one time per month one time per year At 300 meters, the distance is counted down.

the zone. 100 meters from 50 meters from the zone. The control or danger zone is being passed.

Operating instructions Overspeed indicators The G420 features two overspeed indicators that will light blue or red, depending on the speed of your vehicle. If you don't drive over the speed limit, the indicators will light blue. If you drive over the speed limit, the indicators will light red. "Smart Mute" function: ? The Smart Mute function avoids automatically that the vocal message is played if not necessary. @ If you drive more than 12 mph under the speed limit, no vocal message will be played. © If you drive less than12 mph under the speed limit, the vocal message is played. © If you drive over the speed limit, the vocal message is played. 35 a] o£ Warning, Warning, = D —— —— T Your speed = 55 mph Your speed = 40 mph Your speed = 65 mph Speed control = 60 mph Speed control = 60 mph Speed control = 60 mph WARNING = blue indicators WARNING = blue indicators WARNING = red indicators + vocal message (NO vocal message) + vocal message

General notices & Warnings Waste Electrical and Electronic Equipment Directive According to Directive 2002/96/EC on Waste Electrical and Electronic Equipment, household electrical appliances cannot be dispersed in the conventional waste stream. Used electrical and electronic equipments must be collected. — - The G420 cannot work properly in a tunnel or a basement, because the satellite reception is disturbed.We strongly recommend driving carefully in those areas. The G420 needs a short time to establish the connection to the satellites again. - The G420 calculates the direction of the vehicle to avoid wrong alerts. Anyway, wrong alerts can occur sometimes. If you're driving a parallel road that is sited very close to a road on which an alert is located, a wrong alert may occur. - The G420 is a driving help that must be considered as a prevention tool.The purpose of this system is to incite you to drive carefully and to respect the road safety rules. We decline all responsibility for any infraction to the legislation and the road safety rules. - Hardware and software of this device are the property of GPSPrevent SAS / AlerteGPS Hardware and are protected by copyright laws and intellectual property laws.They may not be copied or distributed in any illegal manner. - The GPS (Global Positioning System) is placed under the authority of the American government. GPSPrevent SAS / AlerteGPS Hardware cannot be held responsible for the availability and precision of the GPS. + You must respect all road safety rules. - Do not disturb the driver or cause any damage to the safety elements of the vehicle while installing the GPS. - While installing the device, make sure that it cannot be dangerous to the occupants of the vehicle, particularly in case of projection. + Recycling legislation for household electrical appliances: - Keep the unit and the cigar-plug away from water. + fthe unit or the cigar-plug falls in the water, don't touch the unit before you have disconnected the cigar-plug from the cigar socket of your vehicle, and remove the unit using the cable. + Read this manual and all safety warnings carefully before you use or install this unit. + If your vehicle is parked in the sun, let the unit cool down before you use it. + Clean-up instructions: don't use solvents. Clean regularly. + Don't let liquids or objects enter the housing through the ventilation holes.They may damage the internal parts of the unit and cause an electric shock, a short-cut or a fire. + Do not try to repair and disassemble the unit by yourself. This may cause an electric shock. Please contact a qualified technician. + Disconnect the unit when it's not in use. To protect this unit in case of a storm or when it's not used during a long time, disconnect it from the network. + 12/24 V negative earth socket only. Remove cigar-plug while leaving vehicle. Disconnect cigar-plug when starting vehicle. Always use the correct rated fuse. + Keep away from naked flames (like candles). + Use in temperate areas. + À minimum space of 2 inches should be maintained around the unit for its ventilation. + Don‘t connect any cable to the unit before removing or connecting the power cable. Connect the external antenna after the power cable, and disconnect it before you remove the power cable. - The software and the drivers are provided as is. GPSPrevent SAS / AlerteGPS Hardware declines all responsibility in case of software or hardware incompatibility. - The access to the website is not guaranteed in case of site maintenance, network distur- bance, connection problems or any problem that could disturb access to the website. + To minimize the risks of interactions between two GPS devices, a distance of 20 inches should be maintained between this unit and another GPS device.
