Ipny || jenueu 29ejiequl Table of Contents Table of Contents Audio interface and control surface + Install and setup Cubase LE 4 Installation overview R16 audio interface system environment Connecting and disconnecting in audio interface mode- Control surface functions Using the control surface functions - Fader section operation Setting up function keys Control Surface Functions Quick Reference Sheet - Recording with Cubase LE 4 Create a new project-- Create a new audio track Connect an instrument + Set the recording level Recording Checking the recording (playback) Importing audio data into Cubase LE 4 Importing by drag & dro) Using the “Import” command The mixer in audio interface mode Volume, reverb send and pan Stereo Link: DIRECT/DAW BALANCE: Tuner

Effects in audio interface mode Insert effect Send return effect (reverb) - Working with patches Patch operations. Patch initialization (factory reset) Control surface setup for other DAWs Logic 7/8 SONAR 7/8 LIVE 6/7 Digital Performer 5/6 1enueuw 99ej4equ oIpny E

Ipny || jenueu 29ejiequl Audio interface and control surface This section explains how to set up and use the functions of the R16 audio interface and control surface with DAW software installed on your computer. Functions of the audi interface and control surface LINPUT 1-8] jacks Guitars and other musical instruments, intemal stereo mic IPHONES] jack Playback device Ike headphones or an audio system e LOUTPUT] jacks Stereo system, © speskers with butin KZ ampifirs, ete.

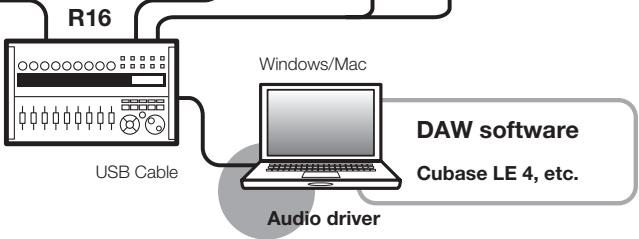

loco00o000 MALUS) USB Cable de —— Windows/Mac bn DAW software Cubase LE 4, etc. Audio driver H Audio interface The various input and output jacks of the R16 can be used as a Hi-Speed USB (USB 2.0) audio interface with support for 8 ins and 2 outs and input and output quality up to 24-bit/96kHz. Effects can also be used when the sampling rate is 44.1 kHz, and the unit can be powered by the computer USB bus. A=—=

& Control surface functions The on-board control surface functions can be used to control DAW software on your computer via USB. Transport operations, including playback, recording and stopping, and physical control of the DAW faders are possible. Furthermore, various other DAW software functions can be mapped to the F1-F5 keys. (The available functions depend on the DAW software used.)

e level instruments. The 8 onboard jacks, which accept XLR and standard phone plugs, include one high-impedance input and two with 48V phantom power. From high-impedance guitars and basses to dynamic and condenser microphones and line-level devices like synthesizers, many sources are supported. In addition, the built-in high- performance condenser microphones are convenient for recording acoustic guitar and vocals. H Versatile effect functions The insert effect can be applied to specific channel paths and the send/return effect works via the mixer send/return. The two kinds of built-in effects can be applied when recording, of course, but they can also be applied to affect only the monitoring output. For example, when recording vocals, you can apply reverb to the monitor signal to make singing easier, but record a dry signal.

EH Comprehensive buil mixer Using the R16's mixer, you can make a mix for monitoring live and playback. When simultaneously recording guitar and vocals, for example, you can independentiy adjust volume balance, panning and reverb levels. & Multifunction tuner In addition to standard chromatic tuning, the multifunction tuner also has on-board support for 7-string guitar, 5-string bass and various drop tunings. 1enueuw 99ej4equ oIpny E

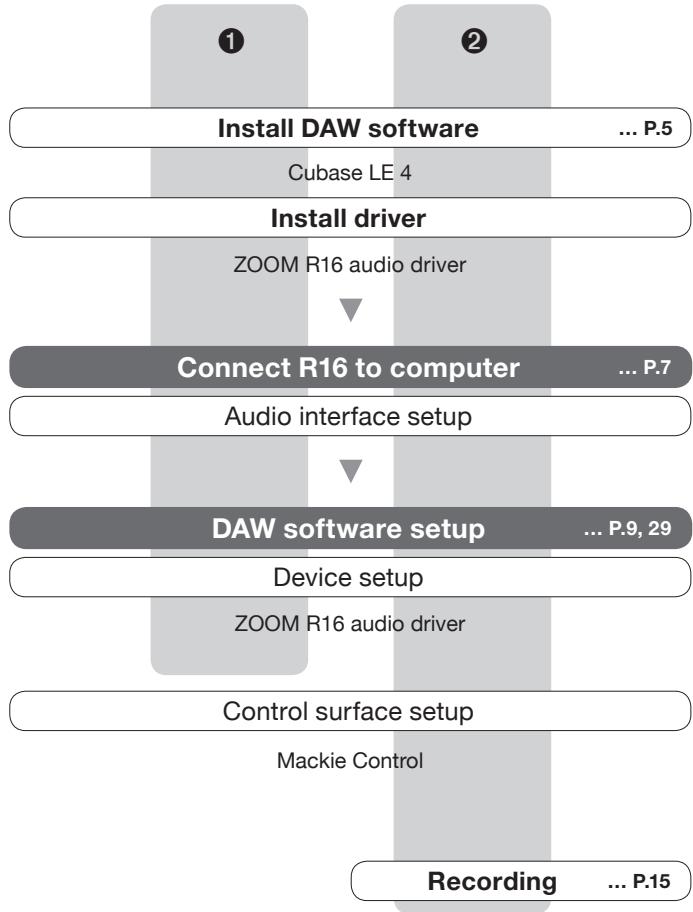

Ipny || jenueu 29ejiequl Cubase LE 4 installation overview To use the R16 with a DAW, you need to install an R16 driver and set the DAW so that it can recognize the R16. Here, we explain how to do this with Cubase LE 4. © Audio interface @ Control surface By using the R16 between a computer and external Using the fader or keys on the R16, you can control devices and instruments, their signals can be transport operation and mixing in digital audio recorded using programs such as DAW software. workstation (DAW) software on your computer. Instrument types that require Hi-Z or phantom power can also be connected. o e Install DAW software mn Ps) Cubase LE 4 Install driver )

ZOOM R16 audio driver

Connect R16 to computer .. P7 Audio interface setup

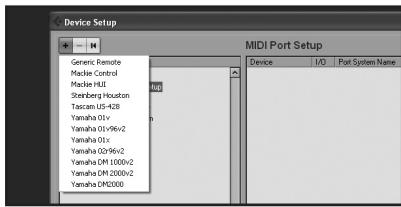

Control surface setup

R16 audio interface system environment To use DAW software with this unit, you need to install it and make settings in it for the R16. This is an explanation for doing so with Cubase LE4. R16 audio interface system requirements Windows Windows” XP SP2 or later Windows” Vista SP1 or later 1.8GHz Intel” Pentium” 4 or faster 1GB RAM minimum Intel Mac OS X 10.4.11 or later/10.5 or later 1.83GHz Intel® Core“ Duo processor or faster 1GB RAM minimum Both USB 2.0 compatible port + 64-bit operating systems are not supported.

• USB hubs are not supported. About the screen images The screen images are of the Windows version. About trademarks Cubase LE 4 installation guide Please refer to the USB/Cubase LE 4 Startup Guide for detailed instructions for installing the R16 audio driver and Cubase LE 4. The SD symbol 52 and ES SOHC symbol are trademarks. Windows” Windows Vista” are trademarks or registered trademarks of Microsoft® Macintosh®, Mac OS° and Logic are trademarks or registered trademarks of Apple Inc. Steinberg and Cubase are trademarks or registered trademarks of Steinberg Media Technologies GmbH Inc Intel® and Pentium are trademarks or registered trademarks of Intel Corporation. AMD Athlon is a trademark or registered trademark of Advanced Micra Devices, Inc. MACKIE Control is a trademark or registered trademark of LOUD Technologies SONAR is a trademark or registered trademark of Cakewalk, Inc. Ableton Live is a trademark or registered trademark of Ableton AG. Digital Performer is a trademark or registered trademark of Mark of he Unicorn. All other trademarks, product names, and company names mentioned in this documentation are 1he property of their respective owners. All trademarks and registered trademarks mentioned in this manual are for identification purposes only and are not intended 1o infringe on the copyrighted praperties of their respective owners. 1enueuw 99ej4equ oIpny E

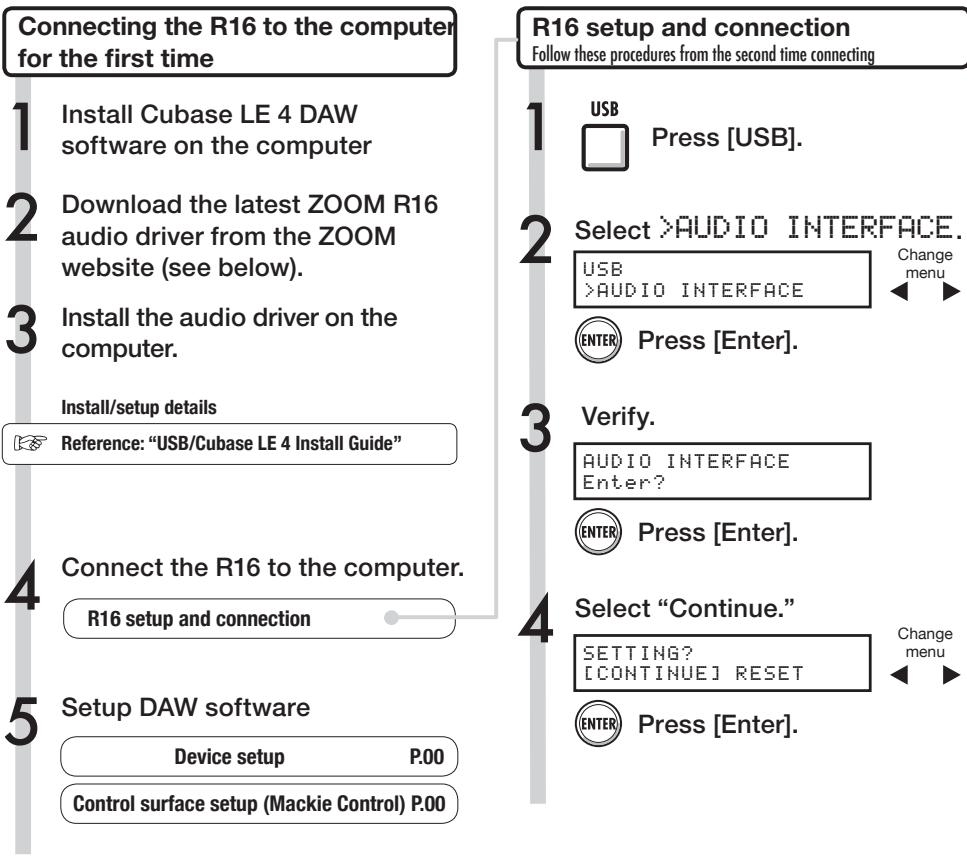

Ipny || jenueu 29ejiequl Connecting and disconnecting in audio interface mode This is a brief overview of connecting and disconnecting when a computer is hooked to the R16 by USB cable. For details, please refer to the separately attached “installation Guide.” Connecting the R16 to the compute for the first time ] Install Cubase LE 4 DAW software on the computer 2 Download the latest ZOOM R16 audio driver from the ZOOM website (see below). 3 Install the audio driver on the computer. Install/setup details (æ Reference: “USB/Cubase LE 4 Instal Guide” | À Connect the R16 to the computer.

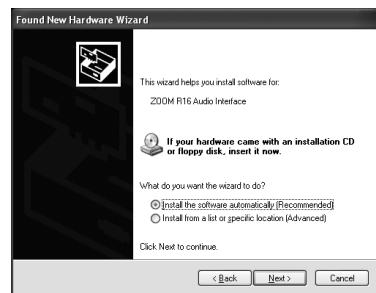

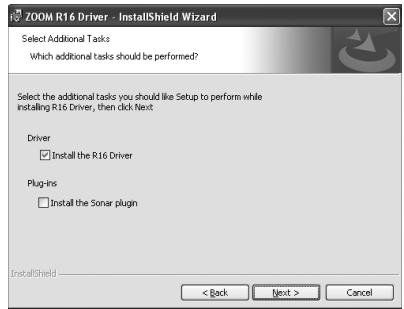

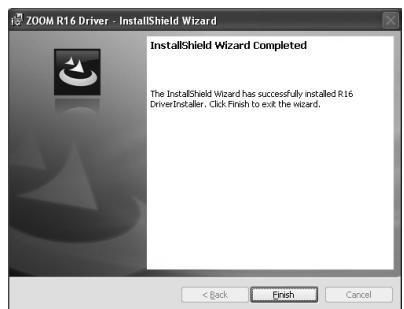

Press [Enter]. [NOTE The ZOOM R16 audio driver is essential for using the R16 as an audio interface for DAW software such as Cubase LE 4. When downloading, follow the included instruction guide to install correctiy. @ Please download the latest R16 audio driver from Zoom Corporation's website at (http:/mww.zoom.co.jp). + Set the recording quantization (bit depth) of Cubase LE 4 or the DAW software that you are using to 24-bit in order to achieve the best audio quality when recording. (See the software manual for how to make this setting.)

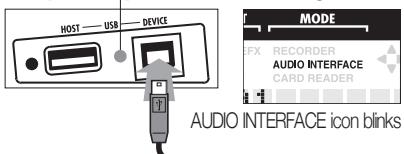

5 Connect the USB cable to the R16. Disconnecting Sanple Rate=44, kHz Ei5olo ] USB he DEVICE] USB indicator wil ight. O Press [USB]. CARD RAD 2 Terminate the connection. AUDIO INTERFACE Terninate? AUDIO INTERFACE icon birks Press [Enter]. 6 Connect the USB cable to the computer.

When connection is complete the AUDIO INTERFACE icon appears. 3 Remove the USB cable. amowreses “| Connection setting 4 complete [NOTE INSERT EFFECT settings SEND RETURN EFFECT settings Track parameter settings. TUNER settings Restores defaut settings for each em + The audio interface and control surface functions of the R16 can be used by drawing power through the USB bus. Power from batteries or the adapter is not necessary. + We recommend always using the latest R16 system software. Operating the R16 with an older system could resuit in it not being recognized by your computer. 1enueuw 99ej4equ oIpny I

Ipny || jenueu 29ejiequl Using the control surface functions When using the R16 connected by USB as an audio interface, the R16 keys and faders can be used to control Cubase LE 4's transport and mixer. About the control surface Control surface settings In control surface mode the keys and knobs on the R16 can be assigned to particular Cubase 4 LE functions. { Transport section p.10 ) { About banks p.11 ) { Fader section p.11 ) ENT Assigning Keys For a list of functions that can be assigned to the knobs and keys of the R16, as well as other transport/function keys that are supported by Cubase LE 4, please consult the “Control Surface Mode Functions Quick Reference Guide" of this manual. | UE Rare Control Surae Function Quick eee Gide eo) See R16 setup and connection steps 1-6 on P.7-8. 7 Launch Cubase LE 4. 8 Select “Device Setup” from the Cubase LE 4 “Device” menu. {The ‘device setup" window wil open.) 9 On the top left of the device setup window there are [+] [-] [l<] buttons. Click the [+] and then choose “Mackie Control.” 10 Set MIDI input and output. MIDI Input: Zoom R18 MIDI Output: Zoom R16

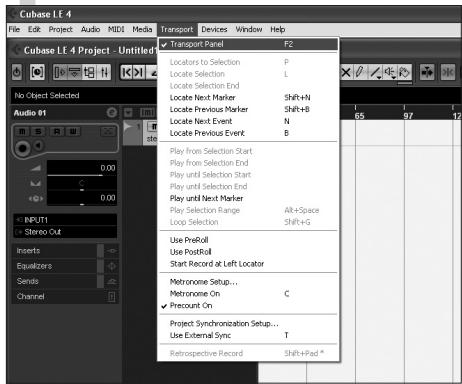

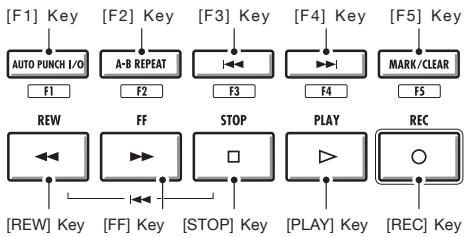

Transport section By setting up the control surface, the R16' transport section keys can be assigned to individual functions in Cubase LE 4 (F1) Key (F2) Key (F3) Key [F4] Key [FS] Key choco chochoes SOA IREWT Key [FF] Key [STOP] Key [PLAY] Key ÎREC] Key 1enueuw 99ej4equ oIpny E

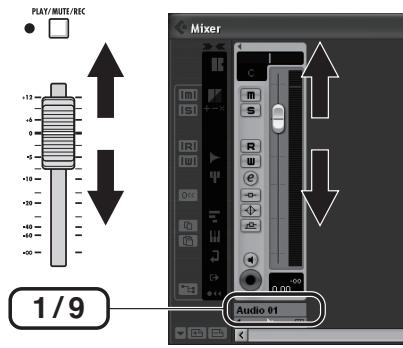

Ipny || jenueu 29ejiequl Fader section operation By using the faders and status keys of the R16 fader section, you can control the volume and muting, pause recording and switch solo on and off in the corresponding Cubase LE 4 tracks. About banks ] Operating the fader section After setting up control surface operation, the main parameters of Cubase LE 4 can be operated using the R16' fader and status keys. A group of tracks operated by the faders and status keys is called a "bank," and one bank includes 8 tracks. For example, if fader 1 is assigned to Cubase LE 4 track 1, tracks 1-8 can be operated as shown in the following diagram. CSN ‘ 2 35 4 5 6 7 8 Mac mi M2 MS MA TS MS M7 M8 As the diagram shows, pressing the [9-16tr {Bank>)] key once switches the allocations as shown below. GB à 2 + 4 5 6 7 «8 Ma mo mio mit M2 M8 Tei4 IS 16 1-8Tr

© L1-8T:] Key (< BANK) Tracks (channels) assigned to the fader section are moved backward by eight tracks. 9-167r o 0 © 19-161] Key (BANK >) Tracks (channels) assigned to the fader section are moved forward by eight tracks. ] Assign the desired Cubase 4 LE tracks (channels) to the fader section. 2 Use the faders to control the volumes of the corresponding tracks. The faders control the volumes of their respective tracks. Change the master volume by moving the [Master] Fader.

Press the MASTER track status key to cycle through the functions of the individual track status keys. By pressing a track status key, you can toggle solo, mute and record enable on and off for the corresponding track. msramsomnur IMASTER/MIX DOWN/PLAY “he * D CNE

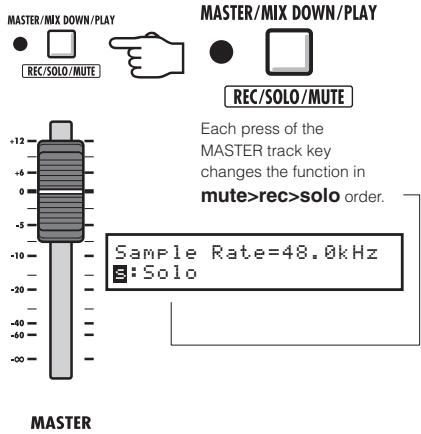

Each press of the MASTER track key changes the function in mute>rec>solo order. R16 level meters (audio interface use) Sanrle Rate=48.8kHz B:Solo MASTER 1/9 1 MASTER 8/16 Each level meter other The mastering level than the MASTER displays … meter displays the re- the signal immediately tuning signal from the before sending it to the Computer. computer. Checking DAW recording levels By setting “REC SIGNAL" to “WET" (signal with effect) or “DRY” (no effect), you can send signals to the computer with or without being processed by the R16' insert effects. The recording levels of the sent signals are displayed on the level meters. The signals shown on the mastering level meter and each level meter are different. o—1- I | Please adjust the #— [nero level meter so (clipping) that it does not light the red clip ns indicator. 1enueuw 99ej4equ oIpny E

ienueu soeur pr M Setting up function keys The five keys above the transport keys can be used as function keys (F1-F5) and assigned as you desire. Function key setup method ] Open the Device Setup Dialog Box in Cubase 4 LE 2 Select Mackie Control Commands can be assigned in the three columns displayed on the right side of the window. 3 From the (Button) column choose the function key [F1-F5] to be assigned a Cubase LE 4 function. À Click on the “Category” column for that key.

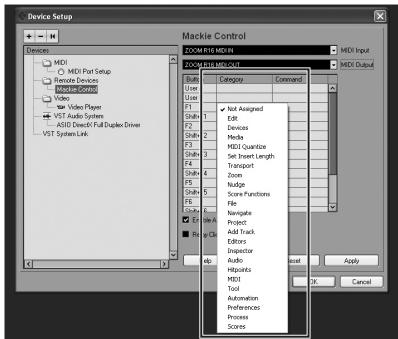

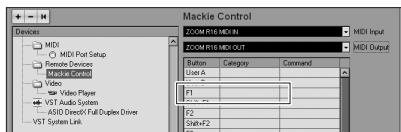

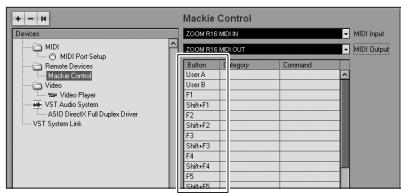

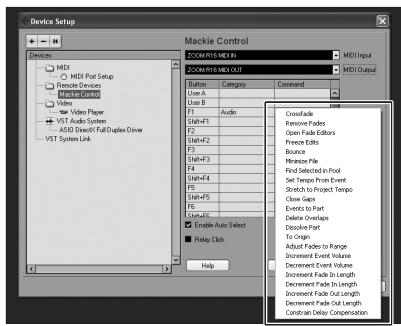

Choose the type of Cubase LE 4 function from the Category pop- up menu. Click on the “Command” column and select the desired specific Cubase LE 4 function from the pop-up menu. (The contents of this pop-up menu will be different depending on the category chosen.) Press the “Apply” button.

Control Surface Functions Quick Reference Sheet These functions are for Cubase LE 4, Cubase 4, Logic Pro, SONAR, Ableton Live and Digital Performer. Status Key MASTER] Status Key Fader MASTER] Fader Luseikeys 4» À w Dial IEWIKey FFAker ISTOPI Key IPLANIKey IRECI Key {AUTO PUNCH LOI Key LAB REPEATI Key MARKER [<<] Key MARKER > Key IMARKIKey 11-871 Key 19-167 Key Explanatio ‘Toggles mue, record enable or solo on the track on/off. Switches the function of the status keys Controis the volume of the corresponding track (Controis the master volume Performs the same functions as the arrow keys on the computer (1) Moves the cursor position (°2} Rewind Fast forward Record Depends on the [F1] key setting Depends on the [F2] key setting Depends on the [F3] key setting Depends on the [F4] key setting Depends on the [F5] key setting Moves one bank backward Moves one bank forward 1: Digital Performer = Window scrall 2: Digital Performer = Na assigned function lenuew 90e18juI Ipny I

ienueu soeur pr M Recording with Cubase LE 4 Create a new project ] Copy the ZOOM R16 project templates to the computer. From the CubaseLE4_template folder on the CD included with R16, copy the templates to the location where Cubase LE 4 is installed. Windows C:\Program Files\Steinberg\Cubase LE 4\ templates Macintosh ’Applications/CubaseLE4.app/Contents/ templates/ (To access the Contents folder, ct-click the Cubase LE 4 application and choose “Show Package Contents” from the contextual menu.) Run Cubase LE 4. Choose “New Project” from the File menu. Choose a new project template from the New Project Window.

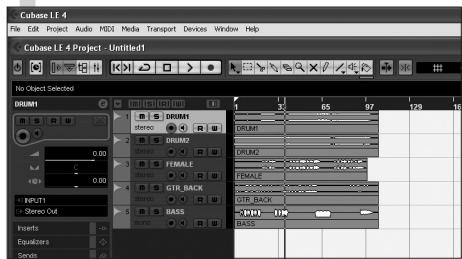

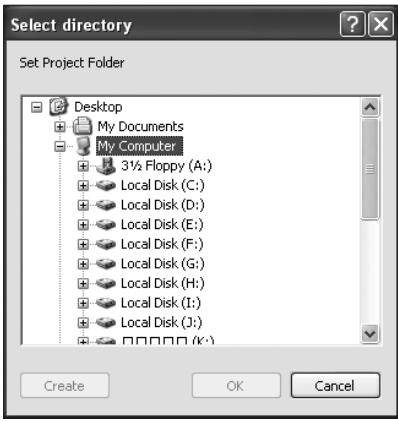

In this chapter, we explain how to record into Cubase LE 4 using the R16. Create a new project After copying the R16 project templates to the designated folder, the R16 project templates will be displayed when creating a new project By choosing these templates you will be able to easily create projects with audio track input and output settings arranged for the R16. New Project Templates.

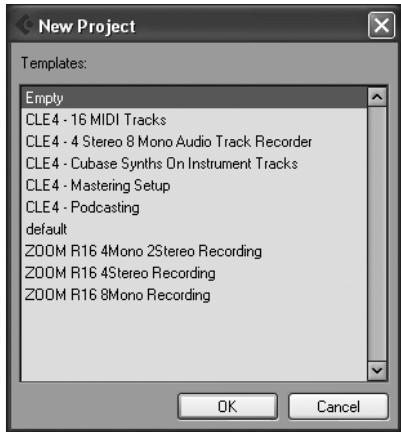

CLEA TE MIDI Tracks CLEA - 4 Stereo 8 Moro Audo Track Recorder CLEA - Cubace Synthe On Imstument Tracks CLEA - Masteïing Selun CLEA - Podeasthg deu IZ00M R18 4Mono 2Sterea Recording Z00M RS dStareo Recorcing IZ00M R16 Sono Recording Template names and details ZOOM R16 8Mono Recording A project with Cubase LE 4 monaural tracks 1-8 assigned to R16 [Input] 1-8 ZOOM R16 4Stereo Recording A project with Cubase LE 4 stereo tracks 1-4 assigned to R16 [Input] 1/2 - 7/8. ZOOM R16 4Mono 2Stereo Recording A project with Cubase LE 4 monaural tracks 1-4 assigned to R16 [Input] 1-4 and Cubase LE 4 stereo tracks 5-6 assigned to R16 [Input] 5/6 and

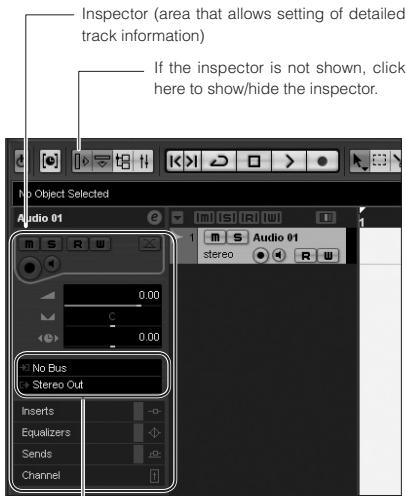

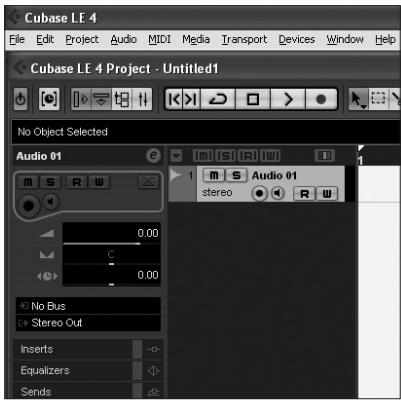

se | sue (@)© (ALU) | Create a new audio track Set-up the created audio track as follows. inspector (area that allons setting of detailed track information) If the inspector is not shown, click here to showihide the inspector. ED CSI CE) Select the track input/output bus. The names of buses of the R16 connected by USB wil be displayed. To choose a different bus click here and choose a different bus from the menu. To add a new audio track, select *Add Track” from the “Project” menu and then choose “Audio” from the sub-menu that appears. NOTE Set the recording quantization (bit depth) of Cubase LE 4 or the DAW software that you are using to 24-bit in order to achieve the best audio quality when recording. (See the software manual for how to make this setting.) The inspector displays information about the track currently selected. If it does not display anything click on a track to see that track's status. 1enueuw 99ej4equ oIpny E

Connect an instrument such as a guitar to an R16 [INPUT] jack and choose an effect patch. The chosen effect patch will be applied to the signal and recorded on the computer via the [USB] port How to choose the R16 input signal [a Reference : R16 Operation Manual Selecting an input signal XF] Selecting an effect patch Select “Mixer” from the Cubase LE 4 “Device” menu Cubase LE 4 fo Et Pout fo MD eds Taser PES Cubase LE 4 Project - United [oil CIE ER errefemane #12 Ve Ê The channels corresponding to the created tracks and the master channel will be displayed in the mixer window. 8 Enable the track for recording. Channel corresponding to the audio track Master Channel Click the record Click the Monitor enable button. button until it lights will light red and orange. recording wi be enabled. EEnT When the Monitor button is lit, the audio track input level in the level meter next to the fader will be displayed. When the light is off, the audio track output level will be displayed.

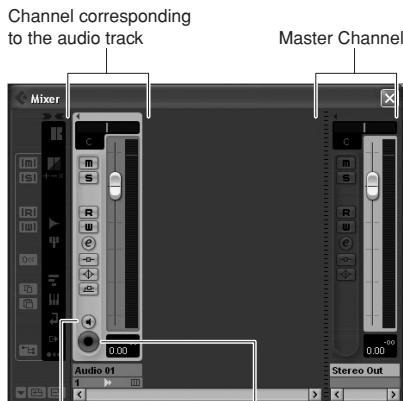

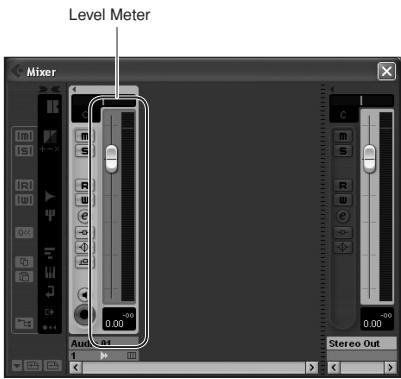

Set the recording level While playing an instrument, adjust the R16 input level and set the Cubase LE 4 recording level. The recording level for Cubase 4 LE can be checked by the level meter of the corresponding channel of the recording enabled track. Please set it as high as possible without making the meter peak When adjusting the level, do not move the Cubase LE 4 fader, but instead adjust the recording level and gain on the R16. [NOTE + Ifthe Monitor button is on, the R16 input signal and the signal returning to the R16 via the computer will both be output from the R16 at the same time which can create a flanger-like sound. If you want to monitor accurately while adjusting the recording level, turn the [DIRECT/DAW BALANCE] knob toward DIRECT. + For the above meter, the signal level is displayed after it has been internally processed by Cubase LE 4. Because of this, you might experience a slight delay between the time a string is plucked until the level meter moves; this is not a defect.

After adjusting the recording level, click the Monitor button to turn off the light.

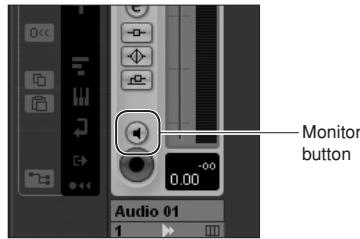

1enueuw 99ej4equ oIpny E Monitor — button Z.:" For this operation the input level is not displayed, and'the signal from the computer to the R16 is muted For this operation the [PHONES] and [OUTPUT] ports of the R16 can only be used to monitor the signal sent to the computer. Confirm the Transport Panel display Hthe Transport Panel is not displayed, select “Transport Panel” from the “Transport” menu.

ienueu soeur pr M Recording with Cubase LE 4 Recording ] Check the recording (playback) ] Click the Record button on the Transport Panel DEXAESSEI SRE] _ Stop button Record button Recording begins. As you play the instrument, a recorded waveform is draun in real time in the project window. To stop recording, click the Stop button in the transport panel © CN GISI 1 Lower the master channel fader Using the Transport Panel buttons, return to the beginning of the project. <L>bis te L>le] < Move to the beginning of the project Click the Play button on the Transport Panel to begin playback.

Raise the master channel fader to a suitable playback level. Stereo Dut EENT If no sound comes out after clicking the Play button following recording, recheck the USB connection settings (Step 6 above). In addition, confirm that the [DIRECT/DAW BALANCE] control is at the center. Tips to improve performance When using Cubase LE 4, the application's actions could become extremely delayed or error messages such as “cannot synchronize with USB audio interface” might be displayed. Should such occurrences become frequent, taking the following measures might improve the situation. © Terminate other running programs. In particular, confirm that there are not a large number of background applications running. @ Reduce the use of plug-ins in Cubase LE 4 (effects, sound generator plug-ins) If there are a large number of plug- ins running, the computer might be struggling to keep up. In addition, reducing the number of simultaneous playback tracks might be effective. © Use the R16 AC adapter When devices draw power from the USB bus, on rare occasions computer performance can suffer. Try using the AC adapter. Please increase the Audio Buffer Size in the Device Setup>VST Audio System menu if the sound breaks up. Please refer to Installation Guide Step 5 for details. Moreover, if the application performance is extremely slow and regular computer operation is affected, we recommend disconnecting the computer from the R16 USB port and quitting Cubase LE 4 once before reconnecting the USB port and reopening Cubase LE 4 again.

ienueu soeur pr M Importing audio data into Cubase LE 4 By connecting a computer and the R16 with a USB cable and setting the R16 to function as a card reader, you can import audio data as WAV files into Cubase LE 4 audio tracks. Importing by drag & drop

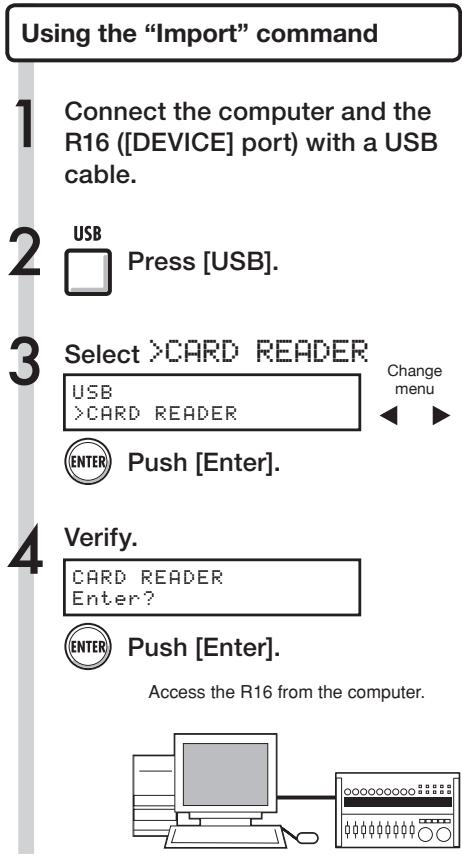

Connect the computer and the R16 ([DEVICE] port) with a USB cable. USB O Press [USB]. Select : CARD READER Change USE >CARD READER

Push [Enter]. Verify. CARD READER Enter? Push [Enter]. Access the R16 from the computer. HITS 5 Start Cubase LE 4. Open the project into which you want to import audio data. Open the R16 SD card from the computer and open the “Audio” folder of the project from which you want to import audio data.

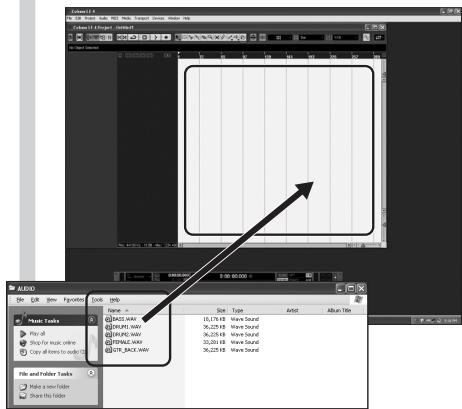

Select the file or files that you wish to import from the “Audio” folder and drag and drop them into the Cubase LE 4 project window. When a file is dragged and dropped, a window asking what Cubase LE 4 should do with the file will open. Select either “Different Tracks” or “One Track” as the import method. Generally, select “Different Tracks" to automatically create one track for each file. The files will be arranged vertically in the project window. Selecting ‘One track” will create one track with the audio files arranged horizontally. If you drag audio files on top of existing tracks, they will be placed into those tracks Cubase LE 4

Lima} This window appears where you can select the import method ] In the “Import Options” window click the “Copy Files to Working Directory” check box, and click the OK button. The audio files are loaded into Cubase LE 4. DO CEXCEEAE ENT The USB cable can be connected even when the computer or the R16 is on. -_Ifthe R16 is connected when off, it can be run on USB bus power. - Project data is stored in the SD card root directory in folders named “PROJxxx” (xxx=project number). Audio data is stored as WAV files in the “AUDIO” subfolders of each “PROJxxx* folder. + Mastertracks and stereo tracks are stereo WAV files. : To copy a WAV file from the computer to an R16 project, copy it to the “AUDIO” subfolder of the desired “PROJxxx” project folder (ox=project number). Then assign the files to tracks using the functions of the R16. 1enueuw 99ej4equ oIpny E

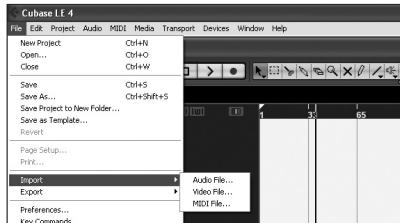

Importing audio data into Cubase LE 4 Using the “Import” command 5 Start Gubase LE 4. Connect the computer and the R16 ([DEVICE] port) with a USB cable. 2 = Press [USB]. CARD READER

PR Open the project into which you want to import audio data. À Verify. CARD READER Enter? Push [Enter]. Access the R16 from the computer. From the Cubase LE 4 “File” menu select “Import” and “Audio File...” “Import Audio” window appears.

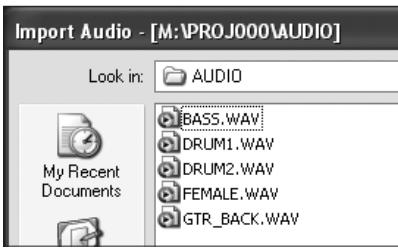

Select the desired audio file or les from the “AUDIO” folder of the project from which you wish to import. Click “ Import Audio - [M:\PROJO00\AUDIO] Look in: | 2 AUDIO (EBAss wav, EDRUMI wav My Recent | |@ÏORUM2.wav Decuments | @DFEMALE. wav ca @GTR_BACK.WAV Importing files will cause the “Import Options” window to appear. In the “Import Options” window click the “Copy File to Working Directory” check box, and click the OK button. When a fil is imported, a window opens asking what Gubase LE 4 should do with the files. Select either “Different Tracks” or “One Track” as the import method.

Generally, select “Different Tracks” to automatically create one track for each file. The files will be arranged vertically in the project window. Selecting “One track” will create one track with the audio filles arranged horizontally. f you drag audio files on top of existing tracks, they will be placed into those tracks ENT + The USB cable can be connected even when the computer or the R16 is on. -_Ifthe R16 is connected when off, it can be run on USB bus power. - Project data is stored in the SD card root directory in folders named “PROJxxx” (xxx=project number). Audio data is stored as WAV files in the “AUDIO” subfolders of each “PROJxxx* folder. + Mastertracks and stereo tracks are stereo WAV files. : To copy a WAV file from the computer to an R16 project, copy it to the “AUDIO” subfolder of the desired “PROJxxx” project folder (ox=project number). Then assign the files to tracks using the functions of the R16. 1enueuw 99ej4equ oIpny E

The mixer in audio interface mode In audio interface mode you can make a mix for monitoring using the R16's internal mixer. In addition, you can adjust the balance of the internal mixer and the sound from the computer. Volume, reverb send and pan STEREO LINK You can be adjust the REVERB SEND, PAN, VOLUME and STEREO LINK settings as in recorder mode. Operation is the same as in recorder mode. (Reference: OPERATION MANUAL P.37) The PAN/EQ Menu VOLUME You can set the volume levels for INPUT 1-8 between 0-127 (increments of 1). 100 is the default Ineuti VOL UT|

This is the first menu item displayed when you push the IPAN/EQ] key in audio interface mode. SEND REVERB You can change the reverb send levels for INPUT 1-8 from 0-100 (increments of 1) with O as the default (same s in recorder mode). Ineuti REUERE SEN Reverb only affects the monitored signal PAN (BALANCE) You can change the pan for INPUT 1-8 between L100-R100 (increments of 2) with C (center) as the default (same as in recorder mode) Ineuti Link even and odd numbered INPUTS to handle them as a stereo pair. Ineuti STEREO LINK On On/Off with “Off as the default By setting up a stereo link, REVERB SEND, PAN and VOLUME track parameters can be applied to even and odd inputs simultaneousiy. The odd numbered fader will be active (same as in recorder mode). Reference : OPERATION MANUAL P.20 IBALANCE] In audio interface mode the balance of the signals monitored from the inputs and the signals returning from the computer can be adjusted with the [BALANCE] knob. BAUME Left Right Oniytne signal On the DAW from INPUT 1-8 CAE stereo signal [NOTE The R16 REVERB SEND, PAN, VOLUME and STEREO LINK settings are all saved when you terminate audio interface mode and can be used again the next time by choosing [CONTINUE] when you relaunch audio interface mode.

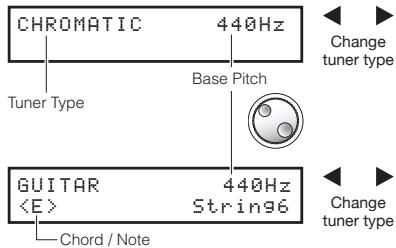

Tuner The R16’s tuner can be used in the same way as in recorder mode. For further details please consult the OPERATION MANUAL. CHROMATIC TUNER

ienueu soeur pr M Effects in audio interface mode The R16's insert and send return effects can both be used when the sampling wavelength is set to 44.1 kHz. Basic operation is the same but there are a few differences in the menus. Insert effect Send return effect (reverb) As in recorder mode, select the insert location and the insert effect algorithm, as well as the effect patches to be applied to the recording signal. Insert effect menu Select the insert location You can seit for any INPUT from 1-8. No. 8: Standard >INPUT SOURCE (Reference : OPERATION MANUAL P49) Apply the effect only to monitoring I you set “REC SIGNAL’ to “Dry the effect will only be applied to the monitoring signal and wil not affect signals recorded in DAW software. No. 8: Standard >REC SIGNAL (Reference : OPERATION MANUAL PS8)

When in audio interface mode reverb can only be used for monitoring. As in recorder mode, you can use the [SEND RETURN EFFECT] menu to change the patch and the [PAN/EQ] menu to set the send level that adjusts the depth of the reverb signal. Send return effect menu REVERB SEND By altering the send level of the REVERB you can adjust the depth of the added signal SEND REUERE No.@g:TightHal In audio interface mode the [SEND RETURN EFFECT] key opens the "SEND REVERB" menu, which is different from the recorder mode. (Reference: Printed Manual P.36-45) Reference: Audie Interface Manual P.25) [NOTE Effects can only be used when the sampling rate is 44.1 kHz. At all other times it is turned OFF. - Insert and send return effect settings are saved when you terminate audio interface mode and can be used again the next time by choosing ICONTINUE] when you relaunch audio interface mode.

Working with patches After you have made many edits, you might want to restore pre-edited settings by initializing the patch. This will return it to its factory preset condition. Patch operations For both insert and send return effects Patch operation menus Select an insert effect or send return effect patch Press either INSERT EFFECT or SEND RETURN EFFECT and select a patch from an algorithm. {eference: OPERATION MANUAL P48) Patch editing and renaming (EDIT) By adjusting the effect module parameters you can set it to create the desired result. You can also change the name. (Reference: OPERATION MANUAL PS3) Importing patches (IMPORT) All algorithms (as well as reverb patches) from the effects ofthe project selected on the R16 can be imported and saved as a single patch Reference: OPERATION MANUAL PS4) ‘In the audio interface mode, one complete set of effect data is saved for the mode. There are no project based settings. Saving patches (SAVE) Adjusted patches can be saved. Reference: OPERATION MANUAL P. 53) Initializing patches (INITIAL) Restores patches to their original factory settings (only available in audio interface mode). LHINT Even if you have not imported patches the initial settings of patches that were used in the recorder mode can be used. Patchinitialization (factory reset) EFFECT> select patch> PATCH INITIAL 5 Confirm.

Control surface setup for other DAWSs You can set and use the R16 as a controller in a variety of DAW software besides Cubase LE 4. Please refer to the manual for the software that you are using.

Logic 7/8 ] Control surface setup Select “Preferences” > “Control surface” > “Setup” from the “Logic Pro” menu. This opens the “Setup” window. Click on the top left “New” and select “Install” from the pull- down menu. Select “Mackie Designs/Mackie Control/Logic Control” from the list in the “Install” window and click the “Add” button. “Mackie Control” will be added to the setup window. Select the “Mackie Control” icon. Then, from the top of the list at the left set “Out Port” and “Input” to “ZOOM R16” using their pull-down menus.

Function key setup Select “Preferences” > “Control surface” > “Controller Assignments..” from the “Logic Pro” menu. This opens the “Controller Assignments” window. From the “Zone” column select “Control Surface: Mackie Control.” Change the functions as you like. Controls F1-F5 correspond to the F1-F5 keys on the R16. The above procedures are for Logic Pro 8. The names of the menus might be different in a different version of Logic. Please refer to the manual for the version of Logic that you are using for detail.

SONAR 7/8 ] Control surface setup Choose option-controller/ surface menu to open the controller/surface dialog. H a contraller/surface has already been selected, click on the "Delete” button and delete the controller/surface. Click the “Add” button and open the “Controller/Surface Setup” dialog. Choose “ZOOM R16” from the drop-down menu of the “Controller/surface” column. Select “ZOOM R16” in the input/ output port column. For Cakewalk SONAR, installation of a control surface plug-in is necessary. Please install it when installing the driver. Function key setup Choose “Option key bind” to open the “Key bind” dialog. Press “Search for the key” in “Setup.” Select a function that you want to assign an F1-F5 key to and then press that key on the R16. The above procedures are for Sonar 7 The names of the menus might be different in a different version of Sonar. Please refer to the manual for the version of Sonar that you are using for details: ENT The F1-F5 keys on the R16 are labeled as follows. F1: [AUTO PUNCH IN/OUT] key F2: [A-B REPEAT] key F8: MARKER [<<] key F4: MARKER L>|] key F5: [MARK/CLEAR] key

ienueu soeur pr M Control surface setup for other DAWSs LIVE 6/7 Control surface setup After starting Live 7, select “Preferences” from the “Option (Windows) or “Live” (Mac) menu. The Preferences window will open. Click “MIDI” on the left side of Preferences window. The setup window related to MIDI will open Select “Mackie Control” in the pull-down menu of the Control Surface column. Select “ZOOM R16” from the pull-down menus of the Input and Output column. In the MIDI Ports section below, turn “On” the Remote column button for the “Input: Mackie Control Input (Zoom R16)” item. Function key setup ] Press the MIDI button at the top right of the main LIVE window to open MIDI map mode. 2 Interface elements that can be assigned will be highlighted in blue. Click on the parameter that you want to assign an F1-F5 key to control. 3 Press the F1-F5 key of the R16 that you want to use to control the selected parameter in Live. The above procedures are for Live 7. The names of the menus might be different in a different version of Live. Please refer to the manual for the version of Live that you are using for detail. LHINT The F1-F5 keys on the R16 are labeled as follows. F1: [AUTO PUNCH IN/OUT] key F2: [A-B REPEAT] key F3: MARKER [|<<] key F4: MARKER b>>1] key F5: [MARK/CLEAR] key

Digital Performer 5/6 ] OO Où OR © ON œo NN Control surface setup Launch the Audio MIDI Setup application. (/Applications/ Utilities). Click the MIDI Devices tab and confirm that “ZOOM R16” is displayed. Click “Add Device.” A ‘new external device” will be added. Double-click the “new external device” to open its “Information window. Enter the name “R16” in the “Device Name” field. Click and drag the downward arrow of the original “ZOOM R16” icon and connect it to the downward arrow of the “R16” icon that you added. Use same method to connect the upward arrows. Start Digital Performer. Select “Control Surface Setup” from the “Setup” menu. The Control Surface window will open Click the “+” icon in the Control Surface window and select “Mackie Control” from the “Driver” pull-down menu. ] Select “Mackie Control” from the “Unit” pull-down menu that will be displayed at bottom. 1enueuw 99ej4equ oIpny E 1 Select “R16” from the “MIDI” pull-down menu of the Control Surface window and select [R16- 1] from the menu list. 12 Click the “OK” button. The above procedures are for Digital Performer 5. The names of the menus might be different in a different version of Digital Performer. Please refer to the manual for the version of Digital Performer that you are using for detail. Function key setup The default functions are allocated in Digital Pertormer and you cannot change these functions. F1 [AUTO PUNCH IN/OUT]: Selects YES in dialog boxes Selects NO in dialog boxes Creates track groups/groups Releases pause and stop of track group/group function Releases track group/group function

Refer to sections about Mackie Control dialog boxes and track groups in the Digital Performer manual. M Sampitude + Mackie Control is a registered trademark of LOUD Technologies Co. Other trademarks and registered trademarks in this document belong to their owners.

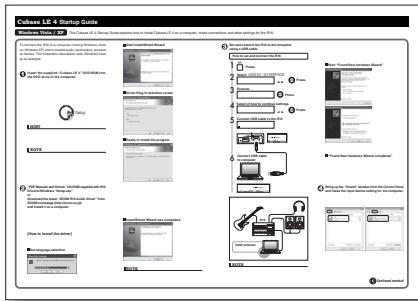

Cubase LE 4 Startup Guide Windows Vista / De This Cubase LE 4 Startup Guide explains how to install Cubase LE 4 on a computer, make connections and other settings for the R16. To connect the R16 to a computer running Windows Vista (or Windows XP) and to enable audio input/output, proceed as follows. The installation description uses Windows Vista as an example.

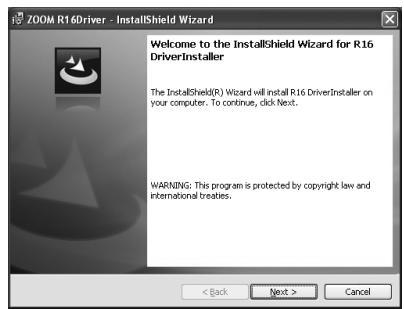

Insert the supplied “Cubase LE 4” DVD-ROM into the DVD drive of the computer. When you insert the DVD-ROM, a screen asking what you want to do appears. Select “Open folder to view files” When the contents of the DVD-ROM are shown, open the Cubase LE 4 for Windows folder by double-clicking on it, and then double-click the executable “Setup” (“Setup.exe”) file to start the installation process. Setup LHINT If nothing happens when you insert the DVD-ROM, open the Start menu and select “Computer” (‘My Computer” in Windows XP). Then double-click the “Cubase LE 4 DVD-ROM icon to display the contents ofthe DVD-ROM NOTE To use Cubase LE 4 continuously, it is necessary to have the User Registration and the Software License Authentication. The Registration and Authentication are available to be processed when Cubase LE 4 is activated on a computer connected to the internet. Click “Register now” which is shown when activating, enter all the items. Ifitis not recognized as Registration, Cubase LE 4 can only be used for a limited period after installation: “PDF Manuals and Drivers” CD-ROM supplied with R16 Drivers>Windows “Setup.exe”

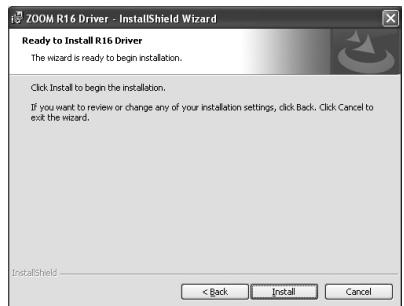

Download the latest “ZOOM R16 Audio Driver” from ZOOM homepage (http://zoom.co.jp) and install it on a computer. ZOOM R16 Audio Driver software is required to enable use of Cubase LE 4 for audio input and output with a computer. Refer to the read_me file included in the download package for instructions on how to install the driver correctiy [How to install the driver] Double-click Setup.exe file to activate the installer Set language selection Choose language and Scene ere neatatontem hechiczereen. | ClICK [OK] . a Start InstallShield Wizard Click [Next] to start tmesanentee | inctalation If you use SONER, select Installation Plug In for Control os Surface. mate Create se nan en (arm) BReady to install the program bonne ne Click [Install] to start re installation. If a waming dialogue “Install sofware" appears, click [Continue] If a warning dialogue “Windows security Driver Software Licensee cannot be verified." appears, click [Install this driver software] *A message “ZOOM R16 Audio Driver (No Response)" may appear, but it is not a problem. Wait until it responds. HinstallShield Wizard was completed Click [Complete] to static cor onglet finish installation NOTE We recommend you upgrade the system software to the latest version on the R16. An R16 operated on an old system may not be recognized correctiy. The latest version can also be downloaded from our homepage. Set and connect the R16 to the computer using a USB cable. { How to set and connect the R16 uss ] O Press. Select “AUDIO INTERFACE USE 1,73 [Menu moves >AUDIG INTERFACE + Execute. AUDIO INTERFACE Enter? SETTING IMenu moves

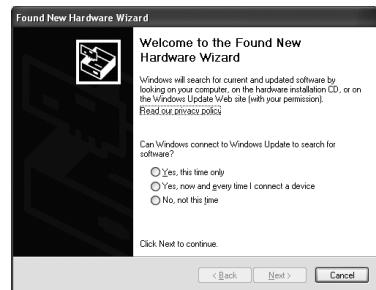

Connect USB cable to the R16 Sanrle Rate=48.0Hz g'5olo À Select of how to continue settings. US8 indicator [DEVICE] flashes

AUDIO INTERFACE flashes Connect USB cable to computer

on seting complted atesdé GHz INPUT 1-8]Jack [PHONES}Uack Guitar, other instrument or Audio system buit-in stereo mic headphones or other playback equipment

IINTÉG Windows PC LOUTPUTIJack Audio components, amp buil-in DAW software speakers etc Cubase LE 4 etc USB cable zOOM R6/Audio Driver NOTE Use a high-quality USB cable and keep the connection as short as possible. 1f USB bus power is supplied to the R16 via a USB cable which is more than 3 meters in length, the low voltage warning indication may appear. When the connection is operated on the R16, it is recognized by the computer. If this is the first time to connect the R16, wait until the message “Your devices are ready to use” appears. Start to “Found New Hardware Wizard” Choose [No, not this timeJof Windows Update and click[Next] Vila to ha Found Raw Hardware ira _ Choose [Install the software automatically] and click [NextJto start installation Gérer mean ce D | If a waming dialogue “Install hardware” appears, click [Continue] &‘Found New Hardware Wizard completed” Click [Finish] to complete installation: When connected operation on the R16 side is finished, it is recognized by the computer Connects the first time,Please wait until the message of "The device was able to be prepared" is displayed Bring up the “Sound” window from the Control Panel and make the input device setting for the computer. To bring up the “Sound” window, select “Control Panel” from the Start menu and click “Hardware and Sound”, then click “Sound”.

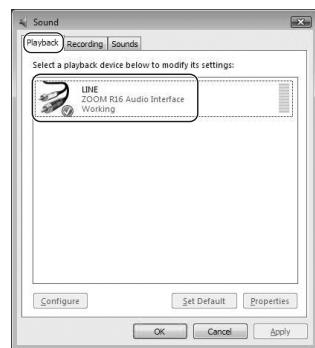

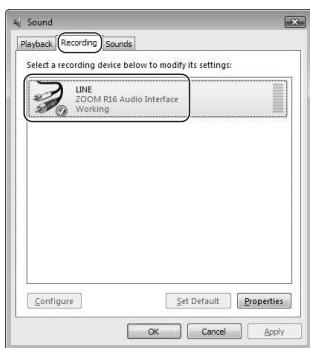

In the “Sound” window, verify that “R16 Audio Interface” is listed under the Play and Record devices and that the device is checked. (To switch between Play and Record, click the tabs at the top of the window.) Ifthe device is not checked, right-click on the icon for the device and click Set as Default Device” so that a check mark appears. @ Continued overleaf

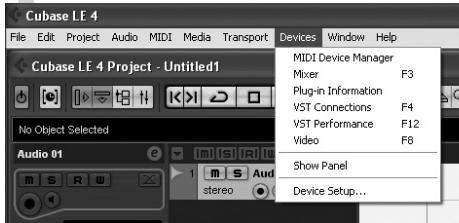

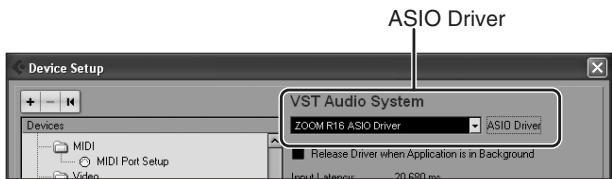

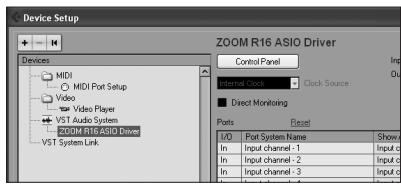

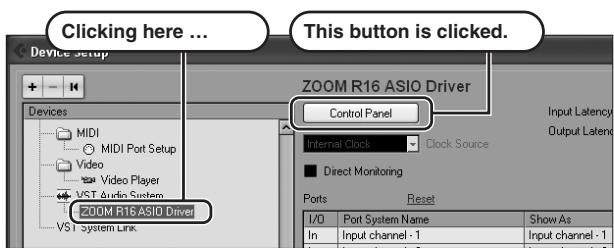

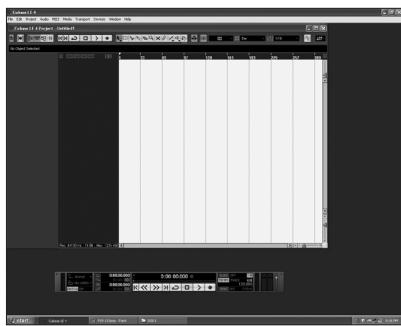

Continued from front @ Windows Vista / XP Start Cubase LE 4. Then access the “Devices” menu, select “Device Setup...” and click “VST Audio System” To start Cubase LE 4, double-click the Cubase LE 4 shortcut icon which was created on the desktop After startup, select *ZOOM R16 ASIO Driver” as the ASIO driver in the right section of the Device Setup window. When you change the ASIO driver selection, a confirmation message appears. Click the “Switch” button ASIO Driver Device Setup. The device indication in the left section of the window now shows “ZOOM R16 ASIO Driver” as the ASIO driver. Click on this indication to select it, and then click the “Control Panel” button in the right section of the Device Setup window. The window which appears lets you set the buffer size for the ASIO driver. The buffer size should be set to a value which is as low as possible without causing sound dropouts during recording and playback The sampling frequency can be changed in Cubase LE 4 in Project Settings. When the setting is complete, click the OK buttons in the respective windows to return to the startup condition of Cubase LE 4 From the “Devices” menu of Cubase LE 4, select “VST Connections” and set INPUT(Input channel

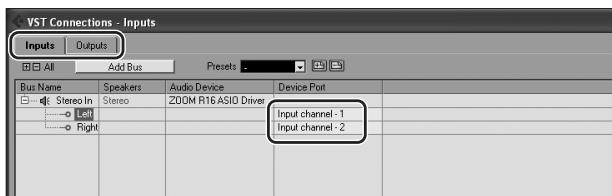

1 - Input channel 8) as the input port to be used

and Output channel 1, Output channel 2 as Output port on the displayed window. Use the tabs at top left to switch between input and output, and verify that “Input channel 1 - Input channel 8 / Output channel 1 Output channel 2” are selected as device ports. If another device is selected, click the device port field and change the selection: [Mac OS x | This Cubase LE 4 Startup Guide explains how to install Cubase LE 4 on a computer, make connections and other settings for the R16. To connect the R16 to a computer running Mac OS X and to enable audio input/output or control R16 as control surface for Cubase LE 4, proceed as follows Insert the supplied “Cubase LE 4” DVD-ROM into the DVD drive of Macintosh. And start installation. The contents of the DVD-ROM will be shown automatically. If they are not shoun automatically, double-click “Cubase LE 4" icon displayed on the desktop. When the contents of the DVD-ROM - are shown, double-click “Cubase LE 4 ve for Macintosh X" icon to open and install it using “Cubase LE 4.mpkg” Cubase LE 4.mpkg [2] “PDF Manuals and Drivers” CD-ROM supplied with R16 Drivers/Mac “ZOOM R16Driver” Download the latest “ZOOM R16Driver” from ZOOM homepage (http://zoom.co.jp) and install it on a computer. ZOOM R16Driver software is required to enable use of Cubase LE 4 for audio input and output with a computer. Double-click installer (ZOOM R16 Driver.pkg) icon. Start install it according to the instruction: ZOOM R16Driver.pkg [3] Set and connect the R16 to Macintosh using a USB cable. [ How to set and connect the R16 ) 2 Select “AUDIO INTERFACE Saubro INTERFACE H Le Press. 3 Execute. Eten TERFACE Press. À Select of how to continue settings. FSONTINUE) RESET Le Press. 5 Connect USB cable to the R16 Sample Rate=48.0Hz B'50lo USB indicator [DEVICE] lashes

AUDIO INTERFACE flashes 6 Connect USB cable to computer + + dl AE INTERFACE flashes when Ihe connection is complete Connection setting completed EINPUT 1-8JJack Guitar, other instrument or buil-in stereo mic IPHONESJ Jack Audio system headphones or other playback equipment LULU) IOUTRUTAX ; Aucio components. Macintosh amp buit-in speakers etc DAW software Cubase LE 4 etc C7 USB cable When the connection is operated on the R6, it is recognized by. the computer NOTE Use a high-quality USB cable and keep the connection as short as possible. 1f USB bus power is supplied to the R16 via a USB cable which is more than 3 meters in length, the low voltage warning indication may appear. Open the “Applications” folder and then the “Utilities” folder, and double-click “Audio MIDI Setup”. The Audio MIDI Setup screen appears. Click “Audio Devices” and check that *ZOOM R16 Driver” is selected as default input/default output 868 Audio MIDI Setup rm tes Ces es 5 muon ur _—) run Oum (SEE noue ——2$ rene DESES auto rot audi Out te E] rem use com Ourpur is not supported If another device is selected, use the pull-down menu to change the selection to “ZOOM R16 Driver”. When the setting is done, close Audio MIDI Setup. Start Cubase LE 4. Then access the “Devices” menu, select “Device Setup...” and click “VST Audio System”. To start Cubase LE 4, double-click the Cubase LE 4 icon in the “Applications” folder. After startup, be sure to verify that *ZOOM R16 Driver” is selected in the right section of the Device Setup window. © From the “Devices” menu of Cubase LE 4, select Device Setup ST Audio System 1 release Driver when Applation is In Enciground Input Latency: 6304ms Output Latency. 11.088 ms Ce NUS Autvanced Options et 10 Data If another device is selected, use the pull-down menu to change the selection to “ZOOM R16 Driver”. When the setting is done, click OK button and close the window “VST Connections” and select the device containing the string “ZOOM R16 Driver 1 - 8” as input port and output port. 655 PTS Use the tabs at top center to switch between input and output, and verify that “ZOOM R16 Driver 1 - 8" is selected as device port If another device is selected, click the device port field and change the selection For optimum enjoyment While using Cubase LE 4, other applications may slow down drastically or a message such as “Cannot synchronize with USB audio interface” may appear. If this happens frequently, consider taking the following steps to optimize the operation conditions for Cubase LE 4

1) Shut down other applications besides Cubase LE 4.

In particular, check for resident software and other utiliies.

2) Reduce plug-ins (effects, instruments) used

by Cubase LE 4. When there is a high number of plug-ins, the computer's processing power may not be able to keep up. Reducing the number of tracks for simultaneous playback can also be helpful

3) Power the R16 from an AC adapter.

When a device designed to use USB power is powered via the USB port, the current supply may sometimes fluctuate, leading to problems. See if using an AC adapter improves operation Please set latency from the device menu when the sound cutting occurs. Refer: Install Guide-step5 about details. If applications still run very slowly or the computer itself does not function properly, disconnect the R16 from the computer and shut down Cubase LE 4. Then reconnect the USB cable and start Cubase LE 4 again.
