Product Type	Handheld Audio Recorder
Brand	Zoom
Model	APH-2n (H2n Handy Recorder)
Dimensions	67.6 (W) × 113.8 (H) × 42.7 (D) mm
Weight	130 g (without batteries)
Power Supply	2 AA batteries (alkaline or NiMH) or ZOOM AD-17 AC adapter (sold separately)
Battery Life	Up to 20 hours (44.1kHz/16bit WAV recording with alkaline batteries)
Recording Media	SD/SDHC card (16MB–32GB) and built-in memory (1 minute MP3)
Recording Modes	MS Stereo, XY Stereo, 2ch Surround, 4ch Surround
Microphones	Built-in MS and XY mic arrays (directional and bidirectional)
File Formats	WAV (44.1/48/96kHz, 16/24bit), MP3 (44.1kHz, 32–320kbps)
Features	Tuner (chromatic, guitar, bass, alternate), metronome, pre-recording, auto recording, loop playback, speed/pitch control, AB repeat, file divide/normalize/MP3 encode, 4ch surround mixer, USB audio interface
Input Jack	Stereo mini jack (line/mic, plug-in power support)
Output Jack	Stereo mini jack (line/headphone)
USB	Mini-B (USB 2.0 High Speed for card reader, USB 1.0 for audio interface)
Cleaning	Use a soft dry cloth. Avoid abrasive cleaners, wax, or solvents.
Safety Precautions	Use only specified batteries and AC adapter. Avoid high temperatures, humidity, and dust. Do not open the case.
Accessories Included	Operation manual, SD card (2GB), 2 AA batteries, WaveLab LE CD-ROM
Spare Parts / Repairability	Remote control (RC-10) and AC adapter (AD-17) sold separately. Contact ZOOM service for repairs.

Frequently Asked Questions - APH-2n ZOOM

What type of batteries does the Zoom APH-2n use?

The recorder uses 2 AA batteries. Alkaline or nickel-metal hydride (NiMH) batteries are recommended. Do not mix old and new batteries or different types.

How do I change the recording mode on the APH-2n?

Rotate the mode dial on the top of the recorder to select between MS Stereo, XY Stereo, 2ch Surround, or 4ch Surround mode. The selected mode is indicated by a triangle mark.

Can I connect the APH-2n to a computer?

Yes, use the built-in USB port. Turn the recorder on, press the MENU button, navigate to USB, and select SD CARD READER or AUDIO INTERFACE (supports Windows and Mac OS). The recorder must be in the appropriate mode to be recognized.

How do I format an SD card for the APH-2n?

Press the MENU button, use the navigation keys to select SD CARD, then FORMAT. Choose YES to confirm. Note that formatting erases all data on the card. Always format new cards or those formatted by other devices before use.

How do I use the built-in tuner?

Press the MENU button, select TOOL, then TUNER. Choose the tuner type (chromatic, guitar, bass, or alternate). Play a note into the mic or through input, and the display shows the pitch and tuning accuracy.

What is the pre-recording feature?

Pre-recording captures 2 seconds of audio before you press the REC button. Enable it via MENU > REC > PRE REC. It is useful for capturing sudden starts. Note: cannot be used simultaneously with metronome pre-count.

How do I adjust the stereo width in MS recordings?

In MS Stereo mode, use the S LEVEL control (side mic level) before recording. Set it to OFF, RAW, or between -24 and +6 dB. If recorded in MS-RAW mode, you can adjust the S level during playback via MENU > MS SIDE MIC LEVEL.

Can I convert a WAV file to MP3 on the recorder?

Yes, if the file is a stereo WAV (not MS-RAW or 4ch). Press MENU, select FILE, choose the file, then MP3 ENCODE. You can select a bit rate. The converted MP3 is saved in the same folder.

How do I set the date and time?

Press MENU, select SYSTEM, then DATE/TIME. Use the navigation keys to adjust year, month, day, hour, minute. Confirm with OK. This is important for file naming with DATE mode.

What should I do if the recorder shows 'Card Protected'?

The SD card's write protection switch is on. Slide the 'Lock' switch on the side of the SD card to the unlocked position to allow recording and deleting files.

USER MANUAL APH-2n ZOOM

Reproduction or duplication of this manual without permission, in whole or in part, is prohibited.

Usage and safety precautions

SAFETY PRECAUTIONS

In this manual, symbols are used to highlight warnings and cautions that you must read to prevent accidents. The meanings of these symbols are as follows:

Something that could cause serious injury or death.

Something that could cause injury or damage to the equipment.

Other symbols

Required (mandatory) actions

Prohibited actions

Warning

Operation using an AC adapter

Use only a ZOOM AD-17 (sold separately) AC adapter with this unit.

Do not use do anything that could exceed the ratings of outlets and other electrical wiring equipment. Before using the equipment in a foreign country or other region, where the electrical voltage differs from that indicated on the AC adapter, always consult with a shop that carries ZOOM products beforehand and use the appropriate AC adapter.

Operation using batteries

Use 2 conventional 1.5-volt AA batteries (alkaline or nickel-metal hydridel.

! Read battery warning labels carefully.
Always close the battery compartment cover when using the unit.

Alterations

Never open the case or attempt to modify the product.

Precautions

Product handling

Do not drop, bump or apply excessive force to the unit
! Be careful not to allow foreign objects or liquids to enter the unit.

Operating environment

Do not use in extremely high or low temperatures.
Do not use near heaters, stoves and other heat sources.
Do not use in very high humidity or near splashing water.
Do not use in places with excessive vibrations. Do not use in places with excessive dust, or sand.

AC adapter handling

When disconnecting the AC adapter from an outlet, always pull the body of the adapter itself.
! During lightning storms or when not using the unit for a long time, disconnect the power plug from the AC outlet.

Battery handling

1 install the batteries with the correct +/- orientation.
Use a specified battery type. Do not mix new and old batteries or different brands or types at the same time. When not using the unit for an extended period of time, remove the batteries from the unit.
If a battery leak should occur, wipe the battery compartment and the battery terminals carefully to remove all battery residue.

Connecting cables with input and output

jacks

Always turn the power OFF for all equipment before connecting any cables.
Always disconnect all connection cables and the AC adapter before moving the unit.

Volume

Do not use the product at a loud volume for a long time.

Usage Precautions

Interference with other electrical equipment

In consideration of safety, the H2n has been designed to minimize the emission of electromagnetic radiation from the device and to minimize external electromagnetic interference. However, equipment that is very susceptible to interference or that emits powerful electromagnetic waves could result in interference if placed nearby. If this occurs, place the H2n and the other

device farther apart. With any type of electronic device that uses digital control, including the
H2n electromagnetic interference could cause malfunction, corrupt or destroy data and result in other unexpected trouble. Always use caution.

Cleaning

Use a soft cloth to clean the panels of the unit if they become dirty. If necessary, use a damp cloth that has been wrung out wall. Never use abrasive cleansers, wax or solvents, including alcohol, benzene and paint thinner.

Malfunction

If the unit becomes broken or malfunctions, immediately disconnect the AC adapter, turn the power OFF and disconnect other cables. Contact the store where you bought the unit or ZOOM service with the following information product model, serial number and specific symptoms of failure or malfunction, along with your name, address and telephone number.

Copyrights

- Windows, Windows Vista, Windows XP and Windows 7 are trademarks or registered trademarks of Microsoft Corporation. - Macintosh and Mac OS are trademarks or registered trademarks of Apple Inc. - The SD and SDHC logos are trademarks. - The use of MPEG Layer-3 audio compression technology is licensed from Fraunhofer IIS and Siavel SpA.

* All other product names, trademarks and company names in this document are the property of their respective owners.

H2n Handy Recorder

Introduction

Thank you very much for purchasing a ZOOM H2n by Recorder. The features of the H2n include the following.

• Four-channel recording captures sound in 360°

The built in microphones are divided into mid-side (MS) mics on the rear side and XY mics on the front side. This independent placement allows you to record sound coming from every direction. This unrestricted range means you can record diverse sound sources in all kinds of conditions.

- New microphone array allows control of stereo width

The MS mic includes a directional mid mic that covers the front and a bidirectional side mic that covers both sides. By controlling the amount of side mic signal, you can freely adjust the stereo width of recordings.

- Stereo recording is clear and three-dimensional

Using the XY mic, you can realize three-dimensional stereo recordings that faithfully capture a sense of depth.

• Uninterrupted long recordings possible at high-quality

Recording is possible without interruption for very long times. You can even fill an entire 32GB SDHC card in one session!

- Runs for a long time on standard batteries

You can record for up to 20 hours (44.1kHz/16bit WAV format) with one set of alkaline batteries. So, even in situations where you must rely on batteries, you can keep recording without worrying about the time.

- Use as an SD card reader and computer audio interface

The built-in USB 2.0 high-speed port allows direct connection with a computer. Use the recorder as an SD card reader with a computer to transfer recordings to your computer for use in DAW software or to burn them to CDs. You can even use the recorder as a computer audio interface at USB 1.0 speed.

- Tuner, metronome and other practice features

In addition to standard chromatic tuning, the tuner also supports seven-string guitar, five-string bass and alternate tunings. The convenient metronome can even provide a count in and the speed and pitch of playback can be adjusted, making it a useful practice companion.

Please read this manual carefully to fully understand the H2n so that you can maximize your use of its features. After reading the manual once, please keep it with the warranty in a safe place.

Contents

Usage and safety precautions	02
Introduction	04
Contents	06
Package contents	07
Part names	08
Display	10

Preparation

Powering the recorder....	12
Using batteries....	12
Using an AC adapter (bold separately)....	12
Installing an SD card....	13
Turning the power ON and OFF....	14
Turning the power ON....	14
Turning the power OFF....	14
Using the hold function....	15
Connecting an external mic....	16
Using plug-in power....	16
Setting the date and time....	17
Setting the battery type....	18

Recording

Recording mode overview	20
Mid-side (MS) stereo mode	20
XY stereo mode	20
2ch and 4ch surround modes	21
Selecting the recording mode	22
Adjusting the S level (MS stereo, 2ch/4ch surround modes)	22
Using MS RAW mode (WAV format only)	23
Selecting where recordings are saved	23
Recording manually	24
Recording automatically	26
Pre recording	28
Counting in before recording	29

Playback

Playing back recordings	30
Selecting the file to playback from a list	32
Changing the playback speed	33
Loop playback of a set interval (AB REPEAT)	34
Changing the play mode	36

Adjusting the playback pitch
IKEY CONTROLI	38
Changing the S level (MS-RAW only)	39
Mixing a 4ch surround file	40

Checking & Editing Files

Checking file information	42
Checking track marks (WAV files only)	43
Changing file names (Stereo files only)	44
Convert WAV files into MP3 files (Stereo files only)	46
Normalizing (WAV files	48
Dividing files (Stereo files only)	50
Deleting files	52
Deleting all files in a folder	53
Converting MS RAW files into stereo files	54
Converting 4ch surround files into stereo files	56

Using USB

Exchanging files with a computer(Card reader)	58
Audio interface use (MS/XY stereo and2ch surround modes only)	60

Tuner

Using the tuner 62

Using the metronome 64

Various settings

Reducing noise (LO CUT)	66
Monitoring the input signal	67
Compressing/limiting the input signal	68
Automatically adjusting the input gain	70
Monitoring MS-RAW signals(MS stereo mode only)	71
Setting the recording format	72
Changing automatic recording settings	74
Setting how files are named(Stereo files only)	76
Pausing recording when adding marks(WAV format only)	77

Changing the display backlight time	78
Adjusting the display contrast	79
Checking the software versions	80
Restoring the unit to its factory settings	81
Checking the open capacity of the SD card	82
Formatting an SD card	83

Other functions

Updating the system software 84

Using SD cards from older H series recorders	85
Using a remote control	86
Troubleshooting	87
Specifications	88

Package contents

Please confirm that the package contains the following items.

Line drawing of a device casing with front panel and control panel (no text or symbols)

H2n recorder

2 AA batteries (for testing the unit)

Wave Lab LE Installer CD

SD card (2GB)

Operation manual (this document)

H2n Handy Recorder

Part names

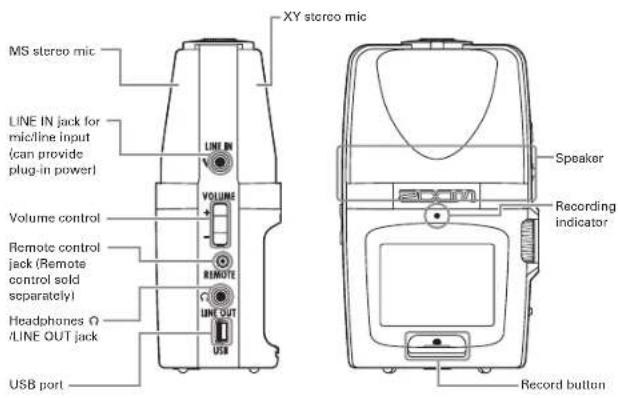

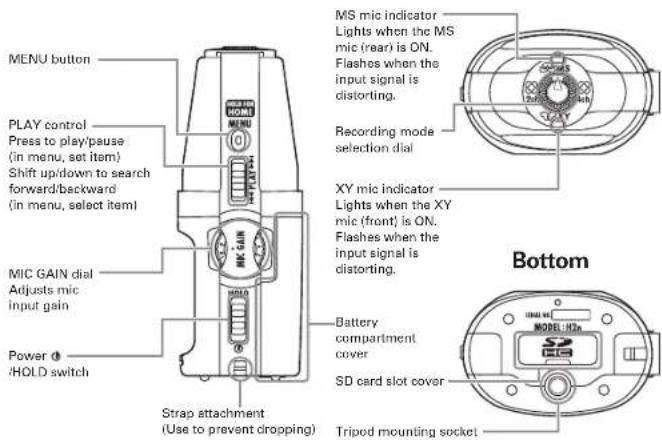

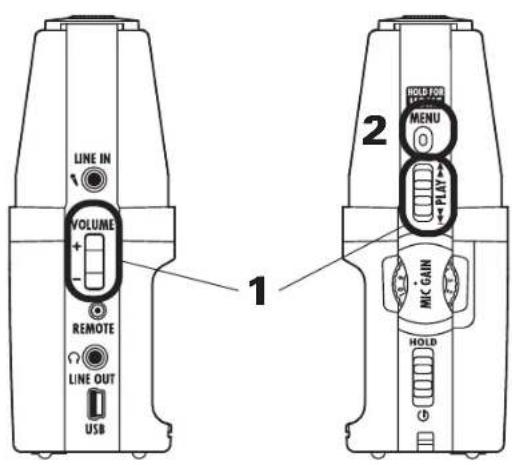

Left side Right side TopFront

H2n Handy Recorder

Display

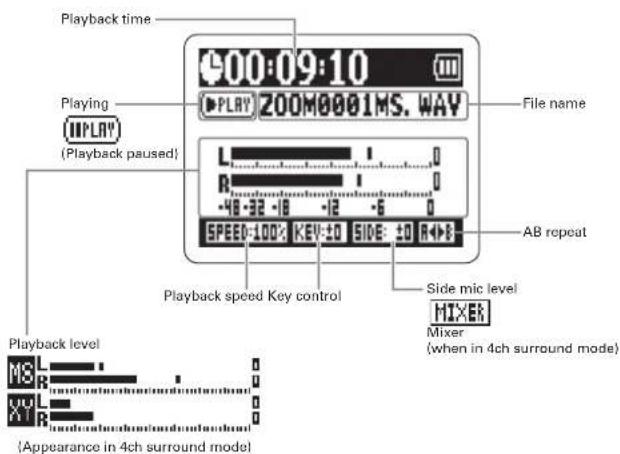

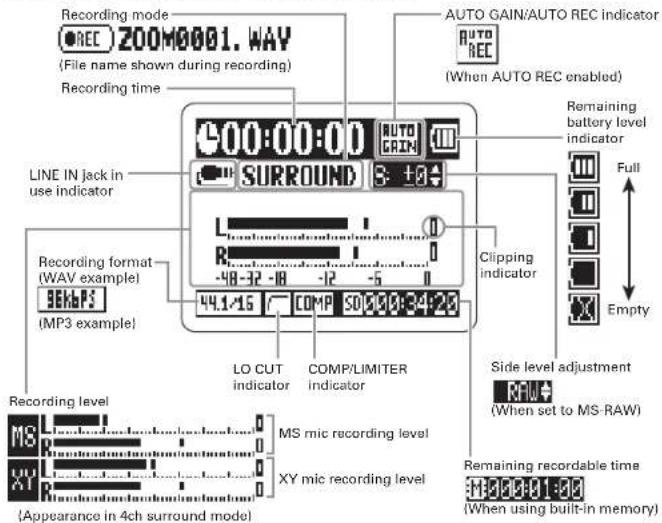

Home (recording) screen Playback screen

Powering the recorder

Using batteries

1. Turn the power OFF, and then remove the battery cover.
2. Insert batteries.
3. Close the cover.

NOTE

Use alkaline or nickel-metal hydride batteries.
If the "Low battery!" warning appears, turn the power OFF
soon and put in new batteries.
Set the type of battery used. (→P.18)

Using an AC adapter (sold separately)

1. Connect the cable to the USB port.
2. Plug the adapter into a power outlet.

H2n Handy Recorder

Installing an SD card

1. After turning the power OFF, open the SD card slot cover.
2. Insert the card into the slot.

To remove a card, push it further into the slot and then pull it out.

NOTE

Always turn the power OFF before inserting or removing an SD card. Doing so when the power is ON could cause data to be lost.
Be sure to insert the SD card correctly, using the cut-off corner illustration next to the slot as a guide.
The built-in memory will be used if no SD card is in the recorder.
Format the SD card if necessary. (▶ P.83)

HINT

Built-in memory

The built-in memory only keeps the most recent recording.
The recording format is fixed at 96kbps MP3.
- It cannot be used to record in 4ch surround or MS-RAW modes.
- Recording time is limited to 1 minute.
- Recordings saved to the built-in memory cannot be copied to an SD card or a computer.

H2n Handy Recorder

Turning the power ON and OFF

Turning the power ON Using the hold function

NOTE

If "No SD card!" appears, confirm that an SD card is correctly inserted into the recorder. If "Card Protected" appears, S.D card write protection is ON. Turn write protection OFF by sliding the "Lock" switch on the card. If "Invalid card" appears, the card format is incorrect. Use a different card or format the card. (P.83)

Turning the power OFF

- Slide down and hold it until "Goodbye see you!" appears on the screen.

In order to prevent accidental operation during recording, the H2n hold function that disables the use of controls other than the MIC GAIN.

Enabling the hold function

- Slide up to the HOLD position.

NOTE

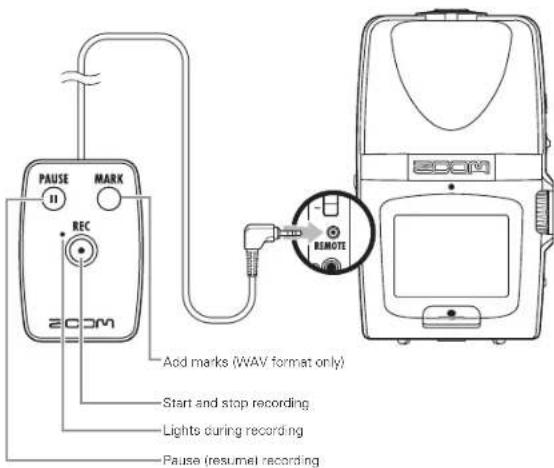

Even when the hold function is on, the remote control (sold separately) can still be used.

Disabling the hold function

- Slide back to the middle.

Connecting an external mic

1. Connect an external mic (sold separately) to the H2nN jack.

NOTE

An external mic can be used instead of the XY stereo mic. An external mic cannot be used with MS Stereo mode.

Using plug-in power

Make the following setting before connecting a mic that requires plug-in power.

1. Press . Ⓞ

2. Use to select INPUT, and then

1. Use to select PLUG-IN POWER,

1. Use to select ON, and then

H2n Handy Recorder

Setting the date and time

The date and time is added to recording files automatically, so set it correctly whenever the batteries are replaced.

1. Press . Ⓞ

2. Use to select SYSTEM, and then press .

3. Use to select DATE/TIME, and then press →

4. Adjust the settings. Use Remove the cursor Press Select the item Use Exchange the value Press Confirm the setting

5. Use to select OK, and then press.

H2n Handy Recorder

Setting the battery type

Set the battery type in order to show the remaining battery charge accurately.

1. Press . Ⓞ

2. Use to select SYSTEM, and then press

1. Use to select BATTERY TYPE, and then press →

1. Use to select the battery type, and then press

Recording mode overview

H2n Handy Recorder

The H2n our recording modes that can be selected according to your purposes.

Mid-side (MS) stereo mode 🌐MS

This mode uses a mid mic to capture the sound directly ahead and a bidirectional side mic to capture sound from left and right.

The recording level of the side mic (S level) can be adjusted, allowing the stereo width to be changed. If you record with the S level set to MS-RAW, you can also adjust the S level after recording.

MS mics can capture a rich stereo image, so it is ideal for recording sounds in wide and open conditions, including orchestras, live concerts and soundscapes.

XY stereo mode 🎨 XY

This mode records in stereo with mics at 90° angles. This allows a natural, deep and accurate sound image to be captured, making it optimal for recording sources nearby, including solo performances, chamber music, interviews, live rehearsals and fi eld recordings.

2ch and 4ch surround modes

Sound can be captured in all directions using both MS and XY mics.

You can select 2ch, which mixes the signals from the MS and XY mics, or 4ch, which records the signals from the MS and XY mics separately. With 4ch surround, you can adjust the balance between the MS and XY signals after recording. The S level can be adjusted for both 2ch and 4ch recordings.

These modes are suitable for recording live rehearsals, studio sessions, business meetings and soundscapes, for example.

Selecting the recording mode

1. Turn so that the triangle points to the desired mode.

NOTE

The 4ch surround mode can only be used when an SD card is in the unit. In 4ch surround mode, only WAV formats (44.1/48kHz, 16/24bit) can be used. In 4ch surround mode, two stereo files are created (MS mic recording and XY mic recording).

2. Make settings for the recording mode.

Adjusting the S level (MS stereo, 2ch/4ch surround modes)

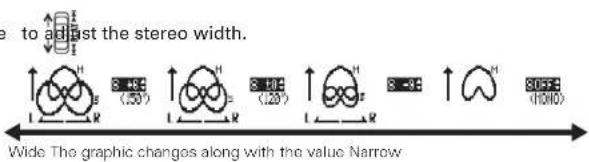

You can adjust the stereo width (S level) before recording.

- Use to adjust the stereo width.

NOTE

Set to OFF, RAW or between -24 and +6 dB.

Using MS-RAW mode (WAV format only)

If you want to adjust the stereo width after recording, record using MS-RAW mode.

● Hold down until RAW appears.

Selecting where recordings are saved

1. Press . MENU

2. Use to select FOLDER, and then press → PLAT

1. Use to select the folder where you want to save fi les, and then press

NOTE

Select from among 10 folders. There are separate sets of folders for stereo and 4ch recordings.

Recording manually

H2n Handy Recorder

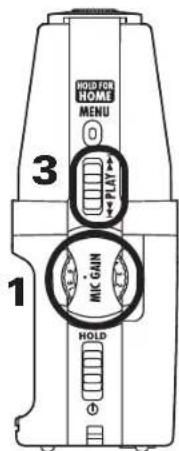

1. Turn to adjust the input level.

HINT

• Adjust the MIC GAIN so that the peak level stays around -12 dB.
• If an input signal is too strong, the MS/XY indicator on the top will flash immediately.
  The recorder can also adjust mic gain automatically. (→ P.70)

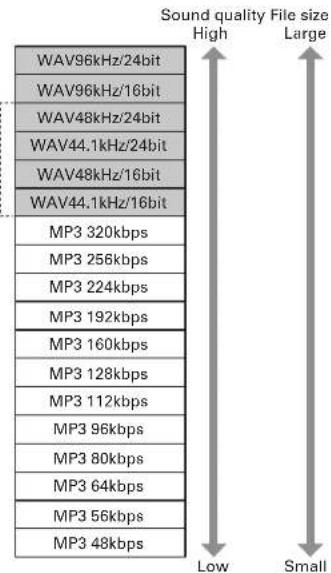

• You can change the recording format beforehand. (→ P72)
  The mic can also be set to cut wind and other unwanted noise. (→ P.66)

2.

Press to start recording.

3.

Press to add a mark.

4.

Press to stop recording.

NOTE

• One fi le can have a maximum of 99 marks.
  The mic can also be set to pause immediately after adding a mark. (→ P.77)
• During recording, if the size of the file exceeds 2 GB, recording will continue in a new file that will be created automatically.

Recording automatically

The mic can be set to start and stop recording automatically in response to changes in the input level.

1

Press

2.

Use

lect REC, and then press .

3.

Use

lect AUTO REC, and then

4.

Use

elect ON/OFF, and then

5.

Use

lect ON, and then press

NOTE

Other settings can also be made for automatic recording. (▶ P.74)

6.

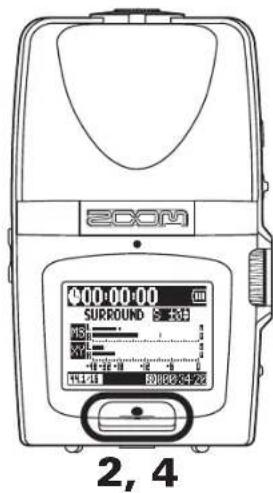

After the home screen reopens, press

to put the recorder in standby.

Recording will start automatically when the input signal exceeds the REC START LEVEL.

Recording will stop automatically when the input signal becomes less than the REC STOP LEVEL.

7.

Press

recording standby and

stop recording.

NOTE

Automatic recording can only be used with an SD card.

Pre-recording

When pre-recording is on, this recorder can continuously capture two seconds of sound before recording is started manually. When it is pressed, these two seconds are included at the beginning of the recording. This is useful when, for example, performances start suddenly.

1.

Press

2.

Use

3.

Use

4.

Use

5.

Press

NOTE

PRE REC cannot be used at the same time as the metronome PRE COUNT function. Pre-recording can only be used with an SD card.

H2n Handy Recorder

Counting in before recording

The built-in metronome can play a count-in sound before recording starts. This pre-count sound is output through the LINE OUT jack.

1.

Press

2.

3.

4.

5.

and then press

6.

Pres

screen to start pre-count and recording.

NOTE

PRE COUNT cannot be used at the same time as PRE REC.

Playing back recordings

H2n Handy Recorder

You can play files in the current folder. Change the folder to play files in a different folder.

1.

Press

HINT

The longer you hold the PLAY control the faster it will search in that direction.

2.

Press and hold

return to the home

screen.

Selecting the file to playback from a list

You can select a file in the current folder for playback. Change the folder to select files from a different folder.

1. When the playback screen is open, press .

2. Use to select FILE LIST, and then press

1. Use to select a fi le, and then press to start playback of that fi le.

NOTE

After a file plays once, playback will stop or continue according to the PLAY MODE setting.

press and hold to return to the home screen.

H2n Handy Recorder

Changing the playback speed

You can change the playback speed to between 50% and 150% of normal speed.

1. When the playback screen is open, press .

2. Use to select SPEED, and then press →

1. Use to set the playback speed, and then press →

Files will be played at the set speed.

NOTE

The set value will be saved even when the power is turned OFF.

H2n Handy Recorder

Loop playback of a set interval (AB REPEAT)

You can loop playback between two set points. Select the fi le that you want to play back fi rst.

1. When the playback screen is open, press .

2. Use to select AB REPEAT, and then press

1. Press at the point you want to start playback.

1. Press at the point you want to stop playback. Loop playback between the points will start.

1. Press MENU to stop loop playback.

2. Use to select STOP REPEAT, and then press →

3. Press

H2n Handy Recorder

Changing the play mode

1. When the playback screen is open, press .

2. Use to select PLAY MODE, and then press →

3. Use to set the mode, and then press →

NOTE

PLAY ALL: Play all the files in the current folder once.

PLAY ONE: Play the current file once.

REPEAT ONE: Play the current file repeatedly.

REPEAT ALL: Play all the files in the current

folder repeatedly.

1. Press Ⓞ start playback in the selected mode.

Adjusting the playback pitch (KEY CONTROL)

You can change the pitch without changing the playback speed.

1. When the playback screen is open, press .

2. Use to select KEY CONTROL, and then press →

1. Use to adjust the playback pitch, and then press to start playback at the adjusted pitch.

NOTE

The pitch can be adjusted by ±6 semitones. The set value will be saved even when the power is turned OFF. KEY CONTROL cannot be used with 96kHz WAV fi les.

H2n Handy Recorder

Changing the S level MS-RAW only

The S level (stereo width) of fi les recorded using MS-RAW mode can be changed. Select a fi le that has been recorded in MS-RAW mode fi rst.

1. When the playback screen is open,

press MENU

1. Use to select MS SIDE MIC LEVEL, and then press →

1. Use to adjust the S level, and then

1. Press to start playback with the adjusted S level.

H2n Handy Recorder

Mixing a 4ch surround fi le

You can adjust the levels and panning of the MS and XY recordings made for 4ch surround fi les.

1. Set the recorder to 4ch surround mode, select

the fi le you want to mix, and then press

1. Press Ⓞ

2. Use to select SURROUND MIXER, and

1. Change the values of the parameters.

Use remove the cursor and change values

Push to select a parameter to change

Parameter setting ranges		Explanation
MS LEVEL MUTE	-48 ~ +12 dB(0.5 dB increments)	Adjusts volume
XY LEVEL
MS PAN	L100 ~ CENTER ~ R100(even values only)	Adjusts left-right balance
XY PAN

1. Press to turn the mixer ON or OFF.

1. Press twice to return to the playback screen.

Checking fi le information

You can check various types of information about the current file.

1. Press . Ⓞ

2. Use to select FILE, and then press.

1. Select the file that you want to check, and

1. Use to select INFORMATION, and then

press to show information about the file.

Use to scroll through the screen to see additional information

H2n Handy Recorder

Checking track marks WAV fi les only

You can view a list of the marks in a WAV file.

1. Press . MENU

2. Use to select FILE, and then press .

1. Select the fi le that you want to check, and

1. Use to select MARK LIST, and then

press to open the mark list.

Shows an added mark This mark appears when skipping occurred during recording

H2n Handy Recorder

Changing fi le names Stereo fi les only

1. Press . Ⓞ

2. Use to select FILE, and then press

1. Use to select the file name that you want to change, and then press →

1. Use to select RENAME, and then press

1. Edit the name.

Use → move the cursor and change characters Push → select a character to change and to confirm a change

1. Use to select OK, and then press.

NOTE

- The following characters can be used in file names. (Space)!#\$% & ll+,-0123456789;=@ABCDEFGHIJKLMNOPQRSTUVWXYZ|^_^abcdefghijklmnopqrstuvwxyz()- A file name cannot be only spaces. If a file with the same name already exists in the same folder, a warning appears and the screen shown in step fi ve automatically reopens.

Convert WAV fi les into MP3 fi les Stereo fi les only

WAV fi les (other than MS-RAW) that have been recorded in any mode other than 4ch surround can be converted to MP3 fi les.

1. Press . Ⓞ

2. Use to select FILE, and then press .

1. Use to select the file you want to convert, and then press →

1. Use to select MP3 ENCODE, and then press

1. If you want to change the bit rate, use select BIT RATE, and then press

1. Use to select the bit rate, and then press →

1. Use to select EXECUTE, and then press → to start encoding.

NOTE

• The converted file will be created in the same folder.
• If the SD card lacks open space, the screen shown in step 4 will reopen automatically.
  If a fi le already exists with the name that will be given to the converted fi le, the screen at right will appear. Rename the fi le before conversion.

Normalizing WAV fi les

If the volume of a recording is lower than desired, you can raise the level of the recording as a whole.

1.

Press . ①

2.

Use to select FILE, and then press.

3.

Use to select the file you want to

change, and then press

4.

Use to select NORMALIZE, and then

5.

Use to select YES, and then press

to start normalization.

NOTE

Normalization increases the overall level of the recording so that the maximum level in the file is 0 dB.

H2n Handy Recorder

Dividing fi les Stereo fi les only

You can divide a fi le into two at any point.

1. Press . Ⓞ

2. Use to select FILE, and then press .

1. Use to select the fi le you want to divide, and then press →

1. Use to select DIVIDE, and then press

1. Set the dividing point.

HINT

The longer you hold the PLAY control the faster it will search in that direction.

1. Use to select YES, and then press .

NOTE

- If a file already exists with the name that will be given to a divided file, rename the file before dividing. - When a file is divided, "A" will be added to the end of the name of the file made from the part before the dividing point, and "B" will be added to the end of the name of the file made from the part after the dividing point.

The original file is deleted.

Deleting fi les

You can delete unwanted files.

1. Press . Ⓞ

2. Use to select FILE, and then press.

1. Use to select the fi le you want to delete, and then press →

1. Use to select DELETE, and then press

1. Use to select YES, and then press.

H2n Handy Recorder

Deleting all fi les in a folder

You can delete all the files in the current folder at once.

1. Press . Ⓞ

2. Use to select FILE, and then press .

1. Use to select one file you want to delete, and then press →

2. Use to select DELETE ALL, and then press →

1. Use to select YES, and then press .

Converting MS-RAW fi les into stereo fi les

You can convert an MS-RAW file into a stereo file. S level (stereo width) adjustments will affect stereo files.

1. Press . Ⓞ

2. Use to select FILE, and then press

1. Use to select the file you want to

change, and then press

1. Use to select MS-RAW TO STEREO, and

then press

1. If you want to adjust the S level, use

select MS SIDE MIC LEVEL, and then press

1. Use to adjust the S level, and then

NOTE

Set to OFF or between -24 and +6 dB.

1. Use to select EXECUTE, and then press

to start conversion.

NOTE

If a file already exists with the name that will be given to the converted file, you will have a chance to change the name to be given to the converted file. When a file is converted, the S level value will be added to the end of the name of the file. The original file is not deleted.

Converting 4ch surround fi les into stereo fi les

1. Press . Ⓞ

2. Use to select FILE, and then press.

1. Use to select the fi le you want to change, and then press →

1. Use to select STEREO ENCODE, and then press →

1. Use to select MIXER, and then press

1. Use to select ENABLE or DISABLE, and then press →

NOTE For an explanation about how to mix, see P.40.

1. Use to select STORE IN, and then press →

2. Use to select the folder where you want to save the file, and then press →

3. Use to select EXECUTE, and then press → to start conversion.

NOTE - If a file already exists with the name that will be given to the converted file, you will be given a chance to change the name to be given to the converted file. - When a file is converted, "MIX" will be added to the end of the name of the file. - The original file is not deleted.

Exchanging files with a computer (Card reader)

You can connect the recorder to a computer to check and copy data on the SD card.

1. After turning the power on, connect the H2n computer by a USB cable.

NOTE

To run the H2n using USB bus power, connect it to a computer by USB while the power is OFF.

The H2n is compatible with the following operating systems. Windows XP, Windows Vista, Windows 7, Macintosh OS X (10.2 or later)

1. Press Ⓞ

2. Use ↑↓ to select USB, and then press →

1. Use ↑↓ to select SD CARD READER, and

then press →

The SD card will appear on the computer as a connected drive where you can check the files on it.

1. Unmount the card from the computer before disconnecting the recorder.

Windows: Use "Safely Remove Hardware" to select the H2n

Mac: Drag and drop the icon H2n the Trash

NOTE

Always follow the proper procedures on your computer to unmount the H2n SD card before disconnecting the USB cable.

1. Disconnect the cable from the computer and the H2n, and then press MENU ①.

Audio interface use MS/XY stereo and 2ch surround modes only

You can record the signal from the H2n to a computer, and output the playback signal from a computer through the H2n

1. Follow steps 1–3 in "Exchanging files with a computer" on P.58.

NOTE

Make sure that the sampling frequency settings are the same for both the H2n and the software you are using.

NOTE

- For information about the menu items that can be used see the following. LO CUT (→P66) PLUG-IN POWER (→P16) AUTO GAIN (→P70) COMP/LIMITER (→P68) MONITOR (→P67) DISCONNECT MS-RAW MONITOR (→P71) TUNER (→P62) INPUT - If you want to send signals from the recorder to the computer, set INPUT to ON in the USB AUDIO MENU.

1. Disconnect the cable from the computer and the .H2n

Using the tuner

The built-in tuner can help you tune instruments by detecting the pitches of input signals.

1.

Press

2.

Use to select TOOL, and then press

3.

Use

press

4.

If you want to change the standard pitch,

use

and then press

5.

Use

and then press

6.

Use

lect the tuner type, and then

7.

Tune the instrument.

The available tuner types work as follows.

Using the chromatic tuner

The input pitch is automatically detected and the nearest pitch is shown along with the amount of discrepancy.

The correct pitch is indicated by the middle circle

Using the guitar and bass tuners

The input pitch is automatically detected and the nearest string and pitch are shown along with the amount of discrepancy.

The correct pitch is indicated by the middle circle

Tuner type	String number/ptch
	1 2 3 4 5 6 7
GUITAR	E	B	G	D	A	E	B
BASS	C	D	A	E	B	-	-
OPEN A	E	C#	A	E	A	E	-
OPEN D	D	A	F#	D	A	D	-
OPEN E	E	B	GW	E	B	E	-
OPEN G	D	B	G	D	G	D	-
DADCAD	D	A	G	D	A	D	-

Using the metronome

You can use the metronome to count in before recording and to provide a guide tempo.

1. Press . Ⓞ

2. Use to select TOOL, and then press.

1. Use to select METRONOME, and then

1. Use to select the desired menu item,

■ Setting the CLICK

Use to select when the click should sound, and then press →.

■ Setting the PRE COUNT (→P.29)
■ Setting the TEMPO

Use to adjust the metronome tempo (BPM), and then press →

■ Setting the SOUND

Use to select the metronome sound, and then press →

■ Setting the PATTERN

Use to select the metronome pattern, and then press

■ Setting the LEVEL

Use to adjust the metronome volume, and then press →

Reducing noise (LO CUT)

The recorder can be set to reduce the sound of wind, vocal pops and other noise.

1.

Press . ①

2.

Use to select INPUT, and then

3.

Use to select LO CUT, and then

4.

Use to select ON, and then press.

H2n Handy Recorder

Monitoring the input signal

You can listen to the input signal level through headphones.

1.

2.

Use to select INPUT, and then

3.

Use to select MONITOR, and then

4.

Use to select when monitoring is

enabled, and then press

Setting Explanation
HOME AND REC Monitoring	g enabled when home screen open and when recording
ALWAYS ON Monitoring always enabled
ALWAYS OFF	Monitoring disabled

Compressing/limiting the input signal

The recorder can be set to automatically increase the level of input signals that are too weak and decrease the level of input signals that are too strong for each input.

1. Press . Ⓞ

2. Use to select INPUT, and then press →

1. Use to select COMP/LIMITER, and then press

1. Use to select the setting you want to use, and then press

Setting Explanation
OFF Compressor/limiter disabled
COMP1(GENERAL) Standard compressor Compressors de		decreasehigh levels and increaselow levels.
COMP2(VOCAL) Compressor for vocals
COMP3(DRUM) Compressor for drums andpercussion
LIMIT1(GENERAL)	Standard limiter	Limiters reduce highlevels that exceed a setthreshold.
LIMIT2(CONCERT)	Limiter for live performances
LIMIT3(STUDIO)	Limiter for studio recording

NOTE

This cannot be used at the same time as the AUTO GAIN function.

Automatically adjusting the input gain

The recorder can automatically adjust the amount of gain used on signals input through the built-in microphones and the LINE IN input in order to avoid distortion.

1.

Press . Ⓞ

2.

Use to select INPUT, and then

3.

Use to select AUTO GAIN, and then

4.

Use to select the setting you want to

Setting	Explanation
OFF AUTO	GAIN disabled
CONCERT	For concerts and other loud sound sources
SOLO	For acoustic guitars and other solo performances
MEETING	For meetings and other quiet sound sources

NOTE

When AUTO GAIN is ON, the MIC GAIN dial setting has no effect.

This cannot be used at the same time as the automatic recording function.

H2n Handy Recorder

Monitoring MS-RAW signals

MS stereo mode only

When recording in MS-RAW mode, you can monitor the MID input signal on the left output channel and the SIDE input signal on the right output channel.

1.

Press

2.

Use to select INPUT, and then

press →

3.

Use to select MS-RAW MONITOR, and

then press →

4.

Use to select RAW, and then press

NOTE

If you want to monitor an ordinary stereo mix of the signals, select STEREO.

Setting the recording format

You can set the recording format according to your sound quality and fi le size needs.

1. Press . MENU

2. Use to select REC, and then press.

1. Use to select REC FORMAT, and then press

1. Use to select the recording format, and then press →

NOTE

Use WAV formats for higher audio quality. Use MP3 formats, which are compressed and have much smaller file sizes, to save space on the SD card. Beware, however, that MP3 compression reduces audio quality.

Only these formats can be selected when using 4ch recording mode

Changing automatic recording settings

You can change settings related to the input level threshold that causes recording to start and stop automatically, as well as the amount of delay before automatic stopping.

1.

Press

2.

Use

REC, and then press .

3.

Use

AUTO REC, and then

4.

If yo

u war

t to a

adjust

the r

eco

thre

LEV

5.

Use

thre

sholo

, and

th

en

ores:

6.

If yo

u w

ant

to s

et t

ne r

ecol

threshold, use

↑ ↓ to

sel

ect F

LEVEL, and then press

7.

to

1

the

eco

rdir

g s

8.

If yo

u w

ant

to s

et t

ne c

stops, use

sele

ct A

and then p

→

9.

Use

↑ to ↓

[Figure]

the

tim

NOTE

The AUTO REC STOP time is the delay until recording stops after the input level drops below the REC STOP LEVEL.

Setting how fi les are named Stereo fi les only

You can change how stereo fi les are automatically named.

1. Press . Ⓞ

2. Use to select REC, and then press.

1. Use to select FILE NAME, and then

1. Use to select, and then press

NOTE

File names are assigned in the following manner.

DEFAULT: ZOOM0001(MSI.wav/mp3 - ZOOM9999(MSI.wav/mp3

DATE: YYMMDD-HHMMSS(MS).wav/mp3

(for example, 110531-130512.wav)

DATE uses the starting time of the recording.

If a file already exists with the same name in the folder, the new file will have a number added to the end of its name. Numbers will be added sequentially in the case of multiple duplicates.

H2n Handy Recorder

Pausing recording when adding marks WAV format only

You can set the unit to pause when you add a mark during recording.

1. Press . Ⓞ

2. Use to select REC, and then press.

1. Use to select PLAY KEY FUNCTION, and

1. Use to select PAUSE AND MARK, and

NOTE

Marks cannot be added to MP3 files, so this setting has no effect when recording MP3 files.

Changing the display backlight time

You can set the amount of time that the display backlight stays lit.

1. Press . Ⓞ

2. Use to select SYSTEM, and then

1. Use to select BACK LIGHT, and then

1. Use to select the amount of time, and

Setting Explanation

OFF The backlight stays unit.

ON The backlight stays it when the unit is on.

15sec The backlight stays lit for 15 seconds after the last time that a control (besides MIC GAIN) was used.

30sec The backlight stays lit for 30 seconds after the last time that a control (besides MIC GAIN) was used.

H2n Handy Recorder

Adjusting the display contrast

1. Press . MENU

2. Use to select SYSTEM, and then

1. Use to select DISPLAY CONTRAST, and

1. Use to adjust the contrast, and then

NOTE

- The contrast can be set to a value from 1–8. - The higher the number, the greater the contrast.

Checking the software versions

You can view the versions of the system and other software used by the H2n

1. Press . Ⓞ

2. Use to select SYSTEM, and then press

1. Use to select SOFTWARE VERSION, and then press to show the software versions in use.

System software version —

H2n Handy Recorder

Restoring the unit to its factory settings

You can restore the recorder to the settings it had when it was shipped from the factory.

1. Press . MENU

2. Use to select SYSTEM, and then press

1. Use to select FACTORY RESET, and then

1. Use to select YES, and then press.

NOTE

• The date and time, recording mode and input gain settings are not reset by this.
  This also erases any recording in the built-in memory.

Checking the open capacity of the SD card

1. Press . Ⓞ

2. Use to select SD CARD, and then press

1. Use to select REMAIN, and then press → to show the open space on the card.

H2n Handy Recorder

Formatting an SD card

You can format an SD card for use with the H2n.

1. Press . Ⓞ

2. Use to select SD CARD, and then press →

1. Use to select FORMAT, and then press →

1. Use to select YES, and then press.

NOTE

You must format an SD card after purchase or if it has been formatted by a computer or other device before using it with the H2n
- Be aware that when you format an SD card, all data saved on it will be erased.

Updating the system software

You can update the system software used by your H2n latest version.

1. Copy the updater file to the root directory of the SD card.

NOTE

Download the latest system software at the ZOOM website (http://www.zoom.co.jp).

1. With the SD card in the Nen the power

ON while pressing and holding

1. Use to select OK, and then press.

1. After updating completes, turn the power OFF.

NOTE

You cannot update the system software if the battery charge is low. In such a case, install new batteries or use an AC adapter (sold separately).

H2n Handy Recorder

Using SD cards from older H series recorders

This recorder can read SD cards that have been used in older H series recorders and copy their fi les into folders for use by the H2n

1. With the SD card inserted, turn the power ON.

2. Use to select YES, and then press.

NOTE

A file must be renamed before moving if another file with the same name already exists in the H2n folder.

Using a remote control

By using a remote control (sold separately) you can operate the distance.

- Connect the remote control to the REMOTE jack on the .

The functions of the buttons on the remote are as follows.

H2n Handy Recorder

Troubleshooting

If you think that the H2n is not operating properly, please check the following first.

Recording/playback trouble

◆ There is no sound or output is very quiet
- Check the connections to your monitoring system and its volume setting.
- Confirm that the volume of the H2n is not too low.

◆ The recorded sound cannot be heard or is very quiet

• If you are using built-in mics, confirm that the active mics are oriented correctly and that the recording mode is suitable. (→ P.20)
• Check the MIC GAIN setting. (→ P.24, 70)
• If you are recording from a CD player or other device connected to the LINE IN jack, raise the output level of the connected device.

◆ Recording is not possible
- Confirm that the SD card has open space. (▶P.82)
- If "Hold" appears on the display, the hold function is enabled. Disable the hold function. (→ P.15)

Other trouble

◆ The recorder is not recognized by a computer when connected by USB
- Check that the OS of the computer is compatible. (▶P.58)
- The H2n operation mode must be selected on the recorder before it will be recognized by a computer. (→ P.58)

H2n Handy Recorder

Specifications

Recording media 16MB-2GB SD cards, 4GB-32GB SDHC cards ICards that can be used with this recorder are to be verified individually)
Built-in memory	Can be used to record up to 1 minute in 96 kbps MPS format; recording to this memory overwrites any previous recording in it)
Recording Mic arrangements MS stereo with adjustable side mic level 90' XY stereo Modes MS, XY, MS+XY (stereo and MS+XY Idch)
Microphones Types	Directional (XY, MS mio mics) Bidirectional (MS side mid) Maximum sound pressure input 120 dB sol bidirectional/122 dB sol bidirectional)
File formats	Stereo Uncompressed PCM 44.1/48/96Hz, 16/24bit WAV (BWF) Compressed MP3 44.1kHz, 48/56/64/90/96/112/128/160/192/224/256/320kbps t recording) (Not compatible with MS-RAW recording) Compressed MP3 44.1/48kHz, 32/40/68/56/64/80/99/112/126/160/192/224/256/ (playback) 320kbps 4ch Uncompressed PCM 44.1/48kHz, 16/24bit WAV (BWF) Two stereo files for each recording
Digital processing	AVD conversion 24-bit 128x oversampling DVA conversion 24-bit 128x oversampling Signal processing 32 bit
Recording time	2GB card example 3:08:00 (44.1cHz/16bitWAI) 34:43:00 (128kbps MP3)
Features	LO CUT 80Hz high-pass filter COMPLITIMER 3 types of compressors and 3 types of limitors AUTO GAIN Automatic input gain adjustment PRE REC 2 seconds of pre-recording AUTO REC Automatic recording start/stop, continuous standby TUNER Chromatic, guitar, bass and alternate (AVE/G/D/DADGADI) tunings with automatic string detection METRONOME 40-250 BPM range, fi va tones, pre-count: SPEED Playback speed adjustable between 50-150%

Features	KEY CONTROL	Playback pitch adjustable ±6 somilones (cannot be used with 90kHz fl les)
	AB REPEAT	Repeats playback between selected points in a file
	FILE DIVIDE	Divides a file into two
	FILE NORMALIZE	Maximizes fl is volume (cannot be used with MP3s)
	FILE MP3 ENCODE	WAV fl les can be converted to MP3 formats at fl xed bit rates
	MARK	Up to 90 marks can be added as desired when recording WAV fl les
	SURROUND MIXER	Mix balance can be adjusted when playing back 4ch surround recordings
Display	Graphic LCD H28x64 pixels with backlight
Input gain	0 to -139 dB
Input jack	Line/mic stereo mini jack can supply slug in power2 kΩ impedance at input levels of 0 to -39 dBm
Output jack	Line/keapphone stereo mini jackRated output level: -10 dBm (output impedance 10 kΩ or more)Headphones: 20 mW + 20 mW (into 32 Ω load)
Built-in speaker	400mW, 8Q, mono
USB	Mini-B typeCard reader operationUSB 2.0 High SpeedAudio interface operationUSB 1.0 Full SpeedSupports 44.1/48kHz sampling rates and 16 bit rateBus power operation supported
Power	AD-17 USB to AC adapter IDC 5V 1A, operates using two AA batteriesContinuous operation of 20 or more hours when recording 44.1kHz/16 bit WAV fl les using alkaline batteries
Physical features	Tripod mounting socket, strap attachmentDimensions (mm): 67.6 (W) × 113.8b (H) × 42.7 (D)Weight: 130 g (without batteries)
Included accessories	Operation manual, SD card (2GB), 2 AA batteries, WAVELAB LE CD-ROM

* Recording concerts and public performances, for example, without permission from rights holders is prohibited by law.
* Product specifications and appearance might be changed for the purpose of improvement without waiting.
^1 0 dBm = 0.775 Vrms

FCC regulation warning (for U.S.A.)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For EU Countries

Declaration of Conformity:

This product complies with the requirements of EMC Directive 2004/108/EC, Low Voltage Directive 2006/95/EC and ErP Directive 2009/125/EC

Disposal of Old Electrical & Electronic Equipment

(Applicable in European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handled over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

200M

Zoom Corporation

4-4-3 Kanda-Surugadai, Chiyoda-ku, Tokyo 101-0062 Japan

http://www.zoom.co.jp

Installing WAVELAB LE7

In WaveLab LE, you can perform various edits such as recording audio, adjusting the volume of the recorded files, and cutting unwanted sections.

Windows

1. Insert the supplied WAVELAB LE7 CD-ROM into the CD drive of your computer.
2. On the screen for selecting the way to AutoPlay, click Run WaveLab_LE_7_Start_Center.exe.

If nothing happens when you insert the CD-ROM, select Computer from the Start menu. Click the WaveLab LE7 icon that appears, and select Open Auto Play... on the File tab.

1. In the Start Center WaveLab LE7 that appears, select the language you use for the installation.

After the selection, follow the on-screen prompts.

[Minimum System Requirements]

Windows 7

· 2 GHz of CPU
· 1024 MB of RAM
· DVD-ROM drive
· 200 MB of free hard disk space
-1024x768 of monitor resolution

Mac OS

1. Insert the supplied WaveLab LE CD-ROM into the CD drive of your Macintosh computer.
2. When the contents of the CD-ROM appear, double-click WaveLab LE 7 for Mac OS X.

If the contents do not appear automatically, double-click to open the WaveLab LE 7 icon on the desktop, and double-click WaveLab LE7 for Mac OS X.

1. When the contents in the folder appear, use WaveLab LE 7.mpkg to perform the installation.

[Minimum System Requirements]

Mac OS X 10.6

• Intel CPU
  · 1024 MB of RAM
• DVD-ROM drive
  · 200 MB of free hard disk space
  -1024x768 of monitor resolution
