Conga M20 - Robot vacuum CECOTEC - Free user manual and instructions

Product type	Robot vacuum cleaner
Brand	Cecotec
Model	Conga M20
Dimensions (L x W x H)	34 x 34 x 8 cm
Weight	3.5 kg
Power supply	Lithium-ion battery 14.8 V / 2600 mAh
Battery life	Up to 120 minutes in silent mode
Charging time	Approximately 4 hours
Dust tank capacity	500 ml
Suction power	2000 Pa
Noise level	60 dB (silent mode)
Main functions	4 cleaning modes (auto, spot, edge, silent), random or systematic navigation, scheduling, return to base
Sensors	Obstacle, stair, and bumper sensors
Brushes	Main brush and side brush
Filter	Washable HEPA filter
Maintenance and cleaning	Clean the tank after each use, wash the filter every 2 weeks, remove hair from brushes
Safety	Automatic shutdown in case of overload, empty detection, fall protection
Spare parts and repairability	Brushes, filter, wheels, battery, tank available separately
Box contents	Robot, charging base, power adapter, side brush, replacement filter, user manual
Warranty	2 years

Frequently Asked Questions - Conga M20 CECOTEC

How to start the robot for the first time?

Place the robot on the charging base, plug in the power adapter, and turn on the switch located under the device. Wait until the battery is fully charged (solid blue light) before using automatic mode.

The robot does not connect to the charging base, what should I do?

Check that the base is plugged in and that the charging contacts on the robot and base are clean. Make sure the robot is turned on and the battery is not completely discharged. If the problem persists, reset the robot by holding the 'Power' button for 10 seconds.

How to schedule automatic cleaning?

Use the remote control or mobile app (if compatible) to set the time. Press the 'Schedule' button and select the desired start time. The robot will start automatically at the scheduled time every day.

Does the robot vacuum carpets and rugs?

Yes, the robot can clean short-pile carpets. For long-pile carpets, it is recommended to remove them to avoid blockage. The carpet detection sensor automatically increases suction power.

How to clean the HEPA filter?

Remove the dust tank, then take out the filter. Tap it gently to remove dust, or wash it with warm water (no soap). Let it dry completely (24 hours) before putting it back.

What to do if the robot gets stuck under furniture?

The robot is equipped with anti-collision sensors. If it gets stuck, it enters 'unblocking' mode and tries to get out. If it fails, turn off the power, remove it manually, and ensure the clearance is at least 10 cm.

How to change the side brush?

Unscrew the side brush screw using a Phillips screwdriver (not included). Remove the old brush and place the new one aligning the notches. Tighten the screw firmly.

Does the battery last long?

The lithium-ion battery provides up to 120 minutes of runtime in silent mode. Over time, the capacity decreases; replace the battery if runtime becomes insufficient (available from the manufacturer).

Can I use the robot without the remote control?

Yes, the robot has physical buttons on top: 'Power' to start/stop, 'Home' to return to base, and 'Mode' to change program. The remote control offers additional features like scheduling.

How to resolve an error code on the display?

Refer to the error code table in the manual. For example, 'Error 1' indicates a brush jam: clean the main brush. 'Error 2' indicates a dirty stair sensor: clean the infrared sensors with a dry cloth.

USER MANUAL Conga M20 CECOTEC

Safety instructions 9

1. Parts and components 67

2. Before use 68

3. Installation 68

4. Operation 69

5. Cleaning and maintenance 71

6. Troubleshooting 73

7. Technical specifications 75

8. Recycling of electrical and electronic equipment 75

9. Technical support and warranty 75

10. Copyright 75

11. Declaration of Conformity 76

SOMMAIRE

EU01_100083_Conga M20

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.
• Inspect the cord and housing of the charging base regularly for visible damage. Do not use the appliance if the cable, socket, or structure are damaged, do not work properly, or have fallen, and contact the the official Cecotec Technical Support Service immediately.
• If the power cord is damaged, it must be replaced with a special cable or set to be supplied by Cecotec's Official Technical Support Service.
• The appliance must be powered at a low safety voltage as stated on the marking.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• Do not use the appliance with non-rechargeable batteries.
• Unplug the appliance from the mains before removing the battery.

• Unplug the power cord of the charging base before cleaning or maintenance.

• Before turning the appliance on, make sure to remove objects and cords that may get in the way and affect proper operation of the appliance.

• This icon means: do not use the power cord if the plug is damaged.
• CAUTION: hazards may occur if the appliance runs over the power cord.
• WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Supervise children to ensure they do not play with the product. Close supervision is necessary when the appliance is being used by or near children.
• This appliance must be used in accordance with this instruction manual. Cecotec will not be held liable or responsible for any damages or injuries caused by improper use.
• Make sure that the mains voltage matches the voltage specified on the appliance rating label and that the wall outlet is earthed.
• This appliance can only be disassembled by qualified personnel.
• Do not touch the cord, the socket, or the charging base with wet hands.
• Keep the robot vacuum cleaner away from clothing, curtains, and any other similar materials.
• Do not expose the robot to direct sunlight, open fire, or wet environments.
• Do not sit or place heavy or sharp objects on top of the appliance.

• Always place the appliance on a flat and stable surface. Avoid placing it in unstable places where there is risk of falling, such as tables or chairs.

• Turn off the robot vacuum cleaner if it's not going to be used for an extended period of time.

• Before turning the robot vacuum cleaner on, check that all connections, both on the robot and on the charging base, are in good condition.
• Avoid operating the robot vacuum cleaner under extremely high or low temperatures.
• Use only the charging base supplied with the appliance.
• Do not use accessories that are not compatible and/or not approved by Cecotec.
• Disconnect the appliance from the power socket before removing the battery or carrying out any maintenance tasks.
• Remove the battery from the appliance interior before disposing of the robot vacuum cleaner.
• The charging base must not be plugged to the mains socket when cleaning or maintenance tasks are to be carried out.

Battery instructions

• The appliance includes a Li-ion battery. Do not incinerate or expose it to high temperatures, as it may explode.
• Batteries may leak under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid comes into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Avoid contact between the battery and small metallic objects such as paper clips, coins, keys, nails, or screws.
• Before a new battery is used or the battery is used for the first time after long-term storage, fully charge the battery.
• After long periods of storage, it may be necessary to charge

and discharge the battery several times to obtain maximum performance.

• Keep batteries out of the reach of children when there is a risk of ingestion.
• Battery ingestion can cause burns, soft tissue perforation and death. Severe burns may occur within two hours of ingestion.
• In case of battery ingestion, please seek medical help immediately.
• Keep the original instruction manual for future reference.
• Use the battery only for its intended purpose.
• WARNING: to recharge the battery, use only the power supply included with the appliance, with reference BZ015-190060-AG.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

Fig. 1.1

1. Back Home
2. Start/Pause button
3. Wi-Fi signal
4. Reset button

Indicator light:

• Flashing blue light: Back Home/charging
• Steady blue light: charged
• Red light: fault

Fig. 1.2

1. Back Home
2. Start/Pause button
3. Wi-Fi signal
4. Anti-collision sensor
5. Top cover

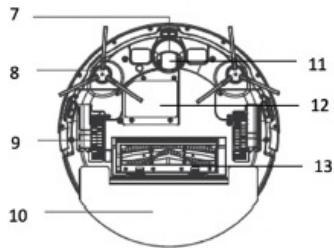

6. Mixed-tank release button
7. Free-detection sensor
8. Side brushes
9. Drive wheels
10. Mixed tank
11. Omnidirectional wheel
12. Battery
13. Main brush

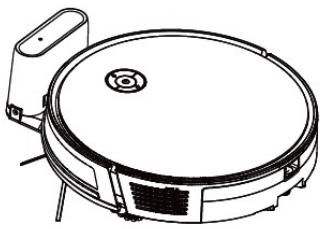

Self-emptying base. Fig. 1.3:

1. Status indicator light
2. Charging connector
3. Charging terminals

ENGLISH

2. BEFORE USE

• This robot vacuum cleaner comes in packaging designed to protect it during transport. Take the robot vacuum cleaner out of its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the robot vacuum cleaner if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content. Fig. 1.4:

1. Robot vacuum cleaner
2. Charging base
3. 2 side brushes
4. Mop bracket and mop
5. Charger
6. Self-cleaning brush
7. Mixed tank
8. Multifunctional brush
9. Instruction manual
10. Spare mop

WARNINGS:

• Remove all objects around the robot vacuum cleaner such as clothing, papers, cables, curtains, or other fragile objects which may block or slow down the operation of the robot vacuum cleaner. Fig. 2
• If the room to be cleaned is near a balcony or stairs, a physical barrier must be placed to prevent product damage and ensure safe operation. Fig. 3
• Direct exposure to sunlight or heavy light contrasts may affect the correct operation of the sensors. If this happens, the robot vacuum cleaner will cease operation. Move it to a new location for it to start running again.

3. INSTALLATION

1. Place the charging base against a wall and leave a minimum free space of 1.5 metres to the front and 0.5 metre to each side. Fig. 4.
2. Connect the charging base to a power socket. Coil and store the remaining cord at the back of the charging base to avoid accidents.
3. Install both side brushes in their corresponding slots, located on the bottom part of the

robot vacuum cleaner. Press until they click well into place. Fig. 5.

1. Place the robot vacuum cleaner in the charging base and make sure the charging terminals on the robot match those of the base. Once the robot vacuum cleaner is properly placed, it will beep once and the indicator light will come on. If the light is flashing, it means the battery is not completely charged. To ensure the maximum cleaning time, wait until the light turns steady, as this will indicate the battery is fully charged and the robot vacuum cleaner is ready to clean. Fig. 6.

4. OPERATION

Starting the cleaning

• Hold down the Start/Pause button on the robot vacuum cleaner to turn it on.
• Press the Start/Pause button on the robot vacuum cleaner or on the app to start cleaning.

Note

• If the robot vacuum cleaner runs out of battery while cleaning, it will automatically return to the charging base. Once the battery is fully charged, the robot can start a new cleaning cycle.
• If there is no good access to the charging base, the robot vacuum cleaner will not be able to return to it. If this happens, place it manually on the charging base.

Pause cleaning

• Press the Start/Pause button on the robot vacuum cleaner or on the app to pause the cleaning process.
• Press the Start/Pause button on the robot vacuum cleaner or on the app to resume the cleaning process.

Return to the charging base

Press the Back home button on the robot or on the app (with a house icon) to send the robot vacuum cleaner to the charging base. The robot vacuum cleaner will stop vacuuming until it reaches the base.

Switching off the lawn mower

Hold down the Start/Pause button on the robot vacuum cleaner to turn it off.

Warning:

If you are not going to use the robot vacuum cleaner for an extended period of time, it is advisable to leave it switched off until new use.

ENGLISH

Cleaning modes

The robot vacuum cleaner includes different modes and functions that can be toggled from the app.

Auto Mode

• Press the Start/Pause button or select the auto cleaning mode on the app, then the robot vacuum cleaner will start the automatic cleaning.
• The robot vacuum cleaner will clean the whole surface, edges, around objects such as tables, chairs etc., until the battery is low, then it will return to the charging base.

Random mode

• The robot vacuum cleaner will clean randomly until the battery percentage is low and it will return to the charge base.
• To activate this mode, press the random cleaning button on the app.

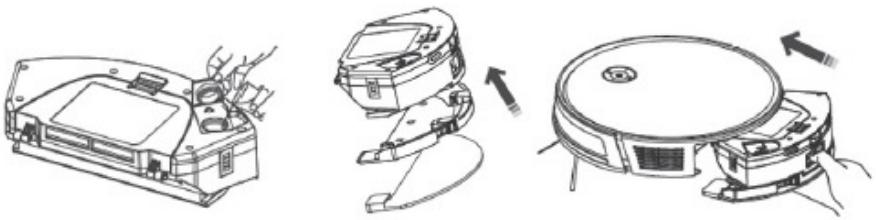

Mopping mode. Fig. 7.

• Fill up the water tank.
• Attach the mop to the bracket and the latter to the mixed tank.
• Place the mixed tank on the robot vacuum cleaner and select the scrubbing level on the app. There are three scrubbing levels: Low, Medium, High.
• Once you have selected the desired scrubbing level on the app, the robot vacuum cleaner will start the All in One function to vacuum, scrub, and sweep simultaneously thanks to its mixed tank.

Note

• If you wish to mop, do not fill the water tank.
• When the robot vacuum cleaner has the mixed tank with water in it, it will rotate on its own to dampen the mop as it leaves the base.
• To ensure a perfect scrubbing from the start, it is suggested to dampen the mop evenly with water before fixing it to the mixed tank. It is also recommended to wash the mop after every use.
• It is recommended to be present when the robot vacuum cleaner is scrubbing.
• When the robot vacuum cleaner returns to the charging base, you must remove the mop. Do not leave the robot vacuum cleaner charging with the mop assembled.

Spiral mode

When you select this mode, the robot vacuum cleaner will intensively clean a specific spot at maximum power. It will start cleaning at a specific spot and will move outwards in a spiral motion (1 metre). Then, it will return to the starting spot in an inwards spiral motion again.

1. Before using this mode, place it in the spot you wish to clean.

2. When it finishes and returns to the starting point, the robot vacuum cleaner will stop at the same point where it started cleaning.

3. To activate this mode, press the spiral cleaning button on the app.

Edge mode

When this mode is selected, the robot vacuum cleaner will clean along walls and around furniture (e.g., table or chair legs).

Press the edge cleaning button on the app.

Back Home mode

Press the Back home button on the robot vacuum cleaner or on the app (with a house icon) to send the robot to the charging base. The robot vacuum cleaner will stop vacuuming until it reaches the base.

Manual mode

Select the manual cleaning mode on the app to steer your robot vacuum cleaner manually.

Power Level function

Select the power level on the app to control the robot vacuum cleaner's suction power during cleaning. There are 3 power levels: Eco, Normal, and Turbo.

Cleaning schedule

To make cleaning easier, the robot vacuum cleaner has a function that allows it to be programmed daily from the app. According to the setting, the robot vacuum cleaner will automatically start cleaning in the selected days at the desired time.

5. CLEANING AND MAINTENANCE

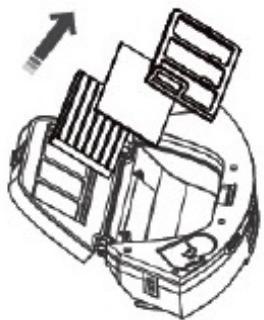

High-efficiency filter. Fig. 8.

• The high-efficiency filter is designed with fibres that help trap dust particles, dust mites, pollen, etc. It is very important to periodically clean the filter, to prevent these particles from building up in the filter, causing efficiency loss. It is convenient to carry out this maintenance once a week.
• It is recommended to replace the high-efficiency filter with a new one without exceeding 160 cleaning hours.

Recommendation

You can remove dirt from the high-efficiency filter with a small brush or gently shake the filter on a hard surface to remove the dust. The high-efficiency filter cannot be washed.

Primary mesh filter and sponge filter. Fig. 8.

The filtering system is featured with a primary mesh filter and a sponge filter, located next to

ENGLISH

the high-efficiency filter. It is suggested to replace them either after a maximum of 160 hours of use or when they are worn out due to operation.

Recommendation

Dirt can be removed with a small brush or by shaking carefully against a hard surface for dust to fall off. You can also use warm water without detergents to obtain better results. Always make sure they are completely dry before installing them again; otherwise, moisture can reach the robot vacuum cleaner's motor and damage it.

Cleaning the free-fall sensors

Use a clean, dry, and soft cloth to wipe off any dust from the fall-detection sensors located on the robot vacuum cleaner's lower part.

Warning:

Do not apply cleaning products directly on the sensors.

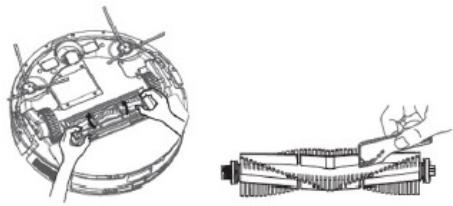

Cleaning the main brush. Fig. 9.

The main brush rotates at high speed and helps pushing the dirt into the suction mouth. This brush is in contact with the floor, and therefore with dirt, so it can wear out overtime, negatively affecting cleaning efficiency. For this reason, it is suggested to replace the main brush after a maximum of 320 hours or less.

1. Slightly press the main brush frame's tabs to open the main brush compartment and remove it.
2. Remove hair, lint, and other dirt trapped in the brush and around the shafts with the help of the self-cleaning brush.
3. Clear and clean the robot vacuum cleaner's suction channel.
4. Reinstall the main brush and its frame.

Tip

It is recommended to clean the main brush once a week with the help of the self-cleaning brush.

Side brushes. Fig. 10.

Side brushes are designed with multiple bristles and are used to push dirt towards the suction mouth and to thoroughly clean edges and corners. These brushes can wear out over time, negatively affecting cleaning efficiency. For this reason, it is suggested to replace each side brush after a maximum of 220 hours or less.

Tip

It is recommended to clean the side brushes once a week with the help of the self-cleaning brush.

Sensors

• The robot vacuum cleaner has different types of sensors, for example, proximity sensors that allow the robot to move around while detecting obstacles, or fall-detection sensors that help the robot detect slopes or possible gaps/unevenness such as staircases. These sensors are always in contact with dust particles, and therefore can deteriorate over time, causing possible navigation errors.
• It is suggested to clean all the robot sensors with a dry and soft cloth after a maximum of 35 hours of operation or less.

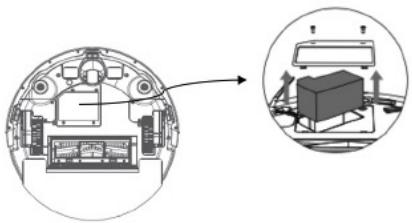

Charging and replacing the battery

• To lengthen the battery shelf life, leave the robot vacuum cleaner to charge in the charging base when not in use.
• Remove the battery and store it in a safe, dry place if the robot vacuum cleaner will not be used for a long period of time.

Follow the below instructions to replace the batteries: Fig. 11:

1. Unscrew the screws on the battery compartment, remove the battery cover, and the battery itself.
2. Insert the new battery with the battery label facing up.
3. Put the battery and the battery-compartment cover back in place and properly fix the screws again.

Self-emptying base. Fig. 12:

Use a clean, dry, soft cloth to wipe dust off the charging terminals of the base.

6. TROUBLESHOOTING

Beeps while the indicator light is red:

Beeps	Problem	Solution
1	Driving-wheel fault	Check if the drive wheel is blocked.
2	Side brush error.	Check if the side brushes are blocked and clean them.
3	Fan error	Clean the dust or objects that may be blocking the air inlet channel.
4	Main-brush fault.	Check if the main brush is blocked or tangled and clean it.

Other possible scenarios:

Problem	Solution
The robot vacuum cleaner does not activate.	Make sure the battery is fully charged.If the problem persists, reset the robot vacuum cleaner by pressing the RESET button.
The robot vacuum cleaner suddenly stops working.	Check if the robot vacuum cleaner is trapped or stuck with any obstacle.Check the battery level.If the problem persists, turn the robot off and then on again.If the issue persists, press the RESET button.
The programming function does not work.	Check if the robot vacuum cleaner battery is too low to turn on.
Suction power level is very low.	Check if there are obstructions blocking the air inlet.Empty the tank.Clean the filters with a vacuum cleaner or a self-cleaning brush.Check if the filters are wet.Dry the filters in a natural way before using them. Make sure they are completely dry, if there are any moisture remains they could reach the motor and damage the robot vacuum cleaner.
The robot vacuum cleaner does not charge.	Check if the charging base indicators are on. Otherwise, contact the official Technical Support Service of Cecotec.Clean the charging terminals with a clean, dry cloth.Check if the robot vacuum cleaner beeps when it gets to the charging base. Contact the official Technical Support Service of Cecotec.
The robot vacuum cleaner does not return to the charging base.	Remove the objects 1 metre on the left and right, and 2 metres in front of the charging base.The robot vacuum cleaner will return to the charging base faster when it is near it. When it is far, it will take more time to identify it. Clean the charging terminals.
The main brush does not spin.	Clean the main brush.Check if the main brush is installed correctly.
The robot vacuum cleaner movements or route are unusual.	Carefully clean the sensors with a clean, dry cloth.Restart the robot vacuum cleaner. To do this, switch the robot off and on or do a RESET.

7. TECHNICAL SPECIFICATIONS

Conga M20

Product reference: EU01_100083:

Voltage: 100-240 V AC 50/60 Hz

Battery: 14.4 V DC Li-ion 2600mAh

Frequency bands: 2.4 GHz

Maximum Transmission Power: 17.5 dBm

Technical specifications may change without prior notice to improve product quality.

Made in China | Designed in Spain

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old electrical and electronic appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of product delivery under the terms, conditions and deadlines established by applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic,

ENGLISH

mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

11. DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares this robot vacuum cleaner, model EU01_100083_Conga M20, complies with the Directive 2014/53/EU on radio equipment.

The full text of the EU Declaration of Conformity can be found on the following website:

www.cecotec.es

1. PIÈCES ET COMPOSANTS

https://storececotec.it/it/information/declaration-of-conformity

1. PEÇAS E COMPONENTES

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./ Rys. 1.1

Fig./Img./Abb./Afb./ Rys. 1.2

Fig./Img./Abb./Afb./Rys.1.3

Fig./Img./Abb./Afb./ Rys. 1.4

Fig./Img./Abb./Afb./ Rys. 2

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

Fig./Img./Abb./Afb./ Rys. 7

Fig./Img./Abb./Afb./Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./ Rys. 12

www.cecotec.es
