TEDDY - Child bike seat KETTLER - Free user manual and instructions

Product type	Child bike seat
Brand	KETTLER
Model	TEDDY
Wheel diameter compatibility	660.4 mm (26 inches)
Frame tube diameter compatibility	28, 30, 32, 35 or 40 mm
Maximum weight child + luggage	22 kg
Recommended age	From 9 months up to 7 years
Restraint system	Integrated safety belts
Assembly	On the rear axle of the bike
Maintenance	Regularly check the fastenings and condition of components; replace worn parts immediately
Spare parts	Use only original KETTLER parts
Safety instructions	Read the manual before assembly and use; do not modify the seat
Special bikes compatibility	Consult the manufacturer for bikes with special construction
Use on car bike rack	Remove the seat before any transport on a bike rack

Frequently Asked Questions - TEDDY KETTLER

How to install the TEDDY child seat on my bike?

Attach the seat to the rear axle of the bike using the provided mounting parts. Ensure that the frame tube diameter matches one of the compatible diameters: 28, 30, 32, 35 or 40 mm. Tighten all screws well and check stability before each use.

What is the recommended age and maximum weight for the child?

The seat is suitable for children from 9 months (when they can sit up on their own) up to 7 years. The maximum permitted weight (child + luggage) is 22 kg.

Can I use the seat on a bike with a suspension seat post?

Yes, but pay attention to the direction of the spring to avoid the child's hands getting injured. Refer to the manual for detailed instructions.

How to maintain the TEDDY child seat?

Before each ride, check that all fastenings are tight and the safety belts work properly. Replace any worn or damaged part immediately with an original KETTLER part.

Can I attach additional luggage to the seat?

No, do not attach any additional luggage to the seat. If necessary, use a front luggage rack to distribute the load. Respect the maximum total weight of 22 kg.

Can I transport the bike with the seat on a car bike rack?

It is mandatory to remove the child seat before placing the bike on a car bike rack, as air resistance increases and the load limit of the bike rack could be exceeded.

Which frame tube diameters are compatible?

The seat is compatible with the following frame tube diameters: 28, 30, 32, 35 or 40 mm.

What to do if a part is damaged?

Replace any worn or damaged part immediately. Use only original KETTLER spare parts to ensure safety.

Can I use the seat on an electric bike or mountain bike?

Before any use on a special bike (electric, MTB, etc.), consult the bike manufacturer to ensure it supports the additional load and that the seat mounting is suitable.

How to clean the TEDDY child seat?

Clean the seat with a damp cloth and mild detergent. Do not use abrasive products or solvents. Let it dry completely before reuse.

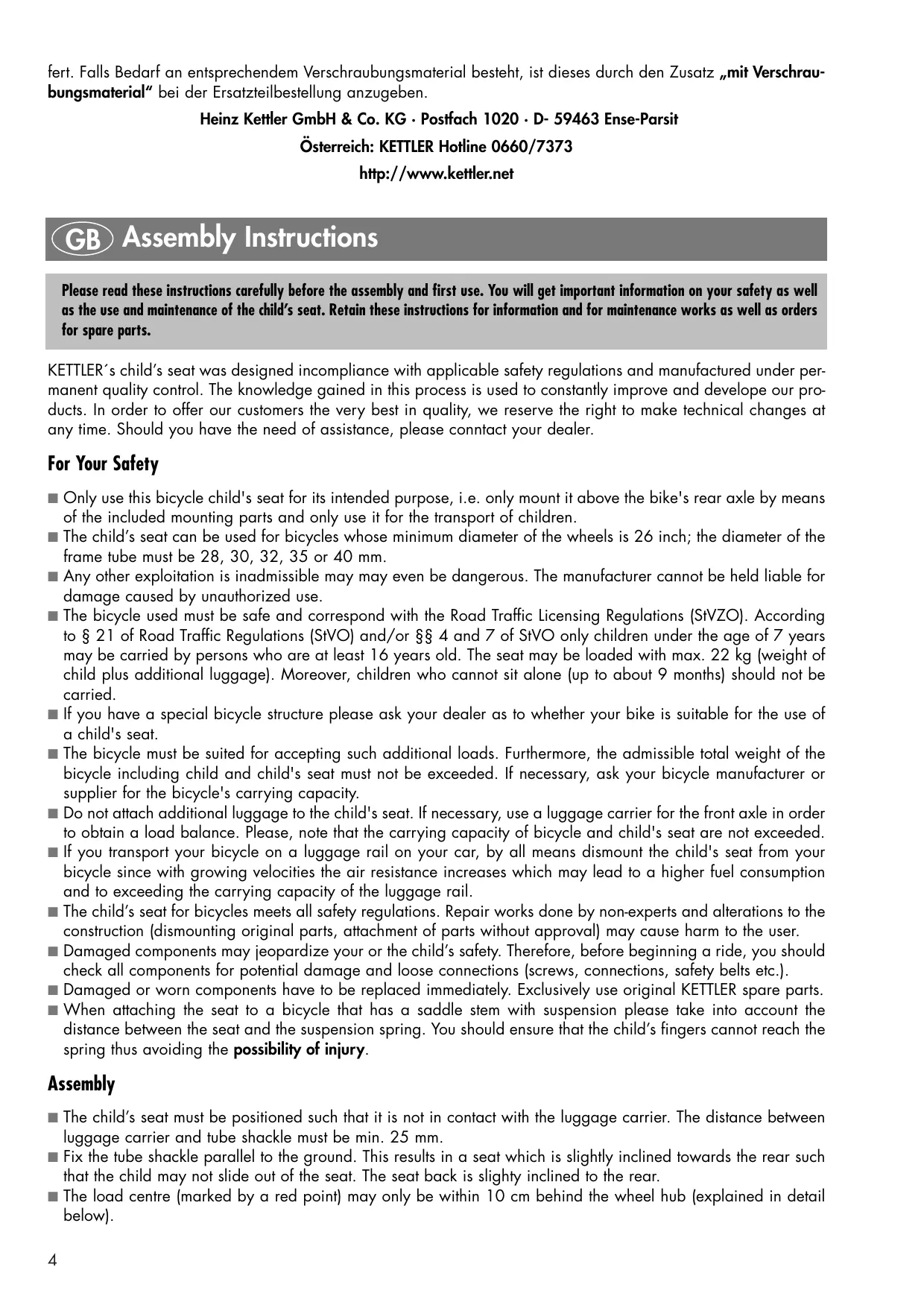

USER MANUAL TEDDY KETTLER

Assembly Instructions

Please read these instructions carefully before the assembly and first use. You will get important information on your safety as well as the use and maintenance of the child's seat. Retain these instructions for information and for maintenance works as well as orders for spare parts.

KETTLER's child's seat was designed incompliance with applicable safety regulations and manufactured under permanent quality control. The knowledge gained in this process is used to constantly improve and develop our products. In order to offer our customers the very best in quality, we reserve the right to make technical changes at any time. Should you have the need of assistance, please contact your dealer.

For Your Safety

■ Only use this bicycle child's seat for its intended purpose, i.e. only mount it above the bike's rear axle by means of the included mounting parts and only use it for the transport of children.
The child's seat can be used for bicycles whose minimum diameter of the wheels is 26 inch; the diameter of the frame tube must be 28, 30, 32, 35 or 40~mm .
Any other exploitation is inadmissible may may even be dangerous. The manufacturer cannot be held liable for damage caused by unauthorized use.
The bicycle used must be safe and correspond with the Road Traffic Licensing Regulations (StVZO). According to § 21 of Road Traffic Regulations (StVO) and/or § 4 and 7 of StVO only children under the age of 7 years may be carried by persons who are at least 16 years old. The seat may be loaded with max. 22 kg (weight of child plus additional luggage). Moreover, children who cannot sit alone (up to about 9 months) should not be carried.
If you have a special bicycle structure please ask your dealer as to whether your bike is suitable for the use of a child's seat.
- The bicycle must be suited for accepting such additional loads. Furthermore, the admissible total weight of the bicycle including child and child's seat must not be exceeded. If necessary, ask your bicycle manufacturer or supplier for the bicycle's carrying capacity.
Do not attach additional luggage to the child's seat. If necessary, use a luggage carrier for the front axle in order to obtain a load balance. Please, note that the carrying capacity of bicycle and child's seat are not exceeded.
If you transport your bicycle on a luggage rail on your car, by all means dismount the child's seat from your bicycle since with growing velocities the air resistance increases which may lead to a higher fuel consumption and to exceeding the carrying capacity of the luggage rail.
The child's seat for bicycles meets all safety regulations. Repair works done by non-experts and alterations to the construction (dismounting original parts, attachment of parts without approval) may cause harm to the user.
Damaged components may jeopardize your or the child's safety. Therefore, before beginning a ride, you should check all components for potential damage and loose connections (screws, connections, safety belts etc.).
Damaged or worn components have to be replaced immediately. Exclusively use original KETTLER spare parts.
- When attaching the seat to a bicycle that has a saddle stem with suspension please take into account the distance between the seat and the suspension spring. You should ensure that the child's fingers cannot reach the spring thus avoiding the possibility of injury.

Assembly

The child's seat must be positioned such that it is not in contact with the luggage carrier. The distance between luggage carrier and tube shackle must be min. 25 mm.
Fix the tube shackle parallel to the ground. This results in a seat which is slightly inclined towards the rear such that the child may not slide out of the seat. The seat back is slightly inclined to the rear.
The load centre (marked by a red point) may only be within 10 cm behind the wheel hub (explained in detail below).

In case of saddles with uncovered springs the latter have to be covered as a protection against bruises (e. g. art. nr. 8947-690).
Further to that the rear wheel is provided with an additional cover on the spokes or a protective device to prevent dresses from getting mingled with the spokes.

Handling and security of riding

Please observe that the riding behaviour of the bicycle changes when the child's seat is used (irrespective of child being present or not). Owing to the increased centre of gravity the bicycle's behaviour may unfavourable change and the bicycle's dirigibility may be impaired. For this reason, ride carefully – in particular with regard to braking and evading manoeuvres. Also avoid riding with one hand.
■ Ask the child to sit quietly. Sudden weight transfers by the child may considerably affect your safety during a ride.
Pay attention that the child does not handle any objects (e.g. toys) which might get mingled with the whels. Clothes or extremities of the child should never get into turning parts or into the brake and transmission system.
- Protect your child from sharp edges at your bicycle, from worn cables and other parts that might lead to injuries.
Before beginning a ride and during a tour check whether or not the child's seat is positioned firmly on the bicycle; also check screwings and other connections for proper seat.
Only transport the child with the safety belt being fastened and the foot straps being closed. Have a check during the breaks that those safety devices are still unopened.
Even if no child is carried, close the seat belt to avoid that it gets into turning parts or that it clings to parts that are passed during riding.
Pay attention to a suitable and sufficiently warm clothing of your child. Children who are sitting still normale cool down faster than the rider.
Do not park your bicycle before the child has left its seat.
We recommend that adult and child wear suitable helmets.
Adjust the headrest such that its upper edge matches the child's ear level.
In cases of doubt and any other question do not hesitate to contact your specialized dealer.
Never leave your child alone and unattended in its child's seat due it the danger of the bicycle falling over.
If seat or clothes are dam it is possible that the colour of the seat could mark pale coloured clothes due to friction.

Service and maintenance

Always use environmentally friendly substances (never aggressive or etching ones) for the cleaning and service of the child's seat for bicycles.
- You can also clean safety belts, if required. In this case it is especially important not to use aggressive substances! Usually a weak rinsing lye or suds.

Accessories

If you want to attach the seat to another bicycle, you can order a second carrier for the child's seat. (item no. 8947-633).
To secure the child's seat from theft, a cylinder lock can be inserted into the seat support bracket (see page 18). The lock (type K.01.32.G1) is not supplied with the seat. The lock is obtainable from: Firma P.C. Fischer, Kaiserstraße 126, D-58300 Wetter/Ruhr, tel. [phone], fax [phone]

Note on Assembly

Assembly must be carried out carefully by an adult.

Carefully read these mounting instructions before beginning with the work itself. The individual steps are additionally explained in the sequence of figures by means of symbols, in some cases a text mark indicates that a written explanation is available. Strictly follow the individual mounting steps to ensure a safe use and operation of the unit.

For technical reasons, we reserve the right to carry out preliminary assembly work (e.g. addition of tubing plugs).

List of spare parts page 18-19

When ordering spare parts, always state the full article number, spare-part number, the quantity required and the inspection number stamped on the back.

The seat may only be ordered at an authorized dealer.

Example order: Art. no. 8946-405/spare-part no. 42108002/2 pieces/inspection no. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . original packaging of this article, so that it may be used for transport at a later date, if necessary. Important: spare part prices do not include fastening material; if fastening material (bolts, nuts, washers etc.) is required, this should be clearly stated on the order by adding the words "with fastening material".
