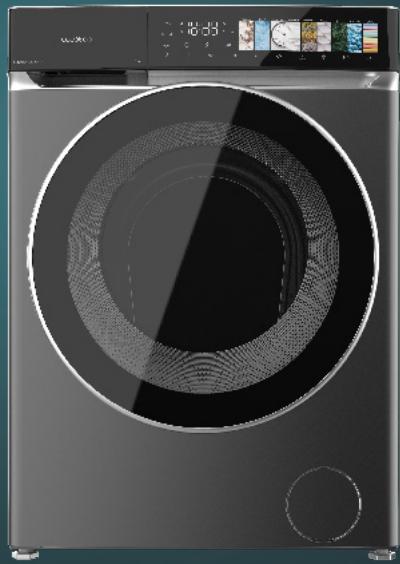

Bolero Dresscode 9970 Direct Drive Steel - Washing machine CECOTEC - Free user manual and instructions

Product type	Front-loading washing machine
Brand	Cecotec
Model	Bolero Dresscode 9970 Direct Drive Steel
Washing capacity	9 kg
Maximum spin speed	1400 rpm
Energy class	A (estimated)
Dimensions (H × W × D)	85 × 60 × 60 cm
Net weight	70 kg
Power supply	220-240 V, 50 Hz
Motor type	Direct Drive (beltless)
Drum material	Stainless steel
Washing programs	Cotton, Synthetic, Delicate, Quick, Wool, Mixed, etc.
Special functions	Delayed start, Pre-wash, Extra rinse, Child lock
Noise level (wash/spin)	52 dB / 76 dB (estimated)
Annual water consumption	9 900 L (estimated)
Repairability index	7.5/10 (estimated)
Routine maintenance	Filter cleaning, emergency drain, drum cleaning
Spare parts availability	Yes, through Cecotec after-sales service

Frequently Asked Questions - Bolero Dresscode 9970 Direct Drive Steel CECOTEC

How to install the washing machine?

Unpack the appliance, remove the transport bolts, connect the water inlets and drain, then level the feet. Refer to the manual for more details.

What to do if the washing machine does not start?

Check that the door is properly closed, the power supply is connected, and the water tap is open. If the problem persists, contact customer service.

How to clean the filter?

Unscrew the filter cap located at the bottom right, remove debris, rinse it, and screw it back. Perform this operation regularly.

Which programs to use for cotton?

Use the 'Cotton' program at 40°C or 60°C depending on the level of soiling. Add suitable detergent.

How to use the delay start?

Select the desired program, press the 'Delay Start' button, choose the number of hours, then press 'Start'.

What does error code E10 mean?

Error code E10 indicates a drainage problem. Check that the drain hose is not blocked and that the filter is clean.

Which detergent to use?

Use a detergent suitable for the type of fabric and temperature. For 30°C programs, prefer liquid detergent.

How to maintain the drum?

Run a cleaning program at 90°C with a specific product or white vinegar. Clean the door gasket regularly.

Can I wash shoes?

Yes, using the 'Delicate' or 'Sport' program. Place the shoes in a laundry bag to avoid damaging the machine.

Where to find spare parts?

Contact Cecotec after-sales service or visit their official website. Common parts such as belts, filters, and seals are available.

USER MANUAL Bolero Dresscode 9970 Direct Drive Steel CECOTEC

Safety instructions 12

1. Parts and components 83

2. Before use 83

3. Installation 84

4. Operation 88

5. Cleaning and maintenance 95

6. Troubleshooting 96

7. Technical specifications 99

8. Disposal of old electrical and electronic appliances 110

9. Technical support and warranty 110

10. Copyright 110

11. Simplified EU Declaration of Conformity 111

INDEX

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

• Ensure that the mains voltage matches the voltage specified on the product rating label and that the plug is earthed.
• If the power cord is damaged, it must be replaced by the official Cecotec Technical Support Service or by a similarly qualified person to prevent hazards.
• This appliance is for indoor use only.
• Make sure the device is installed in places where the temperature is above 0 °C.
• The appliance is not designed for built-in installation.
• Use the hose set supplied with the appliance. Do not reuse old hoses.
• Check hose connections regularly to ensure that no water leaks out.
• Do not use the appliance if parts are missing or defective or if the power cord or plug is damaged.
• Do not use the appliance until you are sure that it is installed in accordance with the instructions provided in this manual and all water, drain, electrical and grounding connections comply with all applicable local regulations and/or other requirements.
• Before carrying out any maintenance or cleaning in the device, unplug the appliance from the mains.
• As a safety measure, we advise you to unplug the appliance and cut the water supply after every use. Maximum water-inlet pressure: 1 MPa. Minimum water-inlet pressure: 0.03 MPa.
• Never unplug the appliance with wet hands.
• For safety, be sure to connect the plug to a 3-pin socket.

Check carefully and make sure that your socket is properly and reliably earthed.

• It must be possible to disconnect the appliance from the power supply by unplugging it if the plug is accessible, or by means of an all-pole switch upstream of the plug, in accordance with national electrical safety regulations.
• The maximum current of the appliance is 10 A, make sure that the power supply system (voltage, current and cable) is applicable to the load of the device.
• Make sure that the socket outlet can support the Maximum Power rating of the appliance as indicated on the rating plate.
• Water and electrical devices must be connected by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.
• The glass door may reach high temperatures during operation. Keep children and pets away from the glass door. Never open the door during the washing stage.
• Do not operate the appliance in very wet rooms or in rooms with explosive or caustic gas.
• Adequate ventilation must be provided to avoid the back flow of gases into the room from appliances burning other fuels, including open fires.
• Do not dry unwashed items in the appliance.
• Do not wash items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes, and wax removers.
• Do not wash articles that have been cleaned in, washed in, soaked in, or stained with flammable or explosive substances, like wax, oil, paint, petrol, degreasers, dry-cleaning solvents, kerosene, etc., which may result in fire or explosion.
• Fabric softeners or similar products should be used as specified by manufacturer.

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances (such as wax, oil, paint, petrol, degreasers, dry-cleaning solvents, kerosene, etc.). This may result in fire or explosion.
• When washing fabrics that contain vegetable or cooking oil or have been contaminated by hair care products, they should first be washed in hot water with extra detergent. This will reduce, but not eliminate, the hazard.
• The exhaust air must not be discharged into a flue which is for exhausting fumes from appliances burning gas or other fuels.
• The air openings must not be obstructed by a carpet.
• Appliances with a single inlet valve can only be connected to a cold water supply. Appliances with a double inlet valve must be correctly connected to a hot water and cold water supply (depending on the washing machine model).
• The plug must be accessible after installation.
• The appliance must not be installed behind a lockable door, a sliding door, or a door with a hinge on the opposite side to that of the device.
• The appliance shall not be installed in a humid place.
• Do not place other items or appliances (such as microwaves) or objects under pressure on the device.
• The product is exclusive for household use and is only designed for the textiles suitable for machine washing.
• The product cannot be used for commercial or industrial purposes. Do not use the appliance outdoors, even if the area is protected, as it may be exposed to moisture, rain or thunderstorms.

• Do not insert more laundry load than the allowed load (maximum allowed load indicated in the product data tables).

• The appliance is not designed to be operated by external switching devices such as timers or remote-control systems.

• Do not use an extension lead or multiple sockets.
• Do not wash garments containing glass fibre, such as certain curtains or blinds, as particles may remain in the washing machine and adhere to other types of garments, causing skin irritation.
• Do not stand or sit on the appliance.
• Do not lean against appliance door.
• Flammable and explosive or toxic solvents are forbidden. Do not use detergents containing petrol, alcohol, etc. Use only detergents suitable for machine washing, especially for the drum.
• Garments containing oil may catch fire spontaneously, especially when exposed to heat sources such as a washing machine. The garments are heated, causing an oxidation reaction in the oil. Oxidation generates heat. If heat cannot escape, garments may become hot enough to catch fire. Piling, stacking or storing garments containing oil retains heat and therefore creates a fire hazard.
• Garments containing vegetable cooking oil or hair care products should first be washed in hot water with extra detergent, this will reduce the hazard but will not completely eliminate it.
• Make sure that no objects such as lighters, matches, etc. are introduced.
• Close the door properly, if it is difficult to close, check that clothing does not prevent proper closing.
• Make sure that there is no water in the drum before opening the door.
• Once the washing cycle has finished, we recommend removing the laundry as soon as possible to prevent creases.

• This appliance can be used by children aged 8 and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Do not allow children to play with the appliance. The cleaning and maintenance of the appliance should not be carried out by children without supervision.
• Children of less than 3 years should be supervised to ensure that they do not play with the appliance.
• Children should be supervised to make sure that they do not play with the appliance.
• Cleaning and maintenance should not be carried out by children without supervision.
• Be sure to use the child lock function and to switch off the appliance when not in use.
• Keep the cleaning products out of the reach of children.

Cautions during the handling of the appliance

• If you wish to change the location of the washing machine, make sure you install the transport bolts again in the appliance, as they will ensure the interior of the product is not damaged during transport.
• Water accumulated inside the appliance must be drained out.
• Handle the machine carefully. Never hold each protruded part on the machine while lifting. Do not use the door of the appliance as a handle during transport.
• The appliance is heavy. Transport it with care.
• Secure the drain and water-supply hose correctly.
• Do not insert hands into the running water extracting tub.
• Do not close the door with excessive force. If it is found

difficult to close the door, please check if the clothes are put in or distributed well.

• It is forbidden to wash carpets.
• Never refill the water by hand during washing.

Installation

• The appliance must be handled and installed by 2 or more people to avoid risk of injury. Wear protective gloves when unpacking and installing the appliance to avoid cutting hazards.
• Keep children away during installation process.
• During installation, make sure that the power cord is not damaged to avoid possible risk of fire or electric shock.
• Before using the device, it is imperative to remove the transport screws.
• Keep the room dry and ventilated.
• Never place the appliance over the opening of an uncovered drain.
• Do not expose the appliance to temperatures below 5 °C or above 35 °C.
• Do not install in bathrooms or very damp rooms.
• Check that it is correctly levelled on the floor by means of the feet.
• WARNING! Cecotec accepts no liability for incidents caused by improper use outside the rules set out in this instruction manual.

CONSIGNES DE SÉCURITÉ

Programa Drum Clean Plus

1. Detergent drawer
2. Door assembly
3. Inlet valve
4. Control panel
5. Power cord
6. Appliance body
7. Drum
8. Drain pump cover
9. Levelling feet

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Do not remove the serial number of the appliance in order to keep a correct traceability of it in case of assistance.

Box content

• Washing machine
• Water supply hose
• Fixed spanner
• Transport bolts

ENGLISH

3. INSTALLATION

Installation instructions

• Make sure the washing machine is installed in a location where the temperature is above 0 °C or place it indoors.
• Install the washing machine correctly according to this instruction manual and local regulations.
• Keep the washing machine base well-ventilated when it is placed on a carpeted floor.
• Any damage caused by cockroaches or other pests is not covered by the warranty.

Transport bolts

Transport bolts are fitted to prevent internal damage during transport.

Removing the transport bolts

1. 4 bolts are installed to prevent internal damage during transport. Before using the washing machine, remove these bolts. Fig. 2. Failure to do so will result in severe vibrations, noise and malfunction.
2. Use the supplied spanner to loosen all 4 bolts. Fig. 3
3. Slightly rotate the bolt rubber and then remove the bolts. Keep the bolts and spanner for future use. Fig. 4.

The bolts must be refitted when transporting the washing machine.

1. Use the supplied caps to seal the bolt holes. Fig. 5

Note: Do not disassemble the fixing device from the drainpipe.

Placement requirements

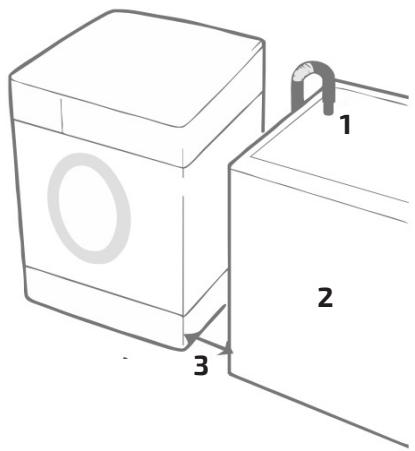

Fig. 6

1. Drain hose
2. Sink
3. About 2 cm

Level adjustment

- The tilt angle must not exceed 1 degree.

Power socket

• The distance between any side of the washing machine and the power socket must be 1.5 metres.
• Do not use too many electrical appliances in one socket.

84

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

ENGLISH

Site preparation

• Clean the floor and wall if necessary.
• Install the washing machine on a solid, level floor with drainage facilities rather than on soft carpet or wooden floor.
• Do not place dirty laundry or other items on top of the appliance as this may affect normal operation.

Warnings

Electrical connection

• Position the washing machine so that the power socket is easily accessible.
• Do not install pipes in places where temperatures drop below freezing. Pipes will freeze and burst. In addition, temperature below zero will damage the knob and buttons.
• If you move the appliance to an environment where the temperature is below freezing, then keep it at room temperature for several hours before operation.

Earthing

- The washing machine must be connected to an earthed socket. Should a problem occur, the appliance can reduce the risk of electric shock. This appliance is equipped with a cable that includes a wire and a grounding plug. The grounding plug must be inserted into an appropriate power socket. If you are unsure whether the washing machine is properly earthed, contact a qualified maintenance professional. If the power socket does not match the grounding plug, do not attempt to modify it yourself.

- If the washing machine emits smoke or unusual odours, disconnect the power immediately and contact a qualified maintenance professional.

The appliance must be connected to the water supply. Use the new water hose supplied rather than the old one. To ensure quality, water injection tests are carried out before the washing machine leaves the factory. Therefore, there may be water inside the drum, door seals and door panel, which is normal.

Water inlet connection

1. The water supply pressure must be between 30 kPa and 1000 kPa.
2. Do not tighten the thread when connecting inlet hoses.
3. If the water supply pressure exceeds 1000 kPa, install a pressure regulator.
4. There are two seals in the connectors at both ends of the hose to prevent leaks.
5. Open the tap and check the connectors for leaks.
6. Check the hoses regularly, replace them if necessary.
7. Make sure that the hoses are not damaged or in contact with each other.

Connecting inlet hoses and taps

To connect inlet hoses and taps, use a standard tap as shown in Figure 7.

ENGLISH

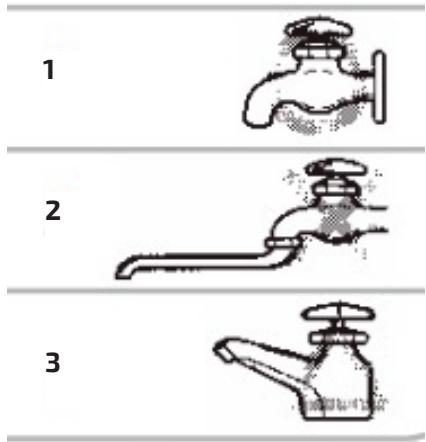

Fig. 7 key:

1. Standard tap
2. Long tap
3. Square tap

The water hose connector is located at the rear of the washing machine as shown in figure 8. Connect the hose to the pipe and tap as follows:

1. Check the rubber seals on both ends of the hose. Insert a rubber seal into the threads of each hose to prevent leaks. Fig. 9

Fig. 9 key

1. Rubber seal

2. Hose (to supply water to the washing machine)

3. Connect the water supply hoses to the water taps firmly by hand and then tighten a further 2/3 turn with pliers. Connect the blue hose to the water tap. Fig. 10

Warning: Do not overtighten. This could damage the coupling.

1. After connecting the inlet hose to the washing machine, open the water taps to flush out any foreign substances (dirt, sand or sawdust) from the water pipes. Let the water run into a bucket and check the water temperature. Fig. 11

2. Connect the hoses to the water inlet firmly by hand and then tighten a further 2/3 turn with pliers. Fig. 12

Warning: Do not overtighten the hoses. Excessive tightening may damage the valves and cause leaks.

1. Check for leaks by opening the taps. If water leaks occur, repeat steps 1 to 4.

2. Remove the stopper if the washing machine will be used for a long period of time.

3. Remove the plug and disable the door lock function to prevent children becoming trapped inside.
4. Packaging materials (e.g. film, foam) can pose a safety hazard to children and cause suffocation. Warning: Keep all packaging materials out of reach of children.

Drain hose installation

• Secure the drain hose with a lifting rope.
• To avoid damage caused by floor leakage, position the drain hose correctly.
• To avoid siphoning, the drain hose height should be between 0.85 m-1.25 m, and the end should not be submerged in water. Fig. 13
• If the drainpipe is too long, do not force it into the washing machine, as this may cause abnormal noise.

ENGLISH

Horizontal adjustment

• To prevent noise and vibrations, level the washing machine. Preferably place it in a corner of the room.
• If the floor is uneven, adjust the levelling feet. Do not insert pieces of wood or similar materials; make sure all four levelling feet are firmly in contact with the floor and the appliance is completely level.
• Adjust the levelling feet to ensure that the washing machine is balanced and stands stably on the floor. After adjustment, tighten the lock nut to secure it in position. Do not place the washing machine on a platform higher than floor level, as this could cause the machine to fall and result in accidents.
• Diagonal check: Press down on opposite corners of the washing machine; it should not shake. (Check both diagonals. If the appliance shakes, readjust the levelling feet).

Door locking and unlocking methods

• The door will lock automatically when a washing programme starts. At this time, the door lock indicator light will light up.
• Press the Start/Pause button and wait a few seconds after the wash/spin drum stops rotating. If the door opening conditions are met, the door lock will release automatically, and the display will show that the door lock indicator light is off.
• The door cannot be opened during high-temperature operation or when there is a high-water level in the drum.
• When the door cannot be opened normally, the emergency door opening device can be used in case of emergency.

Emergency door opening

If a power failure occurs and the door cannot be opened normally, but you need to open it, pull the emergency opening tab and remember to reset it.

The emergency opening tab is located at the lower right front inside the cover. Fig. 14 Open the cover when using the appliance.

Caution: Do not use the emergency door opening tab while the machine is in operation; if you must use it in an emergency, open the emergency door cover only after the water has cooled down to avoid scalding, as hot water may flow out from the inner tube.

Using the detergent drawer

Power detergent

Dissolve the detergent (e.g. soap flakes) before dosing.

Liquid detergent

Use low-sudsing detergent.

Use twice the amount of water to dilute concentrated detergent before placing it in the drawer.

ENGLISH

Prewash detergent

Add mild detergent after selecting the prewash function if clothes are heavily soiled.

Fabric softener

• Add fabric softener before washing; it will be automatically dispensed during the final rinse cycle.
• When using concentrated fabric softener, dilute it appropriately with water.
• Do not exceed the MAX mark.

Note:

• Use special detergent.
• Do not use too much detergent, as this will cause over-sudsing and affect washing quality or cause malfunction.
• Select the detergent according to the type of laundry, colour, water temperature and soil level.
• Use mild detergent for better washing results and to protect the environment.

Tips on the use of detergents at different temperatures

• When washing heavily soiled white items, we recommend using cotton programmes at 60 °C or higher, and a normal powder detergent (heavy-duty). The bleaching agents contained in laundry detergents at medium/high temperatures provide excellent results.
• For washing cycles between 40 °C and 60 °C, the type of detergent used must be suitable for the type of fabric and the level of soiling. Normal powder detergents are suitable for heavily soiled “white” or fast-coloured fabrics, while liquid detergents or “colour-protecting” detergents are suitable for lightly soiled coloured fabrics.
• For washing at temperatures below 40 °C, we recommend using liquid detergents or detergents specifically labelled as suitable for low-temperature washing.

4. OPERATION

Note: The first use may drain some water. It is the residual water after the performance test, which is a normal phenomenon.

Control panel

Fig. 15

1. Power button

• Press it to switch on the washing machine.
• When the programme is finished, press the power button to switch off the appliance.

88

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

ENGLISH

2. Start/30 sec. button

• Press to start operation.
• Press to pause during operation, press again to continue.

3. Soil level button

• When you press the power button to start the machine and select the program, you can choose the washing mode depending on the soiling of the laundry: Heavy (heavy), Normal (normal), Light (light) with this button.
• The total washing time will vary according to the different modes.

4. Temp. button

• When a washing programme is selected, the display shows the water temperature.
• You can choose the water temperature according to the material of the laundry.

5. Rinse button

When you press the power button to start the machine and select the program, you can choose the number of rinsing times with this button, which can improve the washing performance.

6. Speed button

You can choose different spin speeds after selecting the programme.

7. My Fav button

• Set or retrieve common programs and parameters.
• Save memory: long press the "memory key" after startup to save the parameter settings.
  o Memory recall: press the "memory key" after the next start to recall previously saved parameters for quick setup.
  ○ After saving or recalling the memory, the memory icon (heart-shaped T-shirt icon) above the memory key will light up on the display.

In case of saving the memory, the washing machine will beep twice; in case of recalling the memory, the appliance will beep three times.

The memory save function saves only one of the most common or preferred parameter settings, without saving more than one parameter setting.

8. SteamMax button (steam)

• After selecting the desired programme, select the button before running the programme to activate the steam function. Once activated, it cannot be cancelled. After selecting another program, it will be deactivated by default. If you need to reactivate the steam function, you must press this button again.
• This programme heats the inside of the drum, which improves washing performance and reduces soiling.

ENGLISH

9. Kid Lock: child safety lock

- Press this button to activate or deactivate the function. The child block disables all the buttons except for the power button and the Kid Lock button. At this point, the child lock function indicator will illuminate.

10. Delay End button

• The delay time refers to the period from the programming time to the end.
• After selecting a program, set the reserve time, which is the end time of the wash program. Display the current reservation time in the remaining time display, cancel the reservation and return to the remaining time display.

11. Programme selection

• Select the desired programme by clicking on the touch button.
• After pressing the Start/Pause button, all lights of the selected programme will turn on, while all lights and function lights of other programs will turn off, and the display will show the remaining running time.

12. Display

• To display the remaining time or the delay time, the remaining time is gradually reduced according to the wash.
• To display temperature, delay time, number of rinses, spin speed, when setting these options.
• During the washing process, if there is an abnormal phenomenon, the display will show the corresponding error code.
• If the remaining time is different from the actual time, the programme will be adjusted according to the actual situation. This is not a fault.

Programmes and functions Use of everyday clothing

1. Preparations

• Open the door, put the laundry in and close the door.
• Remove the detergent drawer, add detergent and close the drawer.
• Connect the inlet hose and make sure the tap is open.

• Press the power button.

• The programmes can be selected depending on the laundry and the degree of soiling.

• Depending on the need, press the corresponding button to set the water temperature, number of rinses, spin speed, delay time and wash mode.

• Press the Start/Pause button to start washing.

• When all operations are completed, the buzzer emits a noise.

90

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

ENGLISH

1. Open the door to remove the clothes.
2. Unplug and close the faucet.

If you want to change the current setting during the washing cycle, first press the Start/Pause button to stop the cycle, change the settings and then press the button again to restart.

The use of the self-compiled programme

You can use it when you need to set the number of rinses, water temperature and spin speed.

1. Preparing for the washing cycle

2. Open the door, put the laundry in and close the door.

3. Remove the detergent drawer, add detergent and close the drawer.

4. Connect the inlet hose and make sure the tap is open.
   o Press the power button.

5. The programmes can be selected depending on the laundry and the degree of soiling.

6. Press the "Rinse" / "Temp." buttons. / "Speed" to set the number of rinses, water temperature, spin speed and prewash time.
7. Press the Start/Pause button to start the wash.
8. When the programme is finished, it will emit a buzzer.
9. The display shows "End" with a buzzer.
10. Open the door and take the laundry out.
11. Unplug and close the faucet.

Cotton programme

Use this programme to wash light to moderately soiled laundry such as cotton, bed linen, underwear, towels and shirts, etc.

20 °C programme

Wash light stains.

Quick 15' programme

Use this programme to wash clothes that are frequently changed and not too dirty.

Bedding programme

The clothes have the machine wash mark, such as bed linen, sheets, etc.

• Electric blankets and carpets cannot be washed (it will damage the appliance and clothes). (It will damage the machine and clothes).
• Place the laundry in the drum properly and evenly, to avoid high vibrations during spinning.
• Heavy laundry can get tangled, so it is necessary to shake it out before drying.
• Uneven laundry may cause it not to spin, remove the laundry, shake it out and put it back in.

ENGLISH

Synthetics programme

For washing synthetic clothes.

Wool programme

Wash machine washable wool fabrics, etc.

• Once the washing is completed, remove the clothes in time and shake them to avoid plastic deformations and not to prolong the resting time too much.
• Separate white or brightly coloured clothes from dark clothes for washing.
• The use of special detergent for wool can reduce the damage of the laundry and improve the washing effect.

Spa Care programme

It means prolonged washing at high temperature, and is suitable for clothing, bedding and stuffed animals with high sterilization requirements and sensitivity to dust mites and pollen.

Shirts programme

For drying shirts.

Rinse + Spin programme

Use this programme to only spin, the appliance will not wash or rinse.

Spin programme

Separate dehydration procedure, soapy water or rinsed water should be drained prior to dehydration.

Drum Clean Plus programme

Briefly clean the inside of the washing machine drum. Do not put clothes on it.

Washing programmes

Programme	Temperature (°C)	Spin speed (RPM)	8 Kg	9Kg	10 kg
Cotton	20°C (cold water/40 °C/40 °C/60 °C/90 °C)	800 (0/400/1000/1200/1400)	48	48	48
20°C	20°C	1000 (0/400/800/1200/1400)	63	63	63
Quick 15'	Cold(20°C,40°C)	800 (0/400)	15	15	15
Bedding	40°C(Cold,20°C,60°C)	800 (0/400/1000)	88	88	88

ENGLISH

Programme	Temperature (°C)	Spin speed (RPM)	8 Kg	9Kg	10 kg
Synthetics	40°C(Cold,20°C,60°C)	1000 (0/400/800/1200/1400)	68	68	68
Wool	40°C(Cold, 20°C)	800 (0/400)	47	47	47
Eco 40-60	40°C(Cold,20°C,60°C)	1400 (0/400/800/1000/1200)	218	228	239
Spa Care	60°C	800 (0/400/1000)	130	130	130
Shirts	20°C(Cold, 40°C)	800 (0/400)	28	28	28
Drum Clean	60°C.90°C	800	75	75	75
Spin Only	—	800 (0/400/1000/1200/1400)	10	10	10
Rinse+Spin	—	800 (0/400/1000/1200/1400)	16	16	16

Comments

1. The consumption time will change according to the water temperature, the variety of laundry, the quantity and the speed of the water.
2. The difference between what is displayed on the screen and the actual time of consumption will occur.
3. If the spin speed is too low, the dehydration effect will be less. Add more rinsing time.
4. Different parameters, different models.
5. When the default self-design programme is the power procedure, the wash time will automatically increase.
6. The Eco 40-60 programme is designed to clean normally soiled cotton laundry and declared washable at 40 °C or 60 °C, at the same temperature, and this programme is used to comply with EU eco-design legislation.
7. The most energy-efficient programmes are generally those that operate at lower temperatures and for longer durations.
8. The household washing machine or washer-dryer contributes to energy and water savings.
9. Noise and remaining moisture content are influenced by the spin speed: the higher the spin speed in the spin phase, the higher the noise and the lower the remaining moisture content.
10. How to find the model information stored in the database, as defined in Regulation (EU) 2019/2014, by means of a web link that links to the model information stored in the product

ENGLISH

database or a link to the product information and how to find the model information in the product.

1. The manual and QR code can be found on the energy efficiency label.

Before washing

1. Washing labels

Check the identification of the laundry washing guide, which shows the texture of the laundry and the washing method.

2. Washing classification

• Please wash clothes of the same texture, as different textures need different water temperature, speed and washing programme, separate brightly coloured clothes from white ones. Separate dyed clothes from cotton, otherwise the white clothes will discolour. If possible, do not wash heavily contaminated clothes with clean clothes together.
• The degree of contamination (severe, moderate, light): classify the clothes and wash them according to the degree.
• Colour (white, light colour, dark colour): classify and wash them.
• Velvet (easy to fall off, easy to adhere): sort white and dark colour.

3. Notes

• When putting small and large clothes together, put the large clothes first, they should be less than half of the total number of clothes. Do not wash a single garment, as this may cause imbalance problems.
• Add one or two similar items.
• Small items such as socks and handkerchiefs should be placed in mesh laundry bags. Before washing the underwired bra, remove the underwires. If it is inconvenient to do so, place them in mesh bags to prevent the fastener from slipping into the gap between the inner and outer drums.
• Check all pockets and make sure there is nothing inside them. Nails, hairpins, matches, pens, coins and keys will damage the washing machine and clothes.
• Close all zippers, fasten buttons and tie loose clothing, making sure that other garments are not damaged.
• First, use water with a little detergent to wash the parts with too many stains, such as the collar and cuffs, which can make the clothes cleaner.
• Check the door seal and make sure that there is nothing in it.
• Make sure that there is nothing in the drum before washing.
• Use low sussing detergent especially for front-loading washing to wash clothes.

ENGLISH

5. CLEANING AND MAINTENANCE

Service

• Maintain your washing machine to prolong its life.
• Before maintenance, unplug the appliance.

Appliance body

• After washing, wipe with a soft cloth. If there is heavy contamination, use appropriate detergent or soap.
• Do not wet directly.
• Do not use putty powder, thinner, petrol or alcohol to clean the body of the machine.

Cleaning the detergent drawer

- Clean the detergent drawer regularly. Take it out and wash it with clean water, then replace it.

To remove the detergent drawer, follow the simple steps in Figure 16:

1. Press down: Locate the tab or designated pressure point on the detergent dispenser. It is usually located in the central or lateral part of the compartment.
2. Slide out: While holding down the tab, gently slide the dispenser outward. It should be released without the need to exert excessive force.

Door gasket

After washing, remove contamination, paper debris, etc. If foreign matter is present, remove it.

Cleaning of the universal coupling (Suggestion: Once every six months).

• If debris accumulates, it will influence the water inlet speed.
• Remove the flexible tubing from the side of the connection piece.
• Remove the screwing device according to the arrow shown.
• Wash the inside of the screwing device.
• Install the clean bolting device with the inlet flexible piping.

Cleaning of the water inlet valve (Suggestion: once every six months)

1. Remove the flexible tubing from the side of the washing machine.
2. Remove the filter screen from the water.
3. Clean the filter screen with a toothbrush.
4. Install the inlet flexible piping.

If the washing machine froze

1. Cover the faucet and the connection part with a hot towel.
2. Remove the inlet pipe and place it in 50-degree water.
3. Pour into the drum about 2-3 litres of 50-degree water.

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

ENGLISH

1. Connect the inlet hose, open the tap and switch on the washing machine, check if the inlet and outlet are normal.

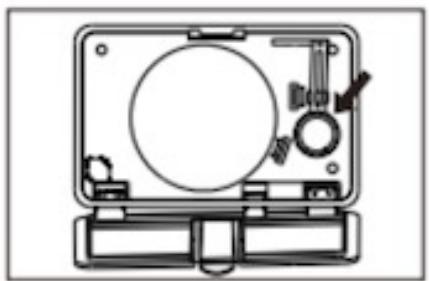

Cleaning the drain pump filter.

Suggestion: once a month

1. Press the pump shut-off after draining and turn off, open the water pump filter cover. Caution: if there is hot water inside, move on after it cools down).
2. Turn the cylinder filter counterclockwise.
3. Wash the filter.
4. Go to the pump and insert the filter, tighten it clockwise and tighten the cap.

Caution:

a. Secure the filter tightly to prevent leakage.
b. Do not clean during operation.

Drum cleaning

Suggestion: once a month

After use over a period of time, some dirt may remain. You can clean the inside and outside of the drum using the Drum Clean Plus programme.

Caution: do not put laundry or use detergent when cleaning the drum.

5. TROUBLESHOOTING

Phenomena that do not represent a failure

Status	Problem	Causes
Before washing	There is residual water in the washing machine	The washing machine is subjected to a quality inspection prior to delivery, so that it is normal for a small amount of residual water to remain in the drum.
	Drum Clean Plus after startup	In case the washing machine has been used for a long time, it will automatically remind the user to run the Drum Clean Plus programme until it has been run. If you wish, you can ignore the reminder and select another programme.
During the washing phase	Rust sound in the drum	Silver sterilization tablets are available in the drum.

ENGLISH

Status	Problem	Causes
	No water during the washing phase	The water level during washing is below the door glass.
	Does not add clothes to the middle	Only some low-speed wash programs allow the addition of laundry. The door opening must meet the conditions of safe water level and temperature and must also be related to the number of garments and water absorption.
	During the washing phase	Verify that the “pause” key is not pressed.
During rinsing	Undesirable cleaning effect	Less washing time and less detergent (heavily soiled clothes).
	White spots have appeared on clothes after washing.	You have used powder detergent. The water-insoluble components of phosphorus-free detergent tend to adhere to clothes and generate stains. Select “rinse + dehydration” to rinse or remove stains with a brush after drying.
During drainage	Poor drainage effect	A single heavy load causes the eccentricity to be excessive. Wash large and small clothes together, and do not wash a single heavy load.
	High vibration	Confirm that the washing machine is placed on a hard horizontal floor, with the feet level, and that the 4 rear bolts have been completely removed.
Others	Machine malfunction	The child lock function is activated when the programme is running. The child lock light is on. Long press the “child lock key” to cancel the child lock function.
	Peculiar odour	It's the rubber smell of the new washing machine. Run the Drum Clean Plus programme according to the instructions. After washing, the door should be kept open to ventilate and remove moisture in the drum.
	The programme operation is longer than usual.	The eccentric sensing function is designed to achieve the balance dehydration will be long; low pressure distributing the laundry in the drum; in case of too much foam, the water time and large water absorption during the water inlet.

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

ENGLISH

Error codes

Error code	Symptoms	Causes	Solutions
IE	Water inlet fault	Is the faucet turned off, is there no water supply (low water pressure), or is the water in the water inlet frozen? Check if the inlet valve filter is blocked.	Open the faucet, clean the inlet valve strainer (remove the strainer with pliers and a brush).
OE	Drain failure	Is the drain filter blocked by debris? Is the drainpipe blocked by debris? Is the height of the drainage outlet too high?	Remove foreign matter from the drain filter. Open the drainpipe to remove debris. Reduce the height of the drain outlet.
DE	Door lock fault	Is the door not locked in place?	Close the door.
EU	Drain failure	Are the bolts not removed? Is the washing machine out of balance? The amount of clothing. Too many clothes or big clothes in a group?	Remove the bolts. Level the washing machine. Add 1-2 garments. Sort the clothes and restart.
PF	Power failure (DD motor only)	Power failure during operation.	Press the “start/pause” key directly to continue the operation before the power failure occurs. Restart the machine.
CL	Child lock (DD motor only)	Preventing children from manipulating the machine.	View the display panel, press and hold the child lock button to cancel the child lock function, or turn off the power button.
	Water leaks	Incorrect connection of the water inlet pipe? Incorrect faucet size?	Correctly connect the water inlet pipe. Use the faucet with the appropriate dimensions.

ENGLISH

Error code	Symptoms	Causes	Solutions
	Water supply and drainage are produced at the same time.	Incorrect drainage pipe height?Drainage and sewer pipe blocked? Has the drainage pipe been removed?	Confirm that the lowest point of the drain tube is above the internal water level of the washing machine. Set the drainage pipe into the water outlet.Remove the blockage from the drainpipe.
Nothing is displayed		Excessive foam in the detergent drawer. No low sussing detergent is used?	Add one tablespoon of fabric softener to the detergent powder, then inject 300 ml of clean water.Reduce the amount of detergent in the next wash.
	Abnormal sound	Any coins, zippers, buttons or metallic elements, such as the fastener holder on the inner and outer cylinders.	The sounds produced by the operation of the inlet valve and by the air/water mixture when the drain pump is running are normal phenomena.

6. TECHNICAL SPECIFICATIONS

Reference	EU01_104027	EU01_104028	EU01_104029
Model	EU01_104031_Bolero DressCode 10970 Direct Drive	Bolero DressCode 12980 Direct Drive Steel A	EU01_104031_Bolero DressCode 10970 Direct Drive
QR code

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

ENGLISH

Rated voltage	220-240V ~
Rated frequency	50 Hz
Washing capacity	8 kg	9 kg
Rated power rating	500 W	600 W
Rated heating capacity	2000 W
Rated washing power	200 W
Maximum power	2200 W

Reference	EU01_104030	EU01_104031	EU01_104032
Model	Bolero DressCode 12980 Direct Drive Steel A	EU01_104031_Bolero DressCode 10970 Direct Drive	Bolero DressCode 12980 Direct Drive Steel A
QR code
Rated voltage	220-240V ~
Rated frequency	50 Hz
Washing capacity	9 kg	10 kg
Rated power rating	600 W	500 W
Rated heating capacity	2000 W	1800

ENGLISH

Rated washing power	200 W
Maximum power	2200 W	1850

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

Frequently used programmes

The following data is for reference only and may vary depending on many factors.

EU01_104027_Bolero DressCode 8970 Direct Drive

EU01_104028_Bolero DressCode 8970 Direct Drive Steel

Program-me	Tempe-rature (°C)	Time (min)	Water consumption (l/cycle)	Energy consumption (kWh/cycle)	Revolutions (rpm)	Max. load	Average residual moisture
Wool	Cold	0:33	40	0.1	800	≤2 kg	76 %
Cotton 20 °C	20	0:49	68	0.41	800	Rated	62 %
Cotton 90 °C	80	2:28	75	2.2	800	Rated	62 %
20 °C	20	1:03	65	1,3	800	Rated	62 %
Quick 15'	Cold	0:15	41	0.08	800	≤3 kg	80%

EU01_104029_Bolero DressCode 9970 Direct Drive

EU01_104030_Bolero DressCode 9970 Direct Drive Steel

Program-me	Tempe-rature (°C)	Time (min)	Water consumption (l/cycle)	Energy consumption (kWh/cycle)	Revolutions (rpm)	Max. load	Average residual moisture
Wool	Cold	0:33	40	0.1	800	≤ 2 kg	76 %
Cotton 20 °C	20	0:49	68	0.41	800	Rated	62 %

ENGLISH

Cotton90 °C	80	2:28	75	2.2	800	Rated	62 %
20 °C	20	1:03	65	1,3	800	Rated	62 %
Quick 15'	Cold	0:15	41	0.08	800	≤ 3 kg	80%

EU01_104031_Bolero DressCode 10970 Direct Drive
EU01_104032_Bolero DressCode 10970 Direct Drive Steel

Programme	Temperature (°C)	Time (min)	Water consumption (l/cycle)	Energy consumption (kWh/cycle)	Revolutions (rpm)	Max. load	Average residual moisture
Wool	Cold	0:33	40	0.1	800	≤2 kg	76 %
Cotton 20 °C	20	0:49	70	0.41	1000	Rated	62 %
Cotton 90 °C	80	2:28	75	2.2	1000	Rated	62 %
20 °C	20	1:03	70	0.41	1000	Rated	62 %
Quick 15'	Cold	0:15	41	0.08	800	≤2 kg	80%

PRODUCT DATA SHEET

Supplier's name or trademark: Cecotec Innovaciones, S.L.

Supplier's address (b): Av. Reyes Católicos, 60, 46910, Alfafar, Valencia (Spain)

Model identifier:

EU01_104027_Bolero DressCode 8970 Direct Drive

EU01_104028_Bolero DressCode 8970 Direct Drive Steel

ENGLISH

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (a) (kg)	8.0		Dimensions in cm Width Depth	Height	85
				60
				60
IEE_w^(a)	52		Energy efficiency class (a)	A
Washing efficiency index (a)	1.031		Rinsing efficiency (g/kg) (a)	5.0
Energy consumption in kWh per cycle, based on the Eco 40-60 programme. The actual energy consumption will depend on how the appliance is used.	0.473		Water consumption in litre per cycle, based on the Eco 40-60 programme. The actual water consumption will depend on how the appliance is used and on the hardness of the water.	37
Maximum temperature inside the treated fabric (a) (°C)	Rated capacity	33	Amount of residual moisture (a) (%)	53.9
	Half	28
	Quarter	23
Spin speed (a) (rpm)	Rated capacity	1400	Spin-drying efficiency class (a)	B
	Half	1400
	Quarter	1400
Programme duration (a) (h:min)	Rated capacity	3:38	Type	Free installation
	Half	2:50
	Quarter	2:50

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

ENGLISH

Airborne acoustic noise emissions spin (a) (dB(A) re 1 pW)	76	Airborne acoustic noise emission class (a) (spin phase)	B
Off mode (W)	0.50	Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00	Standby on mains (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (b):
This appliance has been designed to release silver ions during the washing cycle.		NO
Further information:Link to the supplier's website, where the information of point 9 of Annex II of the Commission Regulation (EU) 2019/2023 (1) (b) can be found:Commission Regulation (EU) 2019/2023 (1) (b):(a) for the eco 40-60 programme.(b) changes to these elements shall not be considered relevant for the purposes of paragraph 4 of this Article.Article 4 of Regulation (EU) 2017/1369.(c) if the product database automatically generates the final contents of the cell, the supplier does not have to enter this data.

Model identifier:

EU01_104029_Bolero DressCode 9970 Direct Drive

EU01_104030_Bolero DressCode 9970 Direct Drive Steel

General product parameters:

Parameter	Value	Parameter	Value
Rated capacity (a) (kg)	9.0	Dimensions in cm Width Depth	Height	85
			60
			60
IEE_w^(a)	51.9	Energy efficiency class (a)	A
Washing efficiency index (a)	1.031	Rinsing efficiency (g/kg) (a)	5.0

ENGLISH

Energy consumption in kWh per cycle, based on the Eco 40-60 programme. The actual energy consumption will depend on how the appliance is used.	0.494		Water consumption in litre per cycle, based on the Eco 40-60 programme. The actual water consumption will depend on how the appliance is used and on the hardness of the water.	45
Maximum temperature inside the treated fabric (a) (°C)	Rated capacity	30	Amount of residual moisture (a) (%)	53.9
	Half	29
	Quarter	21
Spin speed (a) (rpm)	Rated capacity	1400	Spin-drying efficiency class (a)	B
	Half	1400
	Quarter	1400
Programme duration (a) (h:min)	Rated capacity	3:48	Type	Free installation
	Half	2:54
	Quarter	2:54
Airborne acoustic noise emissions spin (a) (dB(A) re 1 pW)	76		Airborne acoustic noise emission class (a) (spin phase)	B
Off mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Standby on mains (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (b):
This appliance has been designed to release silver ions during the washing cycle.			NO

ENGLISH

Further information:

Link to the supplier's website, where the information of point 9 of Annex II of the

Commission Regulation (EU) 2019/2023 (1) (b) can be found:

Commission Regulation (EU) 2019/2023 (1) (b):

(a) for the eco 40-60 programme.

(b) changes to these elements shall not be considered relevant for the purposes of paragraph 4 of this Article.

Article 4 of Regulation (EU) 2017/1369.

(c) if the product database automatically generates the final contents of the cell, the supplier does not have to enter this data.

Model identifier:

EU01_104031_Bolero DressCode 10970 Direct Drive

EU01_104032_Bolero DressCode 10970 Direct Drive Steel

General product parameters:

Parameter	Value	Parameter	Value
Rated capacity (a) (kg)	10.0	Dimensions in cm Width Depth	Height	85
			60
			60
IEE_w^(a)	52.0	Energy efficiency class (a)	A
Washing efficiency index (a)	1.031	Rinsing efficiency (g/kg) (a)	5.0
Energy consumption in kWh per cycle, based on the Eco 40-60 programme. The actual energy consumption will depend on how the appliance is used.	0.514	Water consumption in litre per cycle, based on the Eco 40-60 programme. The actual water consumption will depend on how the appliance is used and on the hardness of the water.	51

ENGLISH

Maximum temperature inside the treated fabric (a) (°C)	Rated capacity	33	Amount of residual moisture (a) (%)	53.9
	Half	29
	Quarter	20
Spin speed (a) (rpm)	Rated capacity	1400	Spin-drying efficiency class (a)	B
	Half	1400
	Quarter	1400
Programme duration (a) (h:min)	Rated capacity	3:59	Type	Free installation
	Half	3:00
	Quarter	3:00
Airborne acoustic noise emissions spin (a) (dB(A) re 1 pW)	76		Airborne acoustic noise emission class (a) (spin phase)	B
Off mode (W)	0.50		Standby mode (W)	N/A
Delay start (W) (if applicable)	4.00		Standby on mains (W) (if applicable)	N/A
Minimum duration of the guarantee offered by the supplier (b):
This appliance has been designed to release silver ions during the washing cycle.			NO
Further information:Link to the supplier's website, where the information of point 9 of Annex II of the Commission Regulation (EU) 2019/2023 (1) (b) can be found:Commission Regulation (EU) 2019/2023 (1) (b):(a) for the eco 40-60 programme.(b) changes to these elements shall not be considered relevant for the purposes of paragraph 4 of this Article.Article 4 of Regulation (EU) 2017/1369.(c) if the product database automatically generates the final contents of the cell, the supplier does not have to enter this data.

ENGLISH

Information to be included in the technical documentation for household washing machines

SETTING	UNIT	VALUE	VALUE	VALUE
Nominal capacity for Eco programme 40-60, at 0.5 kg intervals (c)	kg	8.0	9.0	10.0
Power consumption of Eco programme 40-60 at nominal capacity (EW, full)	kWh/cycle	0.747	0.794	0.900
Power consumption of Eco programme 40-60 at half nominal capacity (E w1/2)	kWh/cycle	0.425	0.494	0.535
Power consumption of the Eco programme 40-60 at one quarter of the nominal capacity (E w1/4)	kWh/cycle	0.214	0.240	0.245
Weighted energy consumption of Eco 40-60 programme (Ew)	kWh/cycle	0.473	0.494	0.514
Standard energy consumption of the Eco 40-60 programme (SCEw)	kWh/cycle	0.909	0.951	0.988
Energy Efficiency Index (IEEw)	-	52.0	51.9	52.0
Water consumption of the Eco programme 40-60 at nominal capacity (Wwcomplete)	L/cycle	50.0	60.0	65.0
Water consumption of Eco programme 40-60 at half nominal capacity (Ww1/2)	L/cycle	35.0	40.0	55.0
Water consumption of Eco programme 40-60 at one quarter of nominal capacity (Ww1/4)	L/cycle	25.0	35.0	40.0
Weighted water consumption (Ww)	L/cycle	37	45	51
Washing efficiency rating of the Eco 40-60 programme at rated capacity (Iw)	-	1.031	1.031	1.031
Washing efficiency rating of Eco programme 40-60 at half rated capacity (Iw)	-	1.031	1.031	1.031
Washing efficiency rating of the Eco programme 40-60 at one quarter of the rated capacity (Iw)	-	1.031	1.031	1.031
Rinsing effectiveness of the Eco 40-60 programme at nominal capacity (IR)	g/kg	5.0	5.0	5.0
Rinsing effectiveness of Eco 40-60 programme at half rated capacity (IR)	g/kg	5.0	5.0	5.0

ENGLISH

Rinsing efficiency of the Eco 40-60 programme at one quarter of the rated capacity ( I_R )	g/kg	5.0	5.0	5.0
Duration of Eco programme 40-60 at rated capacity ( t_W )	(h:min)	3:38	3:48	3:59
Programme duration Eco 40-60 at half rated capacity ( t_W )	(h:min)	2:50	2:54	3:00
Eco programme duration 40-60 at one quarter of nominal capacity ( t_W )	(h:min)	2:50	2:54	3:00
Temperature reached for a minimum of 5 minutes within the load during the Eco 40-60 programme at rated capacity (T)	°C	33	30	33
Temperature reached for a minimum of 5 minutes within the load during the Eco 40-60 programme at half the rated capacity (T)	°C	28	29	29
Temperature reached for a minimum of 5 minutes within the load during the Eco 40-60 programme at one quarter of the rated capacity (T)	°C	23	21	20
Spin speed in the spin phase of the Eco programme spin phase 40-60 at rated capacity (S)	rpm	1400	1400	1400
Spin speed in the spin phase of the Eco programme 40-60 at half the nominal capacity (S)	rpm	1400	1400	1400
Spin speed in the spin phase of the Eco programme 40-60 at one-quarter of the rated capacity (S)	rpm	1400	1400	1400
Weighted residual moisture content (D)	%	53.9	53.9	53.9
Airborne acoustic noise emissions during Eco 40-60 programme (spin phase)	dB(A) re 1 pW	76	76	76
Power consumption in off mode ( P_o )		0.50	0.50	0.50
Power consumption in standby mode ( P_sm )		N/A	N/A	N/A
Does 'standby mode' include the display of information?	-	NO	NO	NO

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

ENGLISH

Standby power consumption (Psm) in mains standby conditions (if applicable), Standby on mains (W) (if applicable)		N/A	N/A	N/A
Power consumption at “delay start” ( P_ds ) (if applicable)		4.00	4.00	4.00

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

For detailed information on how to properly dispose of electrical and

electronic appliances and/or batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions and deadlines established by the applicable regulations.

Repairs should be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

ENGLISH

10. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested to meet the required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Figure 1

Programme Synthetics

Programme Drum Clean Plus

8. SteamMax-Taste (Dampf).

Programma Synthetics

Programma Drum Clean Plus

Programa Drum Clean Plus

Programma Synthetics

Drum Clean Plus programma

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./ Rys. 2

Fig./Img./Abb./Afb./ Rys. 3

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

Fig./Img./Abb./Afb./Rys. 4

Fig./Img./Abb./Afb./ Rys. 5

Fig./Img./Abb./Afb./ Rys. 6

Fig./Img./Abb./Afb./ Rys. 7

Fig./Img./Abb./Afb./ Rys. 8

Fig./Img./Abb./Afb./ Rys. 9

Fig./Img./Abb./Afb./ Rys. 10

Fig./Img./Abb./Afb./ Rys. 11

Fig./Img./Abb./Afb./ Rys. 12

Fig./Img./Abb./Afb./Rys.13

Fig./Img./Abb./Afb./ Rys. 14

Fig./Img./Abb./Afb./ Rys. 15

Fig./Img./Abb./Afb./ Rys. 16

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

物料号 二维码

N082401-xxxxxx-001(A)

BOLERO DRESSCODE 8970/9970/10970 DIRECT DRIVE/STEEL

www.cecotec.es
