USER MANUAL HT-S5300 ONKYO

Universal Port Option Dock for iPod® (UP-A1)

Thank you for purchasing an Onkyo 7.1ch Home Theater System. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new 7.1ch Home Theater System.

Please retain this manual for future reference.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

ELECTRIC SH DO NOT OPEN ISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR The lightning flash with arrowhead symbol, within an equilateral triangle, is intended 10 alert the user to the À presence of uninsulated “dangerous voltage” within the products enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended 10 alert the user to the presence of important operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

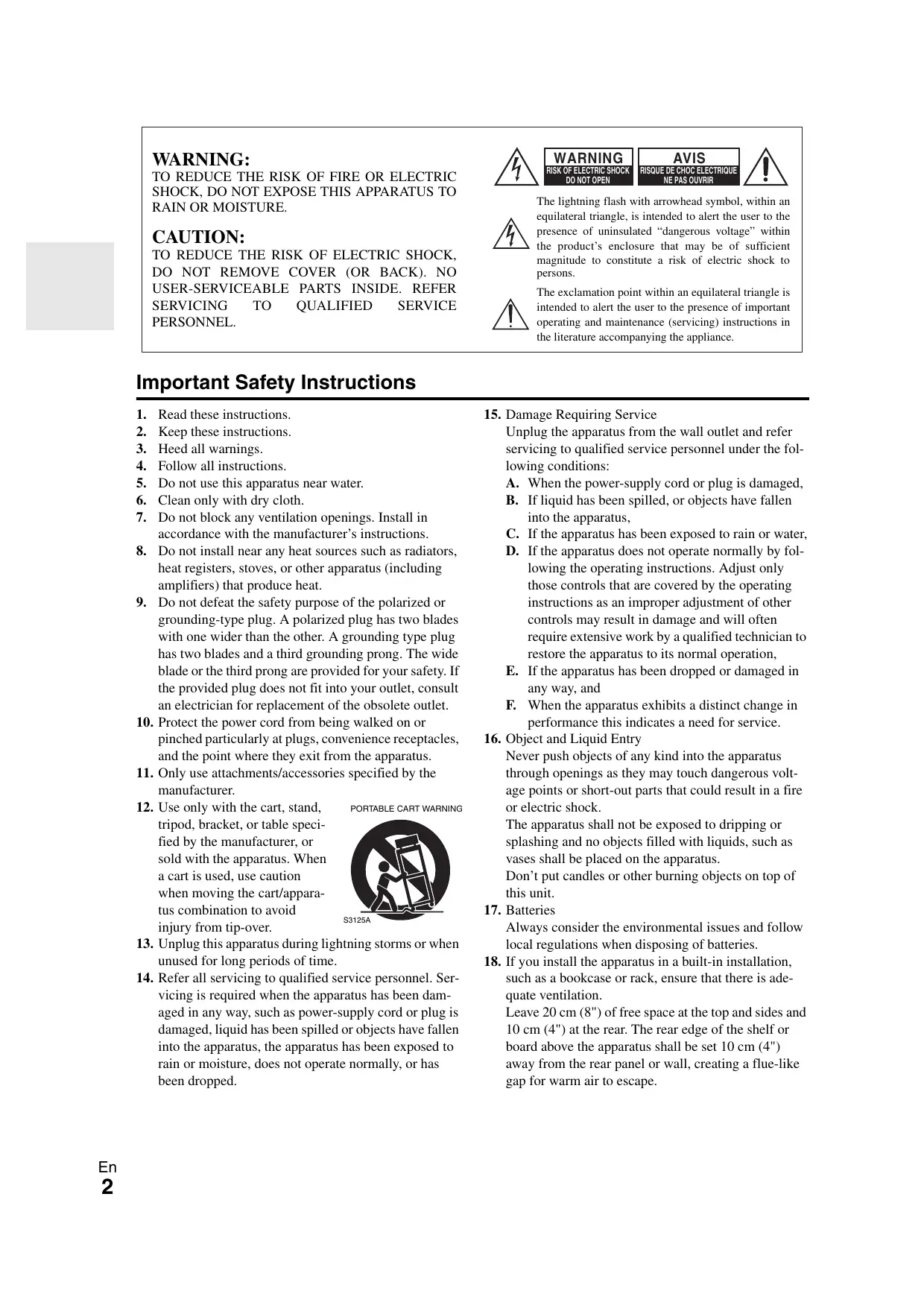

Important Safety Instructions

Read these instructions.

Keep these instructions.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. À polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

. Only use attachments/accessories specified by the

12. Use only with the cart, stand, tripod, bracket, or table speci- fied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/appara- tus combination to avoid = Le sst25a injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Ser-

vicing is required when the apparatus has been dam-

aged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE GART WARNING

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the fol- lowing conditions:

A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen into the apparatus,

C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by fol- lowing the operating instructions. Adjust only

those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in any way, and

FE. When the apparatus exhibits a distinct change in performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous volt- age points or short-out parts that could result in a fire or electric shock.

The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus.

Don't put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is ade- quate ventilation.

Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

1. Recording Copyright—Unless it's for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user-ser- viceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don't use abrasive cloths, thinners, alco- hol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the volt- age requirements printed on the unit’s rear panel (e.g.. AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing ON/STANDBY to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution Excessive sound pressure from earphones and head- phones can cause hearing loss.

6. Batteries and Heat Exposure Warning Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never han- de this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes +_If you need to transport this unit, use the original

packaging to pack it how it was when you originally

Do not leave rubber or plastic items on this unit for

a long time, because they may leave marks on the

This unit’s top and rear panels may get warm after

prolonged use. This is normal.

If you do not use this unit for a long time, it may not

work properly the next time you turn it on, so be

sure to use it occasionally.

FCC Information for User

The user changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This equipment has been tested and found to comply with

the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a

residential installation.

This equipment generates, uses and can radiate radio fre-

quency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee

that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio

or television reception, which can be determined by turn-

ing the equipment off and on, the user is encouraged to try

10 correct the interference by one or more of the following

+ Reorient or relocate the receiving antenna.

+ Increase the separation between the equipment and receiver.

+ Connect the equipment into an outlet on a circuit differ- ent from that to which the receiver is connected.

+ Consult the dealer or an experienced radio/TV techni- cian for help.

NOTE: THIS CLASS B DIGITAL APPARATUS COM- PLIES WITH CANADIAN ICES-003.

For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

+ The subwoofer cabinet is made out of wood and is there- fore sensitive to extreme temperatures and humidity, do not put it in locations subject to direct sunlight or in humid places, such as near an air conditioner, humidifier, bathroom, or kitchen.

+ Do not put water or other liquids close to the speakers. If liquid is spilled over the speakers, the drive units may be damaged.

+ Speakers should only be placed on sturdy, flat surfaces that are free from vibration. Putting them on uneven or unstable surfaces, where they may fall and cause dam- age, will affect the sound quality.

+ Subwoofer is designed to be used in the upright vertical position only. Do not use it in the horizontal or tilted position.

+ If the unit is used near a turntable, CD player or Blu-ray Disc/DVD player, howling or slipping of sound may occur. To prevent this, move the unit away from the turn- table, CD player or Blu-ray Disc/DVD player, otherwise lower the units output level.

Using Close to a TV or Computer

TVs and computer monitors are magnetically sensitive devices and as such are likely to suffer discoloration or picture distortion when conventional speakers are placed nearby. To prevent this, the SKF-580 and SKC-580 feature internal magnetic shielding. In such situations, try moving the speakers away from your TV or monitor. If discolora- tion should occur, turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field, thereby removing any discoloration effects. Note that discoloration can also be caused by a magnet or demagnetizing tool that's too close to your TV or monitor.

Do not place SKR-580 and SKB-580 close to TV or a computer monitor because they have no magnetic shield.

Input Signal Warning

The speakers can handle the specified input power when used for normal music reproduction. If any of the follow- ing signals are fed to them, even if the input power is within the specified rating, excessive current may flow in the speaker coils, causing burning or wire breakage:

1. Interstation noise from an untuned FM radio.

2. Sound from fast-forwarding a cassette tape.

3. High-pitched sounds generated by an oscillator, elec- tronic musical instrument, and so on.

4. Amplifier oscillation.

5. Special test tones from audio test CDs and so on.

6. Thumps and clicks caused by connecting or discon- necting audio cables (always turn off your amplifier before connecting or disconnecting cables).

7. Microphone feedback.

Make sure you have the following items:

HT-R580 (> 7) Remote controller and two batteries (AA/R6) (> 5) Indoor FM antenna (> 19)

In catalogs and on packaging, the letter at the end of the prod- uct name indicates the color. Specifications and operations are the same regardiess of color.

Front speakers (SKF-580 L/R) (> 9) Center speaker (SKC-580) (> 9)

Speaker Package Accessories

Easily links iPod/iPhone models with Onkyo A/V Systems

Using the Remote Controller

Installing the Batteries

+ Ifthe remote controller doesn't work reliably, try replacing the batteries.

+ Don’t mix new and old batteries or different types of batteries.

+ If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leak- age or corrosion.

+ Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.

Aiming the Remote Controller

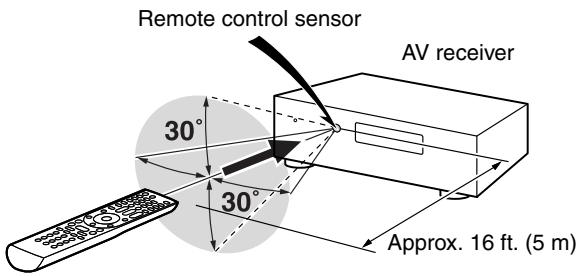

To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.

Remote control sensor

Approx. 16 ft. (5 m)

Connecting the AV Receiver

Turning On & Basic Opera

Turning On/Off the AV Receiver Basic Operations . Listening to the Radi

To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press ON/STANDBY ( 54).

+ 130 Watts/Channel @ 6 ohms

+ 160 Watts/Channel @ 6 ohms (JEITA)

+ WRAT-Wide Range Amplifier Technology (5 Hz to 100 KHz bandwidth)

+ Optimum Gain Volume Circuitry

+ H.C.PS. (High Current Power Supply) Massive High Power Transformer

+ HDMI (Ver.1.4 with Audio Return Channel, 3D), Deep- Color, x.v.Color’, Lip Sync, DTS'1-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD”2, Dolby Digital Plus, DSD and Multi-CH PCM

+ Dolby Pro Logic 11z°2 (with “Front High” Direction Mode)

+ A-Form Listening Mode Memory

+ Music Optimizer'8 for Compressed Digital Music files

+ 192 kHz/24-bit D/A Converters

+ Powerful and Highly Accurate 32-bit Processing DSP

+ Front “Line in” Input for Portable audio player

+ Audyssey EQ'6 to Correct Room Acoustic Problems

+ Audyssey Dynamic EQ'6 for Loudness Correction

+ Audyssey Dynamic Volume‘6 to Maintain Optimal Lis- tening Level and Dynamic Range

+ Crossover Adjustment (40/50/60/80/100/120/150/200 Hz)

+ A/V Sync Control Function (up to 100 ms)

+ On-Screen Display via HDMI

Manufactured under license under U.S. Patent #°s: 5,451,942;

5.956.674; 5,974,380; 5,978,762: 6.226,616: 6.487.535:

7.212.872; 7,333,929; 7,392.195: 7.272.567 & other U.S. and

worldwide patents issued & pending. DTS is a registered

trademark and the DTS logos, Symbol, DTS-HD and DTS-

HD Master Audio are trademarks of DTS, Inc.

©1996-2008 DTS, Inc. AIl Rights Reserved.

PRO LOGIC he | Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trade- marks of Dolby Laboratories.

3 Music Optimizer"" is a trademark of Onkyo Corporation.

“HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries!”

The HD Radio Ready logo is a proprietary trademark of iBiq- uity Digital Corp.

To receive HD Radio broadcasts, you must install an Onkyo UP-HTI HD Radio tuner module (sold separately).

Manufactured under license from Audyssey Laboratories": ULS. and foreign patents pending.

Audyssey EQ'", Audyssey Dynamic Volume?" and Audyssey Dynamic EQT are trademarks of Audyssey Labo- ratories.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

iPhone is a trademark of Apple Inc. “Made for iPod” means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards. “Works with iPhone” means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performanc dards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

“xv.Color” is a trademark of Sony Corporation.

+ Magnetically shielded

+ Color-coded speaker terminals and speaker cable SKC-580 2-Way Center Speaker

+ 3-1/4" (8 cm) cone woofer

+ 1" (2.5 cm) Balanced dome tweeter

+ Max. input power: 130 W

+ Magnetically shielded

+ Color-coded speaker terminals and speaker cable SKR-580 L/R Full-Range Surround Speakers SKB-580 L/R Full-Range Surround Back Speakers + 3-1/4" (8 em) cone

+ Max. input power: 130 W

+ Color-coded speaker terminals and speaker cable SKW-580 Bass Reflex Powered Subwoofer

+ 10" (25 cm) cone woofer

+ Max. power: 290 W (Dynamic power)

North American models

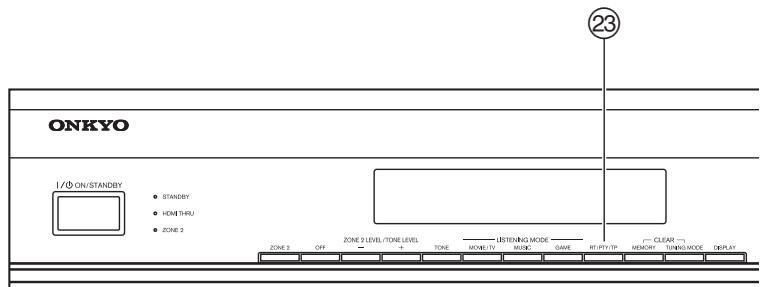

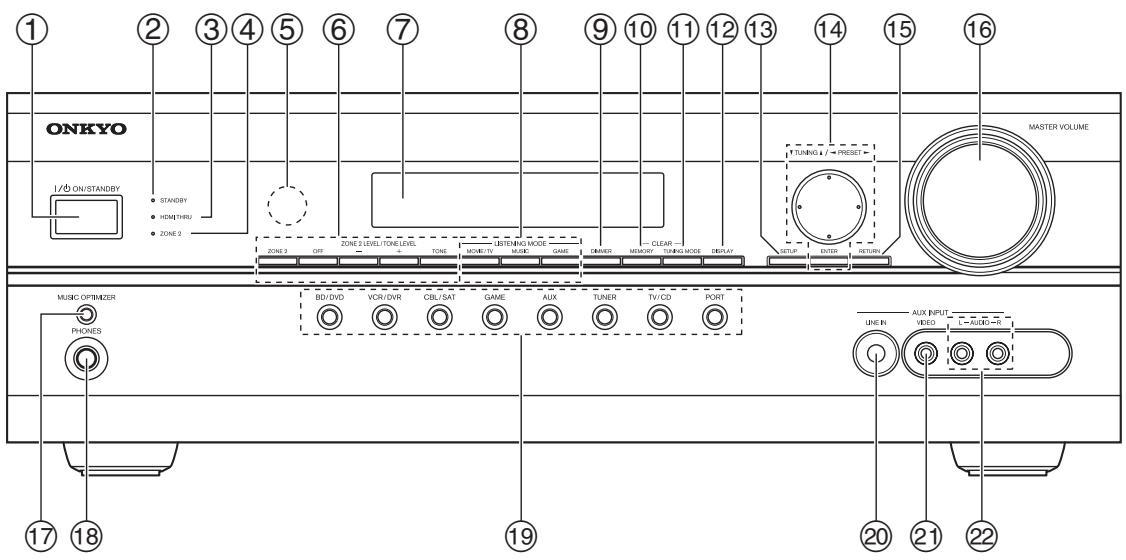

The actual front panel has various logos printed on it. They are not shown here for clarity. The page numbers in parentheses show where you can find the main explanation for each item.

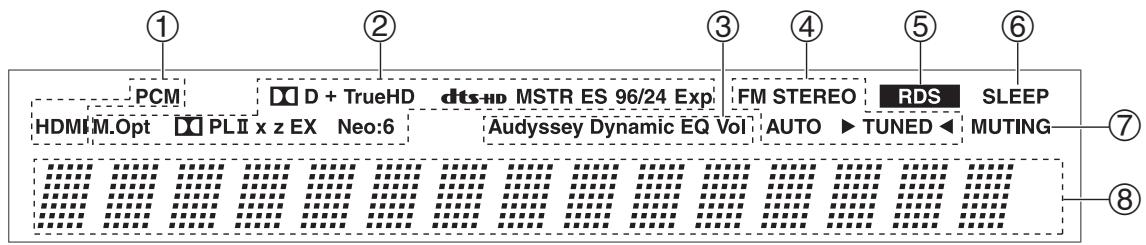

@® RDS indicator (excluding North American models) (> 25)

© SLEEP indicator (> 23) @ MUTING indicator (> 23) Message area

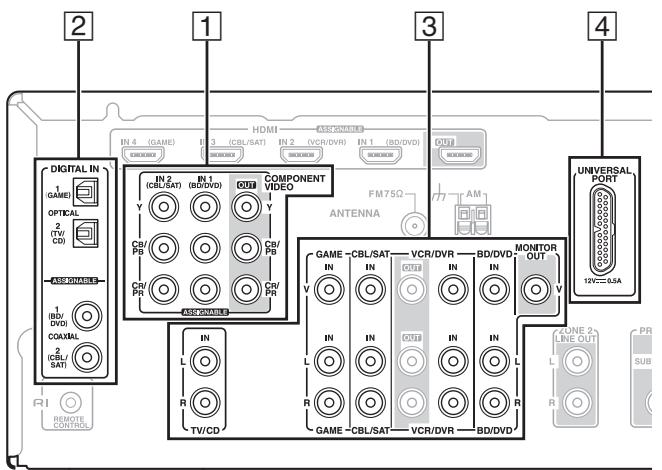

@ DIGITAL IN COAXIAL and OPTICAL jacks

@ HDMI IN and OUT jacks

@ COMPONENT VIDEO IN and OUT jacks

@ FM ANTENNA jack and AM ANTENNA terminal ® MONITOR OUT V jack

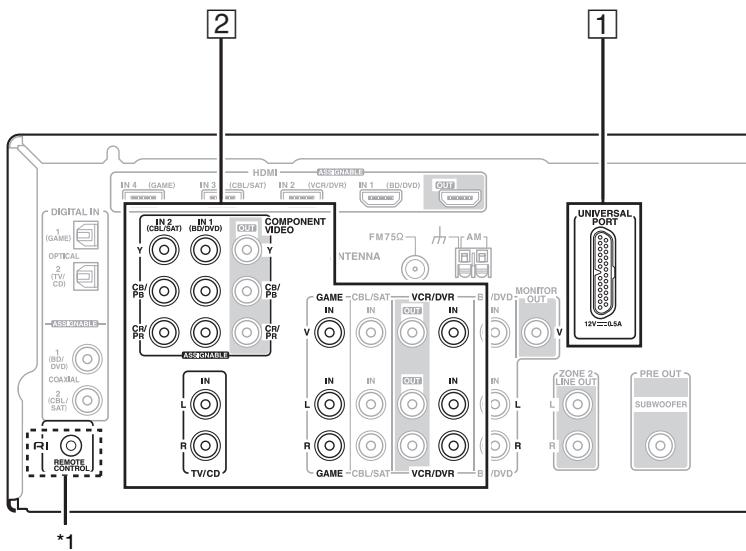

© UNIVERSAL PORT jack

@ SPEAKERS terminals

@ RI REMOTE CONTROL jack Composite video and analog audio jacks

(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN, GAME IN, TV/CD IN)

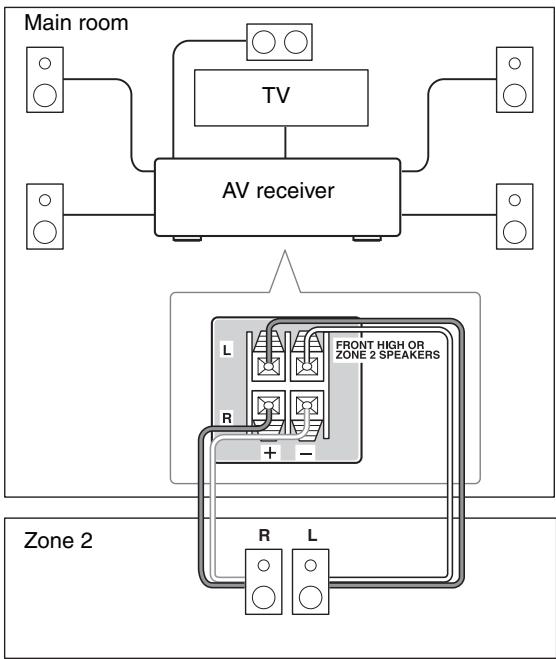

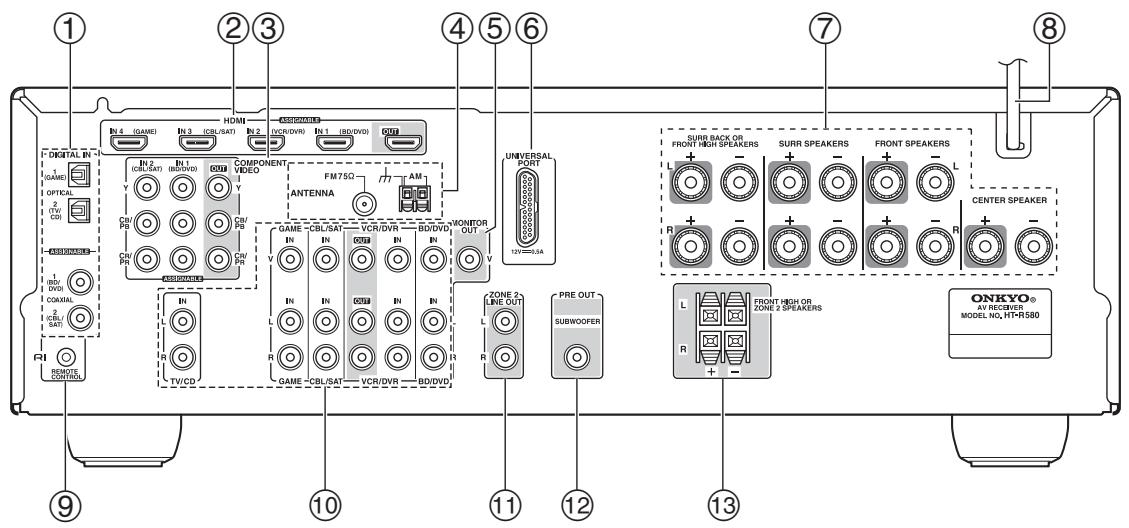

@ ZONE 2 LINE OUT jacks @ SUBWOOFER PRE OUT jack @ FRONT HIGH OR ZONE 2 SPEAKERS terminals

See “Connecting the AV Receiver” for connection infor- mation ( 12 to 20).

@ STANDBY/ON indicator

Red: Blue: With the Auto Standby function, the SKW-580 auto- matically turns on when an input signal is detected in Standby mode. When there’ no input signal for a while, the SKW-580 automatically enters Standby mode.

@ OUTPUT LEVEL control ( 21, 22) This control is used to adjust the volume of the sub- woofer.

@ LINE INPUT (> 13) This RCA input should be connected to the subwoofer pre out on the AV receiver with supplied RCA cable.

Subwoofer in standby mode Subwoofer on

BH Rear (North American models)

+ The Auto Standby function turns the subwoofer on when the input signal exceeds a certain level. If the Auto Standby function does not work reliably, try slightly increasing or decreasing the subwoofer output level on the AV receiver (> 36)

Front, Center, Surround and Surround Back Speakers

SKF-580 > [r—< ee [= Front Rear

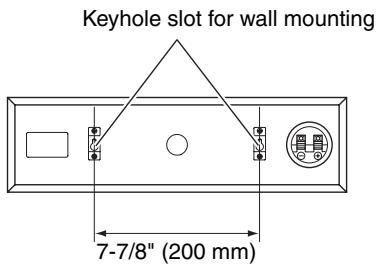

@ Keyhole slots These keyhole slots can be used to wall-mount the speaker. See “Wall Mounting” for mounting instruc- tions (> 14).

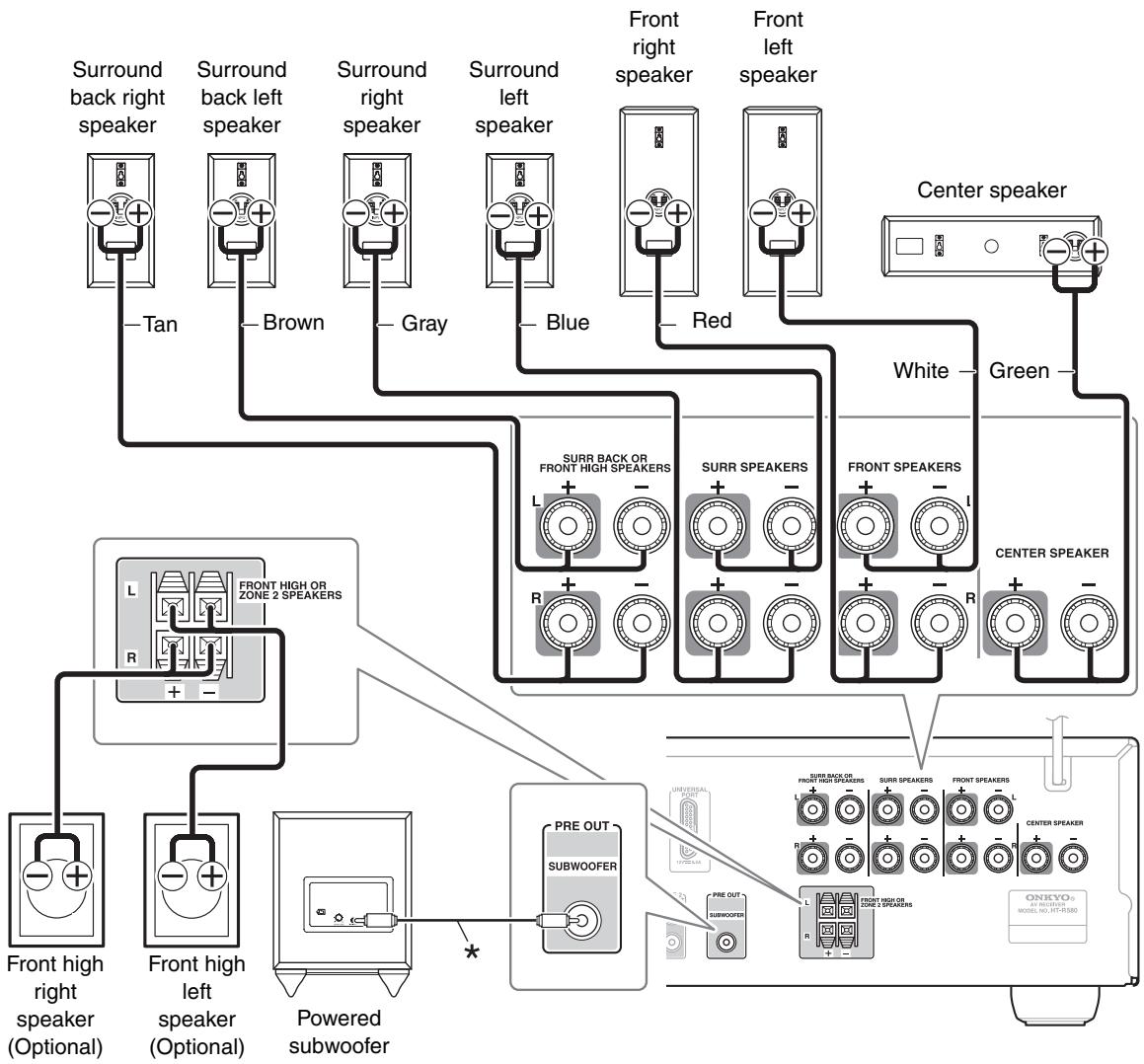

© Speaker terminals These push terminals are for connecting the speaker to the HT-R580 with the supplied speaker cables. The supplied speaker cables are color-coded for easy identification. Simply connect each cable to the same- colored positive speaker terminal.

+ The front grilles are not designed to be removed so do not attempt to remove them forcibly, as this will damage them.

ë © [=] Front Rear SKC-580 Front Rear

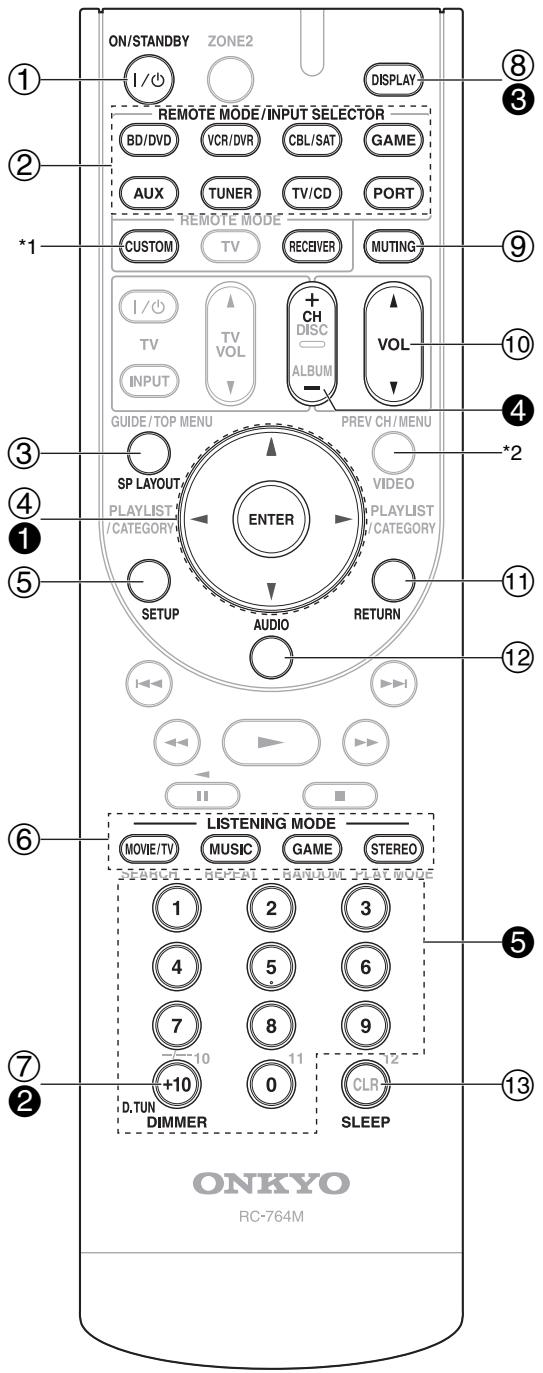

Controlling the AV Receiver

“To control component, you must first enter remote control code See “Entering Remote Control Codes” for more details @ 51)

‘2 VIDEO is not used for this model.

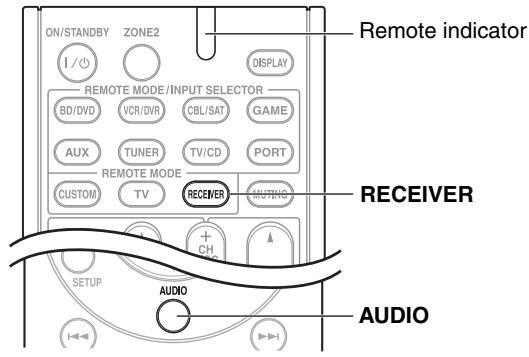

To control the AV receiver, press RECEIVER to select Receiver mode. You can also use the remote controller to control Onkyo Blu-ray Disc/DVD player, CD player, and other components. See “Entering Remote Control Codes” for more details (> 51).

For detailed information, see the pages in parentheses.

To control the AV receiver’s tuner, press TUNER (or RECEIVER). You can select AM or FM by pressing TUNER repeatedly.

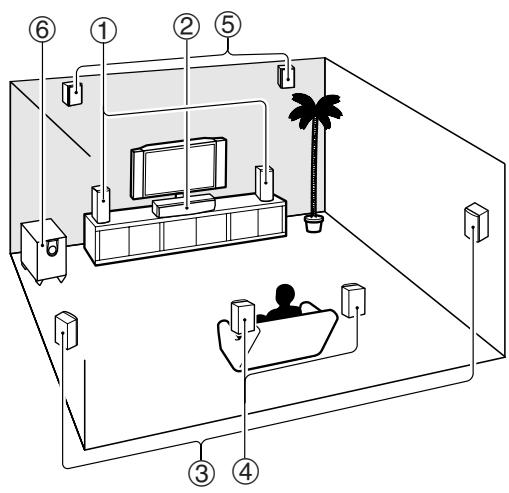

Enjoying Home Theater

Thanks to the AV receiver’s superb capabilities, you can enjoy surround sound with a real sense of movement in your

st like being in a movie theater or concert hall. With Blu-ray Dis:

, you can enjoy DTS and Dolby Digital.

With analog or digital TV, you can enjoy Dolby Pro Logic IIx, DTS Neo:6, or Onkyo’s original DSP listening modes.

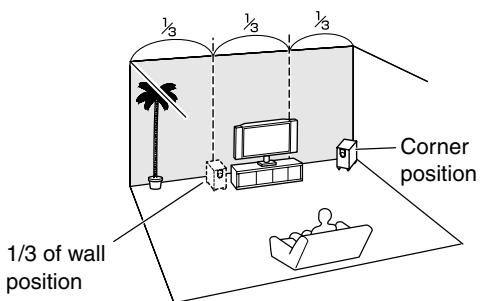

+ To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various

positions within the room, and choose the one that provides the most satisfying results.

@ Front speakers (SKF-580) These output the overall sound. Their role in a home theater is to provide a solid anchor for the sound image. They should be positioned facing the listener at about ear level, and equidistant from the TV. Angle them inward so as to create a triangle, with the listener at the apex.

@ Center speaker (SKC-580) This speaker enhances the front speakers, making sound movements dis- tinct and providing a full sound image. In movies it's used mainly for dia- log. Position it close to your TV facing forward at about ear level, or at the same height as the front speakers.

@ Surround speakers (SKR-580) These speakers are used for precise sound positioning and to add realistic ambience. Position them at the sides of the listener, or slightly behind, about 2 to 3 feet (60 to 100 cm) above ear level. Ideally they should be equidistant from the listener.

@ Surround back speakers (SKB-580) These speakers are necessary to enjoy Dolby Digital EX, DTS-ES Matrix, DTS-ES Discrete, etc. They enhance the realism of surround sound and improve sound localization behind the lister Position them behind the listener about 2 to 3 feet (60 to 100 cm) above ear level.

© Front high speakers (Optional) These speakers are necessary to enjoy Dolby Pro Logic IIz Height, etc. They enhance significantly the spatial experience. Position them at least 3.3 feet (100 cm) above the front speakers (and as high as possible). Although it is acceptable to left and right place at an angle slightly wider than the front speakers. Ideally they should be positioned directly above the front speakers.

© Subwoofer (SKW-580) The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the width of the wall, as shown.

Connecting the AV Receiver

Connecting Your Speakers

Speaker Configuration

The following table indicates the channels you should use depending on the number of speakers that you have.

For 7.1-channel surround-sound playback, you need seven speakers and a powered subwoofer.

Number of channels 2181456/7/7|8/9 Front speakers rararararararare Center speaker 222222 Surround speakers 2222212 Surround back speaker‘1”2 v v

Surround back speakers”? v v Front high speakers 23 vvv

“1° If you're using only one surround back speaker, connect it to the SURR BACK OR FRONT HIGH L terminals.

Front high and surround back speakers cannot be used at the same time.

When you connect the front high left and right speakers, pre- pare for it separately, or use the surround back left and right speakers.

If you use 4 or 5 speakers, connect each of the two sur- round speakers to the SURR L/R terminals. Do not con- nect them to the SURR BACK OR FRONT HIGH L/R or FRONT HIGH OR ZONE 2 L/R terminals.

No matter how many speakers you use, a powered sub- woofer is recommended for a really powerful and solid bass.

To get the best from your surround sound system, you need to set the speaker settings. You can do this manually > 35).

Speaker Connection Precautions

Read the following before connecting your speakers:

+ You can connect speakers with an impedance of between 6 and 16 ohms. If you use speakers with a lower imped- ance, and use the amplifier at high volume levels for a long period of time, the built-in amp protection circuit may be activated.

+ Disconnect the power cord from the wall outlet before making any connections.

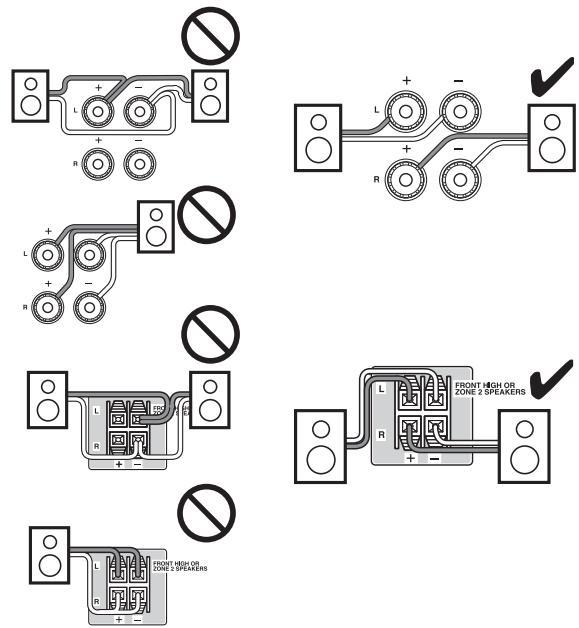

+ Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (—) terminals only to negative (—) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

+ Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.

+ Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.

+ Make sure the metal core of the wire does not have con- tact with the AV receiver’s rear panel. Doing so may damage the AV receiver.

+ Don't connect more than one cable to each speaker ter- minal, Doing so may damage the AV receiver. + Don't connect one speaker to several terminals.

Connecting the Speaker Cables

Screw-type speaker terminals

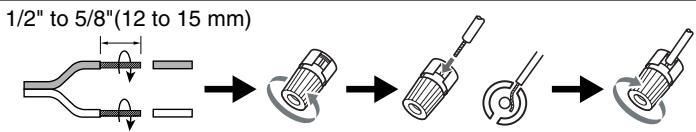

Strip 1/2" to 8/8" (12 to 15 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown. (Supplied speaker cables are already stripped.)

1/2" to 5/8"(12 to 15 mm) P

<rb-6 dé Using Banana Plugs (North American models)

+ If you are using banana plugs, tighten the speaker terminal before inserting the banana plug. + Do not insert the speaker code directly into the center hole of the speaker terminal

Push-type speaker terminals

Strip 3/8" to 1/2” (10 to 12 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown. (Supplied speaker cables are already stripped.)

3/8" to 1/2"(10 to 12 mm) 5

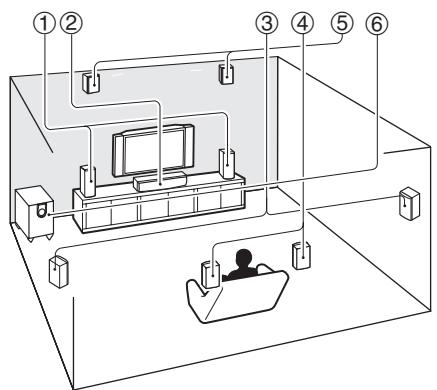

The following illustration shows which speaker should be connected to each pair of terminals. If you're using only one surround back speaker, connect it to the SURR BACK OR FRONT HIGH L terminals.

Front Front right left Surround Surround Surround Surround speaker speaker back right back left right left speaker speaker speaker speaker

ie] (él Fronthigh Fronthigh LT :

right left speaker speaker Powered KL y (Optional) (Optional) subwoofer

Using the supplied RCA cable, connect the subwoofer’s LINE INPUT jack to your AV receivers SUBWOOFER PRE OUT jack.

The speakers can easily be wall mounted by using the key- hole slots. To prevent the speaker from vibrating against the wall, attach two of the supplied thick rubber stoppers 10 the rear of each speaker.

To mount the front, surround and surround back speakers vertically, use the keyhole slot shown to hang each speaker on a screw that's securely screwed into the wall.

Front speakers (SKF-580)

Surround speakers/Surround back speakers (SKR-580/SKB-580)

> _ Keyhole slot for wall ET mounting

To mount the center speaker horizontally, use the two key- hole slots shown to hang each speaker on two screws that are securely screwed into the wall.

Center speaker (SKC-580)

Keyhole slot for wall mounting

+ A mounting screw’s ability to support a speaker depends on how well it's anchored to the wall. If you have hollow wWalls, screw each mounting screw into a stud. If there are no studs, or the walls are solid, use suitable wall anchors.

Use screws with a head diameter of 5/16" (9 mm) or less and a shank diameter of 1/8" (4 mm) or less. With hol- low walls, use a cable/pipe detector to check for any power cables or water pipes before making any holes.

Leave a gap of between 3/16" Wall (5 mm) and 7/16" (10 mm) /

between the wall and the base 7

of the screw head, as shown. (We recommend that you con- k —. 8/6" to 7/16" (5 mm to 10 mm)

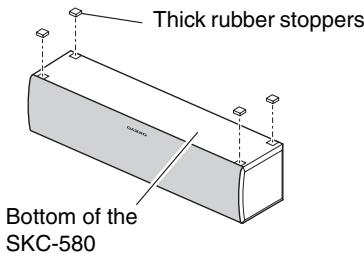

sult a home installation profes- sional.) Using the Rubber Stoppers for a More Stable Platform We recommend using the provided rubber stoppers to achieve the best possible sound from your speakers. The rubber stoppers prevent the speakers from moving, provid-

ing a more stable platform. Use thick stoppers for the cen- ter speaker.

Bottom of the L SKC-580

Using the Floor Pads for Subwoofer

If the subwoofer is placed on a hard floor (wood, vinyl, tile, etc.) and playback is very loud, the subwoofer’s feet may damage the flooring. To prevent this, place the sup- plied pads underneath the subwoofer’s feet. The pads also provide a stable base for the subwoofer.

About AV Connections

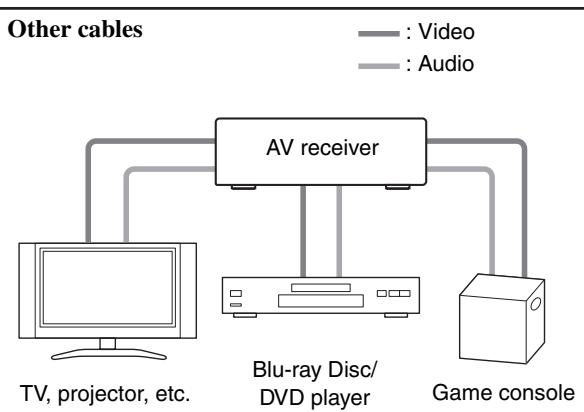

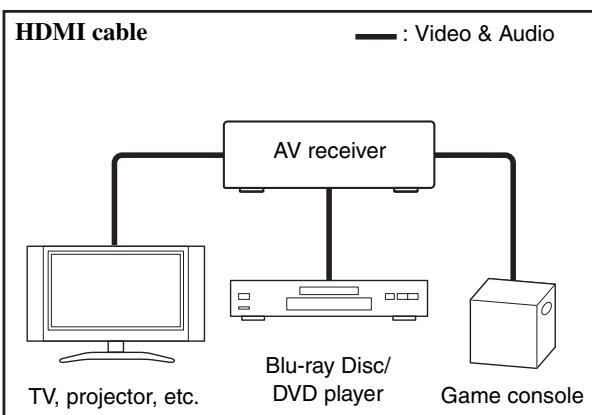

Connected image with AV components

HDMI cable —: Video & Audio | Other cables — : Video : Audio AV receiver AV receiver = n Blu-ray Disc/ ) T ” Blu-ray Disc/ TV, projector, etc. DVD player Game console | TV, projector, etc. DVD player Game console

+ Before making any AV connections, read the manuals supplied with your AV components.

+ Don't connect the power cord until you've completed and double-checked all AV connections. + Push plugs in all the way to make good connections (loose connections can cause noise or malfunc-

+ To prevent interference, keep audio and video cables away from power cords and speaker cables.

AV Cables and Jacks Signal Cable Description Video and HDMI LS HDMI connections can carry digital video and audio. The Audio AV receiver is compliant with HDMI. Video Component video y Component video separates the luminance (Y) and color difference signals (PB/CB, PR/CR), providing the best pic- Pe/C8 ture quality (some TV manufacturers label their compo- PaCn nent video sockets slightly differently). Composite video —— Composite video is commonly used on TVs, VCRS, and

other video equipment.

Optical digital Ty audio

Optical digital connections allow you to enjoy digital sound such as PCM”, Dolby Digital or DTS. The audio quality is the same as coaxial.

Coaxial digital connections allow you to enjoy digital sound such as PCM”, Dolby Digital or DTS. The audio quality is the same as optical.

Analog audio connections (RCA) carry analog audio.

1/8" (3.5 mm) Stereo mini plug

This cable carries analog audio.

Available sampling rate for PCM input signal is 32/44.1/48/88.2/96 kHz. Even 176.4/192 kHz is effective in case of the HDMI con-

+ The AV receiver does not support SCART plugs.

+ The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when its removed.

Push plugs in all the way.

+ To prevent shutter damage, hold the optical plug straight when inserting and removing.

Connecting Components with HDMI VCR or DVD recorder/Digital Video Recorder

Game console TV, projector, etc.

Satellite, cable, set-top box, etc. Blu-ray Disc/DVD player

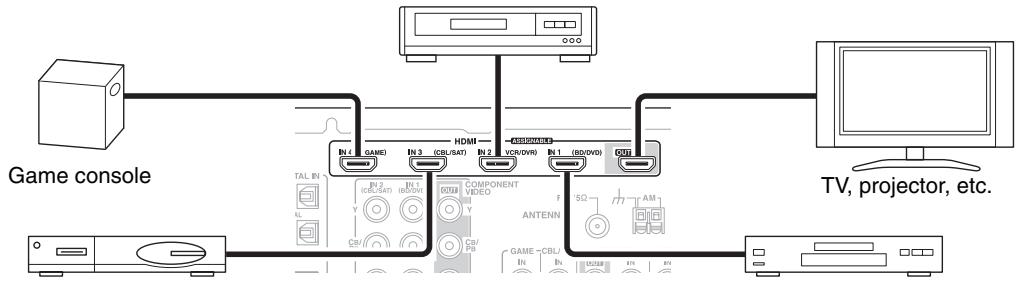

Connect your components to the appropriate jacks. The default input assignments are shown below. V': Assignment can be changed (> 34).

Jack Signal Components Assignable Input HDMI IN 1 Audio/Video [Blu-ray Disc/DVD player v

HDMI IN 2 VCR or DVD recorder/Digital Video Recorder v

HDMI IN 3 Satellite, cable, set-top box, etc. v

HDMI IN 4 Game console v Output HDMI OUT TV, projector, etc.

Refer to “About HDMI” (+ 60) and “Using an RIHD-compatible TV, Player, or Recorder” ( 61). Tip To listen to audio received by the HDMI IN jacks through your TV’s speakers: + Set the “TV Control” setting to “On” ( 41) for an RIHID-compatible TV. + Set the “Audio TV OUT” setting to “On” (+ 40) when the TV is not compatible with FHH4D or the “TV Control” setting to “Off”.

+ Set your Blu-ray Disc/DVD players HDMI audio output setting to PCM. + To listen to TV audio through the AV receiver, see “Connecting External Components” ( 17).

+ When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set 10 another input source, this may result in no sound from the AV receiver or the sound may be cut off.

+ When the “Audio TV OUT" setting is set to “On” ( 40) to hear from your TV's speakers, by controlling the AV receiver’s volume, the sound will be output from the AV receiver”’s speakers, 100. When the “TV Control” setting is set to “On” (> 41) to hear from speakers of RIHID -compatible TV, by controlling the AV receiver* volume, the AV receiver”s speakers will produce sound while the TV speakers are muted. To stop the AV receiver’s speakers producing sound, change the settings, change your TV” settings, or turn down the AV receiver's volume.

B Audio return channel (ARC) function

Audio return channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT of the

AV receiver. To use this function, you must select the TV/CD input selector.

+ To use ARC function, you must select the TV/CD input selector, your TV must support ARC function and “HDMI Control” is set to “On” ( 40).

Connecting External Components

The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to the MONITOR OUT V or the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.

Connect your components to the appropriate jacks. The default input assignments are shown below. W': Assignment can be changed (> 34).

No. [Jack Signal Components Assignable H] [COMPONENT [INT (BD/DVD) Component [Blu-ray Disc/DVD player v VIDEO IN 2 (CBL/SAT) video Satellite, cable, set-top box, etc. |[# OUT TV, projector, etc. 2) [DIGITALIN |OPTICAL INI(GAME) [Digital audio |Game console v IN 2 (TV/CD) TV, CD player v COAXIAL IN 1 (BD/DVD) Blu-ray Disc/DVD player v IN 2 (CBL/SAT) Satellite, cable, set-top box, etc. [# MONITOR OUT Composite | TV, projector, etc. video BD/DVDIN Analog audio |Blu-ray Disc/DVD player VCR/DVR IN and composite | VCR or DVD recorder/Digital Video Recorder CBL/SAT IN Satellite, cable, set-top box, etc. GAMEIN Game console TV/CD IN Analog audio _ | TV, CD player, Turntable"t Cassette tape deck, MD, CD-R UNIVERSAL PORT Analog audio” | Universal port optional dock Video (UP-AI etc.)

“1° Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn't have it, you'll need a commercially

available phono preamp.

If your turntable has a moving coil (MC) type cartridge, you'll need a commercially available MC head amp or MC transformer as well as a phono preamp. See your turntable”s manual for details.

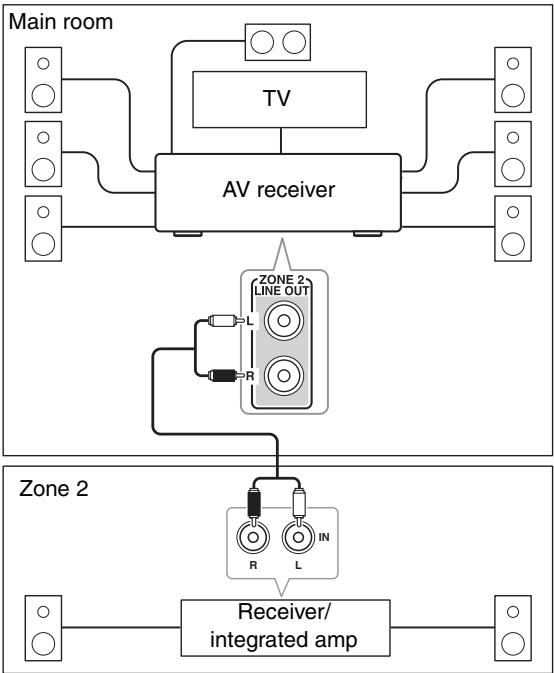

you can listen and record audio from the external components while you are in Zone 2. You can lis-

ten and record audio from the external components in the main room; you can listen to the audio in Zone 2 as well.

+ With connection [2], you can enjoy Dolby Digital and DTS. (To record or listen in Zone 2 as well,

+ If your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect the main stereo

output using connection

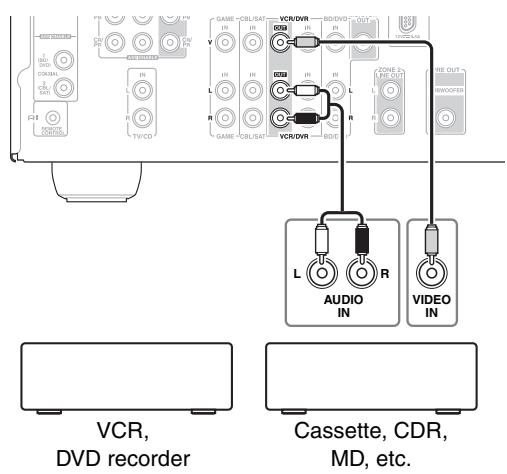

How to record the video

With the connections described above, you cannot record the video through the AV receiver. To make a connection for

video recording ( 27).

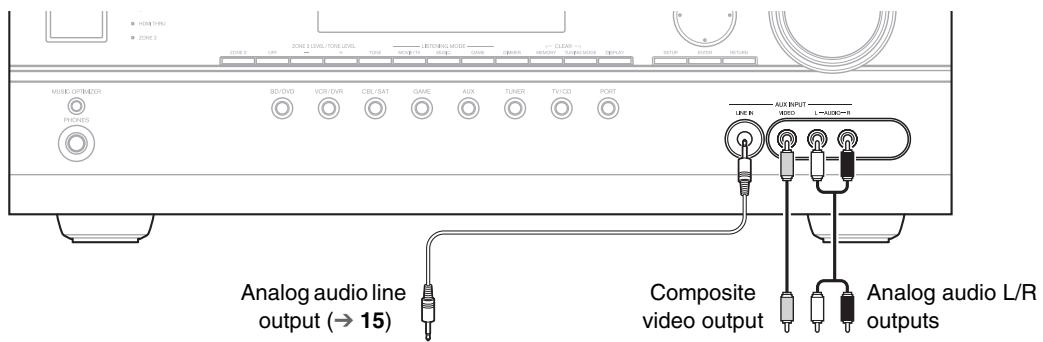

Using the INPUT jacks on the front panel

Analog audio line output (> 15)

Portable audio player

Composite Analog audio L/R video output outputs

+ When you connect to both AUX INPUT AUDIO jacks and AUX INPUT LINE IN jack at the same time, AUX INPUT LINE IN jack

will be given a higher priority.

+ The AV receiver can output audio and video signals from the AUX INPUT jacks to the VCR/DVR OUT jacks.

Connecting Onkyo RI Components

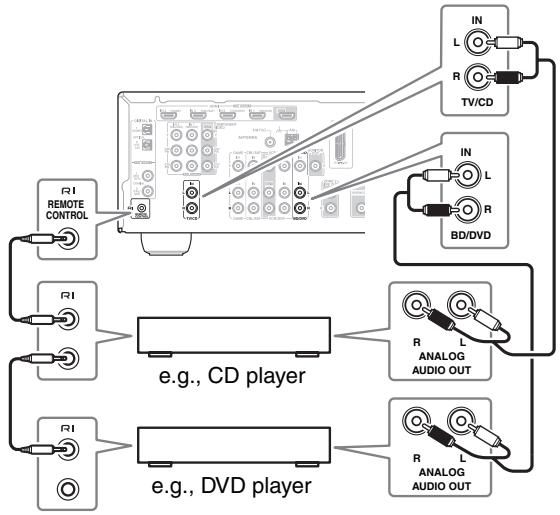

Step 1: Make sure that each Onkyo component is connected with an analog audio cable (connection [3] in the hookup examples) (> 17).

Make the RI connection (see illustration below).

If you're using an RI Dock, or cassette tape deck, change the Input Display (+ 23).

With RI (Remote Interactive), you can use the following special functions:

= System On/Auto Power On When you start playback on a component connected via RL. if the AV receiver is on Standby, it will automati- cally turn on and select that component as the input source.

B Direct Change When playback is started on a component connected via RI, the AV receiver automatically selects that compo- nent as the input source.

BH Remote Control You can use the AV receiver’s remote controller to con- trol your other RI-capable Onkyo components, point- ing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (= 51).

+ Use only RI cables for RI connections. FI cables are supplied with Onkyo players (DVD, CD, etc.).

+ Some components have two RI jacks. You can connect either one to the AV receiver. The other jack is for connecting addi- tional RI-capable components.

+ Connect only Onkyo components to I jacks. Connecting other manufacturer”’s components may cause a malfunction.

+ Some components may not support all FI functions. Refer to the manuals supplied with your other Onkyo components.

+ While Zone 2 is on, the System On/Auto Power On and Direct Change I functions do not work.

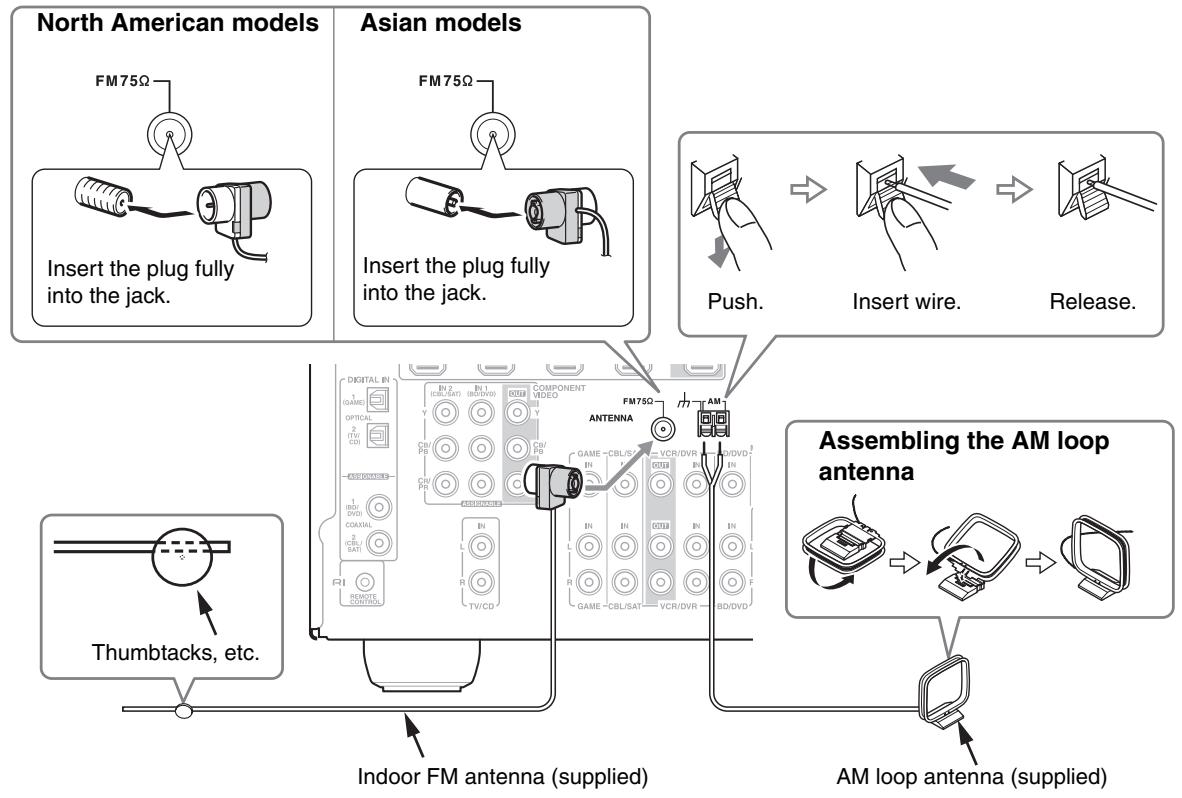

his section explains how to connect the supplied indoor FM antenna and AM loop antenna.

The AV receiver won't pick up any radio signals without any antenna connected, so you must connect the antenna to use the tuner.

North American models | Asian models

Insert the plug fully Insert the plug fully into the jack. into the jack. Push,

Assembling the AM loop antenna

Indoor FM antenna (supplied) AM loop antenna (supplied)

+ Be careful that you don't injure yourself when using thumbtacks.

+ Once your AV receiver is ready for use, you’Il need to tune into a radio station and position the antenna to achieve the best possible reception.

+ Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords. Tip + If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.

+ If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna.

Which Connections Should 1 Use?

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. you choose will depend on the formats supported by your components. Use the following sections as a guide.

The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to the MONITOR OUT Vor the COMPONENT VIDEO OUT, use the AV receiver’s display when changing settings.

The on-screen setup menus are displayed when: + There is no video input, or + The video input is 480p, 576p, 720p. 1080i, or 1080p.

Video Connection Formats

Video component can be connected by using any one of the following video connection formats: composite video, com- ponent video, or HDMI, the latter offering the best picture quality.

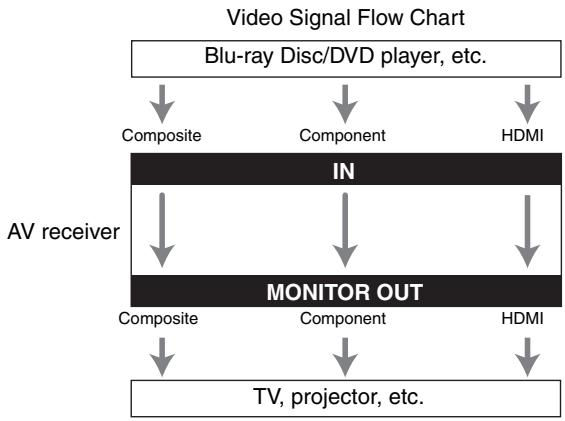

n n n n Video Signal Flow Chart When choosing a connection format, bear in mind that the 9

AV receiver doesn’t convert between formats, so only outputs [ Blu-ray Disc/DVD player, etc. ] of the same format as the input will output the signal.

Composite Component HDMI AV receiver

Composite ‘Component HDMI L L L

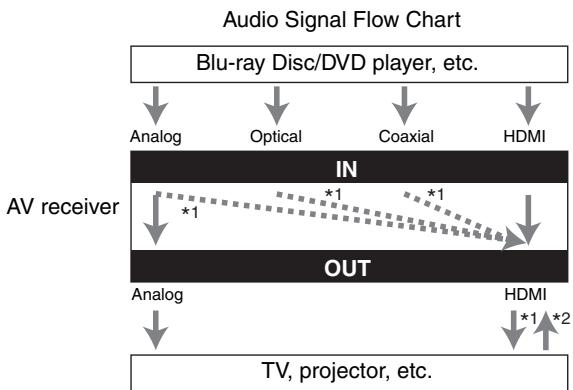

Audio Signal Flow Chart

Audio component can be connected by using any of the

following audio connection formats: analog, optical, coax- [ Blu-ray Disc/DVD player, etc. ]

ial, or HDMI. Ÿ Ÿ Ÿ Y When choosing a connection format, bear in mind that the Analog Optical Coaxial HoMI AV receiver does not convert digital input signals for ana-

log line outputs and vice versa. For example, audio signals connected to an optical or coaxial digital input are not out- put by the analog VCR/DVR OUT.

If signals are present at more than one input, the inputs will be selected automatically in the following order of pri- ority: HDMI, digital, analog.

[ TV, projector, etc. |

1° Depends on the “Audio TV OUT” setting (> 40)

“2 This setting is available, when “Audio Return Ch” set- ting is set 10 “Auto” (> 40), you must select the TV/CD input selector and your TV must support ARC function.

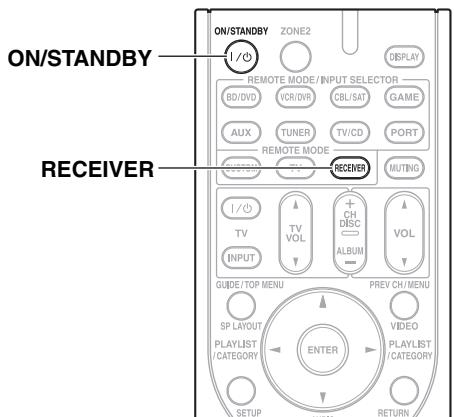

Turning On/Off the AV Receiver

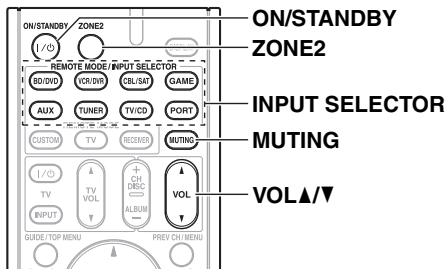

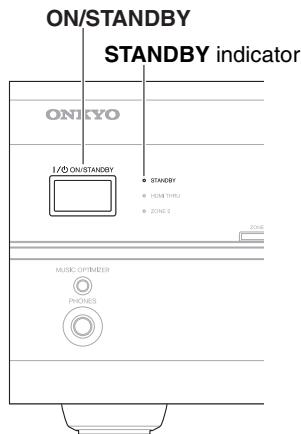

ON/STANDEY STANDBY indicator our | ON/STANDBY — RECEIVER —} <<) - OUTPUT LEVEL MN MAX control OUTPUT LEVEL Subwootersrear panel L D Front panel Remote controller

Press ON/STANDBY on the front panel.

Press RECEIVER followed by ON/STANDBY on the remote controller. The AV receiver comes on, the display lights, and the STANDBY indicator goes off.

Press ON/STANDBY on the front panel or the remote controller. The AV receiver will enter Standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.

This manual describes the procedure using the remote controller unless otherwise specified.

Playing the Connected Component

E Operating on the AV receiver

À. Use the input selector buttons to select the input source.

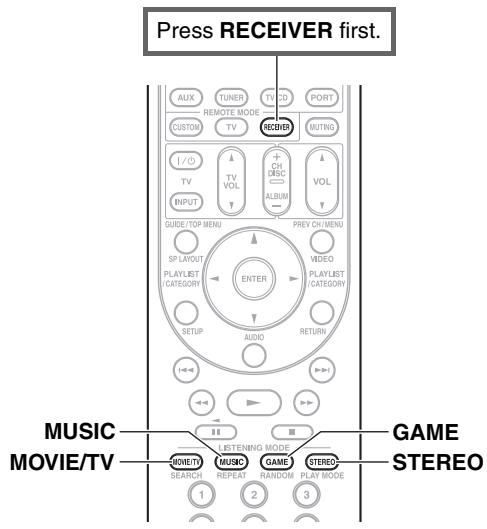

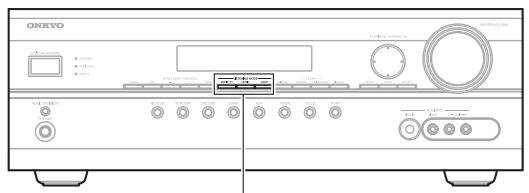

4 Screct a listening mode and enjoy! See also: + “Using the Listening Modes” ( 28) + “Audyssey Settings” (> 37)

E Operating with the remote controller

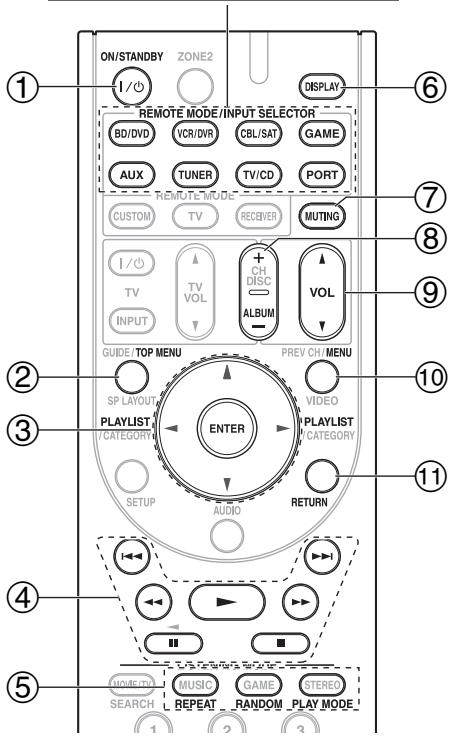

1 Press RECEIVER followed by INPUT SELEC- TOR.

2 Start playback on the source component. See also: + “Controlling Other Components” (> 51) ontrolling iPod” (> 47) + “Listening to the Radio” (> 24)

3 To adjust the volume, use VOL 4/Y.

4 Screct a listening mode and enjoy! See also:

ing the Listening Modes” (> 28)

+ “Audyssey Settings” (> 37)

+ When the subwoofer volume level is set to a positive (+) value, the maximum master volume level is reduced proportionally. To set the level of the subwoofer, use the OUTPUT LEVEL control. Because our ears are less sensitive to very low bass sounds, there’s a temptation to set the level of the sub- woofer 100 high. As a rule of thumb, set the subwoofer level to what you think is the optimal level, and then back it off slightly.

Displaying Source Information

You can display various information about the current input source as follows. (Components connected to the UNIVERSAL PORT jack are excluded.)

Press RECEIVER followed by DISPLAY repeat- edly to cycle through the available information.

Tip + Alternatively, you can use the AV receiver's DISPLAY. The following information can typically be displayed.

Input source & volume"t sp

Signal format'2 or sampling fre- quency

Input source & listening mode'3

When AM or FM radio is used, the band, preset number, and frequency are displayed.

If the input signal is analog, no format information is dis- played. If the input signal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format is displayed.

Information is displayed for about thre viously displayed information reappeau The input source is displayed with the default name even when you have selected a name in “Name Edit” (2 39).

Using the Music Optimizer

The Music Optimizer function enhances the sound quality of compressed music files.

conds, then the pre-

Press MUSIC OPTIMIZER on the front panel. The M.Opt indicator lights on the display.

+ Alternatively, you can use the remote controller's AUDIO and arrow buttons.

+ See “Music Optimizer” for more details (2 42).

Setting the Display Brightness

You can adjust the brighiness of the AV receiver’s display.

Press RECEIVER followed by DIMMER repeat- edly to select: dim, dimmer, or normal brightness.

+ Alternatively, you can use the AV receiver's DIMMER (North American models).

Muting the AV Receiver

You can temporarily mute the output of the AV receiver.

Press RECEIVER followed by MUTING. The output is muted and the MUTING indicator flashes on the display.

+ To unmute, press MUTING again or adjust the volume.

+ The Mute function is cancelled when the AV receiver is set to Standby.

Using the Sleep Timer

With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.

Changing the Input Display

When you connect an RI-capable Onkyo component, you must configure the input display so that RI can work properly.

This setting can be done only from the front panel.

7 Press TV/CD, GAME or VCR/DVR on the front panel so that “TV/CD”, “GAME” or “VCR/DVR” appears on the display.

Press RECEIVER followed by SLEEP repeatedly to select the required sleep time.

The sleep time can be set from 90 to 10 minutes in 10 minute steps.

The SLEEP indicator lights on the display when the sleep timer has been set. The specified sleep time appears on the display for about five seconds, then the previous display reappears.

+ If you need to cancel the sleep timer, press SLEEP repeatediy until the SLEEP indicator goes off.

+ To check the time remaining until the AV receiver sleeps, press SLEEP. Note that if you press SLEEP while the sleep time is being displayed, you’Il shorten the sleep time by 10 minutes.

Connect a pair of stereo headphones with a stan- dard plug (1/4 inch or 6.3 mm) to the PHONES jack.

+ Always turn down the volume before connecting your head- phones.

+ While the headphones plug is inserted in the PHONES jack, the speakers are turned off. (The Powered Zone 2 speakers are not turned off.)

+ When you connect a pair of headphones, the listening mode is set to Stereo, unless it's already set to Stereo, Mono or Direct

+ Only the Stereo, Direct, and Mono listening modes can be used with headphones.

2 Press andhold down TV/CD, GAME or VCR/DVR (about 3 seconds) to change the input display. Repeat this step to select “MD”, “CDR”, “DOCK” or “TAPE For the TV/CD input selector, the input display changes in this order:

TV/CD — MD —> CDR TAPE < DOCK «l

For the GAME input selector, the setting changes in this order:

GAME < DOCK For the VCR/DVR input selector, the setting changes in this order: VCR/DVR & DOCK

+ DOCK can be selected for the TV/CD, GAME or VCR/DVR input selector, but not at the same time.

+ Enter the appropriate remote control code before using the remote controller for the first time ( 51).

Selecting Speaker Layout

You can select the priority of the use of front high or sur- round back speakers.

Press RECEIVER followed by SP LAYOUT repeatedly. > FrontHigh: The sound from front high speakers is output by priority. } SurroundBack: The sound from surround back speakers is out- put by priority.

+ Ifthe Powered Zone 2 is being used ( 45), this setting cannot be selected.

+ When the listening mode that doesn't support front high or sur- round back speakers is used, the setting cannot be selected.

Listening to the Radio

This section describes the procedure using the but- tons on the front panel unless otherwise specified.

With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.

This model changes FM/AM frequency in 200/10KHz (or 50/9kHz) steps.

In manual tuning mode, FM stations will be in mono.

Listening to the Radio

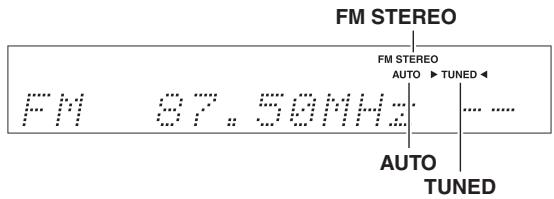

Press TUNER to select either “AM” or “FM”. In this example, FM has been selected.

Each time you press TUNER, the radio band changes between AM and FM.

(Actual display depends on the country.)

Tuning into Radio Stations

7 Press TUNING MODE so that the AUTO indicator lights on the display.

2 Press TUNING 4/Y. Searching stops when a station is found.

When tuned into a station, the TUNED indicator lights. When tuned into a stereo FM station, the FM STEREO indicator lights on the display, as shown.

B Manual tuning mode

Press TUNING MODE so that the AUTO indicator goes off on the display.

2 Press and hold TUNING 4/Y. The frequency stops changing when you release the button.

Press the buttons repeatedly to change the frequency one step at a time.

Tuning into weak FM stereo stations

If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this se, switch to manual tuning mode and listen to the station in mono.

B Tuning into stations by frequency You can tune into AM and FM stations directly by enter- ing the appropriate frequency.

On the remote controller, press TUNER repeat- edly to select “AM” or “FM”, followed by D.TUN.

(Actual display depends on the country.)

2 Within 8 seconds, use the number buttons to enter the frequency of the radio station. For example, to tune to 87.50 (FM), press 8, 7, 5, 0.

Presetting FM/AM Stations

You can store a combination of up to 40 of your favorite FM/AM radio stations as presets.

1 Tune into the FM/AM station that you want to store as a preset. See the previous section.

2 Press MEMORY. The preset number flashes.

3 While the preset number is flashing (about 8 sec- onds), use PRESET </#> to select a preset from 1 through 40.

4 Press MEMORY again to store the station or chan- nel.

The station or channel is stored and the preset num- ber stops flashing.

Repeat this procedure for all of your favorite FM/ AM radio stations.

To select a preset, use PRESET </> on the AV receiver, or the remote controller’s CH +/. Tip + You can also use the remote controller’s number buttons to select

1 Select the preset that you want to delete. See the previous section.

2. While holding down MEMORY, press TUNING MODE. The preset is deleted and its number disappears from the display.

Using RDS (excluding North American models)

RDS works only in areas where RDS broadcasts are available.

When tuned into an RDS station, the RDS indicator lights.

RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).

The AV receiver supports four types of RDS information:

BPS (Program Service) ‘When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Press- ing DISPLAY will display the frequency for 3 seconds.

BRT (Radio Text) ‘When tuned to an RDS station that's broadcasting text information, the text will be shown on the display as described in the next section.

BPTY (Program Type) This allows you to search for RDS radio stations by type (> 26).

2 TP (Traffic Program) This allows you to search for RDS radio stations that broadcast traffic information (= 26).

+ In some he text characters displayed on the AV receiver may notbe identical to those broadcast by the radio station. AIsO, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.

+ Ifthe signal from an RDS station is weak, RDS data may be displayed intermittently or not at all

When tuned to an RDS station that's broadcasting text information, the text can be displayed.

Displaying Radio Text (RT)

BRDS program types (PTY)

Type Display Press RT/PTY/TP once. x . | None None The RT information scrolls across the display. News reports News Current affairs Affairs [note | Information Info + The message “Waiting” may appear while the AV receiver Waits Sport Sport for the RT information. . Education Educate + Ifthe message “No Text Data” appears on the display, no RT information is available. Drama Drama Culture Culture Finding Stations by Type (PTY) Science and technology Science Varied Varied You can search for radio stations by type. Pop music Pop M RS RATPNP Rock music Rock M 1 Ti S twice. be dipl Middle of the road music Easy M e current program type appears on the display. Light classics Light M 2 Use PRESET </> to select the type of program Serious classics Classics you want. Other music Other M See the table shown later in this chapter. Weather Weather 3 To start the search, press ENTER. Finance Finance The AV receiver searches until it finds a station of Children's programmes Children the type you specified, at which point it stops briefly Social affairs Social before continuing with the search. Religion Religion 4. When a station you want to listen tois found, press Phone in Phone In ENTER. Travel Travel If no stations are found, the message “Not Found” Leisure Leisure appears. Jazz music Jazz Country music Country Listening to Traffic News (TP) National music Nation M | Oldies music Oldies You can search for stations that broadcast traffic news. Folk music Folk M À Press RT/PTVATP three times. Documentary Document If the current radio station is broadcasting TP (Traf- Am test TEST Alarm Alarm!

fic Program), “[TPT” will appear on the display, and traffic news will be heard as and when it's broadcast. If “TP” without square brackets appears, this means that the station is not broadcasting TP.

2 To locate a station that is broadcasting TP, press ENTER. The AV receiver searches until it finds a station that’s broadcasting TP. If no stations are found, the message “Not Found” appears.

This audio and video from different sources.

Connecting a Recording Component

ection explains how to record the selected input source to a component with recording capability, and how to record

Recording Separate AV Sources

Cassette, CDR, MD, etc.

+ The AV receiver must be turned on for recording. Recording is not possible while it's in Standby mode.

If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, con- nect the TV/VCR'S audio and video outputs directly to the recording VCR's audio and video inputs. See the manuals sup- plied with your TV and VCR for details.

+ Video signals connected to composite video inputs can be recorded only via composite video outputs. If your TV/VCR is connected 10 a composite video input, the recording VCR must be connected to a composite video output.

The surround sound and DSP listening modes cannot be recorded.

+ Copy-protected Blu-ray dises and DVDs cannot be recorded. Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.

DTS signals will be recorded as noise, so don't attempt analog recording of DTS CDs or LDs.

Audio sources can be recorded to a recorder (e.g., cassette deck, CDR, MD) connected to the VCR/DVR OUT jacks. Video sources can be recorded to a video recorder (e.g., VCR, DVD recorder) connected to the VCR/DVR OUT jack.

À Use the input selector buttons to select the source that you want to record. You can watch the source while recording. The AV receiver's MASTER VOLUME control has no effect on recording.

2. On your recorder, start recording.

3 On the source component, start playback. If you select another input source during recording, that input source will be recorded.

Here you can record audio and video from completely separate sources, allowing you to overdub audio onto your video recordings. This function takes advantage of the fact that when an audio-only input source (TV/CD) is selected, the video input source remains unchanged.

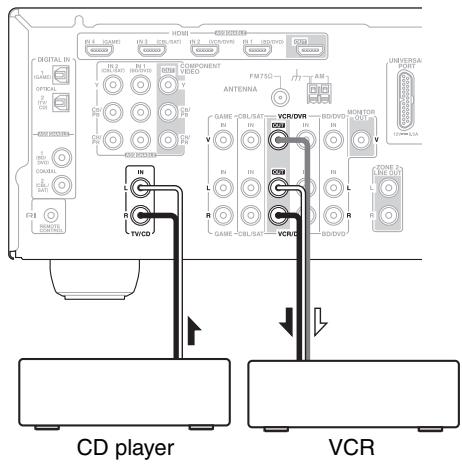

In the following example, audio from the CD player con- nected to the TV/CD IN and video from the camcorder connected to the AUX INPUT VIDEO jack are recorded by the VCR connected to the VCR/DVR OUT jacks.

25: Video signal Æ= : Audio signal

À Prepare the camcorder and CD player for play- back.

2 Prepare the VCR for recording.

3 Press AUX input selector.

4 Press TV/CD input selector,

This selects the CD player as the audio source, but leaves the camcorder as the video source.

5 Startrecording on the VCR and start playback on the camcorder and CD player.

The video from the camcorder and the audio from the CD player are recorded by the VCR.

Using the Listening Modes

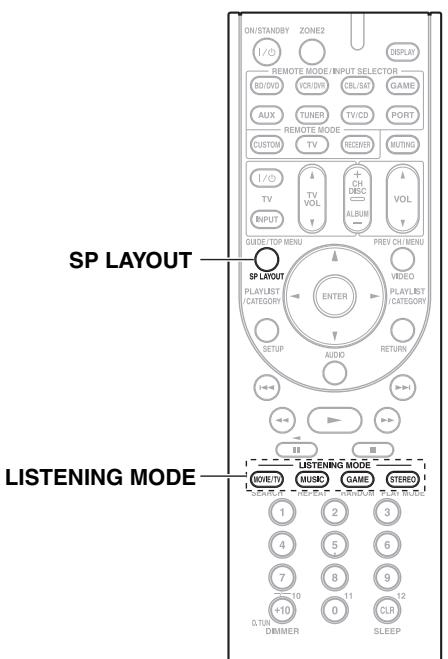

Selecting Listening Modes

See “About Listening Modes” for detailed information about the listening modes (2 29).

Listening Mode Buttons

This button selects the listening modes intended for use with movies and TV.

This button selects the listening modes intended for use with music.

This button selects the listening modes intended for use with video games.

This button selects the Stereo listening mode and All Channel Stereo listening mode.

+ The Dolby Digital and DTS listening modes can only be selected if your Blu-ray Disc/DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).

+ The listening modes you can select depends on the format of thi Information” (> 22).

+ While a pair of headphones is connected, you can select the following listening modes: Mono, Direct, and Stereo.

put signal. To check the format, see “Displaying Source

About Listening Modes

The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidel- ity and stunning surround sound.

@ Surround speakers @ Surround back speakers @ Front high speakers

input Source The following audio formats are supported by the listening mode.

EN This is mono (monophonic) sound.

This is stereo (stereophonic) sound. Two independent audio signal channels are reproduced through two speakers.

This is 5.1-channel surround sound. This surround system has five main channels of sound and a sixth sub- woofer channel (called the point-one channel).

This is 7.1-channel surround sound. This is a further sound enhancement to 5.1 channel sound with two additional speakers that provide greater sound envelopment and more aceurate positioning of sounds. This is DTS-ES surround sound. This surround system can produce a discrete or a matrix-encoded sixth channel from existing DTS 5.1 encoded material.

ŒEX This is Dolby Digital EX surround sound. This provides a center back surround channel from 5.1-channel sources. li Speaker Layout

The illustration shows which speakers are activated in each channel, See “Sp Config (Speaker Configuration)” for the speaker setup (> 35).

Press RECEIVER followed by SP LAYOUT repeatedly to select front high or surround back speakers.

Listening Mode Description Input |Speaker Source _|Layout Direct In this mode, audio from the input source is output without surround-sound [MN 16-151 processing. The “Sp Config” (presence of speakers), “Sp Distance” and Direct “A/V Sync” settings are enabled, but much of the processing set via AUDIO is disabled. See “Advanced Setup” for more details (> 33). Stereo Sound is output by the front left and right speakers and subwoofer. Stereo Mono Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the Left and right chan |GHERES Mono nels of some movies. It can also be used with DVDS or other sources contain- ing multiplexed audio, such as karaoke DVDs. Muitichannel This mode is for use with PCM multichannel sources. [5ich | Multich

back. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging. If you're not using any surround back speakers, Dolby Pro Logie IL will be used instead of Dolby Pro Logic IIx. + Dolby PLIIx Movie Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g.. TV, DVD, VHS). + Dolby PLIIx Music Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g.. CD, radio, cassette, TV, VHS, DVD). + Dolby PLIIx Game Use this mode with video games, especially those that bear the Dolby Pro Logic II logo.

+ Dolby PLIIx Movie, Dolby PLIIX Music These modes use the Dolby Pro Logic IIx modes to expand 5.1-channel sources for 7.1-channel playback.

Dolby Pro Logic Ilz _ |Dolby Pro Logie Ilz Height is designed to more effectively use existing |SIERA] Heïght program material when height channel speaker outputs are present. Dolby |REXEYE : Pro Logic Iz Height can be used to upmix a variety of sources from movies PLIZ He ight |and music, but are particularly well-suited to upmix game content. Dolby EX These modes expand 5.1-channel sources for 6.1/7.1-channel playback. |EXEUM They’re especially suited to Dolby EX soundtracks that include a matrix- |[rq=}4

encoded surround back channel. The additional channel adds an extra dimen- sion and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

DTS-HD HR Listening Mode Description Input | Speaker Source _|Layout Dolby Digital In this mode, audio from the input source is output without surround-sound [EXEE |3.15.1 processing. “Sp Config” (presence of speakers), “Crossover”, “Sp Di Dolby D “A/V Syne” and much of the processing set via AUDIO are enabled. Dolby Digital Plus’5 | See “Advanced Setup” for more details (> 33). BiE1 Dolby D+ Dolby TrueHD DOTrueHD DTS DTS DTS-HD High

ity. Use it with DVDs that bear the DTS 96/24 logo.

DTS-HD MSTR DTSExpress | STEREO DTS Express

DSsD DTS 96/24'7 This mode is for use with DTS 96/24 sources. This is high-resolution DTS |REXETE

with a 96 KHz sampling rate and 24-bit resolution, providing superior fidel- DTS 96/24

DTS-ES Discrete'8 ES Discrete

This mode is for use with DTS-ES Discrete soundtracks, which use a dis- crete surround back channel for true 6.1/7.1-channel playback. The seven totally separate audio channels provide better spatial imaging and 360- degree sound localization, perfect for sounds that pan across the surround channels. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Discrete soundtrack.

DTS-ES Matrix'8 ES Matrix

This mode is for use with DTS-ES Matrix soundtracks, which use a matrix- encoded back-channel for 6.1/7.1-channel playback. Use it with DVDs that bear the DTS-ES logo, especially those with a DTS-ES Matrix soundtrack.

This mode expands any 2-channel source for up to 7.1-channel playback. It uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener. + Neo:6 Cinema Use this mode with any stereo movie (e.g., TV, DVD, VHS). + Neo:6 Music Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD).

STEREO This mode uses Neo:6 to expand 5.1-channel sources for 6.1/7.1-channel

Onkyo-Original DSP Listening Modes

Listening Mode Description Input |Speaker Source _|Layout Orchestra Suitable for classical or operatic music, this mode emphasizes the surround [MN] [5.1 channels in order to widen the stereo image, and simulates the natural rever- | SEE] Orchestra beration of a large hall. Unplugged Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage. Unplugged Studio-Mix Suitable for rock or pop music, listening to music in this mode creates a

: : lively sound field with a powerful acoustic image, like being at a club or rock Studio-Mix concert.

TV Logic This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to voices.

Game-RPG Use this mode when playing role playing game discs.

Game-RPG Game-Action Use this mode when playing action game discs.

Game-Rock Use this mode when playing rock game discs.

Game-Sports Use this mode when playing sports game discs.

All Ch Stereo Ideal for background music, this mode fills the entire listening area with ste- reo sound from the front, surround, and surround back speakers.

Full Mono In this mode, all speakers output the same sound in mono, so the sound you

hear is the same regardies

s of where you are within the listening room. Full Mono

T-D (Theater- With this mode you can enjoy a virtual surround sound even with only two or Dimensional) three speakers. This works by controlling how sounds reach the listener's left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

T-D When the input source contains the encoded front high channel, front high speakers output the sound.

If there are no surround back speakers, or Powered Zone 2 is being used, Dolby Pro Logic II is used.

Surround back speakers are not supported.

Front high speakers are not supported.

For the Blu-ray Discs, Dolby Digital is used in a 3.1/5.1-channel speaker system.

AV receiver can input the DSD signal from HDMI IN. Setting the output setting on the player side 10 PCM might obtain a better sound according to the player. In that case, set the output setting on the player side to PCM.

Depending on the input source, DTS is used.

If there are no surround back speakers, DTS is used.

Output can be switched between front high or surround back speakers by pressing SP LAYOUT [depending on the “Sp Config” set- ting (> 35)].

+ The listening modes cannot be selected with some source formats.

CETTE ER Advanced Setup

On-screen Setup Menus

The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is con- nected to the composite video MONITOR OUT or the COMPONENT VIDEO OUT, use the AV recciver’s display when changing settings.

The on-screen setup menus are displayed when: + There is no video input, or + The video input is 480p, 576p, 720p, 1080i, or 1080p

Setup Menu DE 1: HDMI Input BD/DVD @— 2. Component VCR/DVR @— 3. Digital Audio CBLISAT @-— 4. Sp Config GAME ®— 5. Sp Distance AUX @— 6. Level Cal TWCD @l— 7. Audio Adjust PORT 8. Name Edit © 9. Hardware

Front Front High Zone2

Common Procedures in Setup Menu

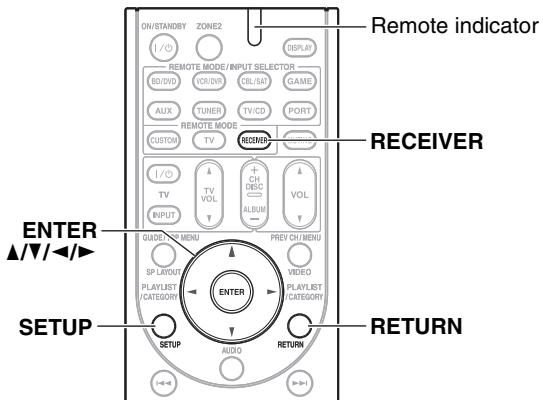

AN SETUP RETURN The on-screen setup menus appear on the connected TV and provide a convenient way to change the AV receiver’s various settings. Settings are organized into ten categories on the main menu.

Carry out the settings by using the on-screen display.

À Press RECEIVER followed by SETUP. The following menu appears.

Tip + Ifthe main menu doesn’t appear, make sure the appropri- ate external input is selected on your TV.

2 Use A/T to select a menu, and then press ENTER.

3 Use A/Y to select target, and </> to change the setting. Press SETUP to close the menu. Press RETURN to return to the main menu.

+ This procedure can also be performed on the AV receiver by using SETUP, arrow buttons, and ENTER.

Select if a subwoofer is connected.

—) No: Select if no subwoofer is connected.

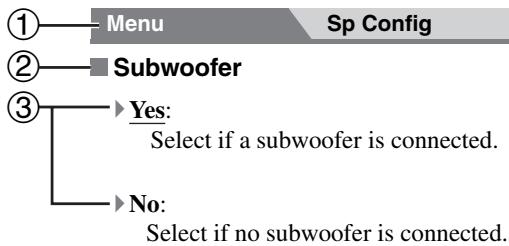

@ Menu selection © Setting target © Setting options (default setting underlined)

HDMI Input RC Ho nput

If you connect a video component to an HDMI input, you must assign that input to an input selector. For example, if

you connect your Blu-ray Disc/DVD player to HDMI IN 2, you must assign “HDMI2” to the “BD/DVD” input selector.

Here are the default assignments.

Input selector Default assignment

BD/DVD HDMI VCR/DVR HDMI2

B BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX, TV/ CD, PORT > HDMI, HDML2, HDM13, HDMI4: Select a corresponding HDMI input that the video component has been connected.

Select if you’re not using the HDMI OUT. Each HDMI input cannot be assigned to two input selectors or more. When HDMI1 - HDMIA have already been assigned, you must set first any unused input selectors to “- - -- + ”, or you will be unable to assign HDMI - HDMI to input selector.

+ When an HDMI IN is assigned to an input selector as explained here, the digital audio input for that input selector is automati- cally set to the same HDMI IN (+ 34, Digital Audio (Digital Audio Input).

+ If you connect à component (such as UP-A1 Dock that seated iPod) to UNIVERSAL PORT jack, you cannot assign any input to PORT selector.

+ Do not assign the component connected with the HDMI input to TV/CD selector when you set “TV Control” setting to “On” (2 41). Otherwise, appropriate CEC (Consumer Electronics Control) operation will not be guaranteed.

Component (Component Video Input) ECC) Component

If you connect a video component to a component video input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to COMPONENT VIDEO IN 2, you must assign “IN2” to the “BD/DVD” input selector.

Here are the default assignments.

BD/DVD VCR/DVR CBL/SAT GAME AUX TV/CD PORT Default assignment

» INI, IN2: Select a corresponding component video input that the video component has been connected.

Select if you're not using the COMPONENT VIDEO OUT.

+ If you connect a component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any input to PORT selector.

Digital Audio (Digital Audio Input) Lmenu al Audio

If you connect a component to a digital audio input, you must assign that input to an input selector. For example, if you connect your CD player to the OPTICAL IN 1, you must assign “OPT1” to the “TV/CD” input selector.

Here are the default assignments.

Input selector Default assignment

BD/DVD COAXI VCRDVR |-----

B BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX, TV/ CD, PORT + COAXI, COAX2, OPTI1, OPT2: Select a corresponding digital audio input that the component has been connected.

Select if the component is connected to an analog audio input.

+ When an HDMI IN is assigned to an input selector in “HDMI Input” (> 34), this input assignment is automatically set to the same HDMI IN. And in addition to the usual inputs (e.g.. COAXI1, COAX2, etc.), you can also select HDMI inputs.

+ Available sampling rate for PCM signals from a digital input (optical and coaxial) is 32/44.1/48/88.2/96 kHz/16, 20, 24 bit

+ If you connect a component (such as UP-A1 Dock that seated iPod) to the UNIVERSAL PORT jack, you cannot assign any

Sp Config (Speaker Configuratio ELEC) Sr Con

This section explains how to specify which speakers are connected and their sizes.

For speakers with a cone diameter larger than 6-1/2 inches (16 cm), spec- ify Large (full band). For those with a smaller diameter, specify Small (default crossover 100 Hz).

The crossover frequency can be changed in the “Crossover (Crossover Frequency)” (+ 35).

These settings are disabled when:

+ a pair of headphones is connected, or

+ the “Audio TV OUT” setting is set to “On” (> 40) and an input selector other than HDMI is selected.

E Subwoofer » Yes: © Select if a subwoofer is connected. » No: Select if no subwoofer is connected.

BFront } Small: » Large: Select based on the cone diameter.

+ Ifthe “Subwoofer” setting is set to “No”, this setting is fixed at “Large” and does not appear.

B Center‘!, Surround‘, Front High‘1"2*4* SurrBack'1"23"5°7 } Small: » Large: Select based on the cone diameter. } None'6: Select if no speaker is connected.

“1° Ifthe “Front” setting is set to “Small”, the “Large” option cannot be selected.

Ifthe “Surround” setting is set to “None”, this setting cannot be selected.

Ifthe “SurrBk/FrontHigh” setting is set to “Front High” {2 39), this setting cannot be selected.

Ifthe “Front High/Zone2” setting is set to “Zone2” and “SurrBk/FrontHigh” setting is set to “SurrBack” (> 39), this setting cannot be selected

If the “Surround” setting is set to “Small”, the “Large” option cannot be selected.

For “Front High”, the default is “None”.

If the “Front High/Zone2” setting is set to “Zone2”, this set- ting cannot be selected

& SurrBack Ch bich: Select if only one surround back speaker is con- nected. »2ch: Select if two (left and right) surround back speakers are connected.

+ Ifthe “SurrBack” setting is set to “None”, this setting cannot be selected.

E Crossover (Crossover Frequency) This setting is advantageous for the speakers that you specified as “Small” in the “Sp Config (Speaker Configura- tion)” (+ 35). To get the best bass performance from your speaker system, you need to set the crossover fre- quency according to the size and frequency response of your speakers. > 40Hz, 50Hz, 60Hz, 80Hz, 100Hz, 120Hz, 150Hz,

Use the diameter of the smallest speaker in your system when choosing the crossover frequency.

Speaker cone diameter Crossover frequency Over 8 in. (20 em) 40/50/60 Hz°

6-1/2 to 8 in. (16 to 20 cm) 80 Hz

5-1/4 to 6-1/2 in. (13 to 16 cm) 100 Hz

3-1/2 to 5-1/4 in. (9 to 13 cm) 120 Hz

Under 3-1/2 in. (9 cm) 150/200 Hz°

Choose the setting suitable for the speaker.

+ For a more accurate setting, look up the frequency response in the manuals supplied with your speakers and set accordingly.

+ Choose a higher crossover frequency if you want more sound from your subwoofer.

+ This function can be set only if the “Subwoofer” setting is set to “Yes”, and the “Front” setting is set to “Large” (> 35).

With the Double Bass function, you can boost bass out- put by feeding bass sounds from the front left, right, and center channels to the subwoofer. } On:

Double Bass function on. > Off:

Double Bass function off.

Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener”’s ears as the sound designer intended.

» feet: Distances can be set in feet. Range: 1ft to 30ft in 1 foot steps.

» meters: Distances can be set in meters. Range: 0.3m to 9.0m in 0.3 meter steps.

(The default setting varies from country to country.)

E Left, FrontHigh Left, Center, FrontHigh Right, Right, Surround Right, SurrBack Right, SurrBack Left, Surround Left, Subwoofer » Specify the distance from the each speaker to your lis-

+ These settings are dis

a pair of headphones is connected, or + the “Audio TV OUT" setting is set 10 “On” (> 40) and an

input selector other than HDMI is selected.

+ Speakers that you set to “No” or “None” in the “Sp Config (Speaker Configuration)” ( 35) cannot be selected.

+ The Center, Right, Subwoofer and Front High distances can be set up to 5 ft. (1.5 m) more or less than the “Left” distance. For example, if the “Left” distance is set to 20 f1. (6 m), the Center, Right, Subwoofer, Front High Left and Front High Right di tances can be set between 15 and 25 fi. (4.5 and 7.5 m).

+ The Surround and Surround Back distances can be set up to 5 ft. (1.5 m) more or 15 ft. (4.5 m) less than the “Left” distance. For example, if the “Left” distance is set 10 20 ft. (6 m), the Surr Right, Surr Left, Surr Back R and Surr Back L distances can be set between 5 and 25 fi. (1.5 and 7.5 m).

Level Cal (Level Calibra ECC) Le": ca

Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position.

B Left, FrontHigh Left, Center‘, FrontHigh Right, Right, Surround Right, SurrBack Right, SurrBack Left, Surround Left »-12 dB to 0 dB to +12 dB in 1 dB step.

E Subwoofer'1 » 15 dB to 0 dB to +12 dB in 1 dB step.

+ Speakers that you set to “No” or “None” in the “Sp Config (Speaker Configuration)” ( 35) cannot be selected.

+ The speakers cannot be calibrated while a pair of headphon connected or the AV receiver is muted or “Audio TV OUT" set- ting is set to “On” (> 40).

“1° For the center speaker and subwoofer, the level settings made

by using AUDIO are saved.

+ If you're using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading

dio Adjust ECC Audio Adiust

With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like.

Multiplex/Mono Settings

Multiplex This setting determines which channel of a stereo multi- plex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broad- casts, and so on.

Binput Ch(Mux) > Main: The main channel is output. » Sub: The sub channel is output. M/S: Both the main and sub channels are output. Mono This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2- channel analog/PCM source in the Mono listening mode.

Binput Ch(Mono) > L+R: © Both the left and right channels are output. » Left: Only the left channel is output. > Right: Only the right channel is output.

PLIIx Music (2ch Input) These settings apply to only 2-channel stereo sources.

If you're not using any surround back speakers, these set- tings apply to Dolby Pro Logic II, not Dolby Pro Logic Ix.

BH Panorama > On: Panorama function on. » Off: Panorama function off. With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic IIx Music listening mode.

M Dimension »=3 to 0 to +3 With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic IIx Music listening mode. Higher settings move the sound field backward. Lower settings move it forward. If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it's in mono, or there's not enough surround sound, move it backward.

H Center Width »O to 3107 With this setting, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic Ix Music listening mode. Normally, if you’re using a center speaker, the center channel sound is out- put by only the center speaker. (If you're not using a center speaker, the center channel sound will be distrib- uted to the front left and right speakers to create a phan- tom center). This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound.

The Height Gain Control in Dolby Pro Logic IIz enables

the listener to select how much gain is applied to the front

high speakers. There are three settings, “Low”, “Mid” and

“High”, and the front high speakers are accentuated in that

order. While “Mid” is the default listening setting, the lis-

tener may adjust the Height Gain Control to their personal

BHeight Gain > Low: Low PLIIZ Height Gain becomes active. > Mid: © Medium PLIIZ Height Gain becomes active. > High:

High PLIIZ Height Gain becomes active.

+ Ifthe “Front High” setting is set to “None” ( 35), or “Front High/Zone2” setting is set to “Zone2” ( 39), this setting is fixed at “Mid” and does not appear.

Dolby EX This setting determines how Dolby EX encoded signals

are handled. This setting is unavailable if no surround

back speakers are connected. This setting is effective with

Dolby Digital, Dolby Digital Plus and Dolby TrueHD

B Dolby EX } Auto: If the source signal contains a Dolby EX flag, the Dolby EX listening mode is used. > Manual: You can select any available listening mode.

+ Ifthe “SurrBack” Setting is set to “None” (2 85), this setting cannot be selected.

+ Ifthe “Front High” setting is set to other than “None”, this set- ting is fixed at “Manual” (> 35).

+ Ifthe “Front High/Zone2” setting is set to “Zone2” (> 39), this setting is fixed at “Manual” and does not appear.

DTS Setting Neo:6 Music

E Center Image >Ow2t05 The DTS Neo:6 Music listening mode creates 6-channel surround sound from 2-channel stereo sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel. Setting a value “0” in the middle is set to hear a sound. Sound is spread in left and right (the outside) so that the set value is made big. Please adjust by liking.

HE Audyssey » of. No Audyssey EQT equalizing will apply. > On: “Dynamic EQ” and “Dynamic Volume” become available. The Audyssey indicator will light ( 8).

+ Audyssey equalizing does not work for DSD sources.

Audyssey Dynamic EQ off. > On:

Audyssey Dynamic EQ on.

The Dynamic EQ indicator will light ( 8). With Audyssey Dynamic EQTM, you can enjoy great sound even when listening at low volume levels. Audyssey Dynamic EQ solves the problem of deterio- rating sound quality as volume is decreased by taking into account human perception and room acoustics. It does so by selecting the correct frequency response and surround volume levels moment-by-moment so that the content sounds the way it was created at any volume level — not just at reference level.

+ The setting is stored individually for each input selector. + If Direct listening mode is selected, this setting cannot be selected.

Reference Level Audyssey Dynamic EQT" Reference Level Offset »0 dB: It should be used when listening to movies. »5 dB: Select this setting for content that has a very wide dynamic range, such as classical music. »10 dB: Select this setting for jazz or other music that has a wider dynamic range. This setting should also be selected for TV content as that is usually mixed at 10 dB below film reference. »15 dB: Select this setting for pop/rock music or other pro- gram material that is mixed at very high listening levels and has a compressed dynamic range. Movies are mixed in rooms calibrated for film refer- ence. To achieve the same reference level in a home the- ater system each speaker level must be adjusted so that —30 dBFS band-limited (500 Hz to 2000 Hz) pink noise produces 75 dB sound pressure level at the listening position. À home theater system automatically cali- brated by Audyssey EQTM will play at reference level when the master volume control is set to the 0 dB posi- tion. At that level you can hear the mix as the mixers heard it. Audyssey Dynamic EQT" is referenced to the standard film mix level. It makes adjustments to maintain the ref- erence response and surround envelopment when the volume is turned down from 0 dB. However, film refer- ence level is not always used in music or other non-film content. Audyssey Dynamic EQ Reference Level Offset provides three offsets from the film level reference (5 dB, 10 dB, and 15 dB) that can be selected when the mix level of the content is not within the standard.

+ If “Dynamic EQ” setting is set to “OfF”, this setting cannot be selected. + The setting is stored individually for each input selector.

» Of. Audyssey Dynamic Volume?" off.

> Light: Light Compression Mode becomes active.

> Medium: Medium Compression Mode becomes active.

D Heavy: Heavy Compression Mode becomes active. This set- ting affects volume the most, causing all sounds to be of equal loudness.

+ If you make Dynamic Volume’" active, “Audyssey” and “Dynamic EQ” settings are set 10 “On”. The Dynamic Vol indi- cator will light (> 8).

+ The setting is stored individually for each input selector.

+ If Direct listening mode is selected, this setting cannot be selected.

About Audyssey Dynamic EQ Audyssey Dynamic EQ solves the problem of deterio- rating sound quality as volume is decreased by taking into account human perception and room acoustics. Dynamic EQ selects the correct frequency response and surround levels moment-by-moment at any user- selected volume setting. The result is bass response, tonal balance, and surround impression that remain con- stant despite changes in volume. Dynamic EQ combines information from incoming source levels with actual output sound levels in the room, a prerequisite for deliv- ering a loudness correction solution.

Audyssey Dynamic EQ works in tandem with Audyssey EQ to provide well-balanced sound for every listener at any volume level.

About Audyssey Dynamic Volume Audyssey Dynamic Volume solves the problem of large variations in volume level between television programs, commercials, and between the soft and loud passages of movies. Dynamic Volume looks at the preferred volume setting by the user and then monitors how the volume of program material is being perceived by listeners in real time to decide whether an adjustment is needed. When- ever necessary, Dynamic Volume makes the necessary rapid or gradual adjustments to maintain the desired playback volume level while optimizing the dynamic range. Audyssey Dynamic EQ is integrated into Dynamic Volume so that as the playback volume is adjusted automatically, the perceived bass response, tonal balance, surround impression, and dialog clarity remain the same whether watching movies, flipping between television channels, or changing from stereo to surround sound content.

Theater-Dimensional Setting

Select if the listening angle is 40 degrees. » Narrow:

Select if the listening angle is 20 degrees. With this setting, you can optimize the Theater-Dimen- sional listening mode by specifying the angle of the front left and right speakers relative to the listening position. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings.

Front left speaker €) {Front right speaker

You can enter a preset name for each individual input selector for easy identification. When entered, the preset name will appear on the display.

Preparation Press the input selector buttons to select an input source.

HName >---, Blu-ray, DVD, HD DVD, VCR, DVR, Tivo, CableSTB, SAT STB, PS3, Wii, Xbox, PC, TV, CD, TAPE, iPod: To reset to the default, select “- - +”.

+ Can not set the input selector by the same name. + This menu cannot be used for the TUNER input selector.

If the impedance of any speaker is 4 ohms or more but less than 6, set the minimum speaker impedance to 4 ohms.

+ Before you change these settings, turn down the volume.

E Sp Impedance }> 4ohms: Select if the impedance of any speaker is 4 ohms or more but less than 6. } 6ohms: Select if the impedances of all speakers are between 6 and 16 ohms.

+ (North American models) Do not support speakers with an impedance of less than 6 ohms.

Front High/Zone2 » Front High: Front high speakers can be used. } Zone2: Zone2 speakers can be used.

Select “Zone2” if you've connected your Zone 2 speakers to FRONT HIGH OR ZONE 2 SPEAKERS L/R termi- nals (> 44).

E SurrBk/FrontHigh > Front High: Front high speakers can be used. > SurrBack: Surround back speakers can be used. Select “Front High” if you've connected your Zone 2 speakers to FRONT HIGH OR ZONE 2 SPEAKERS L/ R terminals, and the front high speakers to SURR BACK OR FRONT HIGH SPEAKERS L/R terminals.

+ Ifthe “Front High/Zone2” setting is set to “Front High”, this setting is set 10 “SurrBack”.

Remote Control Settings

BH Remote ID »1,2,0r3 When several Onkyo components are used in the same room, their remote ID codes may overlap. To differenti- ate the AV receiver from the other components, you can change its remote ID from “1”, to “2” or “3”.

+ If you do change the AV receiver’s remote ID, be sure to change the remote controller to the same ID (see below), otherwise, you won't be able to control it with the remote controller.

Changing the Remote Controller’s ID

1 While holding down RECEIVER, press and hold down SETUP until the remote indicator lights (about 3 seconds).

2. Use the number buttons to enter ID 1, 2, or 3. The remote indicator flashes twice.

FM/AM Frequency Setup Settings

For FM/AM tuning to work properly, you must specify the FM/AM frequency step used in your area. Note that when this setting is changed, all radio presets will be deleted.

BFM/AM Freq Step (North American models) » 200k/10KHz: Select if 200 k/10 kHz steps are used in your area. > 50k/ 9kHz: Select if 50 k/9 kHz steps are used in your area.

BAM Freq Step (Asian models) > 10kKHz: Select if 10 kHz steps are used in your area. > 9kHz: Select if 9 KHz steps are used in your area.

HDMI Setup RC) Hoi Setup

M Audio TV OUT » Of. HDMI audio is not output. > On: HDMI audio is output. This preference determines whether audio received at the HDMI IN is output by the HDMI OUT. You may want 10 turn this preference on if your TV is connected to the HDMI OUT and you want to listen to the audio from a component that's connected to an HDMI IN, through your TV's speakers. Normally, this should be set to “Off”.

+ If “On” is selected and the signal can be output by the TV, the AV receiver will output no sound through its speakers.

+ If “On” is selected, “TV Sp On” appears on the display by pressing DISPLAY.

+ When “TV Control” is set to “On”, this setting is fixed to “Auto”.

+ With some TVS and input signals, no sound may be output even when this setting is set to “On”.

+ When the “Audio TV OUT” setting is set to “On”, or “TV Con- tro” is set to “On” and you’re listening through your TV’ speakers (> 16), if you turn up the AV receivers volume con- ol, the sound will be output by the AV receiver's front left and right speakers. To stop the AV receivers speakers producing sound, change the settings, change your TV's settings, or turn down the AV receiver's volume.

ÆLipSync » Disable: HDMI lip sync disabled. » Enable: HDMI lip sync enabled. The AV receiver can be set to automatically correct any delay between the video and the audio, based on the data from the connected monitor.

+ This function works only if your HDMI-compatible TV supports HDMI Lip Sync.

+ You can check the amount of delay being applied by the HDMI Lip Sync function on the A/V Sync screen.

HDMI Control (RIHD) > of: RIHD disabled. »On: RIHD enabled. This function allows RIHID-compatible components connected via HDMI to be controlled with the AV receiver (2 60 to 62).

+ When set to “On” and close the menu, the name of connected RIHD-compatible components and “RIHD On” are dis- played on the AV receiver.

“Search...” — “(name)” — “RIHD On”

When the AV receiver cannot receive the name of the compo- nent, itis displayed as “Player‘” or “Recorder”, etc (“*” means the number of two or more component).

When set to “Of” and close the menu, “RIHD Off” are dis- played on the AV receiver.

“Disconnect” —> “RIHD Off

+ When an RIHD-compatible component is connected 10 the

AV receiver via the HDMI cable, the name of the connected

component is displayed on the AV receiver display. For example,

while you are watching TV broadcasting, if you operate a

Blu-ray Disc/DVD player (being powered on) by the remote

control of the AV receiver, the name of the Blu-ray Disc/DVD

player is displayed on the AV receive.

Set to “Off” when a connected piece of equipment is not com-

patible or it is unclear whether the equipment is compatible or

+ If movement is unnatural when set to “On”, change the setting to “Of”.

+ Refer to the connected components instruction manual for details.

B Audio Return Ch (ARC) > Off: Select “Off” if you don't want to use audio return channel (ARC) function. » Auto: The audio signal from your TV tuner can be sent to the HDMI OUT of the AV receiver. Audio return channel (ARC) function enables an HDMI 14 capable TV to send the audio stream to the HDMI OUT of the AV receiver. To use this function, you must select the TV/CD input selector and your TV must support ARC function.

+ The “Audio Return Ch” setting can be set only when the above “HDMI Control” setting is set 10 “On”.

+ This setting is set to “Auto” automatically when the above “HDMI Control” is set to “On” first time.

M Power Control > Off: Power Control disabled. > On: © Power Control enabled. To link the power functions of FRIHID-compatible com- ponents connected via HDMI, select “On”. This setting is set to “On” automatically when the above “HDMI Control” is set to “On” first time.

+ The “Power Control” setting can be set only when the above

“HDMI Control” setting is set to “On”.

HDMI power control only works with FIHD -compatible

components that support it and may not work properly with

some components due to their settings or compatibility.

+ When set to “On”, power consumption will increase.

When set to “On”, regardless of whether the AV receiver is On

or in Standby, both audio and video stream from an HDMI input

will be output to the TV or other components via HDMI connec- tion (HDMI pass through function). When the HDMI pass through function activates in standby mode, HDMI THRU indi- cator will light.

+ The power consumption during standby mode will increase dur- ing the HDMI pass through function: however in the following cases, the power consumption can be saved 1. The TV is in standby mode.

2. You are watching a TV program.

+ Refer to the connected components instruction manual for

MTV Control > Off: TV Control disabled. »On: TV Control enabled. Set to “On” when you want to control the AV receiver from an FRIHID -compatible TV that is connected to HDMI.

+ Do not assign the component connected with the HDMI input to the TV/CD selector when you set “TV Control” setting to “On”. Otherwise, appropriate CEC (Consumer Electronics Control) operation is not guaranteed.

+ Sec to “Off” when the TV is not compatible or when it is unclear whether the TV is compatible or not.

+ The “TV Control” setting can be set only when the above “HDMI Control” and “Power Control” settings are both set to “On”.

+ Refer to the connected components instruction manual for details.

After changing the settings of the “HDMI Control”, “Audio Return Ch”, “Power Control”, or “TV Con- trol”, turn off the power to all connected pieces of equipment and then turn them on again. Refer to the User’s Manual for all connected pieces of equipment.

Using the À Settings

You can change various audio settings by pressing AUDIO.

These settings are disabled when: + a pair of headphones is connected, or

+ the “Audio TV OUT” setting is set to “On” ( 40) and an input selector other than HDMI is selected.

À Press RECEIVER followed by AUDIO.

2 Use A/Y to select an item, and </»> to change the setting. Repeat this step for the other settings.

Tone Control Settings

You can adjust the bass and treble for the front speakers, except when the Direct listening mode is selected.

mBass »-10 dB to 0 dB to +10 dB in 2 dB steps You can boost or cut low-frequency sounds output by the front speakers.

mTreble »-10 dB to 0 dB to +10 dB in 2 dB steps You can boost or cut high-frequency sounds output by the front speakers.

+ To bypass the bass and treble tone circuits, select the Direct lis- tening mode.

+ This procedure can also be performed on the AV receiver by using its TONE, —, and + buttons ( 43).

You can adjust the volume of each speaker while listening 10 an input source.

These temporary adjustments are cancelled when the AV receiver is set to Standby. To save the setting you made here, go to “Level Cal (Level Calibration)” (+ 36) before setting the AV receiver to Standby.

H Subwoofer »-15 dB to 0 dB to +12 dB in 1 dB steps

B Center »-12 dB to 0 dB to +12 dB in 1 dB steps

+ You cannot use this function while the AV receiver is muted. + Speakers that are set to “No” or “None” in the “Sp Config (Speaker Configuration)" (+ 85) cannot be adjusted.

CinemaFILTER B Dynamic EQ E Dyn Vol (Dynamic Volume) See “Dynamic EQ” and “Dynamic Volume” of “Audio Adjust” (2 37).

With the Late Night function, you can reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels — ideal for watching movies late at night when you don’t want to disturb anyone.

E Late Night For Dolby Digital and Dolby Digital Plus sources, the options are: » Off. © Late Night function off. » Low: Small reduction in dynamic range. » High: Large reduction in dynamic range. For Dolby TrueHD sources, the options are: » Auto: © The Late Night function is set to “On” or “Off” automatically. » of: Late Night function off. » On: Late Night function on.

+ The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.

+ The Late Night function can be used only when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.

+ The Late Night function is set to “OfF' when the AV receive is set to Standby. For Dolby TrueHD sources, it will be set to “Auto”.

The Music Optimizer function enhances the sound quality of compressed music files. Use it with music files that use “lossy” compression, such as MP3.

BE M.Optimizer »Off: © Music Optimizer off. On: Music Optimizer on.

+ The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 KHz and ana- log audio input signals. The Music Optimizer is disabled when the Direct listening mode is selected.

+ The setting is stored individually for each input selector.

+ The M.Opt indicator will light ( 8).

With the CinemaFILTER, you can soften overly bright movie soundtracks, which are typically mixed for repro- duction in a movie theater.

CinemaFILTER can be used with the following listening modes: Dolby Digital, Dolby Digital EX, Dolby Digital Plus, TrueHD, Dolby Pro Logic IIx Movie, Dolby Pro Logic II Movie, Dolby Pro Logic Iz Height, Multichan- nel, DTS, DTS-ES, DTS Neo:6 Cinema, DTS 96/24, Neo:6, DTS-HD High Resolution, DTS-HD Master and DTS Express.

B Cinema Fltr » Of: © CinemaFILTER off. » On: CinemaFILTER on.

+ The CinemaFILTER may not work when used with certain input sources.

You can set priorities of audio output when there are both digital and analog inputs.

> ARC: The audio signal from your TV tuner can be sent to the HDMI OUT of the AV receiver."1 With this selection the TV’s audio can be automati- cally selected as a priority among other assignments.

> HDMI: This can be selected when HDMI IN has been assigned as an input source. If both HDMI (HDMI IN) and digital audio inputs (COAXIAL IN or OPTI- CAL IN) have been assigned, HDMI input is auto- matically selected as a priority.

> COAX: This can be selected when COAXIAL IN has been assigned as an input source. If both coaxial and opti- cal inputs have been assigned, coaxial input is auto- matically selected as a priority.

>OPT: This can be selected when OPTICAL IN has been assigned as an input source.

} Analog: The AV receiver always outputs analog signals.

+ The setting is stored individually for each input selector.

+ This setting can be made only for the input source that is assigned as HDMI IN, COAXIAL IN, or OPTICAL IN. If both HDMI (HDMI IN) and digital audio inputs (COAXIAL IN or OPTICAL IN) are assigned, HDMI input will be selected as a priority by setting to “ARC” (> 40). To select the digital audio input, see “Digital Audio (Digital Audio Input)” (> 34).

“1 You can select “ARC? if you select the TV/CD input selector.

ot select it if you've selected “OfT” in the “Audio

When using progressive scanning on your Blu-ray Disc/ DVD player, you may find that the picture and sound are out of sync. With this setting, you can correct this by delaying the audio signals.

HA/V Sync » 0 ms to 100 ms in 10 ms steps

+ AIV Sync is disabled when the Direct listening mode is used with an analog input source. + The setting is stored individually for each input selector.

Digital Input Signal Formats

The digital input signal formats are available only for the input sources that you have assigned a digital input jack ( 34).

Normally, the AV receiver detects the signal format auto- matically. However, if you experience either of the follow- ing issues when playing PCM or DTS material, you can manually set the signal format to PCM or DTS.

+ Ifthe beginnings of tracks from a PCM source are ut of, try setting the format 10 PCM.

+ If noise is produced when fast forwarding or reversing a DTS CD, try setting the format to DTS.

+ The setting is stored individually for each input selector.

+ The setting will be reset to “Auto” when you change the setting in the “Audio Selector” ( 42).

Press RECEIVER, and then press and hold AUDIO for about 8 seconds.

2 While “Auto” lights (about 3 seconds), press > to select: » Auto: The format is detected automatically. If no dig- ital input signal is present, the corresponding analog input is used instead. > PCM: Only 2-channel PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will flash and noise may also be produced. >DTS: Only DTS (but not DTS-HD) format input sig- nals will be heard. If the input signal is not DTS, the DTS indicator will flash and there will be no sound.

Adjusting the Bass & Treble

You can adjust the bass and treble for the front speakers, except when the Direct listening mode is selected.

Ÿ Press TONE on the AV receiver repeatedly to select either “Bass” or “Treble”.

2 Use TONE -/+ on the AV receiver to adjust.

mTreble See “Bass” and “Treble” of “Tone Control Settings” @ 41).

+ To bypass the bass and treble tone circuits, select the Direct lis- tening mod

+ This procedure can also be performed on the remote controller by using AUDIO (> 41).

In addition to your main listening room, you can also enjoy playback in the other room, or as we call Zone 2. And, you

can select a different source for each room.

There are two ways you can connect Zone 2 speake: 1. Connect them directly to the AV receiver. 2. Connect them to an amp in Zone 2.

Connecting Your Zone 2 Speakers Directly to the AV receiver

This setup allows 5.1-channel playback in your main room and 2-channel stereo playback in Zone 2, with a different source in each room. This is called Powered Zone 2, as the Zone 2 speakers are powered by the AV receiver. Note that when Powered Zone 2 is turned off, you can enjoy 7.1- channel playback in your main room.

To use this setup, you must set the “Front High/ Zone?” setting to “Zone2” (> 45).

Hookup + Connect your Zone 2 speakers to the AV receiver's FRONT HIGH OR ZONEZ2 L/R speaker terminals.

+ With this setup, the Zone 2 volume is controlled by the AV receiver.

Connecting Your Zone 2 Speakers to an Amp in Zone 2

This setup allows 7.1-channel playback in your main lis- tening room and 2-channel stereo playback in Zone 2, with a different source in each room.

+ Use an RCA audio cable to connect the AV receiver's ZONE 2 LINE OUT L/R jacks to an analog audio input on your Zone 2 amp.

+ Connect your Zone 2 speakers to the speaker terminals on your Zone 2 amp.

_ AV receiver PS1 o © o

Receiver integrated amp

+ The Zone 2 volume must be set on the Zone 2 amp.

g the Powered Zone 2

If you've connected your Zone 2 speakers to the AV

receiver, as explained in “Connecting Your Zone 2 Speak-

ers Directly to the AV receiver” (2 44), you must set the Front High/Zone2” setting to “Zone2”.

Hardware À Press RECEIVER followed by SETUP. The setup menu appears.

2 Use A! to select “Hardware”, and then press ENTER.

3 Use A/Y to select “Front High/Zone2”, and <, to select “Zone2”. } Zone2: FRONT HIGH OR ZONEZ L/R speaker ter- minals activated (Powered Zone 2 enabled).

+ When “Zone?” is selected and Zone 2 turned on, the Zone 2 speakers connected to the FRONT HIGH OR ZONEZ2 L/R speaker terminals output sound, but the surround back or front high speakers connected to the SURR BACK OR FRONT HIGH L/R speaker terminals do not. When “Zone2 and Zone 2 turned off, the surround back or front high spea output sound as normal.

When the “Front High/Zone2” setting is set to “Zone2” and the input selector of Zone 2 is selected, power consumption on standby mode slightly increases.

section explains how to turn Zone 2 on and off, how 10 select an input source for Zone 2, and how to adjust the volume for Zone 2.

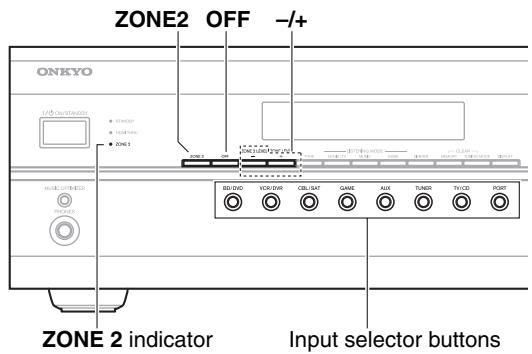

Controlling Zone 2 from the AV receiver

=”, ZONE 2 indicator

Input selector buttons

7 To turn on Zone 2 and select an input source, press ZONE 2 on the AV receiver followed by an input selector button within 8 seconds.

Zone 2 turns on, the ZONE 2 indicator lights.

To select AM or FM press the TUNER input selector button repeatedly.

To select the same source as that of the main room, press ZONE 2 repeatedly until “Z2 Selector: Source” appears on the display.

+ You cannot select different AM or FM radio stations for your main room and Zone 2. The same FM/AM radio sta- tion will be heard in each room.

2 To turn off Zone 2, press OFF on the AV receiver.

+ While Powered Zone 2 is being used, listening modes that require surround back and front high speakers (6.1/7.1), such Dolby Pro Logic I1z Height, Dolby Digital EX, and DTS-ES are unavailable.

+ When the “Front High/Zone2” setting is set to “Zone2” and the input selector of Zone 2 is selected, power consumption on standby mode slightly increases.

Controlling Zone 2 with the Remote Controller

À Press ZONEZ2, and then press ON/STANDBY. Zone 2 turns on, the ZONE 2 indicator lights.

2. To select an input source for Zone 2, press ZONE2, followed by an INPUT SELECTOR. To select AM or FM press the TUNER input selector repeatedly.

+ You cannot select different AM or FM radio stations for your main room and Zone 2. The same FM/AM radio sta- tion will be heard in each room.

To turn off Zone 2, press ZONEZ followed by ON/ STANDBY.

+ To control Zone 2, you must press the remote controller s ZONEZ first

Adjusting the Volume for Zone 2

B Operating with the remote controller

2 Use VOL 4/Y to adjust the volume.

B Operating on the AV receiver

7 Press ZONE 2 (the ZONE 2 indicator and Zone 2 selector on the display flashes).

2 Use -/+ within 8 seconds to adjust the volume.

If your Zone 2 speakers are connected to a receiver or inte- grated amp in Zone 2, use its volume control to adjust the volume.

B Operating with the remote controller

Press ZONE2 followed by MUTING.

Tip + To unmute, + Press ZONEZ followed by MUTING again.

+ Only analog input sources are output by the ZONE 2 LINE OUT and FRONT HIGH OR ZONE2 L/R speaker terminals. Digital input sources are not output. If no sound is heard when an input source is selected, check if its connected 10 an analog input.

+ While Powered Zone 2 is being used, listening modes that require surround back and front high speakers (6.1/7.1), such as Dolby Pro Logic I1z Height, Dolby Digital EX, and DTS-ES are unavailable.

+ While Zone 2 is on, FI functions will not work.

+ You cannot select different AM or FM radio stations for your main room and Zone 2. The same FM/AM radio station will be heard in each room. For example, if you have an FM station for the main room, that station will also be used in Zone 2.

+ Zones can also be unmuted by adjusting the volume.

Connecting an Onkyo Dock

© " “1 No. [Onkyo Dock Cable Note Page Œ] [UP-AI Dock (included) = + When UP-AI Dock that seated iPodis | (> 48) (Universal Port Option Dock) connected, the power consumption on standby mode slightly increases. + You can control your iPod when “PORT® is selected as the input source. [2] [RI Dock (Not included) Analog audio (RCA) + See the RI Dock's instruction manual |( 49)

for more information.

“1 To use RI (Remote Interactive), must make an analog audio connec- tion (RCA) between the AV receiver and the RI Dock.

Models sold are different depending on the region.

Using the Onkyo Dock

For the latest information on the Onkyo Dock compo- nents, see the Onkyo web site at: http:/www.onkyo.com

Before using the Onkyo Dock components, update your iPod with the latest software, available from the Apple web site.

With the supplied UP-A1 Dock, you can easily play the music, photo, or movie stored on your Apple iPod through the AV receiver and enjoy great sound.

You can use the AV receiver’s remote controller to operate your iPod.

E Compatible iPod models Made for:

+ iPod touch (2nd generation) + iPod touch (1st generation) + iPod classic

+ iPod (5th generation)

+ iPod (4th generation)

+ iPod nano (5th generation) + iPod nano (4th generation) + iPod nano (3rd generation) + iPod nano (2nd generation) + iPod nano (1st generation) + iPod mini

B Putting Your iPod in the Dock

1. Turn on the AV receiver, and select the PORT selector.

2. Align your iPod with the Dock connector, and carefully place your iPod in the slot, as shown.

Remove case before inserting

B Adjusting the Adapter

The adapter needs to be adjusted to match your particular iPod. If there’s a gap between the back of your iPod and the adapter, turn the adapter counterclockwise to close the gap. Turning the adapter counterclockwise moves it for- ward. Turning it clockwise moves it backward.

+ Make sure that the output level of the AV receiver is set 10 mini- mum.

+ To prevent damage 10 the dock connector, don't twist your iPod when inserting or removing it, and be careful not to knock over the dock while your iPod is inserted.

+ Do not take off your iPod from the Dock when you play back the

, photo, or movie stored on your iPod.

+ Don’t use the UP-A1 with any other iPod accessories, such as FM transmitters and microphones, because they may cause a malfunction

+ Icis recommended that you update your iPod software before using it with this unit. The updater for the iPod software is avail- able at the Apple website.

The AV receiver may take several seconds to startup, so you might not hear the first few seconds of the first song.

If you start iPod playback while the AV receiver is on Standby, the AV receiver will automatically turn on and select your iPod as the input source.

If you start iPod playback while listening to another input source, the AV receiver will automatically select your iPod as the input source.

Using the AV receiver’s Remote Controller

You can use the AV receiver’s remote controller to control basic iPod functions ( 49).

+ Functionality depends on your iPod model and generation.

+ Before selecting a different input source, stop iPod playback 10 prevent the AV receiver from selecting the iPod input source by mistake.

+ If any accessories are connected to your iPod, the AV receiver may not be able to select the input source properly.

+ When connecting UP-A1 Dock to the radio tuner UP-HTI (North American models)/UP-DTI (Asian models) with AUTO selected by the tuner's Mode Selector switch, you can switch the input source between UP-A1 Dock and the tuner, by pressing PORT repeatedly on the front panel.

+ While your iPod is in the UP-A1 Dock, its volume control has no effect. If you adjust your iPod models volume control while its in the UP-A1 Dock, make sure it's not set 100 high before you reconnect your headphones.

+ The Auto Power On function will not work if you set your iPod in the UP-A1 Dock while it is playing.

+ When Zone 2 is turned on, you can’! use Auto Power On and Direct Change functions.

B Using Your iPod models Alarm Clock

You can use your iPod models Alarm Clock function to automatically turn on your iPod and the AV receiver at a specified time. The AV receiver’s input source will auto- matically be set to the PORT selector.

+ To use this function, your iPod must be in the UP-A1 Dock, and the UP-A1 Dock must be connected to the AV receiver.

+ This function only works when the Standard mode is set to On.

+ When you use this function, be sure to set the AV receiver's vol- ume control to a suitable level.

+ When Zone 2 is turned on, you can’t use this function.

+ You cannot use this function for sound effects on your iPod.

B Charging Your iPod models Battery

The UP-A1 Dock charges your iPod models battery while your iPod is in the UP-A1 Dock and connected to the UNIVERSAL PORT jack on the AV receiver. While your iPod is seated in the UP-A1 Dock, its battery will be charged when the AV receiver is set to “On” or “Standby”.

+ When UP-AI Dock that seated iPod is connected, the power consumption on standby mode slightly increases.

Status Messages + PORT Reading The AV receiver is checking the connection with the dock. + PORT Not Support The AV receiver do not support the connected dock. + PORT UP-A1 UP-AI Dock is connected.

+ The AV receiver displays the message “UP-A1" for several sec- onds after recognizing the UP-A1.

+ When the status message is not displayed on the AV receiver's display, check the connection to your iPod.

RI Dock is sold separately. For supported iPod models, see the instruction man- ual of the RI Dock.

With the RI Dock, you can easily play the music stored on your Apple iPod through the AV receiver and enjoy great sound, and watch iPod slideshows and videos on your TV. In addition, the onscreen display (OSD) allows you to view, navigate, and select your iPod’s contents on your TV, and with the supplied remote controller, you can con- trol your iPod from the comfort of your sofa. You can even use the AV receiver’s remote controller to operate your iPod.

+ Enter the appropriate remote control code before using the AV. receiver’s remote controller for the first time (> 51).

+ Connect the RI Dock to the AV receiver with an FI cable @ 47.

+ Set the RI Dock’s RI MODE switch to “HDD” or “HDD/ DOCK'

+ Set the AV receiver’s Input Display to “DOCK” (> 23).

When you turn on the AV receiver, the RI Dock and iPod turn on automatically. In addition, when the RI Dock and iPod are on, the AV receiver can be turned on by pressing ON/STANDBY.

If you press the remote controller’s m while the AV receiver is on Standby, the AV receiver will automatically turn on, select your iPod as the input source, and your iPod will start playback.

Direct Change If you start iPod playback while listening to another input source, the AV receiver will automatically switch to the input to which the RI Dock is connected.

Other Remote Controllers

You can use the remote controller that came with the AV receiver to control other iPod functions. The available functionality depends on the AV receiver.

If you use the Alarm function on your iPod to start play- back, the AV receiver will turn on at the specified time and select your iPod as the input source automatically.

+ Linked operations do not work with video playback or when the alarm is set to play a sound.

+ If you use your iPod with any other accessories, iPod playback detection may not work.

+ This function only works when the Standard mode is set 10 On.

+ Use the AV receivers volume control to adjust the playback volume.

+ While your iPod is inserted in the RI Dock, its volume control has no effect.

+ If you do adjust the volume control on your iPod while its inserted in the RI Dock, be careful that it's not set 100 loud

before you reconnect your earphones.

Controlling Your iPod

By pressing REMOTE MODE that's been programmed with the remote control code for your Dock, you can con- trol your iPod in the Dock with the following buttons.

See “Remote Control Codes for Onkyo Components Con-

nected via RE” for details on entering a remote control code (> 51).

See the Docks instruction manual for more information. BUP-A1 Dock

PORT is preprogrammed with the remote control code for controlling a Dock with Universal Port connector.

You can control your iPod when “PORT” is selected as the input source.

Without the RI Control

You must enter a remote control code 82990 first (> 51).

+ Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.

+ ON/STANDBY may not work with a remote control code (without 1). In this case, make an RI connection and enter a remote control code 81993 (with R1).

In this case, make an RI connection and enter a remote control code 81993 (with RD). + Set the AV receiver’s Input Display to “DOCK” (+ 23).

Press the appropriate REMOTE MODE first. Onkyo Dock zx ë s DO —© £ 8 Buttons 5 € ® |ON/STANDBY 1/0 VA] D @ |TOP MENU 5 © |A/v/<> ENTER v v PLAYLIST <> va v ® © M pe, | v al @ © © |REPEAT v v RANDOM v v ® PLAY MODE va Va nn 0) © |DISPLAY‘6 ve v @ |[MUTING v v ALBUM +/- v v © |VOLA/T v v @ |MENU v @ |RETURN v

+ With some iPod models, generations and RI Docks, certain buttons may not work as expected. + For detailed operation of the iPod, please refer to the instruction manual of RI Dock.

“1° This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Your iPod may not respond the first time you press this button, in which case you should press it again.

This is because the remote controller transmits the On and Standby commands alternately, so if your iPod is already on, it will remain on when the remote controller transmits an On command.

Similarly, if your iPod is already off, it will remain off when the remote controller transmits an Off command.

Press DISPLAY 10 change the following modes:

Nothing is displayed on your TV and you navigate and select your contents by using your iPod models display.

Only this mode can playback the video.

Playlists (artists, albums, songs, and so on) are displayed on your TV, and you can navigate and select your music while looking at your TV.

In Extended mode (see *2), PLAYLIST is used as the page jump button.

With the page modes, you can quickly locate your favorite songs even when your song lists, artist lists, and so on are very long. Resume mode

With the Resume function, you can resume playback of the song that was playing when you removed your iPod from the RI Dock or changed the OSD mode to Off.

TOP MENU works as a Mode button when used with a DS-A2 RI Dock.

“6 DISPLAY turns on backlight for 30 seconds.

+ In Extended mode (see “2), the playback will be continued even if the AV receiver is turned off. + In Extended mode (see “2), you cannot operate your iPod directly.

+ In Extended mode (see “2), it may take some time to acquire the contents.

+ In Extended mode (see “2), video contents can not display on your TV.

You can use the AV receiver’s remote controller (RC-764M) to control your other AV components. This section explains how to enter the remote control code {with the default underlined) for a component that you want to control: DVD, TV, CD, etc.

Preprogrammed Remote Control Codes

The following REMOTE MODE are preprogrammed with remote control codes for controlling the components listed. You do not need to enter a remote control code to control these components.

For details on controlling these components, see the pages indicated.

BD/DVD Onkyo Blu-ray Disc player (> 52) TV/CD Onkyo CD player ( 52) PORT Onkyo Universal Port Option (> 49)

Entering Remote Control Codes

You’1l need to enter a code for each component that you want to control.

À Look up the appropriate remote control code in the separate Remote Control Codes list. The codes are organized by category (e.g.. DVD player, TV, etc.).

2 While holding down REMOTE MODE to which you want to enter a code, press and hold down DISPLAY until the remote indicator lights (about 3 seconds).

+ Remote control code: and ZONE 2.

+ Only TV remote control codes can be entered for TV.

+ Apart from RECEIVER, TV, and ZONE 2, remote con- trol codes from any category can be entered for REMOTE MODE. However, these buttons also work as input sel tor buttons (> 22), so choose a REMOTE MODE that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose TV/CD when entering its remote control code.

3 Within 30 seconds, use the number buttons to enter the 5-digit remote control code. The remote indicator flashes twice.

cannot be entered for RECEIVER If the remote control code is not entered success- fully, the remote indicator will flash once slowly.

Remote Control Codes for Onkyo

Components Connected via RI Onkyo components that are connected via fRI are con- trolled by pointing the remote controller at the AV

receiver, not the component. This allows you to control components that are out of view, in a rack, for example.

À. Make sure the Onkyo component is connected with an RI cable and an analog audio cable (RCA).

See “Connecting Onkyo RI Components” for details (> 18).

2 Enter the appropriate remote control code for REMOTE MODE. + BD/DVD »31612: Onkyo DVD player with RI + TV/CD » 71327: Onkyo CD player with RI » 42157: Onkyo cassette tape deck with RI + PORT » 81993: Onkyo Dock See the previous section for how to enter remote control codes.

+ When using a cassette tape deck connected via MI, press and hold TV/CD to switch to TAPE.

3. Press REMOTE MODE, point the remote control- ler at the AV receiver, and operate the component.

If you want to control an Onkyo component by pointing the remote controller directly at it, or you want to control an Onkyo component that's not connected via RE, use the following remote control codes: + BD/DVD » 30627: Onkyo DVD player without RI + TV/CD » 71817: Onkyo CD player without RI » 11807:

If you want to control an Onkyo component by pointing the remote controller directly at it, use the following remote control codes: » 32900: Onkyo Blu-ray Disc player » 32901: Onkyo HD-DVD player » 70868: Onkyo MD recorder » 71323: Onkyo CD recorder > 82990: Onkyo Dock

+ If you connect an cassette tape deck to the TV/CD IN jack, or connect an RI Dock to the TV/CD IN or VCR/DVR IN or

GAMEIN jacks, for RI to work properly, you must set the Input Display accordingly (> 28).

Resetting REMOTE MODE Buttons

You can reset a REMOTE MODE t its default remote control code.

À. Wie holding down REMOTE MODE that you want to reset, press and hold down AUDIO until the remote indicator lights (about 3 seconds).

2. Within 30 seconds, press REMOTE MODE again. The remote indicator flashes twice, indicating that the button has been reset.

Each of REMOTE MODE is preprogrammed with a remote control code. When a button is reset, its pre- programmed code is restored.

Resetting the Remote Controller

You can reset the remote controller to its default settings.

1 While holding down RECEIVER, press and hold down AUDIO until the remote indicator lights (about 3 seconds).

2. Within 30 seconds, press RECEIVER again.

The remote indicator flashes twice, indicating that the remote controller has been reset.

Controlling Other Components

By pressing REMOTE MODE that's been programmed with the remote control code for your component, you can control your component as below.

For details on entering a remote control code for a differ- ent component (> 51).

Controlling a Blu-ray Disc/DVD Player, HD DVD Player or DVD Recorder

BD/DVD is preprogrammed with the remote control code for controlling a component that supports the RIHD. The component must be able to receive remote control commands via FRIHD and be connected to the AV receiver via HDMI.

Press the appropriate REMOTE W: Available buttons

MODE first. Components ; ë LE Ë LS ousraoet a &. 8.8 à oO E> TO 8 %e (5858 S Go 858 £ Sos 28.58% à [ae ss as Buttons È là a22/56888 ONSTANDEY ” vi Ov v [0] VO.INPUT, TV VOL AN @ GUIDE v vr TOP MENU v ANA v v vv v ®— ENTER SETUP v v vr pv @— P2r2 vo VV Vs © SEARCH wiehuilr| [ue REPEAT viril vel val RANDOM wizwiw2) je PLAY MODE Wiewviwe) je ® Number v LV vr LV 1109.0 Number #10 jt (1 vr pv @lDisPLay ver kr @|MUTING v tv vrkvrr OCEZ v tv ver DISC +/- v v ® @lPREVCH vr MENU v @|RETURN v tv vr @|auDio CAT AI v @ICLR v pv vkr kW

+ With some components, certain buttons may not work as expected, and some may not work at all.

“1° The RIHD function is not supported. The FIHLD sup- ported by the AV receiver is the CEC system control function of the HDMI standard.

‘2 These buttons functions as colored buttons or À, B, C, D but-

‘3 HA (Pause) functions as reverse playback.

+ See the “Controlling Your iPod” about the operation of iPod

If you have any trouble using the AV receiver, look for a solution in this section. If you can't resolve the issue your- self, contact your Onkyo dealer.

If you can't resolve the issue yourself, try resetting the AV receiver before contacting your Onkyo dealer.

To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press ON/ STANDBY. “Clear” will appear on the display and the AV receiver will enter Standby mode.

Note that resetting the AV receiver will delete your radio presets and custom settings.

RECEIVER To reset the remote controller to its factory defaults, while holding down RECEIVER, press and hold down AUDIO until the remote indicator lights (about 3 sec- onds). Within 30 seconds, press RECEIVER

The on-screen setup menus appear only on a TV that is connected to the HDMI OUT. If your TV is con- nected to the MONITOR OUT V or the COMPO- NENT VIDEO OUT, use the AV receiver’s display when changing settings.

B Can't turn on the AV receiver

Make sure that the power cord is properly plugged — into the wall outlet.

Unplug the power cord from the wall outlet, wait five — seconds or more, then plug it in again.

M The STANDBY indicator flashes red

The protection circuit has been activated. Remove — the power cord from the wall outlet immediately. Disconnect all speaker cables and input sources, and leave the AV receiver with its power cord discon- nected for 1 hour. After that, reconnect the power cord and set the volume to maximum. If the AV receiver stays on, set the volume to minimum, dis- connect the power cord, and reconnect your speakers and input sources. If the AV receiver turns off when you set the volume to maximum, disconnect the power cord, and contact your Onkyo dealer.

&There’s no sound, or it's very quiet

Make sure that the digital input source is selected 34 properly.

Make sure that all audio connecting plugs are pushed 15 in all the way.

Make sure that the inputs and outputs of all compo- nents are connected properly.

Make sure that the polarity of the speaker cables is 12 correct, and that the bare wires are in contact with

the metal part of each speaker terminal.

Make sure that the input source is properly selected. 22 Make sure that the speaker cables are not shorting. 12 Check the volume. The AV receiver is designed for — home theater enjoyment. It has a wide volume range, allowing precise adjustment

While a pair of headphones is connected to the 23 PHONES jack, no sound is output by the speakers.

If there's no sound from a DVD player connected 10 — an HDMIIN, check the DVD players output set-

tings, and be sure to select a supported audio format. Check the digital audio output setting on the con- — nected device. On some game consoles, such as

those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an — audio output format from a menu.

If your turntable uses an MC cartridge, you must — connect an MC head amp, or an MC transformer.

Make sure that none of the connecting cables are — bent, twisted, or damaged.

Not all listening modes use all speakers. 29

Specify the speaker distances and adjust the individ- 36 ual speaker levels

Make sure that the speaker setup microphone is not — still connected.

The input signal format is set to PCM or DTS. Set it 43 to Auto.

BH Only the front speakers produce sound

When the Stereo or Mono listening mode is selected, — only the front speakers and subwoofer produce sound.

Check the Speaker Configuration. 35

Only the center speaker produces sound

H Noise can be heard

If you use the Dolby Pro Logic IIx Movie, Dolby Pro — Logic IIx Music, or Dolby Pro Logic IIx Game lis- tening mode with a mono source, such as an AM

radio station or mono TV program, the sound is con- centrated in the center speaker.

Make sure the speakers are configured correctly. 35

&The surround speakers produce no sound

When the T-D (Theater-Dimensional), Stereo or — Mono listening mode is selected, the surround

speakers produce no sound.

Depending on the source and current listening mode, — not much sound may be produced by the surround speakers. Try selecting another listening mode.

Make sure the speakers are configured correctiy. 35

&The center speaker produces no sound

When the Stereo or Mono listening mode is selected, — the center speaker produces no sound.

Make sure the speakers are configured correctly. 35

&The front high or surround back speakers produce no sound

Depending on the current listening mode, no sound 29 may be produced by the front high or surround back speakers. Select another listening mode.

Not much sound may be produced by the front high — or surround back speakers with some sources.

Make sure the speakers are configured correctly. 35 While Powered Zone 2 is being used, playback inthe 44 main room is reduced to 5.1-channels and the front

high or surround back speakers produce no sound.

&The subwoofer produces no sound

Using cable ties to bundle audio cables with power — cord, speaker cables, and so on may degrade the audio performance, so don’t do it

An audio cable may be picking up interference. Try — repositioning your cables.

m The Late Night function doesn't work

Make sure the source material is Dolby Digital, 42 Dolby Digital Plus, and Dolby TrueHD.

When DTS program material ends and the DTS bit — stream stops, the AV receiver remains in DTS listen-

ing mode and the DTS indicator remains on. This is

to prevent noise when you use the pause, fast for-

ward, or fast reverse function on your player. If you switch your player from DTS to PCM, because the

AV receiver does not switch formats immediately,

you may not hear any sound, in which case you

Should stop your player for about three seconds, and then resume playback.

With some CD and LD players, you won’t be able to — playback DTS material properly even though your player is connected to a digital input on the AV

receiver. This is usually because the DTS bitstream

has been processed (e.g.. output level, sampling rate,

or frequency response changed) and the AV receiver doesn't recognize it as a genuine DTS signal. In such cases, you may hear noise.

When playing DTS program material, using the — pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not

æ The beginning of audio received by an HDMI IN can’t be heard

When you play source material that contains no — information in the LFE channel, the subwoofer pro- duces no sound

Make sure the speakers are configured correctly. 35

&There’s no sound with a certain signal format

Check the digital audio output setting on the con — nected device. On some game consoles, such as

those that support DVD, the default setting is off.

With some DVD-Video discs, you need to select an — audio output format from a menu.

Depending on the input s cannot be selected.

al, some listening modes 29-32

H Can't get 6.1/7.1 playback

If no surround back speakers or front high speakers —

are connected, or the Zone 2 speakers are being,

used, 6.1/7.1 playback is not possible.

You can not always select all of the listening modes, 29-32 depending on the number of the speakers connected.

M The volume cannot be set to 79

Check to see if a maximum volume has been set. 22

Since it takes longer to identify the format of an — HDMI signal than it does for other digital audio sig- nals, audio output may not start immediately.

Make sure that all video connecting plugs are pushed_ 15 in all the way.

Make sure that each video component is properly 16,17, connected. 47 If the video source is connected to a component 17,34

video input, you must assign that input to an input selector, and your TV must be connected to COM- PONENT VIDEO MONITOR OUT.

If the video source is connected to a composite video 17 input, your TV must be connected to the correspond-

ing composite video output.

If the video source is connected to an HDMI input, 16,34 you must assign that input 10 an input selector, and

your TV must be connected to the HDMI OUT.

On your TV, make sure that the video input to which. —

the AV receiver is connected is selected.

There's no picture from a source connected to

an HDMI IN Reliable operation with an HDMI-to-DVI adapter is 61 not guaranteed. In addition, video signals from a PC are not guaranteed.

m The on-screen menus don't appear

On your TV, make sure that the video input to which. — the AV receiver is connected is selected.

When the AV receiver doesn't connect TV with — HDMI, onscreen menus are not displayed.

noisy, FM stereo reception is noisy, or the FM STEREO indicator doesn't light

Relocate your antenna. — Move the AV receiver away from your TV orcom — puter.

Listen to the station in mono 24

When listening to an AM station, operating the — remote controller may cause noise.

Passing cars and airplanes can cause interference. — Concrete walls weaken radio signals. =

If nothing improves the reception, install an outdoor — antenna.

m The remote controller doesn't work

Before operating this unit, be sure to press — RECEIVER.

Make sure that the batteries are installed withthe 5 correct polarity.

Install new batteries. Don’t mix different types of 5 batteries, or old and new batteries.

Make sure that the remote controller is not too far 5 away from the AV receiver, and that there's no obstruction between the remote controller and the

AV receiver's remote control sensor.

Make sure that the AV receiver is not subjected to — direct sunshine or inverter-type fluorescent lights. Relocate if necessary.

If the AV receive is installed in a rack or cabinet — with colored-glass doors, the remote controller may

not work reliably when the doors are closed.

Make sure you've selected the correct remote con- 10,52 roller mode.

When using the remote controller to control other — manufacturers’ AV components, some buttons may

not work as expected.

Make sure you've entered the correct remote control 51 code

Make sure to set the same ID on both the AV receiver 39 and remote controller.

E Can't control other components

If it's an Onkyo component, make sure that the RI 18 cable and analog audio cable are connected properly: Connecting only an RI cable won't work

Make sure you've selected the correct remote con- 10,52

If you”ve connected a cassette tape deck, to the TV/_ 23 CDN jack, or an RI Dock to the TV/CD IN or

GAME IN or VCR/DVR IN jacks, for the remote controller to work properly, you must set the display.

If you cannot operate it, you will need to enterthe 51 appropriate remote control code.

To control another manufacturer s component, point 51 the remote controller at that component.

To control an Onkyo component that's connected via 51 I, point the remote controller at the AV receiver.

Be sure to enter the appropriate remote control code

To control an Onkyo component that's not connected 51 via RI, point the remote controller at the compo-

nent. Be sure to enter the appropriate remote control code first.

The entered remote control code may not be correct. — If more than one code is listed, try each one.

Make sure your iPod is actually playing. —

Make sure your iPod is inserted properly in the = Dock.

Make sure the UP-A1 Dock is connected to the UNI- — VERSAL PORT jack on the AV receiver.

Make sure the AV receiver is turned on, the correct — input source is selected, and the volume is turned up.

Make sure the plugs are pushed in all the way. — Try resetting your iPod. =

Make sure that your iPod's TV OUT setting is setto — On.

Make sure the correct input is selected on your TV or — the AV receiver.

Some versions of the iPod do not output video. —

The AV receiver's remote controller doesn't control your iPod

Make sure your iPod is properly inserted in the — Dock. If your iPod is in a case, it may not connect properly to the Dock. Always remove your iPod

from the case before inserting it into the Dock.

The iPod cannot be operated while it's displaying the — Apple logo.

Make sure you've selected the right remote mode. —

When you use the AV receiver's remote controller, — point it toward your AV receiver.

When connecting UP-A1 Dock to the radio tuner — UP-HTI (North American models)/UP-DT1

{Asian models) with AUTO selected by the tuners Mode Selector switch, you can switch the input

source between UP-A1 Dock and the tuner, by press-

ing PORT repeatedly on the front panel.

If you still can't control your iPod, start playback by — pressing your iPod’s Play button. Remote operation should then be possible.

Try resetting your iPod. —

Depending on your iPod, some buttons may not — work as expected.

&The AV receiver unexpectedly selects your iPod MThe following sel

gs can be made for the

as the input source composite video inputs Always pause iPod playback before selecting a di — You must use the buttons on the unit to make these set- ferent input source. If playback is not paused, the tings.

Direct Change function may select your iPod as the 1. While holding down the input selector button for the input input source by mistake during the transition source that you want to set, press SETUP. between tracks. 2. Use 4» 10 change the setting.

3. Press the input selector button for the input source that you

Recordin, want to set when you”ve finished. + video Atenuation B Can't record This setting can be made for the BD/DVD, VCR/DVR, o: a ake sure ect 5 CBL/SAT, GAME, or AUX input. n your recorder, make sure the correct input is —

selected. If you have a games console connected to the composite video input, and the picture isn't very clear, you can

Video ATT-OFF: Video ATT:OFF: (default).

B There's no sound Video ATT:ON: Gain is reduced by 2 dB.

Only components connected to analog inputs can be — played in Zone 2. The AV receiver contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely &The sound changes when | connect my event that this happens, unplug the power cord from the headphones wall outlet, wait at least five seconds, and then plug it back in again.

When a pair of headphones is connected, the listen- — ing mode is set to Stereo, unless it already set 10 Stereo, Mono, or Direct.

Onkyo is not responsible for damages rental fees) due to unsuccessful recordings caused by the unit's malfunction. Before you record important data, make sure that the material will be recorded cor- etting on the “Audio Adjust” 36 rectly.

BHow do | change the language of a multiplex source

Before disconnecting the power cord from the wall out-

mThe AI functions don't work let, set the AV receiver to Standby.

To use RI, you must make an FI connection and an 18 analog audio connection (RCA) between the compo- nent and AV receiver, even if they are connected dig- itally.

&The functions Auto Power On/Standby and Direct Change don’t work for components

connected via RI These functions don't work when Zone 2 is turned — on.

Rated Output Power All channels:

130 watts minimum continuous power per channel, 6 ohm, at 1 kHz with a maximum total harmonie distortion of 1%

7 ch X 130 W at 6 ohms, 1 kH?, 1 ch driven EC)

Maximum Effective Output Power

THD (Total Harmonie Distortion)

(North American) 0.08% (Power Rated) (Asian)

Damping Factor 60 (Front, 1 kHz, 8 Q) Input Sensitivity and Impedance 200 mV/47 kQ (LINE) Output Level and Impedance 200 mV/2.2 kQ (REC OUT) 5 Hz- 100 kHz/+1 dB, -3 dB (DSP bypass) cs

+10 dB, 50 Hz (BASS) #10 dB, 20 kHz (TREBLE)

106 dB (LINE, IHF-A)

(North American) 6 Q - 16Q

(Others) 4Q-16Q Dynamic Power

Frequency Response Tone Control Characte:

Signal to No Speaker Impedance

5 Hz- 100 MHz/+0 dB, -3 dB Tuner Section

FM Tuning Frequency Range (North American) 87.5 MHz - 107.9 MHz (Others) 87.5 MHz - 108.0 MHz, RDS AM Tuning Frequency Range (North American) 530 kHz - 1710 KHz (Others) 522/530 kHz - 1611/1710 KHz Preset Channel 40

Power Supply (North American) AC 120 V. 60 Hz (Asian) AC 220 - 240 V, 50/60 Hz (North American) 4.9 A

(Asian) 500 W Stand-by Power Consumption

02W Power Consumption

Dimensions 435 mm X 151.5 mm X 328.5 mm CW>CH XD) 17-1/8" X 5-15/16" X 12-15/16" Weight (North American) 8.6 kg (19.0 lbs.) (Asian) 94 kg (20.7 lbs.) B HDMI Input IN LIN2,IN3,IN4 Output OUT Video Resolution 1080p

Audio Format Dolby True HD, DTS Master Audio, DVD-Audio, DSD 3D, Audio Return Channel, Deep Color,

xv.Color, LipSyne, CEC Supported

Specifications and features are subject to change without notice.

1ch Home Theater Speaker Package E Subwoofer (SKW-580) Type Bass-reflex Input sensitivity/Impedance 140 mV/20 kQ 290 W (Dynamic power)

power Frequency response 25 Hz-150 Hz Cabinet cap: 38 L (1.34 cubic feet)

Dimensions (W X H X D)

317.5 X 463 X 398 mm (2-12 X 18-14" X 15-11/16") (incl. projection)

Weight Audio Input Drivers unit Power supply

Crossover frequency 4 KHz Cabinet capaci 57 L (0.20 cubic feet) Dimensions (W X H X D)

155 X 375.5 X 170 mm

(6-1/8" X 14-13/16" X 6-11/16") nel. grille and projection)

Other Magnetic shielding

Type 2 Way Bass-reflex

Impedance 6Q Maximum input power 130 W Sensitivity 86 dB/W/m

Frequency response 65 Hz-50 kHz

Crossover frequency 6 kHz

Cabinet capacity 2.8 L (0.10 cubic feet) Dimensions (W X H X D)

420 X 115 X 121 mm (16-9/16" x 4-1/2" X 4-3/4") nel. grille and projection) 24 kg (5.31bs.)

8 cm (3-1/4") Cone (Woofer) X 2 2.5 em (1) Balanced dome (Tweeter)

Terminal Spring type color coded Keyhole slot 2

Other Magnetic shielding

E Surround/Surround Back Speaker (SKR-580/SKB-580)

Type Full-Range closed box

Impedance 6Q Maximum input power 130 W

Frequency response 80 Hz-20 KHz

Cabinet capacity 1.0 L (0.036 cubic feet)

Dimensions (W X H X D) 115 X 230 X 96 mm (-1/2" X 91/16" X 3-3/47) nel. grille and projection) 1.0 kg (22 1bs)

unit 8 cm (3-1/4") Cone

Dimensions (W X H X D) 83 X 33 X 74 mm (-14" X 1-5/16" X 2-15/16")

Weight 170 g (6 ounces)

Specifications and features are subject to change without notice.

About HDMI Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, Blu-ray Disc players/DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, and multichannel PCM).

The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface)"1, so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.)

The AV receiver uses HDCP (High-bandwidth Digital Content Protection)"2, so only HDCP-compatible components can display the picture.

The AV receiver’s HDMI interface is based on the following: Audio Return Channel, 3D, x.v.Color, Deep Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution

Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multichannel PCM Supported Audio Formats

+ Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio)

Your Blu-ray Disc player/DVD player must also support HDMI output of the above audio formats.

About Copyright Protection

The AV receiver supports HDCP (High-bandwidth Digital Content Protection)"2, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.

DVI (Digital Visual Interface): The digital display interface standard set by the DDWG'3 in 1999. HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. Is designed to protect video content and requires a HDCP-compatible device to display the encrypted video.

DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group's objective is to address the industry”s requirements for a digital connectivity specification for high-performance PCS and digital displays.

+ The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you'll need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

+ The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there”s no sound from a component connected via HDMI, check its setup. Refer to the connected components instruction manual for details.

Using an RIHD-compatible TV, Player, or Recorder

RIHD, which stands for Remote Interactive over HDMI, is the name of the system control function found on Onkyo components. The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however, opera- tion with components other than FR1HD-compatible components cannot be guaranteed.

B About RIHID-compatible components

The following components are FIHID-compatible. (As

of February 2010) See the Onkyo web site for latest infor-

+ Onkyo and Integra RIHD-compatible players

+ Panasonic VIERA Link compatible players and record- ers (only when used together with Panasonic VIERA Link compatible TV)

+ Toshiba REGZA-LINK compatible players and record- ers (only when used together with Toshiba REGZA- LINK compatible TV)

+ Sharp players and recorders (only when used together with Sharp TV)

Models other than those mentioned above may have some interoperability if compatible with CEC which is part of the HDMI Standard, but operation cannot be guaranteed.

+ Do not connect the FIHID -compatible component more than the following number to the HDMI input terminal so that the linked operations work properly.

“Blu-ray Disc/DVD player is up to three.

—Blu-ray Disc recorder/DVD recorder/Digital Video Recorder is up to three.

-Cable/Satellite Set-top box is up to four.

+ Do not connect the AV receiver to the other AV receiver/AV

When the FIHD -compatible component more than the

above-mentioned is connected, the linked operations are not

E Operations that can be performed with R1HID

For RIHD-compatible TV The following linked operation is possible by connecting

the AV receiver to an FIHD-compatible TV.

+ The AV receiver will enter Standby mode when the power of the TV is turned to Standby.

+ You can set on the menu screen of the TV to either out- put the audio from the speakers connected to the AV receiver, or from the speakers of the TV.

+ Itis possible to output the video/audio from the antenna or from the input jack of the TV from the speakers con- nected to the AV receiver. (A connection such as optical digital cable or similar is required above the HDMI cable.)

+ Input to the AV receiver can be selected with the remote controller of the TV.

+ Operations such as volume adjustment or similar for the AV receiver can be performed from the remote controller of the TV.

For RIHID-compatible players/recorders

The following link operation is possible by connecting the

AV receiver to an FRIHD-compatible player/recorder.

+ When the playback is started on the player/recorder, input of the AV receiver will switch to the HDMI input of the player/recorder that is playing back.

+ Operation of the player/recorder is possible with the remote controller supplied with the AV receiver.

Not all functions may operate depending on the model.

Æ How to connect and setup

7 Confirm the connecting and setting.

1. Connect the HDMI OUT jack to the HDMI input jack of the TV.

Blu-ray Disc/DVD player, etc.

DIGITAL AUDIO HDMI connection connection (OPTICAL)

2. Connect the audio output from the TV to the OPTICAL IN 2 jack of the AV receiver using an optical digital cable.

+ When the audio return channel (ARC) function is used with TV for HDMI 1.4, it should not be this connection @ 40).

3. Connect the HDMI output of the Blu-ray Disc/

DVD player/recorder to the HDMI IN 1 jack of the AV receiver.

+ Itis necessary to assign the HDMI input when connecting the Blu-ray Disc/DVD player/recorder to other jacks {2 34). Do not assign the components connected to the HDMI IN to the TV/CD input at this time. Appropriate CEC (Consumer Electronics Control) operation can not be guaranteed.

3] Confirm the settings.

1. Turn on the power for all connected components. 2. Turn off the power of the TV, and confirm that the power of the connected components is turned off automatically with the link operation.

Turn on the power of the DVD player/recorder.

4. Start playback of the DVD player/recorder, and confirm the following.

+ The power of the AV receiver is turned on automat- ically, and input with the DVD player/recorder connected is selected.

+ The power of the TV is turned on automatically, and input with the AV receiver connected is selected.

5. Following the operating instructions of the TV, select “Use the TV speakers” from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV receiver.

6. Select “Use the speakers connected from the AV receiver” from the menu screen of the TV, and confirm that the audio is output from the speak- ers connected to the AV receiver, and not from the TV speakers.

+ Perform the above operations when you initially use the AV receiver, when the settings of each component are changed, when the main power of each component is tumed off, when the power cable is disconnected from the power supply, or when there has been a power outage.

Each of the “HDMI setup” is changed to the fol- lowing setting.

+ HDMI Control (RIHD): On

+ Audio Return Ch (ARC): Auto

See for details of each setting (2 40).

Æ Operate with the remote controller.

For buttons that can be operated (> 52).

+ Audio from DVD-Audio or Super Audio CD may not out- put from the TV speakers. You will be able to output the audio from the TV speakers by setting the audio output of the DVD player to 2ch PCM. (It may not be possible depending on the player models.)

Even if you set to output audio on the TV speakers, audio will be output from the speakers connected to the AV receiver when you adjust the volume or switch the input on the AV receiver. To output audio from the TV speakers, re-do the operations on the TV.

+ Do not connect the FI cable when connecting to the RI and RI audio control compatible components.

When you select anything other than the HDMI jack where the AV receiver is connected as the input on the TV, input on the AV receiver will be switched to “TV/CD”. The AV receiver will automatically power on in conjunc- tion when it determines it to be necessary. Even if the AV receiver is connected to an FRIHID compatible TV or player/recorder, it will not power on if it is not necessary. It may not power on in conjunction when the TV is set 10 output audio from the TV.

Linked functions with the AV receiver may not work depending on the model. Operate the AV receiver directly in such cases.

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/

The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700
