USER MANUAL HTX-22HD ONKYO

&) @ l Basic Operation Playing your AV components Thank you for purchasing this Onkyo product. Please read this manual thoroughly before making any con- : nections or plugging in your new Onkyo product. Using the Listening Modes. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new Onkyo product. Please retain this manual for future reference. Advanced Setup. A

27 ATX-22HD_Enbook Page 2 Monday, April 7, 2008 2:03 PM WARNING:

CAUTIO) TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The ighning Ras th amowhead symbol, thin an equilerl irange, intended 0 alerte user 10 te Ps sit “amer 1e” vin ie produets enclosure that may be of auficient

magnitude 10 constitute a risk of electric shock 10 persons.

The exclamation point within an equilateral triangle is intended Lo alert the user 10 the presence of important operating and maintenance (servicing) instructions in

Le literature accompanying the appliance.

Important Safety Instructions

Read these instructions. Keep these instructions.

Follow all instructions

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer's instruction Do not install near any heat sources such as ra tors, heat registers, stoves, or other apparatus including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. À polarized plug has two blades with one wider than the other. À grounding iype plug has two blades and a third grounding prong. The wide blade or the third prong are pro- vided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, convenience recep- tacles, and the point where they exit from the apparatus

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tri. PosaauE can aan: pod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when mov- ing the cartapparatus combina- tion 10 avoid injury from tip over.

13. Unplug this apparatus during lightning storms or when unused for long period of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the appara- tus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service

Unplug the apparatus from the wall outlet and

refer servicing to qualified service personnel

under the following conditions

A. When the power-supply cord or plug is dam-

ged, iquid has been spilled, or objects have fallen into the apparatus,

C. If the apparatus has been exposed 10 rain or water,

D. If the apparatus does not operate normally by. following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjust- ment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus 10 its normal operation,

E. Ifthe apparatus has been dropped or damaged in any way, and

FE. When the apparatus exhibits a distinct change in performance this indicates a need for ser- vice.

16. Object and Liquid Entry

Never push objects of any kind into the apparatus

through openings as they may touch dangerous

voltage points or short-out parts that could result in a fire or electric shock.

The apparatus shall not be exposed 10 dripping or

splashing and no objects filled with liquids, such

as vases shall be placed on the apparatus.

Don't put candles or other burning objects on top

17. Batteries Always consider the environmental issues and fol- low local regulations when disposing of batteries 18. If you install the apparatus in a builtin installa- tion, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8') of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 em (4°) away from the rear panel or wall, creating à flue-like gap for warm air (o escape.

27 ATX-22HD_Enbook Page 3 Monday, April 7, 2008 2:03 PM Precautions

1. Recording Copyright—Unless its for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not user-

serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all

over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afienwards with a clean cloth, Don't use abrasive cloths, thinners, alcohol, or other chemical sol- vents, because they may damage the finish or remove the panel lettering

WARNING BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SEC- TION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the units rear panel (e.g.. AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used 10 disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

Pressing the [ON/STANDB Y] button to select Standby mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet. Never Touch this Unit with Wet Hands—Never

handle this unit or its power cord while your

hands are wet or damp. If water or any other lig- uid gets inside this unit, have it checked by your Onkyo dealer.

If you need to transport this unit, use the origi- nal packaging to pack it how it was when you originally bought it.

Do not leave rubber or plastic items on this unit

for a long time, because they may leave marks on the case.

+ This uniPs top and rear panels may get warm after prolonged use. This is normal.

If you do not use this unit for a long time, it may not work properly the next time you turn it jonally.

on, so be sure to use it occ:

7 ATX-22HD_Enbook Page 4 Monday, April 7, 2008 2:03 PM Precautions—Continued

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT The wires in the mains lead are coloured in accordance with the following code:

Brown: Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured mark- ings identifying the terminals in your plug, proceed as follows The wire which is coloured blue must be connected 10 the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected

to the terminal which is marked with the letter L'or coloured red.

IMPORTANT The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must be approved by ASTA or BSI to BS1362 and have the ame ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse.

Ifthe power cord’s plug is not suitable for your socket outlets, eut it off and ft a suitable plug. Fit a suitable use in the plug.

Declaration of Conformity

We, ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROFBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, ENS5020 and EN61000-3-2

GROEBENZELL, GERMANY K. MIYAGI ONKYO EUROPE ELECTRONICS GmbH

| < 7 HITX-22HD_En.book Page 5 Monday, April 7, 2008 2:03 PM Speaker Precautions

Input Signal Warning

The subwoofer cabinet is made out of wood and is therefore sensitive to extreme tem- peratures and humidity, do not put it in loca- tions subject to direct sunlight or in humid places, such as near an air conditioner, humidifier, bathroom, or kitchen.

Do not put water or other liquids close to the speakers. If liquid is spilled over the speak- rs, the drive units may be damaged. Speakers should only be placed on sturdy, flat surfaces that are free from vibration. Putting them on uneven or unstable sur- faces, where they may fall and cause dam- age, will affect the sound quality. Subwoofer is designed to be used in the upright vertical position only. Do not use it in the horizontal or tilted position.

If the unit is used near a turntable, CD player or DVD player, howling or slipping of sound may occur. To prevent this, move the unit away from the turntable, CD player or DVD player, otherwise lower the unit’s output level.

Using Close to a TV or Computer

TVs and computer monitors are magnetically sensitive devices and as such are likely to suf- fer discoloration or picture distortion when conventional speakers are placed nearby. To prevent this, the HTX-22HDST features internal magnetic shielding. In some situa- tions, however, discoloration may still be an issue, in which case you should turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally acti- vates the degaussing function, which neutral- izes the magnetic field, thereby removing any discoloration effects. If discoloration prob- lems persist, try moving the speakers away from your TV or monitor. Note that discolor- ation can also be caused by a magnet or demagnetizing tool that's too close to your TV or monitor.

The speakers can handle the specified input power when used for normal music reproduc- tion. If any of the following signals are fed to them, even if the input power is within the specified rating, excessive current may flow in the speaker coils, causing burning or wire

1. Interstation noise from an untuned FM radio.

2. Sound from fast-forwarding a cassette tape.

3. High-pitched sounds generated by an oscillator, electronic musical instrument, and so on.

4. Amplifier oscillation.

5. Special test tones from audio test CDs and so on.

6. Thumps and clicks caused by connecting or disconnecting audio cables (Always turn off your amplifier before connecting or disconnecting cables.)

7. Microphone feedback.

22HD_Enbook Page G Monday, April 7, 2008 2:03 PM Supplied Accessories

Make sure you have the following accessories:

Optical digital audio cable (5 ft., 1.5 m)

HTX-22HDPAW Amp/Subwooter

Cork spacers for the Amp/Subwoofer (x4)

HTX-22HDST Front Speakers & =

Remote controller and two batteries (AA/R6)

Cork spacers for the front speakers (x8)

* In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications

and operation are the same regardless of color

Speaker setup microphone

Red and white cables for front speakers (11.5 ft.,

Power cord {Use the power cord that matches your wall outlet.)

| < 7 HTX-22HD_En.book Page 7 Monday, April 7, 2008 2:03 PM Contents

Important Safety Instructions . Precautions...

Speaker Precautions Supplied Accessories. Features

Getting to Know the HTX-22HD.. Front Panel Display Rear Panel.

Remote Controller Installing the Batteries Aiming the Remote Controller Using the Remote Controlle:

Connecting the Speakers Enjoying Home Theater Attixing the Cork Spacers.. Speaker Connection Precautions . Making the Connections … Connecting only the Front Speakers Connecting 5.1 Speakers . Connecting Surround Back Speakers ..

Connecting AV Components. About AV Connections . Connecting Components

with Digital Outputs . Connecting Components with Analog Outputs… Connecting Components with HDMI Making HDMI Connections... Connecting Onkyo R1 Components …

Turning On the HTX-22HD Connecting the Power Cord Turning On and Standby

First Time Setup Automatic Speaker Setup (Audyssey 2EQ) Audio Input Setup HDMI Input Setup Changing the Input Display .

Playing Your Components Basic HTX-22HD Operation Settng the Display Brightness: Muting the HTX-22HD . Using the Sleep Timer… Displaying Source Information

Using the Listening Modes … Selecting the Listening Modes … Listening Modes Available

for Each Source Format. About the Listening Modes: Using the Audio Adjust Settings Late Night Function . Adjusting Speaker Levels.

Advanced Setup. Manual Speaker Setup. Source Setup …

Specifying the Digital Signal Format .

Troubleshooting. Specifications.

# To reset the HTX-22HD to its factory defaults, turn it on and, while holding down the [LISTENING MODE] button, press the LON/STANDBY] button (see page 71).

| < 7 HITX-22HD_En.book Page 8 Monday, April 7, 2008 2:03 PM Features

HTX-22HDPAW: 5.1-channel Amp/Subwoofer

5.1-channel power amplifier with built-in subwoofer

2 optical inputs, 1 coaxial input

Pre out for surround backs speakers

Onkyo RIHD system control over HDMI VLSC (Vector Linear Shaping Circuitry)

Audyssey 2EQ"* room correction

Audyssey Dynamic EQ“* for loudness correction

Theater-Dimensional* and DTS Surround Sensation virtual surround sound Ri-compatible remote controller

Compatible with RI Dock for iPod

16 cm A-OMF diaphragm woofer

Aero Acoustic Drive for powerful and natural sound

HTX-22HDST: 2-way Speaker System

2-way acoustic suspension speaker system

+_8 cm A-OMF diaphragm woofer +2 cm balanced dome tweeter

+ 70 Hz-50 kHz frequency response + 40 W maximum power

+ Rounded wooden cabinet

Designed especially for use with the HTX-22HD, the optional Onkyo SKS-11 speaker pack- age consists of a center speaker and two surround speakers that can be connected directly to the HTX-22HD.

27 ATX-22HD_Enbook Page9 Monday, April 7, 2008 2:03 PM Features -—Continued

1 HDMI HDMI, the HDMI logo and High Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing, LLC.

? Sdtsun Er Manufactured under license under US. Patent #'s: 5,451,942; 5,956,674; 5,974,380: 5.978.762: 6.226.616; 6.487.535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. dts Surround Sensation Sr Manufactured under license under US. Patent #'s: 5,451,942; 5,956,674; 5,974,380: 5.978.762: 6.226.616; 6.487.535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD, DTS-HD Master Audio and DTS Sur- round Sensation are trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.

“3. DODOLEY TRUE Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, and the double-D symbol are trade- marks of Dolby Laboratories.

4 [AUDYSSEY 2Ee DvNAMIG ER Manufactured under license from Audyssey Laboratories. U.S. and foreign patents pending. Audyssey 2EQ and Dynamic EQ are trademarks of Audyssey Laboratories. +5 ac

Theater-Dimensional Theater-Dimensional is a trademark of Onkyo Corporation

# Apple and iPod are trademarks of Apple Computer, Ine., registered in the U.S. and other countries. #2 “xv.Color” is a trademark of Sony Corporation

4 o 4 7 HTX-22HD_En.book Page 10 Monday, April 7, 2008 2:03 PM

? Getting to Know the HTX-22HD Ï

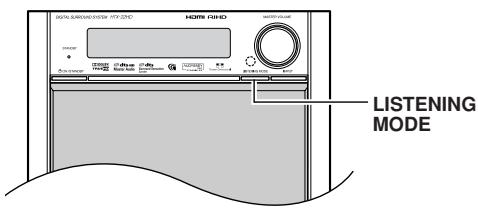

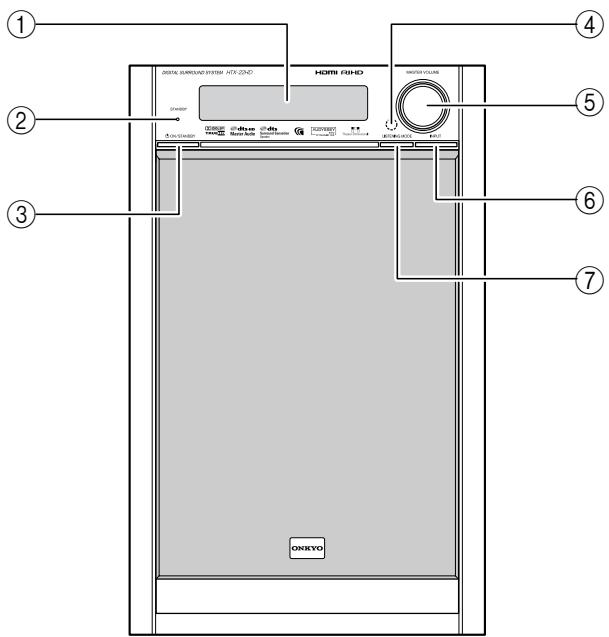

@ Display @ LISTENING MODE button See “Display” on page 11. Selects the listening modes. @) STANDBY indicator Lights up when the HTX-22HD is on Standby and flashes while a signal is being received from the remote controller. @) ON/STANDBY button Sets the HTX-22HD to On or Standby. To operate this button, push it down from the top. (4 Remote-control sensor Receives control signals from the remote controller.

@ MASTER VOLUME control Sets the volume of the HTX-22HD.

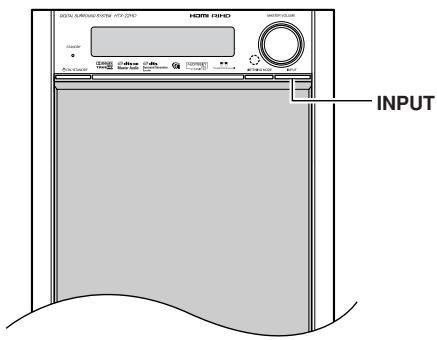

) INPUT button Selects the input source.

22HD_Enbook Page 11 Monday, April 7, 2008 2:03 PM Getting to Know the HTX-22HD-—Continued

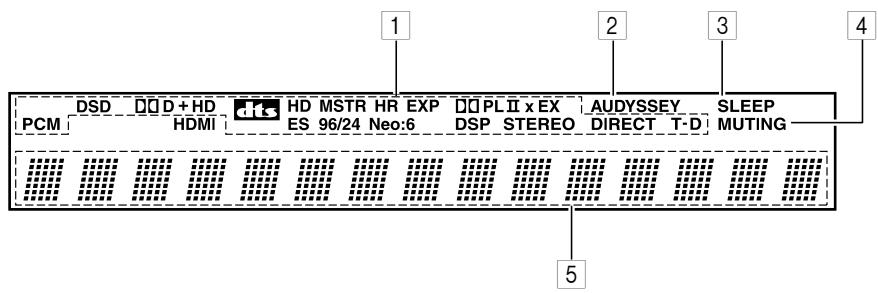

Display 4 1. Listening mode and format indicators Show the selected listening mode and audio input signal format. indicator Listening modefnput PCM PCM oo D Dolby Digital | [es] DTS oO D D+ Dolby Digital Plus Do HD Dolby TrueHD EM EXP DTS Express Audio Do HDHR | DTS-HD High Resolution Audio DO HD MSTR | DTS-HD Master Audio DTS Direct Stream Digital TD Theater-Dimensional

2 AUDYSSEY indicator Flashes during automatic speaker setup. Stays on all the time once the automatic speaker setup has been run. 3 SLEEP indicator Lights up when the Sleep function has been set. 4) MUTING indicator Flashes while the HTX-22HD is muted. 5 Message area Displays various information.

| < 7 HTX-22HD_En.book Page 12 Monday, April 7, 2008 2:03 PM Getting to Know the HTX-22HD-—Continued

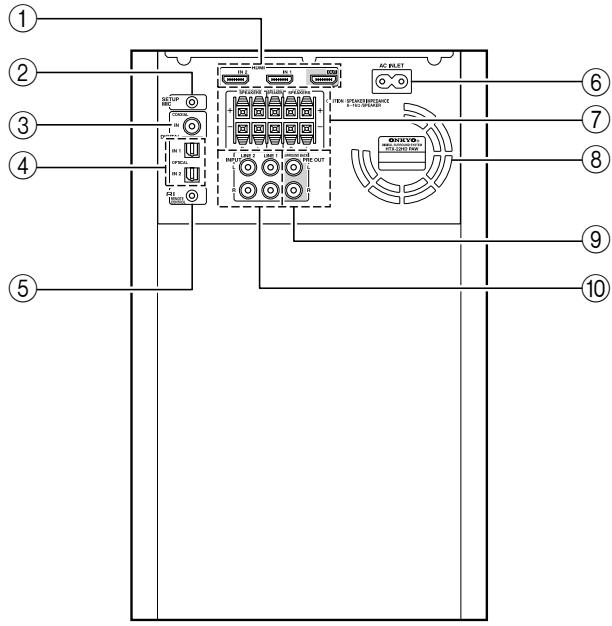

@ HDMI IN 1, 2, and OUT HDMI (High Definition Multimedia Interface) connections carry digital audio and digital video.

The HDMI inputs are for connecting components with an HDMI output, such as a DVD player, DVD recorder, or DVR (digital video recorder). They”re assign- able, which means you can assign each one to an input selector to suit your setup. See “HDMI Input Setup” on page 37. The HDMI OUT is for connecting a TV or projector with an HDMI input.

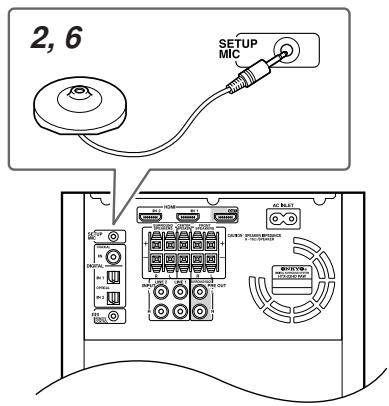

) SETUP MIC Only used with the Audyssey 2EQ auto- matic speaker setup. The automatic speaker setup microphone connects here. Connect only the supplied microphone.

COAXIAL DIGITAL IN This coaxial digital audio input is for con- necting a component with a coaxial digi- tal audio output, such as a CD player or DVD player.

) OPTICAL DIGITAL IN 1 and 2

These optical digital audio inputs are for connecting components with an optical digital audio output, such as a CD player or DVD player.

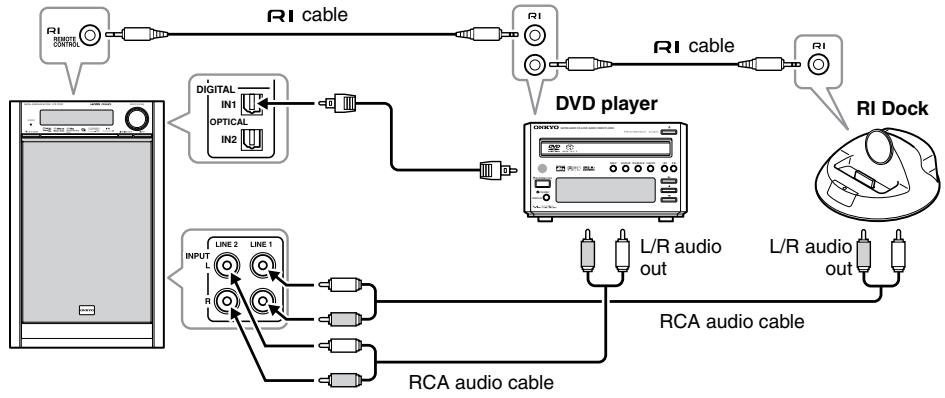

RI REMOTE CONTROL is RI (Remote Interactive) jack can be

connected to the FI jack on another

RI-capable Onkyo component for remote and system control.

To use RI, you must make an analog audio connection (RCA) between the HTX-22HD and the other component, even if they are connected digitally.

4 > | < 7 HTX-22HD_En.book Page 13 Monday, April 7, 2008 2:03 PM Ver Ï

Getting to Know the HTX-22HD-—Continued

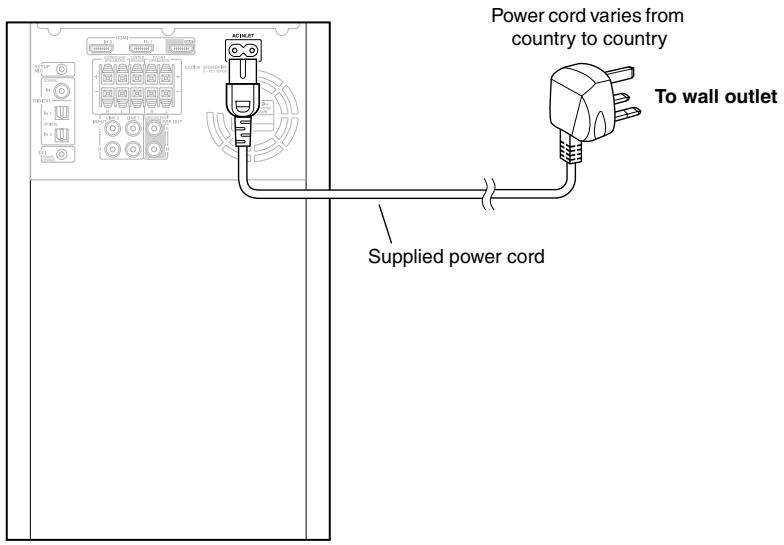

@) AC INLET The supplied power cord is connected here. The other end of the power cord should be connected to a suitable wall outlet.

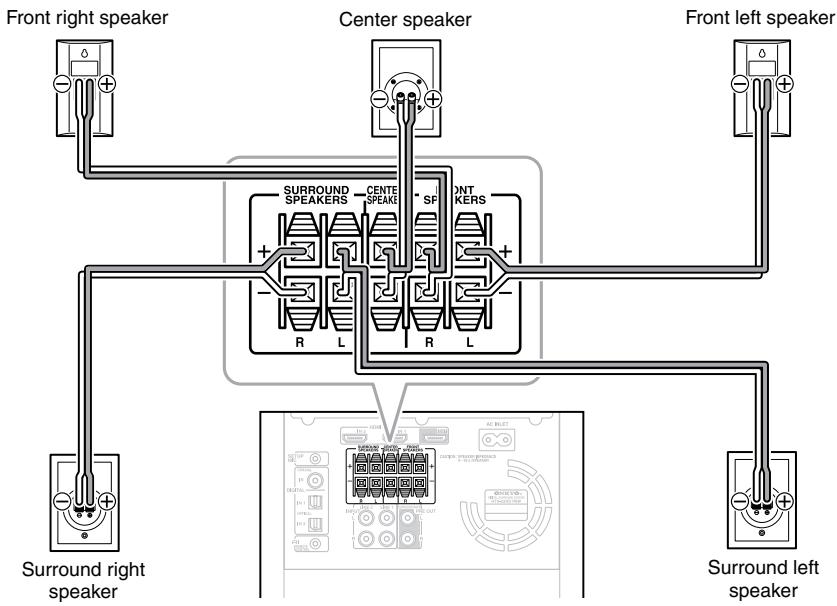

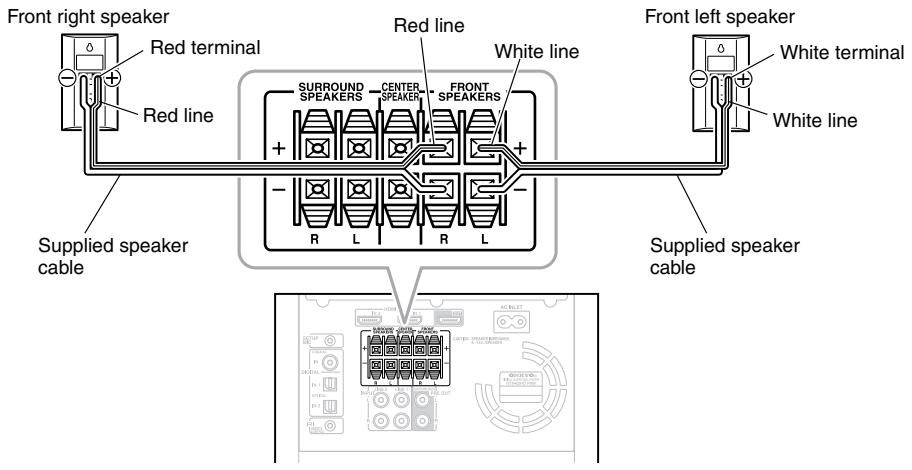

(®) FRONT SPEAKERS, CENTER SPEAKER, and SURROUND SPEAKERS These push terminals are for connecting the included front speakers and the optional SKS-11 center speaker and sur- round speakers.

@) Cooling fan This cooling fan operates when the inter- nal temperature of the HTX-22HD reaches a certain level.

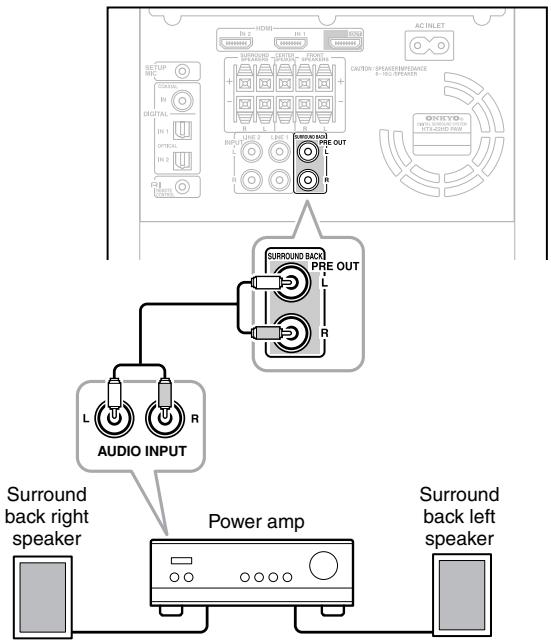

(@) SURROUND BACK PRE OUT This analog audio output can be con- nected to another power amplifier and surround back speakers for 7.1-channel surround sound.

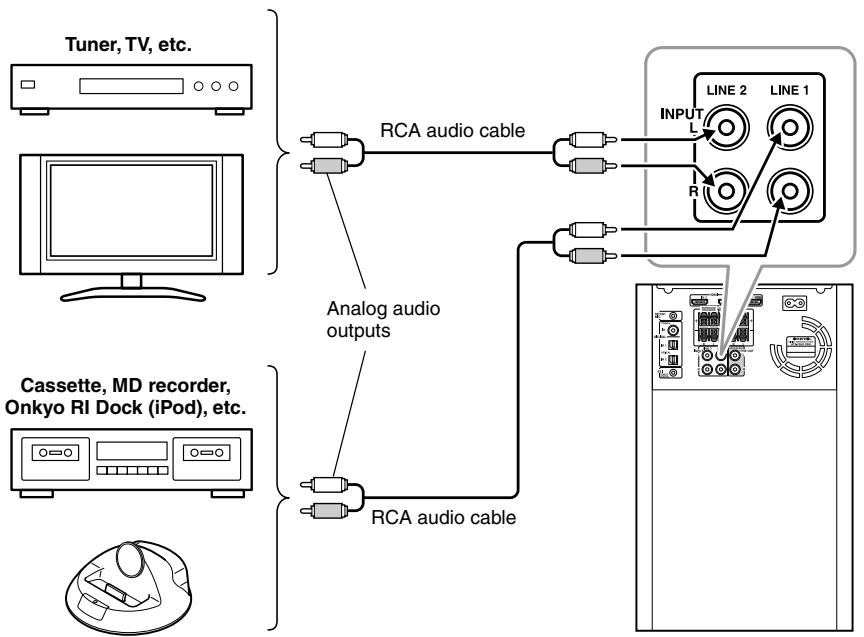

LINE 1 and LINE 2 INPUT These analog audio inputs are for con- necting components with an analog audio output, such as a VCR, TV, or Onkyo RI Dock.

(se pages 16-26 for hookup information.

b | < 7 HTX-22HD_En.book Page 14 Monday, April 7, 2008 2:03 PM

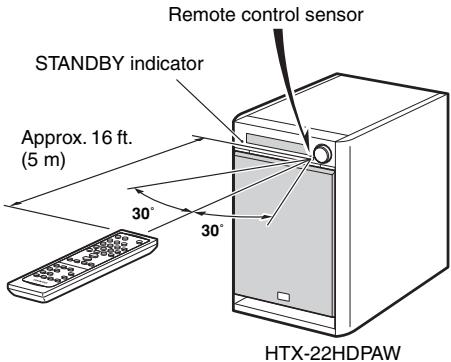

&) 7 Remote Controller Installing the Batteries Aiming the Remote Controller When using the remote controller, point it 1 Open the battery compartment, as toward the HTX-22HD's remote control sen- shown. sor, as shown below. Remote control sensor STANDBY indicator Approx. 16 ft. 6m) 2 Insertthe two supplied batteries (AA/ R6) in accordance with the polarity diagram inside the battery compart- ment. HTX-22HDPAW Notes: + The remote controller may not work reli- ably if the HTX-22HD is subjected to à bright light, such as direct sunlight or SP 3 Close the battery compartment. inverter-type fluorescent lights. Keep this in mind when installing. +_If another remote controller of the same type is used in the same room, or the HTX- 22HD is installed close to equipment that uses infrared rays, the remote controller may not work reliably. + Don't put anything on top of the remote controller, such as a book or magazine, Notes: because a button may be pressed continu- + Ifthe remote controller doesn't work relie, Te en dont patent el ably, try replacing the batteries. ‘ ? cer + Don't mix new and old batteries or differ- ably ifthe HTX-22HD is installed in a rack ent types of batteries. behind colored gs doors. Keep this in +_If you intend not to use the remote control- The Wien instal Ne ü ji ler for a long time, remove the batteries 10 an One bec Han the prevent damage from leakage or corrosion. HTXODHD e renote cOntrOÏ aenon + Expired batteries should be removed as 77772 $ lemoIe conIO! Sensor. soon as possible to prevent damage from leakage or corrosion. à 14 @

4 > | < 7 HTX-22HD_En.book Page 15 Monday, April 7, 2008 2:03 PM Ver Ï e

7 Remote Controller —Continued Ï

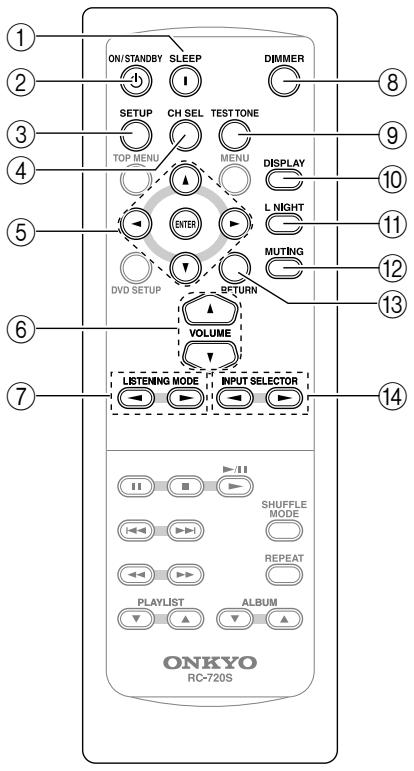

Using the Remote Controller

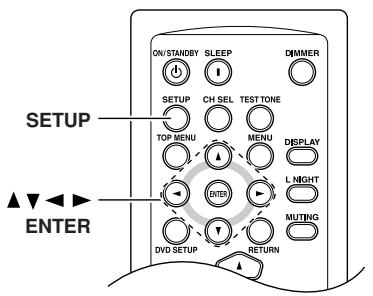

These buttons are used to control the HTX-22HD. © Arrow [AL Y VI-@YI»] and ENTER O! buttons | ee De our Used to select and adjust settings. Le _ © | ] LL © VOLUME [AJ[W] buttons Adjust the volume of the HTX-22HD. ® LISTENING MODE buttons Used to select the listening modes. @) DIMMER button Adjusts the display brightness.

@) TEST TONE button Used with the Test Tone function.

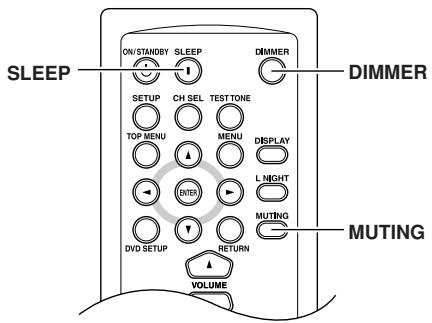

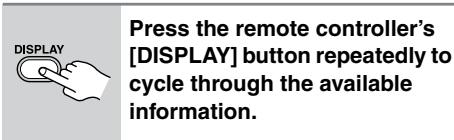

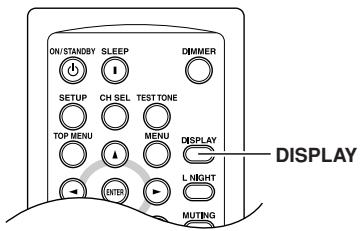

DES à @ DISPLAY button PS Displays various information on the

HTX-22HD's display. Can be used to confirm the input signal type or listening

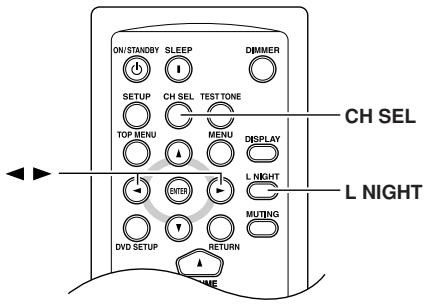

mode. | @) L NIGHT button & Turns the Late Night function on or off. |

@ MUTING button Mutes or unmutes the HTX-22HD.

@ RETURN button Goes back one level when changing set- tings.

€ INPUT SELECTOR buttons Selects the input sources.

(@ SLEEP button Used with the Sleep function.

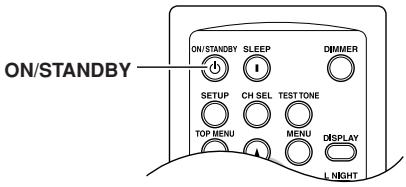

@ ON/STANDBY button Buttons that are not explained here are Sets the HTX-22HD to On or Standby. intended for use with an Onkyo DVD

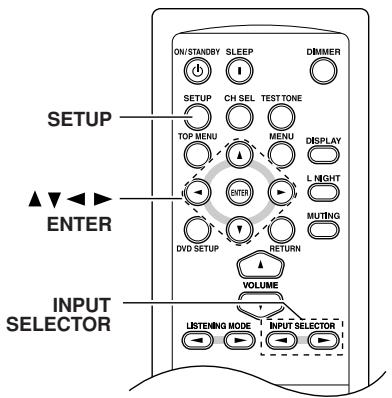

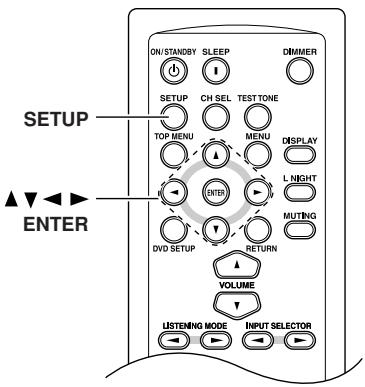

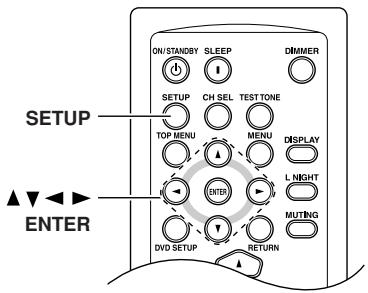

© SETUP button player or RI Dock with iPod (see pages 28 Used to change settings. Press and hold and 29).

down for 3 seconds when specifying the digital signal format.

Used to select each speaker when adjust- ing individual speaker levels.

22HD_Enbook Page 16 Monday, April 7, 2008 2:03 PM Connecting the Speakers

Enjoying Home Theater

Thanks to the HTX-22HD's superb capabilities, you can enjoy surround sound with a real sense of movement in your own home—just like being in a movie theater or concert hall. You can enjoy DVDs featuring Dolby Digital or DTS. With analog or digital TV, you can enjoy Dolby Pro Logic IIx, DTS Neo:6, or Onkyo” al DSP listening modes

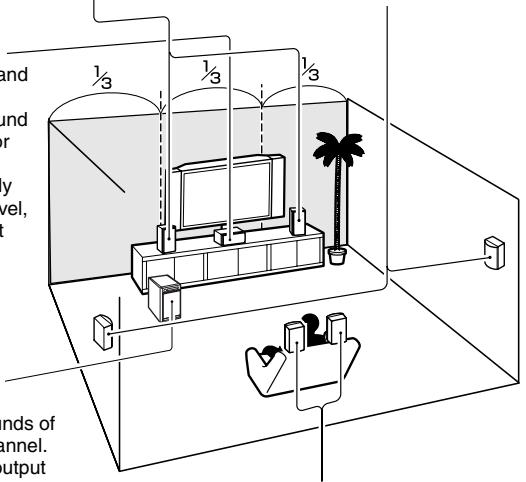

Speaker positions for a 7.1-channel system are shown below.

Front left and right speakers (HTX-22HDST) Surround left and right speakers (optional

These output the main sound. Their role in a home the- SKS-11)

ter is to provide a solid anchor for the sound image. They These speakers are used for precise sound should be positioned facing the listener at about ear level, positioning and to add realistic ambience. and equally spaced from the TV. Angle them inward Position them at the sides of the listener, or slight}y so as to create a triangle, with the listener at the Slightly behind, about 2-3 feet (60-100 cm) apex. above ear level. Ideally they should be equally

spaced from the listener.

Center speaker (optional SKS-11) —— This speaker enhances the front left and A right speakers, making sound move-

ments distinct and providing a full sound image. For movies ils used mainly for dialog.

Position it close to your TV (preferably on top) facing forward at about ear level, or at the same height as the front left and right speakers.

Subwoofer (HTX-22HDPAW Amp/_— Subwoofer)

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel. The volume and quality of the bass output

from your subwoofer will depend on its posi- Surround back left and right speakers (not supplied tion, the shape of your listening room, and with the HTX-22HD)

your listening position. In general, a good These speakers are necessary to enjoy Dolby Digital EX, bass sound ca be obtained by installing the DTS-ES Matrix, DTS-ES Discrete, etc. They enhance the subwoofer in a front corner, or at one-third the realism of surround sound and improve sound localiza- Way along the front wall, as shown tion behind the listener. Position them behind the listener Tip: To find the best position for your sub- about 2-8 feet (60-100 cm) above ear level.

woofer, while playing a movie or some music {power amp and speakers required)

with good bass, experiment by placing your subwoofer at various positions within the room and choose the one that provides the

Notes: t satisf its. MOSESANSpNg Tee The HTX-22HD Digital Surround System consists % x, of an Amp/Subwoofer and two front speakers.

1 Designed especially for use with the HTX-22HD, ! the optional Onkyo SKS-11 speaker package

i consists of a center speaker and two surround speakers that can be connected directly to the Corner HTX-22HD.

position For 7.1-channel surround, you'll need a pair of surround back speakers and a power amp to drive them, which can be connected to the HTX- 22HD's SURROUND BACK PRE OUT jacks (see page 20).

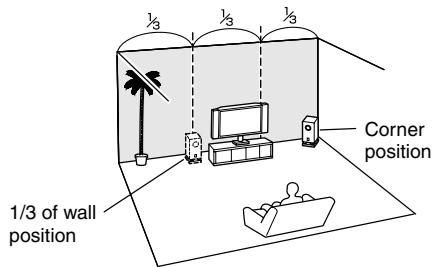

1/8 of wall position

4 > | < 7 HTX-22HD_En.book Page 17 Monday, April 7, 2008 2:03 PM Ver Ï

Connecting the Speakers—Continued

Affixing the Cork Spacers

You can improve the sound quality by affixing the included cork spacers to raise the speakers off the mounting surface thereby reducing the contact area. The spacers also make the speakers stable and prevent them from moving around.

M Cork Spacers for the Amp/Subwoofer

HTX-22HDPAW © _ Coik spacer

M Cork Spacers for the Front Speakers : T ?__ e— Cork spacer 2 HTX-22HDST top > | 41 ë HTX-22HDST TT bottom Cork spacer D Keyhole mounting slot ] oi .

If you intend to wall-mount the front speakers using their keyhole slots, affix two cork spacers to the rear of each speaker for a added stability.

+ Before you wall-mount the front speakers, check the strength of the wall. The supporting strength of the screws depends on the wall material and the position of the studs. Use screws as thick and long as possible, with a head diameter of 10 mm or less and a thread diameter of 4 mm or less. (We recommend that you consult a professional home electronics installer.)

| < 7 HTX-22HD_En.book Page 18 Monday, April 7, 2008 2:03 PM Connecting the Speakers—Continued

Speaker Connection Precautions

Read the following before connecting your speakers: Disconnect the power cord from the wall outlet before making any connections. Connect only speakers with an impedance of 6 ohms or higher.

Read the instructions supplied with your speakers.

Pay close attention to speaker wiring polar- ity. Connect positive (+) terminals to only pos e (+) terminals, and negative (—) ter- minals to only negative (-) terminal. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.

Unnecessarily long or very thin speaker cables may affect the sound quality and should be avoided.

Be careful not to short

the positive and nega- + k tive wires. Doing so 2 may damage the HTX- fe 22HD.

Don’t connect more than one cable to each speaker terminal, Doing so may damage the HTX-22HD.

Don't connect a speaker to several termi- nals.

Making the Connections

1 Remove the pre- cut insulation from the ends of the speaker cables, and twist the bare wires tightly.

openthe hole, insert the bare wire into the hole, and then release the lever.

Maker sure that the speaker terminals are gripping the bare wires, not the insulation.

4 4 o 4 7 HTX-22HD_En.book Page 19 Monday, April 7, 2008 2:03 PM 7 Ï e

Connecting the Speakers—Continued

Connecting only the Front Speakers

The following hookup diagram shows how to connect the included front speakers for 2.1-channel operation. Front right speaker Red line Front left speaker

Red terminal | White line

1 Ti f PARUS SU ‘le (CT Red line [ À TT White line EX. “RE SE ES Supplied speaker RL R 1 Supplied speaker

À Connecting 5.1 Speakers

The following hookup diagram shows how to connect the included front speakers, a center ù speaker, and surround speakers for 5.1-channel surround sound. To connect a pair of surround back speakers for 7.1-channel surround sound, see page 20.

Front right speaker Center speaker Front left speaker

Surround right Surround left speaker speaker

4 > o | < 7 HTX-22HD_En.book Page 20 Monday, April 7, 2008 2:03 PM Ver Ï

N FS Connecting the Speakers-—Continued

Connecting Surround Back Speakers

For 7.1-channel surround sound, in addition to the 5.1 speakers shown in the hookup diagram on page 19, you’ll need a pair of surround back speakers and a power amp to drive them. Using an RCA audio cable, connect the HTX-22HD’s SURROUND BACK PRE OUT jacks to the audio input on the power amp, as shown below.

AUDIO INPUT Surround Surround back right Power amp back left speaker speaker

B__0000 À E ne — Note:

+ If you're using only one surround back speaker, connect it 10 the SURROUND BACK PRE OÙT L jack.

4 > | < 7 HTX-22HD_En.book Page 21 Monday, April 7, 2008 2:03 PM Ver

Connecting AV Components

About AV Connections

+ Before making any AV connections, read the manuals supplied with your other AV compo- nents.

+ Don't connect the power cord until you've completed and double-checked all AV connec- tions.

Optical Digital Jacks

The HTX-22HD's optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it's removed. Push plugs in all the way. Caution: To prevent shutter damage, hold the optical plug straight when inserting and removing.

RCA Connection Color Coding

RCA connections are usually color coded: red and white. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”).

Left (white) Analog audio Left (white)

Right (red) Right (red)

+ Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

+ To prevent interference, keep audio and video cables away from power cords and speaker cables.

4 > | < 7 HTX-22HD_En.book Page 22 Monday, April 7, 2008 2:03 PM Ver Ï

Connecting AV Components—Continued

Connecting Components with Digital Outputs

You can connect components with digital audio outputs to the HTX-22HD’'s COAXIAL IN, OPTICAL IN 1, and IN 2 inputs. Choose a digital input (coaxial or optical) that matches the digital audio output on your source component. To enjoy Dolby Digital and DTS, you must connect your DVD player with an optical or coaxial digital audio cable. If your DVD player supports HDMI, you can use an HDMI connection instead (see page 24).

+ After you connect a component to an input jack, you must assign that input jack to an input selector. See “Audio Input Setup” on page 36.

On some source components, Dolby Digital and DTS output may be turned off by default, in which case you’Il need to turn it on.

If one of your source components is noticeably louder or quieter than your others, use the IntelliVolume function to adjust its input level (see page 64).

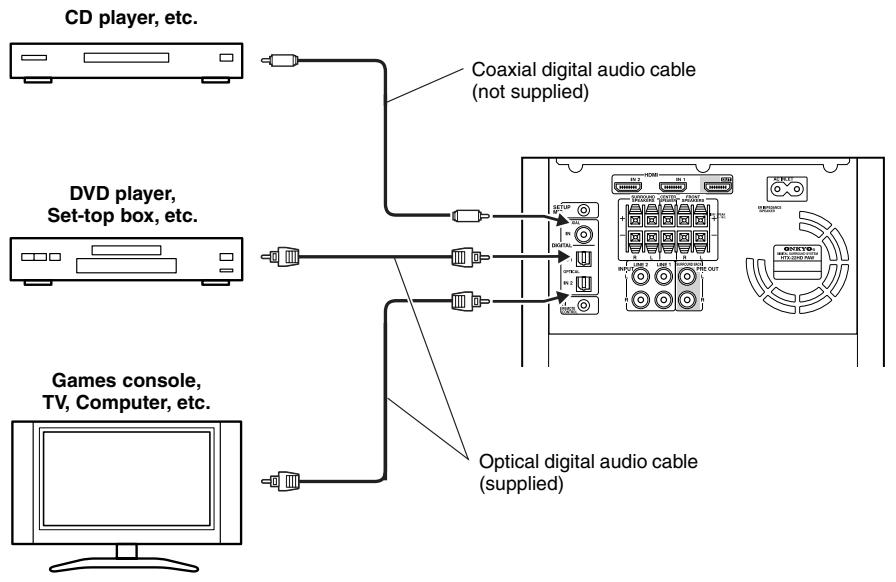

— Cox digital audio cable

& DVD player, À 7 Set-top box, etc. Î me ce] <&

Games console, TV, Computer, etc.

Optical digital audio cable <D— (supplied)

4 4 o 4 7 HTX-22HD_En.book Page 23 Monday, April 7, 2008 2:03 PM 7 Ï e

Connecting AV Components—Continued

Connecting Components with Analog Outputs

You can connect components with analog audio outputs to the HTX-22HD°s LINE 1 and LINE 2 inputs and enjoy surround sound with Dolby Pro Logic IIx, DTS Neo:6, and Onkyo’s original DSP listening modes.

+ After you connect a component to an input jack, you must assign that input jack to an input selector. See “Audio Input Setup” on page 36.

+ When listening to compressed music files, such as MP3, you can use the HTX-22HD's Music Optimizer function to enhance the sound quality.

Cassette, MD recorder, Onkyo RI Dock (iPod), etc.

If your TV has no audio outputs, connect an audio output from your VCR or set-

top box to the HTX-22HD and use its tuner to listen to TV programs through the HTX-22HD.

4 > | < 7 HTX-22HD_En.book Page 24 Monday, April 7, 2008 2:03 PM Ver Ï

Connecting AV Components—Continued

Connecting Components with HDMI About HDMI Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, DVD players, set- top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2-channel PCM, multichannel digital audio, or multichannel PCM).

The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface); ! so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.)

The HTX-22HD uses HDCP (High-bandwidth Digital Content Protection), so only HDCP-com- patible components will display a picture.

The HTX-22HD°s HDMI interface is based on the following standard: Repeater System, Deep Color, Lip Syne, DTS-HD Master Audio, DTS-HD High Reso-

lution Audio, Dolby TrueHD, Dolby Digital Plus, SA-CD and Multichannel PCM Supported Audio Formats

LR b) + 2-channel linear PCM (16/20/24 bit/32-192 KHz) + Multichannel linear PCM (7.1 ch, 32-192 kHz) + Bitstream (Dolby Digital, Dolby Digital Plus, DTS, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, DSD) Your DVD player must be able to output these formats from its HDMI OUT.

About Copyright Protection

The HTX-22HD supports HDCP (High-bandwidth Digital Content Protection), ? a copy-protec- tion system for digital video signals. Other devices connected to the HTX-22HD via HDMI must also support HDCP.

Use a commercially available HDMI cable (supplied with some components) to connect the HTX-22HD°s HDMI OUT to the HDMI input on your TV or projector.

*1_ DVI (Digital Visual Interface): The digital display interface standard set by the DDWG'? in 1990.

#2 HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. IP designed to protect video content and requires a HDCP-compatible device to display the encrypted video.

*3 DDWG (Digital Display Working Group): Led by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group's objective is to address the indus- try's requirements for a digital connectivity specification for high-performance PCS and dig- ital displays.

| < 7 HTX-22HD_En.book Page 25 Monday, April 7, 2008 2:03 PM SA Connecting AV Components—Continued

Making HDMI Connections

You can connect components with HDMI outputs to the HTX-22HD°s HDMI IN 1 and IN 2

inputs and connect your HDMI TV to the HTX-22HD°s HDMI OUT. You need HDMI cables to

make HDMI connections.

+ By default, the HDMI and HDMI2 inputs are assigned to the VCR/DVR and CBL/SAT input selectors. To change these assignments, see “HDMI Input Setup” on page 37.

ΠVideo Signals Digital video signals received by the HDMI IN jacks are output by the HDMI OUT for display on your TV.

M Audio Signals Digital audio signals received by the HDMI IN jacks are output by the speakers connected to the HTX-22HD. Normally, they are not output by the HDMI OUT.

To listen to audio received by the HDMI IN jacks through your TV°s speakers,

set the Audio TV Out setting to On (see page 68), and set your DVD players HDMI audio output setting to PCM.

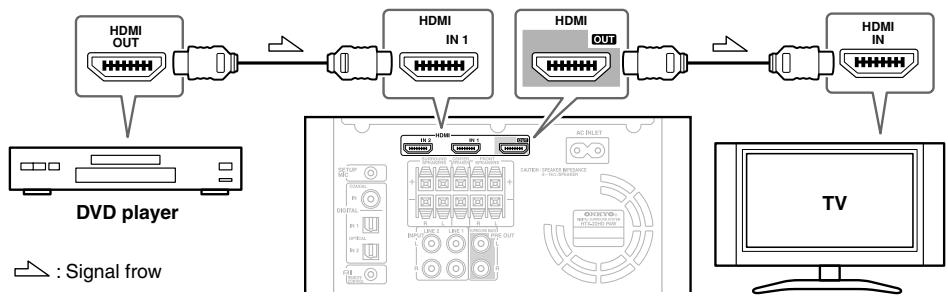

(ONE) GC DVD player TV EN : Signal frow

+ Set the output resolution of your DVD player so that it matches the resolution of your TV before starting playback.

The HDMI video stream is compatible with DVI (Digital Visual Interface), so TVSs and dis- plays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’Il need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.

To listen to an HDMI source component through the HTX-22HD, you must configure your system so that video from the HDMI source component can be displayed on your TV (i.e., on your TV, select the HDMI input that's connected to the HTX-22HD'°s HDMI OUT). This is necessary because a component identification check has to be performed on your TV before an HDMI source component can output any signals. If your TV is off or set to a different input source, the HTX-22HD may produce no sound or the sound may be distorted.

The HDMI audio signal (sampling rate, bit length, etc.) may be restricted by the connected source component. If the picture is poor or there's no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.

4 > | < 7 HTX-22HD_En.book Page 26 Monday, April 7, 2008 2:03 PM Ver Ï

Connecting AV Components—Continued

Connecting Onkyo R1 Components

Connecting an Onkyo DVD player or RI Dock with iPod to the HTX-22HD with an 1 cable and RCA audio cable will alow you to use the following system control functions. An R1 cable is a special cable for use with Onkyo’s R1 (Remote Interactive) control system.

Auto Power On/Standby

If you turn on or start playback on the Onkyo DVD player or RI Dock with iPod, the HTX-22HD will automatically turn on and select the DVD player or iPod as the input source. Similarly, when the HTX-22HD is tuned on or set to Standby, the DVD player and iPod will also turn on or go on Standby.

Direct Change When playback is started on the Onkyo DVD player or RI Dock with iPod, the HTX-22HD automatically selects the DVD player or iPod as the input source.

Remote Controller Operation In addition to controlling the HTX-22HD, you can also use the HTX-22HD/'s remote controller to control an Onkyo DVD player or RI Dock with iPod. When doing so, remember to point the remote controller at the HTX-22HD and not at the DVD player or RI Dock. Hookup information is shown below. The remote controller buttons that you can use to control an Onkyo DVD player or RI Dock with iPod are explained on pages 28 and 29.

The following diagram shows how to connect an Onkyo DVD player and RI Dock with iPod to the HTX-22HD for FI operation. Use the FR1 cables supplied with the DVD player and RI Dock. An I cable is not supplied with the HTX-22HD.

L/Raudio L/R audio| out out!

+ To use F1 functionality with your Onkyo DVD player, you must assign the HTX-22HD LINE 1 or LINE 2 input to which the DVD player is connected to the DVD input selector (see page 36). The DVD player must be connected to LINE 1 or LINE 2 even if it's already con- nected to a digital audio input.

| < 7 HTX-22HD_En.book Page 27 Monday, April 7, 2008 2:03 PM Connecting AV Components—Continued

To use 1 functionality with your Onkyo MiniDisc recorder, CD recorder, or RI Dock, con- nect it to the LINE 1 or LINE 2 input, and assign that input to the TAPE input selector. Then, change the Input Display to MD, CDR, or DOCK as appropriate (see page 38).

Use only I cables for 1 connections. 1 cables are supplied with Onkyo players (DVD, CD, etc.).

Some components have two FRI jacks. You can connect either one to the HTX-22HD. The other jack is for connecting additional RR1-capable components.

Connect only Onkyo components to 1 jacks. Connecting other manufacturer’s components may cause a malfunction.

Some components may not support all RH functions. Refer to the manuals supplied with your other Onkyo components.

b | < 7 HTX-22HD_En.book Page 28 Monday, April 7, 2008 2:03 PM

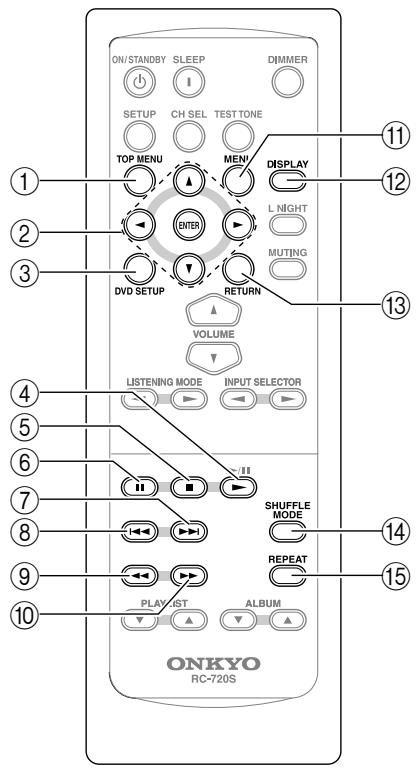

&) 7 Connecting AV Components—Continued Controlling an Onkyo DVD Player The following buttons can be used to control (6) Pause [II] button an Onkyo DVD player that's connected with Pauses playback. RI. See page 26 for hookup and setting | informations u ®D Next [wi] button Selects the next chapter. @) Previous [ke«] button Restarts the current chapter. Press it twice to select the previous chapter. @ Rewind [-««] button Press and hold to rewind. @ Fast Forward [»»] button Press and hold to fast forward. @) MENU button* Displays a DVD's menu. @ DISPLAY button Press and hold down for 3 seconds to @ switch to DVD display. Displays informa- ©) tion about the current disc, title, chapter, | © or track, including elapsed time, remain- LC J @ ing time, total time, and so on. @& @ RETURN button* Exits the DVD players setup menu or (O) returns to the previous menu. O— D CE @ SHUFFLE MODE button oNxvo Used with the random function. LT @ REPEAT button Used with the repeat playback function. Note: N + To use fRI functionality with your Onkyo o . D TOP MENU button , DVD player, you must assign the HTX- Displays a DVD's top menu or a DVD's 22HD LINE 1 or LINE 2 input to which title. the DVD player is connected to the DVD © Arrow[A IV VII» ]and ENTER input selector (see page 36). The DVD buttons* player must be connected with an RCA Used to navigate menus and select items. audio cable even if its already connected © DVD SETUP button: with a digital audio cable (see page 26). Used to access the DVD player's settings. * When changing settings, adjusting the lev- @ Play D] button els of individual speakers, or outputting | Stats playback. the test tone, the Arrow, [ENTER], and . [RETURN] buttons operate the HTX- @) Stop [Ia] button 22HD, and the [TOP MENU], [MENU]. Stops playback. and [DVD SETUP] buttons are disabled. PS 28 @

| < 7 HTX-22HD_En.book Page 29 Monday, April 7, 2008 2:03 PM Connecting AV Components—Continued

Controlling an RI Dock (iPod)

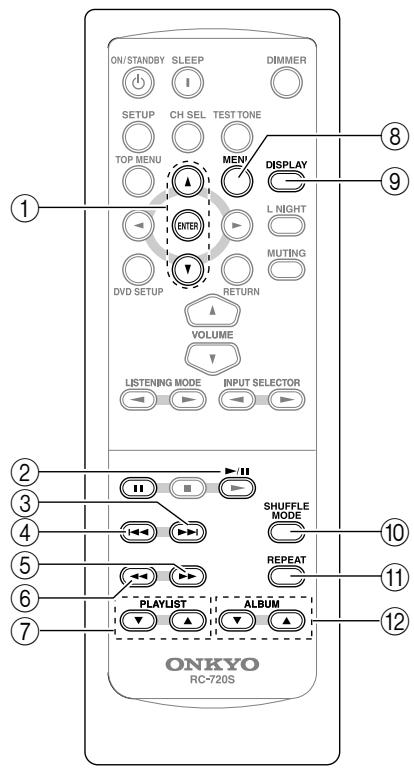

The following buttons can be used to control an Onkyo RI Dock with iPod that's connected with RI. See page 26 for hookup and setting information.

@ Arrow[AY[W]and ENTER buttons* Used to navigate menus and select items.

@) Play [b-/11] button

Starts playback. If the iPod is off, it will turn on automatically. (With 3rd genera- tion iPod models, this button works as a Play/Pause button.)

Next [»»1] button Selects the next song.

Previous [k#«] button Restarts the current song. Press it twice to select the previous song.

Fast Forward [»»] button

Press and hold to fast forward.

Rewind [-«<«] button

Press and hold to rewind.

@ PLAYLIST [AVI Y] buttons*

Selects the previous or next iPod playlist. MENU button*

Press and hold down for 3 seconds to switch to iPod display. Turns on the back- light.

SHUFFLE MODE button*

Used with the shuffle function.

Used with the repeat function.

@ ALBUM [A JT] button* Selects the next or previous iPod album.

+ Buttons marked with an asterisk (*) are not supported by 3rd generation iPod models. To use fRI functionality with your RI Dock with iPod, connect it to the LINE I or LINE 2 input, and assign that input to the TAPE input selector. Then, change the Input Display to DOCK (see page 38).

+ Set the RI Dock’s RI MODE switch to HDD or HDD/DOCK.

See the RI Docks instruction manual for more details.

-22HD_Enbook Page 30 Monday, April 7, 2008 2:03 PM Turning On the HTX-22HD Connecting the Power Cord

Power cord varies from country to country

Before connecting the power cord, connect all of your speakers and other components.

1 Connect the supplied power cord to the HTX-22HD's AC INLET.

2 Plug the other end of the power cord into a suitable wall outlet.

The STANDBY indicator lights up.

Turning on the HTX-22HD may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the HTX-22HD into a different branch circuit.

Do not use a power cord other than the one supplied with the HTX-22HD. The supplied power cord is designed exclusively for use with the HTX-22HD and should not be used with any other equipment.

Never disconnect the power cord from the HTX-22HD while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the HTX-22HD.

4 > | < 7 HTX-22HD_En.book Page 31 Monday, April 7, 2008 2:03 PM Ver Ï e

Turning On the HTX-22HD—Continued

Turning On and Standby

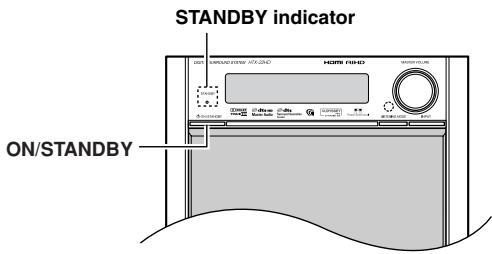

ET %M® | On the remote controller, press the [ON/STANDBY] button. or The HTX-22HD comes on, the display lights up, and the STANDBY indicator goes off.

To turn off the HTX-22HD, press the [ON/STANDBY] button, or press the remote controller’s [ON/STANDBY] button. The HTX-22HD will enter Standby mode. To prevent any loud sur- prises the next time you turn on the HTX-22HD, turn down the À volume before you turn it off. À

If you're using the HTX-22HD for the very first time, here’s a few settings that you need to make. These settings only need to be made once.

M Do the automatic speaker setup—this is essential! See “Automatic Speaker Setup (Audyssey 2EQ)” on page 32.

M Assign input jacks to input selectors See “Audio Input Setup” on page 36.

M Did you connect any HDMI components? If you did, see “HDMI Input Setup” on page 37.

M Did you connect an R1-capable Onkyo MiniDisc recorder, CD recorder, or RI Dock to the LINE 1 or LINE 2 input? If you did, see “Audio Input Setup” on page 36 and “Changing the Input Display” on page 38.

4 > | < 7 HTX-22HD_En.book Page 32 Monday, April 7, 2008 2:03 PM Ver Ï

This section explains the settings that you need to make before using the HTX-22HD for the very first time.

Automatic Speaker Setup (Audyssey 2EQ)

With the supplied calibrated microphone, Audyssey 2EQ automatically determines the number of speakers connected, their size for purposes of bass management, optimum crossover frequen- cies to the subwoofer (if present), and distances from the primary listening position. Audyssey 2EQ then removes the distortion caused by room acoustics by capturing room acoustical prob- lems over the listening area in both the frequency and time domain. The result is clear, well- balanced sound for everyone. Enabling Audyssey 2EQ allows you to also use Dynamic EQ, which maintains the proper octave-to-octave balance at any volume level (see page 54).

Measurement Positions

To create a listening environment in which several people can enjoy your home theater simulta- neously, Audyssey 2EQ takes measurements at three positions within the listening area. @ First measurement point This is the center point of the listening area, or the listening position. @ Second measurement point The right side of the listening area.

@) Third measurement point |

The left side of the listening area. es The distances between points (?) and (2) and points (1) and (3) must be at least 1 meter. Î From the examples below, choose the listening area that best matches yours and place the micro-

phone accordingly when prompted.

(2: Listening position

| < 7 HTX-22HD_En.book Page 33 Monday, April 7, 2008 2:03 PM First Time Setup—Continued

Using Audyssey 2EQ Notes:

If the HTX-22HD is muted, it will be unmuted automatically when the auto- matic speaker setup starts.

It takes about 10 minutes to complete the automatic speaker setup for three positions. Total measurement time var- ies depending on the speakers.

Do not connect or disconnect any speakers during the automatic speaker setup.

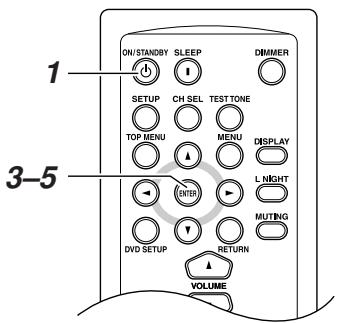

Turn on the HTX-22HD.

Put the speaker setup microphone at measurement point (1) (page 32), and connect it to the SETUP MIC jack.

Notes: + For all measurements, the micro- phone capsule should point directly at the ceiling.

If there's an obstacle between the microphone and any speaker, the automatic setup will not work cor- rectly. Set up the room as you would when enjoying a DVD.

Positioning the microphone close to where your ears would normally be will provide better results. You can adjust the height of the microphone by using a tripod or level table.

Do not attempt to hold the micro- phone in your hand during measure- ments as this will produce incorrect results.

4 > | < 7 HTX-22HD_En.book Page 34 Monday, April 7, 2008 2:03 PM Ver Ï

First Time Setup—Continued

3 Press [ENTER]. 5 When the following display appears, move the speaker setup microphone ee to measurement point (8) (page 32),

and then press [ENTER].

Once you've pressed [ENTER], stand by a wall or in a corner so that your body doesn't interfere with the test sig-

The automatic speaker setup starts.

You can cancel the automatic speaker = : = setup at any point in this procedure sim- Audyssey 2EQ performs more mea-

ply by disconnecting the setup micro- surements. phone. This takes a few minutes. RE — When the measurements are complete, the results are calculated and saved

A test tone is output by each speaker in turn, as the Audyssey 2EQ function determines which speakers are con- nected. This takes a few minutes. Note: 6 When the automatic speaker setup is

complete, disconnect the speaker setup microphone.

+ Quiet the room as much as possible.

& Background noise can disrupt the room measurements. Close windows, silence cell phones, televisions, radios, air conditioners, fluorescent lights, home appliances, light dim-

mers, or other devices, and refrain Notes: from talking. + When the automatic speaker setup is com- plete, the Equalizer Settings (page 62) will 4 When the following display appears, be set to Audyssey. move the speaker setup microphone + The AUDYSSEY indicator stays on all the to measurement point (2) (page 32), time once the automatic speaker setup has and then press [ENTER]. been run.

Audyssey 2EQ performs more mea- surements. This takes a few minutes.

| < 7 HTX-22HD_En.book Page 35 Monday, April 7, 2008 2:03 PM First Time Setup—Continued

While the automatic speaker setup is in progress, one of the following error messages may appear:

Q Ambient noise is too high

This message appears if there’s too much background noise and the measurements can- not be performed properly. Remove the source of the noise and try again.

Speaker Detect Errors

This message appears if saving fails.

To Retry the Automatic Speaker

Press the [ENTER] button. Make sure speakers that cannot be detected are con- nected properly.

Changing the Speaker Settings Manually

This message appears if one of the speaker- related errors below occurs.

One of the front speakers has not been detected.

One of the surround speakers has not been detected.

The surround back speakers have been detected but the surround speakers haven’t. The right surround back speaker has been detected but the left surround back speaker hasn’t.

There is a problem with a speaker. One of the speakers is damaged, or the subwoofer is out- putting sound at the upper end of its range that is too loud.

The number of speakers detected on the second or third measurement was different to the number detected on the first mea- surement.

This message appears if a speaker that was

detected during the 1st measurement is not

detected during the 2nd or 3rd measurements.

If this message appears, check your speaker

connections, and then try again.

You can change the settings manually if nec- essary (see pages 56-62).

4 > | < 7 HTX-22HD_En.book Page 36 Monday, April 7, 2008 2:03 PM Ver Ï

First Time Setup—Continued

Audio Input Setup 2 Use the Up and Down [AJ{W] buttons to select “1.Input Assign/” and then press [ENTER].

SETUP NELS ENTER Use the Up and Down [AJ W] buttons to select “Audio Input” and then press [ENTER].

‘When you connect a component to an analog

or digital input, you must assign that input 10 Ÿ an input selector. For example, if you connect RS 4

your DVD player to OPTICAL IN 1, you

must assign OPTICAL IN 1 to the DVD input

selector. Use the Up and Doun [AI V] | Ps buttons to select an input Ps A Here are the default assignments. le) © selector, and then use the Left | Input selector Audio input anangnt ED] buttons to DvD OPTT COAX:Select if the component VGR/DVR HDMI Ÿ is connected to the COAXIAL CBL/SAT HDMI2 (O) DIGITAL IN. GAMETV OPT2 @@GO OPTI:Select ifthe component is TAPE LINE‘ connected to the OPTICAL TUNER LINEZ ci DIGITAL IN 1. En) COAX OPT2:Select if the component is connected to the OPTICAL DIGITAL IN 2. 1 Press the [SETUP] button. MINÉISelect if (he component saw INPUT. LINEZ:Select if the component is connected to the LINE 2 INPUT. :Select if you're not using the input selector. à 36 @

| < 7 HTX-22HD_En.book Page 37 Monday, April 7, 2008 2:03 PM First Time Setup—Continued

+ When an HDMIIN is assigned to an input selector in “HDMI Input Setup” on

page 37, this input assignment is automati- cally set to the same HDMI IN, and in addition to the COAX, OPTI, OPT2, etc. inputs here, you will also be able to select the HDMI inputs.

To enjoy Dolby Digital and DTS, you must connect your DVD player with a digital audio connection.

If you connect a video component 10 an HDMI input, you must assign that input to an input selector. For example, if you connect your DVD player to HDMI IN 1, you must assign HDMI IN 1 to the DVD input selector. (You must change the default VCR/DVR input selector assignment from HDMI to “- -- -- first.)

Here are the default assignments.

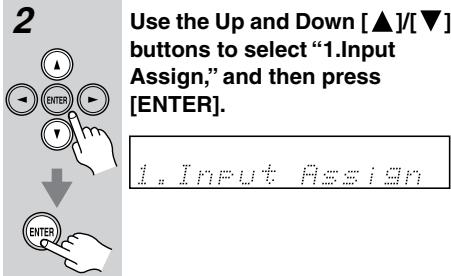

Use the Up and Down [AJ V] buttons to select “1.Input Assign,” and then press [ENTER].

Use the Up and Down [AJ V] buttons to select “HDMI Input,” and then press [ENTER].

b o | < 7 HTX-22HD_En.book Page 38 Monday, April 7, 2008 2:03 PM

&) 7 First Time Setup—Continued 4 Use the Up and Down [AJ W] Changing the Input Display €) buttons to select an input If you connect an R1-capable Onkyo Mini- lorsto) selector, and use the Left and Disc recorder, CD recorder, or RI Dock to the Right [-@J/1B-] buttons to HTX-22HD'$ LINE 1 or LINE 2 input, for select: RI to work properly, you must change this Ÿ setting. (o) HDMIL:Select if the component O@O à connected to HDMI IN 1. T HDMI2:Select if the component INPUT is connected to HDMI IN 2. -. Select if you're not using the HDMI OUT. 5 Press the [SETUP] button. seruP Setup closes. | Notes: Ju + Each HDMIIN can be assigned to only one Ÿ Use HTX-22HD' [INPUT] but- @) input selector. Before you assign an HDMI ton to select the TAPE input IN to an input selector, you must change the = selector so that “TAPE” default HDMI1 or HDMI? assignment to “- N \ appears on the display. 7 first. + When an HDMI IN is assigned to an input Ê selector as explained here, the audio input for that input selector is automatically set to Press and hold down the the same HDMI IN. See “Audio Input [INPUT] button (about 3 sec- Setup” on page 36. = onds) to change the setting. EX\ Repeat tl tep to select MD, CDR. or DOCK. From TAPE, the setting changes in the following order: à 38 @)

| < 7 HTX-22HD_En.book Page 39 Monday, April 7, 2008 2:03 PM Playing Your Components

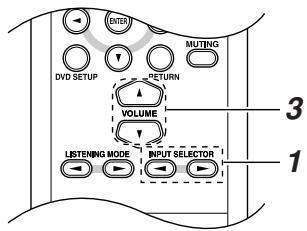

Basic HTX-22HD Operation

HDX22HD Remote controller

Press the HTX-22HD's [INPUT] button repeatedly to select an input source.

To select an input source with the remote controller, use its [INPUT SELECTOR] buttons.

Depending on which input selectors you have assigned to input jacks (page 36), you can select the following input selectors: DVD, VCR/DVR, CBL/SAT, GAME/TV, TAPE, TUNER, CD.

Start playback on the source component. To watch a video source that's connected to an HDMI IN, on your TV, select the video input that's connected to the HTX-22HD's HDMI OUT. On some DVD players, you may need to change the digital or HDMI audio output settings.

ENY To adjust the volume, use the HTX-22HD's MASTER VOLUME control, or the remote controller’s [VOLUME] buttons.

Since the HTX-22HD is designed for home theaters, it has a wide volume range for precise adjustment. The volume can be adjusted from Min, 1 through 79, or Max.

You can limit the maximum volume with the Max Volume setting (see page 67).

Select a listening mode and enjoy! See “Using the Listening Modes” on page 42.

| < 7 HTX-22HD_En.book Page 40 Monday, April 7, 2008 2:03 PM Playing Your Components —Continued

SLEEP 1 DIMMER T— MUTING Setting the Display Brightness

You can adjust the brightness of the display.

Press the remote controller's IDIMMER] button repeatedly to select dim, dimmer, or normal brightness.

DMER Muting the HTX-22HD You can temporarily mute the output of the HTX-22HD.

Press the remote controller's [MUTING] button.

The output is muted and the MUTING indicator flashes on the display.

To unmute the HTX-22HD, press the remote controller’s [MUTING] button again, or adjust the volume. The output is unmuted and the MUTING indicator goes off.

Muting is cancelled when the HTX-22HD is set to Standby.

Using the Sleep Timer

With the sleep timer, you can set the HTX- 22HD so that it turns off automatically after a specified period.

Press the remote controller's ISLEEP] button repeatedly to select the required sleep time. The sleep time can be set from 90 to 10 minutes in 10 minute steps.

When the sleep timer has been set, the SLEEP indicator appears on the display, as shown. The selected sleep time appears on the display for about 5 seconds, then the previous display appears.

To cancel the sleep timer, press the [SLEEP] button repeatedly until the SLEEP indicator disappears.

To check the remaining sleep time, press the [SLEEP] button. Note that if you press the ISLEEP] button while the sleep time is being displayed, you’Il shorten the sleep time by 10 minutes.

4 > | < 7 HTX-22HD_En.book Page 41 Monday, April 7, 2008 2:03 PM Ver Ï

Playing Your Components—Continued

SQ O ST DISPLAY Displaying Source Information

You can display various information about the current input source as follows.

Press the remote controller's

ee [DISPLAY] button repeatedly to cycle through the available information.

The following information can typically be il

Input source & listening mode

*1_If the input signal is analog, no format information is displayed. If the input sig- nal is PCM, the sampling frequency is displayed. If the input signal is digital but not PCM, the signal format is displayed. Information is displayed for about 3 sec- onds, then the previous display reappears.

4 > | < 7 HTX-22HD_En.book Page 42 Monday, April 7, 2008 2:03 PM Ï

FS Using the Listening Modes

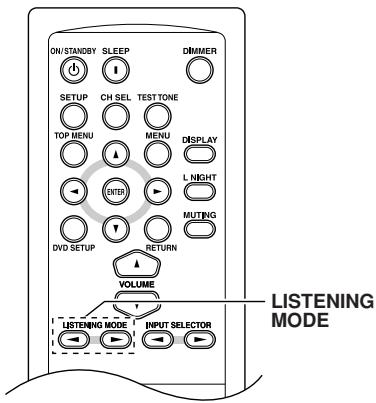

Selecting the Listening Modes Remo To select the listening modes,

. Le . controller | repeatedly press the [LISTEN- For a description of each listening mode, see sms | ING MODE] buttons on the “About the Listening Modes” on page 49. EN HTX-22HD or remote controller. +_The Dolby Digital and DTS listening The name of the selected listen- modes can only be selected if your DVD : : = player is connected to the HTX-22HD with Men mode is shown on the dis a digital audio connection (coaxial, opti- es Play. cal, or HDMI).

The listening modes that you can select depends on the format of the input signal. To check the format, see “Displaying Source Information” on page 41.

22HD_Enbook Page 43 Monday, April 7, 2008 2:03 PM Using the Listening Modes—Continued

Requires 6.1/7.1 speakers. UM requires 7.1 speakers.

Multichannel 176.4/192 kHz PCM is output only via HDMI. If there are no surround back speakers, Dolby Pro Logic II is used Available only when using surround speakers. PCM at 88.2 kHz and 96 kHz is processed at 44.1 KHz and 48 KHz respectively Cannot be selected with some source formats.

Surround Sensation does not support 32 KHz input signals.

22HD_Enbook Page 44 Monday, April 7, 2008 2:03 PM Using the Listening Modes—Continued

Surround Sensation v v Ca v La La

If there are no surround back speakers, depending on the input signal, Dolby Digital may be used speakers, Dolby Pro Logic II

ll 2 3. Cannot be selected with some source formats. 4.

If there are no surround ba used.

Available only when using surround speakers.

Requires 6.1/7.1 speakers. UM requires 7.1 speakers.

Note: + With some HD DVD and Blu-ray dises, a noise may be heard during playback. This may oceur when the audio format changes during playback. It is not a malfunction.

22HD_Enbook Page 45 Monday, April 7, 2008 2:03 PM 4.

Using the Listening Modes—Continued

LSRSRIRISRISRIRIRIS SRSRIRIRIRIRIRIRIRISR LSRSRIRISRISRIRIRIS LSRSRIRIRIRIRIRISR If there are no surround back speakers, DTS is used. e no surround back speakers, Dolby Pro Logic Il is used. Cannot be selected with some source formats.

Available only when using surround speakers.

DTS 96/4 is processed as DTS.

Requires 6.1/7.1 speakers. MM requires 7.1 speakers.

22HD_Enbook Page 46 Monday, April 7, 2008 2:03 PM Using the Listening Modes-—Continued

TrueHD Sources TrueHD TrueHD 192 kHz Source format Multichannel | _2ch Mure Le | Muttichannet | 2eh Mutiex Media Blu-ray, HD DVD Blu-ray, HD DVD Listening Mode Direct v v La v La La Stereo v v La v La La Mono v La La TrueHD v 2 Neo:6 v? Dolby PLI Movie’. V2 Dolby PLIix Movie Dolby PL Music Co Dolby PLI Game’, v Dolby PLIx Game DolbyEX v? Neo:6 Cinema v Neo:6 Music v AllChStereo v v 2 FullMono v v 2 TD v La La Surround Sensation v v v

1. Ifthere are no surround b:

speakers, Dolby Pro Logic II is used 2. Cannot be selected with some source formats.

Requires 6.1/7.1 speakers. M requires 7.1 speakers.

Note: + With some HD DVD and Blu-ray dises, a noise may be heard during playback. 1 oceur when the audio format changes during playback. It is not a malfunction.

22HD_Enbook Page 47 Monday, April 7, 2008 2:03 PM Using the Listening Modes—Continued

T-D Surround Sensation

SNNES SNNNENES SSII RSS RSRIRISRIS RSS

If there are no surround back speakers, Dolby Pro Logic II is used 2. Cannot be selected with some source formats.

Requires 6.1/7.1 speakers.

MM requires 7.1 speakers.

+ With some HD DVD and Blu-ray discs, a noise may be heard during playback. This may occur when the audio format changes during playback. It is not a malfunction.

22HD_Enbook Page 48 Monday, April 7, 2008 2:03 PM Using the Listening Modes—Continued

DTS Express and DSD Sources

DTS Express DSDT Source format Multichannel | 2ch | Mono Marne! 2ch Media

Blu-ray, HD DVD SAcD Listening Mode Direct v v La v La Stereo v v La v La Mono v v La v La DTS-HD Express v psp v Neo:6 Ca Ca Dolby PLII Movie/Dolby PLIIx Movie"? vs v La La Dolby PLII Music/Dolby PLIIx Music’? vs La v La Dolby PLII Game/Dolby PLIIx Game? 4 4 DolbyEX C& v Neo:6 Cinema v v Neo:6 Music v v MonoMovi v La Orchestra** v La Unplugged' v v Studio-Mix"* Ca v TV Logic‘ + v r AllChStereo v v v v v FullMono v La La v La TD v La La v La Surround Sensation v La La v La

DSD signals are processed after conversion to PCM. speakers, Dolby Pro Logic II is used

2. Ifthere are no surround b:

3. Cannot be selected with some source formats. n

Available only when using surround speakers.

Requires 6.1/7.1 speakers. UM requires 7.1 speakers.

If you can select PCM or DSD output on your SACD player, in some cases, selecting PCM will provide the best sound quality.

Note: + With some HD DVD and Blu-ray dises, a noise may be heard during playback. This may oceur when the audio format changes during playback. It is not a malfunction.

| < 7 HTX-22HD_En.book Page 49 Monday, April 7, 2008 2:03 PM Using the Listening Modes-—Continued

About the Listening Modes

The HTX-22HD'%$ listening modes can trans- form your listening room into a movie theater or concert hall, with high fidelity and stun- ning surround sound.

This illustration shows which speakers are active in each listening mode with 7.1-channel speakers.

Frontief Center Frontright

In this mode, audio from the input source is output directly with minimal processing, pro- viding high-fidelity reproduction. AII of the source’s audio channels are output as they are.

+ Direct mode is only available when the Subwoofer setting in the Speaker Configu- ration is set to No.

CO Sound is output by the front left and right speakers and subwoofer. Mono M LE Use this mode when watching an old movie with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources con- taining multiplexed audio, such as karaoke DVDs.

Dolby Pro Logic ilx EE Em

ji LEE] Dolby Pro Logic 1! EE Em

Dolby Pro Logic IIx expands any 2-channel source for 7.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can

also benefit from the dramatic spatial effects and vivid imaging. If you’re not using any surround back speakers, Dolby Pro Logic II will be used instead of Dolby Pro Logic IIx. + Dolby PLIIx Movie Use this mode with any stereo or Dolby Surround (Pro Logic) movie (e.g., TV, DVD, VHS). + Dolby PLIix Music Use this mode with any stereo or Dolby Surround (Pro Logic) music source (e.g., CD, radio, cassette, TV, VHS, DVD). + Dolby PLIIx Game Use this mode with video games, espe- cially those that bear the Dolby Pro Logic Il logo. Dolby Digital : Li : CI Use this mode with DVDs that bear the Dolby Digital logo, and Dolby Digital TV broad- casts. This is the most common digital sur- round-sound format, and it’Il put you right in the middle of the action, just like being in a movie theater or concert hall.

5.1-channel source + Dolby EX Æ M These modes expand 5.1-channel sources for 6.1/7.1-channel playback. They’re especially suited to Dolby EX soundtracks that include a matrix-encoded surround back channel e additional channel adds an extra dimension and provides an enveloping surround sound experience, perfect for rotating and fly-by sound effects.

5.1-channel source + Dolby PLIIx Music =

These modes use the Dolby Pro Logic IIx Music mode to expand 5.1-channel sources for 6.1/7.1-channel playback. 5.1-channel source + = mn Dolby PLIIx Movie ” These modes use the Dolby Pro Logic IIx Movie mode to expand 5.1-channel sources for 7.1-channel playback.

b | < 7 HTX-22HD_En.book Page 50 Monday, April 7, 2008 2:03 PM

7 Using the Listening Modes-—Continued Dolby Digital Plus RE DTS Neo:6 EM Developed for use with HDTV, including the This mode expands any 2-channel source for new video disc formats Blu-ray and HD 7.1-channel playback. It uses seven full-band- DVD, this is the latest multichannel audio width channels of matrix decoding for format from Dolby. It supports up to 7.1 matrix-encoded material, providing a very channels with 48 KHz sampling rate. natural and seamless surround sound experi- Dolby TrueHD M ae menus envelops the listener.

. + Neo:6 Cinema Designed to take advantage of the addi- Use this mode with any stereo movie tional storage space offered by the new Blu- (eg, TV, DVD, VHS) ray and HD DVD disc formats, this new ANT TRES : Dolby format offers up to 7.1 discrete chan- eo:6 Muse : Res Use this mode with any stereo mu: nels of digital audio with 48/96 kHz, up to : R source (e.g., CD, radio, cassette, TV,

5.1-channels with 192 KHz sampling rate. VHS DVD For the signals supported by the HTX-22HD, » DVD). see page 46. 5.1-channel source + Neo:6 à D DTS " A This mode uses Neo:6 to expand 5.1-channel The DTS digital surround-sound format sup Sources for 6.1/7.1-channel playback. ports up to 5.1 discrete channels and uses less DTS-HD High Resolution Audio ER Em compression for high-fidelity reproduction. Developed for use with HDTV, including the Use it with DVDs and CDs that bear the DTS new video disc formats Blu-ray and HD

À logo. DVD), this is the latest multichannel audio

@} DTS 96/24 Em format from DTS. It supports up to 7.1 chan- This mode is for use with DTS 96/24 sources. "IS With 96 kHz sampling rate.

s is high-resolution DTS with a 96 kHz DTS-HD Master Audio EE EM sampling rate and 24-bit resolution, providing Designed to take full advantage of the addi- superior fidelity. Use it with DVDs that bear tional storage space offered by the new Blu- the DTS 96/24 logo. ray and HD DVD disc formats, this new DTS DTS-ES Discrete SM Em format offers up to 7.1 discrete channels of This mode is for ue MM DTS-ES Discrete digital audio with 48/06 KH, up to 5.1-chan- " “ . nels with 192 KHz sampling rate. soundtracks, that use a discrete surround back For the signals 4 by the HTX-22HD. channel for true 6.1/7.1-channel playback. ‘or the du s supported by the HTX-22HD, The seven totally separate audio channels see page 47. provide better spatial imaging and 360-degree DTS Express EE Em sound localization, perfect for sounds that This format supports up to 5.1 channels and a pan across the surround channels. Use it with ower sampling rate of 48 kHz. Applications DVDs that bear the DTS-ES logo, especially include interactive audio and commentary those with a DTS-ES Discrete soundtrack. encoding for HD DVD Sub Audio and DTS-ES Matrix Blu-ray Secondary Audio. Also broadcast and This mode is for use with DTS-ES Matrix media servers. soundtracks, that use a matrix-encoded back- DTS Surround Sensation M © BC D OO00

channel for 6.1/7.1-channel playback. Use it xyith ihis mode, you can enjoy a virtual 5.1 with DVDs that bear the DTS-ES logo. espe- surround sound even with only two speakers. cially those with a DTS-ES Matrix It provides natural- surround sound experi- soundtrack. ence with movies and music.

| < 7 HTX-22HD_En.book Page 51 Monday, April 7, 2008 2:03 PM Using the Listening Modes-—Continued

This mode is nel sourci psp EE"

DSD stands for Direct Stream Digital and is the format used to store digital audio on Super Audio CDs (SACD).

This mode can be used with SACDSs that fea- ture multichannel audio.

= for use with HDMI multichan-

Onkyo Original DSP Modes

Mono Movie EE This mode is suitable for old movies and other mono sources. The center speaker out- puts the sound as it is, while reverb is applied 10 the sound output by the other speakers, giv- ing presence to even mono material.

Suitable for classical or operatic music, this mode emphasizes the surround channels in order to widen the stereo image and simulates the natural reverberation of a large hall.

image, giving the impression of being right in front of the stage.

Studio-Mix sun Suitable for rock or pop musie, listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.

TV Logic EE This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to

Ideal for background music, this mode fills the entire listening area with stereo sound from the front, surround, and surround back speakers.

sun In this mode, all speakers output the same sound in mono, so the sound you hear is the same regardless of where you are within the listening room.

T-D (Theater-Dimensional) u & u CI With this mode, you can enjoy a virtual 5.1 surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there's 100 much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.

b | < 7 HTX-22HD_En.book Page 52 Monday, April 7, 2008 2:03 PM

[= 2. 5 a + 5 © [ms & 2 © 2. 5 (] = q] 2 ® o ê à È = œ à —<

FN SETUP N£ELS ENTER Using the Audio Adjust Settings

With the Audio Adjust settings, you can adjust the sound and listening modes as you like.

1 Press the [SETUP] button.

Use the Up and Down [AVI W] buttons to select “3. Audio © Adjust” and then press

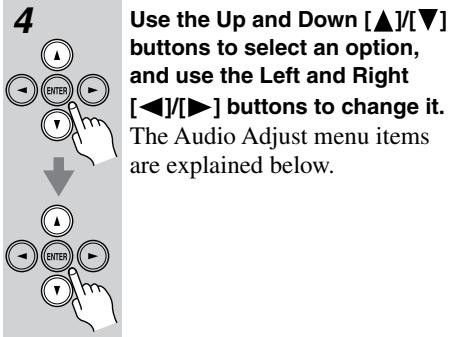

4 Use the Up and Down [A JW] buttons to select an option, and use the Left and Right L-@/I»>] buttons to change it. The Audio Adjust menu items are explained below.

When you've finished, press the [SETUP] button. Setup closes.

M input (Mux) This setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with mul- üiplex sources, multilingual TV broadcasts, and so on. Main: The main channel is output (default). Sub: The sub channel is output. M/S: Both the main and sub channels are output.

Æ Input (Mono) This setting determines which channel is out- put when the Mono listening mode is used with a stereo source. L+R: Both the left and right channels are output (default). L: Only the left channel is output. R: Only the right channel is output.

| < 7 HTX-22HD_En.book Page 53 Monday, April 7, 2008 2:03 PM Using the Listening Modes-—Continued

PLiix Music (2 ch Input) These settings apply to only 2-channel stereo sources.

If you're not using any surround back speak- ers, these settings apply to Dolby Pro Logic II, not Dolby Pro Logic IIx.

M Panorama With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic IIx Music listening mode. On: Panorama function on. Off: Panorama function off (default).

With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic Ix Music listening mode. It can be adjusted from —3 to +3. The default value is 0. Higher settings move the sound field backward. Lower settings move it for- ward.

If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Con- versely, if the stereo image feels like it's in mono, or there’s not enough surround sound, move it backward.

With this setting, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic x Music listening mode. Normally, if you’re using a center speaker, the center channel sound is output by only the center speaker. (If you’re not using a center speaker, the center channel sound will be distributed to the front left and right speak- ers to create a phantom center). This setting controls the front left, right, and center mix, allowing you to adjust the weight of the cen- ter channel sound. It can be adjusted from 0 to 7. The default value is 3.

M Center Image The DTS Neo:6 Music listening mode creates 6-channel surround sound from 2-channel stereo sources. With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel. It can be adjusted from 0 to 5. The default value is 2.

When set to 0, the front left and right channel output is attenuated by half (-6 dB), giving the impression that the sound is located cen- trally, This setting works well when your lis- tening position is considerably off center. When set to 5, the front left and right chan- nels are not attenuated, maintaining the origi- nal stereo balance.

Dolby EX M Dolby EX This setting determines how Dolby EX sig- nals are handled.

Auto: When the source is Dolby EX, you can select the Dolby EX lis- tening mode.

Manual: When the source is Dolby EX, you can select any of the listening modes compatible with this for- mat (e.g., Dolby EX, Dolby Pro Logic IIx, etc.).

b | < 7 HTX-22HD_En.book Page 54 Monday, April 7, 2008 2:03 PM

&) @ Using the Listening Modes-—Continued T-D (Theater-Dimensional) Dynamic EQ = LstnAngI (Listening Angle) M Dynamic EQ With this setting, you can optimize the The- With Dynamic EQ, you can enjoy great sound ater-Dimensional listening mode by specify- even when listening at low volume levels. ing the angle of the front left and right Dynamic EQ solves the problem of deterio- speakers relative to your listening position. rating sound quality as volume is decreased Ideally, the front left and right speakers by taking into account human perception and should be equidistant from your listening room acoustics. position and at an angle close to one of the It does so by selecting the correct frequency two available settings. response and surround volume levels Front left a Front right moment-by-moment so that the content speaker speaker sounds the way it was created at any volume of level—not just at reference level. 7 2040" Off: Dynamic EQ off. \ On: Dynamic EQ on. ä Note: + Dynamic EQ can be set only when the Narrow: Select if the listening angle is 20 Equalizer Settings on page 62 are set to degrees. Audyssey. Middle: Select if the listening angle is 30 degrees. & Wide: Select if the listening angle is 40 degrees (default). M Front 5.1ch With this setting, you can specify how your five surround speakers (front L/R, center, and surround L/R) are arranged to get the best effect from the Theater-Dimensional listening mode. Yes: Select this if you've arranged your five speakers so that they are all at the front. No: Select this if you’re using the normal arrangement for five surround sound speakers. Note: + This setting is available only when the Speaker Configuration is set to 5.1ch (see page 56). à 54 @

| < 7 HTX-22HD_En.book Page 55 Monday, April 7, 2008 2:03 PM Using the Listening Modes-—Continued

CHSEL L'NIGHT Late Night Function

With the Late Night function, you can reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels —ideal for watching movies late at night when you don’t want to disturb anyone.

Press the remote controller’s

IL NIGHT] button repeatedly to

select the following options:

For Dolby Digital and Dolby

Digital Plus sources, the options

Off: Late Night function off

Low: Small reduction in dynamic range.

High: Large reduction in dynamic range.

LuHT For Dolby TrueHD sources, the options are:

Auto: The Late Night function is set to On or Off auto- matically (default).

Off: Late Night function off. On: Late Night function on.

Notes: + The Late Night function can be used only when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.

The effect of the Late Night function depends on the material that you are play- ing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.

The Late Night function is set to Off when the HTX-22HD is set to Standby.

Adjusting Speaker Levels

You can adjust the volume of each speaker while listening to an input source. These tem- porary adjustments are cancelled when the HTX-22HD is set to Standby.

enseu Use the remote controller's cs [CH SEL] button to select each speaker, and use the Left and Ÿ Right [-@J/[b>] buttons to adjust the volume. © vou can adjust the volume of QE@C each speaker from —12 dB to +12 dB (-15 dB to +12 dB for the subwoofer).

+_ To save these adjustments, press the [TEST TONE] button.

+. You cannot use this function while the HTX-22HD is muted.

| < 7 HTX-22HD_En.book Page 56 Monday, April 7, 2008 2:03 PM Advanced Setup

Manual Speaker Setup

This section explains how to set the speaker settings manually. This can be useful for checking the speaker setting or making changes if you add additional speakers to your system after running the automatic speaker setup.

Some of the speaker settings are set automati- cally by the Automatic Speaker Setup func- tion (see page 32).

Speaker Configuration

This setting is set automatically by the Automatic Speaker Setup function (see page 32).

With the Speaker Configuration, you can specify how may speakers you're using.

SETUP AY ENTER Cone diameter

Note: + Before you change this setting, turn down the volume.

Press the [SETUP] button.

Use the Up and Down [AI W] buttons to select “2. Speaker Setup,” and then press [ENTER].

“Speaker Config” appears on the display.

Press [ENTER] and “Sub- woofer” appears on the dis- play. Use the Left and Right L<(/D>] buttons to select: Yes: Select if a subwoofer is used. No: Select if no subwoofer is used.

Press the Down [ W] button to

select “Front,” and then use the

Left and Right [-@]/-] but-

Small: Select if the front speak- ers are small.

Large: Select if the front speak- ers are large.

+_Ifthe Subwoofer setting in step 3 is set to No, this setting is fixed at Large and does not appear.

| < 7 HTX-22HD_En.book Page 57 Monday, April 7, 2008 2:03 PM Advanced Setup—Continued

Press the Down [ W] button to select“Cntr” (Center), andthen use the Left and Right [-J/[B-] buttons to select: Small: Select if the center speaker is small. Large: Select if the center peaker is large. elect if no center speaker is connected. Note: +_Ifthe Front setting in step 4 is set 10 Small, the Large option cannot be selected.

6 Press the Down [ W] button to select “Surr” (Surround), and then use the Left and Right [7/1] buttons to select: Small: Select if the surround speakers are small. elect if the surround peakers are large. None: Select if no surround

(o] 8 speakers are connected.

+_Ifthe Front setting in step 4 is set 10 Small, the Large option cannot be selected.

Press the Down [ W] button to

select “Surr B” (Surround

Back) and use the Left and

Right [-@J/B>] buttons to

Small: Select if the surround back speakers are small.

Large: Select if the surround back speakers are large.

None: Select if no surround back speakers are con- nected.

If the Surround setting in step

6 is set to None this setting

If the Surround setting in step

6 is set to Small, the Large

option cannot be selected.

Press the Down [ W] button to select “SurrBack Ch” (Sur- round Back Channel) and use the Left and Right [-@]/[b-] but- tons to select: 2ch: Select if two (left and right) surround back speakers are connected. 1ch: Select if one surround back speaker is con- nected.

If the Surround or SurrBack settings in step 6 or step 7 are set to None, this setting does not appear.

If you're using only one sur- round back speaker, connect it 10 the SURROUND BACK PRE OUT L jack.

Continue with step 9 of the “Crossover Frequency” setting.

| < 7 HTX-22HD_En.book Page 58 Monday, April 7, 2008 2:03 PM Advanced Setup—Continued

SETUP NELS ENTER Crossover Frequency

This setting is set automatically by the Automatic Speaker Setup function (see page 32).

This setting only applies to the speakers that you specified as Small in the “Speaker Con- figuration” on page 56.

To get the best bass performance from your speaker system, you need to set the crossover frequency according to the size and frequency response of your speakers

Press the Down [ W] button to select “Xover” (Crossover) and then use the Left and Right [VD] buttons to select a crossover frequency.

Use the diameter of the smallest speaker in your system when choosing the crossover fre- quency.

Speaker cone | Crossover diameter frequency

Over 8 in. 40/50/60Hz* (20 cm) 6-1/2108in. 80Hz (16-20 cm) 5-1/4 10 6-1/2 in. | 100Hz (13-16 cm) 3-1/2 10 5-1/4 in. | 120Hz (9-18 cm) Under 3-1/2 in. | 150Hz (default) (cm) 200Hz*

* Choose the setting suitable for the speaker.

Continue with step 10 of the “Double Bass” setting on the next page.

+ For a more accurate setting, look up the frequency response in the manuals supplied with your speakers and set accordingly.

+ Choose a higher crossover frequency if you want more sound from your subwoofer.

4 > | < 7 HTX-22HD_En.book Page 59 Monday, April 7, 2008 2:03 PM Ver Ï

& & 7 LA Advanced Setup—Continued Î Double Bass Speaker Distances This setting is not set automatically by These settings are set automatically by the Automatic Speaker Setup function | the Automatic Speaker Setup function (see page 32). (see page 32). With the Double Bass function, you can boost With the Speaker Distance settings, you can bass output by feeding bass sounds from the specify the distances from the speakers to front left, right, and center channels to the your listening position. subwoofer. 10 Press the Down [W] button to 1 Measure and make a note of (@ … sciect"D. Bass” (Double Bass) the distance from each speaker and then use the Left and Right to your listening position. O9O [-Y/1B-] buttons to select: On: Double Bass function Press the [SETUP] button. on. Bass from the front left and right channels is Ÿ also fed to the sub- o) woofer (default). @Q@Q Of Double Bass function peine ana Dour [ATV] | off. uttons to select “2. Speaker à Setup,” and then press à @) Note: [ENTERI. T +_Ifthe Subwoofer setting in step 3 is set to No, or the Front setting in step 4 is set to Small, this setting does not appear. 11 Press the [SETUP] button. Use the Up and Doun [A JW] no Setup closes. buttons to select “SpeakerDis- Q tance,” and then press OOO ENTER]. Note: +_To return to the previous menu, press the Ÿ [RETURN] button. CS &) @)

4 > | < 7 HTX-22HD_En.book Page 60 Monday, April 7, 2008 2:03 PM Ver Ï

Advanced Setup—Continued

Notes: 5 While “Unit” is displayed, use + To return to the previous menu, press the lo) the Left and Right [-J/[B>] but- [RETURN] button. tons to select “feet” or + The Center and Subwoofer distances can

@@O “meters” and then press be set up to 5 fi. (1.5 m) more or less than IENTER]. the Front distance. For example, if the

feet: Distances can be set in Front distance is set 0 20 ft. (6 m), the Ÿ feet. Range: 1 to 30 feet Center and Subwoofer distances can be set Gœ) in 1-foot steps. . between 15 and 25 ft. (4.5 and 7.5 m). meters:Distances can be set in + The Surround and Surround Back distances meters. Range: 0.3 10 9 can be set up to 5 ft. (1.5 m) more or 15 ft. meters in 0.3-meter (4.5 m) less than the Front distance. For steps. example, if the Front distance is set to 20 ft. (6 m), the Surround and Surround Use the Up and Down [AVI W] Back distances can be set between 5 and 25 buttons to select the speakers, ft. (1.5 and 7.5 m), and if the Front distance and use the Left and Right is set to 10 ft. (3 m), they can be set [-<(/D>] buttons to specify between 1 and 15 ft. (1 and 4.5 m).

6 (o) an their distance from your listen- Ÿ ing position. (o] "an

You can adjust the levels for the

following speakers: Left: Front left speaker. PS PS C2 Center: Center speaker. © Right: Front right speaker. Î SurrR: Surround right speaker. Surr BKR: Surround back right speaker. Surr BKL: Surround back left speaker. Surr L: Surround left speaker. Speaker Levels Subwfr: This subwoofer. Spekers ad mire N° or These settings are set automatically by don on Page Fe cannot be gura- the Automatic Speaker Setup function selected. (see page 32). With the Level Calibration settings, you can Repeat step 6 for each speaker. ie Volume of cach speaker $0 that all speakers can be heard equally at your listen- 8 Press the [SETUP] button. ing position. Setup closes. en 1 Press the [SETUP] button. see & 60 d 7 4

| < 7 HTX-22HD_En.book Page 61 Monday, April 7, 2008 2:03 PM Advanced Setup—Continued

2 Use the Up and Down [AI] buttons to select “2. Speaker Setup,” and then press

Use the Up and Down [ À JA W] buttons to select “Level Cal; and then press [ENTER].

A pink noise test tone is output by the front left speaker.

Surr BL: Surround back left speaker. SurrL: Surround left speaker. Subwfr: This subwoofer.

Speakers that you set to No or None in the “Speaker Config- uration” on page 56 cannot be selected.

When you play source mate- rial that contains no informa- tion in the LFE (Low Frequency Effects) channel, the subwoofer will produce no sound.

4 Turn up the volume so that you can hear the test tone suffi- ciently.

The name of the speaker cur- rently outputting the test tone is shown on the display.

Use the Left and Right [-@J/[B>] © buttons to adjust the speaker level, and use the Down [W] O O button to select the next speaker. The levels can be adjusted from 12 10 +12 dB in 1 dB steps

(O] (-15 to +12 dB for the sub- [ste] woofer).

You can adjust the levels for the following speakers: Left: Front left speaker.

Center: Center speaker. Right: Front right speaker. Surr R: Surround right speaker. SurrBKR: Surround back right speaker.

6 Repeat step 5 so that the level of the test tone coming from each speaker is the same.

7 Press the [SETUP] button. Setup closes.

Don't forget to turn down the volume if you turned it up while setting the levels.

These levels can also be adjusted by using the [TEST TONE] button on the remote controller. Press the [TEST TONE] button to output the test tone. Use the [CH SEL] button to select each speaker, and use the Left and Right [-@]/[B>] buttons to adjust the level.

| < 7 HTX-22HD_En.book Page 62 Monday, April 7, 2008 2:03 PM FS

SETUP NELS ENTER Equalizer Settings

These settings are set automatically by the Automatic Speaker Setup function (see page 32).

With the Equalizer settings, you can adjust the tone of each speaker.

Use the Up and Down [AJ W] buttons to select “2. Speaker Setup,” and then press [ENTER].

Use the Left and Right [-{J/[B-] buttons to select:

Off: Tone off, response flat.

Audyssey: The tone for each speaker is set automatically by the Automatic Speaker Setup function. Be sure to select this setting after hav- ing performed the Automatic Speaker Setup. This option is available only if the Auto- matic Speaker Setup func- tion has been run.

Manual: You can adjust the equalizer for each speaker manually.

If you selected Manual, continue with this procedure. If you selected Off or Audyssey, pro-

Press the Down [ W] button,

and then use the Left and Right

[VD] buttons to select a

You can adjust the EQ for the

Front: Front left and right

urround left and right speakers.

SurrBack: Surround back left and right speakers.

Subwoofer:This subwoofer.

Speakers that you set to No or None in the “Speaker Configura- tion” on page 56 cannot be selected.

4 > | < 7 HTX-22HD_En.book Page 63 Monday, April 7, 2008 2:03 PM Ver Ï

Advanced Setup—Continued

6 Use the Up and Down [AL W] buttons to select a frequency. Use the Left and Right [-{J/[B>] buttons to adjust the level at that frequency.

The volume at each frequency can be adjusted from —6 to +6 dB in 1 dB steps.

Q © Ÿ (o] an Tip: Low frequencies (e.g.,

63Hz) affect bass sounds; high frequencies (e.g., 16000Hz) affect treble sounds.

7 Press the Up [ À] button to select“Ch” (Channel), and then Q use the Left and Right [-@]/[B>] buttons to select another speaker. Repeat steps 5 and 6 for each speaker.

Press the [SETUP] button. The setup menu closes.

+_To return to the previous menu, press the [RETURN] button.

+ The front, center, surround, and surround

back speakers can be adjusted at 63 Hz,

250 Hz, 1000 Hz, 4000 Hz, and 16000 Hz.

The subwoofer can be adjusted at 25 Hz,

40 Hz, 63 Hz, 100 Hz, and 160 Hz.

While the Direct listening mode is selected,

the equalizer settings have no effect.

| < 7 HTX-22HD_En.book Page 64 Monday, April 7, 2008 2:03 PM Advanced Setup—Continued

SETUP 4 Use the Left and Right [-@J/[b>] buttons to change it. NELS © ne Source Setup menu items ENTER OQO are explained below. INPUT SELECTOR 5 When you've finished, press the [SÉTUP] button. serve CS Setup closes. 1 Press the input selector but- tons to select an input source, 5€) andthen press the [SETUP] IntelliVolume button. With IntelliVolume, you can set the input level for each input selector individually. This Ÿ is useful if one of your source components is

Use the Up and Down [AVI W] buttons to select “4. Source Setup,” and then press [ENTER].

louder or quieter than the others.

Use the Left and Right [<J/1B>] buttons to

If a component is noticeably louder than the others, use the Left [{] button to reduce its input level. If it's noticeably quieter, use the Right [B-] button to increase its input level.

The input level can be adjusted from —12 dB 10 +12 dB in 1 dB steps.

4 > | < 7 HTX-22HD_En.book Page 65 Monday, April 7, 2008 2:03 PM Ver Ï

@ SA Advanced Setup—Continued Î

When using your DVD players progressive You can enter a custom name of up to 10

scanning function, you may find that the pic- characters for each input selector. When an

ture and sound are out of sync. With the A/V input selector with a custom name is selected,

Sync setting, you can correct this by applying the custom name will be displayed instead of

a delay to the audio signal. The delay can be the default name.

set from 0 to 100 milliseconds (msec) in 10

millisecond steps. 1 Select the input selector to

Use the Left and Right []/1B-] buttons to which you want to give a cus-

set the delay. tom name.

To view the TV picture while setting the

delay, press [ENTERT. 2 Press the [SETUP] button.

If HDMI Lip Sync is enabled (see page 68), me

and your TV or display supports HDMI Lip (CR Sync, the displayed delay time will be the

AIV Sync delay time, The HDMI Lip Sync

delay time is displayed underneath in paren- 3 Use the Up and Down [A JL V]

theses. buttons to select “4. Source

(o) Setup,” and then press Note: OO renren!. + A/V Sync is disabled when the Direct lis- tening mode is used with an analog input = .

À source. Ÿ == = À Ÿ @ Ÿ

The Music Optimizer function cnhances the 4 Use the Up and Doun [ AJ W]

sound quality of compressed music files. Use buttons to select “Name Edit”

it with music files that use “lossy” compres- (O) and then press [ENTER].

sion, such as MP3. © Off: Music Optimizer off (default). On: Music Optimizer on.

sampling rate below 48 kHz and analog

audio input signals. The Music Optimizer is disabled when the Direct listening mode is selected.

+ The Music Optimizer function only works with PCM digital audio input signals with a 5

Use the Up and Down [AJ W] buttons to select a character, and then press [ENTER].

The character is set and the cur- sor moves one place to the right.

4 > | < 7 HTX-22HD_En.book Page 66 Monday, April 7, 2008 2:03 PM Ver Ï

Advanced Setup—Continued

6 Repeat step 5toenterupto1o | Volume Setup

characters. To move the cursor to the left or OQSO right, press the Left or Right [@/Lb] button respectively. To delete the character at the current cursor position, press the [MUTING] button. The charac- ter will be deleted and any char- acters to the right of it will be moved one place to the left. To change a character in a name, use the Left and Right [-@]/1B>] buttons to select it, use the Up and Down [ À J/[W] buttons to change the character, and then press [ENTER].

un Setup closes. TS PS 2 Use the Up and Down [AI W] Sa buttons to select “5. Volume

: (o) Setup,” and then press Once a custom name has been entered, it (DCE) [ENTER]. will be displayed instead of the default name when the input selector is selected. Ê Loi eue To use the default name again, delete all of Ÿ = = —_—— the characters in the custom name.

Available Characters

3 Use the Up and Down [AJIW] ABCDEFGHIJKLMNOPQRSTUVWXYZ buttons to select an item, and abcdefghijkimnoparstuvwxyz (©) then press [ENTER]

2122496780, Diiiiro forte)

| < 7 HTX-22HD_En.book Page 67 Monday, April 7, 2008 2:03 PM Advanced Setup—Continued

Use the Up and Down [A JT V] buttons to select an item, and use the Left and Right [-<{J/[b>] buttons to change it.

The items are explained below.

5 When you've ed, press the [SETUP] button.

With this setting, you can limit the maximum volume.

The Maximum Volume range is Off, 79 to 30.

This setting determines what the volume will be each time the HTX-22HD is turned on. The range is Last, Min, 1 to 79, Max.

To use the same volume level as when the HTX-22HD was last turned off, select Last.

Note: +_The Power On Volume setting cannot be set higher than the Maximum Volume setting.

Use the Up and Down [AJ] buttons to select “6. HDMI Setup,” and then press

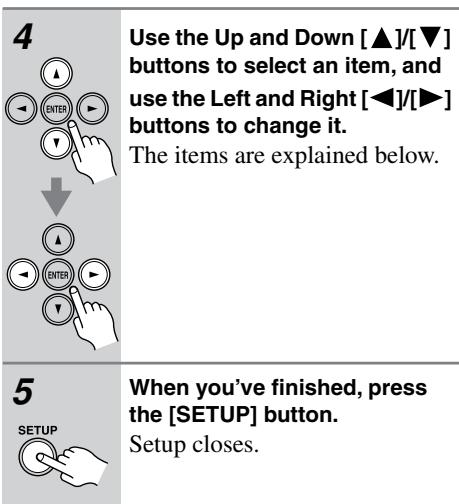

Use the Up and Down [AJIV] buttons to select an item, and then press [ENTER].

Use the Up and Down [AI V] buttons to select an item, and

use the Left and Right [-{J/[b-] buttons to change it.

The items are explained below.

When you've finished, press y pi the [SETUP] button.

| < 7 HTX-22HD_En.book Page 68 Monday, April 7, 2008 2:03 PM Advanced Setup—Continued

This setting determines whether audio received by an HDMI input is output by the HDMI OUT. You may want to change this setting to On if your TV is connected to the HDMI OUT and you want to listen to audio from an HDMI component through your TV’s speakers instead of the HTX-22HD's speak- ers. Normally, this should be set to Off.

Off: HDMI audio is not output (default).

On: HDMI audio is output.

+ If Onis selected and the signal can be out- put by the TV, the HTX-22HD°s speakers will output no sound.

+ When TV Control is enabled, this setting is set to Auto.

+_ With some TV and input signals, no sound may be output even if On is selected.

+ When the Audio TV Out setting is set to On, or TV Control is set to Enable and you’re listening through your TV's speak- ers (see page 25), if you turn up the HTX- 22HD's volume control, the sound will be output by the HTX-22HD's speakers. To stop the HTX-22HD's speakers producing sound, change the settings, change your TV's settings, or turn down the HTX- 22HD's volume.

The Lip Sync function can automatically syn- chronize HDMI audio and video that's gotten out of sync due to the complex digital video processing being performed by your HDMI- compatible TV, With HDMI Lip Sync, the audio delay required to synchronize the audio and video is calculated and applied automati- cally by the HTX-22HD.

Disable: HDMI lip sync disabled.

Enable: HDMI lip sync enabled. Notes: This function works only if your HDMI- compatible TV supports HDMI Lip Sync. You can check the amount of delay being applied by the HDMI Lip Sync function on the A/V Sync screen (see page 65).

With this setting you can enable or disable x.v.Color. To use x.v.Color, the HDMI source and HDMI TV must both support x.v.Color. x.v.Color disabled.

This function allows RIHD-compatible com- ponents connected via HDMI to be controlled with the HTX-22HD.

Enable: RIHD enabled.

+ RIHD, which stands for Remote Interactive over HDMI, is the name of the system con- trol function found on certain Onkyo com- ponents. The HTX-22HD can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however, operation with com- ponents other than RIHD-compatible com- ponents and recommended components cannot be guaranteed.

| < 7 HTX-22HD_En.book Page 69 Monday, April 7, 2008 2:03 PM Advanced Setup—Continued

Select Disable if a connected component is incompatible or you're not sure about its compatibility.

If operation is unreliable when set to Enable, select Disable instead.

When the Audio TV Out setting is set to On, or TV Control is set to Enable and you’re listening through your TV’s speak- ers (see page 24), if you turn up the HTX- 22HD's volume control, the sound will be output by the HTX-22HD's speakers. To stop the HTX-22HD's speakers producing sound, change the settings, change your TV's settings, or turn down the HTX- 22HD's volume.

PowCtr! (Power Control)

To link the power functions of RIHD-compat- ible components connected via HDMI, select Enable.

Enable: Power Control enabled.

+ The Power Control setting can be set only when the above Control setting is set to Enable.

HDMI power control only works with RIHD-compatible components that support it and may not work properly with some components due to their settings or com- patibility.

When set to Enable, the HTX-22HD con- sumes more power when on Standby. When set to Enable, the HTX-22HD enters Ready mode when set to Standby, and the STANDBY indicator lights up.

When set to Enable, regardless of whether the HTX-22HD is On or on Standby, video received by an HDMI input will be output by the HDMI OUT for playback on the TV or other component that's connected to the HDMI OUT. If the Audio TV Out setting is set to On, then HDMI audio will also be output by the HDMI OUT.

Select Enable to control the HTX-22HD from an RIHD-compatible TV connected via HDMI.

Disable: TV Control disabled.

Enable: TV Control enabled. Notes: + Select Disable if your TV is incompatible or you're not sure about its compatibility. The TV Control setting can be set only when the above Control and Power Control settings are both set to Enable. When the Audio TV Out setting is set to On, and the Power Control setting is set to Enable, regardless of whether the HTX- 22HD is On or on Standby, both audio and video received by an HDMI input will be output by the HDMI OUT for playback on your TV or other component that's con- nected to the HDMI OUT.

+ After changing the Control, Power Control, or TV Control setting, be sure 10 turn all of your components off and then back on again. Refer to the instruction manuals for your other components.

b | < 7 HTX-22HD_En.book Page 70 Monday, April 7, 2008 2:03 PM

&) 7 Advanced Setup—Continued 3 DTS: Only DTS format input signals (excluding DTS- HD) will be heard. If the input signal is not DTS, the DTS indicator will flash and there will be no sound. Auto (default): The format is detected automatically. If no digital input signal is present, the corre- sponding analog input Specifying the Digital Signal For- will be used instead. mat Note: Normally, the HTX-22HD detects the format "The digital signal format can only be set for of digital input signals automatically. How" digital nputs that are assigned 10 an input ever, if you experience either of the following issues when playing PCM or DTS sources, selector (see page 36). ou can specifÿ the signal format manual. + Ifthe beginnings of tracks from a PCM source are cut off, try the PCM setting. à + If noise is produced when fast forwarding Sa or rewinding a DTS CD, try the DTS set- ting. 1 With a PCM or DTS input source selected, press and EN hold the [SETUP] button for 3 seconds until “Auto” appears on the display. 2 While “Auto” is displayed (about 3 seconds), press Left or Right [-@J/[b-] button Q@O repeatediy to select: PCM, DTS, or Auto. PCM: Only 2-channel PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will flash and there will be no sound. à 70 @

22HD_Enbook Page 71 Monday, April 7, 2008 2:03 PM Troubleshooting

If you have any trouble using the HTX- 22HD, look for a solution in this section. If you can't resolve the issue yourself, contact your Onkyo dealer.

Before you contact your Onkyo dealer, &y resetting the HTX-22HD, as follows: To reset the HTX-22HD to its factory defaults, turn it on and, while holding down the [LIS- TENING MODE] button, press the [ON/STANDBY] button. “Clear” the display and the HTX-22HD will enter Standby mode.

Note that resetting the HTX-22HD will delete all of your custom settings.

Can't turn on the HTX-22HD Make sure that the power cord is plugged into the wall outlet properly.

Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it back in again.

There's no sound or it's very quiet To listen to an audio source that's connected to an HDMI input, make sure that input is assigned 10 an input selector (page 37).

To listen to an audio source that's connected 10 an OPTICAL, COAXIAL, or LINE input, make sure that input is assigned to an input selector (page 36).

Make sure you've selected the appropriate input selector (page 39).

Check the volume (page 39). The HTX-22HD is designed for home theater enjoyment and has a wide volume range for precise adjustment

Make sure that all audio connecting plugs are pushed in all the way (page 21).

Make sure that the cables are properly connected to the output jacks on the source component. Make sure that the polarity of the speaker cables is correct, and that the bare wire is in contact with the metal part of each speaker terminal (page 21).

Make sure that the speaker cables are not short-

Check the digital audio output settings on the

source component. On some game consoles, such

as those that can play DVDS, the default setting is

With some DVD-Video discs, you need to select

an audio format from a menu or with the AUDIO

button on your DVD players remote controller.

If your turntable doesn’t have a phono preamp

built-in, you must connect one between it and the

If your turntable uses an MC cartridge, you must

connect an MC head amp, or an MC transformer

Check the speaker settings (pages 56).

Ifthe digital signal format is set to PCM or DTS,

set it to Auto (page 70).

Ifthere’s no sound from a DVD player connected

to an HDMI IN, check the DVD players output

settings, and be sure to select a compatible audio

Only the front speakers produce sound

+ When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound.

mono source, such as an AM radio station or

mono TV program, the sound will be concen-

trated in the center speaker.

The surround speakers produce no sound

+ When the Stereo or Mono listening mode is

selected, the surround speakers produce no

Depending on the source and the current listen-

ing mode, not much sound may be produced by

the surround speakers. Try another listening

22HD_Enbook Page 72 Monday, April 7, 2008 2:03 PM Troubleshooting—Continued

The surround back speakers produce no

+ The surround back speakers are not used with all

listening modes. Try another listening mode

Not much sound may be produced by the sur-

round back speakers with some sources.

Check the Speaker Configuration (page 56).

The subwoofer produces no sound

+_Ifthe source material contains no audio in the LFE channel, the subwoofer produces no sound.

+ Check the Speaker Configuration (page 56).

There's no sound with a certain signal format

+ Check the digital audio output setting on the

source component. On some game consoles, such

as those that can play DVDs, the default setting is

With some DVD-Video discs, you need to select

an audio format from a menu or with the AUDIO

button on your DVD players remote controller.

The volume cannot be set to 79 (99)

+ Check to see if a maximum volume has been set

After the Automatic Speaker Setup function has

been run, or the volume level of each individual

speaker has been adjusted (pages 32 and 60), the

maximum volume may be reduced.

When the levels of each speaker have been

adjusted (page 60), the maximum possible vol-

When the Equalizer Settings (page 62) is set to

Audyssey, the maximum possible volume is

+ Using cable ties to bundle audio cables with

power cords, speaker cables, and so on can

degrade audio performance, so don’t use them.

An audio cable may be picking up interference.

Try repositioning your cables.

The Late Night function doesn't work

+ Make sure that the source is Dolby Digital or Dolby TrueHD (page 55).

+ When playing DTS program material, using the

pause, fast forward, or fast reverse function on

your player may produce a short audible noise.

This is not a malfunction.

When DTS program material ends and the DTS

bitstream stops, the HTX-22HD remains in DTS

listening mode and the DTS indicator remains

on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, as the HTX-22HD does not switch for- mats immediately, you may not hear anything, in which case you should stop your player for about 3 seconds, and then resume playback. With some CD players, you won't be able to playback DTS material properly even though your player is connected to a digital input on the HTX-22HD. This is usually because the DTS bit- stream has been processed (e.g.. output level, sampling rate, or frequency response changed) and the HTX-22HD doesn't recognize it as a gen- uine DTS signal. In such cases, you may hear noise. The beginning of audio received by an HDMI IN can't be heard + Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, sound may not be output immediately.

The remote controller doesn't work + Make sure that the batteries are installed with the correct polarity (page 14).

Make sure that the remote controller is not too far

away from the HTX-22HD and there's no

obstruction between the remote controller and the HTX-22HD's remote control sensor

Can't control other components

+ Make sure you've selected the correct remote controller mode.

+ To control an Onkyo DVD player or RI Dock with iPod that's connected with FR, remember to point the remote controller at the HTX-22HD and not at the DVD player or RI Dock.

How do 1 change the language of a multiplex source?

+ Onthe Audio Adjust menu, change the Input Ch setting to Main or Sub (page 52).

The fRI functions don't work

+ Touse fRI, you must make an FRI connection and an analog audio connection (RCA) between the component and HTX-22HD, even if they are connected digitally (page 26).

7 ATX-22HD_Enbook Page 73 Monday, April 7, 2008 2:03 PM Troubleshooting—Continued

The HTX-22HD contains a microcomputer for sig- nal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in again.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by this units malfunction. Before you record impor- tant data, make sure that the material will be recorded correctiy.

Before disconnecting the power cord from the wall

outlet, set the HTX-22HD to Standby.

22HD_Enbook Page 74 Monday, April 7, 2008 2:03 PM Subwoofer system with built-in amplifier (HTX-22HDPAW)

Type: Rated Output Power (IEC):

Subwoofer Frequency Response:

Amp Frequency Response

Input Sensitivity and Impedance Signal to Noise Ratio:

Power Consumption: Dimensions (W X H X D): Weight:

FL/FR: 10 Hz-100 KHz (Direct mode)

FL/FR/C/SL/SR: 150 Hz-20 KHz, +1 dB-3dB SW: 20 Hz-150 Hz, +1 dB-3dB (Crossover at 150 Hz)

150 mV/ 47 KQ (FL/FR)

105 dB (LINEI/LINE2, Direct mode, IHF-A)

207 X 325 X 327 mm (incl. grille and projection)

Maximum input power: 40W Output sound pressure level 80 dB/W/m

Frequency respons 70 Hz-50 kHz Crossover frequency: 9 kHz

Cabinet capacity: LIL Dimensions (W X H X D): 101 X 175 X 111 mm (inel. grille and projection) Weight: 08 kg

8 cm A-OMF cone woofer 2 cm balanced-dome tweeter

Spring type Magnetic shielding

Specifications and features are subject to change without notice.

| < 7 HTX-22HD_En.book Page 75 Monday, April 7, 2008 2:03 PM Memo

18 Park Way, Upper Saddie River, N.J. 07458, U.S.A.

SN 29344714 (C) Copyright 2008 ONKYO CORPORATION Japan. Al rights reserved.
