Conga Rockstar P50 - Stick vacuum CECOTEC - Free user manual and instructions

Product type	Stick vacuum
Brand	Cecotec
Model	Conga Rockstar P50
Dimensions (L x W x H)	110 x 25 x 20 cm
Weight	2.5 kg
Power supply	Lithium-ion battery, 22.2 V, 2200 mAh
Battery life	Up to 40 minutes in standard mode
Charging time	Approximately 4 hours
Suction power	150 W
Dust container capacity	0.6 L
Functions	Suction, turbo mode, motorized brush for carpets
Filtration	Cyclonic filter + high-efficiency washable filter
Noise level	75 dB
Maintenance and cleaning	Water-washable filter, removable container
Safety	Automatic shut-off in case of overheating, battery lock
Spare parts and repairability	Battery, filter, brush, tube, nozzles available
Included accessories	Crevice tool, removable brush, furniture adapter
Warranty	2 years

Frequently Asked Questions - Conga Rockstar P50 CECOTEC

How to charge the battery of the Conga Rockstar P50?

Plug the power adapter into the device and into a wall outlet. The indicator light shows the charging status. A full charge takes approximately 4 hours.

What is the battery life?

In standard mode, the battery life is approximately 40 minutes. In turbo mode, it can be reduced to approximately 15 minutes.

How to clean the filter?

Remove the cyclonic filter and wash it with lukewarm water. Let it dry completely (24 hours) before putting it back. Do not use detergent.

How to empty the dust container?

Press the container release button and remove it. Open the lid over a trash bin to empty the contents.

Can I use the vacuum without the battery?

No, the Conga Rockstar P50 operates exclusively on battery. It must be charged before use.

What to do if the vacuum loses power?

Check that the container is not full and that the filter is not clogged. Clean the filter and the brush unit. If the problem persists, contact customer service.

How to use turbo mode?

Press the button on the handle to switch to turbo mode. This increases suction power for hard floors and carpets.

Are the accessories compatible with other models?

The accessories are specific to the Conga Rockstar range. It is recommended to use only original Cecotec parts.

How to maintain the motorized brush?

Remove the brush from the tube and remove any tangled hair or threads with scissors. Clean it regularly to maintain good suction.

Where to find spare parts?

Spare parts (battery, filter, brush, tube) are available on the official Cecotec website and from authorized dealers.

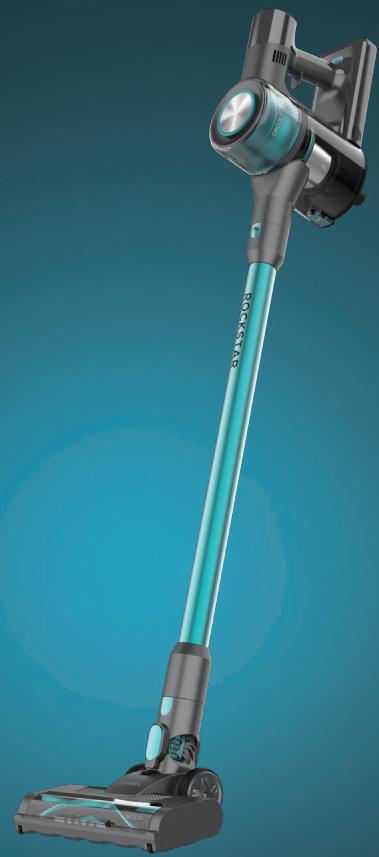

USER MANUAL Conga Rockstar P50 CECOTEC

Aspirador vertical / Upright vacuum cleaners

CONGA

ROCKSTAR

1. Parts and components 9
2. Before use 9
3. Operation 10
4. Cleaning and maintenance 10
5. Troubleshooting 11
6. Copyright 12
7. Simplified EU Declaration of Conformity 12

SOMMAIRE

EN • The coding in this manual is generic and applies to all code variants of the appliance.

1. Control panel
2. Dust container opening button
3. Suction tube release button
4. Suction tube
5. Floor brush release button
6. Floor brush head

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Vacuum cleaner
• 2-in-1 accessory
• Brush
• Floor brush head
• Suction tube
• Wall bracket
• Power adapter
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical

assistance is required.

3. OPERATION

Before using the vacuum cleaner for the first time, make sure the battery is fully charged. During charging, the LED indicator lights will illuminate one by one until all are lit. Charging time is approximately 4 hours.

Assembling the suction tube and floor brush head.

• To attach the floor brush head to the suction tube, align both parts so that the tab on the brush head matches the guides on the tube, and insert the tube into the brush head until it clicks into place.
• To disassemble them, press the floor brush release button and pull the suction tube while firmly holding the brush head.

Assembling the suction tube, floor brush head and main body.

To complete the vacuum cleaner assembly, once the floor brush head is attached to the suction tube, keep the tube in a vertical position and insert it into the main body.

This vacuum cleaner can be used in two different ways:

• As a handheld vacuum cleaner, by attaching accessories directly to the main body.
• As an upright vacuum cleaner, using the suction tube with accessories attached to it.

Press the power button to turn on the vacuum cleaner and the mode button to switch between the 3 available settings: low, medium and high.

4. CLEANING AND MAINTENANCE

Emptying the dust container

Press the dust container opening button to open the lid and empty the container.

Cleaning the filtration system

You can rotate the filter system by hand to remove it.

Press the button, and the filter frame will automatically release. Then move it upwards and remove the filter.

Cleaning the floor brush head

If the brush roller is blocked, you can remove and clean it. Press the lock button to "unlock",

then remove the locking pin to release the roller and remove it.

Charging

If you are not going to use the vacuum cleaner for an extended period, fully charge it once a month to prevent battery inactivity.

1. TROUBLESHOOTING

Problem	Possible cause	Possible solution
The vacuum cleaner does not work	The battery is discharged.	Charge the battery.
	The battery has reached the end of its useful life.	The battery must be replaced. To do this, contact Cecotec's Official Technical Support Service.
	The connector between the vacuum cleaner and the charger is dirty.	Clean and remove dirt from the connector.
	The socket has no power.	Make sure the plug is properly connected and there is electrical power. Try a different socket if necessary.
	The charger is not plugged in.	Connect the charger.
The vacuum cleaner does not pick up dust; the suction power has weakened	The dust container is full.	Empty the dust container.
	The dust filter needs to be cleaned or replaced.	Remove the dust filter and check for objects in the air inlet and remove them. Clean or replace the dust filter.
	Low battery.	Recharge the vacuum cleaner completely before use.
There is dust leaking from the vacuum cleaner	The dust container is full.	Empty the dust container.
	The dust filter is not properly installed.	Check the dust filter installation instructions.
	There is a puncture/hole in the dust filter.	Replace the dust filter.
The battery does not retain charge	The battery has reached the end of its useful life.	The battery must be replaced. To do this, contact Cecotec's Official Technical Support Service.

6. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

7. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of applicable European Union regulations. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU

Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity
