Product Type	Cordless Stick Vacuum
Brand	Cecotec
Model	Conga Rockstar 7500 Astral Ergowet Animal
Usage	Dry and wet cleaning, suitable for pet hair
Battery Type	Removable Lithium-ion
Rated Voltage	25.2 V
Battery Capacity	2500 mAh
Maximum Runtime	Up to 40 minutes (standard mode)
Charging Time	Approximately 4 hours
Dust Container Capacity	0.5 liter
Water Tank Capacity	200 ml (for wet cleaning)
Filtration	Washable HEPA filter
Noise Level	≈ 75 dB
Weight	3.2 kg
Dimensions (L x W x H)	25 x 20 x 110 cm
Included Accessories	Motorized pet brush, crevice tool, 2-in-1 brush, liquid adapter
Main Features	Dry and wet mode, powerful suction, cyclonic system, removable battery
Maintenance	Washable HEPA filter, removable and cleanable dust container
Safety	Automatic shut-off in case of blockage, CE certification
Spare Parts Available	Filters, batteries, brushes and tanks available separately
Repairability	Battery and filters replaceable by user
Warranty	2 years (according to manufacturer's conditions)

Frequently Asked Questions - Conga Rockstar 7500 Astral Ergowet Animal CECOTEC

How to recharge the battery of the Conga Rockstar 7500 Astral?

Remove the battery from the vacuum and plug it into the supplied charger. The charging time is approximately 4 hours. You can also charge the battery directly on the device by plugging in the power cable.

Can I use the vacuum without a battery by plugging it into the mains?

No, the Conga Rockstar 7500 Astral is a cordless vacuum. It operates only on battery. Make sure the battery is correctly installed and charged.

How to clean the HEPA filter?

The HEPA filter is washable. Remove it from the dust container, rinse it with cold water (no detergent), let it air dry completely before reinstalling. Do not use a tumble dryer.

What to do if suction decreases?

Check that the dust container is not full, clean the HEPA filter, inspect the brushes for obstructions, and ensure the hoses are not clogged. A blockage can reduce suction.

How to use the wet cleaning function?

Fill the water tank (capacity 200 ml) with clean water. Attach the tank and the provided microfiber cloth. Select wet mode on the handle. Vacuum and clean at the same time. Never use chemical products.

What is the actual runtime in wet mode?

The runtime is reduced in wet mode, about 20 to 25 minutes, because the motor runs at higher power for spraying. Use standard mode to optimize battery life.

How to maintain the motorized pet brush?

Remove the brush from the handle. Remove hair and fur wrapped around the roller using scissors or the included cutting tool. Wash the roller if necessary, but let it dry before reassembling.

Why does the battery not hold a charge?

If the battery does not hold a charge, it may have reached the end of its life. Lithium-ion batteries typically have a lifespan of 300 to 500 charge cycles. Replace the battery with a new one (Cecotec reference).

Can I wash the dust container with water?

Yes, the dust container is removable and washable with warm water. Let it dry completely before reinstalling to prevent mold.

Where to buy spare parts for my vacuum?

Spare parts (batteries, filters, brushes, tanks) are available on the official Cecotec website and from authorized retailers. Always use genuine parts to ensure performance.

USER MANUAL Conga Rockstar 7500 Astral Ergowet Animal CECOTEC

Aspirador vertical/Upright vacuum cleaner

cecòtec

Safety instructions 7

1. Parts and components 39

2. Before use 40

3. Assembly 40

4. Operation 41

5. Cleaning and maintenance 43

6. Troubleshooting 44

7. Technical specifications 45

8. Disposal of old electrical and

electronic appliances 45

1. Technical support and warranty 46

2. Copyright 46

SOMMAIRE

Read these instructions thoroughly before using the device. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• The device must only be supplied at a safety extra-low voltage in accordance with the voltage indicated on the device.
• Inspect the power cable regularly for visible damage, especially the cable, plug, and charger casing. If the power cable is damaged, it must be replaced with a special cable or set to be supplied by the official Cecotec Technical Support Service.
• WARNING: to recharge the battery, only use the power supply included with the device, with reference CZH024360075EUWQ.
• Non-rechargeable batteries should not be recharged.
• The supply terminals must not be short-circuited.
• Batteries may leak under extreme conditions. Do not touch any liquid that leaks from the battery. If the liquid gets into contact with skin, wash immediately with soap and water.

If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.

• Unplug the power cable of the charging base before cleaning or maintenance.
• ATTENTION: use the appliance and its accessories with caution, as is a risk of entrapment by rotating parts of the appliance.
• WARNING: this tube contains electrical connections. Do not immerse in water for cleaning. Do not use the appliance to vacuum water. The hose should be checked regularly and must not be used if damaged.
• The appliance can only be used with the supply unit provided with it.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• Make sure that the mains voltage matches the voltage stated on the product marking.
• Do not use any accessory that has not been recommended by Cecotec, as they might cause injuries or damage.
• Do not place the appliance close to heat sources, flammable substances, or wet surfaces where it could fall, nor allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use on concrete, tarmac, or other rough surfaces.

• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.

• Keep the air outlet unblocked to avoid losing suction power.

• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

INSTRUCTIONS DE SÉCURITÉ

1. Ergonomic handle
2. On/off trigger
3. Dust-tank release button
4. Dust tank
5. Tube release button
6. Ergoflex tube
7. Vacuum-head release button
8. Vacuum head
9. LED display
10. Speed button
11. Removable battery
12. Battery release button
13. Main unit
14. Ergoflex button
15. Accessory for corners
16. 2-in-1 accessory
17. Charger
18. Flexible hose
19. Wall bracket
20. Accessory for pets
21. Water tank
22. Cleaning brush
23. Jaliscazo brush

Control panel. Fig. 2

1. Operating light ring
2. Blocked brush indicator light
3. Filter failure indicator light
4. Blocked tube indicator light
5. Auto Mode indicator light
6. Battery percentage indicator light
7. Power percentage indicator light
8. Filter cleaning indicator light
9. Mode indicator light
10. Speed button (3 levels + AUTO mode)

2. BEFORE USE

• This upright vacuum cleaner includes a package designed to protect it during transport. Take the upright vacuum cleaner out of the box and remove all packaging materials. Keep the original box and other elements in a safe place, as this will help you prevent damage to the upright vacuum cleaner when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.

Box content

• Upright vacuum cleaner
• 2 in 1
• Accessory for corners
• Jaliscazo brush
• Wall bracket
• Accessory for pets
• Extensible tube
• Water tank

3. ASSEMBLY

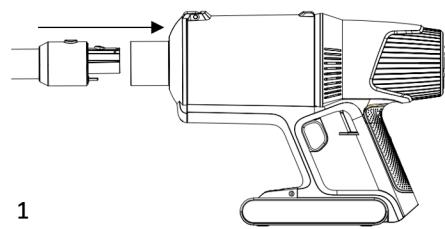

Tube installation. Fig. 3

• Insert the tube into the main unit until you hear a click.
• To remove the vacuuming tube, press the tube release button.

Vacuum head installation. Fig. 4

• Insert the vacuum head into the end of the tube until it clicks.
• To remove the vacuum head, press the vacuum-head release button.

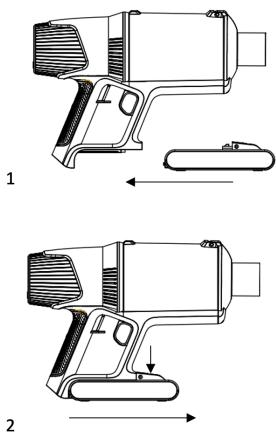

Battery installation. Fig. 5

• Install the battery into the bottom of the main unit until it clicks into place.
• To remove the battery, press the battery release button.

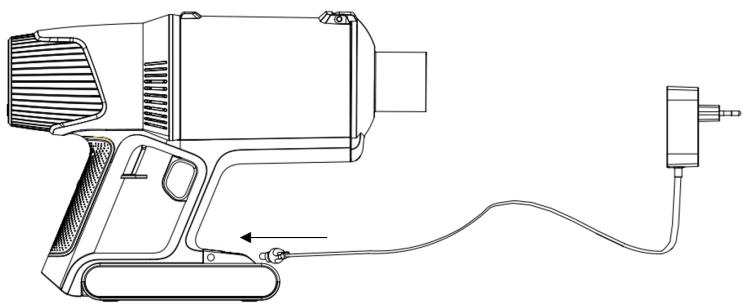

Charge. Fig. 6

Plug the charger into the charging port and then plug the other side of the adapter into the power socket.

Note:

• Charge the battery before using the device for the first time.
• It is recommended to charge the battery fully within the first 3 uses.
• Do not charge the battery for long periods of time, as this may damage it.

During charging

The battery indicator light will flash, and the battery percentage will increase. Once charging is complete, the indicator light will turn off after 5 seconds.

During use

When the battery charge is less than 10 %, the indicator will flash. Recharge battery when the appliance is off.

Wall bracket. Fig. 7

• Place the wall bracket against the wall and mark the drilling points for later fixing of the bracket. It is recommended that the vacuum head rests on the floor so that the wall bracket does not support the full weight of the vacuum cleaner.
• Drill the holes and fix the wall bracket with the expansion screws, then place the vacuum cleaner.

4. OPERATION

You can use this vacuum cleaner in two different manners:

1. Handheld vacuum cleaner, attaching the accessories directly to the main body.
2. Upright vacuum cleaner, using the suction tube with the accessories assembled.

Using the vacuum cleaner

1. Select the accessory according to the cleaning task you want to perform.
2. Press the on/off trigger to switch on the appliance. Press it again to stop operation.
3. Press the speed button to set the 3 speed levels and the Auto mode. Bear in mind that if the battery percentage is below 20% you will not be able to set speed. This vacuum cleaner features the following modes:
4. Low: low speed.
5. Medium: medium speed.
6. High: high speed.
7. Automatic: speed adjusts automatically based on the amount of dirt. When activated, the auto mode indicator light lights up.

Accessories

Vacuum head

The vacuum head is suitable for both carpets and hard floors.

Accessory for corners

Use this accessory to clean corners, recesses, edges, and other hard-to-reach places.

2-in-1 accessory

Use this accessory to clean upholstered surfaces, keyboards, lamps, curtains, blinds, vents, etc. To switch between the wide side and narrow side, press the button on the accessory and slide the brush up or down. Fig. 8

Accessory for pets. Fig. 9

This accessory allows you to effortlessly brush and untangle hair (depending on the head you use) from your pet's coat.

1. To attach the accessory for pets to the main body, align and fit both until the accessory clicks into place.
2. To remove the accessory, press the accessory-for-pets release button with one hand while holding the main body firmly with the other.
3. Press the head release button to remove the head so that the desired head can be fitted. To attach the head, insert the lower tabs and then press the upper part until it clicks into place.
4. Press the trigger to release the hair and instantly vacuum it.

Fig. 9 key:

1. Head release button
2. Trigger
3. Accessory for pets release button

Water Tank accessory

• With this accessory you will mop and scrub your floor just by attaching it to the vacuum cleaner.
• Do not use cleaning agents. Use clean and room temperature water only. Do not use the vacuum cleaner to vacuum water.
• When the vacuum clener is not going to be used for a long period of time, remove the water tank and empty the remaining water. Do not expose it to direct sunlight or to damp environments.
• When using this product for the first time, make sure the water tank plug is not open.

Mop installation

- Place the mop cloth on the ground with the Velcro facing upwards.

- Align the mop cloth with the Velcro strips on the water tank and attach it without covering the wheels.

Replacing the mop

• Remove the water tank from the vacuum cleaner.
• Use your foot to hold the accessory against the ground and pull the vacuum cleaner upwards until both parts are separated.
• Replace the mop and refill the water tank.
• Install the water tank again, insert the tank in the lower part of the vacuuming brush head, and press until it is fixed.

5. CLEANING AND MAINTENANCE

• Always turn off and unplug the vacuum cleaner before cleaning or maintenance.
• Use a soft, slightly dampened cloth to clean the surface of the appliance.
• Never immerse the appliance in water or other liquids. Do not allow liquids to enter the appliance.
• Do not use abrasive cleaners or scouring pads to clean the device.
• Do not leave the vacuum cleaner in a place with direct sunlight.
• Do not leave the vacuum cleaner in a wet place after cleaning it.
• After the brush has been used for a long time, bristles might start to tangle with hair and other dirt. Clean the brush to ensure cleaning efficiency.

Cleaning the water tank and the filters

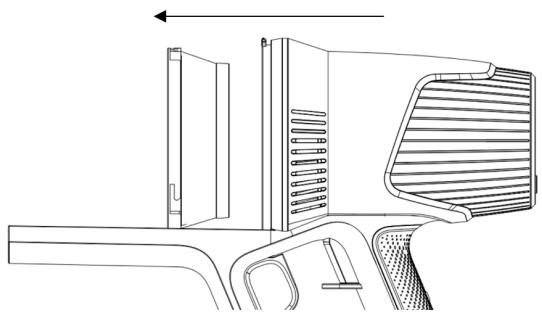

1. Press the dust-tank release button and remove it. Fig. 10
2. Press the dust-tank release button to open the tank cover and empty it. Fig. 11
3. Use the cleaning brush to clean the filter. Fig. 12
4. Hold the dust tank, remove the filter and lift the filter cover to remove the parts inside. Fig. 13
5. Wipe all parts with a slightly damp cloth.
6. After cleaning the filter, press the button on the display for 3 seconds to restart.

Motor filter cleaning. Fig. 14

1. Turn the filter cover counterclockwise to remove it.
2. Remove the filter and clean it.
   It is recommended to clean the filter at least every six months.

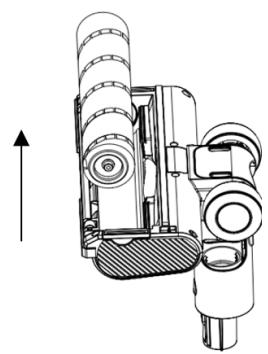

Cleaning the brush and the vacuum head

1. Press the release tab on the hard floor brush and remove the brush as shown in figure 15.
2. Remove hair and debris around the brush with your fingers or the cleaning brush blade.

ENGLISH

1. Wash the brush under running water.
2. Allow the brush to dry completely before reassembly.
3. Replace the brush.

WARNING:

The motorised brush includes electrical connections, do not immerse in water for cleaning. Make sure the brush is completely dry before replacing it.

Water tank cleaning

• To clean the water tank, fill it with clean water, shake it, and empty it.
• The mop is washable; therefore, it is suggested to wash it after every use.
• Replace the cloth after 20-30 uses, depending on the use.

6. TROUBLESHOOTING

Error codes

Error code	Error description
E1	Battery overvoltage
E2	Undervoltage or significant battery voltage difference.
E3	Undervoltage, overvoltage or overcurrent of the charger
E4	Switch failure, cannot switch on
E5	Thermistor failure
E6	Main motor disconnected or engine failure
E8	Main motor overload
E9	Main motor short circuit

If you notice a problem with the appliance or if it is not working properly, you can carry out a few simple checks before calling the official Cecotec Technical Support Service.

Problem	Solution
The upright vacuum cleaner does not turn on	Before using the appliance, check that it is fully charged.Check if the appliance is off.Check whether the filter is correctly positioned or installed.
Not suctioning/not sufficiently suctioning	Check the inlets for clogging, unplug them and clean them if necessary.Make sure that the filter is installed correctly. Empty the dust tank and clean the filter.
The device does not charge	To charge the battery, use only the supplied charger.The battery has overheated, recharge the device when it has cooled down completely.

For any further doubt or question, contact the official Cecotec Technical Support Service.

7. TECHNICAL SPECIFICATIONS

Product reference: 08443

Product: Conga Rockstar 7500 Astral ErgoWet Animal

Voltage and frequency: 100-240 V \~ 50-60 Hz

Motor rated power: 650 W

Brush rated power: 30 W

Li-Ion battery 29.6 V 3000 mAh 88.80 Wh

Rated power of charger 36 V 0.75 A 27.0 W

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the appliance and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Accessoire Water tank

Accessorio Water Tank

Water tank accessoire

6. PROBLEEMOPLOSSING

Foutcodes

Instalace trubice. Obr. 3

23
Fig. / Img. / Rys. / Obr. 1

Fig. / Img. / Rys. / Obr. 2

Fig. / Img. / Rys. / Obr. 3

Fig. / Img. / Rys. / Obr. 4

Fig. / Img. / Rys. / Obr. 5

Fig. / Img. / Rys. / Obr. 6

Fig. / Img. / Rys. / Obr. 7

Fig. / Img. / Rys. / Obr. 8

Fig. / Img. / Rys. / Obr. 9

Fig. / Img. / Rys. / Obr. 10

Fig. / Img. / Rys. / Obr. 11

Fig. / Img. / Rys. / Obr. 12

Fig. / Img. / Rys. / Obr. 13

Fig. / Img. / Rys. / Obr. 14

Fig. / Img. / Rys. / Obr. 15

www.cecotec.es
