Conga Rockstar 1500 Ray Jalisco - Stick vacuum CECOTEC - Free user manual and instructions

Product Type	Stick Vacuum Cleaner
Brand	Cecotec
Model	Conga Rockstar 1500 Ray Jalisco
Color	Ray Jalisco (striped design)
Dimensions (W × H)	≈ 250 × 1200 mm
Weight	2.5 kg
Power Supply	Lithium-ion battery 22.2 V / 2000 mAh
Runtime	Up to 30 minutes (normal mode)
Charging Time	4 to 5 hours
Suction Power	150 W
Dustbin Capacity	0.5 L
Filtration System	Washable HEPA filter
Brush Type	Motorized brush for hard floors and carpets
Included Accessories	Crevice tool, 2-in-1 brush
Noise Level	≤ 80 dB
Maintenance	Washable filter, empty dustbin regularly
Safety	Automatic shut-off in case of overheating, protected battery
Warranty	2 years
Repairability	Spare parts available (brush, filter, battery)
Usage	Dry vacuuming only

Frequently Asked Questions - Conga Rockstar 1500 Ray Jalisco CECOTEC

How do I start the vacuum cleaner?

Press the on/off button on the handle. To change modes, press the power adjustment button.

How do I clean the HEPA filter?

Remove the filter from the dustbin, tap it to remove dust, then wash it with warm water. Let it dry completely before reinstalling.

What if the vacuum cleaner does not turn on?

Check that the battery is charged. Plug in the charger and wait at least 30 minutes. If the problem persists, contact customer service.

How do I empty the dustbin?

Press the dustbin release button, remove it, then open the lid over a trash can to empty the contents.

How do I recharge the battery?

Plug the power adapter into the charging port on the back of the vacuum cleaner. The indicator light shows the charging status.

What to do if suction power decreases?

Clean the HEPA filter, check that the dustbin is not full, and remove any blockages in the brush or tube.

Can I use the vacuum on rugs or carpets?

Yes, the motorized brush adjusts automatically. For thick carpets, use maximum power mode.

How do I maintain the main brush?

Remove the brush by pressing the side clips. Remove tangled hair or threads with scissors, then reattach.

Where can I buy spare parts?

Visit the official Cecotec website or contact their customer service. Parts like filter, brush, and battery are available.

How do I contact Cecotec customer service?

Check www.cecotec.es or call the number provided in the user manual. Have the model and serial number ready.

USER MANUAL Conga Rockstar 1500 Ray Jalisco CECOTEC

Aspirador vertical/Upright vacuum cleaner

Instrucciones de seguridad	4
Safety instructions	8
Instructions de sécurité	11
Sicherheitshinweise	15
Istruzioni di sicurezza	20
Instruções de segurança	24
Veiligheidsvoorschriften	28
Instrukcje bezpieczeństwa	32
Bezpečnostní pokyny	36

ÍNDICE

1. Parts and components 47
2. Before use 47
3. Product assembly 48
4. Operation 49
5. Cleaning and maintenance 50
6. Troubleshooting 51
7. Technical specifications 52
8. Disposal of old electrical and electronic appliances 52
9. Technical support and warranty 52
10. Copyright 53

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• Inspect the power cable regularly for visible damage, especially the cable, plug, and charger casing. Should the cable be damaged or the appliance not work properly, it must be repaired by the official Cecotec Technical Support Service to avoid any danger.
• The appliance must be powered at a low safety voltage as stated on the marking.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• WARNING: the appliance has rotating parts which may pose a risk of entrapment. Exercise extreme caution.
• Ensure that the mains voltage matches the voltage specified on the appliance marking and that the mains plug is earthed.
• Do not use the appliance if it has been dropped or if there are any visible signs of damage.
• Do not use any accessory that has not been recommended

by Cecotec, as they might cause injuries or damage.

• Do not place the appliance close to heat sources, flammable substances, or wet surfaces where it could fall, nor allow it to come into contact with water or other liquids. Do not use outdoors.
• Do not use the appliance to vacuum liquids, lit matches, cigarette ends, hot ash, or on wet surfaces.
• Do not use on concrete, tarmac, or other rough surfaces.
• Stop using the appliance if you notice an abnormal sound or sense a temperature higher than usual.
• Keep the air outlet unblocked to avoid losing suction power.
• Check the suction tube from time to time to make sure it is not blocked.
• Take special care when using the appliance near stairs.
• Do not block the appliance openings or airflow. Keep openings free of any objects, and do not block them with clothes or your fingers.
• Do not pull on the cable to disconnect the appliance. Pull from the plug.
• Do not immerse the cable, plug, or any other part of the appliance in water or any other liquid or expose electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

Battery instructions

• WARNING: To recharge the battery, use only the power supply included with the appliance, with reference CZH015360050EUWH.
• Do not allow children to replace batteries without adult supervision.
• Do not disassemble, open, or break secondary batteries.
• Keep the batteries out of the reach of children. Pay particular

attention to small batteries. In case of battery ingestion, please seek medical attention immediately.

• Do not expose batteries to heat or fire. Avoid storage in direct sunlight.
• Do not short-circuit the battery. Do not store batteries in an untidy manner, in a box, or drawer where they can short-circuit each other or be short-circuited by other metal objects.
• Do not subject batteries to mechanical shock.
• Both batteries and cells can leak under extreme conditions. In the event of a battery leak, keep your skin and eyes away from the liquid. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves to handle the battery and dispose of it immediately in accordance with local regulations.
• Do not use any charger other than the one supplied specifically for this appliance.
• Observe the positive (+) and negative (-) markings on the battery and equipment and make sure the former is inserted accordingly.
• Do not use any battery that is not designed for this appliance.
• Do not use the appliance if powered with batteries that differ in capacity, size, or type.
• Children must be supervised if they handle the battery.
• In case of battery ingestion, please seek medical attention immediately.
• Always use the battery recommended for this appliance.
• Keep batteries and cells clean and dry.

• Wipe the battery terminals with a clean, dry cloth if they become dirty.

• Secondary batteries must be charged before use. Always use the specified charger and refer to these instructions.

• Do not leave the battery on prolonged charge when not in use.
• After long periods of storage, it may be necessary to charge and discharge the batteries several times to obtain maximum performance.
• Keep this instruction manual for future reference.
• Use the battery only for its intended purpose, i.e., for use with this appliance.
• Remove the battery from the appliance when not in use whenever possible.
• Dispose of the battery properly.
• Non-rechargeable batteries should not be recharged.

INSTRUCTIONS DE SÉCURITÉ

1. Handle
2. Dirt-tank release tab
3. Dirt tank
4. Dirt-tank opening button
5. Suction-tube release button
6. Suction tube
7. Vacuum-head release button
8. Motorised and Jalisco brush.
9. Power button
10. Battery
11. Battery indicator
12. Mode Selection icon
13. Power adapter
14. Accessory for corners
15. 2-in-1 accessory
16. Wall bracket

NOTE:

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This upright vacuum cleaner includes a package designed to protect it during transport. Take the upright vacuum cleaner out of the box and remove all packaging materials. Keep the original box and other elements in a safe place, as this will help you prevent damage to the upright vacuum cleaner when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.
• Fully charge the appliance before first use.
• The normal charge time is 5 hours approx. When the battery is fully charged, unplug it.

Box content

• Conga Rockstar 1500 Ray Jalisco vacuum cleaner
• 2-in-1 accessory
• Accessories for corner
• Jalisco brush
• Suction tube
• Wall bracket
• Power adapter
• Instruction manual

3. PRODUCT ASSEMBLY

Assembling the suction tube and vacuum head

Fig. 2

• To install the vacuum head into the suction tube, match both parts ensuring the tab on the vacuum head matches the guides on the tube, and insert the tube into the vacuum head until firmly fixed.
• To disassemble them, press the vacuum-head release button, and pull from the suction tube while firmly holding the vacuum head.

Note

When assembling these 2 parts, make sure the handle and the brush are facing the same direction.

Assembling the suction tube, vacuum head, and main body

Fig. 3

To complete the vacuum cleaner's installation, once the vacuum head is mounted on the suction tube, hold the tube vertically and insert it into the main body.

Battery assembly

Fig. 4

• Insert the battery in the corresponding slot on the main body. Once inserted, it will click into place. Make sure it's secured in position.
• To remove the battery, press the release button and remove it.

Note

Remove the battery and store it in a safe, dry place if the appliance is not going to be used in a long period of time.

4. OPERATION

You can use this vacuum cleaner in two different manners:

1. Handheld vacuum cleaner, attaching the accessories directly to the main body.
2. Upright vacuum cleaner, using the suction tube with the accessories assembled.

Using the handheld vacuum cleaner

• Press the power button to turn the vacuum cleaner on or off.
• Press the speed knob repeatedly to select the appliance operating speed: Eco and Turbo. The appliance will turn on in Eco mode by default.

Accessories

This appliance includes different accessories that allow cleaning different types of surfaces, objects, and dirt. Some of them are suitable for the upright vacuum cleaner, and others are preferably used with the handheld one.

Jalisco brush

To be used with the upright vacuum cleaner. This brush is especially designed for cleaning hard floors, but can be used to efficiently clean soft floors too.

2-in-1 accessory

This accessory is preferably used with the handheld vacuum cleaner and allows cleaning furniture without damaging it.

Accessory for corners

This accessory is preferably used with the handheld vacuum cleaner to reach less accessible dirt in corners.

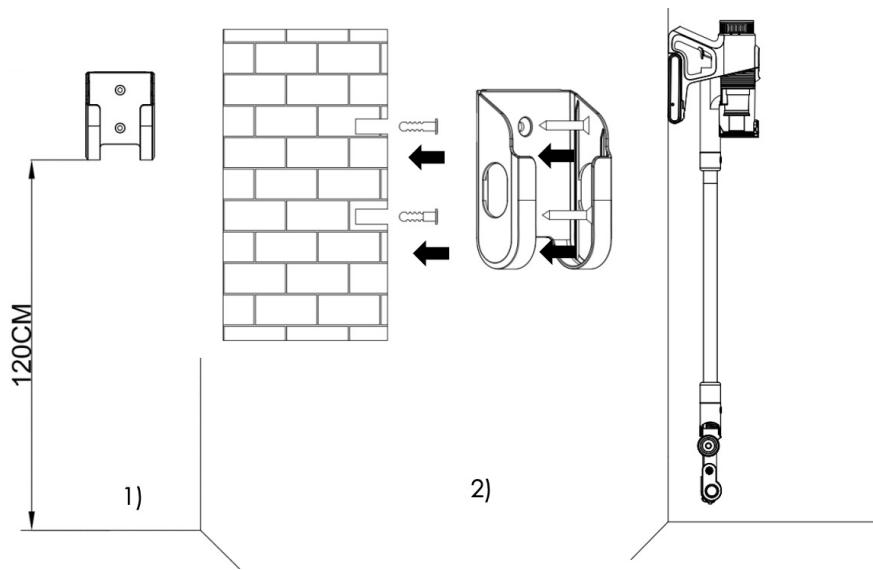

Installing the wall bracket

Fig. 5

• Place the wall bracket on the wall and mark the points where the holes are to be drilled to fix the bracket. It is important that the vacuum head rests on the floor so that the wall bracket does not support the full weight of the vacuum cleaner.
• Drill the 3 holes (previously marked) and insert the plugs and screws.
• Make sure that the charging base is securely fixed to the wall and place the vacuum cleaner on the bracket, inserting the charging terminals of the vacuum cleaner into the charging terminals of the bracket (plastic tab).
• Once the wall bracket is installed, connect the power adapter to the charging port: you will then be able to charge the vacuum cleaner by simply sliding it up and down the wall bracket.

Charge and display

• The battery must be charged with the wall bracket while it is connected to the main body. Plug one end of the adapter into the power supply and connect the other end to the bracket.
• During charge, the battery indicator will flash. When charging is complete, the battery indicator will remain steady.
• You can also charge the battery without using the wall bracket. You can charge the battery when the battery is installed or not in the vacuum cleaner. Connect the adapter, then connect the other end of the cable to the battery paying attention to connection direction. Once properly connected, the battery indicator will flash and change to steady when charging is complete.

5. CLEANING AND MAINTENANCE

• Turn the appliance off, unplug it from the power socket, and allow it to cool down before cleaning it.
• Use a soft, slightly dampened cloth to clean the surface of the appliance.
• Never immerse the appliance in water or other liquids. Do not allow liquids to enter the appliance.
• Do not use abrasive cleaners or scouring pads to clean the appliance.
• Do not leave the vacuum cleaner in a place with direct sunlight.
• Do not leave the vacuum cleaner in a wet place after cleaning it.
• After the brush has been used for a long time, bristles might start to tangle with hair and other particles. Clean it in order for it to operate correctly again.

Cleaning the filters and tank

• To prevent the appliance from overheating and losing suction power, it is suggested to clean the filters frequently. To make the most of the suction power, it is suggested to clean the filter after every use.
• The filters shelf life will depend on the accumulated use and the type of particles which are frequently vacuumed. It is recommended to replace the filters every 6 months.
• To remove the main filter
• Press and move the dirt-tank opening button.
• Once the dirt tank has been removed, remove the high-efficiency filter.
• Vacuum and shake the filter to remove every particle and dirt remain that may block them and hinder proper air circulation. Remember not to use the vacuum cleaner without the filter properly assembled.
• Filters cannot be washed inside a washing machine nor dried with a hair dryer.
• Do not brush the high-efficiency filter.
• To empty the dirt tank, press the dirt tank lower-cover opening button, open it, and empty it.

Cleaning the Jalisco brush

Fig. 6

• Move the rotary brush release button with the finger and remove the cover on the same side of the brush.
• Remove one brush's ends as shown in Figure 6.
• It is important to clear and clean all the residues left in the brush's rotary axis.
• If you decide to wash the brush, you must air dry all the pieces. Assemble the pieces back in order to use the brush again.

How to remove the battery

Press the battery release button and remove the battery as shown in Figure 4. Store the battery in a plastic bag and leave it in a dry place.

Vacuum cleaner storage

If the robot is not going to be used for a long time, remove the battery and store it in a dry and safe place.

1. TROUBLESHOOTING

Problem	Possible cause	Possible solution
The vacuum cleaner does not work.	Battery is discharged.The metallic tubes, floor brushes, battery or the appliance itself are not properly assembled.	Charge the vacuum cleaner.Make sure all parts of the vacuum cleaner are correctly assembled.
The suction power decreased and the vacuum cleaner makes a lot of noise.	The dirt tank is full.The filter is too dirty, the electric rotary-brush inlet is obstructed, or the brush is blocked.	Clean the dirt.Clean or replace both filters.Clean the dirt inside the electric rotary brush.
Insufficient operating time after charging the vacuum cleaner.(The battery life may vary according to the room temperature).	Insufficient charge time.Battery life has been exceeded.	Fully charge the battery following the instructions in this manual.Batteries are easily recycled. Go to the closest maintenance point and buy new batteries.

7. TECHNICAL SPECIFICATIONS

Conga Rockstar 1500 Ray Jalisco

Product reference: 08423

Motor rated power: 200 W

Brush rated power: 15 W

Charger output: 36.0 V = 0.5 A

Battery data:

29.6 V, 2200 mAh, 65.12 Wh

Product reference: RSH06

Input: 36.0 V, 0.5 A

Type: 6INR19/66

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries. Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

Installation du support mural

Img. 5

6. PROBLEEMOPLOSSING

Fig./Img./Abb./Afb./Rys./Obr. 2

Fig./Img./Abb./Afb./Rys./Obr. 3

Fig./Img./Abb./Afb./ Rys./Obr. 4

Fig./Img./Abb./Afb./ Rys./Obr. 5

Fig./Img./Abb./Afb./Rys./Obr. 6

www.cecotec.es
