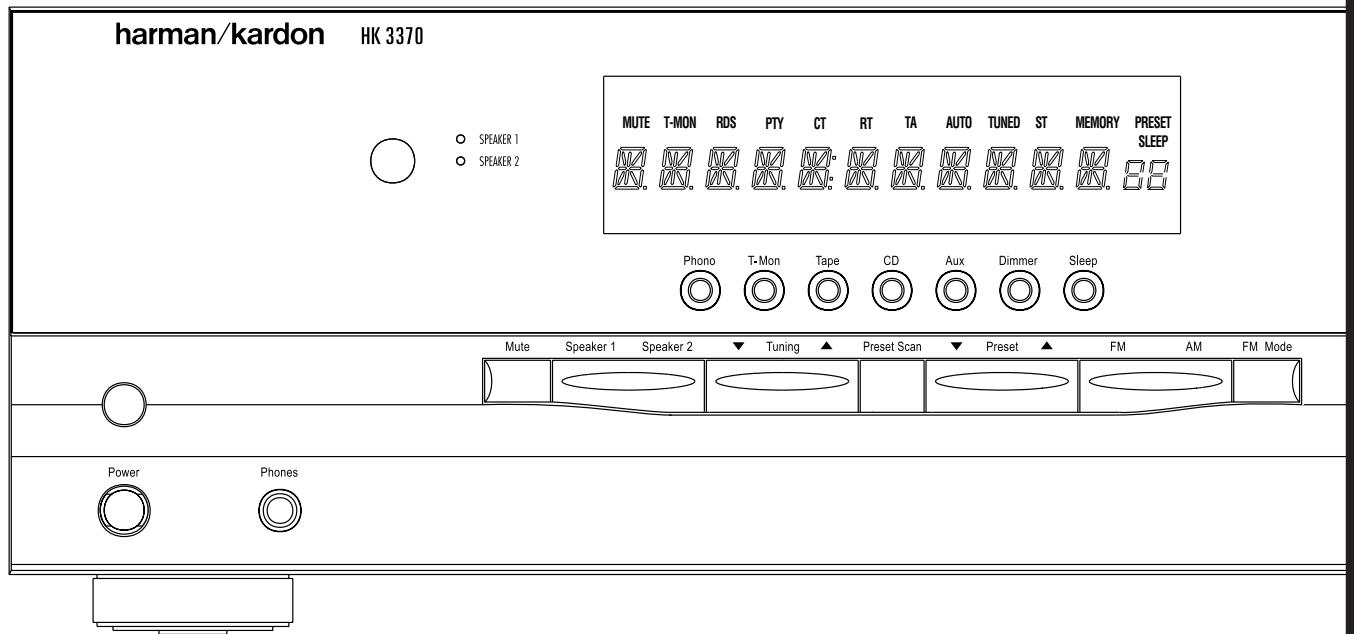

HK 3370 Stereo Receiver

OWNER'S MANUAL

harman/kardon

Power for the Digital Revolution™

Table of Contents

3 Introduction
3 Important Information
4 Front Panel Controls
6 Rear Panel Connections
8 Remote Control Functions
10 Installation and Connections
12 Operation
12 Basic Operation
12 Source Selection
12 Tuner Operation
13 RDS Operation
14 Tape Recording
14 Memory Backup
14 Processor Reset
15 Using the Remote Control
16 Troubleshooting Guide
17 Technical Specifications

Declaration of Conformity

We, Harman Consumer International

2, Route de Tours

72500 Château-du-Loir,

FRANCE

declare in own responsibility, that the product described in this owner's manual is in compliance with technical standards:

EN 55013/6.1990

EN 55020/12.1994

EN 60065:1993

EN 61000-3-2/4.1995

Carsten Olesen

Harman Kardon Europe A/S

02/01

Typographical Conventions

In order to help you use this manual with the remote control, front-panel controls and rear-panel connections, certain conventions have been used.

EXAMPLE - (bold type) indicates a specific remote control or front-panel button, or rear-panel connection jack

EXAMPLE - (OCR type) indicates a message that is visible on the front-panel information display

1 - (number in a square) indicates a specific front panel control
A - (letter in a circle) indicates a button or indicator on the remote
1 - (number in a circle) indicates a rear panel connection

Congratulations! With the purchase of the Harman Kardon HK 3370 you are about to begin many years of listening enjoyment.

While sophisticated systems are hard at work within the HK 3370 to make all of this happen, hookup and operation are simple. Color-keyed connections and a comprehensive remote control make the HK 3370 easy to use.

To obtain maximum enjoyment from your new receiver, we urge you to take a few minutes to read through this manual. This will ensure that connections to speakers, source playback units and other external devices are made properly. In addition, a few minutes spent learning the functions of the various controls will enable you to take advantage of all the power the HK 3370 is able to deliver.

If you have any questions about this product, its installation or operation, please contact your dealer. He is your best local source of information.

Description and Features

Harman Kardon's HK 3370 is a full-featured Stereo receiver, with five inputs and an FM stereo/FM/AM tuner with RDS capabilities that provide for the utmost flexibility. A high-quality phono input is available so that you may continue to enjoy your existing record collection as well as the latest CD recordings.

The HK 3370's powerful amplifier uses traditional Harman Kardon High-Current Design philosophies to meet the wide dynamic range of any program selection.

Harman Kardon invented the high-fidelity receiver more than forty-seven years ago. With state-of-the-art features and time-honored circuit designs, the HK 3370 is one of the finest receivers ever offered by Harman Kardon.

Harman Kardon Designed High-Current, Ultrawide Bandwidth Amplifier
Phono Input Section
■ Speaker 1/Speaker 2 Outputs for High-Quality Sound in Two Locations
Pre-Out/Main-In jacks for use with External Amplifiers, Equalizers or Speaker Processors
System Remote Contol with Numeric Keys
Subwoofer Output
Tuner with RDS Data Program Information Displays

Important Information

Verify Line Voltage Before Use

Your HK 3370 has been designed for use with 220-240-volt AC current. Connection to a line voltage other than that for which it is intended can create a safety and fire hazard, and may damage the unit.

If you have any questions about the voltage requirements for your specific model, or about the line voltage in your area, contact your selling dealer before plugging the unit into a wall outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product. Opening the cabinet may present a shock hazard, and any modification to the product will void your guarantee. If water or any metal object such as a paper clip, wire or staple accidentally falls inside the unit, disconnect it from the AC power source immediately, and consult an authorized service station.

Installation Location

To assure proper operation, and to avoid the potential for safety hazards, place the unit on a firm and level surface, that can support the weight of the product.
Make certain that proper space is provided both above and below the unit for ventilation. If this product will be installed in a cabinet or other enclosed area, make certain that there is sufficient air movement within the cabinet. Under some circumstances a fan may be required.
- Do not place the unit directly on a carpeted surface.
- Avoid installation in extremely hot or cold locations, or an area that is exposed to direct sunlight or heating equipment.
Avoid moist or humid locations.
- Do not obstruct the ventilation slots on the top of the unit, or place objects directly over them.

Cleaning

When the unit gets dirty, wipe it with a clean, soft, dry cloth. If necessary, wipe it with a soft cloth dampened with mild soapy water, then a fresh cloth with clean water. Wipe dry immediately with a dry cloth. NEVER use benzene, aerosol cleaners, thinner, alcohol or any other volatile cleaning agent. Do not use abrasive cleaners, as they may damage the finish of metal parts. Avoid spraying insecticide near the unit.

Moving the Unit

Before moving the unit, be certain to disconnect any interconnection cords with other components, and make certain that you disconnect the unit from the AC outlet.

Unpacking

The carton and shipping materials used to protect your new receiver during shipment were specially designed to cushion it from shock and vibration. We suggest that you save the carton and packing materials for use in shipping if you move, or should the unit ever need repair.

If you do not wish to save the packaging materials, please note that the carton and other sections of the shipping protection are recyclable. Please respect the environment and discard those materials at a local recycling center.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

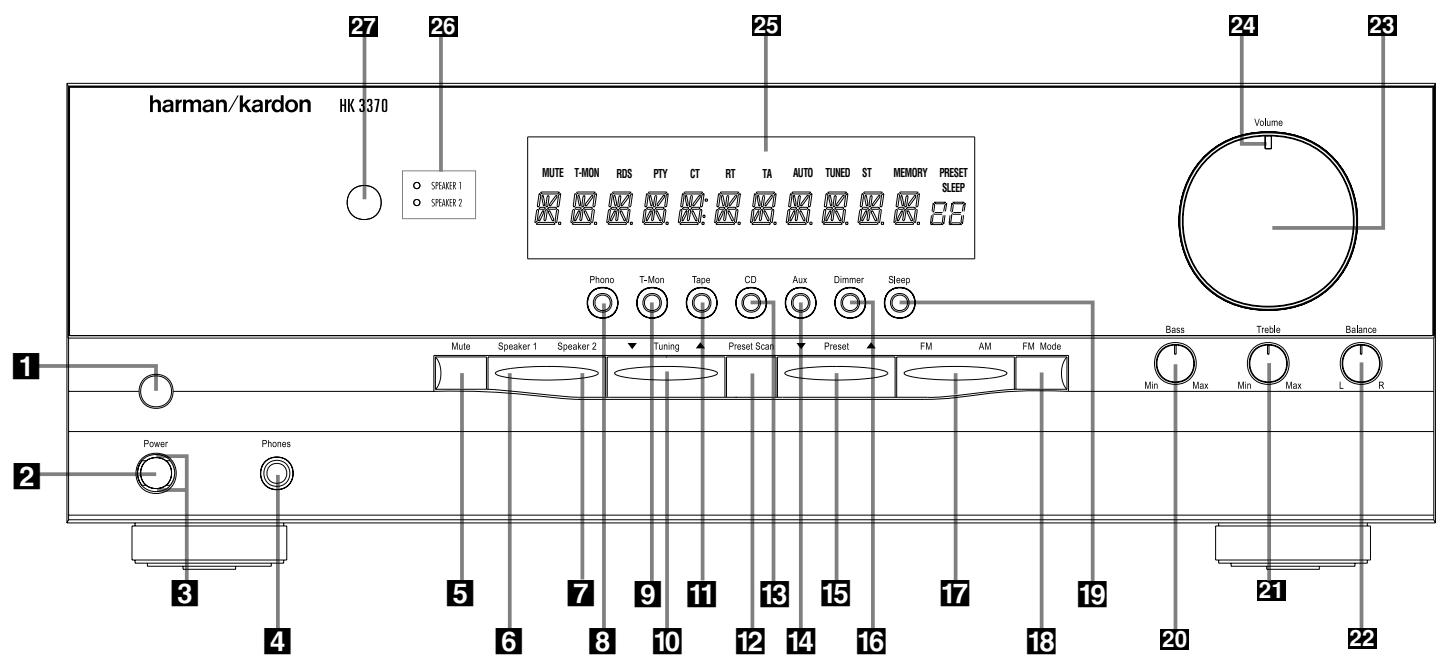

1 Main Power Switch
2 System Power Control
3 Power Indicator
4 Headphone Jack
5 Mute
6 Speaker 1 Selector
Speaker 2 Selector
3 Phone Input Selector
9 T-Mon Input Selector
10 Tuning Button

11 Tape Input Selector
12 Preset Scan
CD Input Selector
14 Aux Input Selector
15 Preset Selector
16 Dimmer
FM/AM Selector
FM Mode Selector
19 Sleep Button
20 Bass Control

21 Treble Control
22 Balance Control
23 Volume Control
24 Volume/Mute Indicator
25 Information Display
26 Speaker Selection Indicators
Remote Sensor Window

1 Main Power Switch: Press this button to apply power to the HK 3370. When the switch is pressed in the unit is placed in a Standby mode, as indicated by the amber LED 3 surrounding the System Power Control 2. This button MUST be pressed in to operate the unit. To turn the unit off completely and prevent the use of the remote control, this switch should be pressed until it pops out from the front panel so that the word "OFF" may be read at the top of the switch.

NOTE: In normal operation this switch is left in the "ON" position.

2 System Power Control: When the Main

Power Switch 1 is "ON," press this button to turn on the HK 3370; press it again to turn the unit off (to Standby). Note that the Power Indicator surrounding the switch 3 will turn green when the unit is on.

3 Power Indicator: This LED will illuminate in amber when the unit is in the Standby mode to signal that the unit is ready to be turned on. When the unit is in operation, the indicator will turn green. A red indicator means that the unit is in the Protect mode, and should be turned off and then checked for a possible speaker wire short circuit.

4 Headphone Jack: This jack may be used to listen to the HK 3370's output through a pair of headphones. Be certain that the headphones have a standard 6,3 mm stereo phone plug.
5 Mute: Press this button to momentarily silence the speaker and preamp output of the HK 3370.
6 Speakers 1 Selector: Press this button to turn the speakers connected to the Speaker 1 output terminals 17 on or off.
7 Speakers 2 Selector: Press this button to turn the speakers connected to the Speaker 2 output terminals 13 on or off.

8 Phono Input Selector: Press this button to select the output of a turntable that is connected to the Phono inputs 6.
9 T-Mon Input Selector: Press this button to listen to the output of a tape recorder connected to the Tape Monitor inputs ⑨. The T-Mon indicator will illuminate to indicate that the input source is being monitored when the HK 3370 is connected to a three-head tape deck or another unit with off-head playback. Note, that when T-Mon is selected the tape deck's signal will be audible in your speakers but the previously selected input source remains routed to the Tape 2 Record Outs ⑫. Press the button again to hear the previously selected input source directly again.
10 Tuning Button: Press the left side of the button to tune lower frequency stations and the right side of the button to tune higher frequency stations. When a station with a strong signal is tuned, the TUNED indicator will illuminate in the Information Display 25. A brief press of the button will manually tune to the next frequency increment, while pressing and holding the button for a longer period (>0.5sec) will step quickly through the frequencies. As soon as the button is released the unit will automatically tune to the next station with a signal strong enough for acceptable reception.
11 Tape Input Selector: Press this button to listen to the output of a tape recorder or other device connected to the Tape 2 inputs 11.
12 Preset Scan: Press this button to automatically scan through the stations that have been programmed in the HK 3370's memory. The tuner will play five seconds of each station before moving to the next preset station. To stop the scan when the desired station is heard, press the button again. (See page 13 for more information on the tuner memory system.)
13 CD Input Selector: Press this button to listen to the output of a CD player connected to the CD inputs 7.
14 Aux Input Selector: Press this button to listen to the output of a device connected to the Aux inputs 8.
15 Preset Selector: Press this button to step up or down through the list of stations that has been entered into the preset memory. (See page 13 for more information on tuner programming.)

16 Dimmer: Press this button to dim the front panel displays and indicators. The first press of the button will dim the displays to one-half normal brightness; the next press will turn all displays off except for the Power Indicator 3 and the Speaker Selection Indicators 26. The display will return to normal brightness the next time the unit is turned on.
17 FM/AM Selector: Press this button to select the tuner as the input to the receiver. When the tuner is in use, press this button to change between the AM and FM frequency bands.
Note: When an RDS station is tuned, the FM button has the same function as the RDS Display button on the remote control. Press to cycle through the various RDS displays (see page 13).
18 FM Mode Selector: Press this button to select the stereo or mono mode for FM tuning. In the STEREO mode, a Stereo Indicator will illuminate in the Information Display 25 and stereo reception will be provided when stations are transmitting stereo signals. In the MONO mode, the left and right signals from stereo broadcasts will be mixed together and reproduced through all channels. Select MONO for better reception of weak signals.
19 Sleep Button: Press this button to place the unit in the Sleep mode. Each press of the button selects the amount of time that will remain before the unit automatically goes into the Standby mode, as shown in the Information Display 25, in the following order:

20 Bass Control: Turn this control to modify the low-frequency output of the left/right channels by as much as ± 10dB . Set this control to a suitable position for your taste and room acoustics.
21 Treble Control: Turn this control to modify the high-frequency output of the left/right channels by as much as ± 10dB . Set this control to a suitable position for your taste and room acoustics.

22 Balance Control: Turn this control to change the relative volume for the front left/right channels.
28 Volume Control: Turn the knob clockwise to increase volume, counterclockwise to decrease the volume.
24 Volume/Mute Indicator: This indicator will glow green when the HK 3370 is turned on. Its position will enable you to judge the relative volume of the unit even when the speakers are muted or turned off. When the indicator is pointing towards the left, at an "8 o'clock" position, the volume is low; when it is pointing to the right, as in a "3 o'clock" position, the volume is loud. When the unit has been muted, pressing the Mute button 5R, the indicator will flash.
25 Information Display: This display delivers messages and status indications to help you operate the receiver.
26 Speaker Selection Indicators: These indicators light as a green LED next to the designation for each speaker pair to show when they are active. Press the Speaker 1 6 or Speaker 2 7 Selectors to activate either pair of speakers.

Both sets of speakers may be selected simultaneously as long as all speakers are nominally rated at an impedance of 8 ohms or greater. However, occasionally the actual impedance will vary, depending upon the program material. When the impedance drops too low, the HK 3370 will go into protect mode in order to prevent damage to the equipment. If this should occur frequently, be sure to select only one set of speakers at a time until you are able to obtain speakers with a higher nominal impedance.

27 Remote Sensor Window: The sensor behind this window receives infrared signals from the remote control. Aim the remote at this area and do not block or cover it unless an external remote sensor is installed.

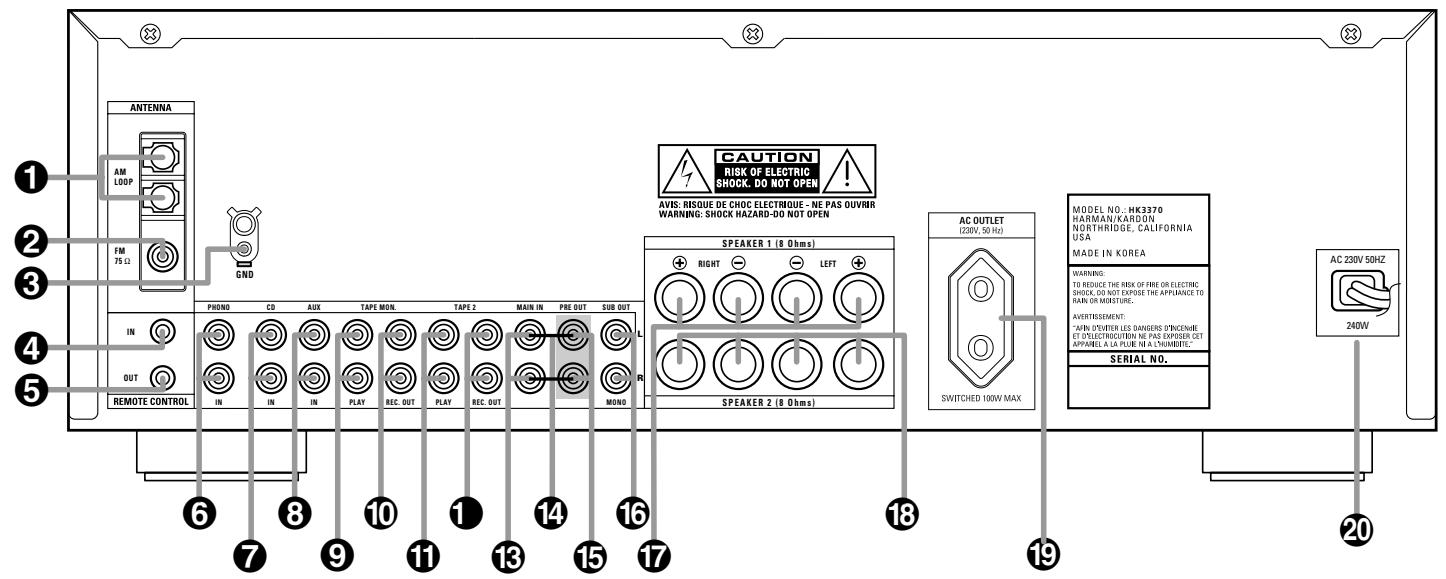

1 AM Antenna
2 FM Antenna
3 Phono Ground
4 Remote IR In
Remote IR Out
Phono Inputs
7 CD Inputs
Aux Inputs

9 Tape Monitor Play/In
10 Tape Monitor Record/Out
1 Tape 2 Play/In
12 Tape 2 Record/Out
3 Main In
14 Pre-Out/Main-In Jumper Pins
15 Preamp Out
16 Subwoofer Out

17 Speaker 1 Terminals
18 Speaker 2 Terminals
Switched AC Outlet
20 Power Cable

1 AM Antenna: Connect the AM loop antenna supplied with the receiver to these terminals. If an external AM antenna is used, make connections to the AM and GND terminals in accordance with the instructions supplied with the antenna.
FM Antenna: Connect an indoor or external FM antenna to this terminal.
3 Phono Ground: Connect the ground wire from a turntable to this terminal to reduce system hum.
Remote IR In: If the HK 3370's front panel IR sensor is blocked due to cabinet doors or other obstructions, an external IR sensor may be used. Connect the output of the sensor to this jack.
Remote IR Out: This connection permits the IR sensor in the receiver to serve other remote controlled devices. Connect this jack to the "IR IN" jack on Harman Kardon or other compatible equipment.
Phono Inputs: Connect the outputs of your turntable or tone arm to these jacks. Note that only Moving Magnet (MM) type cartridges may be used.
CD Inputs: Connect these jacks to the output of a compact disc player or CD changer.
Aux Inputs: Connect these jacks to the line-level audio output of any device such as a TV, cable converter or portable audio player.

Tape Monitor Play/In: Connect these jacks to the Play/Out jacks of an audio recorder.
10 Tape Monitor Record/Out: Connect these jacks to the Rec/In jacks of an audio recorder.

NOTE: When these jacks are connected to a three-head recorder or another device with offhead playback, it will be possible to monitor the source being recorded.

1 Tape 2 Play/In: Connect these jacks to the PLAY/OUT jacks of a second audio recorder.
12 Tape 2 Record/Out: Connect these jacks to the Rec/In jacks of a second audio recorder.
13 Main In: These jacks are the input to the HK 3370's power amplifier. Unless an external power amplifier is used, the jumper pins should remain connected to the Preamp Out jacks 15.
14 Pre-Out/Main-In Jumper Pins: These pins connect the receiver's preamp and amplifier sections. Unless an external amplifier, equalizer or speaker processor is used, they should be left connected. See page 11 for more information on external amplifier connections.

15 Preamp Out: These jacks provide an output for the left and right channels to an optional external amplifier. In normal operation, unless an external power amplifier is used, the jumper pins should remain connected to the Main In jacks 13.
Subwoofer Out: Connect these jacks to the line-level input of a powered subwoofer. If an external subwoofer amplifier is used, connect this jack to the subwoofer amplifier input. When a single, mono subwoofer is used, make the connection to the bottom jack.
Speaker 1 Terminals: Connect these terminals to the appropriate terminals on your speakers.
18 Speaker 2 Terminals: Connect these terminals to the appropriate terminals on your speakers.
Switched AC Outlet: These outlets may be used to power low-current draw devices such as CD players or cassette decks. The power to these outlets remains on as long as the receiver itself is on. When the receiver is turned off, or placed in the Standby mode, power to these outlets is removed.

NOTE: The power consumption of the devices plugged into these outlets should not exceed 100 watts.
20 Power Cable: Connect the AC plug to a nonswitched AC wall output.

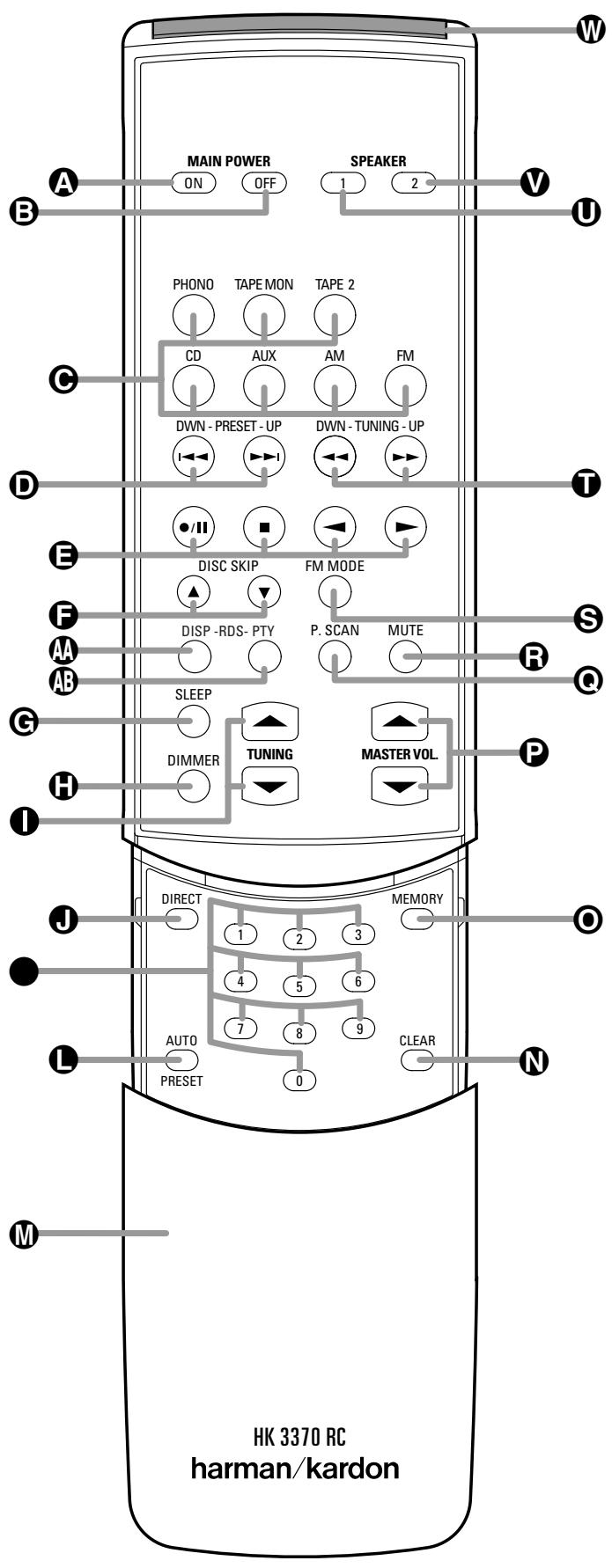

A Main Power On
B Main Power Off
Source Selectors
Preset Up/Down
Transport Controls
F Disc Skip
Sleep Button
Dimmer Button
1 Main Tuning Buttons
1 Direct Button
Numeric Keys
Auto Preset
Secondary Control Cover
N Clear Button
Memory Button
P Master Volume
P. Scan Button
Mute Button
FM Mode Button
Tuning Up/Down
Speaker 1 Selector
Speaker 2 Selector
Transmitter Window
A4 RDS Display Button
AB RDS PTY Button

The remote is capable of operating the HK3370 and most Harman Kardon CD changers or players, CD Recorders and Tape decks, using the control codes that are part of the remote.

A Main Power On: When the HK 3370 is in the Standby mode, as indicated by the Power Indicator 3 glowing amber, press this button to turn the HK 3370 on.
3 Main Power Off: When the HK 3370 is turned on, press this button to place it in the Standby mode. Note that in this condition, the unit is still connected to AC Power.
Source Selectors: Press these buttons to select an input source for the HK 3370 (for specifics of Tape Monitor see item on page 5).
Preset Up/Down: When the tuner is in use, these buttons scroll through the stations that have been programmed into the HK 3370's memory. These buttons also control the track Skip Up and Down on compatible Harman Kardon compact disc players/changers, CD-Recorders and cassette decks (with that function).
Transport Controls: These buttons are used to control Play, Play Forward, Play Reverse, Stop, Pause and Record functions on compatible Harman Kardon compact disc players/changers and cassette tape decks. Also, when a compatible Harman Kardon compact disc player or changer, or cassette deck, has been selected using the Source Selectors , additional transport control functions are available using the Preset Up/Down and Tuning Up/Down buttons.
Disc Skip: These buttons do not have any functions when controlling the HK 3370, but they operate the Disc Skip functions of compatible Harman Kardon compact disc changers.
Sleep Button: Press this button to place the unit in the Sleep mode. Each press of the button selects the amount of time that will remain before the unit will automatically go into the Standby mode, as shown in the Main Information Display 25, in the following order:

Holding the button pressed for some seconds will directly turn off the Sleep time selection.

Dimmer Button: Press this button once to reduce the brightness of the front panel display to half the normal intensity. Press it again to turn the front panel display completely off. When the display is completely off, press the button to return to normal brightness.

1 Main Tuning Buttons: When the tuner is in use, these buttons will tune up or down through the selected frequency band. A brief press of the button will manually tune to the next frequency increment, while pressing and holding the button for a longer period (>0.5 sec) will step quickly through the frequencies. As soon as the button is released the unit will automatically tune to the next station with a signal strong enough for acceptable reception. When a HK CD Recorder is in use these buttons will select the transport (Play or Record Deck).
Direct Button: Press this button to select a radio station by entering its frequency using the Numeric Keys. (See page 12 for more information.)
- Numeric Keys: These buttons serve as a ten-button numeric keypad to enter tuner preset positions or track numbers with CD players/ changers or to tune stations directly.
Auto Preset: When the tuner and FM band have been selected, this button may be used to automatically program the tuner presets for all stations with acceptable signal strength. To start the auto preset scan, press and hold the button. Note that the MEMO and PRESET indicators will flash. Keep holding the button pressed until the tuner will start to "look" for stations, as shown by increasing frequency numbers in the Information Display. Release the button and note that the tuner will search the entire FM band and stop briefly at each station that has acceptable signal strength. The HK3370 will automatically assign a preset number to each station and then search for the next station. If the FM tuner finds fewer than 30 FM stations with acceptable signal strength, the Auto Preset tuning will scan two more cycles or until the remaining vacant preset memory spaces have been filled with those found in the first scan. The scan will stop when all 30 preset memory spaces have been filled or when three scans through the band have been completed (see page 13 for more information).
Secondary Control Cover: This sliding cover normally hides the secondary controls. To access these controls, gently press the cover down and towards you.
N Clear Button: This button is used to clear preset memory information for the HK 3370's tuner. (See page 13 for more information on tuner presets.)
Memory Button: Press this button to open a memory position that stores a preset location for the HK 3370's tuner. (See page 13 for more information on tuner presets.)
Master Volume: Press these buttons to raise or lower the HK 3370's volume.

P. Scan Button: Press this button to automatically scan through the list of stations that are programmed into the HK 3370's tuner memory. When the button is pressed, each preset station will play for five seconds before the next station is selected. Press the button again when the desired station is heard to stop the preset scan.
Mute Button: Press this button to momentarily silence the HK 3370.
FM Mode Button: Press this button when the tuner is in use in the FM band to switch to monaural reception if the stereo station is weak and noisy. (See page 12 for more information.)
Tuning Up/Down: When the tuner is in use, these buttons work in the same way as the Main Tuning buttons described above. But if CD or Tape is in use, these buttons will also control Fast Forward and Fast Reverse (or Rewind) for compatible Harman Kardon compact disc players/changers, CD-Recorders and cassette tape decks.
Speaker 1 Selector: Press this button to turn the speakers connected to the Speaker 1 Output terminals on or off.
Speaker 2 Selector: Press this button to turn the speakers connected to the Speaker 2 Output terminals on or off.
Transmitter Window: Point this area of the remote toward the receiver when using the remote.
RDS Display Button: Press this button to view the various displays of the RDS options that are available when a station is transmitting RDS data. (See pages 13-14 for more information on RDS tuning.)
RDS PTY Button: Press this button to start a search for a specific PTY type using the RDS capabilities of the HK 3370 RDS. (See pages 13-14 for more information on RDS tuning.)

Audio and Speaker Connections

After unpacking the unit and placing it on a solid surface capable of supporting its weight, you will need to make the connections to your audio and video equipment. These steps need to be done only when the receiver is first installed or when a change is made to the input source equipment.

Audio Equipment Connections

We recommend that you use high-quality interconnect cables when making connections to source equipment and recorders to preserve the quality of the signals.

When making connections to audio source equipment or speakers it is always a good practice to unplug the unit from the AC wall outlet. This prevents any possibility of accidentally sending audio or transient signals to the speakers that may damage them.

1. Connect the analog output of a CD player to the CD inputs ⑦.
   NOTE: When the CD player has both fixed and variable audio outputs, it is best to use the fixed output unless you find that the input to the receiver is so low that the sound is noisy, or so high that the signal is distorted.
2. Connect the Play/Out jacks of a cassette deck, CDR, MD or other audio recorder to the Tape Monitor Play jacks ⑨ . Connect the Record/In jacks on the recorder to the Tape Monitor Rec. Out jacks ⑩ on the HK 3370. When the tape deck connected to these jacks is a threehead unit or has off-head playback, it will be possible to monitor the output of the source being recorded.
3. Connect the output of a second audio recorder, CDR, MD or other line-level audio device to the Tape 2 Play jacks If a recorder is used, connect its Rec/In jacks to the matching Tape 2 Record outputs
4. The audio output of any electronics product with a line-level output, such as a TV set, satellite receiver or DVD, may be connected to the Aux jacks 8.

5. Connect the outputs of a turntable with a moving magnet cartridge to the Phono inputs ⑥. To insure that the phono playback is noise-free, connect the ground wire from the tone-arm to the Phono Ground terminal ③.

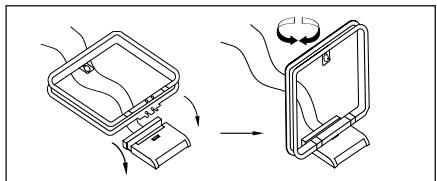

6. Assemble the AM Loop Antenna supplied with the unit as shown below. Connect it to the AM screw terminals 1.

1. Connect an FM antenna to the FM Antenna connection ②. The FM antenna may be an external roof antenna, an inside powered or wire lead antenna or a connection from a cable system. Note that if the antenna or connection uses 300-ohm twin-lead cable, you must use the 300-ohm-to-75-ohm adapter supplied with the unit to make the connection.

2. If you wish to use external processing equipment, such as an equalizer, you may connect the device to the preamp-out and main-in jacks by removing the Preamp-Out/Main-In Jumper Pins 14 and connecting the Preamp Out 15 jacks to the inputs of the external device, and the outputs of the device to the Main In 13 jacks.

Alternatively, you may connect the external device to the Tape Monitor Loop. Connect the Tape Monitor Record/Out jacks 10 to the inputs of the external device, and connect the outputs of the device to the Tape Monitor Play/In jacks 9.

Speaker and Output Connections

Regardless of the brand of cable selected, we recommend that you use a cable constructed of fine, multistrand copper with an area of min. 2mm^2

Cable with 1.5mm^2 may be used for short runs of less than 3 meters. We do not recommend that you use cables with an area of 0.8mm^2 or smaller due to the power loss and degradation in performance that will occur.

Questions about running cables inside walls should be referred to an installer or a licensed electrical contractor who is familiar with applicable local building codes in your area.

When connecting wires to the speakers, be certain to observe proper polarity. Remember to connect the "negative" or "black" wire to the same terminal on the receiver and the speaker. Similarly, the "positive" or "red" wire should be connected to the like terminals on the HK 3370 and speaker.

We also recommend that the length of cable used to connect speaker pairs be identical. For example, use the same length piece of cable to connect the Speaker 1 left and right or Speaker 2 left and right speakers, even if the speakers are a different distance from the HK 3370.

NOTE: While most speaker manufacturers adhere to an industry convention of using black terminals for negative and red ones for positive, some manufacturers may vary from this configuration. To assure proper phase, and optimal performance, consult the identification plate on your speaker, or the speaker's manual to verify polarity.

If you do not know the polarity of your speaker, assure that both speakers are connected with the same polarity, i.e. speaker wires or terminals with any marking should be connected to the red speaker terminals on the HK3370, the others to the black ones (see connections below).

Connect the speakers using the following steps:

1. Connect the main speakers to the Speaker 1 terminals ①
2. Connect a second set of speakers, or speakers that are in a second room location, to the Speaker 2 terminals 13.
3. When an optional, powered subwoofer (not the aktive Sub of a Sub/Sat-System) is used, connect the outputs of the left and right Subwoofer Out jacks 16 to the line-level inputs of the subwoofer. When the subwoofer's amplifier has stereo inputs, run interconnects from both jacks. When the subwoofer has a mono input only, use the bottom output jack for the connection. When a separate passive subwoofer is used, these connections will be made to the optional amplifier that powers the subwoofer. If a Sub/Sat system is used (aktive or passive), connect the Speaker 1 terminals 17 to the speaker-level inputs on the subwoofer, and then connect the speaker-level outputs on the subwoofer to your main left and right speakers, following the instructions provided with the subwoofer.

System and Power Connections

The HK 3370 is designed for flexible use with external control components and power amplifiers. These connections are easy to make during an initial installation, or at a later date should you choose to upgrade your system.

Remote Control Extension

If the receiver is placed behind a solid or smoked glass cabinet door, the obstruction may prevent the remote sensor from receiving commands. In this event, an optional remote sensor may be used. Connect the output of the remote sensor to the Remote IR In jack 4.

If other components are also prevented from receiving remote commands, only one sensor is needed. They may use this unit's sensor or a remote eye by running a connection from the Remote IR Out jack ⑤ to the Remote In jack on Harman Kardon or other compatible equipment.

External Audio Power Amplifier Connections

If desired, an optional, external amplifier may be used in place of the HK 3370's internal power amplifier.

To connect an external power amplifier, first remove the Pre-Out/Main-In Jumper Pins 14 that connect the Preamp Out 15 and Main In 13 jacks on the rear panel. Keep the jumpers in a safe place should they be needed at a later time.

Using high-quality audio interconnect cables, connect the Preamp Out jacks ⑤ to the input jacks on your power amplifier. Make certain to match the right output to the right input and the left output to the left input.

Note that when an external power amplifier is used, no special adjustments are required. All volume and other control adjustments are made using the standard front panel or remote controls.

AC Power Connections

This unit is equipped with an accessory AC outlet. It may be used to power accessory devices, but it should not be used with high-current draw equipment such as power amplifiers. The total power draw may not exceed 100W at this outlet.

This Switched AC Outlet will receive power only when the unit is on. This is recommended for devices that have no power switch, or those with a mechanical power switch that may be left in the "ON" position.

NOTE: Devices with electronic power switches may only go into a Standby mode when plugged in here.

Power to this outlet is removed when the unit is in the Standby mode, or when the Main Power Switch 1 is in the "OFF" position.

Speaker Placement

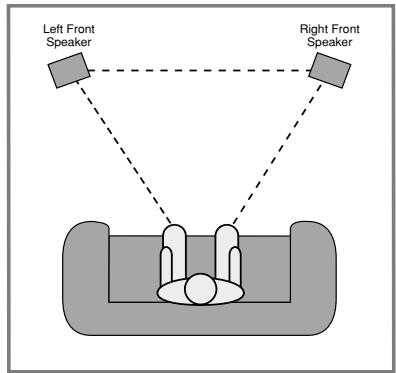

For optimal listening enjoyment, and for soundfield reproduction that best re-creates the original recording, it is good practice to place the speakers so that they form a triangle with the speakers at the front of the room, and the preferred listening spot at the third point of the triangle. The distance between each speaker and the listener should be identical.

For example, if the speakers are 2,5 meters from one another, each of the speakers should optimally be placed so that they are also 2,5 meters from the listener. It is also desirable to place speakers so that their tweeters, or highfrequency drivers, are aimed at ear height when you are seated in the listening position.

A good starting point for speaker placement is to make the distance between the two speakers and the distance between either speaker and the listener identical.

To optimize the sound field, or to suit your listening room environment, you may find that some experimentation is required to find the correct location. Ideally, pans from left to right across the front of the room should sound smooth, and instruments should appear to be coming from the proper location within an orchestra.

The placement of subwoofoers should be done as suggested in the manufacturer's instructions. In general, subwoofoers often produce best results when they are placed in the corner of a room, along the same wall as the speakers, but optimal placement will vary widely depending on room size, the subwoofer type and the placement of rugs and furniture in a room. It may be helpful to temporarily position the subwoofer in the usual listening position, then walk around the room while program material is playing until the bass reproduction sounds best to your ears. That location is likely to be the optimum position for the subwoofer.

Finally, when all connections are complete, plug the power cord into a nonswitched 230-volt AC wall outlet. You're ready to enjoy the HK 3370!

Basic Operation

The HK 3370 is simple to operate, and very similar to stereo receivers you may have used in the past. This section will explain the use of several features that may be new to you.

• Install the two supplied AAA batteries in the remote as shown. Be certain to observe the (+) and (-) polarity indicators shown in the bottom of the battery compartment.

• When using the HK 3370 for the first time, it will be necessary to press the Main Power button 1 on the front panel to turn the unit on. This places the unit in a standby mode, as indicated by the amber color of the Power Indicator 3. Once the unit is in standby, you may begin a listening session by pressing the System Power Control 2 on the front panel or the Main Power On button A on the remote. Note that the Power Indicator 3 will turn red, then green. This will turn the unit on and return it to the input source that was last used. The unit may also be turned on from standby by pressing any of the Source Selector buttons on the front panel 8 9 11 13 14 17 or remote C.

To turn the unit off at the end of a listening session simply press the System Power Control 2 on the front panel or the Main Power Off button 3 on the remote. This places the unit in the Standby mode, and the Power Indicator 3 will turn amber to remind you that the unit is ready for operation when a power command is received from the remote. Power to any equipment plugged into the rear panel Switched AC Outlet 9 will be shut off.

When the remote is used to turn the unit "off", it is actually placing the system in a standby mode, as indicated by the amber color of the Power Indicator 3.

When you will be away from home for an extended period of time it is always a good idea to completely turn the unit off using the front panel Main Power Switch 1.

Note that due its EEPROM backup system the HK3370 will retain information such as programmed presets for a virtually infinite time (see "Memory Backup", page 14).

• To dim the brightness of the front panel display, press the Dimmer button H on the remote or on the front panel 16.

The first press will dim the lights to half normal. A second press will turn the display completely off. Press the Dimmer button H16 again to restore the display to normal brightness.

Source Selection

To select a source at any time, press any of the Source Selector buttons on the remote or front panel 8911131417.

• During a listening session you may wish to adjust the Bass 20, Treble 21 and Balance 22 controls to suit your listening tastes.

• Adjust the volume to a comfortable level using the front panel Volume Control 23 or remote Master Volume Up/Down P buttons. The volume level is displayed by the position of the Volume Indicator 24. Think of the Volume Control knob 23 as the face of a clock, with the Volume Indicator 24 indicating the hour. The HK 3370 is playing at the minimum volume level when the Volume Indicator 24 points to 7 o'clock; when the Volume Indicator 24 points to 5 PM, the HK 3370 is playing at the maximum volume level. It is important that you make sure never to exceed this maximum volume level at any time, in order to avoid possible damage to your loudspeakers due to "clipping", a type of distortion that is not audible to the human ear until it is severe enough to permanently damage most loudspeakers. It is also possible, depending upon the program material, for clipping to occur at volumes below the maximum volume level.

• To temporarily silence all speaker outputs, press the Mute button R5. This will cut the output to all Pre and Sub Outs and to all speakers, but it will not affect any recording or dubbing that may be in progress. When the system is muted, the MUTE indicator will light in the Main Information Display 25 and the Volume/Mute indicator 24 will flash. Press the Mute button R5 again to return to normal operation.

• For private listening, plug the 6,3 mm stereo phone plug from a pair of stereo headphones into the front panel Headphone jack 4.

• One or two separate sets of speakers may be connected to the HK 3370. To listen to one of the speaker sets, press the Speaker button 6 or 7 on the front panel corresponding to the desired speakers or press them both to listen to both speakers pairs. The active speakers will be indicated by a lit green LED in the Speaker Indicators 26 display. Both sets of speakers may be turned off for private headphone listening.

IMPORTANT NOTE: When two speaker pairs are connected to the HK 3370RDS and are to be used simultaneously, the impedance of each speaker must not be lower than 8 Ohms.

• To program the HK 3370 for automatic turnoff, press the Sleep button on the front panel or remote G. Each press of the button will increase the time before shutdown in the following sequence:

The sleep time will be displayed in the Main Information Display 25 and it will count down until the time has elapsed.

When the programmed time has elapsed, the unit will automatically turn off (to Standby mode). Note that the front panel display will dim to one-half brightness when the Sleep function is programmed. To cancel the Sleep function, press the Sleep button or simply hold it pressed for some seconds until the Sleep indicator numbers disappear and the Main Information Display shows the current source. Pressing any control button while the Sleep control is activated will momentarily return the Main Information Display to full brightness for increased legibility without interrupting the Sleep function.

Tuner Operation

The HK 3370's tuner is capable of tuning AM, FM and FM Stereo broadcast stations. Stations may be tuned manually or automatically, or they may be stored as favorite station presets and recalled from a 30-position memory.

Station Selection

1. Press the AM/FM 17 buttons on the front panel or on the remote to select the tuner as an input.

2. Press these buttons again at any time to switch between AM and FM.

3. To automatically search for the next higher- or lower-frequency station that has an acceptable signal hold the Tuning or button 10 on the front or 0 or 7 on the remote pressed and release it as soon as the tuner starts the frequency search. To tune to the next station, press the button again. Tap the Tuning button to advance one frequency increment at a time, or press and hold it to locate a specific station. When the TUNED indicator lights, the station is properly tuned and should be heard with clarity.

4. Stations may also be tuned directly by pressing the Direct button , and then pressing the Numeric Keys that correspond to the station's frequency. The desired station will automatically be tuned.

NOTE: When the FM reception of a stereo station is weak, audio quality will be increased by switching to Mono mode by pressing the FM Mode button 18 S until the STEREO indicator goes out.

Preset Tuning

Up to 30 stations may be stored in the HK 3370's memory for easy recall using the front panel controls or the remote. In order to program preset stations into memory, you must use the remote control.

To enter a station into the memory, first tune the station using the steps outlined above. Then:

1. Press the Memory button ⑨ on the remote. Note that the MEMO and PRESET indicators will light and flash in the Main Information Display.
2. Within five seconds, press the Numeric Keys corresponding to the location where you wish to store this station's frequency.

For all preset numbers above "3" the station will be stored directly. Note that for the presets 1, 2 or 3 either you press the corresponding number and wait for 5 seconds or you press a "0" before you press the 1, 2 or 3, then the station will be stored at once.
3. Repeat the process after tuning any additional stations to be preset.

Auto Preset

• Preset stations may also be programmed automatically for the entire FM band. To automatically enter each station that may be tuned with acceptable quality into the HK 3370's preset memories, first select the FM band. Next, press and hold the Auto Preset button until the MEMO and PRESET indicators begin to flash, hold on until the station frequency indication begins to increase. Release the button and note that the tuner will search the entire FM band, and stop briefly at each station that has acceptable signal strength. The HK 3370 will automatically assign a preset number to each station, and then search for the next station.

If the FM tuner find fewer than 30 FM stations with acceptable signal strength, the Auto Preset tuning will scan up to two more cycles until the remaining vacant preset memory spaces have been filled.

The automatic scan process will stop when all 30 preset memory locations have been filled or the entire FM band has been scanned three times or the Auto Preset button is pressed again.

NOTE: Using the automatic tuning mode in areas with more than 30 FM stations will completely fill the preset memories, and overwrite any previously memorized presets for either AM or FM stations.

TIP: The automatic scan process may enter stations that you do not wish to retain in the memory, or it may enter the same station on the same frequency (if more than one scan is made) or on more than one frequency. These unwanted stations may be removed from the memory using the Preset Clear function outlined below.

Recalling Preset Stations

• To manually select a station previously entered in the preset memory, press the Numeric Keys that correspond to the desired station's memory location.
• To manually tune through the list of stored preset stations one by one, press the Preset buttons 15 on the front panel or remote.
• To automatically scan through the stations entered in the preset memory, press the Preset Scan button on the front panel or remote. The tuner will cycle through the list of preset stations, stopping for five seconds at each one. Press the button again to stop the scan at your desired station.

Clearing Preset Stations

Unwanted preset stations may be erased from the unit's memory to make it easier to tune only those stations you want.

To remove a preset station from the HK 3370's tuner memory, first tune to the station using the Preset buttons on the front panel or remote, or by entering the preset number directly, using the Numeric Keys.

When the preset station to be removed has been tuned, first press the Memory button . The MEMO and PRESET indicators in the Main Information Display will flash, and the actual preset number will disappear from the display. Next, press the Clear button within five seconds.

The preset station will be removed from the memory, and the action will be confirmed by the brief appearance of the word CLEAR and the preset number location in the Main Information Display. That memory location will now be empty, and you may program a different station to that location, or leave it empty.

RDS Operation

RDS (Radio Data System) transmits station call signs or network information, station program type, text messages about the station or specifics of a musical selection and the correct time.

RDS Tuning

When an FM station is tuned in and it contains RDS data, the HK 3370 RDS will automatically display the station's call sign, with some private stations also other informations changing all 2 to 5 seconds, and the RDS indicator will light in the Information Display as well as indicators for the RDS services program type PTY (see below) and traffic announcement TA (see page 14) if transmitted by the station. As soon as a radiotext message is received completely the radiotext indicator RT will turn on too.

RDS Display Options

When an RDS station is tuned, press RDS Display button on the remote or FM 17 on the front panel to cycle through the RDS displays in the following order:

• The Station name (or other Program information with some private stations).
• The station's frequency.
  The Program Type (PTY) as shown in the following list in this manual.
• A "text" message (RT) containing special information from the broadcast station. Note that this message will scroll across the display to permit messages longer than the eight positions in the display. Depending on signal quality it may take up to 30 seconds for the text message to appear, in the meantime the word TEXT will flash in the display when RT is selected.
• The current time of day (CT) as transmitted by the station. It may take up to two minutes for the time to appear, in the meantime the word TIME will flash in the display when CT is selected. Note that the accuracy of the time message is set by the radio station, not the HK 3370 RDS.
• Some RDS stations may not choose to include some of these additional features. If the data required for the selected mode is not being transmitted, the Information Display will show a NOPTY, NOTEXT or NOTIME message after the individual time out.
• In any FM mode the RDS function requires a strong enough signal for proper operation. If you receive a partial message or see any RDS indicator going on and off, try slowly adjusting the antenna to improve the signal strength or tune to another, stronger, RDS station.

Program Search (PTY)

A major benefit of RDS is its ability to encode broadcasts with Program Type (PTY) codes that indicate the type of material being broadcast. The following list shows the abbreviations used to indicate each PTY along with an explanation of the PTY:

• RDS ONLY: (see item 3 below)
• TRAFFIC: Traffic Information and Road Conditions (see Note below)
• P O P M: Popular Music
• ROCKM: Rock Music
  M. O. R M: Middle-of-the-Road Music
• LIGHTM: Classical Music
• CLASSICS: Serious Classical Music
  OTHERM: Other Music

Operation

NEWS: News
- INFO: Information
- SPORT: Sports
- AFFAIRS: Current Affairs
EDUCATE: Educational
- DRAMA: Drama
CULTURE:Culture
SCIENCE: Science
VARIED:Varied Speech Programs
WEATHER: Weather Information
FINANCE: Financial Programs
- CHILDREN: Children's Programs
SOCIAL: Social Affairs Programs
- RELIGION: Religious Broadcasts
- PHONE IN: Phone-In Programs
- TRAVEL: Travel and Touring
- LEISURE: Leisure and Hobby
JAZZ: Jazz Music
COUNTRY: Country Music
NATIONM: National Music
- OLDIES: Oldies Music
FOLKM: Folk Music
- DOCUMENT: Documentary Programs
- TEST: Station Alarm Test Message
- ALARM: Emergency Broadcast Information

You may search for a specific Program Type (PTY) by following these steps:

1. Press the RDS PTY button and note that the Information Display will show SELECT PTY.
2. After three seconds, the display will show the PTY that was selected for the last PTY search. If you wish to use the same PTY, press the RDS PTY button again within six seconds, and the tuner will begin to search for the first station with the appropriate PTY and acceptable signal strength.
3. To search for a different PTY, press the Tuning Up/Down buttons 17 10 while the last PTY selected is still displayed to scroll through the list of available PTY types. To search for the next available station with any RDS data, select RD S ONLY as the PTY type.
4. When the PTY is selected, press the RDS PTY button within six seconds, and note the PTY indicator will flash in the Information Display. The HK 3370 RDS will go into an automatic search mode and attempt to find the next station with

acceptable signal strength that matches the desired PTY type. Press the RDS PTY button twice again to find another matching station. When a station is tuned, the search will stop, a message R D S will blink in the Information Display and then the Display will show the station's "Call Letters" or other "Program Service" information.

1. While the PTY Indicator flashes in the display the tuner will make one complete scan of the entire FM band for the text station that matches the desired PTY type and has acceptable reception quality. If no such station is found, the word NONE will appear briefly in the Information Display, and the tuner will return to the last FM station in use before the search. To turn off the PTY Search at any time, press the RDS PTY button again.

NOTE: Many stations do not transmit a specific PTY. The display will show NONE, when such a station is selected and PTY is active.

NOTE: Some stations transmit constant traffic information. To identify as traffic station, they transmit a specific traffic code constantly, which causes the TA Indicator to light in the display. These stations can be found by selecting TRAFFIC, the second option in the PTY list. The HK 3370 will find the appropriate station, even if it is not broadcasting traffic information when the search is made.

Tape Recording

In normal operation, the audio source selected for listening through the HK 3370 is sent to the Tape Mon Rec Out ⑩ and Tape 2 Rec Out ② outputs. This means that any program you are listening to may be recorded simply by placing machines connected to the outputs for Tape Monitor ⑩ or Tape 2 ⑫ in the record mode. Moreover the source connected to Tape 2 Play ① may be recorded to a recorder connected to Tape Mon 9⑩ , rather than turned around.

When a tape recorder with separate record and playback heads is used, you may monitor the output of the recording by selecting the Tape Monitor Input Selector 9. Note that the T-Mon Indicator will light in the Main Information Display 25 to remind you that you are listening to the record playback instead of the actual input source being recorded.

As long as Tape Monitor 9 is selected the previously selected input source remains routed to the Record Outputs 10. Press the Tape Monitor Input Selector 9 again to turn the monitoring off and listen to the actual input source. Note that changing the Bass, Treble or Balance control will not affect the recordings, only the preamp and speaker outputs.

Memory Backup

This product is equipped with a memory backup system that preserves tunes preset if the unit is accidentally unplugged, turned off completely with the Main Power switch 1 or subjected to a power outage.

The unit's memory is stored in an EEPROM, and thus the HK 3370 will retain information such as programmed presets for a virtually infinite time without being connected to a main power source.

Processor Reset

In the rare case where the unit's operation or the displays seem abnormal, the cause may involve the erratic operation of the system's memory or microprocessor.

To correct this problem, first unplug the unit from the AC wall outlet and wait at least three minutes. After the pause, reconnect the AC power cord and check the unit's operation. If the system still malfunctions, a system reset may clear the problem.

To reset the system, first turn the HK 3370 off by pressing the Main Power Switch 1 and then releasing it so that it extends out beyond the front panel and the word "OFF" is visible in red at the top of the switch.

Next, press and hold the T-Mon and CD Input Selector buttons 913 on the front panel ONLY. While holding these buttons in, press the Main Power Switch 1 in until it latches, so that the button is flush with the front panel.

The Main Information Display will briefly show the word RESET, you can release the buttons pressed now, the unit will return to Standby mode.

Note that when the system is reset in this fashion, all tuner presets will be lost and must be reentered.

If the system is still operating incorrectly, there may have been an electronic discharge or severe AC line interference that has corrupted the memory or microprocessor.

If these steps do not solve the problem, consult your dealer or an authorized Harman Kardon service center.

Using the Remote Control

It is convenient to think of the functions of the remote control buttons in terms of "pages", where each source device (e.g. CD player) represents its own page of remote functions. The result is that some of the keys will perform different functions depending upon which device page has been selected prior to pressing the key. Device pages are selected by pressing the

Source Selectors , which also changes the input source selection on the HK 3370.

Source Selectors need not to be pressed with each function, but only when you intend to skip to another device to be controlled.

Three of the device pages are factoryprogrammed to operate compatibleHarman Kardon products. The Tape Monitordevice page is programmed as a factory default

to operate Harman Kardon cassette decks. The Tape 2 page defaults to Harman Kardon CD-R control codes. The CD page defaults to Harman Kardon CD player or changer control codes. Please refer to the table below for specific information on the default functions of the affected keys for these devices.

REMOTE BUTTON FUNCTIONS

BUTTON		TAPE MON Cassette deck control codes	TAPE 2 CD Recorder control codes	CD CD player/ changer control codes
PRESET DWN	D	REV. SKIP	SKIP BACK	REV. SKIP
PRESET UP	D	FWD. SKIP	SKIP FORWARD	FWD. SKIP
TUNING DWN	T	REW	REV SEARCH	REV SEARCH
TUNING UP	T	FF	FWD SEARCH	FWD SEARCH
Rec./Pause •/II	E	REC / PAUSE	RECORD	PAUSE
Stop	E	STOP	STOP	STOP
Rev. Play	E	REV. PLAY	RANDOM PLAY
Fwd. Play	E	FWD. PLAY	PLAY	PLAY
DISK SKIP Up	F			DISC SKIP UP
DISK SKIP Down	F			DISC SKIP DOWN
FM MODE	S		TIME Display (Record Deck)
PRESET SCAN	O	INTRO SCAN	INTRO SCAN (Play Deck)*	INTRO SCAN
TUNING Up ▲	I		CDP SELECT
TUNING Down ▼	I		CDR SELECT
MEMORY	O		PROGRAM	PROGRAM
AUTO PRESET	L		FINALIZE
CLEAR	N		CLEAR	CLEAR
1	●	1	1	1
2	●	2	2	2
3	●	3	3	3
4	●	4	4	4
5	●	5	5	5
6	●	6	6	6
7	●	7	7	7
8	●	8	8	8
9	●	9	9	9
0	●	0	0	0

• not with CDR2/20

This unit is designed for trouble-free operation. Most problems users encounter are due to operating errors. If you have a problem, first check this list for a possible solution. If the problem persists, consult your authorized Harman Kardon Service Center.

If the problem is... No lights appear when System Power 2 button is pressed	Make sure that the... Unit is plugged into a live outlet. Main power switch 1 is pressed in.
No sound is heard	Unit has not been muted. Correct input function selector button has been pressed. Volume is turned up. Speakers have been turned on using the Speaker Selectors 670V.
No output from one or more channels	Cables are not defective: check/replace speaker cables.
Tuner sound has a large amount of interference, or the "Stereo" display is not illuminated, or Tuner sound distorts and/or is noisy	Antenna is properly connected. Antenna is properly located. Antenna is set in the proper direction. Antenna is adequate to receive the desired station.
Tuner is intermittent or continuously buzzing or hissing	Unit is away from fluorescent lights, TVs, motors and other electrical appliances.
Remote does not function correctly	Batteries are not weak, and replace them if necessary. Correct device page has been selected by pressing the Source Selector key ⑥. Remote sensor is not obstructed, and remote is pointing directly at sensor at an angle of no more than 30 degrees. Also, check for fluorescent lighting, which may be interfering with the IR transmission.
Cassette or CD sounds distorted	Cassette deck or CD player has not been plugged into the Phono input. (Only use the outputs of a turntable or tonearm with the Phono input.)

Audio Section

Stereo Mode

Continuous Average Power (FTC)

70 Watts per channel, 20Hz-20kHz

@ < 0.07% THD, both channels driven into 8 ohms

95 Watts per channel, 20Hz-20kHz

@ < 0.2% THD, both channels driven into 4 ohms

Input Sensitivity/Impedance

Linear (High Level) 200mV/47kohms

Signal-to-Noise Ratio (IHF-A) 95dB

Frequency Response

@ 1W (+0dB, -3dB) 10Hz - 110kHz

High Instantaneous

Current Capability (HCC) ±42 Amps

Transient Intermodulation

Distortion (TIM) Unmeasurable

Rise Time

Slew Rate 40V/μsec

FM Tuner Section

Frequency Range

87.5-108MHz

Usable Sensitivity

IHF: 1.12 V / 13.5dBf

Signal-to-Noise Ratio

Mono/Stereo: 73/72dBA (DIN)

Distortion

Mono/Stereo: 0.3 / 0.4%

Stereo Separation

40dB @ 1kHz

Selectivity

± 400kHz ,65dB

Image Rejection

80dB

IF Rejection

100dB

AM Tuner Section

Frequency Range

520-1710kHz

Signal-to-Noise Ratio

40dB

Usable Sensitivity

Loop: 500 V / M

Distortion

1kHz, 50% Mod: 0.8%

Selectivity

±10kHz: >25dB

General

Power Requirement

AC 230V/50Hz

Power Consumption

72W idle, 350W maximum

(both channels driven)

Dimension (Max)

Width

442mm

Height

156mm

Depth

415mm

Weight

11.2kg

Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis.

All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of Harman Kardon, Inc.
