USER MANUAL DRIVE + PLAY 2 [HK-DP2EU] HARMAN KARDON

WARNING: Operation of any feature of this device while driving could be dangerous. Always be careful and attentive to your vehicle and the traffic around you. Obey all traffic laws and observe safe driving practices.

Do not connect or disconnect your portable music player or program the Drive + Play™ 2 system while driving. Always pull off the road and park in a safe position before browsing your portable music player or adjusting the settings on the Drive + Play 2 system.

Do not use headphones while operating any vehicle. The Drive + Play 2 system audio output is not suitable for driving headphones and is intended to output a signal appropriate for an audio system's line-level input jack or FM antenna input.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio-frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Important!

Connecting the iPod Player

Always hold the Drive + Play™ 2 system's dock connector for the iPod player by its sides and gently insert (or remove) the dock connector. Never use excessive force to insert or remove the connector, or damage to your iPod player may occur.

Lost Data

Harman Kardon is not responsible for any lost data when using the Drive + Play 2 system. Be sure to back up the audio data files on your computer.

About Installation

IMPORTANT: The Drive + Play 2 system should be installed according to these instructions and relevant federal, state or local laws and regulations, which the purchaser should determine prior to installation or use. For safety reasons, do not attempt to disable any safety function incorporated in this device. Any alteration of this device may cause serious injury and shall void the warranty.

Although we recommend professional installation for your Harman Kardon® Drive + Play 2 system, this product is also designed for do-it-yourself installation, especially when using the wireless FM transmission method. The enclosed instructions explain how to install the Drive + Play 2 system in a general sense, but they do not show the exact methods for your particular vehicle. After reading this guide, if you feel uncomfortable in performing the necessary steps to install the product, consider asking your car-audio dealer about professional installation options.

Warranty Information

The Drive + Play 2 system is warranted against defects. The duration of the warranty depends on the laws in the country in which it was purchased. Your local Harman Kardon retailer can help determine the length of your warranty. To register your product, please visit www.harmankardon.com.

Your Package Should Include:

Cigarette Lighter Hub Lighter Extension Cable Hard-Wire Power Cable Audio Cable USB Adapter iPod Cable

Display Screen
Display Cable
Display Mounting Base
Wired FM Transmitter Adapter
Wireless Control Knob
CR2032 Battery

Adhesive Mounting Pads (2)
Alcohol Cleaning Pads (2)
Mounting Screws (10)
Hex Keys (1.5mm and 3mm)
Quick-Start Guide
Warranty Card

Choose the Display Location

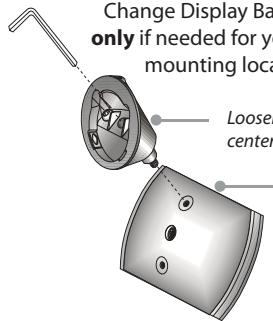

Select Display Mounting Location

3mm screw in of the base.

Move base to the top mounting hole.

Tighten screw again to secure base.

The installation of this device between the driver and the windshield or otherwise in any manner that obstructs the driver's clear view of the road or traffic conditions is dangerous and may be prohibited by law. Do not install this device in any manner that impairs the safe operation of the vehicle.

The display should be positioned to eliminate glare and reflections, and should be as close as possible to the driver's normal line of sight, as long as such positioning does not otherwise obstruct the driver's view or impair the safe operation of the vehicle. Do not place device on the vehicle's dashboard unsecured. Do not install this device on any air bag panels or in the deployment field of any air bags. For safety reasons, do not attempt to disable any safety function incorporated in this device. Any alteration of this device may cause serious injury and shall void the warranty.

Installing the Display

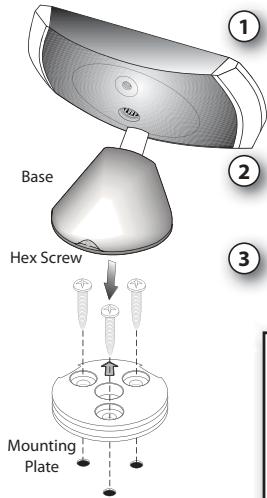

Mounting With Screws

1 Align mounting plate to location and attach with three screws. Make sure the arrow points toward the front of the car.
Place display base onto mounting plate and rotate into desired position.
3 Tighten the hex screw to lock the display base onto the mounting plate.

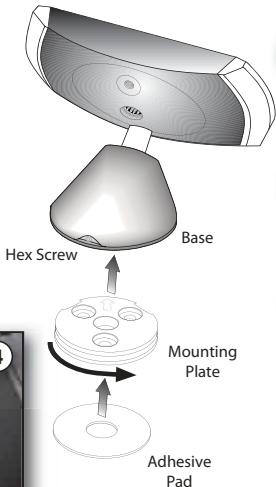

Mounting With Adhesive Pad

① Insert mounting plate into display base and tighten hex set screw.
2 base first, then clean surface of mounting location with supplied alcohol pad.
3 Peel adhesive pad and press display firmly into desired location.

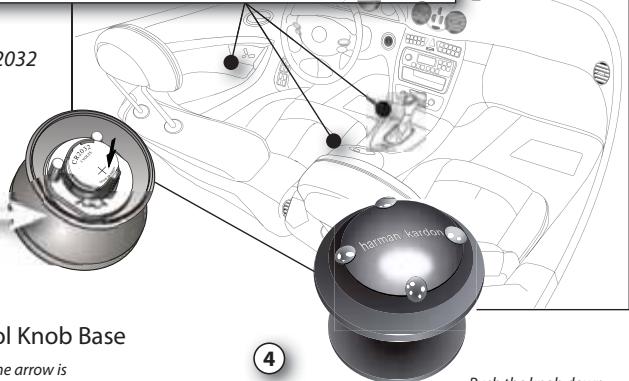

Installing the Wireless Control Knob

1

2

3

4

②

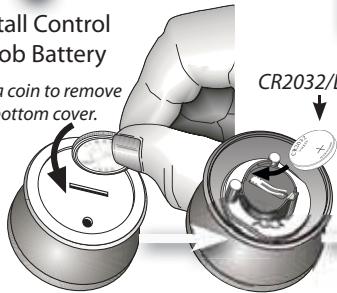

Install Control Knob Battery

Use a coin to remove the bottom cover.

Select Control Knob Mounting Location

CR2032/DL2032

Toward front of car

3 Mount Control Knob Base

Orient the base so that the arrow is facing the front of the car.

You can either screw the base to the mounting location or use the supplied adhesive pad.

If you use the adhesive pad, you must FIRST CLEAN the surface with the supplied alcohol cleaning pad.

Attach Control Knob to Base

4

Push the knob down onto the base, and turn clockwise to lock it into place. The knob can be removed by turning the bottom counterclockwise.

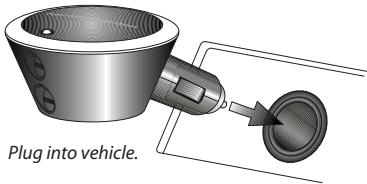

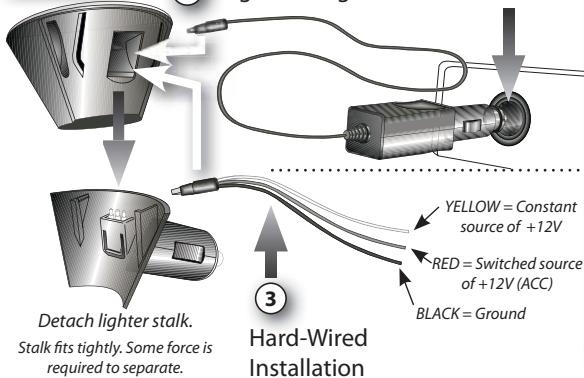

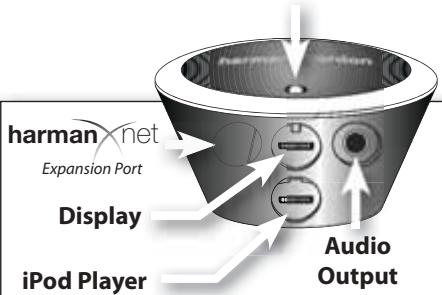

Connections to the Cigarette Lighter Hub

1

Direct Cigarette Lighter Plug-In

Options

Cigarette Lighter Extension Cable

Power Indicator

Audio Output Options

1. If using the built-in wireless FM transmitter, leave the audio output jack empty.
2. To wire directly to your vehicle's antenna, plug the supplied FM transmitter adapter into the audio output jack. See diagram on next page.
3. To wire into an AUX input, connect the included audio cable's 3.5mm plug to the audio output jack and then into your vehicle's AUX input.

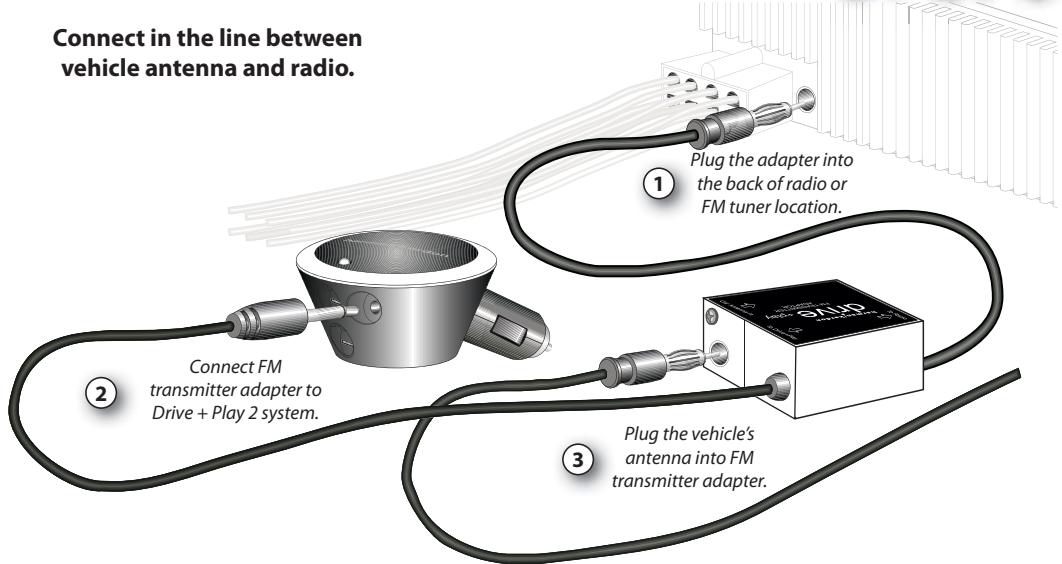

Wired FM Transmitter Adapter Connections ① ② ③

Connect in the line between vehicle antenna and radio.

If your car's audio system does not provide an auxiliary input and there is no third-party adapter available, use the Drive + Play 2 system's wired FM antenna adapter for the best audio performance. See page 12.

8 Quick-Start Guide

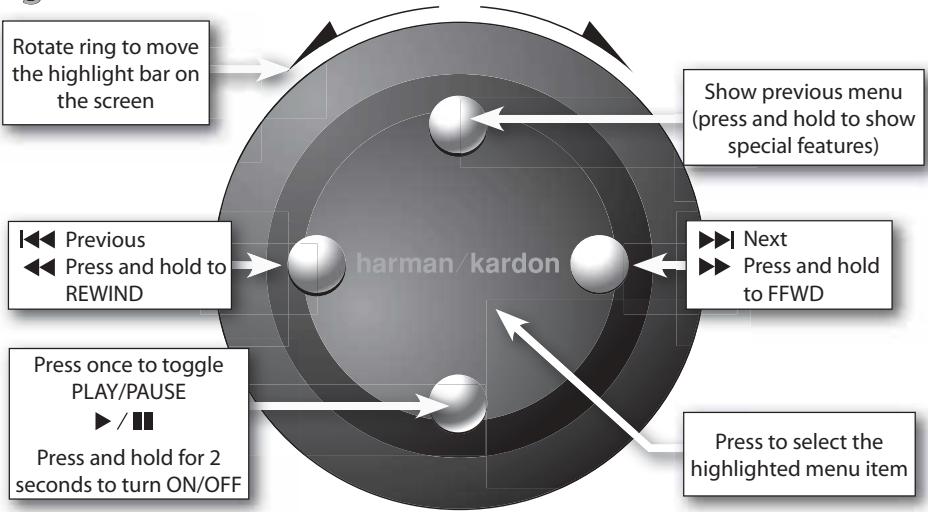

Using the Control Knob

Note: If the Drive + Play 2 system is turned off using the bottom button, it must be turned back on that way!

If the control knob is unresponsive, try pressing the top, center and right buttons simultaneously for 2 seconds, then turn the outer ring until the highlight bar moves. If the control knob is still unresponsive, try a fresh CR2032-type battery.

iPod Player Functions

iPod Connection Confirmation

When your iPod player is successfully connected, the iPod icon appears in the top-right corner of the display. "iPod" will also appear as the first menu item. iPod

Playing Music

The Drive + Play 2 system is designed to make navigating the menus on your iPod player simple and intuitive. Select menu items using the scroll wheel and press the center button to select.

① Select "iPod" from source menu.

② Browse list and select song.

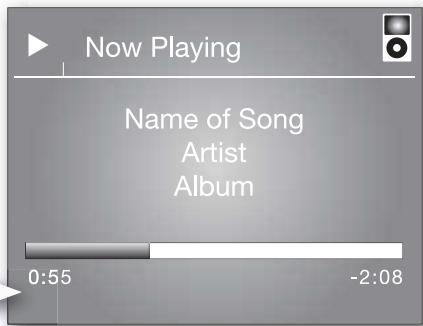

③ View current selection on the screen.

10 Quick-Start Guide

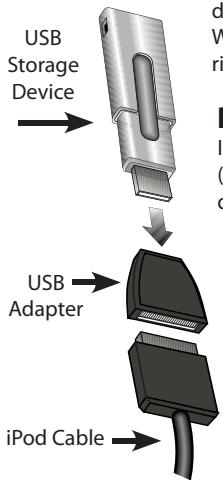

Connecting USB Devices

USB Drive Connection Confirmation

The Drive + Play 2 system is compatible with USB flash memory devices and other USB devices. For a complete list of compatible devices, please visit www.driveandplay2.com. When your USB drive is successfully connected, the USB icon appears in the top-right corner of the display. "USB Drive" will also appear as the first menu item.

USB Drive

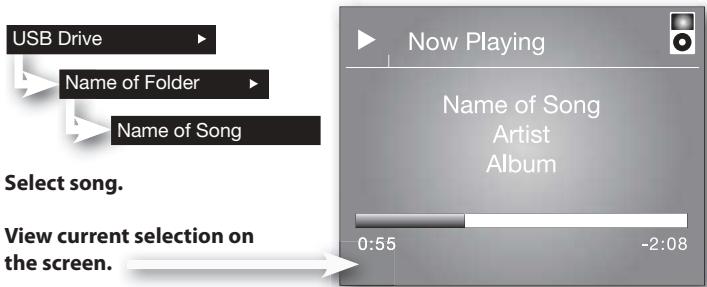

Playing Music

If your music files contain ID3 tags, you can browse just as you browse the iPod player (see previous page). If no ID3 tags are contained in the files, use the folder structure described below.

① Select "USB Drive" from source menu.

Configuring Audio Playback

Wireless FM Transmitter or Wired FM Antenna Adapter

If you use the built-in wireless FM transmitter, no additional wired audio connection is necessary. To use the wired FM antenna adapter, you will need to wire it into your vehicle's FM antenna connection first, then complete these steps. Either way, you must enable and select the FM transmitter frequency to hear audio through your vehicle's FM radio. Remember, you may try several frequencies for the best result.

① Enable the FM transmitter and select FM frequency preset.

Settings

System Settings

FM Transmitter

Enable

Yes

Once you have selected an FM preset, tune your FM radio to that same station. You should hear audio playback clearly. If that frequency is not playing music clearly, select another preset by locating a frequency on your radio that is only static and save that as a preset. This will offer the clearest path for the Drive + Play 2 system's audio playback.

Preset 1:88.1

Preset 2:88.7

Preset 3:107.9

Add Preset

Line-Output Audio Connections

To use the Line-Out audio connection, the FM transmitter must first be disabled using the steps shown. Following that, you will need to connect into your head unit's AUX input. Many vehicles may require a third-party adapter (not included) to provide this type of connection.

Disable the FM transmitter.

Settings

System Settings

FM Transmitter

Enable

No

12 Quick-Start Guide

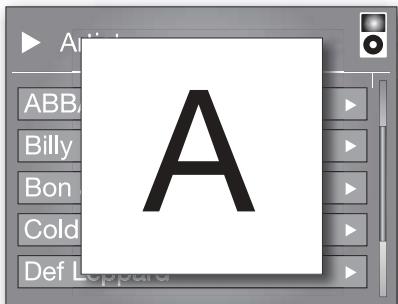

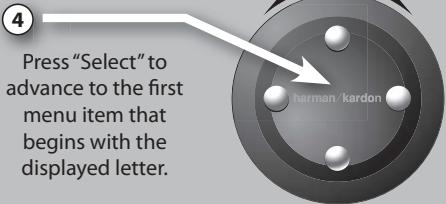

Letter Seek

1

2

3

(4)

This feature allows you to quickly browse alphabetically sorted lists, such as Artist, Playlists and Songs, in the iPod player.

1 Press and hold top menu button in an alphabetically sorted list.

Large letter appears on the screen.

Turn the ring to advance the letters manually

or press the "Next" or "Previous" buttons to begin automatic scrolling.

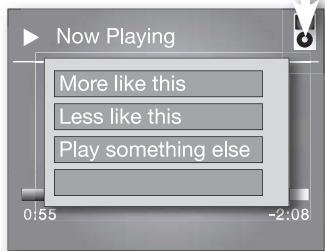

Automatic Mix

The Drive + Play 2 system creates channels automatically, and you can refine the channel content during playback. Choose "More like this" to place a higher priority on songs similar to the current selection. Choose "Less like this" to place a lower priority on songs similar to the current selection. Choose "Play something else" to reprioritize selections to something different from the song that's currently playing.

① Select“iPod”and then select“AutomaticMix”.

iPod

Automatic Mix

(2)

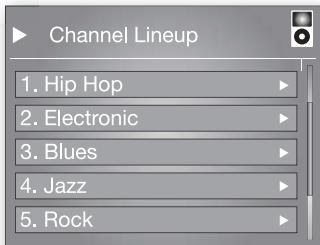

Browse the list and select the channel.

Now your iPod player plays the channel.

Press and hold top menu button during Automatic Mix playback to configure content.

4 Configure the channel.

This lets you customize the content.

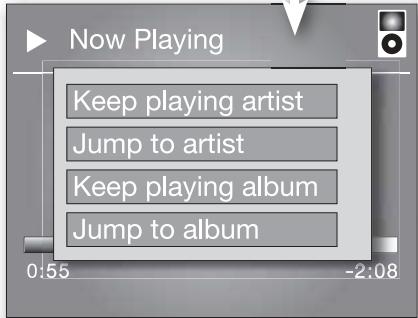

"Keep playing"/"Jump to" Options

In shuffle mode, this feature will allow you to continue playing songs from the current artist or album without leaving the "Now Playing" screen.

1

Press and hold top menu button during playback.

Keep playing artist

This feature will continue playing the current song, then play the remaining songs by that artist in order.

Jump to artist

This feature will stop playing the current song and begin playing all the songs by that artist in order.

Keep playing album

This feature will continue playing the current song, then begin playing the remaining songs on that album in order.

Jump to album

This feature will stop playing the current song and begin playing all the songs on that album in order.

Troubleshooting

Troubleshoot problems, download updates and find out about more features at:

www.driveandplay2.com

For customer and technical support, call:

516.255.4545 (USA only)

Declaration of Conformity

We, Harman Consumer Group, Inc.

2, route de Tours

declare in own responsibility that the product described in this manual is in compliance with technical standards.

EN 301 357-1-2

EN301489-1/-9

EN 60950-1:2001+A11:2004

IEC 60950-1:2001

Klaus Lebherz

Harman Consumer Group, Inc.

Chateau du Loir, France. 10/07

harman/kardon

drive + play 2

250 Crossways Park Drive, Woodbury, New York 11797 USA

www.harmankardon.com

©2007 Harman International Industries, Incorporated. All rights reserved.

Part No. 950-0189-001

H A Harman International Company

Features, specifications and appearance are subject to change without notice. Screen images may differ from actual product.

Harman Kardon is a trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries.

Drive + Play is a trademark of Harman International Industries, Incorporated.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries.

Please Recycle
