USER MANUAL CDR 30 HARMAN KARDON

Power for the digital revolution™

3 Introduction
3 Special Features
3 Important Information on CD Recording
4 Safety Information
5 Front Panel Controls
7 Front Panel Information Display
9 Rear Panel Connections
10 Remote Control Functions
12 Installation and Connections
14 CD Recording Basics
14 Disc Types
14 Recording Options
14 CDR Terminology and Display Messages
15Playback Basics
15 Loading and Unloading Discs
15 Using the Remote
16 Normal Play
16 MP3Playback
17 HDCD® Playback
17 CD Text Playback
17 Search
17 Track Skip
18 Dual-Play Mode
18 Two-Disc Changer Operation
18 Time Display
18 Headphone Listening
19 Program Play
19 Programming Play Lists
19 Checking, Editing and Clearing
Programmed Play Lists
19 Repeat Play
20 Random Play
20 Intro Scan
21 CD Recording
21 Disc Dubbing
22 Recording from an External Source
23 Sync Recording
23 Record Levels
24 Finalizing CD-R and CD-RW Discs
24 Unfinalizing and Erasing CD-RW Discs
25 Troubleshooting Guide and Error Messages
26 Technical Specifications

Declaration of Conformity

CE

We, Harman Consumer International

2, Route de Tours

72500 Château-du-Loir,

FRANCE

declare in own responsibility, that the product described in this owner's manual is in compliance with technical standards:

EN 60065:1993

EN 55013/A12/8.1994

EN 55022/5.1995

EN 55020/12.1994

EN 61000-3-2/4.1995

EN 61000-3-3/1.1995

Carsten Olesen

Harman Consumer International

01/01

Typographical Conventions

In order to help you use this manual with the remote control, front panel controls and rear panel connections, certain conventions have been used.

EXAMPLE - (bold type) indicates a specific remote control or front panel button, or rear panel connection jack or a lit indicator in the front panel information display.

EXAMPLE - (OCR type) indicates a message that is visible on the front-panel information display

1 - (number in a square) indicates a specific front panel control
1 - (number in an oval) indicates a button or indicator on the remote
1 - (number in a circle) indicates a rear-panel connection
A - (letter in a square) indicates an indicator in the front-panel display

HDCD, High Definition Compatible Digital and Pacific Microsonics are either registered trademarks or trademarks of Pacific Microsonics, Inc., in the United States and/or other countries. HDCD system manufactured under license from Pacific Microsonics, Inc.

Thank you for choosing Harman Kardon. The CDR 30 CD Player/Recorder is a unique product, designed not only to playback your existing library of compact discs, but also to record compact discs from either analog or digital programs. You may feed signals (for recording) to the CDR 30 from external sources such as an A/V receiver, a tuner, tape deck or a CD player, or you may simply place a CD in one deck, and make a copy using a recordable CD in the other deck.

Designed and engineered by Harman Kardon, the CDR 30 is among the first audio CD recorders with x4 speed capability. This means that it will take only 15 minutes to copy a 60-minute disc. The CDR 30 is also the first CD-R/RW audio recorder to offer MP3 playback, dubbing of MP3 discs to conventional CD discs, and HDCD® playback.

The CDR 30 not only records with the highest speed and quality available but it is also an audiophile CD player. Through the use of audiophile-grade digital-to-analog converters (DAC's), the CDR 30's performance rivals the most sophisticated high-end players. Should you wish to bypass the internal DAC's and use an external digital processor, coax and optical digital outputs are available. Thanks to the CDR 30's dual-tray design, you may even play two separate discs at the same time, for parties or multi-room applications. To make CD playback more enjoyable, the CDR 30 also features a wide range of program and repeat functions.

Since CD recorders and MP3 are a relatively new technology, this may be your first CD-R product. Although CD recorders resemble play-only CD machines in many ways, there are some important differences between a standard CD and a CD-R. In addition, making a CD-R recording is also a different process than what you may be familiar with for making audio tape or cassette recordings. For that reason, we encourage you to read through this manual so that you are fully acquainted with the way CD recording works. This small investment in your time will pay major dividends in the enjoyment that will result from proper use of the CDR 30.

If you have additional questions about this product - its installation or operation - that are not answered in this manual, please contact your dealer, who is your best source of local information.

Special Features

Dual-Deck CD Player and CD-R/CD-RW Recorder
4x Dub Speed for Both CD-R and Erasable CD-RW Discs (not for MP3 discs)
Plays MP3 and HDCD-Encoded Discs
Can read CD-Text and ID tracks on MP3 discs
Digital and analog record level adjust
■ Intro scan, selectable separately for both drives
Two independent Audiophile-Grade Digital-to-Analog Converters for Highest Audio Quality
Dual-Play Capability, even for simultaneous recording and playback
■ Extensive Playback Programming Capabilities
Coaxial and Optical Digital Inputs and Outputs
■ Front Panel Coaxial and Optical Digital Inputs for Use With Portable Devices
Sample-Rate Converter Allows Use of DAT Players as Digital Source
Ergonomic Remote Control
High grade drives for both decks with fast track access and excellent trackability.

Important Information About CD Recording

In order to get the most enjoyment from your new CD-R recorder, please pay special attention to the following sections of the manual that provide information about the special features and capabilities of CD Recorders.

The CDR 30 plays all standard CD audio discs but for recording, the CDR 30 uses special CD-R and CD-RW discs designed only for audio use. CD-R discs designed for computer use will not work in the CDR 30. See page 14 for more information on which types of discs are used with the CDR 30.
The last step in making a CD-R and CD-RW recording is the finalization process. Unless this step is properly done, the disc will not work in other players. See page 24 for information on finalizing discs.
Once finalized, CD-R discs will play in any CD player, but CD-RW discs will only play in the CDR 30 and certain other machines. Check the specifications of your CD player if you have questions about compatibility with CD-RW discs.
As with all CD players, except those designed specifically for portable use, you should never move a CD player while there is a disc inside one of the decks. NEVER move the CDR 30 until discs have been removed from both decks.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Verify Line Voltage Before Use

Your CDR 30 has been designed for use with 220- to 240 Volt AC current. Connection to a line voltage other than that for which it is intended can create a safety and fire hazard and may damage the unit.

If you have any questions about the voltage requirements for your specific model, or about the line voltage in your area, contact your selling dealer before plugging the unit into a wall outlet.

Handle the AC Power Cord Gently

When disconnecting the power cord from an AC outlet, always pull the plug, never pull the cord. If you do not intend to use the unit for any considerable length of time, disconnect the plug from the AC outlet.

Do Not Open the Cabinet

There are no user-serviceable components inside this product. Opening the cabinet may present a shock hazard, and any modification to the product will void your guarantee. If water or any metal object such as a paper clip, wire or a staple accidentally falls inside the unit, disconnect it from the AC power source immediately, and consult an authorized service station.

CAUTION: The CDR 30 uses a laser system. To prevent direct exposure to the laser beam, do not open the cabinet enclosure or defeat any of the safety mechanisms provided for your protection. DO NOT STARE INTO THE LASER BEAM. To ensure proper use of this product, please read this owner's manual carefully and retain it for future use. Should the unit require maintenance or repair, please contact your local Harman Kardon service station. Refer servicing to qualified personnel only.

Installation Location

Place the unit on a firm and and level surface that can support the weight of the product.
Make certain that proper space is provided both above and below the unit for ventilation. If this product will be installed in a cabinet or other enclosed area, make certain that there is sufficient air movement within the cabinet.
- Do not place the unit directly on a carpeted surface.
- Avoid installation in extremely hot or cold locations, or an area that is exposed to direct sunlight or heating equipment.
Avoid moist or humid locations.
- Do not obstruct the ventilation slots on the top of the unit, or place objects directly over them.

Cleaning

When the unit gets dirty, wipe it with a clean, soft dry cloth. If necessary, wipe it with a soft cloth dampened with mild soapy water, then a fresh cloth with clean water. Wipe dry immediately with a dry cloth. NEVER use benzene, aerosol cleaners, thinner, alcohol or any other volatile cleaning agent. Do not use abrasive cleaners, as they may damage the finish of metal parts.

Moving the Unit

IMPORTANT NOTE: To avoid damage to the CDR 30 which may not be covered by the warranty, be certain that all discs are removed from the unit before it is moved. Once the CDR 30 is installed, discs may be left in the unit when it is turned off, but the unit should NEVER be moved with discs left in either deck.

Important Information for the User

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio/TV technician for help.

Unpacking

The carton and shipping materials used to protect your new CD recorder during shipment were specially designed to cushion it from shock and vibration. We suggest that you save the carton and packing materials for use in shipping if you move, or should the unit ever need repair.

If you do not wish to save the packaging materials, please note that the carton and other sections of the shipping protection are recyclable. Please respect the environment and discard those materials at a local recycling center.

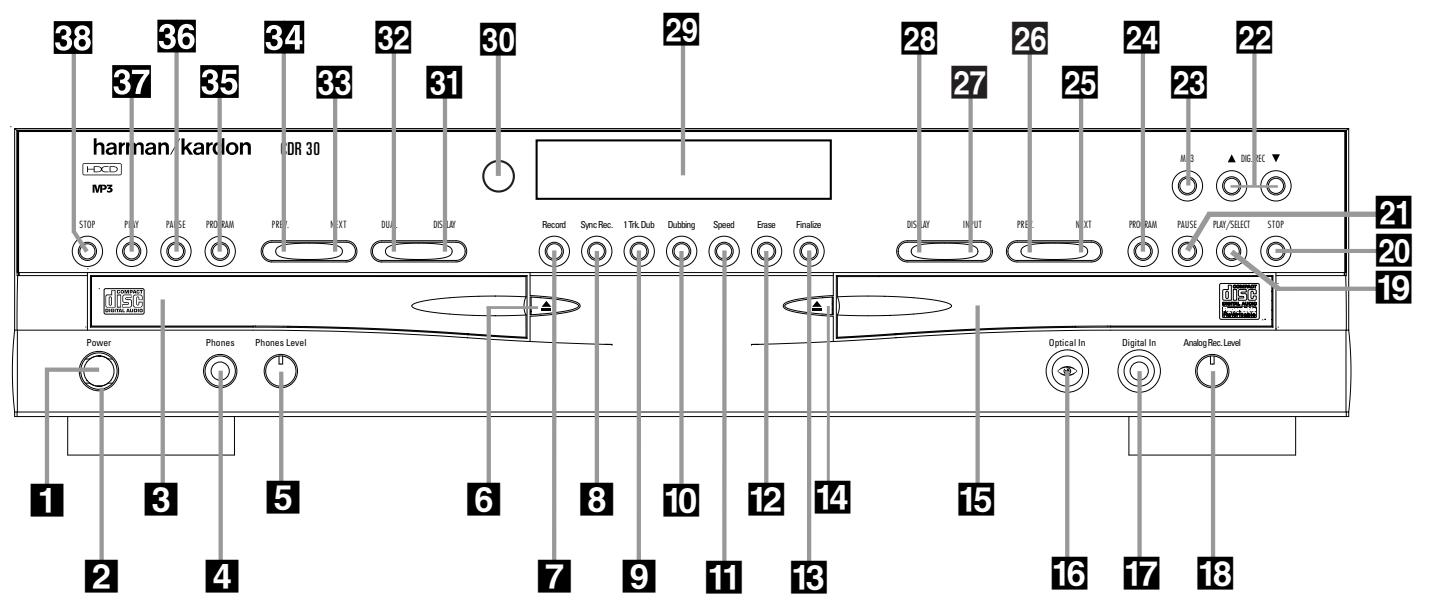

Power Switch
2 Standby Mode Indicator
3 Play (CDP) Deck
4 Headphone Jack
5 Headphone Level Control
6 Play (CDP) Open/Close
7 Record Button
8 Sync Record Button
9 1 Track Dub Button
10 Dubbing Button
11 Speed Select Button
12 Erase Button
13 Finalize Button

14 Record (CDR) Deck Open/Close
15 Record (CDR) Deck
16 Optical Digital Input
17 Coaxial Digital Input
18 Analog Record Level Control
19 CDR Play/Select Button
20 CDR Deck Stop
21 CDR Deck Pause
22 Digital Level Controls
MP3 Select Button
24 CDR Deck Program Button
25 CDR Deck Next Track Button
CDR Deck Previous Track Button

27 Input Select
28 CDR Deck Display Select
29 Information Display
30 Remote Sensor
31 CDP Deck Display Select
32 Dual/Single Play Select
33 CDP Next Track
34 CDP Deck Previous Track
35 CDP Deck Program
36 CDP Deck Pause Button
37 CDP Deck Play Button
38 CDP Deck Stop Button

1 Power Switch: Press this switch to apply power to the CDR 30. The unit will be turned on and the Standby Mode Indicator 2 surrounding the switch will turn green. Once the unit has been turned on with this switch, it may be operated from either the front panel or remote control. Press the switch again to turn the unit completely off.
2 Standby Mode Indicator: When the CDR 30 is in the ON mode, this indicator will glow green. When the unit has been placed in the Standby mode by pressing the Power-Off button on the remote, the indicator will glow orange, indicating that the unit is still connected to the AC main supply and is ready to be turned on from the remote control.
3 Play (CDP) Deck: This disc deck is used to play conventional CD discs, MP3 discs and CD-R or CD-RW discs that have been finalized.
4 Headphone Jack: Connect standard headphones to this jack for private listening.

5 Headphone Level Control: Turn this control to adjust the volume level to the headphones. Note that the use of this control will not change the analog output levels at the rear-panel audio outputs 12.
6 Play Deck (CDP) Open/Close: Press this button to open or close the Play Deck 3.
7 Record Button: Press this button to begin the recording process. See pages 21-25 for more information on CD recording.
8 Sync Record Button: Press this button once to begin an automated recording of a single track from an external CD or MD player when a digital connection is used. Press it twice to begin automated recording of an entire disc. See page 23 for more information on Sync recording.
91 Track Dub Button: Press this button to begin the process of copying a single track from the CDP deck to a CD-R or CD-RW disc in the CDR deck.
10 Dubbing Button: Press this button to begin the process of making a complete copy of the disc in the Play Deck 3 or of all programmed tracks on that disc to a CD-R or

CD-RW disc in the Record Deck 15. See page 21 for more information on dubbing.

11 Speed Select Button: Press this button to select the recording speed for internal dubs. See page 21 for more information.
12 Erase Button: Press this button to erase one or more tracks or the entire contents of an unfinalized CD-RW disc. When a CD-RW disc has already been finalized you may erase the entire disc or you may "uninitialize" the disc by erasing the TOC data. See page 24 for more information on erasing CD-RW discs.
18 Finalize Button: Press this button when a recording is complete to initiate the finalization process. The Play/Select Button 19 must be pressed within three seconds to activate finalization. Until this button is pressed and the finalization process is complete, CD-R and CD-RW discs may not be played on conventional CD machines (even when finalized a CD-RW will play only on CD players that are compatible with CD-RWs, see also page 14). See page 24 for more information on finalization.

14 Record (CDR) Deck Open/Close:
Press this button to open or close the Record
Drawer 15.
15 Record (CDR) Deck: This Disc Deck is used to record or play CD, MP3, CD-R and CD-RW discs.
16 Optical Digital Input: This jack accepts the digital audio input signal from a compatible digital audio product and should be connected directly to the optical digital audio output on a CD, MD or DVD player or any other compatible digital source. To select this input, press the Input Select Button 27 until OPTICAL FRONT appears in the Time/Message Display F. Note that the cover with the "eye" icon must be removed before the input is used. Save the cover and replace it when the jack is not in use to prevent dust from entering the jack and degrading the input's performance.
17 Coaxial Digital Input: This input may be used to connect the coaxial digital output on a CD, MD or DVD player or any other compatible digital source to the CDR 30 for digital recording. To select this input, press the Input Select Button 27 until CoAXIAL FRONT appears in the Time/Message Display F.
18 Analog-Record Level Control: The control is used to adjust the input level when making recordings from analog sources such as cassettes, or when CDs are recorded in an analog mode. See page 23 for more information on record levels.
CDR Deck Play/Select: This button has two functions. It may be pressed when a standard CD is in the Record Deck to put the machine in play, or it may be used to enter a selection or start certain record functions.
CDR Deck Stop: Press this button to stop the CD in the Record Deck.
CDR Deck Pause: When the Record Deck is in the Play mode, pressing this button will pause the disc. If the disc has previously been paused, pressing this button will restart the playback.
22 Digital Level Controls: These buttons increase or decrease the record level when a digital recording is being made. Press both buttons briefly and then release them to change from manual to automatic digital recording level control. See page 23 for more information on digital recording levels.

23 MP3 Select Button: When a "Multisession" disc containing both standard CD audio and MP3 tracks is playing, the unit will default to play of the standard CD audio tracks. Press this button to play the MP3 tracks.
CDR Deck Program Button: Press this button to begin the programming sequence for a disc in the CDR deck. See page 19 for more information on programmed playback.
25 CDR Deck Next Track: This button has two functions. When a disc is playing in the Record Deck 15, press and hold this button to play the disc in a fast-forward mode to quickly locate a desired passage. At any time, tapping the button and quickly releasing it will move to the next track on a disc in play. When a disc is stopped, each press will move forward one track for programming or play (see page 17 and 19 for locating tracks).
26 CDR Deck Previous Track: This button has two functions. When a disc is playing in the Record Deck 15, press and hold this button to play the disc in a fast reverse mode to quickly locate a desired passage. At any time, tapping the button and quickly releasing it will move to the beginning of the current track, and the next press will move to the previous track. When a disc is stopped, each press will move back one for programming or play (see page 17 and 19 for locating tracks).
27 Input Select: Press this button to select the input source (coaxial rear, optical rear, coaxial front, optical front and analog) for recording. See page 22 for more information on input selection.
28 CDR Deck Display Select: Press this button to cycle through the time display options for the Record Deck. See page 18 for more information on the time display.
29 Information Display: The indicators in the Information Display provide status reports on the operation of the CDR 30. See page 7 for complete explanations of each indicator.
Remote Sensor: The IR sensor that receives the commands from the remote control is behind this area. Do not cover or obscure this part of the front panel to avoid any malfunction with the remote.
31 CDP Deck Display Select: Press this button to cycle through the time display options for the Play Deck. See page 18 for more information on the time display.

32 Dual/Single Play Select: Press this button to enable both CD decks to play at the same time and function as separate, independent CD units (Dual mode), or to have the unit play through all the tracks on the disc in one deck and then switch to the other (Single mode). In the Dual mode it is also possible to record from an external source in the CDR while the CDP Deck is functioning as a standard CD player. See page 18 for more information on dual-play capability.
38 CDP Deck Next Track: This button has two functions. When a disc is playing in the Play Deck 3, press and hold this button to play the disc in a fast-forward mode to quickly locate a desired passage. At any time, tapping the button and quickly releasing it will move to the next track on a disc in play. When a disc is stopped, each press will move forward one track for programming or play (see page 17 and 19 for locating tracks).
34 CDP Play-Deck Previous: This button has two functions. When a disc is playing in the Play Deck 3, press and hold this button to play the disc in a fast-reverse mode to quickly locate a desired passage. At any time, tapping the button and quickly releasing it will move to the beginning of the current track, and the next press will move to the previous track. When a disc is stopped, each press will move back one for programming or play (see page 17 and 19 for locating tracks).
35 CDP Deck Program Button: Press this button to begin the programming sequence for a disc in the CDR deck. See page 19 for more information on programmed playback.
36 CDP Deck Pause: When the CDP Deck is running, pressing this button will pause the disc. If the disc has previously been paused, pressing this button will restart the playback.
37 CDP Deck Play Button: Press this button to begin playback of a CD in the CDP Deck.
38 CDP Deck Stop Button: Press this button to stop the CD in the CDP Deck.

A Random Indicator
Repeat Mode Indicators
C Program Indicator
D Single/Dual Play Indicators
CDP/CDR Deck Indicator
F Time/Message Display
Level Indicators
Hub Speed Indicators
1 Copy Prohibit Indicator

J Dub Mode Indicators
Manual Track Increment Indicator
Play/Pause Indicators
M Sync Indicator
N HDCD Indicators
Record Indicator
MP3Playback Indicator
CDR/RW Indicator
Sample-Rate Converter Indicator

S Time Indicators
T Remaining Time Indicators
U Record Time Indicator
V Total Time Indicators
W Track Time Indicators
X Digital Record Level Status Indicator
Y Front Input Indicator
Z Input Indicators

Important Note: Since the CDR 30 is a dual-deck player/recorder, there are two separate sets of indicators for HDCD, Random, Program, Repeat Status, Remain Time, Total Time, Track Time as well as separate Play/Pause Indicators and CD Indicators for each deck. As the function of these indicators is identical for both decks, they are described in this manual with a common letter. When the CDR 30 is playing or recording a disc, any indicators that light on the left side of the display describe the status of the Play Deck, while those that light on the right side of the display describe the status of the Record Deck. Depending on the activity of the unit and the settings you select, different indicators may light on the two sides at the same time.

A Random Indicators: These indicators light when random playback has been programmed for one of the CD decks. See page 20 for more information on random play.
Repeat Mode Indicator: These indicators display the type of repeat function being used. See page 19 for more information on repeat status.
C Program Indicators: These indicators light when one of the CD decks is being programmed for playback options. See page 19 for more information on programmed play.
Single/Dual Play Indicators: One of these indicators will light to indicate the unit's playback mode, as selected with the Dual/Single Play Select Buttons 32724. When the Dual indicator lights, both decks will play simultaneously through their respective analog or digital outputs. When the SINGLE indicator is lit, only one deck may play at a time, but the unit will automatically switch from one side to the other when a deck is finished playing.

CDP/CDR Deck Indicator: Indicate show if the Level Indicators G are showing the output of the record (CDR) or play (CDP) deck.
Time/Message Display: This display shows the play or record time for either deck, as noted by the various time and mode indicators
STUVW. It also displays the CD Text or MP3 information from a disc and displays various information, status and error messages.
Level Indicators: These LEDs display the input level during a recording, and the output level during playback. See page 23 for more information on record levels.
Hub Speed Indicators: These indicators show which record speed has been selected for dub recordings. See page 21 for more information on record-speed selection.
1 Copy-Prohibit Indicator: This indicator lights when a recording is not possible due to the intervention of the Serial Copy Management System (SCMS). See page 21 for more information on SCMS.

J Dub Mode Indicators: These indicators light when a dub is in progress between the CDP and CDR decks to confirm that either one track (1 TR) or the entire disc or programmed tracks of the disc (DISC) are being dubbed.
K Manual Track Increment Indicator: This indicator lights when the automatic track increment system has been turned off. When the indicator is lit, tracks may be incremented during a recording by pressing the Track Increment Button 14.
L Play/Pause Indicator: These indicators show the status of the individual CD Decks. The lights when the CD is playing, and the lights when the unit is in a Pause mode.
M Sync Indicator: This indicator lights when the unit has been programmed for a CD Sync recording. See page 23 for more information on Sync recordings.
N HDCD Indicators: These indicators will light when either of the decks is playing a disc that contains HDCD encoding.

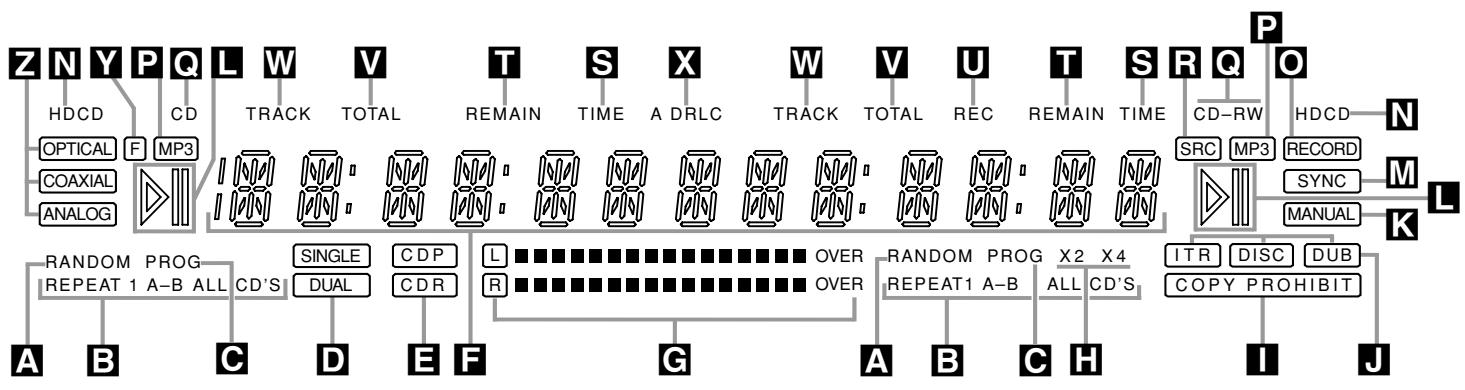

Front Panel Information Display

Record Indicator: This indicator lights when the unit is making a recording and flashes during the preparations for recording.
MP3Playback Indicator: These indicators will light when either of the decks is playing a disc that contains MP3 data.
R/RW Indicator: This indicator shows which type of recordable disc is present in the Record Deck 15. When a CD-R disc is present, only the R is lit. The RW lights when an erasable CD-RW disc is in use.
Sample-Rate Converter: This indicator lights when the Sample-Rate Converter is in use to change the digital sample rate when the incoming signal is not the standard 44.1kHz used by standard CDs. This is an automatic function and does not require any user intervention.
S Time Indicator: This indicator lights in conjunction with one of the time indicators TVW to show which of the time status modes is active.

Remaining-Time Indicator: This indicator lights when the Time/Message Display F shows the time remaining on a disc or on a track.
U Record Time Indicator: This indicator lights in conjunction with the REMAIN T and TOTAL V indicators or the TRACK W indicator during a recording to show that the time figure shown in the Time/Message Display F is either the time remaining on the disc or the time elapsed for the current track.
V Total Time Indicators: These indicators light when the Time/Message Display F shows the total time of all tracks on a disc (in stop mode) or the total remaining time (during play).
W Track Time Indicators: These indicators light when the Time/Message Display F shows the running or remaining time of the individual track being played. Moreover the number of the track actually selected is shown under these indicators.

x Digital Record Level Status Indicator: During a digital recording, this indicator shows ADRLC when the record level is controlled automatically, and DRLC when you may control it manually. See page 23 for more information on record levels.
Y Front Input Indicator: This indicator lights when the front panel Optical Digital 16 or Coaxial Digital 17 inputs are the source for a recording.
Input Indicators: These indicators light to display which input source is in use.

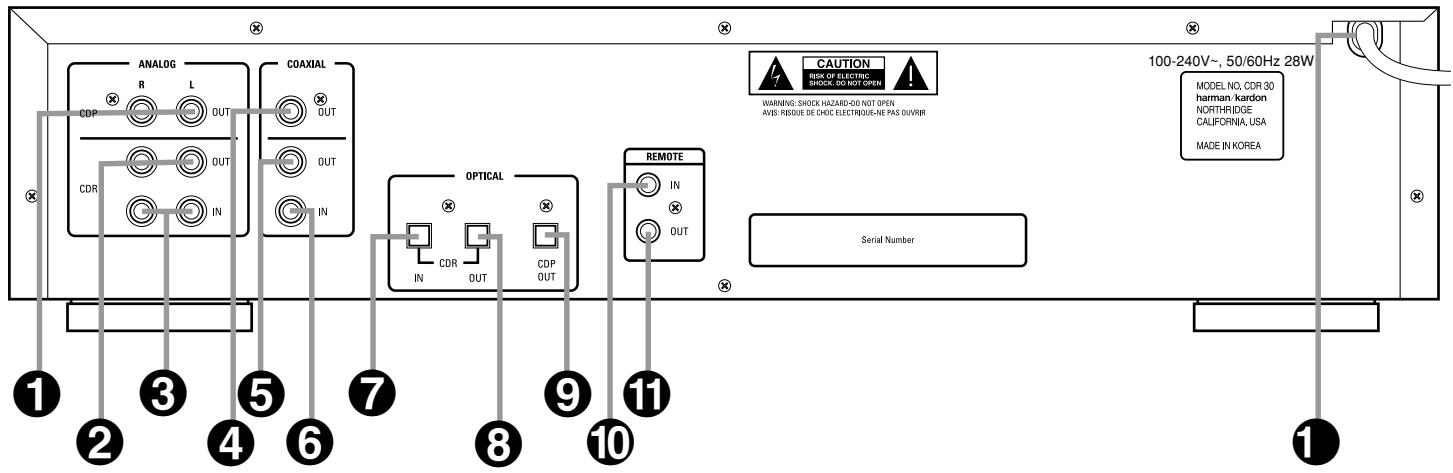

1 Play (CDP) Deck Analog Output
2 Record (CDR) Deck Analog Output
3 Record (CDR) Deck Analog Input
4 Play (CDP) Deck Coaxial-Digital Output

Record (CDR) Deck Coaxial-Digital Output
Record (CDR) Deck Coaxial-Digital Input
7 Record (CDR) Deck Optical-Digital Input
Record (CDR) Deck Optical-Digital Output

Play (CDP) Deck Optical-Digital Output
Remote IR Input
Remote IR Output
AC Power Cord

1 Play (CDP)-Deck Analog Output: These jacks carry the analog audio output signal from the Play Deck 3 during normal play, in Single mode also from the Record Deck 15, and during CD Dubbing. Connect them to the CD input jacks on a receiver, preamp or processor.
Record (CDR)-Deck Analog Output: These jacks carry the output signal from the Record Deck 15 during normal play, in Single mode also from the Play Deck 3, and during analog or digital recording. Connect them to the Tape Play/In input jacks on a receiver, preamp or processor.
3 Record (CDR)-Deck Analog Input: These jacks accept the analog signals that are used for CD recordings. Connect them to the Tape Rec/Out outputs on a receiver, preamp or processor or directly to any analog source to be recorded.
4 Play (CDP)-Deck Coaxial-Digital Output: This jack carries the digital-audio output signal from the Play Deck 3 during normal play, in Single mode also from the Record Deck 15, and during CD Dubbing. Connect it to a coaxial-digital input on a receiver, processor or digital decoder.
⑤ Record (CDR)-Deck Coaxial-Digital Output: This jack carries the digital audio output signal from the Record Deck 15 during normal play, in Single mode also from the Play Deck 3 and during analog or digital recording. Connect it to a coaxial digital input on a receiver, processor or digital decoder.

Record (CDR)-Deck Coaxial-Digital Input: This jack accepts the digital-audio input signal from a compatible digital audio product and should be connected to the coaxial-digital output on a CD, MD or DVD player or an A/V receiver or processor.
IMPORTANT NOTE: The coaxial digital outputs and inputs should only be connected to digital input or output jacks. Even though they use the same RCA type connector as standard analog audio connections, DO NOT connect them to conventional analog input or output jacks.
7 Record (CDR)-Deck Optical-Digital Input: This jack accepts the digital-audio input signal from a compatible digital audio product, and should be connected directly to the optical-digital output on a CD, MD or DVD player or an A/V receiver or processor.
Record (CDR)-Deck Optical-Digital Output: This jack carries the digital audio output signal from the Record Deck 15 during normal play, in Single mode also from the Play Deck 3, and during analog or digital recording. Connect it to an optical-digital input on a receiver, processor or digital decoder.
9 Play (CDP)-Deck Optical-Digital Output: This jack carries the digital audio output signal from the Play Deck 3 during normal play, in Single mode also from the Record Deck 15, and during CD Dubbing. Connect it to an optical-digital input on a receiver, processor or digital decoder.

Remote IR Input: Connect the output of a remote infrared sensor or the remote control output of another compatible Harman Kardon product to this jack. This will enable the remote control to operate even when the front-panel Remote Sensor 30 is blocked. This jack may also be used with compatible IR remote control based automation systems.
Remote IR Output: Connect this jack to the IR input jack of another compatible Harman Kardon remote controlled product to have the built-in Remote Sensor 30 on the CDR 30 provide IR signals to other compatible products.
1 AC Power Cord: Connect this plug to an AC outlet. If the outlet is switch controlled, make certain that it is in the ON position, if you want to turn the unit on.

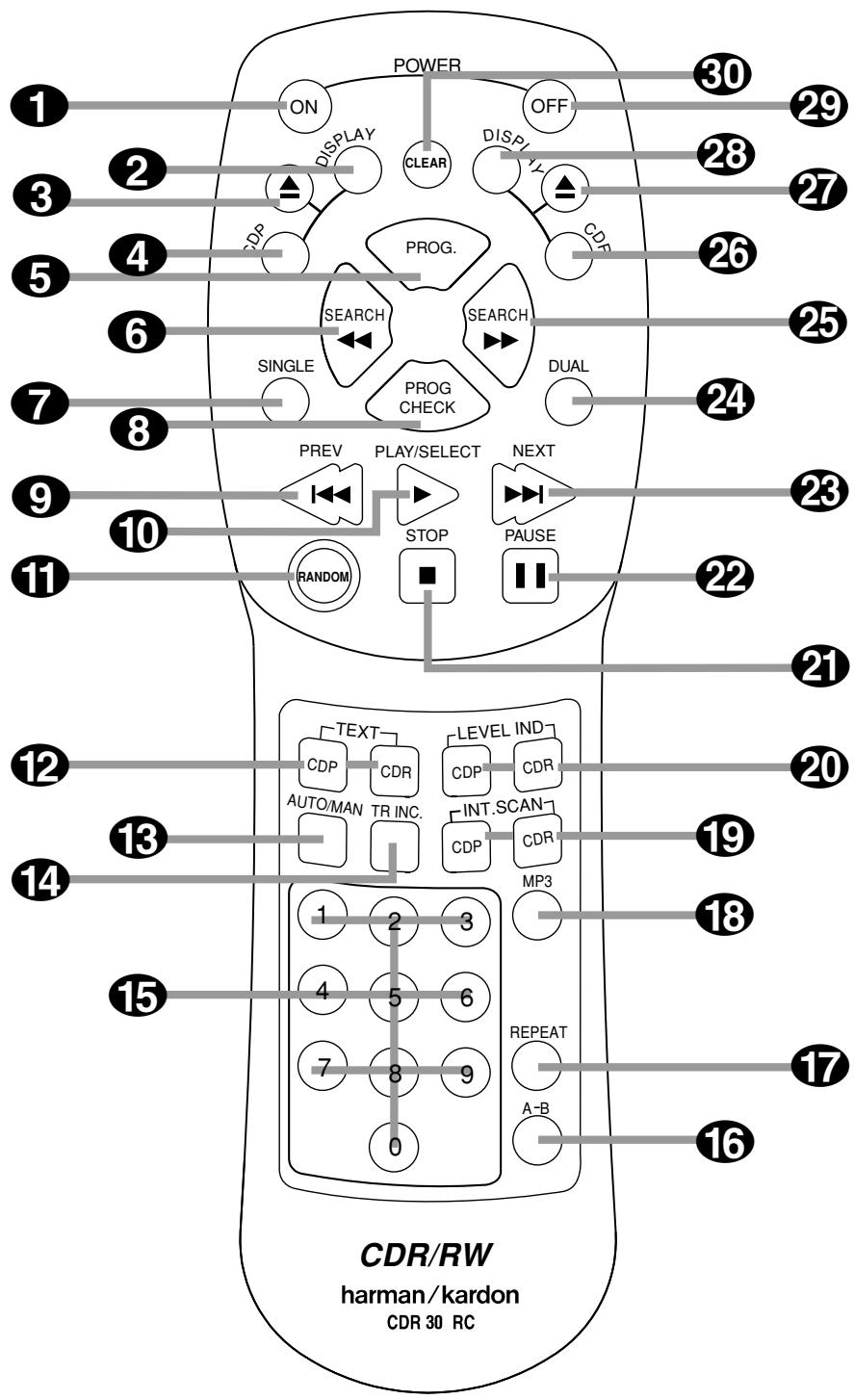

1 Power-On Button
Play Deck (CDP) Display
CDP Deck Open/Close
CDP Deck Select
5 Program
6 Reverse Search
Single Play Select
8 Program Check
9 Previous-Track
10 Play/Select
Random Play
12 Text Readout Select
13 Auto/Manual Track Increment Selector
14 Track Increment
15 Numeric Keys
16 A-B Repeat Select
17 Repeat
18 MP3 Select
19 Intro Scan
20 Level Indicator Select
21 Stop
22 Pause
23 Next Track
Dual Play Select
25 Forward Search
26CDR Deck Select
CDR Deck Open/Close
CDR Display Speed
29 Power Off
30 Clear

IMPORTANT NOTE: Some of the remote's functions including Play, Pause, Stop, Search, Next and Previous Track, Repeat, A-B, Program, Program Check, Clear, Random and the Numeric Keys are shared between the two decks. Always remember to press the CDP Select button

to use the remote to control the Play Deck, or press the CDR Select button 26 to control the Record Deck.

When you press one of these buttons, an indication of CDP or CDR will appear in the appropriate Time/Message Display (for more information about functions shared see page 15).

Power-On Button: Press this button to turn the CDR 30 on. Note that in order for this control to function, the Front-Panel Power Switch must first be pressed so that the unit is in the Standby mode.
Play Deck (CDP) Display Control: Press this button to cycle through the various time display options for the disc in the Play Deck 3. See page 18 for more information on time-display options.
3 Play Deck (CDP) Open/Close: Press this button to open or close the Play Deck 3.
4 Play Deck (CDP) Select: Press this button to control or program the functions of the disc in the Play Deck 3.
Program: Press this button to begin the programming sequence for one of the CD decks. See page 19 for more information on program- ming the CDR 30.
Reverse Search: Press this button to play the selected disc in reverse to locate a desired passage.
Single Play Select: When this button is pressed, the CDR 30 will function as a two-disc CD player/ changer. In the Single mode, the audio output will be routed to all output jacks
12458 regardless of which CD deck is actually playing. See page 18 for more information on the Single-Play mode.
8 Program Check: Press this button to check or edit a programmed playback sequence. See page 19 for more information on programmed playback.
9 Previous-Track Skip: Press this button to skip backwards to the beginning of the track currently being played. Press it a second time to move back to the beginning of each previous track.
10 Play/Select: This button has two functions. It will most often be used as a standard play button, but when setting up certain record functions, it is also used as an Enter or Select button.

1 Random Play: Press this button to begin random play of all tracks on a disc.
Text Readout Select: Press one of these buttons to view the CD Text from the disc playing in either the CDP or CDR decks. If one of the buttons is pressed and the disc playing does not contain text a NO TEXT message will be displayed in the Time/Message Display F. See page 17 for more information on CD Text readout.
13 Auto/Manual Track Increment

Selector: Press this button to select between automatic and manual track increments during a recording session. See pages 22-23 for more information on track increments.

14 Track Increment: When the Manual mode for track increments is selected during recording, press this button to increase the track number. NOTE: This function does not operate during Sync or dub recording.
Numeric Keys: Press these buttons to access a specific track for playback or during the programming process. See page 19 for more information on programmed playback.
16 A-B Repeat: Press this button to specify a segment of a disc for repeat play. See page 19 for more information on repeat play.
17 Repeat: Press this button once to repeat the current track. To repeat an entire disc, press the button twice. Press it a third time to repeat both discs in sequence (with Single mode only).
MP3 Select: When a Multi-session disc with both CD Audio and MP3 data is playing, press this button to select playback of either type of information. See page 16 for more information on MP3 playback select.
19 Intro Scan: Press one of these buttons to start the Intro Scan feature for either deck. When Intro Scan is in use, the unit will play the first ten seconds of each track on the disc. To play any track in its entirety during the Intro Scan process, press the Play Button 10.

20 Level Indicator Select: Press these buttons to select the playback or record level display for either the play (CDP) or record (CDR) decks. See page 18 for more information on indicator select.

21 Stop: Press this button to stop playback or recording.
22 Pause: Press this button to momentarily pause playback or recording. Press it again to resume playback.
23 Next-Track Skip: Press this button to skip forward to the next track on a disc.
Dual Play Select: Press this button to enable both CD Decks to play back at the same time and function as separate, independent CD units. In this mode it is also possible to record from an external source while the Play Deck is functioning as a standard CD player. See page 18 for more information on dual-play capability.
25 Forward Search: Press this button to play a disc in a fast-forward mode.
26 Record Deck (CDR) Select: Press this button to control or program the functions of the disc in the Record Deck 15.
27 Record Deck (CDR) Open/Close: Press this button to open or close the Record Deck 15.
23 Record Deck (CDR) Display Control: Press this button to cycle through the various time-display options for the disc in the Record Deck 15. See page 18 for more information on time-display options.
29 Power-Off: Press this button to place the unit in a Standby mode.
30 Clear: Press this button to clear an item in a program sequence. See page 19 for more information.

Important Note: To prevent possible damage to your speakers or other components in your audio system, we strongly recommend that ALL system components, including the CDR 30, be turned off completely when any connections are made or a new component is installed.

Locating the CDR 30

Since the CD transports in the CDR 30 are precision instruments, they are subject to interference from vibration. To minimize the possibility of skipping during playback or recording, it is recommended that the unit be placed on a level, solid, vibration-free surface.

When installing the CDR 30 in a cabinet or tight space, always make certain that there is enough room in front of the unit for the disc drawers to open fully, and that there is enough space above the unit so that discs may easily be inserted in the disc drawers.

In addition to the safety considerations outlined on page 4, it is also recommended that the CDR 30 not be placed in a location that is subject to direct sunlight or extreme heat or cold, as these conditions may damage the discs used in the player, or the player itself. Note that audio amplifiers or high-power receivers, as well as certain other electronic products, may generate significant heat. For that reason, do not place the CDR 30 directly on top of an amplifier, receiver, or other heat source. Always allow at least 2cm of free space on all sides of the CDR 30, as well as other electronic products, to allow for proper ventilation.

The unit should also be kept away from sources of water or damp conditions.

Connections to Your Audio System

When connecting the CDR 30, think of the process as if your were connecting a standard CD player and a tape or cassette recorder, with the addition of the digital connections.

Play-Deck Connections

The rear panel connections 149 labeled "CDP" refer to the outputs of the Play Deck 3, which functions as a standard CD player.

Connect the analog left/right CDP outputs 1 to the CD inputs on your receiver, preamp or surround processor.

For best playback results, a digital connection is recommended, using the coaxial 4 or optical 9 outputs. Connect them to the matching digital inputs of your receiver, preamp, processor or external digital decoder.

Note that you may have to change a setting on the receiver or processor to link the digital input to the "CD" button or input selector. Consult the owner's manual on that device for details, as this configuration may vary from unit to unit.

Record-Deck Connections

The rear panel connections 2 3 5 6 7 8 labeled “CDR” refer to the inputs and outputs for the Record Deck ⑤ . Depending on the capabilities of your receiver, preamp or processor, you may find it convenient to connect the analog inputs and outputs to the jacks marked for a tape recorder. As the CDR 30’s functions resemble those of a standard tape recorder, this might make it easier to select it as an input on your receiver or preamp. Connect the analog

CDR-Out jacks 2 to the Play/In jacks of a Tape input on your receiver or preamp. Connect the CDR-In jacks 3 to the Tape Rec/Out jacks on your receiver or preamp.

To play the output of the Record Deck through the digital decoder in your receiver or an external processor, connect the CDR Coax 5 or

Optical ③ digital outputs jacks to the matching digital-input jacks on your receiver or processor. Note that you may have to change a setting on the receiver or processor to link the digital input to the "Tape" button or the specific input selector associated with the digital inputs.

Consult the owner's manual on your receiver or processor for details, as this configuration may vary from unit to unit.

To make recordings from external digital sources, such as a CD, DVD or MD player, connect the CDR Coax-In jacks ⑥ 1 7 or CDR

Optical In Jacks 716 on the CDR to the appropriate digital output jacks on your receiver or processor. If your receiver does not have digital-output jacks, you may connect the CDR

Coax In jacks ⑥ 17 or CDR Optical In Jacks 7 16 on the CDR 30 directly to the matching digital output on your CD player or other digital device from which you'd like to make recordings.

Connections to a portable digital CD or MD player may also be made by connecting the Coax or Optical Digital Output of the player to the matching Front Panel Digital Input Jack 1617 on the CDR 30.

IMPORTANT NOTES ON DIGITAL CONNECTIONS:

Coax Connections: Although digital-coax connections use the same type of "RCA" phono jack as standard analog signals, please take special care to connect digital signals only to digital jacks. In many cases, the digital jacks may be identified by an orange colored insert ring around the center of the jack. When making digital connections, be sure to use coax-interconnect cables, such as the one supplied with the CDR 30 or cables intended for video applications. Even though they have the correct type of RCA connector, do not use audio-interconnect cables that have twisted pair construction, as they are not appropriate for digital signal use. If you have any questions about the type of cables to use with the CDR 30, consult your dealer.

Optical Connections: To ensure proper connection of optical cables, fully insert them into the jack until there is an audible click. This tells you that the connector has been completely inserted. Remember to save the plastic dust caps that cover the optical jacks, and replace them when a jack is not in use to prevent dust from entering the connection point.

Batteries

Insert the two AA batteries supplied with the CDR 30's remote as shown below being careful to follow the + and - polarity indications in the bottom of the compartment. Replace the cover by first seating the two small tabs into the mating holes at the top of the remote, and then gently push the cover down until the latch snaps into place with an audible click.

NOTE: When replacing batteries, replace both at the same time. When the remote will not be used for an extended period of time, remove the batteries to avoid the possibility of damage due to corrosion. Batteries contain chemical substances and we recommend that you dispose of them properly and in compliance with any local regulations.

IR Remote Connections

If the CDR 30 is installed behind a cabinet or other obstruction that may block the path between the front panel Remote Sensor 30 and the location where you will use the remote, an optional external IR sensor may be used. Connect the sensor to the Remote IR In Jack 10 on the rear panel. This jack may also be connected to the IR Output jack of another compatible Harman Kardon component or a compatible IR system remote product that is not blocked by a cabinet.

You may also use the IR Sensor in the CDR 30 to send commands to other compatible remote products. Connect the Remote IR Out Jack to the input of the other product or system.

Power Connections

Connect the AC Power Cord ① to an AC power source. the CDR 30 uses sensitive, high-performance computer-grade CD drives, and to protect them we recommend that you consider the use of a surge protector, just as you would for a computer.

If the rear panel AC outlet on a receiver or other product is used, make certain that it provides at least 28 watts, and that the total power of all products connected does not exceed the maximum rated output of the product containing the outlets. If the CDR 30 is connected to a switched outlet, remember to turn on the outlet or product controlling it in order for the CDR 30 to operate.

CD Recorders (CDRs) are similar to standard CD players, with the addition of the features and controls needed for recording. Functions such as play, search and programming for playback will be familiar, but the recorder will function slightly differently than what you may be used to for magnetic tape recorders.

Disc Types

Unlike a conventional CD player, the CDR 30 uses three types of discs, and it is important to understand how each one plays.

Both decks in the CDR 30 will play nontional CD that bears this logo.

Discs that bear this logo or whose is labeled with "Digital Audio" and "CD Recordable" may be recorded me, and when they are finalized they in either deck in the CDR 30 or in any final CD player, including home, car and models. The Record Deck 15 on the may also be used to record on these it will play those CD-R/Audio discs they have not been finalized.

Discs that bear this logo or whose is labeled with "Digital Audio" and or "CD Rewritable" may be recorded, may also be erased and reused. They corded on the Record Deck 15 of 0 and on other CD-RW recorders and both decks of the CDR30 (on the Rec even if the CD-RW is not finalized) or compatible players. They will NOT st current CD players unless the player compatible. CD-RW Audio discs will post DVD players once they have been

16

are designed for use in computer CD-R drivesand may not be used for recording in the CDR30. Only discs specifically designed for use inconsumer CD audio recorders may be used. Ifyou attempt to use a blank-computer-type recordable disc for recording on the CDR 30 you willsee a NO AUDIOO message in the Time/

Message Display F as soon as any Record 78 or Dubbing 910 button is pressed and recording will not be possible. However, discs that have been recorded in the CD-R drive of a computer may be played in the CDR 30, provided that they have been properly finalized in accordance with audio standard IEC958.

Note that the CDR 30 is specifically designed for the recording and playback of consumer audio discs, and cannot be used to copy data discs, DVD discs, or other optical discs used by video- or computer-game systems.

Recording Options

Digital Source to CD Audio: Depending on the particular input source used, the CDR 30 will make a CD Audio disc when fed a signal from a digital source such as an external CD or DVD player, MiniDisc or DAT player. When the input signal is not at the 44.1kHz standard used by digital audio discs it will be converted to the proper standard by the CDR 30's built-in sample rate converter. Input signals will be transferred directly to the copy disc as a digital signal, provided that it is an original recording. Digital sources that are copies can be copied only via the analog inputs. This is a requirement of the SCMS system, which is part of the CD recording system.

When copying using the dual-deck capability of the CDR 30, the copy may be made in real time or at twice or four times normal speed.

Analog sources to CD Audio: When the input signal is a conventional line-level analog audio signal, such as the record output of a receiver or processor, it will be converted to digital data and recorded as a standard CD audio disc. These dubs may be made in real time only.

MP3 discs to CD Audio: A unique feature of the CDR 30 is its ability to play discs recorded with MP3 data files. These discs may be copied to conventional CD audio discs using the dual-deck dub capabilities, but only at normal speed. Note that it is not possible to copy MP3 discs to additional MP3 disc copies.

The CDR 30 is not equipped to accept external MP3 files for direct recording.

CDR Terminology and Display Messages

Compact disc recording has its own special terminology, and some of the messages you will see when using the CDR 30 may be new to you. Before using the CDR 30, you may wish to familiarize yourself with some of the terms used by the CDR 30. Additional error message displays may occasionally appear. Please see page 25 for a complete explanation of those messages.

Finalize: This term refers to the process that completes the recording of a disc by recording a final Table of Contents and preparing the disc so that it may be played on other machines. A CD-R disc may not be played on the CDP deck of other CD players until it is finalized. However, once the finalization process is complete, a CD-R disc may not be recorded on again. CD-RW discs must be finalized too to be playable on CD-RW compatible players, but they may be "Unfinalized," so that certain or all tracks may be deleted or additional tracks may be recorded on a disc.

TOC: Stands for Table of Contents and it refers to the data recorded on each CD that tells the player how many tracks are on the disc, the total time of the disc and the running time of each individual track. Each time a disc of any sort is placed in the CDR 30, you will see a TOC to indicate that the unit is reading this data from the disc. This is required to copy the track information to any recording.

OPC: Stands for Optical Processing Calibration. When you see this message in the Time/ Message Display F, it means that the laser transport inside the unit is making the calibrations and adjustments needed so that the recording process is optimized for the specific disc in use.

BUSY: When you see this message, it means that the Record Deck is completing part of the record operation. When you see this message, do not press any buttons; simply wait until the message clears from the display.

DISC FULL: When there is no more record time remaining on a recordable disc, a DISC FULL message will appear in the Time/ Message Display. When you see this message, the CDR 30 has stopped the recording process and, when a CD-R is being recorded, you can insert a new blank disc or, when a CD-RW is in use, either use a new disc or erase existing tracks following the instructions on page 24.

Playback of CDs on the CDR 30 resembles traditional CD players with a few exceptions to accommodate the availability of two separate playback decks. Before using the CDR 30, power-up the unit by pressing in the Main Power Switch 1 until it latches. Note that the Standby Mode Indicator 2 will turn green, indicating that the unit is on and functioning. At the same time, the Information Display 29 will light, the Time/Message Display F will briefly display HARMAN KARDON MODEL CDR 30 and the indicators behind the front panel controls will also light up.

Once the Main Power Switch 1 has been turned on, the CDR 30 may be powered-on or - off using the remote control. Pressing the Power-Off button 29 on the remote will place the unit in a Standby mode, as indicated by the orange color of the Standby Mode Indicator 2. To turn the unit on using the remote, simply press the Power-On button 1 Note that when the unit is in the Standby mode, it is still drawing power from the AC main outlets. To turn the unit completely off, press in the Main Power Switch 1 slightly, and then release it so that it pops forward. When the Standby Mode Indicator 2 goes out, the CDR 30 is off and not drawing any power. When you will not be using the unit for an extended period of time, such as during a vacation, we recommend using the Main Power Switch 1 to turn the unit completely off.

Although compact discs are very reliable, rough handling may damage them. Avoid scratching either side of the discs, as this will affect playback of standard CDs and interfere with the recording of CD-R and CD-RW discs. It is also a good idea to always handle discs by their edges to avoid fingerprints which may also interfere with playback quality and possibly cause damage to the laser and lens assembly.

Loading and Unloading Discs

To load a disc, first open the desired CD deck by pressing the appropriate Open/Close button 614327. The word O P E N will appear in the Time/Message Display F. Always make certain that there is sufficient room in front of the unit for the disc drawers to open.

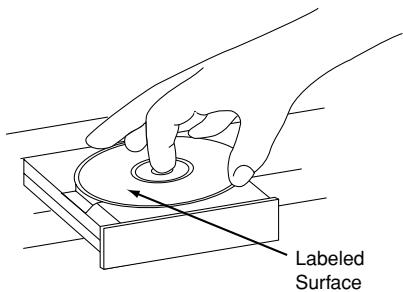

Load a disc in the tray with the printed (label) side facing up. Once the disc is seated, make certain that it is properly centered within the tray. When using 8cm (3^ ) single discs, take extra care to make certain that the disc is carefully centered within the smaller ridges in the disc tray.

To close the drawer, press the appropriate Open/Close button 614327 or gently press on the outside of the front cover of the disc tray. When the drawer is closed the word CLOSE will appear momentarily in the Time/Message Display F, and the letters TOC will begin to flash in the display once the drawer s completely closed.

If the disc is a standard CD or a CD-R or CD-RW disc, TOC will flash while the unit reads the disc's Table of Contents information. Once that data is read, the Time/Message Display F will show the total number of tracks and the total time of all tracks on the disc. The CD Indicator Q will also light to indicate that a standard CD is in use.

When an unfinalized CD-R or CD-RW disc is placed in the Record Deck 15, the letters OPC will flash once the preliminary Table of Contents has been read. This indicates that the unit is optimizing its circuits for maximum compatibility with the specific recordable disc in use. The number and total running time of any tracks that have already been recorded will appear in the Time/Message Display F, and the appropriate indicator Q will light to tell you if a CD-R or CD-RW disc is in use.

If a computer data disc is placed in the CDR 30, a DATA DISC or DISC ERROR message will appear, depending on if the data disc is finalized or not. Data discs will not play, and may not be recorded or dubbed on the CDR 30.

Using The Remote

The CDR 30's infrared remote control is designed to operate both CD decks, as well as control the playback programming and start the recording. To allow for efficient use of the remote, it's operation is different from standard CD players. Some buttons are dedicated to one specific CD deck, while others are shared between the two decks.

No matter which deck is playing, the Play Deck (CDP) and Record Deck (CDR) Display

2 28 and Open/Close buttons 3 27 will always send a command to their respective deck, as well as the buttons Text 12, Intro Scan 9 and Level Indicator 20. The other transport and programming functions, however, are shared. To use any of the transport controls, such as Play 10, Stop 21, Pause 22 or the Search and Skip buttons 6 9 23 25, the Numeric Keys 15 or the Programming Keys 5 8 11 16 17 30, first press either the CDP button 4 to command the Play Deck 3 or the CDR button 26 to command the Record Deck 15. When the button is pressed, a message reading CDP or CDR will appear in the appropriate Time/Message Display F to confirm the selection.

To switch the remote from controlling one deck to controlling the other, simply press the Select button 4 26 for the deck you wish to control at any time.

It is always a good idea to press the CDR Select button 26 when a recording from an external source is to be made, otherwise possibly the recording cannot be started with the remote (by pressing Play/Select 10) or paused or stopped (by pressing Pause 22 or Stop 21).

Note that the record-function buttons Auto/Man 13 and Track Increment 14 and the Single/Dual buttons 724 are dedicated feature buttons that do not require any special selection.

Normal Play

To play a disc, first make certain that the unit is properly installed and that the Main Power Switch 1 is turned on, this will also turn the unit on completely. When the CDR30 is in

Standby mode (Status Mode Indicator 2 glows orange), turn the CDR 30 on by pressing the Power-On button 1 on the remote and note that the front-panel display will illuminate.

Insert a disc following the instructions shown on the previous page. To start the play, press the

Play button on the front panel for the appropriate deck 19 37 or press the Select button on the remote for the desired deck 4 26 and then press the Play button on the remote 10. The Play/Pause Indicator L will show a triangle pointing right and the Time/Message Display F will show the track number being played under the Track Time Indicator W and the running time of the track under the Time Indicator S. As each new track begins to play, the track time will reset to 00:00 and begin to count up for the new track.

When a disc is stopped after it has been loaded and the Table Of Contents (TOC) data read, the following information will be shown in the

Time/Message Display F:

For CD Audio Discs, or mixed/multisession discs when the MP3 Indicator is NOT lit: The number of tracks on the disc and the total time of the disc.

For MP3-only discs, or mixed/multisession discs when the MP3 Indicator is lit: The total number of tracks.

NOTE: Remember that unfinalized CD-R or CD-RW discs will only play in the Record Deck 15. If you attempt to play an unfinalized disc in the Play Deck 3, a DISC ERROR message will appear to remind you to play the disc in the other deck.

To go directly to a specific track on a disc, enter the track number using the Numeric Keys 15. Note that when selecting a two-digit track number, the second digit must be entered within three seconds after the first Numeric Key is pressed. To play the track selected press the Play/Select button 1910.

To momentarily stop the disc at any time, press the Pause button 22 21 36. When a disc is paused, the Play/Pause Indicator L will add two vertical lines to indicate a paused disc. Press either the Play button 10 19 37 or the

Pause button 22 21 36 to resume playback at the point where the disc was paused.

When there is only one disc in the unit, it will automatically stop when all tracks on a disc have played through. To stop playback at any time, press the Stop button 21 2038 for the deck in use.

When there is a disc in each deck, the player will respond in one of two ways, depending on which dual-play setting is activated. In normal operation (Single-Play Indicator D is lit), when the disc in one drawer finishes, the disc in the other drawer will begin to play. When the Dual button 2432 is pressed so that the Dual-Play Indicator D is lit, each deck will operate as a separate, single-play CD unit without regard to the status of the other deck. For complete information on Dual-Deck and Dual-Play operation, see page 18.

At the end of a listening session, remove the discs from the decks by following the instructions shown on the previous page. Do not leave the disc drawers open when the unit is not in use to prevent dust and dirt from entering the unit and to prevent damage to the tray.

To place the unit in a Standby mode at the end of a listening session, press the Power-Off button 29. The word POWER OFF will appear briefly in the Time/Message Display F, any open disc trays will automatically close, and the Status-Mode Indicator 2 will turn orange.

MP3Playback

The CDR 30 is unique among consumer audio CDR/RW recorders in that it plays discs recorded with MP3 data. It may also make conventional CD Audio copies of these discs when they are dubbed using the CDR 30's dual-deck capabilities. Since MP3 discs may appear in two different forms, their playback may require different operation.

When a disc has been recorded ONLY with MP3 data, simply insert the disc in the CDR 30 as you would for any CD. After the disc's Table of Contents (TOC) data has been read, the MP3 Indicator P will light to indicate that an MP3 disc is in use.

When discs are recorded on a computer, it is possible to place both standard CD Audio and MP3 tracks on the same disc. These are known as "Mixed Session" or "Multisession" discs. When they are used in the CDR 30, the default mode is to play ONLY the standard CD audio tracks. In Stop mode, the Time/Message Display F will show the number of all tracks on the disc (including MP3) and their total running time (including the time of the MP3 tracks compressed). To play the MP3 data tracks only, wait until the disc's Table of Contents is read and the Time/Message Display F shows the data for all audio tracks. Then, press the MP3 Button 1823 and note that an MP3 ON message will flash three times in the Time/ Message Display F and the MP3 Indicator P lights above the appropriate deck. Then the Display will shown the number of MP3 tracks on the disc.

• If the MP3 Button 1823 is pressed while the CD Audio tracks of a Multisession disc is playing, an MP3 ON message will flash three times in the Time/Message Display F and then playback will stop. Press the Play Button 10 1937 to playback the MP3 tracks.
• If the MP3 Button 1823 is pressed while the MP3 tracks of a Multisession disc is playing, an MP30FF message will flash three times in the Time/Message Display F and then playback will stop. Press the Play Button 101937 to playback the standard CD Audio tracks.

When an MP3 disc is inserted into the CDR 30, the displays are somewhat different than what you may be used to for standard CD Audio discs or from traditional CD players. After the Table of Contents (TOC) is read, the Time/Message Display F will display the total number of tracks on the disc. During playback of an MP3 disc, the default display will show the running time for the track being played, but not the track number, as is the case for normal CD playback.

During normal playback of MP3 discs, pressing the CDP or CDR Display Button 2 28 2831 will show the following information, in order:

Elapsed time of current track Remaining Time of current track Current Track Number File name of Current Track (Up to the first six digits)

To read the total time of all tracks recorded on an MP3 disc, the disc must be stopped.

Then, press the CDP or CDR Display Button 22831 (as appropriate) for three seconds, until a TTL TIME ON message appears in the Time/Message Display F. Then press the CDP or CDR Display Button again to alternate between a display of the total number of tracks and the total time of the disc. Press and hold the CDP or CDR Display Button again for three seconds until a TTL TIME OFF message appears in the Time/ Message Display F to return to standard display.

While MP3 playback is possible from both the CDP and CDR decks, only one MP3 disc may be played at a time. If you load two MP3 discs at the same time, both MP3 Indicators P will be lit. Press the Play Button 10 1937 for the deck you wish to play.

If you try to play an MP3 disc in one of the decks when the other is already playing an MP3 disc, an MP3 BUSY message will appear in the Time/Message Display where the second disc has been inserted.

Also when a standard Audio CD is placed in one deck and an MP3 disc in the other and you want to play both, first start the MP3 disc and then the standard disc, otherwise the display will also show the message MP3 BUSY.

Notes About MP3 Playback:

• When an MP3 disc is played, only the Analog Audio Outputs 12 are available. There is no signal at the Digital Audio Outputs 4589 during MP3 playback. To ensure that the MP3 output is heard, make certain that the correct analog input is selected on your receiver, processor or preamp.
• The forward and reverse "fast play" or Search Controls 6 25 do not operate during MP3 playback. However, the standard Play 10 1937, Pause 2136 22 and Stop 2038 21 Controls operate as they do for normal play. The Next Track 23 2533 and Previous Track 9 2634 Controls also work normally during MP3 playback.
• The CDR 30 will play only standard MP3 discs recorded in the MPEG 1/Layer 3 format. Other compressed digital audio formats will not be played back, and any non-MP3 tracks will be skipped.
• When an MP3 disc is dubbed in the CDR 30, the copy disc will be recorded in the standard "Red Book" CD Audio format. It is not possible

to make an MP3 copy of an MP3 disc. Moreover MP3 dub is possible at normal speed only.

HDCD Playback

HDCD, which stands for High Definition Compatible Digital, is a special recording process that enables the CDR 30 to deliver the ultimate in CD audio playback. The CDR 30's circuitry takes advantage of the special HDCD recording process when HDCD-encoded discs are used, and it is also completely compatible with non-HDCD discs, which benefit from the unit's advanced digital-to-analog converters.

No special adjustment is needed to play HDCD encoded discs. Simply use the disc as you would any other CD. Although these discs also play on conventional CD players, when played on the CDR 30 the special HDCD decoding circuitry is automatically activated, delivering extraordinary fidelity and the highest possible overall quality.

The CDR 30 will playback and internally decode HDCD discs from either the CDP or CDR decks and the appropriate HDCD Indicator N will light above the deck in use. However when HDCD discs are played on both decks simultaneously (in Dual mode), the internal decoder works only with the first disc selected and the appropriate HDCD Indicator N will light. Nevertheless, when the HDCD decoding is done in an external receiver or processor using a digital output connection from the CDR 30, the digital signal from any deck can be HDCD decoded, no matter if the appropriate HDCD Indicator N lights in the CDR30's display or not.

CD Text Playback

An increasing number of CD discs are recorded with CD Text information that may display the disc's title, the name of the artists, the title of specific individual tracks, and the artist for specific individual tracks, depending on how the disc's producers program the information.

When a disc's Table of Contents (TOC) has been read, but the disc is stopped, press the CD Text Button 12 for the deck in use (either the left side, Play/CDP deck or the right side, Record/ CDR deck) to view the title of the disc followed by the name of the artist.

When a disc with CD Text information is playing, press the CD Text Button 12 for the deck in use (either the left side, Play/CDP deck or the right side, Record/CDR deck) to view the name of the track that is playing and the artist for that track.

Notes on CD Text Display:

• If the CD Text buttons are pressed when the disc playing does not contain CD Text information, a NO TEXT message will flash three times in the Time/Message Display F.
• Only capital letters will be displayed, and lower case letters will be capitalized.
• Blank spaces may occasionally appear in place of invalid text characters.

Search

You may quickly scan through the contents of a disc while listening to the playback at high speed in forward or reverse. To move forward through a disc, press the Forward Search button 25 on the remote or press and hold the Next button 2538 on the front panel that is appropriate for the deck in use. To move backwards through a disc, press the Reverse Search button 6 on the remote, or press and hold the Previous button 2634 on the front panel that is appropriate for the deck in use. When using the remote, always remember to make certain that you have selected the deck you wish to control by pressing the appropriate selector button 4 26 before entering the desired remote command.

Track Skip

To move from one track on a disc directly to another, enter the number for the desired track with the Numeric Keys 15. The disc will pause briefly to locate the track, and then immediately play it. When entering a two-digit track number, the second digit must be entered within three seconds of the first digit.

To move to the next track on a disc, press the Next button 23 on the remote, or briefly press the appropriate front panel Next button 2538 for the deck in use. Additional presses of the button will move forward through the tracks on the disc.

When a disc is playing, press the Previous button 92634 briefly to return to the beginning of the track being played. Additional presses of the Previous button will move backwards through the tracks on the disc.

When a disc is stopped, you may press the Next or Previous buttons repeatedly to locate a specific track that you wish to play. When the desired track number appears at the left side of the appropriate Time/Message Display F, press the Play button 10 19 37 to hear that track.

Dual-Play Mode

Since the CDR 30 has more than one CD deck, you may play a disc in either drawer. After the unit was turned on or the Single Play Select button on the remote or Dual/Single Play Select button on the front panel was pressed, the unit will turn to the Single mode. In that mode the Single Play Indicator is lit and only one disc may play at a time, even when both decks are loaded with discs. Moreover in the Single mode, the audio output will be fed to all digital and analog Output jacks 458 912 for both decks. This means you may select the input on your receiver, preamp or processor for either deck. For example, if you have the Play Deck connected to "CD" and the Record Deck connected to "Tape," when any deck is playing, either input may be selected.

It is also possible to play two discs at once, using the Dual mode. To initiate dual-mode playback, press the Dual Play Select 2432 button on the remote or on the front panel until the DualPlay Indicator D is lit. You may play a different disc in both decks at the same time and you even may record on a disc in the CDR deck 25 and play a disc in the CDP deck 4 simultaneously. The output of each deck will be sent to its analog and digital output jacks, and you will need to select the deck you wish to listen to using the input selectors on your receiver, preamp or processor. You may also use the output of one deck to feed your main-room system, while the second deck is used to feed a remote room.

As long as the Dual-Play Indicator D is lit, each deck functions as a separate CD player, and will respond to its own set of controls on the front panel for either the Record Deck 1920 2124252628 or Play Deck 31333435 3738. To control the transports using the remote, remember to first press the Selector button for either the Play/CDP Deck 4 or the Record/CDR Deck 26, and then press the desired command function.

It is possible to view the level for either the output of the CDP/Play deck or the CDR/Record deck. To select the display to be viewed, press the desired Level Indicator Select 20.

NOTE: When in the Dual mode, you may return to Single play mode by pressing the Single Play Select Button 7 on the remote or the Dual/Single Play Select Button 32 on the front panel. However, pressing the Single Button 32 while both decks are playing, will automatically stop playback of the disc in the Record Deck 15 while the disc in the Play Deck 3 continues to play, and the output of the play deck will be sent to both sets of output jacks.

NOTE: When using the dual-play function with a conventional Audio CD in one deck and an MP3 or HDCD-encoded disc in the other, start with

either of those discs first before playing the conventional CD Audio disc.

NOTE: Remember that only one MP3 disc may play at a time, even when the Dual Play mode is in use. If two discs containing MP3 selections are loaded in the CDR 30, one must be removed and replaced with a standard CD Audio disc for the dual play mode to operate.

Two-Disc Changer Operation

Since the CDR 30 has two separate CD decks, it may be used to function as a two-disc changer, so that you can play two discs one after the other

When the CDR 30 is in the Single-Play mode, as shown by the Single-Play Indicator D being lit, when the disc in one deck has played through to the end, the disc in the other deck will automatically begin to play. Each disc will play through, and when one deck is finished the other will start. To stop playback, press the Stop button 21 2038 for the deck that is currently playing.

To have the CDR 30 function as two separate CD players, where the deck in use stops at the end of a disc, press the Dual Button 32 24 until the Dual-Play Indicator D lights. In the Dual mode, each deck acts independently of the other and when the disc in one deck finishes, it stops unless one of the Repeat functions has been activated (see page 19).

Time Display

The CDR 30's time display is capable of showing a wide range of information about the contents of a CD.

For Standard CD Audio discs, once the disc's Table of Contents or TOC data has been read, the Time/Message Display F will show the number of tracks on the disc in the two left digits of the display, and the total running time of the disc in the remainder of the display. When the disc is playing, the tracks will count up as each new track is reached, and time display will show the elapsed time for the track being played.

To view the time remaining in the track being played, press the Display button 2 23 2831 for the deck in use so that the Track Remain Time Indicators WTS illuminate. The Time/Message Display F will count down the time remaining in the track, and at the start of the next track the counter will start to count down the running time of that track.

To view the total time remaining on the disc, press the Display Button 2 28 28 31 for the deck in use so that the Total Remain Time Indicators VTS light. The Time/Message Display F will show the total time remaining for all tracks on the disc and count down until the disc has finished playing. Note that all time modes listed above are selectable also with programmed tracks (see page 19) except the total remaining time.

For MP3 discs, once the disc's Table of Contents data has been read, the Time/Message Display F will show the total number of tracks on the disc. During disc playback, press the appropriate Display Button 2 28 28 31 for the deck in use, and with each press the display will cycle through the following available information: Elapsed time of current track Remaining Time of current track Current Track Number File name of Current Track (Up to the first six digits)

To read the total time of all tracks recorded on an MP3 disc, the disc must be stopped. Then, press and hold the CDP or CDR Display Button 2 28 28 31 (as appropriate) for three seconds, until a TTL TIME ON message appears in the Time/Message Display F. Then press the CDP or CDR Display Button again to alternate between a display of the total number of tracks and the total time of the disc. Press and hold the CDP or CDR Display Button

2 28 2831 again for three seconds until a TTL TIME OFF message appears in the Time/Message Display F to return to standard display.

Headphone Listening

You may listen to the output of the CDR 30 through headphones at any time by simply plugging the headphones into the Front-Panel Jack 4. The volume of the headphone output may be adjusted with the Headphones Level Control 5. Note that changes to the headphone level will not alter the output settings to the analog outputs. Those levels are fixed, and the volume should be adjusted using your receiver, preamp or processor.

Note that when only one deck is playing back a disc in the single play mode, the output of that deck will be fed to the headphone jack. When the unit is in the Dual-Playback mode, only the output of the Play Deck 3 will be fed to the headphone jack.

The CDR 30's advanced programming system enables you to program certain tracks for play or the order in which tracks are played or dubbed, to repeat one track or all tracks, or to repeat any segment of a disc without regard to track numbers.

Programming Play Lists

To program certain tracks or the order of playback for the tracks on a disc, insert the disc, let the unit read the Table of Contents information, and wait until the disc has stopped and the number of tracks and total running time is displayed. Next, select the deck that will be programmed by pressing the CDP Select button 4 on the remote for the Play Deck 3 or the CDR Select button 26 on the remote for the Record Deck 15.

To begin the programming sequence, press the Program Button 52435 and note that the Prog Indicator C will light and the Time/ Message Display F will show P - for standard CD Audio discs and PO for MP3 discs.

Next, enter the track numbers to be played by pressing the Numeric Keys 15. For two-digit track numbers, be certain to enter the second digit within three seconds after the first number is entered. As each track is entered, the display will blink three times, alternating between two displays (blinking and alternating will not be with MP3 discs). The first display will show the track number just entered on the left side of the Time/Message Display F under the Track Indicator W, while the right side will flash the number of steps that have been programmed. For example, after programming the first step to be track number 3, the display will flash 03P-01 for CDs or 03PO1 for MP3 discs.

With standard Audio CDs, alternating with the track number and program step will be a display of the track and the total running time of all tracks that have been programmed so far. For example, a display of 0611:25 will indicate that track number six was the last track programmed, and that the total time of all tracks so far is 11 minutes and 25 seconds. The Total Time Indicators SV will flash with this display to remind you of the display's contents.

These displays will alternate three times, and then show a steady display of the last track and the number of steps programmed.

Now you can continue to add tracks in the order you wish to have them played until the programming session is complete. You may add up to 32 tracks, repeating a track if desired, as long as the total number does not exceed 32. If you exceed the 32 track limit, the display will read F U L L.

Tracks may also be added using the Next

23 25 33 and Previous buttons 9 26 34 to

locate the track, and the Program button

5 2435 to enter that track to the programmed sequence.

When the complete list of tracks has been entered, press the Play button 10 1987. The tracks will then play in the order they have been entered.

Note that a programmed list of tracks may also be recorded if the disc being programmed is in the Play Deck 3. Follow the instructions on page 21 for complete information on recording and dubbing.

To escape from the program play mode and return to normal play follow these steps: While the program is playing, the Program button

5 2435 must be pressed and the unit will continue to play tracks in normal mode. And while the player is stopped the Stop button 2038 21 must be pressed. In both cases the Prog Indicator C will go out.

Checking, Editing and Clearing Programmed Play Lists

Once you have entered a program list it will remain in the unit's memory until the disc is removed or the unit is turned off. Thus, if you've played through a program list, simply press the Play button 10 1937 again to replay the list while the Prog Indicator C is lit (otherwise first press Program 5 2435). If you find that you wish to check the list or make changes, that is also possible by following a few simple steps:

To scroll through a program list, note that the Prog Indicator C is lit (otherwise press Program 52435) and press the Program

Check button 8 Each press of the button will move through the tracks that have been programmed. The display will alternate between the track number plus the program step number (e.g., 2 P - 03 for CD Audio discs, or 12 P 03 for MP3 discs, tells you that Track 12 on the disc is the 3rd program step) and the track number plus the total running time so far in the program (e.g., 2 16:04 tells you that at this point you have programmed a total of 16 minutes and 4 seconds of material).

Note that alternating indication of total running time of all programmed tracks is not available with MP3 discs, even when the TTL TIME ON indication mode is selected (see page 17).

At any point in the list you may overwrite a programmed track number by simply entering the new track number using the Numeric Keys

1. Alternatively you can modify the track number to be changed with the Next 23 2533 and

Previous 92634 buttons and enter it by pressing the Program button 52485. In both cases the formerly programmed track number will be overwritten and automatically deleted from the program list. To add a track number (possible only to the end of a program list), press the Program Check button 8 repeatedly until the track number 00 (or 00 with MP3

discs) is displayed, then enter the track number you wish to add with the Numeric buttons 15 directly or press the Next or Previous buttons and then the Program button 5 2435, as described above.

To remove a step in the program, first use the Program Check button 8 to locate the track you wish to delete. Next, press the Clear button 30. The information in the display will blink and the step will be removed from the program list. Program steps need not be deleted in any order; as long as you have located a step in the program list, it may be erased.

To remove a total program list when the disc is stopped, press the Clear button 30 repeatedly (will delete one track after another, starting with the first track programmed) until the appropriate Prog Indicator C deletes or simply open and close the disc drawer. Whenever a disc is removed or the unit is turned off, the program list is erased.

Repeat Play

The CDR 30's programming system enables you to repeat either a single track on a disc, the entire disc (or all programmed tracks), or a specially programmed passage that you select.

Repeat One Track

To repeat the track you are currently listening to, press the Repeat button 17 and note that the Repeat Mode Indicator B will light Repeat 1. If the track is changed by using the Next/ Previous Skip Buttons 9232526334 or the Numeric buttons 15 while the Repeat 1 mode is active, the new track will now be repeated.

Once Repeat 1 playback has been started, it will continue until the unit is stopped by pressing the Stop button 21 2038, or the disc deck is opened by pressing the appropriate Open/Close button 614 3 27. When playback is stopped, the Repeat mode is turned off automatically.

Repeat All Tracks

To repeat all the tracks on a disc (or all programmed tracks) in order, press the Repeat button twice while the disc is playing and note that the Repeat Mode Indicators will light Repeat All. The disc will play all the way through, until the Stop button is pressed.

Repeat All Discs

When two discs are loaded and you want to repeat all tracks on both discs in sequence continually, turn the Single mode on by pressing the Single Play Select button 7 on the remote or the Dual/Single Play Select button 32 on the Front Panel (see "Dual-Play Mode", page 18). While any disc is playing, press the Repeat button 17 until the Repeat Mode Indicators 3 will light Repeat All CD's. The current disc will play through to the end, then the second disc will start and play through too, and this will repeat continually until the Stop button for the deck in play 21 2038 is pressed.

Any Repeat function may be cancelled at any time by pressing the Repeat button 17 until all Repeat Mode Indicators B go out. The Repeat Function is also canceled when the Stop button 21 2038 is pressed or the disc drawer is opened.

Repeat A-B

The CDR 30 may be programmed to repeat any section within a track, or a complete passage that includes material from a series of consecutive tracks.

To program the unit for A-B Repeat play, first play the disc and locate the point where you wish to begin the repeated section. At the start point, press the A-B Repeat button 16 and note that the Repeat Mode Indicator B will show Repeat and a blinking A-. Let the disc play or skip or search forward until the point at which the section to be repeated will end. At that end point, press the A-B Repeat button 16 again and note that the Repeat Mode Indicator A- B will stop blinking and will light showing Repeat A-B.

The unit will immediately begin to play the section you have programmed, and continually repeat it.

Notes:

• The program material selected for A-B repeat must be at least 3 seconds long.
• The repeat A-B feature does not function when an MP3 disc is playing.

To resume normal play, press the A-B Repeat button 16 again. The Repeat A-B Indicators B will go out, and the disc will continue playing through to the end. Stopping the disc or opening the disc drawer will automatically cancel the Repeat A-B programming.

Random Play

The CDR 30 may be programmed to play all the tracks on any disc in random order, playing each track until the entire disc has been played.

To playback the tracks in a random sequence from stop or play mode, press the Random Play Button 11, making certain that you have first pressed the CDP 4 or CDR Select Button 25, as appropriate, so that the random command will be accepted by the proper deck. Once the Random Play Button 11 is pressed, the Random Indicator A will light and the CDR 30's internal processor will select the tracks to be played in random order and play through the disc.

If one of the Next Track Buttons 232533 is pressed during Random Play, the unit will move to the next randomly selected track, not the next track in numerical sequence. If the Random Play Button 1 is pressed again, Random play mode is canceled and the unit continues to play in normal mode.

To stop a Random Play sequence, simply press the Stop Button for the deck in play 21 2038. The Random Play mode is also canceled when a disc drawer is opened by pressing one of the Open/Close Buttons 3 27 6 14.

Notes:

• Random play will not function in combination with Program play, programmed tracks cannot be played randomly.
• In Single mode, when two discs are loaded and one is played through randomly, the CDR30 automatically will start to randomly play the second disc through.
• In Play or Pause mode, the random function can be combined with the Repeat All Tracks or even the Repeat All Discs function (see above). Then all titles of the current disc or alternatingly of both discs will be played through randomly, until the Random function is stopped as described above.

Intro Scan Play

Intro Scan Play is a feature of the CDR 30 that allows you to quickly go through the contents of a disc by automatically playing the first 10 seconds of each track.

To begin Intro Scan Play, press the Intro Scan Button for the deck containing the disc you wish to hear. The deck will automatically go into the Play mode, and will play the first 10 seconds of each track on the disc in sequence, while the Play Indicator starts to blink, until all tracks are played or the Stop button for the deck in play is pressed.

To hear the entire contents of a track while it is playing in the Intro Scan mode, press the Play Button 10 1937 for the appropriate deck.

Making recordings on the CDR 30 is simple and easy once you become accustomed to the basics of CD Recording. Before making your first recording, please take a moment to review the CDR Basics on page 14. In particular, you will need to become familiar with the types of discs that may or may not be used in the CDR 30. In addition, some terms used in the following pages may be new to you. The following definitions and information will help you to make CD recordings using the CDR 30's many features:

• In the following the terms "analog dubbing" or "analog recording" will say only that the signal fed to the CDR30 for recording is analog. Of course, in the CDR30 all analog record signals will be converted to digital (A/D converter) and recorded on discs in digital form only.
• The CDR 30 accepts analog inputs and digital coax or optical inputs. Before making a recording, be certain that you have selected the correct input, using the Input Select Button 27
• After a disc is recorded, it must be finalized. This process adds the final table of contents data to the disc and makes it playable on other machines. Until a disc is properly finalized, it may not be played on standard CD players.
• The CDR 30 may record on either CD-R or CD-RW discs, but they must be of the type specifically designed for use in consumer-audio CD recorders. These discs may be recognized by looking for the words "Digital Audio" in the compact disc logo on the blank disc or its packaging. Discs with the logo reading only "Compact Disc/Recordable" are designed for computer data recording, and they may not be recorded using the CDR 30.
• CD-R discs may not be erased or have material added to them once they have been finalized.
• At least four (4) seconds of blank recording time must remain on an unfinalized disc for recording to take place.
• The maximum number of tracks that may be recorded on a disc is 99.
  Note that some rare CD-R/CD-RW audio recording discs may be used for single-speed recordings only. If you use a disc with such a warning, make certain not to dub at 2x or 4x speed. However, the CDR 30 has been tested for compatibility with a wide range of blank discs from manufacturers throughout the world. In most cases, blank discs will produce high-quality recordings at any dub speed.
• In some rare cases, a CD player may not play certain CD-R discs. If you find that a CD-R disc plays in some players but not in others, the fault is most likely with the player, not with the recorded disc or the CDR 30. Remember that CD-RW discs made in the CDR 30 will play only in CD players that are specially designed to accommodate CD-RW discs. Note that most DVD players are compatible with finalized CD

RW discs, but many are not with CD-R discs.

• Some commercial CD discs may contain a copy protection data bit that will prevent a digital copy of the disc to be dubbed from external CD players (analog copies always can be made from external sources as well as internal dubbings, see next chapter). In that case, the Copy
  Prohibit Indicator 1 will light to remind you that the inability to record is intentional, and not the result of a problem with the CDR 30.
• This product is equipped with the Serial Copy Management System (SCMS) to protect the rights of copyright owners. Although it is possible to make a copy of most CDs for your own personal use, it is not possible to make a digital copy from another digital copy, including CDP, although it is possible to make an analog copy of a digital copy.
• The CDR 30 will not copy DVD discs, computer-data discs, CD-based computer or video-game discs, or digital audio discs with a sample rate that is not compatible with the range of the CDR 30s sample-rate converter.
• Discs containing MP3 data may only be copied to the standard CD Audio format.

Recordings on the CDR 30 may be made in a number of ways:

• Discs may be dubbed using the playback deck on the CDR 30 as a source. These copies may be made in real time, at twice normal speed, or at four times normal playback speed (from MP3 discs only in real time). More information on Disc Dubbing see next chapter.
• Synchronized digital Recordings may be made from an external CD or MD player or other digital source that is synchronized with the dub being made in the CDR 30, see chapter "Sync Recording" on page 23.
• Analog or digital recordings may be made from any compatible external digital source, see chapter "Recording From an External Source" on next page.
• Analog recordings may be made from any external analog source, see chapter "Recording From an External Source" on next page.

Disc Dubbing

The easiest way to make a copy of an entire disc is to use the CDR 30's internal dub capability.

First, insert a blank CD-R/CD-RW or a disc with sufficient blank space for recording in the

Record Drawer 15. When the disc is inserted, the CDR 30 will examine it to determine if it is a CD-R or CD-RW disc, and optimize itself for the best possible recording. This is indicated by OPC message (Optical Processing Calibration) in the

Time/Message Display F

Place the disc to be dubbed in the Play Drawer 3 and wait until the Table of Contents data is read and the Time/Message Display F shows the track and running time data for the disc.

Next, select a dub speed. The default speed is 4 times dubbing, where the recording takes only 1/4 of the actual running time of the disc.

However, with the CDR 30 you may also select x1 (real time) dubbing or x2 dubbing. Press the

Speed button to select a speed as indicated by the x2/x4 Indicators H. When no Speed Indicator lights, the unit is set to real-time recording. Note that the slower the record-dub speed, the more tolerant the unit is of errors on the blank or played disc. However, with most high-quality blank discs, the 2x and 4x speeds should not present a problem. Note also the 2x and 4x speed dub is not possible with an MP3 disc.

Before beginning a dub, make certain that there is sufficient blank space on the record disc. To do this, select the total remaining time to be shown in the record side Time/Message Display by pressing the Display button 28 once in stop mode. That number should be greater than the total time of the disc to be dubbed, which is shown in the play side Time/Message Display

If you wish to copy the entire disc, proceed to the next step. However, if you wish to copy only one track from a disc, first select that track by pressing the Next Button 33 23 until the track number appears in the Time/Message Display F or enter the track number directly with the Numeric Keys 15 on the remote.

When you are ready to start the dub, press the Dubbing Button 10 if the entire disc (or all tracks programmed, see Notes on page 22) is to be copied, or the 1 Track Dub Button 9, if you wish to copy only one track. During this process the Dubbing Indicator will light, the Record Indicator will flash, a BUSY message will flash in the Record Deck's Time/

Message Display F and all tracks on the disc to be dubbed will be examined if copy prohibited or not and their numbers will count up subsequently in the playback deck's Information

Display 29 (not with MP3 discs). When the record side Information Display returns to nor

mal, and both Play/Pause Indicators appear in the display, press any Play Button 10 1937 to start the dub.

While the dub is in progress, you will see the track numbers and running time increase as the disc is copied. The Level Indicators G will also flash and the record levels may be adjusted (up to +/-3dB ) also during the dubbing process (see chapter Record Levels on page 23). It is possible to listen to the source disc while it is being dubbed by selecting the appropriate input (analog or digital) for the Play Deck on your receiver, preamp or processor.

Important Note: When a high-speed (x2 or x4) dub is being made (not possible with an MP3 disc), you will hear the playback from the analog CDP Outputs 1 at the faster speed.

Fast speed playback increases the pitch of a sound, and when played back at high volume levels this may damage your speakers. DO NOT use high volume levels when listening to high-speed dubs while they are in progress.

The dub will stop automatically when the source disc has played through to the end. After the dub is finished, the Time/Message Display F will show an UPDATE message, and then return to normal operation. To manually stop a dubbing operation, press the Stop button 21 2038 for either deck.

As with all recorded CD-R/CD-RW discs, the disc must be finalized before it can be played in other machines. See page 24 for instructions on disc finalization.

Notes on Dubbing:

• If you wish to make a dub with selected tracks or the tracks in a different order from the original disc, omit tracks on a disc, or make a dub that mixes tracks from different discs, create a Program-Playback List before pressing the Dubbing Button 10. Instructions for creating a program list may be found on page 19.
• Dubs containing program lists may only be made at the x1 or x2 speed. If you attempt to make a Programmed Dub at the x4 speed, the unit will automatically select the x2 speed.
• The Pause buttons do not operate while a dub is in progress.
• Track numbers will be added automatically to mirror the track structure of the original disc.
• The Total Time indication of the recorded CD may vary slightly from the original due to variations in the spin speed of each drive and a pause added at the end of the recording, but this is normal. No information has been lost in the recording process.

• If the original disc being dubbed is a digital copy or if it contains copy-prohibit signals, the unit will automatically make an analog copy.

• When a dub is made from an external digital source that has a sample rate other than 44.1kHz , such as some modes of MiniDisc or DAT, DVD players and DVB receivers, the CDR 30's built-in sample rate converter will automatically convert the digital signal to 44.1kHz for proper recording of a standard CD Audio disc. When the sample rate converter is in use, the Sample Rate Converter Indicator R will light.

• Remember that MP3 discs may only be copied to the conventional CD Audio format and only at normal speed.
• So when dubbing an MP3 disc, the total running time of the material on the MP3 disc may exceed the capacity of the record disc, since the compressed file structure of the MP3 format allows over ten hours to be recorded on a disc, while most CD-R discs have a time limit of 74 minutes.

Recording From an External Source

Digital recordings can be made only from a digital source, connected to eigth the Coaxial

617 or Optical 716 inputs on the CDR30, while analog recordings can be made from any source, connected to the Analog inputs ③.

Recordings from external sources can be made in three modes: Sync, Manual or Auto mode.

• The Sync mode (see next chapter) starts and stops the recording automatically and increases the track numbers synchronously with the tracks on the source. This mode should be used with digital recordings from external sources, providing CD standard conforming track information (see below) like normal CD, many DVD (with CDs only) and most MD players.
• The Auto mode for either digital or analog recordings must be started manually, but the track number will be increased automatically after the CDR 30 receives silence for 3 seconds synchronously with the music starting. When the source is paused or stopped, after 3 or 10 seconds (depends on the source used) the recording will stop. Also after 10 seconds of silence (analog or digital sources) the recording will stop. This mode is recommended for recordings from digital sources, providing no CD standard conforming track information (see below), like some DVD and MD players, DAT, DVB receivers and other digital sources with a sample rate between 32kHz and 96kHz . To activate the Auto mode, press the Auto/

Manual Track Increment Button 13 once and note that the Manual Track Increment Indicator K goes out.

• The default mode is Manual as indicated by the Manual Track Increment Indicator K. In that mode for either digital or analog recordings, the recording must be started and stopped manually and you must add track numbers manually by pressing the Track Increment Button 14 when you wish to increase the track number. As the correct operating of the track increment in the Auto mode (see above) depends on the length of music pauses and the level of the residual noise during these pauses, what may be critical with analog sources, we recommend the Manual mode for all recordings from analog sources. To activate the Manual mode (unless selected already by default), press the Auto/Manual button 13 and note that the Manual indicator K goes on.

As outlined above recordings from analog sources should be made with the Manual mode. But the recording mode for use with a digital source depends on whether the source has CD standard track information or not. To find out for the first time, whether the source provides that information, place an eraseable CD-RW audio disc in the Record Deck 15. Next, select the digital input connected with that source by pressing the Input Select Button 27. Pressing the button will cycle between the input choices, which will be shown in the Time/Message Display F as COAXIAL REAR, COAXIAL FRONT, OPTICAL REAR, OPTICAL FRONT or ANALOG. In addition, an Input Indicator YZ will light to show the selected input.

Then press the Sync Record 8 button twice until ALL will be shown in the Time/Message Display F and examine whether the CDR30 starts the recording automatically when the source is started. After min. 3 seconds skip the source forward to the next track and examine if the CDR30 increases the track number in its Record Deck Display F under the Track Indicator W. If both is the case your digital source is CD standard conforming and you can use the Sync mode with it, otherwise the Auto mode should be used.

Now after you are informed about the source type you'll use, you can prepare for a recording with the optimal record mode. Select the appropriate input for your source (if not already selected) and the appropriate mode Sync (see next chapter), Auto or Manual as recommended above.

To make Auto or Manual recordings, next press the Record Button 7. The Record Indicator 0 will flash, and the word BUSY and OPC will appear in the Time/Message Display F. When the Display returns to the track and running-time information, the unit is ready to record.

Now, particularly when you record from an analog source, play any high level part of the source repeatedly and adjust the CDR30's input level using the Analog Record-Level Control 18 for analog recordings and, if desired, the Dig. Rec. Level Controls 22 for digital recordings. With analog recordings adjust the levels so that the blue segments of the display are almost lit, and the red segments flash only occasionally. See the chapter Record Levels below for more information on adjusting the record levels.

After you've adjusted the record level, start the actual recording by pressing the Play/Select Button 19 and immediately also start the source to be recorded. Note that the Record Indicator 0 will stop flashing and the Time/ Message Display F will begin to show the running time of the recording and the track data. Depending on which mode of track increment has been selected as described above, track numbers must be increased manually or they will be added automatically. Regardless of which mode has been selected, a track number may be added at any time by pressing the Track Increment Button 14.

Note: During recording from an external source in the Auto mode, the unit will automatically go into "Record/Pause" when it senses 10 seconds of silence. In both modes, Auto and Manual, when the Pause button 2122 is pressed during a recording, the track number will increase by one number and the recording will stop and must be restarted by pressing the Play/Select Button 1910.

To stop the recording, press the Stop Button 2021, a BUSy message and an UPDATE message will appear and the unit will return to normal operation. Remember to finalize the disc (see on page 24) after recording so that it may be used in other players.

The recording will automatically stop if it takes more space than is available on the CD-R/RW disc., and a DIS FUL L message will appear to remind you that a new disc is needed.

Sync Recording

Sync recording allows you to make an automatic digital recording from an external CD or MD player or any digital source, providing CD standard track information (see page 22 for more information on how you can find out if or not you can record from a source with the Sync mode). During Sync Recording, the record unit starts in sync with the source, and tracks are added automatically.

To make a Sync recording: First, make certain your playback source is prepared and tracks you want to record from that source (if so) are programmed or selected. Next, select the appropriate digital input by pressing the Input Button 27 until the desired input indication appears in the Time/Message Display F and Input Indicator YZ. Sync recordings may not be made from an analog input.

Next, make certain that there is a fresh disc in the Record Printer for the recording. Press the Sync Record Button 8 as instructed below and note that the Sync Indicator will light and the Record Indicator 9 will flash. Select the type of recording to be made:

To record only one track from the source player, press the Sync Record Button 8 ONCE so that 1 T R K appears in the Time/ Message Display F.
- To record the entire disc or tape, press the Sync Record Button ⑧ TWICE so that ALL appears in the Time/Message Display F.

When the desired mode has been selected, start the playback from the source machine. The CDR 30 will automatically recognize the incoming digital data and begin recording and the track numbering from the original disc will be carried over to the dub.

The recording will continue until the CDR 30 senses that the playback is finished when there is no incoming signal for more than three seconds. At that point the recording will stop. You may also stop the recording at any time by pressing the Record Deck Stop Button 20. When there is no more time remaining on a blank disc, the unit automatically will stop the recording process and a BUSY and UPDATE and then a DISC FULL message will appear in the Time/Message Display F. When a CD-R is being recorded, insert a new blank disc or, when a CD-RW is in use, either use a new disc or erase the latest existing tracks following the instructions on page 24.

After the recording is stopped, first a BUSY and then an UPDATE message will appear, and the unit will then return to normal operation. Remember to finalize the recorded disc so that it may be used in other machines.

Important Note: With a few CD and DVD players the CDR30's Sync mode recording will start as the as the source player is set from Stop to Pause. With those sources tracks to be recorded should be started only from the Stop mode rather than from Pause.

Note: With CD Sync track numbers cannot be increased manually by pressing the Track Increment button 14, this is possible with the Auto and Manual mode only.

Record Levels

Particulary with analog recording, the setting of record levels is important to the creation of a copy disc that is correctly recorded so that it is both free from noise (caused by too low a record level) or distortion (caused by too high a record level). Since the CDR 30 accepts both digital and analog sources, a different procedure is required, depending on the type of input used.

In general practice, and particularly for analog recordings, a proper recording is made when the individual left and right Level Indicators G run in the left two-thirds of the display scale, and the red OVER G indicators flash only briefly.

If the level is too high or too low during an analog recording, simply adjust the Analog Record Level Control 18 until the level is set properly. (more information on adjusting the analog record level see left on this page).

It is important to note that for digital recordings the level indications will always run lower than what you would expect for an analog recording. This is due to the fact that, within limits, low level for digital recordings is not a severe problem. However, too high digital levels will cause audible distortion as with analog recordings.

The default setting for level control is Manual with the adjustment set at a 0 dB level, then the Digital Record Level Status Indicator X will not be lit. This setting is appropriate for most recordings, and under normal circumstances you will not need to make any changes. Increase digital levels may be needed only when the disc or track to be recorded will deliver too low a signal level to the CDR30. Decrease level only when you wish to record the disc on the CDR30 with a lower level than on the original.

To manually adjust the digital level, press the appropriate or Digital Level Control Button 22 and note that the Digital Record Level Status Indicator X lights as DRLC, but make certain that the level shown in the Level Indicators G does not exceed the red levels. Digital levels may only be adjusted from -3dB to +3dB, as shown in the Time/Message Display F.

When automatic control of digital level is desired, press and hold both Digital Level Control Buttons 22 and release them when the Digital Record Level Status Indicator X lights as A DRLC. In this mode, the system will automatically limit digital record levels from the moment an OVER Level Indicator C flashes for the first time to prevent any audible distortion. Note that with digital recordings an OVER indication is possible only when sources recorded with highest levels, are used and the Digital Level Control 22 is turned up.

Finalizing CD-R and CD-RW Discs

Finalizing is a simple process that completes the recording of a disc so that it may be used in other players. Once that is done, a CD-R disc may not be changed or added to. CD-RW discs are "locked" once they are finalized, but they may be unfinalized to permit additional recording or erasure.

To finalize a disc, place it in the Record Printer 15, if it is not already in that drawer. Once the disc's Table of Contents (TOC) information has been read and the OPC process has been completed, press the Finalize Button 13 and note that the word FINAL will begin to flash in the Time/Message Display F. Within five seconds, press the CDR Play/Select Button 19 10.

The finalization process will take up to two minutes, depending on the length of the material recorded on the disc. During finalization you will see the number of seconds remaining in the process count down in the Time/Message Display until the disc is finalized. During finalization the CDR deck will not accept any operating commands.

When the finalization process is complete, the Time/Message display will return to its normal messages, and the R/RW Indicator Q will go out, with the CD indication Q remaining to indicate that the disc is finalized and ready for play on standard CD players (CD-R discs, CD-RW discs only on CD-RW-compatible players).

Unfinalizing and Erasing CD-RW Discs CD-RW discs are unique in that they are both recordable and rewritable. This means that you may use them over again like a cassette tape. However, the process of reusing a CD-RW disc is slightly different from that used with tapes.

Unfinalizing a CD-RW Disc

To keep the material that is already recorded on a finalized CD-RW disc and to add an additional track or to erase the last track or the complete disc, you must first uninitialize the disc. To do that, place the CD-RW disc in the Record Deck 15 and wait until the Table of Contents data has been read.

Press the Erase Button 12 once and check to make certain that the words UN- and FINAL flash alternatingly in the Time/Message

Display F. Within three seconds, press the CDR Play/Select Button 19 to start the process. Similar to the finalization process the unfinalization will take up to two minutes. During that time you will see the number of seconds remaining in the process count down in the Time/Message Display F, alternating with the word UN-FIN.

When the UN-FIN message goes out and is replaced with a normal display and the RW Indicator has reappeared, the disc has been unfinalized and is ready to have single tracks erased or new tracks added.

Erasing an Entire CD-RW Disc

Erasing the entire contents of a disc is simple, and it does not matter if the disc has been finalized or not. To erase the disc, press the Erase Button TWICE, so that the words ALL and ERASE appear alternatingly in the Time/ Message Display F. To start the erasure, press the Play/Select Button 19 and note that the word ERASE will keep flashing. The erasure process takes about a minute, and it is complete when the Time/Message Display F resets to 0000:00 and ERASE goes out. The disc is now totally erased and may be reused.

Erasing a Single Track

The individual tracks on a CD-RW disc may be erased one at a time, starting with the last track on the disc, or you may erase more than one track. Note that before individual tracks may be erased the disc must be unfinalized. If the disc is finalized, follow the instructions above for unfinalizing before proceeding with these steps.

To erase only the last track, press the Erase Button 12. Note that the Time/Message Display F will display D TRK and ERASE alternatingly. Press the Play/Select Button 1910 within three seconds, now the last track will be erased. When ERASE goes out, the Time/Message Display F will show the total number of tracks that now remain on the disc (under the Track Indicator W) and the total running time of all tracks.

Erasing Several Tracks

You may erase more than one track, counting backwards from the last track. First, press the Erase Button 12. Note that the Time/Message Display F will display ☐ J TRK and ERASE will flash. Within 3 seconds press the Next Button 23 25 or Previous Button 9 26 until the number of tracks to be erased appears in the Time/Message Display F. For example, when ☐ J TRK appears in the display a total of

six tracks will be erased, counting back from the last track on the disc. Next, press the Play/ Select Button 19 within three seconds of making the track selection. When all selected tracks are erased, the Time/Message Display F will show the total number of tracks that now remain on the disc (under the Track Indicator W) and the total running time of all tracks.

Important Note on Erasing Tracks: Tracks at the beginning or in the middle of the disc may not be erased until all of the tracks after them have been erased.

Important Note on Erasure and

Finalization Times: Regardless of the speed at which a disc was recorded, the CDR 30 will erase and finalize discs at the x4 speed to minimize the length of the process. However, in some cases, it may be necessary for the unit to repeat the erasure or finalization due to the nature of an individual disc. For that reason, it is normal for the time required to complete these steps to vary from one disc to another.

TROUBLESHOOTING GUIDE

SYMPTOM	POSSIBLE CAUSE	SOLUTION
Unit does not operate when remote Power-On 1 is pressed	• No AC power • Main Power Switch 1 is off	• Make certain AC power cord 12 is plugged into a live outlet. • Check to see if AC outlet is switch controlled. • Turn on Main Power
Remote does not function	• Wrong deck selected • Dead batteries • Sensor 30 blocked	• Press the CDP button 4 to control the Play Deck; press the CDR button 26 to control the Record Deck • Replace both batteries • Remove obstructions from front panel or connect a remote sensor to the Remote-In Jack 10
Disc does not erase	• CD-R disc in use • CD-RW disc is finalized	• CD-R discs do not erase, only CD-RW discs may be erased • Un-finalize the CD-RW disc, before erasing.
Recorded CD-R disc does not play in another CD player or DISC ERROR message appears in Play Deck Display F	• CD-R disc not finalized	• Finalize the CD-R disc in the CDR 30's Record Deck 15 (see page 24)
Recording suddenly stops	• Input source stopped or paused	• In the Auto mode recordings will always stop when the input source is paused or stopped for more than 3 or 10 seconds (depends on source) for digital recordings or after silence for min. 10 seconds with analog or digital recordings.

ERROR MESSAGES

ERRORMESSAGE	EXPLANATION AND PROBABLE CAUSE	SOLUTION
CHECK DISC	·A record-related button has been pressed when a Finalized disc is in the Record Deck 15 ·A record-related button has been pressed when a standard CD is in the Record Deck 15	·Uninitialize the disc to add tracks to a CD-RW disc ·Replace the disc with a blank or unfinalized CD-R or CD-RW disc
DATA DISC	·A non-audio CD-ROM or Video-CD disc has been placed in the machine	·Only CD Audio, MP3 and DTS discs will play in the CDR 30; replace the disc
DISC ERROR	·An unfinalized disc has been placed in the Play Deck 3 ·A DVD disc has been placed in the unit	·Finalize the disc (see page 24) ·Replace the disc. The CDR 30 does not play or dub DVD discs
DISC FULL	·There is no more record time remaining on the disc being recorded	·Use another blank CD-R or CD-RW disc ·Erase one or more tracks on a CD-RW disc
ERROR	·The disc is not seated properly ·There is a problem with the disc	·Open the drawer and check to see that the disc is properly seated ·Try another disc
FAILED	·A dub has not been completed properly	·Check the play disc ·Repeat the dub process
FULL	·More than 99 tracks have been recorded	·The CDR 30 does not record more than 99 tracks on a disc
NO AUDIO	·A record-related button has been pressed when a recordable non-audio disc (Computer disc, see page 14) is in the Record Printer 15	·Replace the disc with a blank or unfinalized CD-R or CD-RW Audio disc
SVC-1	·There is an internal problem with the CDR 30	·Contact an authorized Harman Kardon service depot

Technical Specifications

Signal Format

Playback Sampling Frequency	44.1 kHz
D/A Conversion	96 kHz, Multi-Bit Delta-Sigma Conversion
Oversampling	128 Times

Playback Specifications

Frequency Response	20 Hz – 20.050 Hz
Playback S/N	105 dB (A-weighted)
Playback Dynamic Range	100 dB (A-weighted)
Playback THD	0.004%
Analog Audio Output	1V RMS, ± 2dB (2V with HDCD discs)
Digital-Coaxial Output	0.5 Vpp/75Ω
Headphone Output	0.5V RMS/32Ω Load

Record Specifications

Digital Input Sample Rates	32 kHz – 96 kHz
Recording S/N: Analog	91 dB
Recording S/N: Digital Dub Mode	Equal to Source
Recording S/N: Digital External Source	Source –10dB
Recording Dynamic Range	91 dB
Recording THD	0.005%
Analog Input Sensitivity	330 mV RMS / 47kΩ = 0dB
Digital Inputs (Direct Recording)	44.1kHz, ±100 ppm/min.

General

Power Requirement	100~240 VAC/50~60Hz
Power Consumption	26 Watts
Dimensions
Width	440 mm
Height	112 mm
Depth	363 mm
Weight	4.8 kg

Depth measurement includes knobs, buttons and connection jacks. Height measurement includes feet and chassis. All features and specifications are subject to change without notice.

Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of Harman Kardon, Inc. DTS is a registered trademark of Digital Theater Systems, Inc.

HDCD system manufactured under license from Pacific Microsonics, Inc.
This product is covered by one or more of the following: In the USA: 5,479,168; 5,638,074; 5,640,161; 5,808,574; 5,838,274; 5,854,600; 5,864,311; 5,872,531; and in Australia: 669114.
Other patents pending.
