& | à urg_01065.book Page 1 Monday, June 8, 2009 8:28 AM IMPORTANT: Before connecting any cables, install the software that was included with your camera. Then return to this user guide.

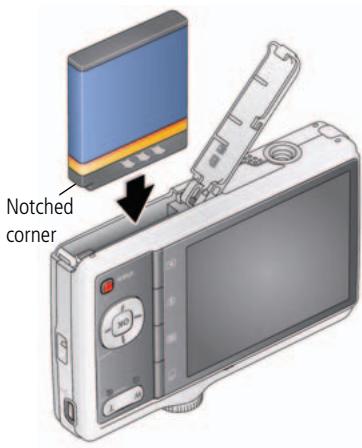

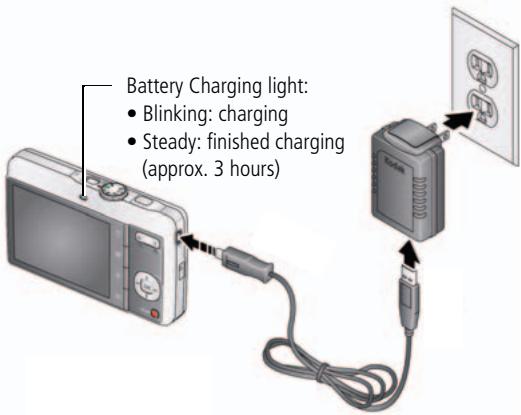

[1] Loading and charging the battery

oO Turn off the camera.

Connect KODAK USB Cable, Model U-8 and adapter.

Battery Charging light: |

+ Blinking: charging ”

+ Steady: finished charging

Charge Li-lon batteries frequently, even if power remains.

More charging options in the Extended user guide www.kodak.com/go/md4 support

www.kodak.com/go/md41support 1

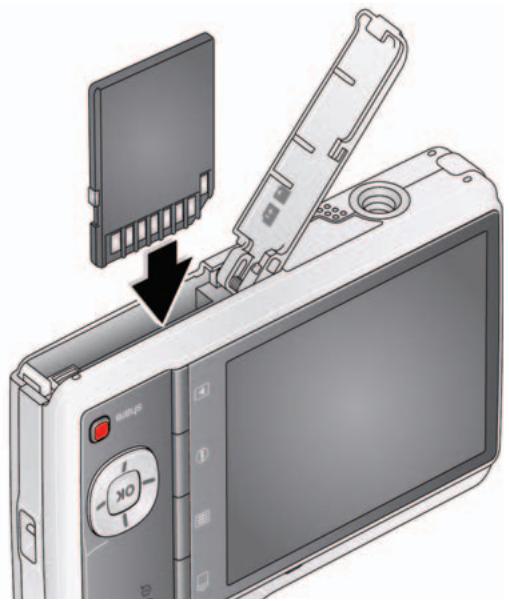

& | à urg_01065.book Page 2 Monday, June 8, 2009 8:28 AM Using an (accessory) SD or SDHC Card

Your camera has internal memory. You can purchase an SD or SDHC Card to store more pictures and videos. (Maximum supported card size is 32 GB.)

A card can only be inserted one way; forcing it may cause damage. Inserting or removing a card when the camera is on may damage the pictures, the card, or the camera.

& | à urg_01065.book Page 3 Monday, June 8, 2009 8:28 AM

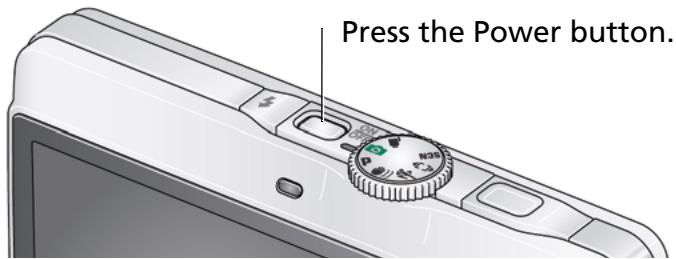

@ ring on the camera

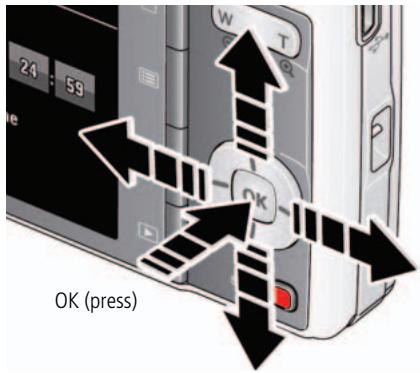

A Language: 2/+ to change. OK to accept.

Date/Time: At the prompt, press OK. af to change current field.

4/» for previous/next field. OK to accept.

See the Extended user guide www.kodak.com/go/md4 support

k www.kodak.com/go/md41support 4

& | à urg_01065.book Page 4 Monday, June 8, 2009 8:28 AM à

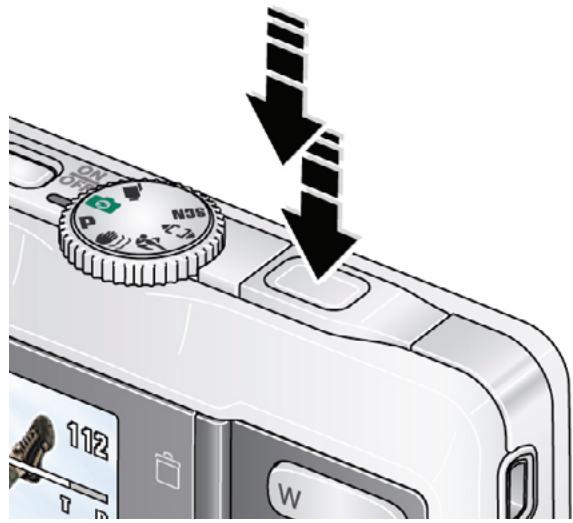

CD Turn the Mode dial to Smart Capture ES.

e) Press the Shutter button halfway to lock the focus.

When the framing marks turn green, press the Shutter button completely down.

» < Framing marks ù See the Extended user guide www.kodak.com/go/md41support Learn more about Smart Capture and other modes see page 11 4 www.kodak.com/go/easysharecenter k &

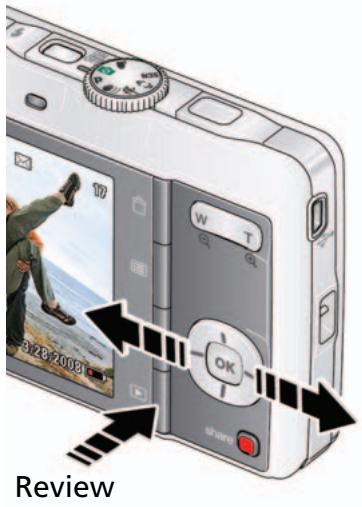

& | à urg_01065.book Page S Monday, June 8, 2009 8:28 AM O Reviewing pictures/videos

Press the Review [»] button to enter/exit Review.

4/» View previous/next picture/video.

A See the Extended user guide www.kodak.com/go/md4 support

k www.kodak.com/go/md41support 5

& | à urg_01065.book Page 6 Monday, June 8, 2009 8:28 AM à

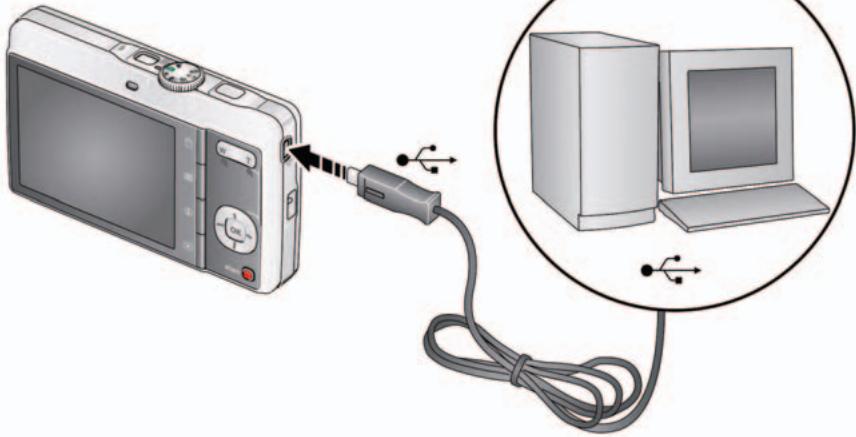

O ransterring pictures/videos

©) Turn off the camera. (2) Connect a KODAK USB Cable, Model U-8.

©) Turn on the camera.

See the Extended user guide www.kodak.com/go/md41support Purchase accessories www.kodak.com/go/md4 accessories

6 www.kodak.com/go/easysharecenter > $— n: ë

& | à urg_01065.book Page 7 Monday, June 8, 2009 8:28 AM TZ un | O Z (mr)

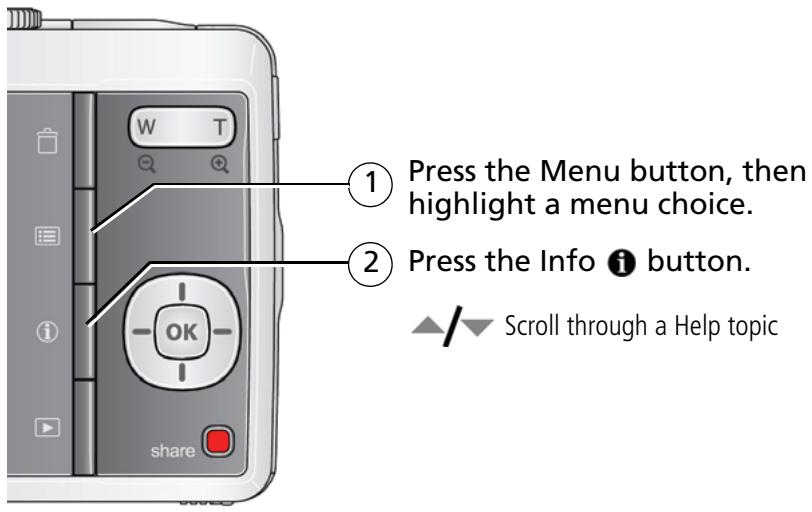

[7] Getting help from your camera

Your camera offers a built-in Help system. It describes every setting for every menu choice. If you learn nothing else about your camera, learn how to use on-camera Help. Because the more you know your camera, the more confident you become.

Press the Menu button, then

highlight a menu choice. Press the Info @ button.

af Scroll through a Help topic

See the Extended user guide www.kodak.com/go/md4 support

www.kodak.com/go/md41support 7

& | à urg_01065.book Page 8 Monday, June 8, 2009 8:28 AM à

O Keep learning about your camera!

« transferred pictures to your computer

Finish reading this book, so you can take and share your best pictures!

e product registration

8 www.kodak.com/go/easysharecenter

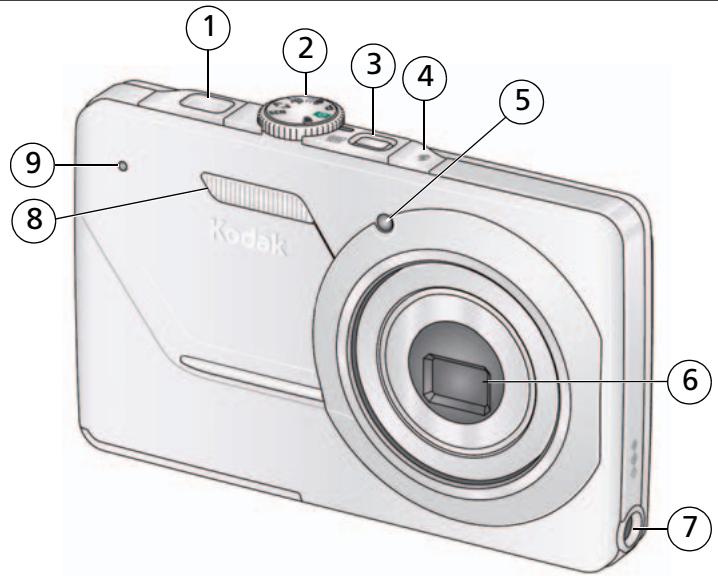

& | à urg_01065.book Page 9 Monday, June 8, 2009 8:28 AM Front view

k www.kodak.com/go/md41support 9

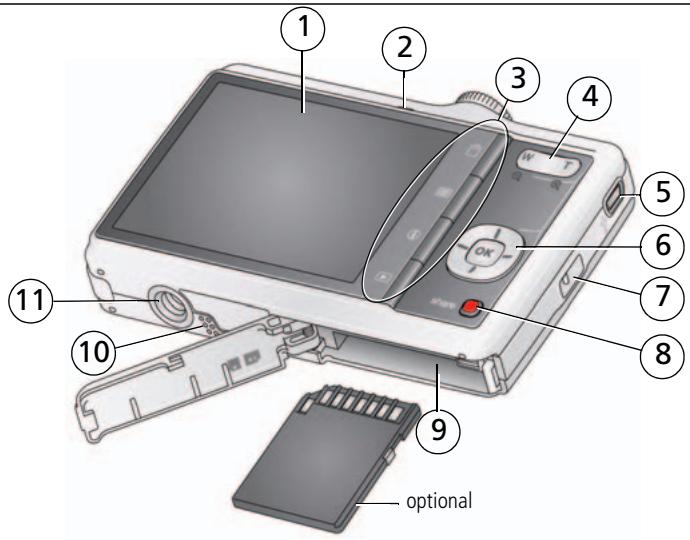

& à urg_01065.book Page 10 Monday, June 8, 2009 8:28 AM Back view

LCD Ready/Battery Charging light

Delete, Menu, Info, Review buttons Zoom (Telephoto/Wide Angle) button USB/AV Out

9 Battery, SD/SDHC Card compartment 10 Speaker

É à | 7 urg_01065.book Page 11 Monday, June 8, 2009 8:28 AM PS 4

| Doing more with your camera

Turn the Mode dial to the mode that best suits your & Mode dial subjects and surroundings.

LD Use this mode For Smart Capture General picture taking—t offers excellent mage quality and ease of use. P Program Advanced picture taking—allows access to manual settings.

ÿ)) Blur Reduction Reducing blur caused by camera shake or subject motion.

[4 Sport Action pictures.

€ D» Panorama “Stitching” up to 3 pictures into a panoramic scene.

SCN Scene Point-and-shoot simplicity when taking pictures in practically any situation.

_ Video Capturing video with sound.

See the Extended user guide www.kodak.com/go/md41support

www.kodak.com/go/md41support æ> !1

w 4 à É à | F7 urg_01065.book Page 12 Monday, June 8, 2009 8:28 AM | æ & S 4 7 Doing more with your camera

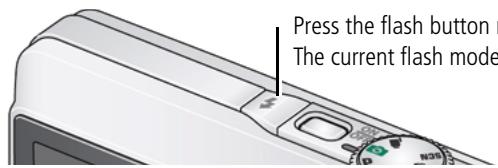

Press the flash button repeatedly to scroll through flash modes. The current flash mode is shown in the LCD status area.

Flash modes Flash fires Auto When the lighting conditions require it.

Hill (Flash On) Every time you take a picture, regardless of the lighting Z conditions. Use when the subject is in shadow or is “’backlit” (when the light is behind the subject).

NOTE: (Not available in Smart Capture mode.) Preflash Red Eye À preflash fires, shrinking the eye pupil, before the picture is % Your camera can taken correct red-eye using Digital 2 methods. To choose ‘A preflash does not fire, the camera corrects red eye. Correction à red eye setting, see

See the Extended user guide www.kodak.com/go/md41support

12 ŒD www.kodak.com/go/easysharecenter FN PS 7 4

& | à urg_01065.book Page 13 Monday, June 8, 2009 8:28 AM à Doing more with your camera

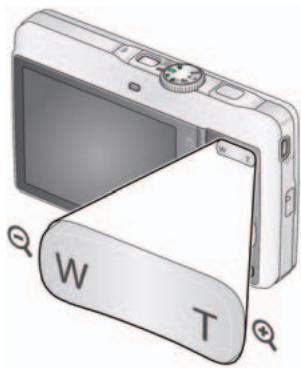

Using the optical zoom 1 Use the LCD to frame your subject.

2 Tozoom in, press Telephoto (T). To zoom out, press Wide Angle (W). 3 Take the picture.

Use digital zoom to get up to 5X magnification beyond optical zoom. (Digital zoom is

not available in Smart Capture mode.) Press Telephoto (T) until the slider is at the end

of the optical zoom range. Release Telephoto (T), then press it again.

NOTE: You may notice decreased image quality when using digital zoom. The slider pauses and turns red when the picture quality reaches the limit for an acceptable 4 x 6 in. (10 x 15 cm) print.

See the Extended user guide www.kodak.com/go/md41support

www.kodak.com/go/md41support CE œ FF —$— n: &

& | à urg_01065.book Page 14 Monday, June 8, 2009 8:28 AM à

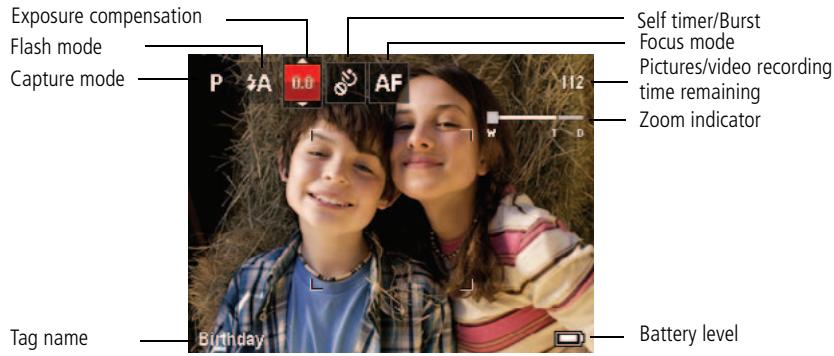

& 7 Doing more with your camera Using the menu button to change settings You can change settings to get the best results from your camera. NOTE: Some modes offer limited settings. Some settings remain until you change them; others, until you change modes or turn off the camera. 1 Press the Menu FE] button. 2 Press 4/) to highlight the Capture/Video or Setup tab. 3 Press »/+ to highlight a setting, then press OK. 4 Highlight an option, then press OK. IMPORTANT: Your camera offers a built-in Help system. To get the most from your camera, 2 See page 7. 2 D D Understanding the picture-taking icons Exposure compensation Self timer/Burst Flash mode Focus mode Capture mode Pictures/video recording Pi time remaining Zoom indicator Tag name -—— Battery level 14 D www.kodak.com/go/easysharecenter FN PS 7 7

& | à urg_01065.book Page 15 Monday, June 8, 2009 8:28 AM à PS 4

2. Working with pictures/videos

Deleting pictures/videos 1 Press the Review D>]button.

2 Press 4/) for previous/next picture/video. 3 Press the Delete button, then follow the prompts.

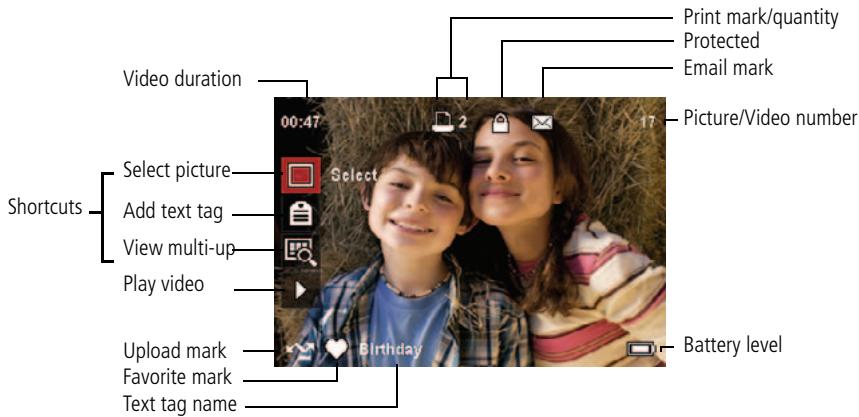

Understanding the review icons

{à Protected {à È Video duration Email mark È Picture/Video number Select picture. Shortcuts | Add text tag View multi-up Play video Upload mark «gr ® brticzf 4 Battery level Favorite mark Text tag name www.kodak.com/go/md41support > 15 FN PS 7

& | à urg_01065.book Page 16 Monday, June 8, 2009 8:28 AM El Share your stories!

A thousand ways to tell a story... and each begins with a picture.

& | à urg_01065.book Page 17 Monday, June 8, 2009 8:28 AM à œ Share your stories!

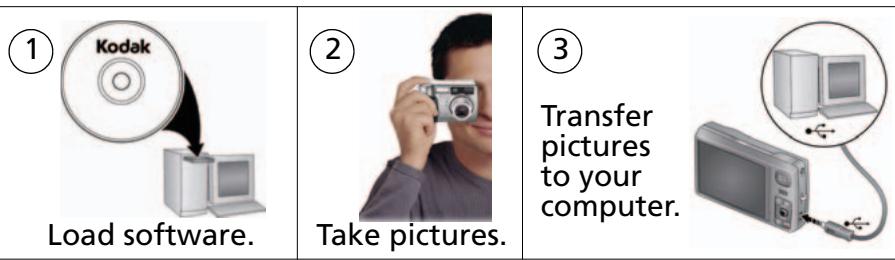

| Transfer , pictures { [| to your Le computer. Load software. Take pictures. At home Online At a local photo retailer

Printers KodakGallery koDaAK Picture Kiosk

www.kodak.com/go/md41support CL e+- + +

& | à urg_01065.book Page 18 Monday, June 8, 2009 8:28 AM _4] œ

rs PS ®7 ®7 4 Solving camera problems Status Solution Camera does not m Make sure the battery is charged and installed correctly (see turn on, off page 1).

Camera buttons and controls do not function

In Review, a blue or m Transfer all pictures to the computer (see page 6)

black screen is : displayed instead of m Take another picture.

a picture < Pictures remaining m Continue taking pictures. The camera is operating normally. < GET ds not (The camera estimates the number of pictures remaining after each decrease after taking à bicture is taken, based on picture size and content.) picture Hash does not fire m Check the flash setting, and change as needed (see page 12). NOTE: The flash does not fire in all modes Memory card is almost my Transfer the pictures to the computer (see page 6). or entirely full m Delete pictures from the card (see page 15) or insert a new card. Battery life is short m Make sure the correct battery type is installed. M Wipe the contacts with a clean, dry cloth before inserting a battery in the camera. M insert a new or charged battery (see page 1). 18 ŒD www.kodak.com/go/easysharecenter PS PS 7 LA

& | à urg_01065.book Page 19 Monday, June 8, 2009 8:28 AM 4 | œ

Do not disassemble this product: there are no user-serviceable parts inside. Refer servicing to

qualiied service personnel KODAK AC Adapters and Battery Chargers are intended fo indoor

use only. The use of controls, adjustments, or procedures other than those specified herein may

result in exposure to shock and/or electrical or mechanical hazards. If the LCD breaks, do not

touch the glass or liquid. Contact Kodak customer support.

M The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For approved accessories, visit www.kodak.com/go/accessories.

M Use only a USB-certified computer equipped with a current-limiting motherboard. Contact your computer manufacturer if you have questions.

If using this product in an airplane, observe all instructions of the airline. When removing the battery, allow it to cool; it may be hot.

L] LI M Follow all warnings and instructions supplied by the battery manufacturer. M Use only batteries approved for this product to avoid risk of explosion.

M keep batteries out of the reach of children.

LI Do not allow batteries to touch metal objects, including coins. Otherwise, a battery may short circuit, discharge energy, become hot, or leak.

M Do not disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature.

M Remove the battery when the product is stored for an extended period of time. In the unlikely event that battery fluid leaks inside the product, contact Kodak customer support.

M in the unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your local health provider. For additional health-related information, contact your local Kodak customer support.

Dispose of batteries according to local and national regulations. Visit www.kodak.com/go/kes.

Do not charge non-rechargeable batteries. For more information, see win: kodek.com/go/batteries.

www.kodak.com/go/md41support > 19

& | à urg_01065.book Page 20 Monday, June 8, 2009 8:28 AM 4 | œ

Kodak warrants its digital cameras and accessories (excluding batteries) to be free from malfunctions and defects in both materials and workmanship for the warranty period specified on your Kodak Product packaging. Retain the original dated sales receipt. Proof of purchase date is required with any request for warranty repair. Limited warranty coverage

Warranty service is only available from within the country where the Products were originally purchased. You may be required to ship Products, at your expense, to the authorized service facility for the country where the Products were purchased. Kodak will repair or replace Products if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies under the warranty. lf replacement parts are used in making repairs, those parts may be remanufactured, or may contain remanufactured materials. If it is necessary to replace the entire Product, it may be replaced with a remanufactured Product. Remanufactured Products, parts and materials are warranted for the remaining warranty term of the original Product, or 90 days after the date of repair or replacement, whichewer is longer.

This warranty does not cover circumstances beyond Kodak's control. This warranty does not apply when failure is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak's operation, maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and cables), or claims made after the duration of this warranty. Kodak makes no other express or implied warranty for this product. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be the length of the express warranty period specified on your Kodak product packaging. The option of repair, replacement, or refund is Kodak's only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims of your customers for such damages resulting from the purchase, use, or failure of the Product), regardless of cause or for breach of any written or implied warranty is expressly disclaimed.

20 ŒD www.kodak.com/go/easysharecenter

& | à urg_01065.book Page 21 Monday, June 8, 2009 8:28 AM 2 œ

Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may have other rights which very from state to state or by jurisdiction.

Outside the United States and Canada

In countries other than the United States and Canada, the terms and conditions of this warranty may be different. Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act.

FCC compliance and advisory

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. 1f this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected 4) consult the dealer or an experienced radio/TV technician for additional suggestions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation.

Hereby, Eastman Kodak Company declares that this KODAK Product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/E.

www.kodak.com/go/md41support æ> 21

& à urg_01065.book Page 22 Monday, June 8, 2009 8:28 AM d | œ Appendix

Canadian DOC statement

DOC Class B Compliance—This Class B digital apparatus complies with Canadian ICES-003

Observation des normes Classe B—Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

& | à Urg_01065.book Page 23 Monday, June 8, 2009 8:28 AM 4 | œ

Kodak and EasyShare are trademarks of Eastman Kodak Company.

www.kodak.com/go/md41support > 23 | FF —$— n: &
