USER MANUAL P520 KODAK

See the extended user guide — for more information about using your frame, visit www.kodak.com/go/digitalframesupport. See the frame package for package contents. Front View 1 LCD screen 2 Quick Touch Border (right side, tap only) 3 Quick Touch Border (bottom, tap/slide) To use the Quick Touch Borders, see page 5. Kodak EasyShare P720/P725/P820 digital frames www.kodak.com/go/digitalframesupport 1 ENGLISH

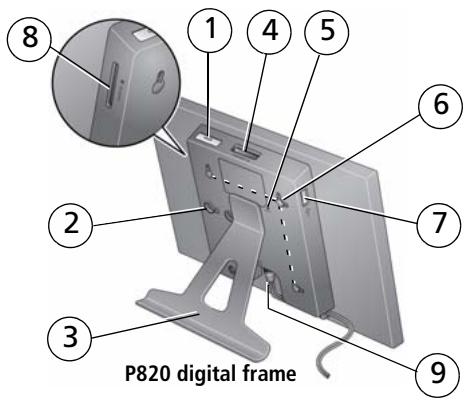

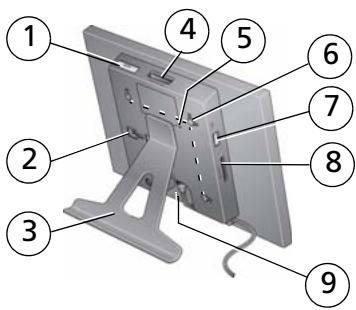

Back/Side View P520/P720/P725 digital frames P820 digital frame 1 On/Off button 5 Reset button 2 Stand attachment slot 6 Wall mounting holes, 3 (see page 10) 3 Frame stand (see page 3) 7. USB connector (to camera/USB device) 4 Memory card slot - SD, MS, xD, MMC 8 Memory card slot - SD/SDHC 9 Power connector 2 D www.kodak.com/go/easysharecenter

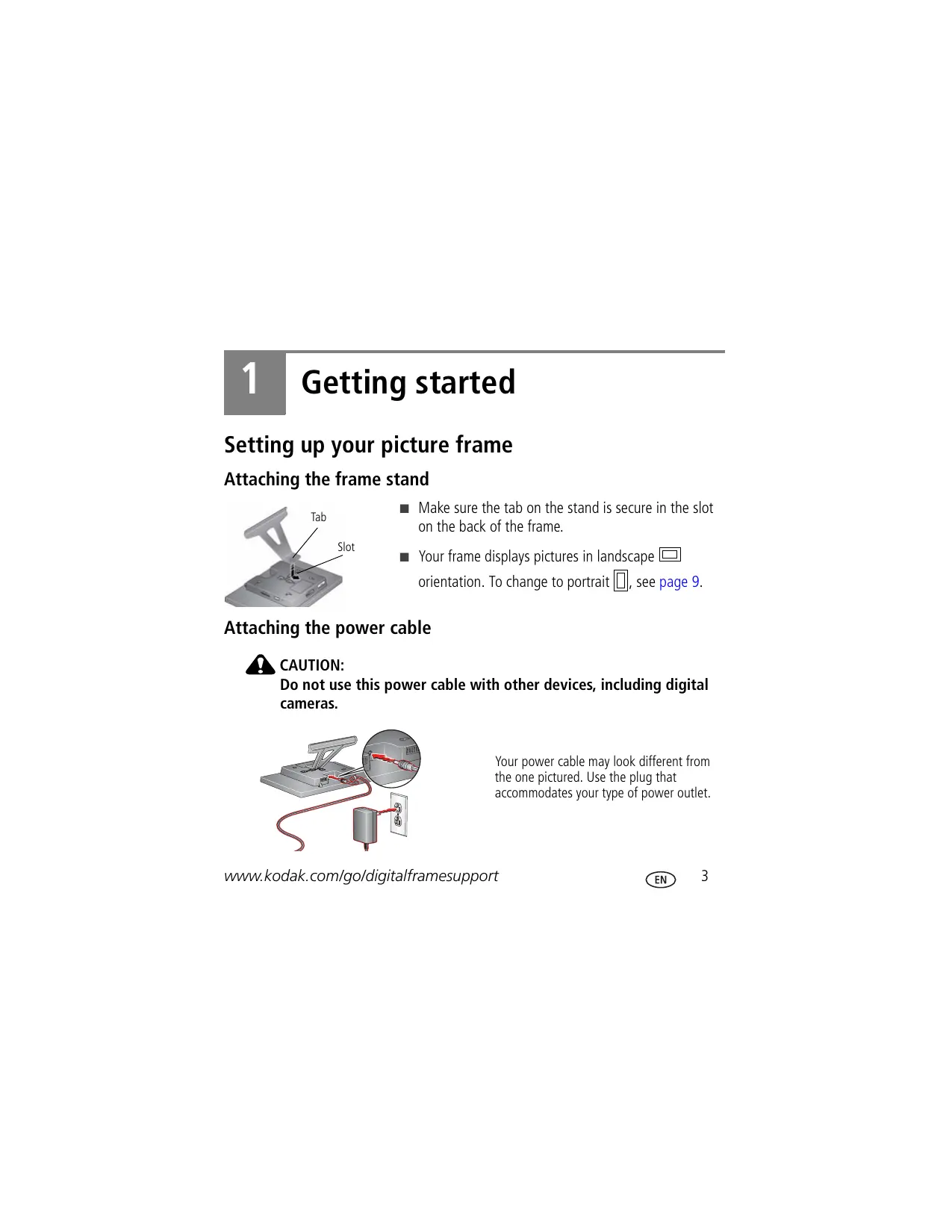

| Getting started Setting up your picture frame Attaching the frame stand m Make sure the tab on the stand is secure in the slot me on the back of the frame. : m_ Your frame displays pictures in landscape [=] orientation. To change to portrait | see page 9. Attaching the power cable À caurion: Do not use this power cable with other devices, including digital cameras. Your power cable may look different from the one pictured. Use the plug that accommodates your type of power outlet. www.kodak.com/go/digitalframesupport æ 3

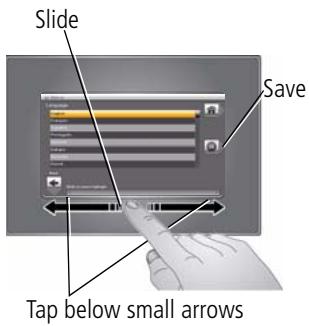

Getting started Turning on your frame Power button (l) Setting your language The language screen appears the first time you turn on your frame. Slide m Slide, or tap below small arrows, to highlight your À language, then tap Save. Save To change the language at a later time: m Tap gr. (Home) — LS (ettings), then highlight Language. The language screen appears. Tap below small arrows Highlight your language, then tap Save. To use the Quick Touch Borders, see page 5. 4 D www.kodak.com/go/easysharecenter

Getting started Using your frame's Quick Touch Borders Touch tips Tap and slide on the Quick Touch Borders” only eTap a border to display the icons. Tap € (Close) to

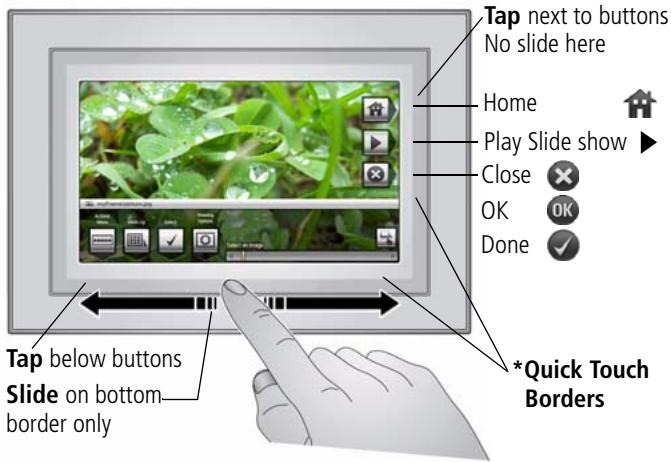

+ Tap next to or below a button to select it. Slide to highlight menus, pictures, videos, options. ** Tap OK to select them. Don't hover, borders can be sensitive. Tap below bus | TT Slide on bottom. border only Tap next to buttons No slide here Home ff Play Slide show D Close @ x @ Done @ *Quick Touch Borders Slide to scroll + Scrol through images—Like tuning the pages of a book, slide left € to go fonward, slide right => 10 go back, For faster scrolling through larger numbers of pictures, touch and hold (3 seconds) then slide to the end of the borde. + Scrol through menus—Slide right > to scroll down, side left to scrol up. +* Tap below small arrows at the ends of the scroll bar to move the highlight one picture, menu, ar item at a time. Important:The screen is not touch-sensitive. Do not touch it. Only use your finger to touch the borders. Sharp or metal objects may damage the border or screen www.kodak.com/go/digitalframesupport

Getting started Enjoying your pictures immediately! m To view your pictures or play a slide show, insert à memory card, or connect a camera or other USB device (see page 8). If you are at the Home screen, see page 12 to start your slide show. To change the slide show order, see page 13. 6 D www.kodak.com/go/easysharecenter

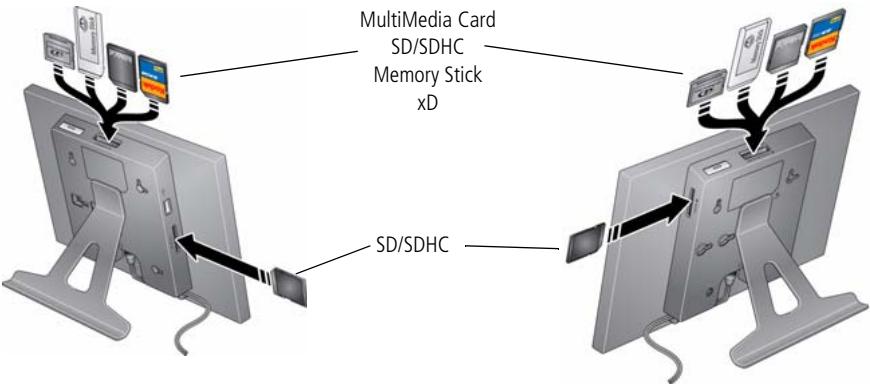

Getting started Inserting a memory card

P520/P720/P725 digital frame P820 digital frame m Toinsert a card, push the card firmly into the slot until it stops. m To remove a card from: — top card slot, push in the card to release it. — side card slot, pull out the card. IMPORTANT: Do not insert a micro or mini memory card without an adapter. www.kodak.com/go/digitalframesupport æ 7

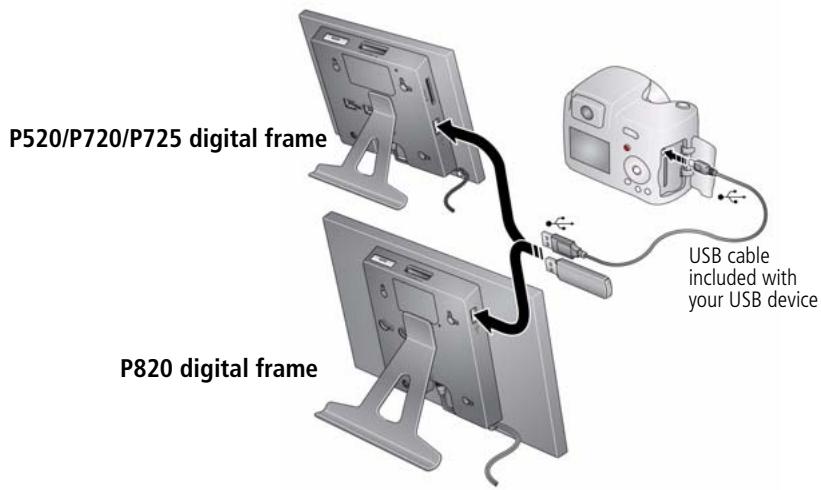

Getting started Connecting a digital camera or other USB device USB devices include a camera, flash drive, card reader, etc. (sold separately) P520/P720/P725 di USB cable included with your USB device P820 digital frame 8 D www.kodak.com/go/easysharecenter

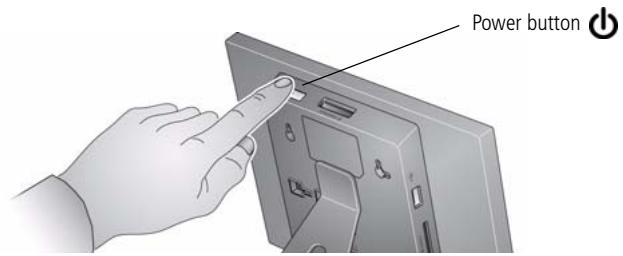

Getting started Turning off your frame m Standby mode—Press the power button O. m Power off—Unplug the power cable. Changing your frame orientation Your frame is set up to display pictures in landscape [1 orientation. You can turn the stand to change it to portrait (E] but you must also change the setting. Change the stand position: Remove the stand, turn it 90 9, and replace as shown. Change the setting: 1 Tap ff (Home) — re: (Settings). 2 Slide to highlight Set viewing options, then tap OK. Slide to highlight Frame orientation, then tap OK. Slide to highlight Portrait, then tap OK. 3 Tap << (Back) to exit. www.kodak.com/go/digitalframesupport æ 9

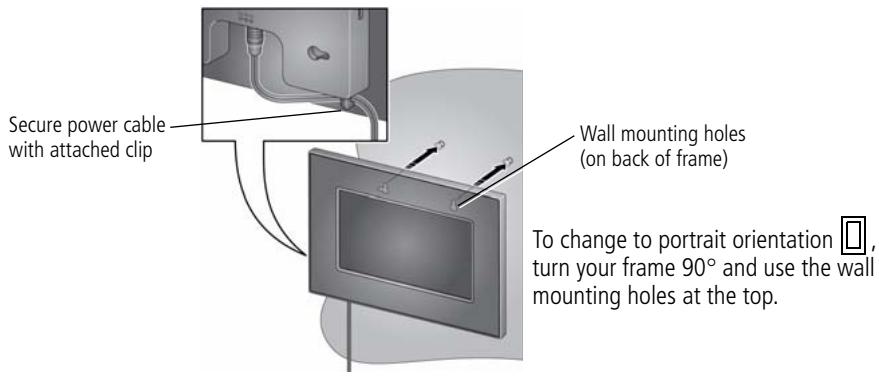

Getting started Mounting your frame on the wall Use wall-anchoring hardware (not included) to mount your frame securely to your wall. Secure power cable Wall mounting holes with attached clip {on back of frame) To change to portrait orientation O turn your frame 90° and use the wall mounting holes at the top. 10 D www.kodak.com/go/easysharecenter

2. Doing more with your frame

Accessing your pictures Tap Home to access pictures from your memory card and all connected devices (see page 8). Use the Quick Touch Borders to make your selections (see page 5). 1 Tap ri (Home). All connected sources and the Settings icon are displayed. 2 Slide to highlight a picture source, then: m Tap p> (Play Slide show) to start a slide show. m Tap OK to view thumbnails. Picture source icons: Memory card—appears when you insert a card (page 7). The label and icon indicate the type of card. re] Camera—appears when you connect à digital camera via USB cable (page 8). + USB drive—appears when you insert a USB card reader or flash drive (page 8). re: Settings—customize our frame settings. For example: set slide show options like durations and transitions; set screen brightness, clock, and timer. See the extended user guide at www.kodak.com/go/digitalframesupport. www.kodak.com/go/digitalframesupport æ

Doing more with your frame Viewing your pictures Playing a slide show There are three ways to start a slide show on your frame: m Insert a memory card or USB device, then turn on the frame. m Turn on the frame, then insert a card or connect a USB device—a new slide show starts automatically, replacing a currently running slide show or single view picture. m Highlight a picture in thumbnails view or highlight a picture source on the Home screen, then tap B> (Play Slide show). NOTE: A slide show plays continuously until you stop it or turn off the frame. If a slide show is running and the screen icons are unavailable, tap the touch border. Tap @ (Close) to hide the icons. Viewing thumbnails There are two ways to view your pictures as thumbnails: m Tap À (Home). Slide to highlight a picture source (see page 11), then tap OK.

Doing more with your frame There are 3 ways to navigate through the thumbnails: m Tap below the arrows at the ends of the scroll bar to move the highlight one picture at a time. m Slide your finger left/right along the bottom touch border. m Touch and hold until the screen changes (about 3 seconds) to move even faster through a large number of thumbnails. Viewing a single picture # To view a single, full-screen picture, highlight it in thumbnails view, then tap OK. To turn off the buttons and other screen text, tap © (Close). m To magnify a picture up to 8X, tap (Actions), tap Q (Zoom), then tap the plus (+) button. To view other parts of the magnified picture, tap the arrows. To return to 1X size, tap the minus (-) button: for P520 frame, continue tapping (+). NOTE: Depending on picture size, full magnification may be less than 8X. m To rotate a picture, tap [smssa] (Actions), then tap 5) (Rotate). Viewing pictures by date or filename By default, the pictures on your frame are arranged and played by date, starting with the oldest. You can change the arrangement or order, by date, or alphabetically by filename. To change the sort order: 1 For P720/P725 or P820 frames—display thumbnails (see page 12), then tap [Es11| www.kodak.com/go/digitalframesupport @ 1

Doing more with your frame (Slide show options). For P520 digital frame—tap À (Home), then Fo] (Settings). 2 Highlight Sort, then tap Select. 3 Select a sort order, as follows. Then tap OK or Save. — Filename, A -7Z — Filename, Z - A — Date, oldest to newest (default) — Date, newest to oldest Copying pictures Copy pictures from your current viewing location to other connected devices ( page 8). À cauTIoN: Removing a card or disconnecting a device while copying may damage your card, pictures, or device. 1 Highlight a picture to copy: In thumbnails view, slide your finger along the slider area to find a picture; or, display a picture in single view. _— Tap [sssss] (Actions). LTD) www.kodak.com/go/easysharecenter

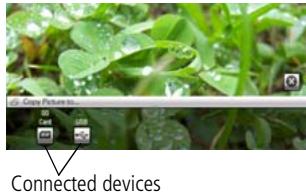

Doing more with your frame 3 Tap (D (Copy. Your connected devices appear. 4 Tap the device you want to copy to, then tap OK. The picture is copied. 5 Tap @ (Close) to close the menu. To copy multiple pictures, see page 16. Connécted devices Deleting pictures À caurion: Removing a card or disconnecting a device while deleting may damage your card, pictures, or device. _ 1 Highlight a picture in thumbnails view or display a FT See picture in single view. : 8) 2 Tap [smmsa] (Actions). 3 Tap mi (Delete), then tap Yes to confirm. The highlighted or displayed picture is deleted. 4 Tap @ (Close) to close the menu. To delete multiple pictures, see page 16. www.kodak.com/go/digitalframesupport æ 15

Doing more with your frame Selecting multiple pictures Use the multi-select feature to: m copy or delete two or more pictures m play a slide show of selected pictures Selecting individual pictures In thumbnails view, touch and slide to highlight a picture, then tap ("| (Select). A check mark appears on the selected picture. 2 Continue selecting pictures. To remove a check mark, highlight a picture, then tap Unselect. Tip: To remove all check marks at once, tap Select AIl, then tap Unselect AIL. Selecting/Unselecting all nt Select all m Tap (Select All) from thumbnails view (or your current location). Unselect all SelectUnselect All m To remove all check marks, tap Unselect All. 16 D www.kodak.com/go/easysharecenter

Doing more with your frame Copying from your computer Use Kodak EasyShare digital display software to drag and drop pictures easily from your computer to a memory card (or other removable USB device). Insert the card into your frame and play a slide show right away (see page 8). The CD that was packaged with your frame contains two applications that work well independently, but also work together for the best experience with your frame: m Kodak EasyShare digital display software El manage your frame, orgainize your pictures and videos, and copy between your frame and computer. CD packaged with jour rame. m Kodak EasyShare software (&))—organize, edit, and share your pictures. Installing Kodak EasyShare digital display software m Insert the CD into your computer and follow the on-screen instructions to install the software. NOTE: Click Typical to install EasyShare digital display software and to update a previous version of EasyShare software. If you do not have a previous version of EasyShare software on your computer, you can dick Custom and choose both applications for a new installation The software icons appear on your desktop when the installation is complete. When prompted, take a few minutes to electronically register your frame and software for exclusive tips and offers. To register later, visit www.kodak.com/go/register. www.kodak.com/go/digitalframesupport æ 17

Doing more with your frame Copying with EasyShare digital display software 1 On your computer's desktop, double-click A {Kodak EasyShare digital display software) to start using the software. 2 Insert a memory card into your computer or card reader. Or insert a removable USB device into the computer's USB port. 3 Click Drag & Drop Zone to see the card or USB device. 4 In Pictures & Videos, click the folder or location on your computer that contains the pictures you want to copy. 5 In the Viewer pane, select the pictures, then drag and drop them to the card or USB device in the Drag & Drop Zone. 6 Remove the card from your computer and insert it into your frame card slot or a connected card reader. A slide show begins. NOTE: To maintain the slide show order during playback, see page 13 and select Filename, À - Z. For more information on the features included in EasyShare digital display software, dick the Help button in the software. 18 ŒD www.kodak.com/go/easysharecenter

Doing more with your frame Customizing your frame For a custom look, remove the adhesive matte (included) from its liner, align it carefully, then attach it to your frame. You can reapply the matte to your frame several times. When you are not using the matte, reapply it to the liner and store in a plastic bag to keep the adhesive backing clean. Maintaining your frame and mattes IMPORTANT: Always disconnect the power before cleaning. Do not use water cleaning solutions, or other adhesives on the frame or any of its parts. Gently wipe the frame, LCD, or matte with a clean, dry cloth (included). For fingerprints on the frame, apply light pressure. www.kodak.com/go/digitalframesupport æ 19

Doing more with your frame Resetting factory defaults Reset button 1 Make sure the power cable is connected and the slot frame is turned on. 2 Insert a small sharp object into the reset button slot and press the recessed reset button. When the reset is successful, the set language screen appears. All settings return to the original factory defaults. 3 Reset your language. See page 4. Learning more about your frame www.kodak.com/go/digitalframes Frame accessories, including decorative faceplates and custom mattes www.kodak.com/go/digitalframesupport Extended user guide Interactive troubleshooting and repairs Interactive tutorials FAQs Downloads Product registration 20 D www.kodak.com/go/easysharecenter

El Solving frame problems For step-by-step product support, visit www.kodak.com/go/digitalframesupport and select Interactive Troubleshooting & Repairs. a memory card, camera, or USB device is connected. NOTE: A large picture file or images on a large capacity card may take longer to appear. If... Try one or more of the following Frame does not m Make sure the power cable that was included with your frame is turn on. connected securely (see page 3). M Unplug the power cable from the frame. Wait 5 seconds, then reconnect the cable. m Press and hold the power button for 1 second. Nothing happens when | Insert a certified SD/MMC/MS/xD card with images into the designated card slot, then push to seat it (see page 7). In the top card slot, make sure the card is seated flush with the case. Make sure the USB cable that was included with your camera or USB device is connected securely (see page 8). Make sure the file format of your pictures is supported. See the extended user guide at www.kodak.com/go/digitalframesupport. Touch border doesn't work. Use your finger to make your selections on the Quick Touch Borders (see page 5). Unplug the power cable from the frame. Wait 5 seconds, then reconnect the cable. Press and hold the power button for 1 second. Frame freezes up. Unplug the power cable from the frame. Wait 5 seconds, then reconnect the cable. Press and hold the power button for 1 second. Use à paper clip or other slim object to press the recessed reset button on the back of the frame (see page 20). www.kodak.com/go/digitalframesupport æ 11

EM appendix Important safety instructions À caurion: Do not disassemble this product, there are no user-serviceable parts inside. Refer servicing to qualified service personnel. Do not expose this product to liquid, moisture, or extreme temperatures. The use of controls, adjustments, or procedures other than those specified herein may result in exposure to shock and/or electrical or mechanical hazards. If the LCD breaks, do not touch the glass or liquid. Contact Kodak customer support. M The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For approved accessories, visit www.kodak/go/accessories. M Digital frame battery (internal and non-removable) may include perchlorate material. Special handling may apply in California M Use only the AC adapter supplied with your frame to avoid damage to the frame. M P820 frames—Use only à Leader Electronics Inc. AC adapter, model MU18-2120150-A1, 12-volt, 1.5 amp. In Europe, use only a Phihong AC adapter, model PSA 18R-120P. Use of other AC adapters may damage the frame and void your warranties. M When displayed with the stand extended, the frame rests at a 68 - 90 degree angle. M Do not place frame near naked flame sources such as lighted candles or heaters. Free software and firmware upgrades Download the latest versions of the software and the frame firmware (the software that runs on the frame). See wwuckodak.com/go/digitalframedownloads. Additional care and maintenance M Gently wipe the frame, LCD, or matte with a clean, dry coth included). For fingerprints on the frame, apply light pressure. Do not use cleaning solutions unless designed specifically for LCD screens. Do not allow chemicals, such as suntan lotion, to contact painted surfaces. 2 www.kodak.com/go/easysharecenter

Appendix M Service agreements are available in some countries. Contact a dealer of Kodak products for more information. M For digital frame disposal or recycling information, contact your local authorities. In the US, visit the Electronics Industry Alliance at www.eiae.org or visit www.kodak.com/go/digitalframesupport. Limited warranty Kodak warrants Kodak consumer electronic products and accessories (“Products”), excluding batteries, to be free from malfunctions and defects in both materials and workmanship for one year from the date of purchase. Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair. Limited warranty coverage Warranty service is only available from within the country where the Products were originally purchased. You may be required to ship Products, at your expense, to the authorized service facility for the country where the Products were purchased. Kodak will repair or replace Products if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies under the warranty. lf replacement parts are used in making repairs, those parts may be remanufactured, or may contain remanufactured materials. If it is necessary to replace the entire Product, it may be replaced with a remanufactured Product. Remanufactured Products, parts and materials are warranted for the remaining warranty term of the original Product, or 90 days after the date of repair or replacement, whichewer is longer. Limitations This warranty does not cover circumstances beyond Kodak's control. This warranty does not apply when failure is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with incompatible accessories or attachments, failure to follow Kodak's operation, maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and cables), or claims made after the duration of this warranty. Kodak makes no other express or implied warranty for this product, and disclaims the implied warranties of merchantability and fitness for a particular purpose. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be one year from the purchase date or such longer period as required by law. The option of repair, replacement, or refund is Kodak's www.kodak.com/go/digitalframesupport & 2

Appendix only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims of your customers for such damages resulting from the purchase, use, or failure of the Product), regardiess of cause or for breach of any written or implied warranty is express|y disclaimed. Your rights Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may have other rights which very from state to state or by jurisdiction. Outside the United States and Canada In countries other than the United States and Canada, the terms and conditions of this warranty may be different. Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act. FCC compliance and advisory Î FŒ ox EasyShare P520/P720/P725P820 digital rame This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on circuit different from that to which the receiver is connected, 4) consult the dealer or an experienced radio/TV technician for additional suggestions. A4 ŒD www.kodak.com/go/easysharecenter

Hereby, Eastman Kodak Company declares that this Kodak product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Canadian DOC statement DOC Class B Compliance—This Class B digital apparatus complies with Canadian ICES-003. Observation des normes-Classe B—Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Waste Electrical and Electronic Equipment labeling EU: It is the final user's responsibility to discard this equipment into an approved, segregated collection scheme to enable its suitable treatment/disposal and to improve human/environmental === protection. For more information, see your retailer, local authority, or www.kodak.com/go/recycle. www.kodak.com/go/digitalframesupport @ 25

Appendix Australian C-Tick G 1137 China RoHS ARÉRÉEFAMIPR (EPUP) ÆHBXR, RARRÉ MAAF LUS ASE. MGR OI BA CFit) . ABRIS ERP MIRE RE MEME. Environmental Protection Use Period (EPUP) In China, is number Indicates the time period {in years) wahin which any hazardous substances present in the product are at expected to be released such that there is risk to human health, property, the environment, This value is assigned based on normal use of ne product as described in the operating instructions. Product Disclosure Table LOMELIr EAUTS ES table of hazardous substances’ name and concentration

hazardous substances’ nom. List FT Æ BTE ] = Conponent_ rase CO A crée) | cum [ne (pson) TL ES, | {Digital Photo Frame circuit board components) x o o o o o (HR (Controller) x o o o o o EEPHLLTT 73 [LAC Adapter cireuit board vs) x o o o o o LO+ at ar AAA MESA ALIOEST/T 1963-2000 ÉMLMER EF . + ARIANE ARE MERS /T 1969-2006 IRL R.. lO: indicntes harardous sibstance concentration Lorer than MOV Lx: indicates hazardous substance concentration higher chan MC [©] USB tete 26 ŒD www.kodak.com/go/easysharecenter

Appendix Russian GOST-R Eastman Kodak Company Rochester, New York 14650 Ludbposas poropamka ysroToBneHa 8 KuTae; ocTanbHbie a1EMEHTEI — B COOTBETCTBUH C MApKHPOBKOÏ Licensing Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), streaming applications (via Internet, intranets and/or other networks), other content distribution systems pay-audio or audio-on-demand applications and the like) or on physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mpälicensing.com. Kodak Eastman Kodak Company Rochester, New York 14650 © Eastman Kodak Company, 2008 Kodak and EasyShare are trademarks of Eastman Kodak Company. 4F8179_en www.kodak.com/go/digitalframesupport & 727
