USER MANUAL V1233 KODAK

Kodak EasyShare V1233 zoom digital camera

User's guide

www.kodak.com

For interactive tutorials: www.kodak.com/go/howto

For help with your camera: www.kodak.com/go/v1233support

Kodak

Eastman Kodak Company

Rochester, New York 14650

© Eastman Kodak Company, 2007

All screen images are simulated.

Kodak, EasyShare, and Perfect Touch are trademarks of Eastman Kodak Company. 4J6232_en

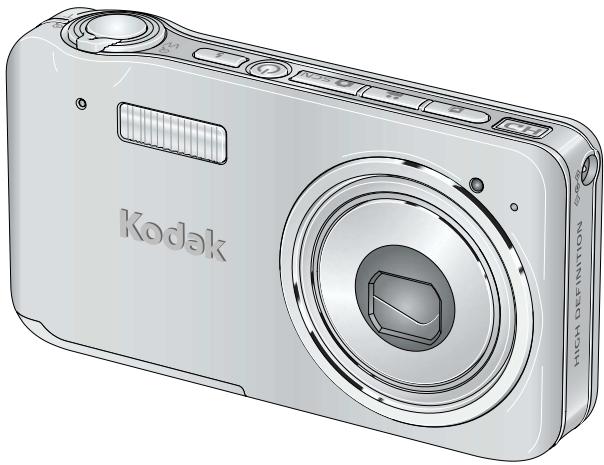

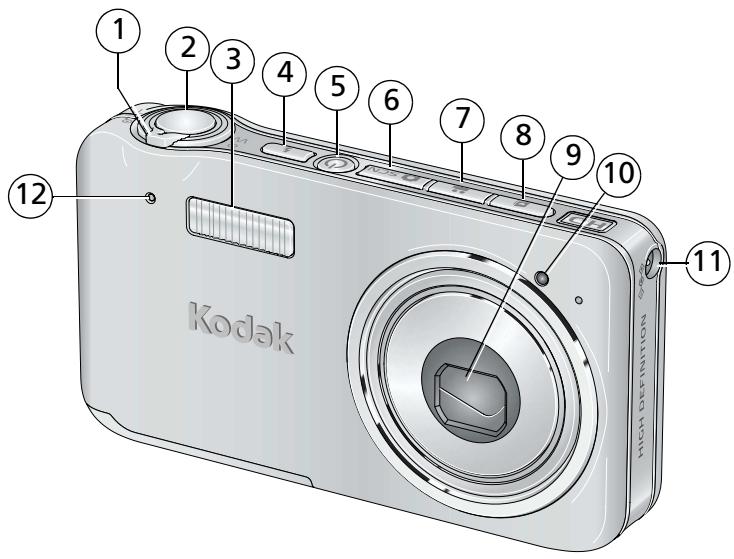

Front view

1 Zoom lever (W/T)
2 Shutter button
3 Flash
4 Flash button
5 On/Off button
6 Auto/SCN (scene) mode button

7 Video mode button
8 Favorites mode button
9 Lens
10 Video light/Self-timer light/AF assist light
11 DC-In (5V)
12 Microphone

NOTE: 6, 7, and 8 are also Battery Charging lights.

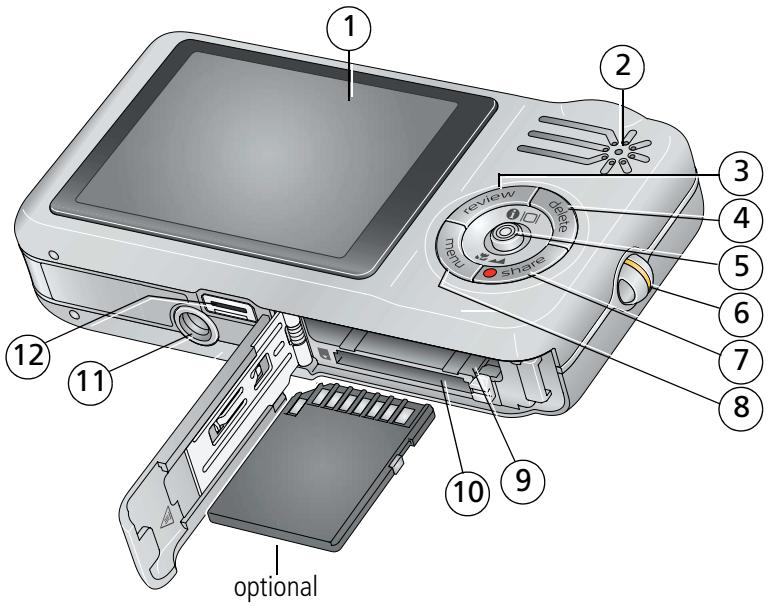

Back view

1 LCD
2 Speaker
3 Review button
4 Delete button
5Joystick OK button (press)
6 Strap post

7 Share button
8 Menu button
9 Battery compartment
10 Slot for optional SD or MMC card
11 Tripod socket
12 USB, A/V Out, Dock connector

Table of contents

1 Setting up your camera 1

Attaching the strap 1
Loading the KLIC-7004 battery. 1
Charging the battery 2
Turning on the camera 3
Setting the language and date/time 4
Storing pictures on an SD or MMC card 4

2 Taking pictures/videos 5

Taking a picture 5
Using the framing marks to take pictures 6
Taking a video 6
Using the 3X optical zoom
Using the self-timer 8
Using the flash 9
Using different modes 10
Using camera Help 13
Understanding the picture-taking icons. 13

3 Working with pictures/videos 14

Reviewing pictures/videos 14
Deleting pictures/videos 15
Using the menu button in review. 16
Cropping pictures 17
Adding sound tags 17
Using Kodak Perfect Touch technology 18
Editing videos 19
Running a slide show 22
Viewing pictures/videos in different ways. 25
Selecting multiple pictures/videos 26
Copying pictures/videos 27

Understanding the blur warning icons 27

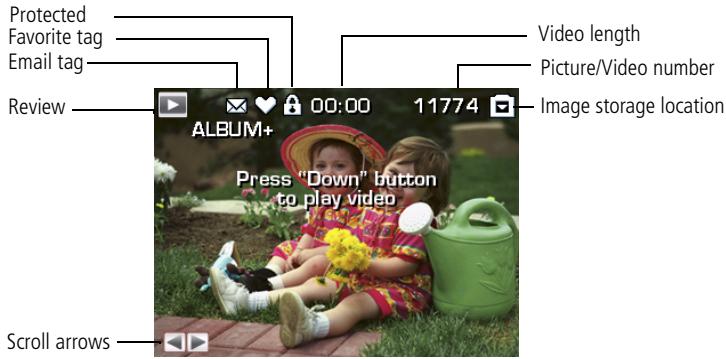

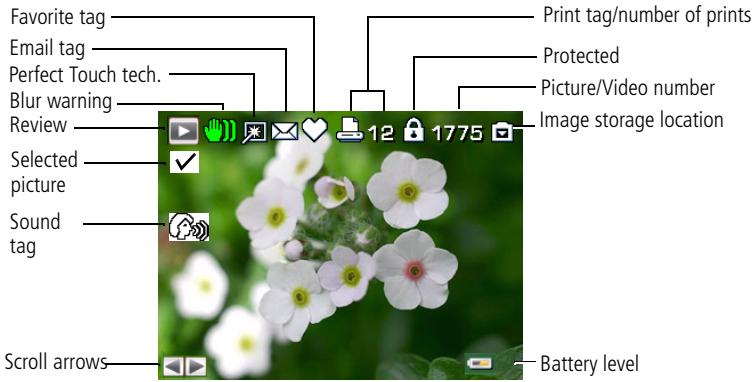

Understanding the review icons. 28

4 Doing more with your camera 29

Using the menu button to change settings 29

Customizing your camera 34

Taking panoramic pictures 37

Using exposure compensation to adjust picture brightness 38

Using the histogram to view picture brightness 38

Using the framing grid to compose a picture 38

Sharing your pictures. 39

5 Transferring and printing pictures 45

Installing the software 45

Transferring pictures/videos 46

Printing pictures 47

Dock compatibility for your camera 49

6 Troubleshooting 50

7 Getting help 54

8 Appendix 56

Camera specifications 56

Care and maintenance 58

Upgrading your software and firmware. 59

Storage capacities 59

Important safety instructions 59

Battery replacement, battery life 60

Limited warranty 61

Regulatory compliance 63

1 Setting up your camera

IMPORTANT: For package contents, see your product package.

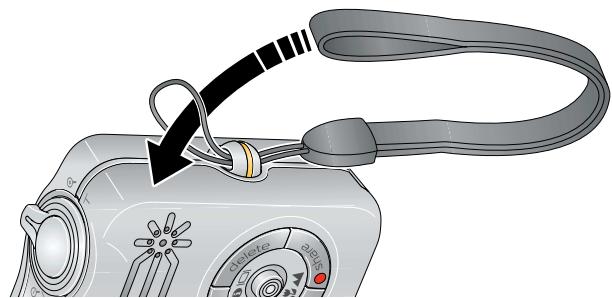

Attaching the strap

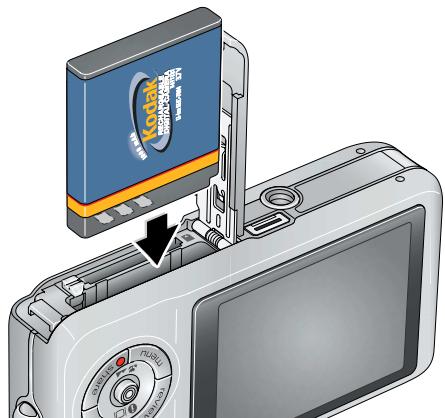

Loading the KLIC-7004 battery

For information on replacing batteries and extending battery life, see page 60.

Charging the battery

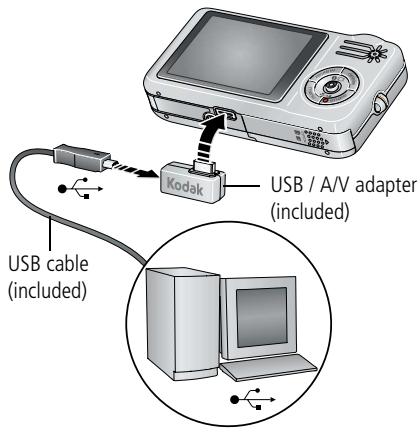

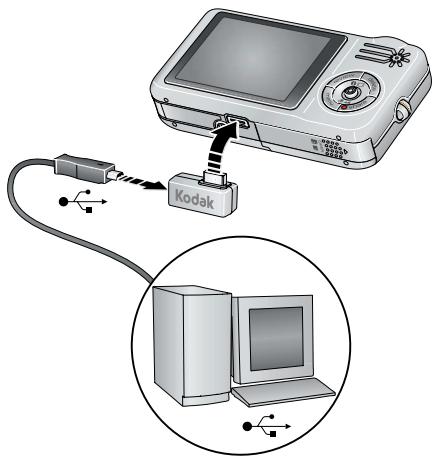

Charge using a USB computer

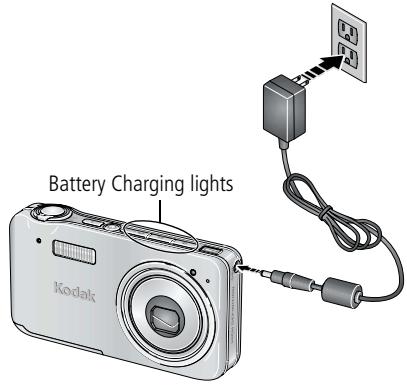

Charge using a Kodak 5V AC adapter (may be sold separately)

Charge until all 3 Battery Charging lights are lit.

If the Battery Charging lights do not turn on during USB charging, ensure:

The USB cable is connected to a powered USB port
The computer is turned on, and not in sleep mode

For more on USB charging, visit www.kodak.com/go/USBcharging.

To purchase accessories, visit www.kodak.com/go/v1233accessories.

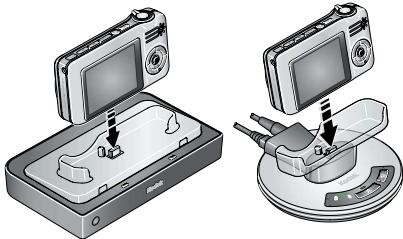

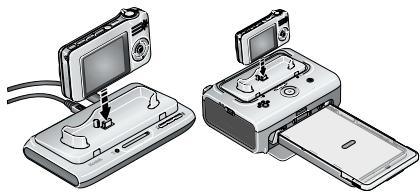

Charging the battery using other accessories

Kodak EasyShare camera or printer dock;
Kodak EasyShare HDTV dock;

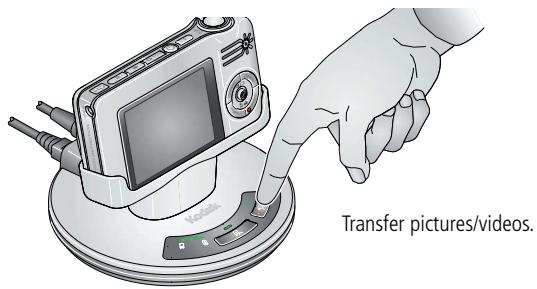

Kodak EasyShare photo frame dock 2

(May be sold separately.)

For details, see the dock user's guide. For dock compatibility, see page 49.

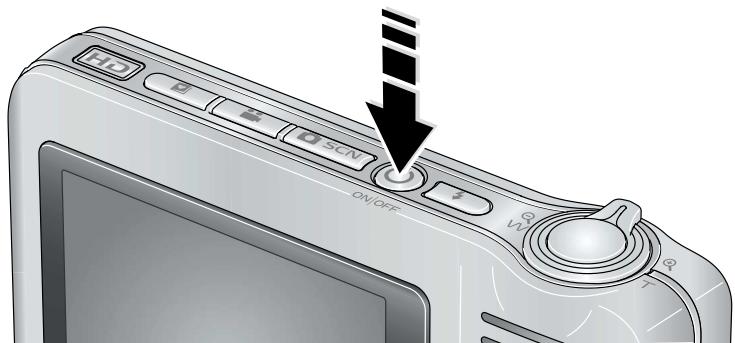

Turning on the camera

Press the On/Off button to turn the camera on in Auto mode.

NOTE: You can also press the Auto/SCN, Video, or Favorites button to turn on the camera in that mode.

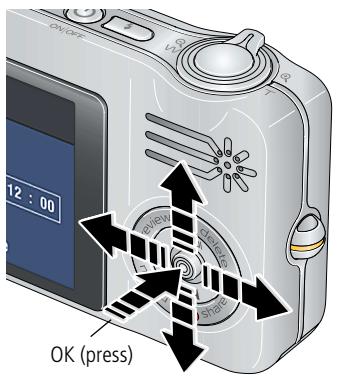

Setting the language and date/time

Language:

1 to change.
2 0K to accept.

Date/Time:

1 At the prompt, press OK.
(2) △/ to change.

for previous/next field.

OK to accept.

NOTE: To change language in the future, see page 36. To change date & time, see page 35.

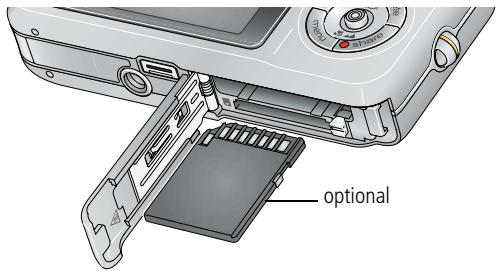

Storing pictures on an SD or MMC card

Your camera has internal memory. You can purchase an SD or MMC card to conveniently store more pictures/videos (www.kodak.com/go/v1233accessories).

CAUTION:

A card can only be inserted one way; forcing it may cause damage. Inserting or removing a card while it is being accessed may damage the pictures, the card, or the camera.

1 Turn off the camera.
② Insert or remove the optional card.
3 Turn on the camera.

2 Taking pictures/videos

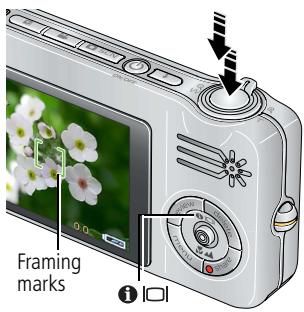

Taking a picture

1 Press the On/Off or Auto/SCN button to turn on the camera.
2 Compose the picture.
3 Press the Shutter button halfway to focus and set exposure. When the framing marks turn green, press the Shutter button completely down.

NOTE: You can repeatedly press Info/Display 1 | 0 | to turn on/off status icons, histogram, and framing grid.

Reviewing the picture just taken

After you take a picture/video, the LCD displays a quickview for approximately 5 seconds. (To exit the quickview sooner, press the Shutter button halfway.)

To review pictures/videos anytime, see page 14.

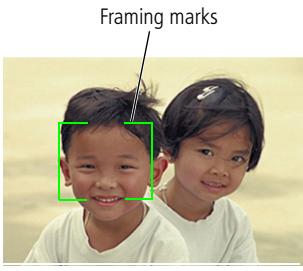

Using the framing marks to take pictures

Framing marks indicate the camera focus area. In Auto mode (and in SCN modes designed for pictures of people), the camera attempts to focus on faces.

1 Press the Shutter button halfway.

When the framing marks turn green, focus is accomplished.

2 If the camera is not focusing on the desired subject (or if the framing marks disappear), release the Shutter button and recompose the scene.
3 Press the Shutter button completely down to take the picture.

NOTE: Multiple framing marks may appear when faces are detected. Framing marks do not appear in Landscape or Video mode. When you use Focus Zone and set Center Zone, the framing marks are fixed at Center Wide.

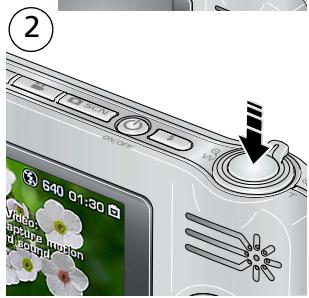

Taking a video

1 Press the Video mode button.

The camera enters Video mode.

2 Press the Shutter button completely down, then release it. To stop recording, press and release the Shutter button again.

To review and work with videos, see page 14.

1 Use the LCD to frame your subject.

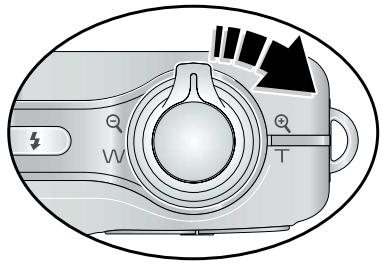

2 To zoom in, press Telephoto (T). To zoom out, press Wide Angle (W). The zoom indicator shows the zoom stat
3 Take the picture or video.

NOTE: For focus distances, see Camera Specifications starting on page 56.

Using digital zoom

Use digital zoom in any picture-taking mode to get up to 5X magnification beyond optical zoom. (You cannot use digital zoom for video recording.)

1 Press Telephoto (T) until the slider is at the top of the optical zoom range. Release Telephoto (T), then press it again.
2 Take the picture.

NOTE: You may notice decreased image quality when using digital zoom. The slider pauses and turns red when the picture quality reaches the limit for an acceptable 4 × 6 -in. (10 x 15 cm) print.

Using the self-timer

Use the self-timer when you want to be included in a picture or to ensure a steady Shutter button press. Place the camera on a tripod or flat surface.

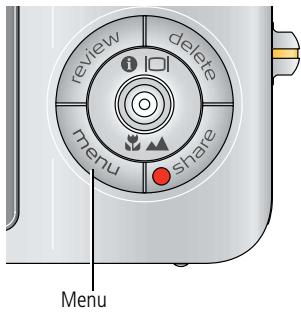

1 In any Still mode, press the Menu button.
2 Press to highlight Self-Timer, then press OK.
3 Press to highlight:

10 seconds—A picture is taken after a 10-second delay (so you have time to get into the scene).
2 seconds—A picture is taken after a 2-second delay (for a steady, auto-shutter release on a tripod).
2 shot—The first picture is taken after a 10-second delay. A second picture is taken 8 seconds later.

4 Press OK, then the Menu button.
5 Compose the scene.
6 Press the Shutter button halfway, then completely down.

The camera takes the picture/pictures after the delay.

NOTE: In Panoramic modes (page 37), only the 2- and 10-second options are available.

Use the same procedure to take a video, but:

Press the Video mode button
Press the Shutter button completely down.

NOTE: The video stops when no storage space remains. Only the 2- and 10-second options are available in video mode.

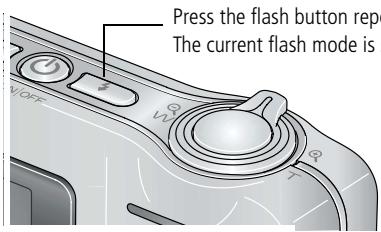

Using the flash

Press the flash button repeatedly to scroll through flash modes.

The current flash mode is shown in the LCD status area.

Flash modes	Flash fires
Auto	When the lighting conditions require it.
Fill	Every time you take a picture, regardless of the lighting conditions. Use when the subject is in shadow or is "backlit" (when light is behind the subject). In low light, hold the camera steady or use a tripod.
Red Eye	In Red Eye flash, you can reduce red eye by using a preflash or by using automatic red eye reduction. To make the camera: ■ Preflash, turn the Red Eye Preflash on. (The first flash shrinks the eye pupil to reduce the chance of red eye.) ■ Flash once and automatically remove red eye, turn the Red Eye Preflash off (see page 33).
Off	Never

Your camera saves the flash setting, even after you turn off the camera. To make the camera return to its default settings (such as Auto flash), turn off Maintain Settings (see page 33).

Using different modes

Choose the mode that best suits your subjects and surroundings.

Use this mode		For
| SCN	Auto	General picture taking—offers an excellent balance of image quality and ease of use.
| SCN	Scene	Point-and-shoot simplicity when taking pictures in practically any situation. (See page 11.)
	Video	Capturing video with sound. (See page 6.)
	Favorites	Viewing favorite pictures. (See page 41.)
Press a button to choose a mode.

Use this mode	For
Landscape	Far-away scenes. The camera uses infinity auto-focus. Auto-focus framing marks are not available in Landscape.
Macro	Close range. The camera automatically sets the focus distance depending on the zoom position. Use available light instead of flash, if possible. (For Focus System/Distances, see page 57.)
Review delete menu	Press until the Macro or Landscape icon appears in the LCD status area.

Using Scene (SCN) modes

Choose a Scene mode—for great pictures in practically any situation!

1 Press the Auto/SCN button until the Scene icons appear on the LCD.
2 Press to view scene mode descriptions.

The date/time and the mode description appear. If the mode description turns off before you finish reading it, press the OK button.

3 Press the OK button to choose a Scene mode.

SCN mode	For
Portrait	Full-frame portraits of people.
Panorama Left-Right	See page 37.
Panorama Right-Left	See page 37.
Digital Image Stabilization	Reducing blur caused by camera shake or subject motion.
Sport	Subjects that are in motion.
Landscape	Distant scenes.
Close-up	Close range. Use available light instead of flash, if possible.
Night Portrait	Reduces red eye of people in night scenes or low-light conditions.
Night Landscape	Distant scenery at night. Flash does not fire.
Snow	Bright snow scenes.
Beach	Bright beach scenes.
Text	Documents. Place the camera on a steady surface or tripod.
Fireworks	Fireworks. Place the camera on a steady surface or tripod.
Flower	Close-ups of flowers or other small subjects in bright light.
Manner/Museum	Quiet occasions, like a wedding or lecture. Flash and sound are disabled. Place the camera on steady surface or tripod.
Self-Portrait	Close-ups of yourself. Assures proper focus and minimizes red eye.
High ISO	People indoors, in low-light scenes.
Children	Action pictures of children in bright light.
Backlight	Subjects that are in shadow or "backlit" (when light is behind the subject).
Panning Shot	Shooting a fast-moving subject. The background gives the sense of movement, while the subject appears still.
Candle Light	Subjects illuminated by candle light.
Sunset	Subjects at dusk.
Custom	Choosing your own settings.

Using camera Help

To better understand each menu option, use camera Help. Highlight a menu choice, then press the Zoom telephoto (T) button.

T Turn on Help

Scroll up/down

OK Turn off Help

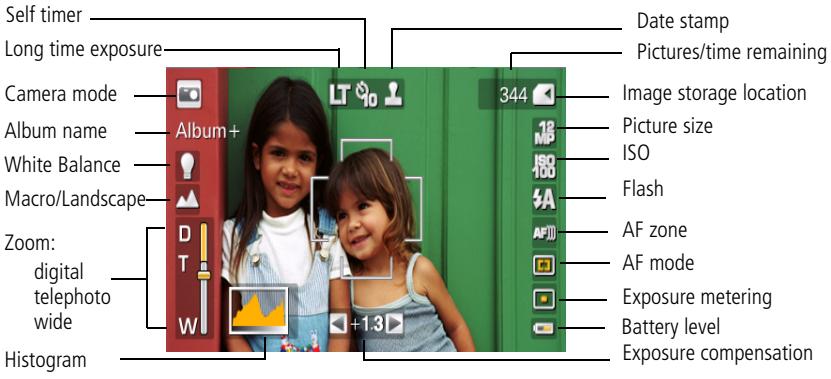

Understanding the picture-taking icons

3 Working with pictures/videos

Reviewing pictures/videos

1 Press the Review button.
2 Press / for previous/next picture/video.

Magnifying a picture

1 Press T to magnify 1X-8X.
2 Press / to view other parts of a picture.
3 Press OK to return to 1X.

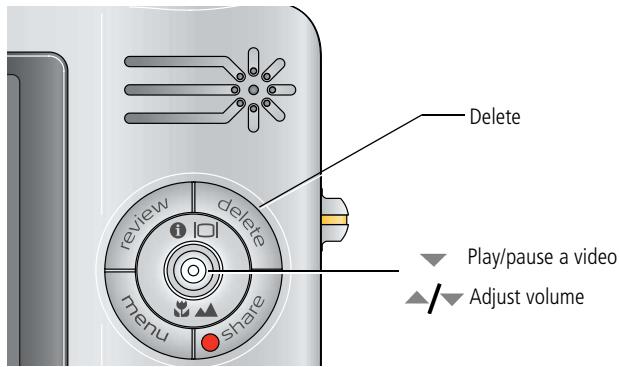

Playing a video

Press to play a video. Press OK to pause/unpause. During playback:

Press / to adjust the volume.
Press to play at 2X speed; press again for 4X.
Press to reverse at 2X speed; press again for 4X.
Press and hold / for 4 seconds to jump to a bookmark (see page 21).

Deleting pictures/videos

1 Press the Review button.
2 Press / for previous/next picture/video.
3 Press the Delete button.
4 Follow the screen prompts.

NOTE: To delete protected pictures/videos, remove protection before deleting. (See Protecting pictures/videos from deletion.)

Using the undo delete feature

If you accidentally delete a picture/video, you may be able to use Undo Delete to retrieve it. This feature is only available immediately after you delete a picture/video.

Protecting pictures/videos from deletion

1 Press the Review button.
2 Press for previous/next picture/video.
3 Press the Menu button.
4 Press to highlight Protect, then press the OK button.

The picture/video is protected and cannot be deleted. The Protect icon appears with the protected picture/video.

Press the Menu button to exit the menu.

CAUTION:

Formatting internal memory or an SD or MMC card deletes all (including protected) pictures/videos. ( Formatting internal memory also deletes email addresses, album names, and favorites. To restore them, see EasyShare software Help.)

Using the menu button in review

1 Press the Review button, then the Menu button.
2 Press / to highlight a tab:

Review to view pictures/videos
Edit to edit pictures/videos
Setup for other camera settings (see page 34)

3 Press to highlight a setting, then press the OK button.
4 Highlight an option, then press the OK button.

Options
View By	See page 25
Album	See page 43
Slide Show	See page 22
Multimedia Slide Show	See page 23
Multi-up	See page 25
Copy To	See page 27
Protect/Unprotect	See page 15
Select/Deselect All	See page 26

Options
Pictures	Perfect Touch tech.	See page 18
	Crop	See page 17
	Sound Tag	See page 17
Videos	Make Picture	See page 19
	Trim	See page 19
	Action Print	See page 20
	Bookmark	See page 21

Cropping pictures

You can crop a picture so that only the desired portion of the picture remains.

1 Press the Review button, then to find a picture to crop.
2 Press the Menu button, then to highlight the Edit tab. Press to highlight Crop, then press the OK button.

3 Press Telephoto (T) to zoom in or / to move the crop box. Press the OK button.
4 Follow the screen prompts.

The picture is cropped. (The original is saved.) Cropped pictures cannot be cropped again on the camera.

Press the Menu button to exit the menu.

Adding sound tags

You can record a voice or sound (up to 1 minute long) to a picture.

NOTE: Only one sound tag can be added to each picture (not to videos).

Recording a sound tag

1 Press the Review button, then to find a picture.
2 Press the Menu button, then to highlight the Edit tab.
3 Press to highlight Sound Tag. Press the OK button.
4 Highlight Record, then press OK.
5 Follow the screen prompts.

The sound tag is applied to your picture.

Press the Menu button to exit the menu.

Playing a sound tag

1 Press the Review button, then to find a tagged picture.
2 Press to play the sound tag.
3 Press to adjust the volume.
4 Press OK to stop playback.

Using Kodak Perfect Touch technology

Kodak Perfect Touch technology helps ensure better, brighter pictures.

1 Press the Review button.
2 Press / for previous/next picture.
3 Press the Menu button, then to highlight the Edit tab. Highlight Perfect Touch tech, then press the OK button.

The enhancement is previewed. Press to view other parts of the picture.

4 Press the OK button. Follow the screen prompts to replace the original picture or to save the enhanced picture as a new one.

Enhanced pictures cannot be enhanced again on the camera. Kodak Perfect Touch technology can only be used with pictures, not video.

Press the Menu button to exit the menu.

Editing videos

You can do incredible things with your videos!

Making a picture from a video

You can choose a single frame from a video, then make a picture suitable for a 4 x 6-inch (10 x 15 cm) print.

1 Press the Review button, then / to find a video.
2 Press the Menu button, then to highlight the Edit tab. Highlight Make Picture, then press the OK button.
3 Follow the screen prompts.
A picture is created. (The original video is saved.)
Press the Menu button to exit the menu.

Trimming a video

You can trim an unwanted start or end from a video, saving only the desired portion.

1 Press the Review button, then / to find a video.
2 Press the Menu button, then / to highlight the Edit tab. Highlight Trim, then press the OK button.
3 Follow the screen prompts. The video is trimmed. (You can save it as a new video or replace the original.)

Press the Menu button to exit the menu.

Making a video action print

From a video, you can make a 4-, 9-, or 16-up picture, suitable for a 4 × 6 -inch (10 x 15 cm) print.

1 Press the Review button, then / to find a video.
2 Press the Menu button, then / to highlight the Edit tab. Highlight Action Print, then press the OK button.
3 Highlight an option, then press the OK button. Auto: The camera includes the first and last frames, then 2, 7, or 14 equally spaced frames.

Manual: Choose first and last frames; the camera chooses 2, 7, or 14 spaced frames.

Full Manual: Choose 4, 9, or 16 frames.

Use Bookmarks: The camera uses bookmarked frames.

A 4-, 9-, or 16-up picture is created. If you have less than 4 or 9 bookmarks, equally spaced video frames are used.

Press the Menu button to exit the menu.

Using video bookmarks

You can set bookmarks at interesting places in your video, then jump from one bookmark to another.

Setting bookmarks

Using bookmarks

1 Press the Review button, then / to find a video.
2 Press the Menu button, then / to highlight the Edit tab. Highlight Bookmark, then press the OK button.
3 Press to add bookmarks. When finished adding up to 9 bookmarks, press .

Press the Menu button to exit the menu.

1 Press the Review button, then to find a video.
2 Press to play the video. To jump to the first bookmark, press and hold for 4 seconds while the video is playing.

After you jump to a bookmark, press / to jump to other bookmarks.
To view all bookmarked video frames, press the Zoom wide angle (W) button. To return to normal view, press the telephoto (T) button.

Running a slide show

Use Slide Show to display your pictures/videos on the LCD.

NOTE: If you have a Kodak EasyShare HDTV dock, see its Getting Started Guide. If you have an EasyShare photo frame dock 2, see page 25.

1 Press the Review button.
2 Press the Menu button, then / to highlight the Review tab. Highlight Slide Show, then press the OK button.
3 Press to highlight Begin Show, then press the OK button.

Each picture/video is displayed once. To interrupt the Slide Show, press the OK button.

Changing the slide show display interval

The default interval setting displays each picture for 5 seconds. You can set the display interval from 3-60 seconds.

1 On the Slide Show menu, press to highlight Interval, then press OK.
2 Select a display interval.

To scroll through the seconds quickly, press and hold

3 Press the OK button.

The interval setting remains until you change it.

Running a continuous slide show loop

When you turn on Loop, the slide show is continuously repeated.

1 On the Slide Show menu, press to highlight Loop, then press the OK button.
2 Press to highlight On, then press the OK button.
3 Press to highlight Begin Show, then press the OK button.

The slide show repeats until you press the OK button or until battery power is exhausted. The Loop feature remains until you change it.

Choosing a slide show transition

Choose how the slide show transitions from one picture to another.

1 On the Slide Show menu, press to highlight Transition, then press the OK button.
2 Press to select a transition, then press the OK button.

Running a multimedia slide show

Multimedia Slide Show is similar to Slide Show, but also offers music and visual effects. For a true HDTV experience on your television, dock your camera on the Kodak EasyShare HDTV dock. To purchase accessories, visit www.kodak.com/go/v1233accessories.

1 First, select 2-20 pictures. (To select multiple pictures, see page 26.)
2 Press the Review button.
3 Press the Menu button, then / to highlight the Review tab. Highlight Multimedia Slide Show, then press the OK button.
4 Press to highlight a choice from the menu below, then press the OK button.

Begin Show
Music
Effect
Play Order

Each picture/video is displayed once. To interrupt the slide show, press the OK button. After the slide show plays, you may save or modify it.

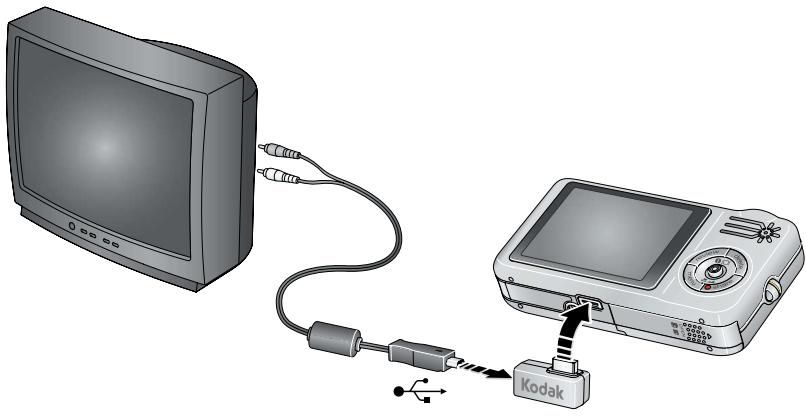

Displaying pictures/videos on a television

You can display pictures/videos on a television, computer monitor, or any device equipped with a video input. To connect the camera to a television, use an A/V cable (may be sold separately) and the USB / A/V adapter.

For a true HDTV experience on your television, dock your camera on the Kodak EasyShare HDTV dock. To purchase accessories, visit www.kodak.com/go/v1233accessories.

NOTE: Ensure that the Video Out setting (NTSC or PAL) is correct (see page 36). The slide show stops if you connect or disconnect the cable while the slide show is running. (Image quality on a television screen may not be as good as on a computer monitor or when printed.)

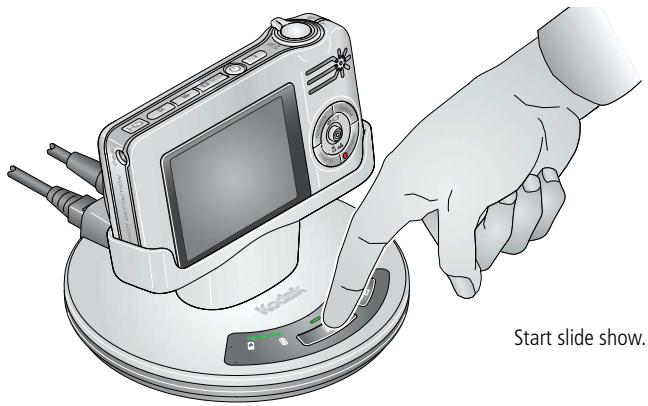

Running a slide show with the photo frame dock 2

Your package may include an EasyShare photo frame dock 2. (To purchase accessories, visit www.kodak.com/go/v1233accessories.)

Viewing pictures/videos in different ways Viewing as thumbnails (multi-up)

1 Press the Review button.
2 Press W to change from single-picture view to multi-up thumbnails.
3 Press T to return to single-picture view.

To select multiple pictures/videos, see page 26.
Press the Review button to exit Review.

Viewing by date or by album

1 Press the Review button.
2 Press the Menu button, then to highlight the Review tab.
3 Press to highlight View By, then press the OK button. Highlight All, Date, Album, or Image Storage, then press the OK button.

Press / to highlight a date, album, or image storage, then press the T button. To return to the list, press the W button.
Press the Review button to exit Review.
For more about albums, see page 43.

Viewing picture/video information

1 Press the Review button.
2 Repeatedly press the Info/Display button to turn on/off status icons, histogram, and picture/video info.

Press the Review button to exit Review.

Selecting multiple pictures/videos

Use the multi-select feature when you have two or more pictures/videos to print, transfer, delete, etc. (Multi-select is used most effectively in Multi-Up mode, page 25.)

1 Press the Review button, then to find a picture/video.
2 Press the OK button to select pictures/videos. A check mark appears on the picture. You can now print, transfer, delete, etc. the selected pictures. You can press OK a second time to remove a check mark.

Copying pictures/videos

You can copy pictures/videos from a card to internal memory or from internal memory to a card.

Copy pictures/videos:

1 Press the Review button.
2 Press the Menu button, then to highlight the Review tab.
3 Press to highlight Copy To, then press the OK button. Highlight Memory Card or Internal Memory, then press the OK button.

NOTE: Pictures/videos are copied, not moved. To remove pictures/videos from the original location after copying, delete them (see page 15). Tags that you applied for print, email, and favorites are not copied. Protection settings are not copied. To apply protection to a picture/video, see page 15.

Understanding the blur warning icons

If the feature is turned on (see page 33), a blur alert icon is displayed during picture review and quickview.

Green—Picture is sharp enough for an acceptable 4 × 6 -inch (10 x 15 cm) print.

Yellow—Picture may be sharp enough for an acceptable 4 × 6 -inch (10 x 15 cm) print or sharpness is not determined. (You may want to view on a computer monitor before printing.)

Red—Picture is not sharp enough for an acceptable 4 × 6 -inch (10 x 15 cm) print.

White-Print sharpness is not determined.

Understanding the review icons

Pictures

Videos

4

Doing more with your camera

Using the menu button to change settings

You can change settings to get the best results from your camera.

NOTE: Some settings remain until you change them; others, until you change modes or turn off the camera. Some modes offer limited settings.

1 Press the Menu button.
2 Press / to highlight a tab:

Capture for the most common picture-taking settings
Capture plus for other picture-taking settings
Video for video-taking settings
Setup for other camera settings

3 Press to highlight a setting, then press the OK button.
4 Highlight an option, then press the OK button.

Using the capture tab

Press Menu, //, ▲/▼, and OK to access settings	Options
Self-timer Choose a self-timer setting.	See page 8.
Burst Camera takes up to 3 pictures while the Shutter button is pressed. Capture an event, such as a person swinging a golf club.	On Off (default) Press the Shutter button halfway to focus and set exposure. Press the Shutter button completely down and hold it to take pictures. The camera stops taking pictures when you release the Shutter button, when the pictures are taken, or when no storage space remains.
Picture Size Choose a picture resolution. For recommended print sizes, visit www.kodak.com/go/printsizes	12.0 MP (4:3) (default)—Highest resolution; largest file size.10.7 MP (3:2)—For printing on EasyShare printer docks and photo printers.9 MP (16:9)—HDTV format.6 MP (4:3)—Medium resolution and file size.3.1 MP (4:3)—Small to medium file size.2.2 MP (3:2)—For printing on EasyShare printer docks and photo printers (at a lower resolution than 10.7 MP).2.1 MP (16:9)—HDTV format.1.2 MP (4:3)—Email, Internet, or to conserve space.
Long Time Exposure Choose how long the shutter stays open.	None (default)0.5, 1.0, 2.0, 4.0, or 8.0 seconds
Color Mode Choose color tones. Unavailable in Video mode.	High Color Natural Color (default) Low Color Black & White Sepia—for a reddish-brown, antique look. NOTE: EasyShare software also lets you change a color picture to black-and-white or sepia.
AF Control Choose an auto-focus setting.	Continuous AF (default for video)—because the camera is always focusing, there is no need to press the Shutter button halfway down to focus. Single AF (default for pictures)—uses TTL-AF (through-the-lens auto focus) when the Shutter button is pressed halfway down.
Date Stamp Imprint the date on pictures. Not available on panoramic pictures.	Choose a date option, or turn off the feature. (Default is off.)

Using the capture plus tab

Press Menu, // , ▲/ ▼, and OK to access settings	Options
White Balance Choose your lighting condition. Available in Auto and SCN-Custom mode.	Auto (default)—automatically corrects white balance. Ideal for general picture taking. Daylight—for pictures in natural lighting. Tungsten—corrects the orange cast of household light bulbs. Ideal for indoor pictures under tungsten or halogen lighting without flash. Fluorescent—corrects the green cast of fluorescent lighting. Ideal for indoor pictures under fluorescent lighting without flash. Open Shade—for pictures in shade in natural lighting.
Face Detect Capture Choose if faces get focus priority.	On (default)—In Auto mode (and in SCN modes designed for pictures of people), the camera attempts to focus on faces. Off
Exposure Metering Evaluate light levels at specific areas of a scene.	Multi-Pattern (default)—evaluates lighting conditions throughout the image to give an optimum picture exposure. Ideal for general picture taking. Center-Weight—evaluates the lighting conditions of the subject centered in the lens. Ideal for backlit subjects. Center-Spot—similar to Center-weight, except the metering is concentrated on a smaller area of the subject centered in the lens. Ideal when you need an exact exposure of a specific area in the picture.
AF Zone Select a large or concentrated area of focus.	Multi-Zone (default)—evaluates 5 zones to give an even picture focus. Ideal for general picture taking. Center-Zone—evaluates the small area centered in the lens. Ideal when you need precise focus.
Press Menu, // , ▲/ ▼, and OK to access settings	○+ Options
ISO Speed Control the sensitivity of the camera sensor.	Auto (default)ISO 64, 100, 200, 400, 800, 1600, 3200 (ISO 3200 available for picture sizes of 3.1 MP or less.)
Red Eye Preflash Choose whether a preflash fires when the flash is in Red Eye mode.	On (default)—red eye flash fires before the picture is taken. Off—red eye flash does not fire. NOTE: The camera automatically corrects red eye, even if the Red Eye Preflash is set to Off.
Sharpness Control picture sharpness.	High Normal (default)Low
Blur Warning See page 27.	On (default)Off
Reset to Default Available only in SCN-Custom mode.	All picture-taking settings return to their default.
Maintain Settings Choose which settings are saved, even after the camera is turned off. Available only in Auto mode.	Flash White Balance ISO Speed Color Mode Sharpness Exposure Metering AF Zone

Using the video tab

Press Menu, // , ▲/ ▼, and OK to access settings	Options
Self-timer Choose a self-timer setting.	See page 8.
Video Size Choose a video resolution.	1280 x 720 (HD720p) HQ—HDTV format; uses the least compression, gives the highest video quality. 1280 x 720 (HD720p) (default)—HDTV format; uses compression to save space. 640 x 480 HQ—medium quality and file size. 640 x 480—medium quality and file size; uses compression to save space. 320 x 240—lowest quality; smallest file size.
AF Control Choose an auto-focus setting.	Continuous AF (default for video)—because the camera is always focusing, there is no need to press the Shutter button halfway down to focus. Single AF (default for pictures)—uses TTL-AF (through-the-lens auto focus) when the Shutter button is pressed halfway down.
Image Stabilizer Improve video stability.	On (default) Off

Customizing your camera

Use Setup to customize your camera.

Press Menu, / to highlight Setup, then / to access settings	Options
LCD Brightness Choose LCD brightness.	Power Save High Power (default)
LCD Dimmer Choose inactivity time until LCD dims.	30 seconds 20 seconds 10 seconds (default) Off (no dimming)
Image Storage Choose a storage location for pictures/videos.	Auto (default)—the camera uses the card if one is in the camera. If not, the camera uses internal memory. Internal Memory—the camera always uses internal memory, even if a card is installed.
Set Album Choose Album names. You can apply different Set Album choices to videos and to pictures.	Clear All—selected album settings are cancelled. Pre-select album names before you take pictures/videos. Then, all the pictures/videos you take are tagged with those album names. See page 44.
Orientation Sensor Orient pictures/videos so that they are displayed with the correct side up.	On (default for pictures) Off (default for videos)
Camera Sounds Choose sound effects.	Theme— applies the same sound effect set to all functions. Individual—choose a sound for each function.
Sound Volume	Off High Medium (default) Low
Date & Time	Set date and time.
Digital Zoom Turn digital zoom on or off.	On (default) Off
Auto Power Off Choose inactivity time until camera turns off.	10 minutes 5 minutes 3 minutes (default) 1 minute
Video Out Choose the regional setting that lets you connect the camera to a television or other external device.	NTSC (default)—used in North America and Japan; most common format. PAL—used in Europe and China.
Photo Frame Choose EasyShare photo frame dock 2 slide show settings.	Interval (between slide show frames) Loop (On/Off, for slide show) Transition (between slide show frames) Source (Auto/Internal/Favorite) Run Time (for slide show)
Language	Choose your language.
Format CAUTION: Formatting deletes all pictures/videos, including those that are protected. Removing a card during formatting may damage the card.	Memory Card—deletes everything on the card; formats the card. Cancel—exists without making a change. Internal Memory—deletes everything in internal memory including email addresses, album names, and favorites; formats the internal memory.
Reset Camera Available in all modes except SCN-Custom.	Reset settings to their default.
Feature Demos	View short videos describing new features.

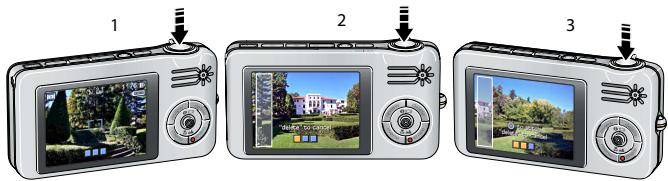

Taking panoramic pictures

Use panorama to "stitch" up to 3 pictures into a panoramic scene.

NOTE: For best results, use a tripod. Only the panoramic picture is saved; individual pictures are not. (Picture size is set to 6 MP. Exposure and white balance are set with the first picture. The flash is set to Off.)

1 Press the Auto/SCN button until the Scene icons appear on the LCD.
2 Press / to highlight Panorama Left-Right or Panorama Right-Left (depending on the direction you want to pan), then press the OK button.
3 Take the first picture. After a quickview, the LCD displays the liveview and an "overlay" from the first picture.
4 Compose the second picture. Make the overlay from the first picture cover the same portion in the new picture. (You can press the Delete button to re-take a picture.)
5 If you are taking only 2 pictures, press the OK button to stitch them together. After you take 3 pictures, the pictures are automatically stitched together.

Take 2 or 3 pictures.

Get 1 panoramic picture.

NOTE: To use the self-timer 10-second or 2-second setting, see page 8.

Using exposure compensation to adjust picture brightness

Before you take a picture, you can adjust exposure compensation to make pictures darker or lighter.

Press to decrease exposure compensation.
Press to increase exposure compensation.

The exposure compensation level is shown on the LCD; the LCD gets brighter or dimmer.

Using the histogram to view picture brightness

Use the histogram to evaluate the distribution of light before or after you take a picture. If the peak is to the right of the graph, the subject is bright; if it's to the left, the subject is dark. Optimal exposure is achieved when the peak is in the middle of the histogram. The flash may affect a picture's light and shadow.

To turn on the histogram in Capture mode or in Review, press the Info/Display button until the histogram appears.

Using the framing grid to compose a picture

The framing grid divides the LCD into thirds—vertically and horizontally. This is helpful if, for example, you want to balance a picture between water, earth, and sky.

To turn on the framing grid in Auto/SCN mode, press the Info/Display 1 | 0 | button until the grid appears.

Sharing your pictures

Press the Share button to tag your pictures/videos. When they are transferred to your computer, you can share them.

Tagging pictures for printing

1 Press the Share button. Press / to find a picture.
2 Press to highlight Print, then press the OK button.
3 Press to select the number of copies (0-99). Zero removes the tag.

The Print icon appears in the status area. The default quantity is one.

4 Optional: You can apply a print quantity to other pictures. Press to find a picture. Keep the print quantity as is, or press to change it. Repeat this step until the desired print quantity is applied to the pictures.
5 Press OK. Press the Share button to exit the menu.

• To tag all pictures in the storage location, highlight Print All, press OK, then indicate the number of copies. Print All is not available in quickview. To remove print tagging for all pictures in the storage location, highlight Cancel Prints, then press OK.

Printing tagged pictures

When you transfer the tagged pictures to your computer, the EasyShare software print screen opens. For details on printing, see Help in EasyShare software.

For more information on printing from your computer, printer dock, PictBridge enabled printer, or card, see page 47.

NOTE: For the best 4 × 6 in. (10 × 15 ~cm) prints, use the 3:2 picture size (see page 30).

Tagging pictures/videos for emailing

First-on your computer

Use Kodak EasyShare software to create an email address book on your computer. Then, copy up to 32 email addresses to the camera's internal memory. For details, see Help in EasyShare software.

Second—tag pictures/videos on your camera

1 Press the Share button. Press to find a picture/video.
2 Press to highlight Email, then press the OK button.

The Email icon appears in the status area.

3 Press to highlight an email address, then press the OK button.

To tag other pictures/videos with the same address, press / to scroll through them. When the picture you want is displayed, press the OK button.

To send the pictures/videos to more than one address, repeat step 3.

Selected addresses are checked.

4 To remove a selection, highlight a checked address and press the OK button. To remove all email selections, highlight Clear All.
5 Press to highlight Exit, then press the OK button.

The Email icon appears in the status area.

6 Press the Share button to exit the menu.

NOTE: To add an email address, use the Add Email menu choice. Then use the on-camera keyboard.

Third—transfer and email

When you transfer the tagged pictures/videos to your computer, EasyShare software prompts you to send the pictures/videos. For details, see Help in EasyShare software.

Tagging pictures as favorites

Want to keep copies of your favorite pictures on your camera?

Start with the Share button!

1. Tag pictures as favorites	1 Press the Share button. Press ⇌ to find a picture. 2 Press ↗ to highlight Favorite, then press the OK button. The Favorite icon ↗ appears in the status area. To remove the tag, press the OK button again.
2. View favorites on your camera	1 Press the Favorites ↗ button. 2 Press ↗ to view favorites.

NOTE: Videos tagged as favorites remain in the Favorites folder in EasyShare software. For details, see Help in EasyShare software.

Preventing camera favorites from synchronizing with the software

If you don't want to use the favorites feature:

1 Open EasyShare software.
2 From the Tools menu, select Cameras/Viewers > Sync and Transfer Manager.
3 Highlight your camera, then click Camera Favorites Album Properties.

NOTE: If your camera model is not visible, use the USB cable to connect your camera to the computer.

4 Drag the Internal Memory slider to 0% , then click OK.
5 Close the Sync and Transfer Manager window.

Camera favorites will no longer synchronize with EasyShare software.

To turn on the sync feature, select Yes, synchronize with my software.

To delete favorites from your camera, press the Delete button while in Favorites mode.

Optional settings

In Favorites mode, press the Menu button to access optional settings.

Slide Show (page 22)

Multi-Up (page 25)

NOTE: Pictures taken at the 3:2 picture size are displayed at a 3:2 aspect ratio with a black bar at the top and bottom of the screen.

Printing and emailing favorites

1 Press the Favorites button. Press to find a picture.
2 Press the Share button.
3 Highlight Print or Email, then press the OK button.

NOTE: Favorites that were taken on this camera (not imported from another source) are good for prints up to 4 × 6 in. (10 × 15 ~cm) .

Tagging pictures/videos for albums

Use the Album feature to tag the pictures/videos in your camera with album names.

First-on your computer

Use EasyShare software to create album names on your computer, then copy up to 32 album names to the camera's internal memory.

Second-on your camera

1 Press the Review button, then find the picture/video.
2 Press the Menu button.
3 Press to highlight Album, then press the OK button.
4 Press to highlight an album name, then press the OK button.

To add other pictures to the same album, press / to scroll through the pictures. When the picture you want is displayed, press the OK button.

To add the pictures to more than one album, repeat step 4 for each album.

The album name appears with the picture. A plus (+) after the album name means the picture was added to more than one album.

To remove a selection, highlight an album name and press the OK button. To remove all album selections, select Clear All.

Third—transfer to your computer

When you transfer the tagged pictures/videos to your computer, EasyShare software opens and categorizes your pictures/videos in the appropriate album.

NOTE: To add an album, use the Add Album menu choice. Then use the on-camera keyboard.

Pre-tagging for album names

Use the Set Album feature to pre-select album names before you take pictures/videos. Then, all the pictures/videos you take are tagged with those album names.

First-on your computer

Use the EasyShare software to create album names on your computer. The next time you connect the camera to the computer, up to 32 album names are copied to the camera's internal memory.

Second-on your camera

1 In any mode, press the Menu button.
2 Press to highlight the Setup tab.
3 Press to highlight Set Album, then press the OK button.
4 Press to highlight an album name, then press the OK button.
5 Highlight Exit, then press the OK button.
6 Press the Menu button to exit the menu.

Your selections are saved. Your album selection is displayed on the LCD. A plus (+) after the album name means more than one album is selected.

Third—transfer to your computer

When you transfer the tagged pictures/videos to your computer, EasyShare software opens and categorizes your pictures/videos in the appropriate album. For details, see Help in EasyShare software.

5 Transferring and printing pictures

CAUTION:

Before connecting any cables, install the software that was included with your camera. Failure to do so may cause the software to load incorrectly.

Installing the software

1 Close all open software applications before starting the installation.
NOTE: If running Windows OS and installing EasyShare software from the Kodak Web site, do not close the WinZip application. If prompted, allow EasyShare software to access the Internet.
2 Place the Kodak EasyShare software CD into the CD-ROM drive.
3 Load the software:

Windows OS—if the install window does not appear, choose Run from the Start menu and type d:\setup.exe where d is the drive letter that contains the CD.

Mac OS X—double-click the CD icon on the desktop, then click the Install icon.

4 Follow the on-screen instructions to install the software.

NOTE: When prompted, register your camera and software. Registering lets you sign up for information that keeps your system up-to-date. To register later, visit www.kodak.com/go/register.

5 If prompted, restart the computer.

For information on the software applications included on the Kodak EasyShare software CD, see Help in EasyShare software.

Transferring pictures/videos

Using the USB cable

If you do not have an EasyShare dock, use a Kodak USB cable, model U-8 and the USB / A/V adapter.

Connect, then turn on camera.

Using the photo frame dock 2

If you have a Kodak EasyShare photo frame dock 2, use it to transfer pictures. (To purchase accessories, visit www.kodak.com/go/v1233accessories.)

Using other options

You can also use these Kodak products to transfer your pictures/videos:

Kodak EasyShare camera dock, Kodak EasyShare printer dock (see page 49)
Kodak card readers

NOTE: To purchase accessories, visit www.kodak.com/go/v1233accessories. Visit www.kodak.com/go/howto for an online tutorial on connecting.

Printing pictures

Printing with a Kodak EasyShare printer dock

Dock your camera to the Kodak EasyShare printer dock and print with or without a computer. To purchase accessories, visit www.kodak.com/go/v1233accessories.

For dock compatibility, visit www.kodak.com/go/dockcompatibility.

Direct printing with a PictBridge enabled printer

Your camera is compatible with PictBridge technology, so you can print directly to PictBridge enabled printers. You need:

Camera with fully charged battery
PictBridge enabled printer
USB cable
USB/A/Vadapter

Connecting the camera to a PictBridge enabled printer

1 Turn off the camera and printer.
2 Connect the appropriate USB cable from the camera to the printer. (Use a USB / A/V adapter) See your printer user guide for details or www.kodak.com/go/v1233accessories to order accessories.

Printing from a PictBridge enabled printer

1 Turn on the printer. Turn on the camera.

The PictBridge logo is displayed, followed by the current picture and menu. (If no pictures are found, a message is displayed.) If the menu interface turns off, press any button to redisplay it.

2 Press to highlight a printing option, then press the OK button.

Current Picture—Press / to choose a picture. Choose the number of copies.

Tagged Pictures—If your printer is capable, print pictures that you tagged for printing and choose a print size.

Index Print—Print thumbnails of all pictures. (This option requires one or more sheets of paper.) If the printer is capable, choose a print size.

All Pictures—Print all pictures in internal memory, on a card, or in Favorites. Choose the number of copies.

Image Storage—Access Internal/Card or Favorites.

NOTE: During direct printing, pictures are not permanently transferred or saved to the printer. To transfer pictures to your computer, see page 46. In Favorites mode, the current favorite picture is displayed.

Disconnecting the camera from a PictBridge enabled printer

1 Turn off the camera and printer.
2 Disconnect the USB cable from the camera and the printer.

Using a printer that is not PictBridge enabled

After you transfer pictures from the camera to your computer, you can print them from EasyShare software. For details, see Help in EasyShare software.

Ordering prints online

Kodak EasyShare Gallery (www.kodakgallery.com) is one of the many online print services offered in EasyShare software. You can easily:

• Upload your pictures.
  Edit, enhance, and add borders to your pictures.
  Store pictures, and share them with family and friends.
• Order high-quality prints, photo greeting cards, frames, and albums—and have them delivered to your door.

Printing from an optional SD or MMC card

• Automatically print tagged pictures when you insert your card into a printer with an SD/MMC card slot. See your printer user's guide for details.
  Make prints at an SD/MMC card-capable Kodak picture maker/picture kiosk. (Contact a location prior to visiting. Visit www.kodak.com/go/picturemaker.)
  Take the card to your local photo retailer for professional printing.

Dock compatibility for your camera

To see which EasyShare camera and printer docks are compatible with your camera, visit www.kodak.com/go/doorkcompatibility.

To purchase camera docks, printer docks, and other accessories, visit www.kodak.com/go/v1233accessories.

6 Troubleshooting

Camera problems

Status	Solution
Camera does not turn on	Make sure the battery is charged and installed correctly (see page 1). Turn the camera off, then on again.
Camera does not turn off
Camera buttons and controls do not function
In Review, a blue or black screen is displayed instead of a picture	Transfer all pictures to the computer (see page 45). Take another picture.
Pictures remaining number does not decrease after taking a picture	Continue taking pictures. The camera is operating normally. (The camera estimates the number of pictures remaining after each picture is taken, based on picture size and content.)
Flash does not fire	Check the flash setting, and change as needed (see page 9). NOTE: The flash does not fire in all modes.
Memory card is almost or entirely full	Transfer the pictures to the computer (see page 45). Delete pictures from the card or insert a new card.
The battery does not charge using USB charging	See page 2 or visit www.kodak.com/go/USBcharging.
Battery life is short	■ Make sure the correct battery type is installed (see page 60).■ Wipe the contacts with a clean, dry cloth before inserting a battery in the camera.■ Insert a new or charged battery (see page 1).
You cannot take a picture	■ Turn the camera off, then on again.■ Depress the Shutter button all the way (see page 5).■ Insert a new or charged battery (see page 1).■ Memory is full. Transfer pictures to the computer (see page 45), delete pictures (see page 15), or insert another card.
Error message appears on LCD	■ Turn the camera off, then on again.■ Remove the memory card.■ Turn off the camera. Remove the battery. Wipe the contacts with a clean, dry cloth.■ Insert a new or charged battery.■ If the problem still exists, get help (see page 54).
Memory card not recognized or camera freezes with card	■ Card may be corrupted. Format the card in the camera (see page 36).■ Use another memory card.
Cannot find the desired picture/video	■ To view pictures on a card or in internal memory, see page 14.

Computer/connectivity problems

Status	Solution
Pictures do not transfer to computer	■ See Help in EasyShare software.
Slide Show does not run on an external video device	■ Adjust the camera Video Out setting to NTSC or PAL (see page 36). ■ Make sure the external device settings are correct. (See the device's user's guide).

Picture quality problems

Status	Solution
Computer does not communicate with the camera	■ Make sure the battery is charged and installed correctly (see page 1). ■ Turn on the camera. ■ Make sure the USB cable model U-8 is connected to the camera and the computer. (Use a USB / A/V adapter. See page 46.) (If using an EasyShare dock, check all cable connections. Make sure the camera is seated on the dock.) ■ Make sure EasyShare software is installed (see page 45).

Status	Solution
Picture is not clear	■ To automatically set exposure and focus, press the Shutter button halfway. When the framing marks turn green, press the Shutter button completely down to take the picture. ■ Clean the lens (see page 58). ■ Make sure the camera is not in Macro mode if you are more than 27.6 in. (70 cm) from your subject. ■ Place the camera on a flat, steady surface or use a tripod (especially in high-zoom settings or in low light).
Picture is too dark	■ Reposition the camera for more available light. ■ Use Fill flash (see page 9) or change your position so light is not behind the subject. ■ Move so that the distance between you and the subject is within the effective flash range. (See camera specifications starting on page 56.) ■ To automatically set exposure and focus, press the Shutter button halfway. When the framing marks turn green, press the Shutter button completely down to take the picture.

Direct printing (PictBridge enabled printer) problems

Status

Solution

Picture is too light

■ Reposition the camera to reduce the amount of available light. ■ Turn the flash off (see page 9). ■ Move so that the distance between you and the subject is within the effective flash range. (See camera specifications starting on page 56.) ■ To automatically set exposure and focus, press the Shutter button halfway. When the framing marks turn green, press the Shutter button completely down to take the picture. ■ In Auto and SCN-Custom modes, adjust the Exposure Compensation (see page 38).

Status	Solution
Cannot find the desired picture	■ Make sure you’re not in Favorites mode.■ Use the Direct print menu to change the image storage location.
The Direct print menu interface turns off	■ Press any camera button to redisplay the menu.
Cannot print pictures	■ Make sure there is a connection between the camera and the printer (see page 47).■ Make sure the printer and the camera have power.
Camera or printer display an error message	■ Follow the prompts to resolve the issue.

7 Getting help

Camera

Email, write, or phone Kodak	www.kodak.com/go/contact
Get support for your product (FAQs, troubleshooting information, arrange for repairs, etc.)	www.kodak.com/go/v1233support
Purchase camera accessories (camera docks, printer docks, lenses, cards, etc.)	www.kodak.com/go/v1233accessories
Download the latest camera firmware and software	www.kodak.com/go/v1233downloads
See online demonstrations of your camera	www.kodak.com/go/howto

Software

Get information on EasyShare software	www.kodak.com/go/easysharesw (or see Help in EasyShare software)
Get help with the Windows operating system and working with digital pictures	www.kodak.com/go/pcbasics

Other

Get support for cameras, software, accessories, more	www.kodak.com/go/support
Get information on Kodak EasyShare printer docks	www.kodak.com/go/printerdocks
Get information on Kodak inkjet products	www.kodak.com/go/inkjet
Optimize your printer for truer, more vibrant colors	www.kodak.com/go/onetouch
Register your camera	www.kodak.com/go/register

NOTE: If you have questions concerning this product, you may speak with Kodak customer support.

Australia	1800 267 588
Austria	0179 567 357
Belgium	02 713 14 45
Brazil	0800 891 42 13
Canada	1 800 465 6325
China	800 820 6027
Czech Republic	00 800 56325000
Denmark	3 848 71 30
Ireland	01 407 3054
Finland	0800 1 17056
France	01 55 1740 77
Germany	069 5007 0035
Greece	00800 44140775
Hong Kong	800 901 514
Hungary	06 80 456 325
India	91 80 41374555(toll free 000800 440 1227)
Italy	02 696 33452
Japan	03 5540 9002
Korea	080 708 5600

Netherlands	020 346 9372
New Zealand	0800 880 120
Norway	23 16 21 33
Philippines	1 800 1 888 9600
Poland	00800 4411625
Portugal	021 415 4125
Russia	8 495 929 9166
Singapore	800 6363 036
Slovakia	00 800 56325000
Spain	91 749 76 53
Sweden	08 587 704 21
Switzerland	01 838 53 51
Taiwan	0800 096 868
Thailand	001 800 631 0017
Turkey	00800 448827073
United Kingdom	0870 243 0270
United States	1 800 235 6325
International Toll Line	[phone]
International Toll Fax	[phone]

8 Appendix

Camera specifications

CCD—1/1.8 in. CCD, 4:3 aspect ratio

ISO speed—Auto: 64-400; Manual: 64, 100, 200, 400, 800, 1600, 3200 (ISO

3200 available for picture sizes of 3.1 MP or less.)

Taking lens—3X optical zoom; f/3.4 (@ wide)—f/5.3 (@ telephoto); 35 mm

equivalent: 37-111 mm

Lens protection—Built-in

Digital zoom—5X continuous

Shutter speed—8-1/1200 seconds; 1/2-8 sec. in long exposure mode

LCD—2.5 in. (6.35 cm) transmissive LCD, 230K pixels (960 x 240); 30 fps

Image storage—Optional MMC or SD Card (The SD logo is a trademark of

the SD Card Association.)

Internal storage capacity—32 MB internal memory (18 MB available for image

storage. 1 MB equals one million bytes.)

Image file format

Still: EXIF 2.21 (JPEG compression); file organization DCF

Video:QuickTime(video:CODEC MPEG-4;audio:G.711)

Picture size

12 MP (4:3): 4000 x 3000 pixels
10.7 MP (3:2): 4000 x 2664 pixels
9 MP (16:9): 4000 x 2256 pixels
6 MP (4:3): 2832 x 2128 pixels
3.1 MP (4:3): 2048 x 1536 pixels
2.2 MP (3:2): 1800 x 1200 pixels

2.1 MP (16:9): 1920 x 1080 pixels
1.2 MP (4:3): 1280 x 960 pixels

Video capture

1280 x 720 (HD 720p) HQ @ 30 fps
1280 x 720 (HD 720p) @ 30 fps
640 x 480 HQ @ 30 fps
640 x 480 @ 30 fps
320 x 240 @ 30 fps

Color modes—High Color, Natural Color, Low Color, Black & White, Sepia

Sharpness modes—High, Normal, Low

White Balance—Auto, Daylight, Tungsten, Fluorescent, Open Shade

Focus system—TTL-AF (through-the-lens auto focus); Auto: Multi-Zone, Center-Zone. Working range:

23.6 in. (60 cm)-infinity @ wide, normal
23.6 in. (60 cm)—infinity @ telephoto, normal
2-27.6 in. (5-70 cm) @ wide, Macro mode
15.7-27.6 in. (40-70 cm) @ telephoto, Macro mode
32.8 ft (10 m)–infinity @ wide, Landscape mode
32.8 ft (10 m)—infinity @ telephoto, Landscape mode

Exposure metering—TTL-AE; Multi-Pattern, Center-Weight, Center-Spot

Exposure compensation+/-2.0 EV with 1/3 EV step

Capture modes—Auto, Video, Scene modes

Burst mode—Maximum 3 pictures @ 1.7 fps; Auto Exposure, Auto Focus, Auto

White Balance executed for first shot only

Electronic Flash—Auto flash; Auto, Fill, Red Eye, Off; Guide No. 7.7; working

range: 2-14.8 ft (0.6-4.5 m) @ wide, ISO 400;

2-9.5 ft (0.6-2.9 m) @ telephoto, ISO 400

Communication with computer—USB 2.0 high speed (PIMA 15740 protocol) via EasyShare HDTV dock, or via USB cable model U-8 and USB / A/V adapter. Full speed via EasyShare camera dock, printer dock, or photo frame dock 2.

Video output—NTSC or PAL

PictBridge support—Yes

Power—Kodak Li-Ion rechargeable digital camera battery KLIC-7004; USB charging; 5V AC adapter; EasyShare camera dock, printer dock, HDTV dock, or photo frame dock 2

Size—4 x 2.1 x 0.9 in. (101.9 x 54.6 x 23.4 mm) @ power off

Weight—5.3 oz (150 g) without card or battery

Operating temperature- 32 - 104^ (0 - 40^)

Tripod mount—1/4 inch

Care and maintenance

If you suspect water has gotten inside the camera, remove the battery and card. Allow all components to air-dry for at least 24 hours before using the camera.
- Blow gently on the lens or LCD to remove dust and dirt. Wipe gently with a soft, lint-free cloth or an untreated lens-cleaning tissue. Do not use cleaning solutions unless designed specifically for camera lenses. Do not allow chemicals, such as suntan lotion, to contact painted surfaces.
Service agreements may be available in your country. Contact a dealer of Kodak products for more information.
For digital camera disposal or recycling information, contact your local authorities. In the US, visit the Electronics Industry Alliance Web site at www.eiae.org or www.kodak.com/go/v1233support.

Upgrading your software and firmware

Download the latest versions of the software included on the Kodak EasyShare software CD and the camera firmware (the software that runs on the camera). Visit www.kodak.com/go/v1233downloads.

Storage capacities

The LCD displays the approximate number of pictures (or minutes/seconds of video) remaining. For average SD card capacities, visit www.kodak.com/go/SDcapacities. Actual storage capacity varies depending on subject composition, card size, and other factors. You may be able to store more or fewer pictures and videos. Favorites take up additional space in internal memory.

Important safety instructions

CAUTION:

Do not disassemble this product; there are no user-serviceable parts inside. Refer servicing to qualified service personnel. Kodak AC adapters and battery chargers are intended for indoor use only. The use of controls, adjustments, or procedures other than those specified herein may result in exposure to shock and/or electrical or mechanical hazards. If the LCD breaks, do not touch the glass or liquid. Contact Kodak customer support.

The use of an accessory that is not recommended by Kodak may cause fire, electric shock, or injury. For approved accessories, visit www.kodak/go/accessories.
Use only a USB-certified computer equipped with a current-limiting motherboard. Contact your computer manufacturer if you have questions.
If using this product in an airplane, observe all instructions of the airline.
When removing the battery, allow it to cool; it may be hot.
Follow all warnings and instructions supplied by the battery manufacturer.
Use only batteries approved for this product to avoid risk of explosion.

• Keep batteries out of the reach of children.
• Do not allow batteries to touch metal objects, including coins. Otherwise, a battery may short circuit, discharge energy, become hot, or leak.
• Do not disassemble, install backward, or expose batteries to liquid, moisture, fire, or extreme temperature.
• Remove the battery when the product is stored for an extended period of time. In the unlikely event that battery fluid leaks inside the product, contact Kodak customer support.
  In the unlikely event that battery fluid leaks onto your skin, wash immediately with water and contact your local health provider. For additional health-related information, contact your local Kodak customer support.
• Dispose of batteries according to local and national regulations. Visit www.kodak.com/go/kes.
• Do not charge non-rechargeable batteries. For more information on batteries, visit www.kodak.com/go/batterytypes.

Battery replacement, battery life

Kodak Li-Ion rechargeable digital camera battery KLIC-7004: 220 pictures per charge. Battery life per CIPA testing method. (Approx. number of pictures in Auto mode, using 128 MB SD card.) Actual life may vary based on usage.

Extending battery life

Use power-saving features (see Customizing your camera, page 34).
- Dirt on the battery contacts can affect battery life. Wipe the contacts with a clean, dry cloth before loading the battery in the camera.
- Battery performance is reduced at temperatures below 41^ F ( 5^ C). When using your camera in cold weather, carry spare batteries and keep them warm. Do not discard cold batteries that do not work; when they return to room temperature, they may be usable.

Limited warranty

Kodak warrants Kodak consumer electronic products and accessories ("Products"), excluding batteries, to be free from malfunctions and defects in both materials and workmanship for one year from the date of purchase. Retain the original dated sales receipt. Proof of the date of purchase will be required with any request for warranty repair.

Limited warranty coverage

Warranty service is only available from within the country where the Products were originally purchased. You may be required to ship Products, at your expense, to the authorized service facility for the country where the Products were purchased. Kodak will repair or replace Products if they fail to function properly during the warranty period, subject to any conditions and/or limitations stated herein. Warranty service will include all labor as well as any necessary adjustments and/or replacement parts. If Kodak is unable to repair or replace a Product, Kodak will, at its option, refund the purchase price paid for the Product provided the Product has been returned to Kodak along with proof of the purchase price paid. Repair, replacement, or refund of the purchase price are the sole remedies under the warranty. If replacement parts are used in making repairs, those parts may be remanufactured, or may contain remanufactured materials. If it is necessary to replace the entire Product, it may be replaced with a remanufactured Product. Remanufactured Products, parts and materials are warranted for the remaining warranty term of the original Product, or 90 days after the date of repair or replacement, whichever is longer.

Limitations

This warranty does not cover circumstances beyond Kodak's control. This warranty does not apply when failure is due to shipping damage, accident, alteration, modification, unauthorized service, misuse, abuse, use with incompatible accessories or attachments (such as third party ink or ink tanks), failure to follow Kodak's operation, maintenance or repacking instructions, failure to use items supplied by Kodak (such as adapters and cables), or claims made after the duration of this warranty.

Kodak makes no other express or implied warranty for this product, and disclaims the implied warranties of merchantability and fitness for a particular purpose. In the event that the exclusion of any implied warranty is ineffective under the law, the duration of the implied warranty will be one year from the purchase date or such longer period as required by law. The option of repair, replacement, or refund is Kodak's only obligation. Kodak will not be responsible for any special, consequential or incidental damages resulting from the sale, purchase, or use of this product regardless of the cause. Liability for any special, consequential or incidental damages (including but not limited to loss of revenue or profit, downtime costs, loss of the use of the equipment, cost of substitute equipment, facilities or services, or claims of your customers for such damages resulting from the purchase use or failure of the Product), regardless of cause or for breach of any written or implied warranty is expressly disclaimed.

Your rights

Some states or jurisdictions do not allow exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states or jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may have other rights which vary from state to state or by jurisdiction.

Outside the United States and Canada

In countries other than the United States and Canada, the terms and conditions of this warranty may be different. Unless a specific Kodak warranty is communicated to the purchaser in writing by a Kodak company, no warranty or liability exists beyond any minimum requirements imposed by law, even though defect, damage, or loss may be by negligence or other act.

Regulatory compliance

FCC compliance and advisory

Kodak EasyShare V1233 zoom digital camera

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed or used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1) reorient or relocate the receiving antenna; 2) increase the separation between the equipment and the receiver; 3) connect the equipment to an outlet on a circuit different from that to which the receiver is connected; 4) consult the dealer or an experienced radio/TV technician for additional suggestions. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Where shielded interface cables have been provided with the product or specified additional components or accessories elsewhere defined to be used with the installation of the product, they must be used in order to ensure compliance with FCC regulation.

Canadian DOC statement

DOC Class B Compliance—This Class B digital apparatus complies with Canadian ICES-003.

Waste Electrical and Electronic Equipment labeling

In Europe: For human/environmental protection, it is your responsibility to dispose of this equipment at a collection facility established for this purpose (separate from municipal waste). For more information, contact your retailer, collection facility, or appropriate local authorities; or visit www.kodak.com/go/recycle. (Product weight: 150 g.)

VCCI Class B ITE

Eastman Kodak Company

Rochester, NY 14650

ΦoToKaMepa IITROTOBJIeHa B KITae; oCtAJIbHbIe 9JIeMeHTbI -

B COOTBeTCTBIII C MapKHPOBKOII

MPEG-4

Use of this product in any manner that complies with the MPEG-4 visual standard is prohibited, except for use by a consumer engaging in personal and non-commercial activities.

Index

A

A/V out, 24

about

picture, video, 26

accessories, 47

battery, 60

buying, 54

primer dock, 47

SD/MMC card, 4

AF assist light, i

albums

set, 35

tagging pictures for, 44

auto, 10

enhancement, 18

focuscontrol,16,31,32,34

focus framing marks, 6

poweroff,36

auto focus (AF)

zone,32

Auto/SCN mode button, i

B

backlight, 12

battery

charging, 2, 3

expected life, 60

extending life, 60

loading, 1

types, 60

beach, 11

blur warning, 27, 33

bookmarks, 21

burst, 30

button

auto/SCN mode, i

delete, 5

favorites mode, i

macro/landscape, ii

menu, ii

OK, ii

on/off, i

review, ii

Share, ii

telephoto/zoom, 7

video mode, i

C

cable

audio/video, 24

USB, 46

camera screen

getting help, 13

cameraounds,35

Canadian compliance, 63

care and maintenance, 58

charging the battery, 2, 3

children, 12

clock, setting, 4

color mode, 31

compatibility

docks, 49

computer

connecting camera, 45

transfer to, 45

connector, USB / A/V, 24, 46

copy pictures

card to memory, 27

memory to card, 27

to computer via USB cable, 45

cropping pictures, 17

customer support, 55

customize camera, 34

D

date setting, 4

date stamp, 31

DC-in, i

deleting

during quickview, 5

from internal memory, 15

from SD/MMC card, 15

protecting pictures, videos, 15

digital image stabilization, 11

digital zoom, 7

setting, 35

displaying slide show, 22

disposal,recycling,58

dock

compatibility, 49

connector, ii

primer, 47

downloading pictures, 45

E

EasyShare software, 45

edit videos, 19

emailing pictures, videos, 39

expected battery life, 60

exposure

compensation, 38

long time, 30

metering, 32

external video device

viewing pictures, videos, 24

F

favorites

settings, 42

tagging, 41

favorites mode button, i

FCC compliance, 63

feature demos, 36

fireworks, 11

firmware, upgrading, 59

flash, using, 9

flower, 11, 12

focus

framing marks, 6

format, 36

framinggrid,38

framing marks, 5

G

grid, framing, 38

guidelines, battery, 60

H

help

camera help, 13

Web links, 54

high ISO, 12

histogram, 38

1

icon

blur, 27

icons, modes, 10

Image stabilizer, 16, 34

image storage, 35

information

about pictures, videos, 26

installing

battery, 1

SD/MMC card, 4

software, 45

internal memory

storage capacity, 59

ISO speed, 33

K

Kodak EasyShare software

installing, 45

upgrading, 59

Kodak Perfect Touch technology, 18

Kodak Web sites, 54

L

language, 36

LCD, ii

brightness, 34

dimmer, 35

reviewing pictures, 14

reviewing videos, 14

lens, i

cleaning lens, 58

loading

battery, 1

SD/MMC card, 4

software, 45

long time exposure, 30

M

Mac OS, installing software, 45

macro/landscape button, ii

magnify a picture, 14

maintenance, camera, 58

make picture from video, 19

manner/museum, 12

memory

inserting card, 4

storage capacities, 59

menu button, ii

menu settings, 29

microphone, i

modes, 10

auto, 10

backlight, 12

beach, 11

children, 12

digital image stabilization, 11

fireworks, 11

flower, 11, 12

high ISO, 12

manner/museum, 12

night landscape, 11

night portrait, 11

scene (SCN), 11

self-portrait, 12

snow, 11

sport, 11

text, 11

multimedia slide show, 23
multiple selections, 26
multi-up, 25
N night landscape, 11 night portrait, 11
0 OK button, ii on/off button, i online prints, ordering, 49 optical zoom, 7 orientation sensor, 35
P
panoramic pictures, 37
Perfect Touch technology, 18
PictBridge enabled printer, 47
picture size, 30
pictures copying, 27 cropping, 17 emailing tagged, 39 Kodak Perfect Touch, 18 printing, 49 printing tagged, 39 protecting, 15 review icons, 28 reviewing, 14 storage capacity, 59 tagging, 44 taking, modes, 10 transfer via USB cable, 45
pictures/video

deleting, 15
playing a video, 14
power
camera, 3
printer dock, 47
printing
from a card, 49
from computer, 49
optimizing printer, 54
order online, 49
PictBridge, 47
tagged pictures, 49
with EasyShare printer dock, 47
protecting pictures, videos, 15
Q quickview, using, 5
R
recycling, disposal, 58
regulatory information, 63
repair, 54
review button, ii
reviewing pictures/video as you take them, 5 deleting, 15 LCD, 14 protecting, 15 slide show, 22
running slide show, 22
s safety, 59 scene modes (SCN), 11 SD/MMC card

inserting, 4

printing from, 49

storage capacities, 59

select multiple pictures/videos, 26

self-portrait, 12

self-timer, 8

light, i

service and support telephone

numbers, 55

setting

AF zone, 32

auto power off, 36

auto-focus, 16, 31, 32, 34

blur warning, 33

burst, 30

cameraounds,35

color mode, 31

date and time, 4

date stamp, 31

digital zoom, 35

exposure metering, 32

image storage, 35

ISO,33

language, 36

LCD brightness, 34

LCD dimmer, 35

long time exposure, 30

orientation sensor, 35

picture size, 30

picture-taking mode, 10

self-timer, 8

sharpness, 33

sound volume, 35

video out, 36

video size, 16, 34

white balance, 32

setting up the camera, 1

setting, albums, 35

setup menu, 34

shaking hand, 27

Share button, ii

sharpness, 33

shutter

problems, 51

self-timer delay, 8

slide show

continuous loop, 22, 23

running, 22

snow, 11

software

installing, 45

upgrading, 59

sound volume, 35

sounds, 35

specifications, camera, 56

sport, 11

status

blur warning, 27

storage capacity, 59

wrap, 1

support,technical,55

T

tagging

favorites, 41

for albums, 44

for email, 39

for print, 39

taking pictures, videos, 5

telephone support, 55

television, slide show, 24

text, 11

time, setting, 4

timer,shutter delay,8

tips

battery guidelines, 60

care & maintenance, 58

transfer, via USB cable, 45

trash can, deleting, 5

trimming a video, 19

troubleshooting, 50

turning camera on and off, 3

U

undo,undo,15

upgrading software, firmware, 59

URLs,KodakWeb sites,54

USB

transferring pictures, 45

USB,A/V out,ii

V

VCCI compliance, 64

video

action print, 20

copying, 27

edit, 19

emailing tagged, 39

light, i

mode button, i

out, 36

playback, 14

protecting, 15

reviewicons,28

size, 16, 34

storage capacities, 59

transfer to computer, 45

viewing, 14

video bookmarks, 21

viewing

by date, album, 26

by multi-up, 25

picture, after taking, 5, 14

picture/video information, 26

volume, 35

W

warranty, 61

white balance, 32

Windows OS, installing software, 45

Z

zoom

digital, 7

optical, 7
