BS700 - Speaker TELEFUNKEN - Free user manual and instructions

Product Type	Bluetooth 2.1 Audio Speaker
Brand and Model	TELEFUNKEN BS700
Dimensions (Main Unit)	175 x 198 mm
Dimensions (Satellite Speakers)	40 x 95 mm
Power Supply	100-240 V ~ 50/60 Hz, output 15 V 2 A
Power Consumption	8.5 W (standby ≤ 0.5 W)
Output Power	10 W x 2 + 25 W (RMS) - total 45 W
Bluetooth Version	Bluetooth 2.1 + EDR, Class 2
Maximum Bluetooth Range	Approximately 10 m
Compatible Bluetooth Profiles	A2DP (Advanced Audio Distribution Profile)
Supported Audio Codec	SBC (Sub Band Codec)
Multiple Pairing	Up to 8 devices
Auxiliary Audio Inputs	2 x Line in (3.5 mm jack)
Included Accessories	Main unit, 2 satellite speakers, audio cable, power adapter, cable and volume/on-off control button
Cleaning and Maintenance	Unplug before cleaning, use a soft dry cloth. Do not use liquid products.
Safety	Do not open, do not expose to water or humidity. Risk of electric shock.
Recycling	WEEE compliant: do not dispose with household waste, deposit at an approved recycling center.
Warranty and Support	Contact customer service: [e-mail] or 0892 70 50 44 (€0.337/min)

Frequently Asked Questions - BS700 TELEFUNKEN

How to connect my phone via Bluetooth to the BS700 speaker?

Enable Bluetooth on your phone, search for devices and select "BS700". If a code is requested, enter "0000". The LED stops flashing once connected.

What to do if the speaker produces no sound?

Check that the volume is not too low. Make sure the satellite speaker cables are properly connected (left/right). If using Bluetooth, check that the audio source is playing.

How to clean the TELEFUNKEN BS700 speaker?

Unplug the device before any cleaning. Use a soft, dry cloth. Never use liquid or abrasive products.

Can I use the speaker in a bathroom or near a pool?

No, the device must not be exposed to water or humidity. Risk of short circuit or electric shock. Use it only in a dry place.

How to reset the Bluetooth connection if it is lost?

Turn off and then on the speaker by turning the volume knob to Off then On. The Bluetooth connection will reset automatically.

What is the maximum Bluetooth range?

The maximum range is approximately 10 meters in open space. Obstacles like walls may reduce this distance.

How many satellite speakers are included?

Two satellite speakers are included, to be connected via 3.5 mm jack cables (left/right).

How to connect an external non-Bluetooth audio device?

Use a 3.5 mm audio cable. Connect one end to the audio output of your device and the other to the "Line in" input of the speaker.

What to do if the device does not turn on?

Check that the power adapter is properly connected to the speaker and the wall outlet. Make sure the outlet works. If the problem persists, contact customer service.

How to recycle the speaker at end of life?

Do not dispose of the device with household waste. Deposit it at a WEEE collection point (waste electrical and electronic equipment) for proper recycling.

USER MANUAL BS700 TELEFUNKEN

Thank you for purchasing this Multimedia player system, in order to fully utilize this system, please read this instruction book carefully before use it.

For your safety

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE, REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.

This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

Caution:

To prevent fire or shock hazard, do not expose this equipment to rain or moisture place.

Power Requirement

Because the power requirement of the electric products is different in various places, before you use this product, make sure that the power requirement of the product is complied to the power that the native district supplies.

Precautions

1. Before operating this system, check the voltage of this system to see if it is identical with the voltage of your local power supply.
2. Unplug the system from the wall outlet if it is not used for a long time. To disconnect the cord, pull it out by grasping the plug.
3. To avoid electric shock, do not open the cabinet by unqualified personnel.
4. There is no user serviceable parts inside. In case of system failure, unplug the power cord and consult your dealer.
5. The ventilation should not be impeded by covering the ventilation openings with items such as newspaper, table-cloths, curtains etc.
6. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Don't get close to the water source when using this unit, such as near bathtub, bath slot, ish-washing slot, washing machine to use it; also, don't use this unit on damp plinth or nearby swimming pool or similar close to the water source.

9. Do not place this unit close to strong magnetic field.

10. Should any solid object or liquid fall into the system, unplug the system and have it checked by qualified personnel before operating it any further.

11. Before cleaning this unit, unplug the system from the wall outlet first. Don't use the cleaner which is with liquid or aerosol (e.g. pesticide). You can use a clean cloth to clean this unit.
12. Please use the connection cable to connect to unit. Don't use accessories equipment recommended by non manufacturer. It may course an electric shock by using this equipment.
13. When the appliance coupler is used as the disconnect device, appliance coupler shall remain readily operable. Do not expose the product to any dripping or splashing and make sure no object filled with liquids, such as vase, etc., are placed on them.
14. It can happen with some devices that Bluetooth connection is lost randomly. Turn on the BS 700 again to reset the connection.

Accessories

Unit × 1
Instructions manual x 1
Speaker x 2
Audio Connect Cable x 1
AC/DC Adapter x 1
Speaker connect line & Volume control knob or Switch on/off x 1

Caution: Please turn off all the equipment power before connecting.

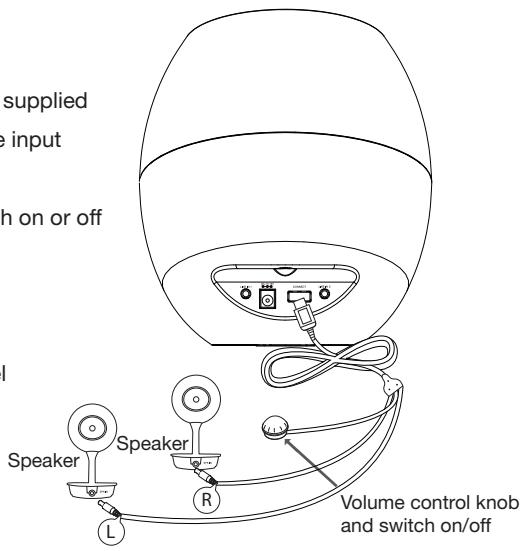

Connecting the Speakers

Connect the speakers to the UNIT socket using the supplied speaker connect line. Insert the R / L speaker cable input sockets on the speaker completely.

Rotate the volume knob until you hear a click, switch on or off this unit.

Notes for connnection

1. Listen at a moderate volume. The higher decibel ranges are offered for those that may have already experienced some hearing loss.
2. Set your volume control at a low setting before connection the unit.

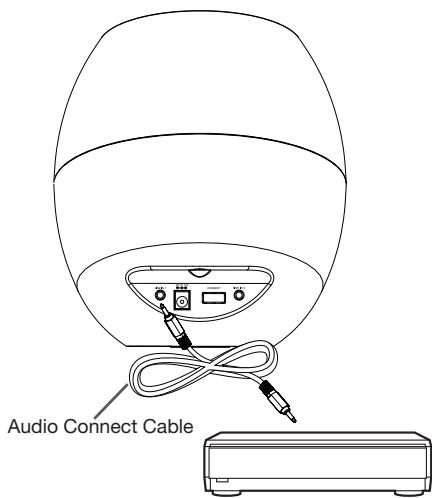

Connect an external audio device

1. The unit have 2 sets external audio input sockets, you can listen to an external audio device through this unit, connect the LINE INPUT sockets on this unit to the output sockets on external audio device.

Note:

Refer to the manual accompanying external devices for more information.

External audio device

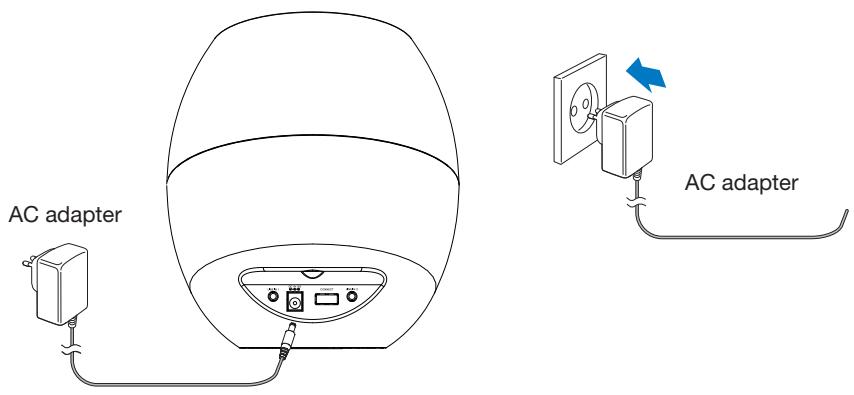

Connecting the AC/DC Power Cord

1. After you made all necessary connections, insert the AC/DC power plug into a wall outlet, and your system is ready to use.

Caution:

1. Be sure to unplug the power cord from the outlet when going away or when the system is not in use for an extended period of time.
2. If no source is played/no operation within 15 minutes, the unit switches to ECO power standby mode.

Play with Bluetooth device

Pair the Bluetooth-enabled devices

To connect your Bluetooth device to the unit, you need to pair the device to the unit.

Pairing needs only to be done once.

Note:

• The operational range between this unit and a Bluetooth device is approximately 10 meters.
• Before you connect a Bluetooth device to this unit, familiarize yourself with the Bluetooth capabilities of the device.
• Compatibility with all Bluetooth devices is not guaranteed.
• Any obstacle between this unit and a Bluetooth device can reduce the operational range.

• Keep this unit away from any other electronic device that may cause interference.

• Turn on the Bluetooth function on your device.

• Search for other Bluetooth device with your device.
• Select "BS700" in the pairing list.
• Enter default password "0000", or other Bluetooth devices not need to enter password, pairing directly.

LED flash light:

If no connection the Bluetooth device, the LED light flash once per 1 second. Connection already, the white light LED bright.

Note:

• The device will also be disconnected when the device is moved beyond the operational range.
• If you want to reconnect the device to the unit, place it within the operational range.
• The device will be connected the Bluetooth device pairing already, and also enter pairing mode, other Bluetooth device can be searching for connection or pairing.
• When the unit disconnected the Bluetooth device, it will enter pairing mode automatically, other Bluetooth device can be searching for connection or pairing.

Listen to music from Bluetooth device

If the connected Bluetooth device supports Advanced Audio Distribution Profile (A2DP), you can listen to the music stored on the device through the unit.

1. Pair the device with the unit.
2. Start play music via device.

Note:

If connected other devices and Bluetooth listen to music, the files within Bluetooth device playback advanced.

3 Technical Specification

General

Power supply. 100 - 240V ~ 50 / 60Hz

DC supply. 15V = 2A

Power consumption 8.5W

Output power. 10W× 2 + 25W(RMS)

Power consumption in standby mode. 0.5 W

Dimensions (Unit) 175 x198 mm

(Speaker) 40 × 95 ~mm

Bluetooth

Communication system. Bluetooth Standard version 2.1

and EDR specification

Output . Bluetooth Standard Power Class 2

Maximum communication Range approx. 10m

Frequency band 2.4 GHz Band

(2.4000 GHz - 2.4835 GHz)

Compatible Bluetooth profiles............ Advanced Audio Distribution

Profile (A2DP)

Supported Multi devices pairing up to 8 devices

Supported codecs (Receive) SBC(Sub Band Codec)

(Transmit) SBC(Sub Band Codec)

Note: Design and specifications are subject to change without prior notice.

If you are having a problem with your system, check this list for a possible solution before calling for service. If you cannot solve the problem from the list below, or the system has been physically damaged, call a qualified person, or your dealer, for service.

No power

• Connections is incorrect.

No sound

Volume is too low. Adjust volume.
- Speaker connections is incorrect.

About Bluetooth device

Music playback is unavailable on the system even after successful Bluetooth connection.

The device cannot be used with the system to play music.

The audio quality is poor after connection with a Bluetooth-enabled device.

• The Bluetooth reception is poor. Move the device closer to the system or remove any obstacle between the device and the system.

Cannot connect with the system.

The device does not support the profiles required for the system.
- The Bluetooth function of the device is not enabled. Refer to the user manual of the device for how to enable the function.
The system is not in the pairing mode.
- The system is already connected with another Bluetooth-enabled device. Disconnect that device or all other connected devices and then try again.

The mark is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/ EC (WEEE). The mark indicates the requirement NOT to dispose the equipment including any spent or discarded batteries as unsorted municipal waste, but use the return and collection systems available.

If the batteries or accumulators included with this equipment, display the chemical symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than 0.0005% Mercury, or more than 0.002% Cadmium or more than, 0.004% Lead.

Notes for battery disposal

Your unit contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please take note about the local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.

TELEFUNKEN

TELEFUNKEN

Bluetooth-Audiosystem

Bedienungsanleitung

Modell:

BS700

Bluetooth
