USER MANUAL E845E BABYLISS

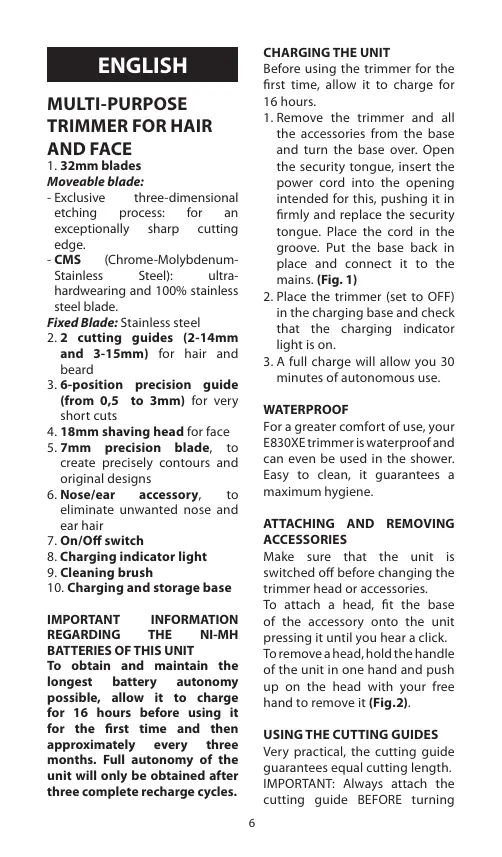

1. 32mm blades Moveable blade:

- Exclusive three-dimensional etching process: for an exceptionally sharp cutting edge.

- CMS (Chrome-Molybdenum- Stainless Steel} ultra- hardwearing and 100% stainless steel blade.

Fixed Blade: Stainless steel

2.2 cutting guides (2-14mm and 3-15mm) for hair and beard

é-position precision guide {from 0,5 to 3mm) for very short cuts

18mm shaving head for face 7mm_ precision blade, to create precisely contours and original designs

Nose/ear accessory, 10 eliminate unwanted nose and ear hair

8. Charging indicator light

10. Charging and storage base

IMPORTANT INFORMATION REGARDING THE NI-MH BATTERIES OF THIS UNIT To obtain and maintain the longest battery _ autonomy possible, allow it to charge for 16 hours before using it for the first time and then approximately every three months. Full autonomy of the unit will only be obtained after three complete recharge cycles.

CHARGING THE UNIT Before using the trimmer for the first time, allow it to charge for 16 hours.

1.Remove the trimmer and all the accessories from the base and turn the base over. Open the security tongue, insert the power cord into the opening intended for this, pushing it in firmly and replace the security tongue. Place the cord in the groove. Put the base back in place and connect it to the mains. (Fig. 1)

Place the trimmer (set to OFF) in the charging base and check that the charging_indicator light is on.

A full charge will allow you 30 minutes of autonomous use.

WATERPROOF For a greater comfort of use, your E830XEtrimmeris waterproof and can even be used in the shower. Easy to clean, it guarantees à maximum hygiene.

ATTACHING_ AND REMOVING ACCESSORIES Make sure that the unit is switched off before changing the trimmer head or accessories.

To attach à head, fit the base of the accessory onto the unit pressing it until you hear a click Toremove ahead,holdthe handle of the unit in one hand and push up on the head with your free hand to remove it (Fig.2).

USINGTHE CUTTING GUIDES Very practical, the cutting guide guarantees equal cutting length. IMPORTANT: Always attach the cutting guide BEFORE turning

the trimmer on, and turn it off before changing the guide.

The cutting length of your E30XE trimmer is manually adjustable. To increase the cutting length, push the cutting guide up.

To reduce the cutting length, push it down.

The selected length is displayed at the back of the trimmer.

CUTTING TECHNIQUES AND ADVICE FROM THE EXPERTS HAIR

+ Use the trimmer on clean, dry hair.

«To familiarise yourself with the timmer, start with a longer cutting length _and_ gradually work through the shorter lengths to the one you want. In this way you'll quickly find the cutting length that suits you best.

«Always move the _trimmer against the direction of hair growth.

«Begin at the nape. Place the guide on the scalp and move the trimmer toward the crown of your head. Move your trimmer slowiy, pointing the teeth of the guide slightly upward. Keep the trimmer in contact with your head at al times. (Fig. 3)

- For the crown of the head, move from front to back, that is, from your forehead to the crown of your head.

- For the finishing touches, that is, around the nape and sideburns, use the trimmer without a cutting guide. Tu your trimmer over and move it from top to bottom. (Fig. 4)

+1f you want à length greater than 30 mm, or if you are experienced, you can create “comb'or finger'euts:

-Work without à cutting guide. -Take up à small section of hair with à comb or in your fingers.

- Move the comb or your fingers along the section of hair to the desired length.

- Cut your hair along the comb or your fingers.

-Remove the cut hair using à comb and check the evenness ofthe eut regulary. (Fig. 5)

FACE For the beard or moustache just the way you want it...

Decide on the type of beard or moustache that best suits. your face taking into account the size of your face and natural growth and thickness of your beard and/ or moustache. After _deciding on the form of the beard and/or moustache, it is easy to maintain is appearance by using the trimmer as soon as you feel it is necessary. For better results, we recommend cutting_the_beard véhen it is dry. This helps make the cut precise and comfortable.

To determine the shape of the beard

After having combed your beard in the direction of its natural growth, decide on the desired shape by starting under the jaw. Come back up each side towards the ears. Then continue on your cheeks towards the hair. Make sure you always trim or style your beard against the hair growth.

For an irresistibly soft skin. Theshavingheadadaptsperfectly 10 the contours of your face and gives even the most difficult parts à close shave. Result: à neat and precise cut in less time for an impeccable look

Patterning your hair and giving it aperfect finish

Use the precision trimmer. Your precision trimmer comes with an exclusive special short cut blade. Its narrow size (7mm) enables you 10 pattem your hair and beard with great accuracy.

To eliminate undesirable nose and ear hairs

Gent insert trimmer head into the ear or nose and cut the airs. NOTE! Only use in the opening of the nostrls or ears to avoid any risk of injury.

MAINTENANCE Remove the cutting guide after each use Cleaning_the_trimmer_blades regularly will. maintain their optimal performance. Removable blades

To_ make cleaning easier, the BaByliss trimmer blades can be removed. Make sure the trimmer is turned off. Hold the trimmer with the blades pointing up and remove them by pressing the top ofthe blade. (Fig. 6)

Brush the blades using the cleaning brush to remove any hair.

Periodically, it may be necessary 10 oil the blades. After cleaning, attach à timmer head, switch on and oil the blades using a few drops of lubricating oil.

BaByliss oilis specially formulated for trimmers, it will not evaporate or slowr the blades down.

You can get new blades when these are worn or damaged.
