E702XTE - Electric mower BABYLISS - Free user manual and instructions

Product type	Electric trimmer
Brand	BaByliss
Model	E702XTE
Power supply	Rechargeable Ni-MH battery or mains via 3V / 1000mA adapter
Initial charging time	16 hours
Runtime	30 minutes
Number of cutting guides	2 guides: 22 lengths (3-18mm and 21-36mm, 1.5mm steps)
Precision guide	Yes, 5 positions (0.5 to 2.5mm)
Turbo function	Yes, dedicated button for increased power and speed
Moving blade	3D electrochemical sharpening for optimal sharpness
Fixed blade	Titanium coating for increased longevity
Height adjustment system	Dial with digital display; SMART ADJUSTING SYSTEM maintains height
Mains operation	Yes, after one minute of connection
Charge indicator	Yes
Cleaning	Brush included; removable blades for easy cleaning
Blade maintenance	Self-lubricating via reservoir pad; refill with BaByliss oil
Spare parts	Replacement blades and specific oil available
Safety	Turn off the device before changing guide; use only the supplied adapter
Usage tips	Clean and dry hair; move in the opposite direction of hair growth

Frequently Asked Questions - E702XTE BABYLISS

How to charge the BaByliss E702XTE trimmer for the first time?

Before first use, charge the trimmer for 16 hours. Plug the transformer into the mains, then the plug into the device. Make sure the charge indicator is on and the switch is in the OFF position. A full charge gives 30 minutes of runtime.

How to use the Turbo function?

For a boost of cutting power, press the «TURBO» button. This increases cutting power and speed, useful for tricky areas.

How to clean the trimmer blades?

Make sure the trimmer is off. Hold it with blades facing up, press at the tip of the blades to detach them. Brush them with the provided cleaning brush to remove hair.

How to adjust the cutting height?

Turn the adjustment dial (6) up or down. The selected height appears on the sides of the device. Thanks to the SMART ADJUSTING SYSTEM, the height is maintained regardless of the tilting angle.

How to change the cutting guide?

Always turn off the trimmer before changing the guide. Set the cutting height to 3mm or 21mm. Place the guide onto the frame by first adjusting the marked sides, then clip the lower part. To remove, unclip from the lower part with your thumb.

Can I use the trimmer on mains power?

Yes, plug it into the mains, wait 1 minute and turn the switch to ON. Use only the supplied transformer (voltage 3.0V, current 1000mA).

What is the battery runtime and how to maintain it?

A full charge gives 30 minutes of use. To preserve the Ni-MH battery, perform a 16-hour charge before first use and every 3 months. Full runtime is reached after 3 complete charge cycles.

What oil to use for lubricating the blades?

Use BaByliss oil specially formulated for trimmers. Put a few drops on the reservoir pad after removing the blades. Replenish periodically as soon as you notice a decrease in performance.

How to replace worn blades?

BaByliss replacement blades are available. To remove them, turn off the trimmer, hold it with blades facing up and press at the tip to detach them. Install new blades in reverse order.

Can I use the trimmer on wet hair?

No, use the trimmer on clean and dry hair for optimal results and to avoid damaging the blades.

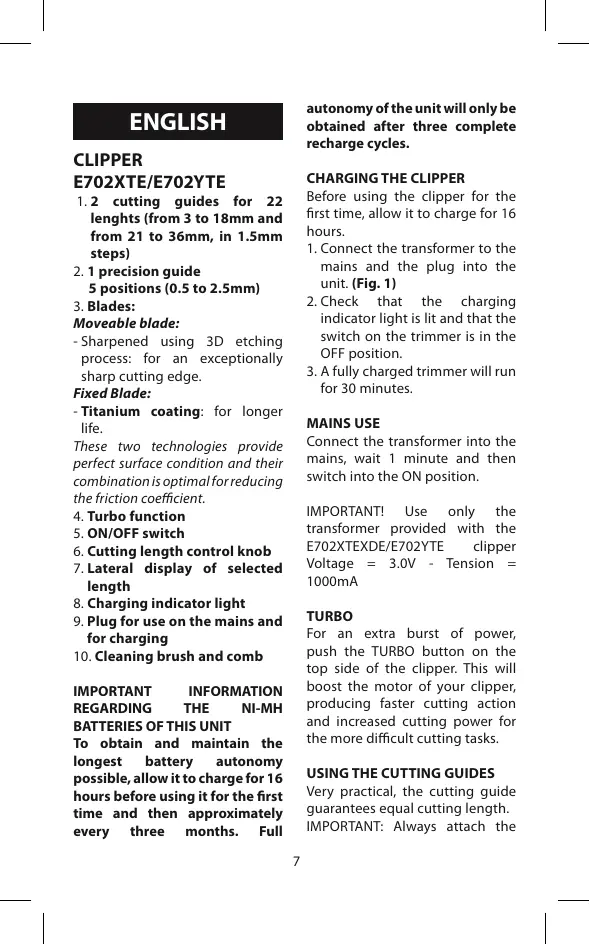

USER MANUAL E702XTE BABYLISS

1.2 cutting guides for 22 lenghts (from 3 to 18mm and from 21 to 36mm , in 1.5mm steps)

2.1 precision guide 5 positions (0.5 to 2.5mm
3. Blades:

Moveable blade:

• Sharpened using 3D etching process: for an exceptionally sharp cutting edge.

Fixed Blade:

Titanium coating: for longer life.

These two technologies provide perfect surface condition and their combination is optimal for reducing the friction coefficient.

1. Turbo function
2. ON/OFF switch
3. Cutting length control knob
4. Lateral display of selected length
5. Charging indicator light
6. Plug for use on the mains and for charging
7. Cleaning brush and comb

IMPORTANT INFORMATION
REGARDING THE NI-MH BATTERIES OF THIS UNIT

To obtain and maintain the longest battery autonomy possible, allow it to charge for 16 hours before using it for the first time and then approximately every three months. Full

autonomy of the unit will only be obtained after three complete recharge cycles.

CHARGING THE CLIPPER

Before using the clipper for the first time, allow it to charge for 16 hours.

1. Connect the transformer to the mains and the plug into the unit. (Fig. 1)
2. Check that the charging indicator light is lit and that the switch on the trimmer is in the OFF position.
3. A fully charged trimmer will run for 30 minutes.

MAINS USE

Connect the transformer into the mains, wait 1 minute and then switch into the ON position.

IMPORTANT! Use only the transformer provided with the E702XTEXDE/E702YTE clipper Voltage = 3.0V - Tension = 1000mA

TURBO

For an extra burst of power, push the TURBO button on the top side of the clipper. This will boost the motor of your clipper, producing faster cutting action and increased cutting power for the more difficult cutting tasks.

USING THE CUTTING GUIDES

Very practical, the cutting guide guarantees equal cutting length.

IMPORTANT: Always attach the

cutting guide BEFORE turning the trimmer on, and turn it off before changing the guide.

To attach the cutting guide, first adjust the cutting length to 3mm or 21mm and place it on the support guide adjusting first both sides and then pushing on the bottom of the guide until you hear a 'click' (Fig. 2)

To remove the cutting guide, first adjust the cutting length to 3mm or 21mm and push the guide out of the support lifting it up with your thumb. (Fig. 3)

NOTE: The precision guide must be placed like the cutting guides but it is adjusted manually and independently of the grooved wheel.

TURNING ON AND USING

To adjust the clipper's cutting length, turn the grooved wheel (6) up or down.

The selected length is displayed on the right or left side of the clipper.

Switch the ON/OFF button.

You can change the cutting length at any time.

Thanks to the SMART ADJUSTING SYSTEM, the length of the cut is maintained even if the angle of the clipper varies, so it guarantees precise result.

CUTTING TECHNIQUES AND ADVICE FROM THE EXPERTS

• Use the clipper on clean, dry hair.
• To familiarize yourself with the clipper, begin with the cutting guide for a longer cut, then, if you want a shorter cut, adjust it by pushing the knob. You will soon know the lengths of each guide and each position.
• Always move the clipper against the direction of hair growth.
• Begin at the nape. Place the guide on the scalp and move the clipper toward the crown of your head. Move your clipper slowly, pointing the teeth of the guide slightly upward. Keep the clipper in contact with your head at all times. (Fig. 4)
• For the crown of the head, move from front to back, that is, from your forehead to the crown of your head.
• For the finishing touches, that is, around the nape and sideburns, use the clipper without a cutting guide. Turn your clipper over and move it from top to bottom. (Fig. 5)
• If you want a length greater than 30mm , or if you are experienced, you can create 'comb' or 'finger' cuts:
  -Work without a cutting guide.
• Take up a small section of hair with a comb or in your fingers.

• Move the comb or your fingers along the section of hair to the desired length.

• Cut your hair along the comb or your fingers.

• Remove the cut hair using a comb and check the evenness of the cut regularly. (Fig. 6)

MAINTENANCE

Remove the cutting guide after each use.

Cleaning the clipper blades regularly will maintain their optimal performance.

Removable blades

To make cleaning easier, the BaByliss clipper blades can be removed. Make sure the clipper is turned off. Hold the clipper with the blades pointing up and remove them by pressing the top of the blade. (Fig. 7)

Brush the blades using the cleaning brush to remove any hair.

Self-lubricating blades

The blades of your clipper have a reservoir pad that dispenses the amount of oil necessary for your clipper to operate properly, every time. It is nevertheless recommended that you occasionally refill, when you notice the clipper isn't performing as well.

Remove the blades as described above.

Carefully squeeze a few drops of BaByliss oil onto the pad. (Fig. 8) Then put the blades back on the clipper.

BaBylliss oil is specially formulated for clippers, it will not evaporate or slow the blades down.

You can get new blades when these are worn or damaged.
