Product type	Kitchen fan
Brand	Steba
Model	VT 5
Dimensions (W x H x D)	25 x 30 x 15 cm
Weight	1.2 kg
Power supply	220-240 V ~ 50 Hz
Power	40 W
Number of speeds	3 speeds
Oscillating function	Yes
Maximum noise level	55 dB(A)
Blade diameter	20 cm
Blade material	ABS plastic
Protective grille	Lacquered metal
Color	White
Cable length	1.5 m
Tilt angle	Adjustable 30°
Protection class	II
Maintenance and cleaning	Clean the grille and blades with a damp cloth. Unplug before cleaning.
Safety instructions	Do not immerse in water, do not use outdoors, keep out of reach of children.
Spare parts	Protective grille, blade, base. Repairability: contact Steba after-sales service.

Frequently Asked Questions - VT5 STEBA

How to adjust the speed of the Steba VT 5 fan?

Use the speed selector located on the motor housing. Three positions are available: 1 (low), 2 (medium), 3 (high).

Can the fan oscillate?

Yes, press the oscillation button at the back of the motor to activate or deactivate the automatic rotation movement.

How to clean the Steba VT 5 fan?

Unplug the appliance. Remove the front grille (turn it counterclockwise). Clean the grille and blades with a soft, damp cloth. Do not use abrasive products. Allow to dry completely before reassembling.

The fan is noisy, what should I do?

First check that the grille is properly secured and that the blades are not touching anything. If the noise persists, ensure the fan is on a stable surface. A grinding noise may indicate a lack of lubrication: consult the manual or contact customer service.

Can I use the fan in a bathroom?

No, this model is not designed for use in humid environments. It is intended for indoor dry use only. Moisture can damage electrical components.

How to assemble the base of the Steba VT 5 fan?

Insert the base rod into the hole at the bottom of the motor and tighten the locking knob. To disassemble, loosen the knob and remove the rod.

The fan does not start, what should I check?

Check that the electrical outlet is working and that the cable is not damaged. Ensure the speed selector is not set to '0'. If the problem persists, contact Steba customer service.

Can I adjust the tilt angle of the fan?

Yes, loosen the hinge screw at the back of the motor, tilt the fan head to the desired angle (up to 30°), then retighten the screw.

What is the warranty for the Steba VT 5 fan?

The legal warranty of conformity is 2 years from the date of purchase. Keep your receipt. For any claims, contact your retailer or Steba after-sales service.

Where can I find spare parts for this fan?

Spare parts (grille, blades, base, etc.) are available from Steba after-sales service. Visit the Steba website or contact their hotline to order.

USER MANUAL VT5 STEBA

220 – 240 V\~; 50 Hz; 54 W

Ventilator

VT 5

Instructions for use 10

Mode d'emploi 16

This appliance is for private use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too.

Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Do not use if the cord or appliance is damaged. Always check before using the appliance! Only the appropriate connector must be used.
• The appliance is to be connected to a socket-outlet having an earthing contact.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capacities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety
• Children should be supervised to ensure that they do not play with the appliance.
• After using the appliance or if the appliance malfunctions, always pull out the plug.
• Never pull at the cord set. Do not chafe it over edges or squeeze it.
• Keep the power supply cord away from hot parts.
• Move switch to „O“ when device is not being used
• Do not leave the apliance outdoors or in a damp area.
• Never immerse the appliance in water.

• Do not operate the appliance if it is damaged (for example if it felt over).

• The manufacturer is not liable for damage occurred by using the apliance in another way than described or if a mistake in operating has been made

• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.
• The appliance is not intended to be operated by means of an external timer or separate remote control system.
  Do not direct the air flow from the device at flames (e.g. fireplaces, candles etc.), on babies or patients. Do not cover the intake or the outlet.
• Never plug something into the safe guard while the device is running.

Cleaning and maintainance:

• Unplug the device.
• Never immerse the device in water!
• Use a humid cloth with a little bit of detergent to clean it.
• Clean dusty ventilation grilles with a vacuum cleaner.

Safety instructions when using the device:

• Always connect the device to a safety socket
• Do not use the device unless it is fully assembled.
• Route connecting cable in such a way as to avoid unintentional contact, stumble or pulling during operation.
• Unplug device from socket before moving its location.
• Disconnect mains plug after use and before cleaning.

Working place:

Place this device on a even and stable surface. Do not place the device near objects that may be sucked in (such as curtains)
- Do not place the device directly in front of people or animals.
- For your health's sake, please select the correct air speed.

Assembly:

Before every assembly or disassembly the device must be turned off!

Assembly of the base and the stand

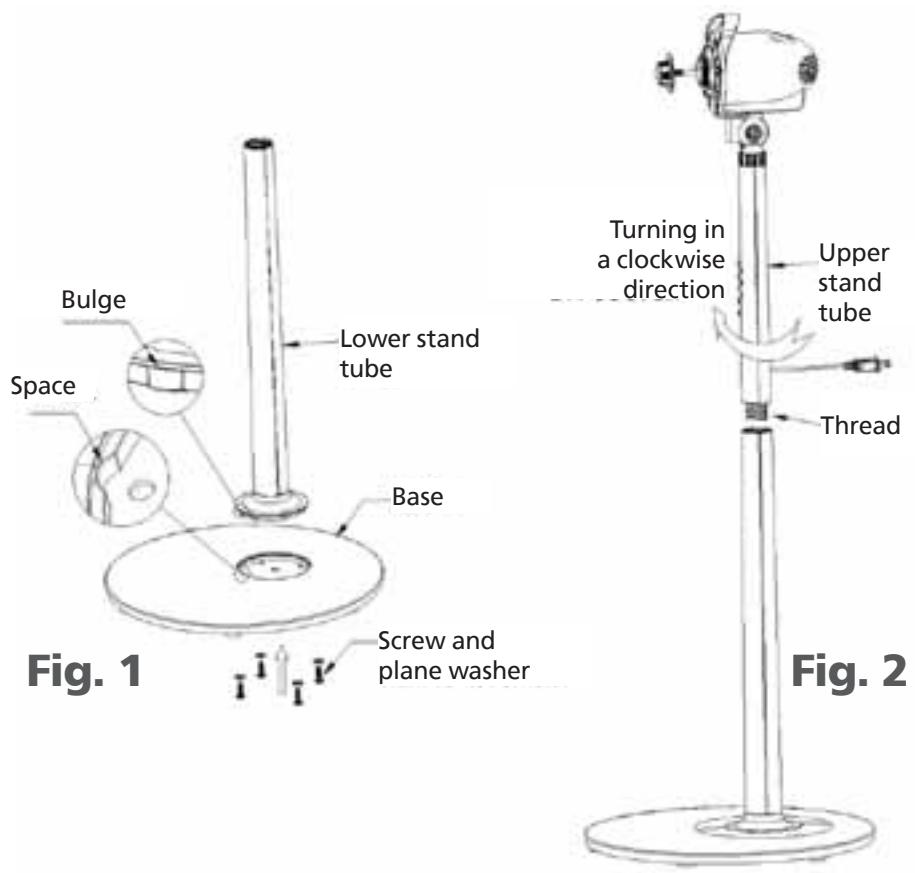

1. Insert the lower stand into the hole at the base. Tighten the stand with the 4 screws on the base (Fi. 1).
2. Afterwards, insert the upper stand to the lower one and clockwise screw tightly (Fig. 2).

Assembly of the fan blades and the safety guard

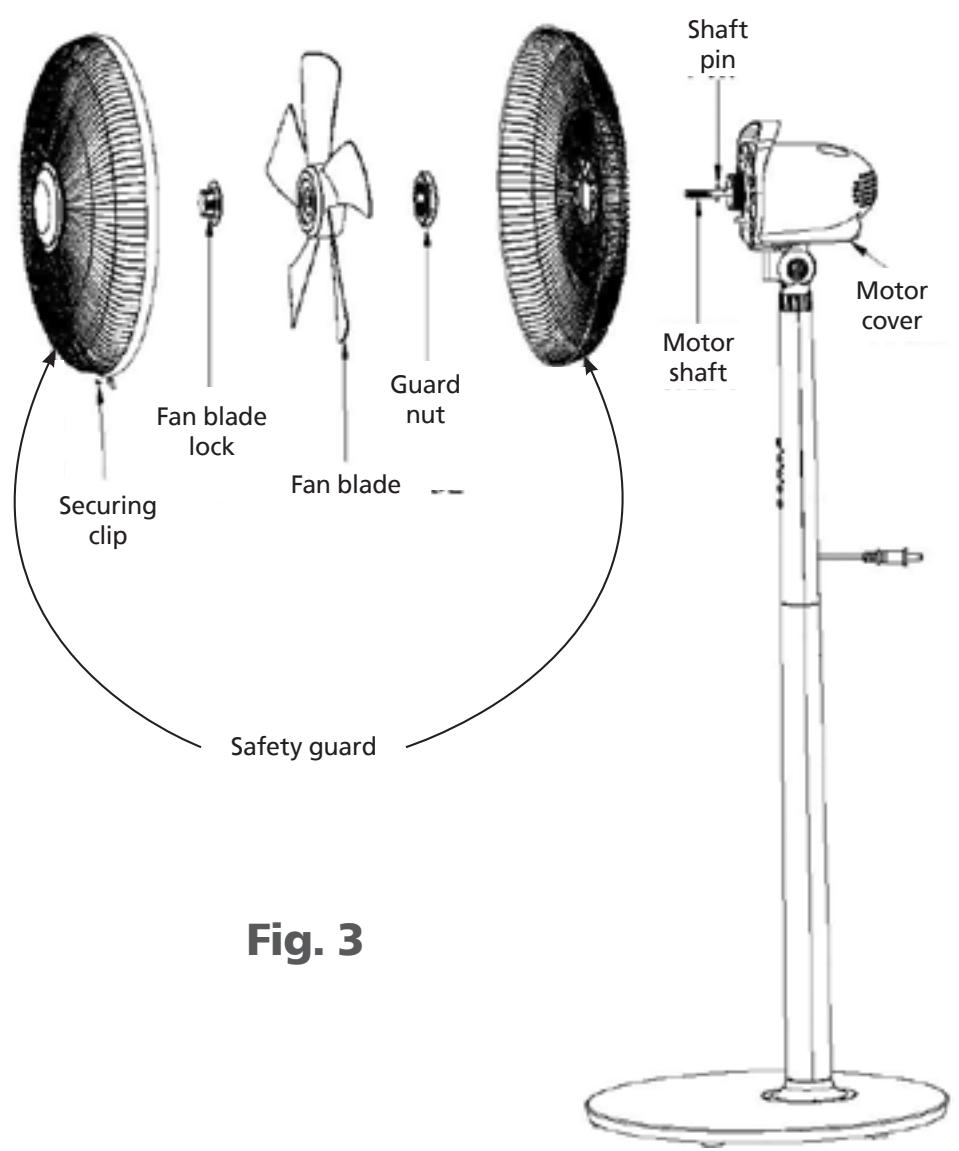

1. Remove the fan blade lock and the guard nut from the moto shaft. Place the rear safety guard onto the shaft pin. Tighten the safety guard with the guard nut at the motor (Fig. 3).

2. Push the fan blade onto the motor shaft by aligning the slots on the base of the fan blades with the shaft pin. Tighten the fan blades with the fan blade lock. This lock must be tightened counterclockwise. Check that the fan blades rotate freely by slightly turning them.

3. Open the securing clip and loosen the screw on the lower side of the front safety guard. Position the front guard at the upper side of the rear guard. Press the front guard onto the rear guard and close the securing clip. Tighten the crew.

Functions

ON/OFF

The device starts at low speed. The symbol I and 📋 shine.

By pressing this button you can change the ventilation performance:

- Level II – medium

- Level III – fast

The device runs continuously.

Setting the time from 1 – 7 hours.

After the time run out, the device turns off.

Oscillation

Function mode

Uninterrupted service

Interval ventilation

This setting should simulate natural winds. The different wind flows repeat every 60 seconds as long as the set time runs out.

Level I: low airflow

Level II: medium airflow

Level III: high airflow

Sleeping mode

The tilt angle can be adjusted.

Information requirements

Steba VT 5
Description	Symbol	Value	Unit
Maximum fan flow rate	F	69,95	m3/min
Fan power input	P	56,6	W
Service value	SV	1,24	(m3/min)/W
Standby power consumption	PSB	0,41	W
Fan sound power level	LWA	60,5	dB(A)
Maximum air velocity	c	2,99	meters/sec
Measurement standard for service value	IEC 60879:1986(CORR.1992)
Contact details for obtaining more information	Steba Elektrogeräte GmbH & Co.KG Pointstr. 296129 Strullendorf

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
