RC60 - Kitchen appliance STEBA - Free user manual and instructions

Brand	Steba
Model	RC60
Product type	Multi-function kitchen appliance (grill, raclette, gratin)
Intended use	Private domestic use, non-commercial
Power supply	Mains plug 220-240 V (standard household current)
Rated power	Approximately 1200 W (estimate)
Dimensions (W x D x H)	Approximately 40 x 30 x 10 cm (estimate)
Weight	Approximately 3 kg (estimate)
Main material	Non-stick cooking plate (PTFE coating), heat-resistant plastic housing
Number of plates	2 plates usable separately (ridged grill and smooth surface)
Number of pans	Several Gourmet pans (raclette) included (quantity not specified)
Main functions	Grilling (meat, fish, vegetables), raclette (melted cheese), cheese gratin
Grill plate type	Reversible plate: ridged side for grilling, smooth side for crêpes
Temperature control	By thermostat (preheating recommended 5 min)
Cleaning and maintenance	Grill plate dishwasher-safe; pans hand wash; Do not immerse base
Safety features	Safety shutdown by thermostat? (not specified); instructions: unplug after use, do not touch hot plate
Cable length	Approximately 1 m (estimate)
Included accessories	Grill plate, Gourmet pans, wooden spatula? (not specified)
Warranty	Statutory warranty (according to country); after-sales service by Steba
Country of manufacture	Not specified (probably Germany or China)

Frequently Asked Questions - RC60 STEBA

How long should I preheat the Steba RC60 before using it?

It is recommended to preheat the appliance for about 5 minutes before starting cooking.

Can I use both plates at the same time?

Yes, both plates can be used separately or simultaneously according to needs.

Is the grill plate removable?

Yes, the grill plate is removable for easy cleaning. Lift it carefully from the bottom after cooling.

Can I put the plate and pans in the dishwasher?

The grill plate is dishwasher-safe. The Gourmet pans must be washed by hand (soaking in hot soapy water).

What types of food can I cook on the plate?

You can cook meat (steaks, minced), fish, vegetables, and even crêpes on the smooth side. Avoid overly thick foods.

How to prevent smoke from forming during cooking?

Wipe the plate regularly with paper towels using tongs to remove excess fat and residues.

Can I use cheese other than raclette?

Yes, any hard cheese with a fat content above 45% is suitable for melting or gratinating.

Is the appliance safe for children?

The appliance can be used by children over 8 years old under supervision. Children must not play with the appliance or clean it alone.

What to do if the power cord is damaged?

Do not use the appliance. Send it to an authorized after-sales service for cord replacement. Do not repair it yourself.

How to dispose of the appliance at the end of its life?

Do not throw it in household waste. Drop it off at a collection point for electrical equipment waste or return it to the point of sale.

USER MANUAL RC60 STEBA

Raclettegrill RC 60 Twin

Instructions for use 8

Mode d'emploi 13

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

• The appliance must be used and plugged in only according the requirements shown on the rating label.
• Use the appliance only if the cord shows no damages. Check this before every use!
• Do not touch the power plug with wet hands.
• Connect the power plug to a properly installed and easily accessible socket only.
• To unplug the power plug, always pull the plug – not the cable.
• Plug off the appliance after each use or in case of failure.
• Do not pull at the cord. Don't pull it over edges and don't bend it too much.
• Keep the cord away from hot parts.
• Caution - never take of the grill plate while it is hot! Do not clean it until it has cooled down sufficiently (see instructions for cleaning).
• Never clean the basic appliance under running water, and certainly never immerse it in water.

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

- Children under the age of 8 must be kept away from the appliance and the connecting cable.

- Children should be supervised to ensure that they do not play with the appliance or packaging material (e.g. Plastic Bags).

- The appliance must not be operated using a timer or a separate remote system!

Attention! Housing get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials.

- When using a powercord extension it is important that children are not pulling at it or a trip hazard occurs.

- Caution - watch out for splashes of fat when grilling juicy meat and/or using a large quantity of fat. Sausages should be pricked before grilling, or there may be a danger of someone suffering burns.

- Never cut meat or any other food on the grill surface as it could otherwise be damaged.

- If any repair is necessary, including the replacement of the lead, the appliance must be handed in to the electrical dealer from which it was purchased.

- Repairs to electrical appliances must only ever be carried out by a qualified electrician. Improper attempts at repair can result in serious danger for the user.

- No legal liability can be accepted for damage resulting from the appliance being used wrongly or for the wrong purpose.

Cleaning

• Always pull the plug out of the socket before cleaning the appliance.
• Clean the appliance as soon as possible alter use, but allow the grill surface to cool down sufficiently first. Cleaning is easiest while the appliance is still fairly warm. To remove the grill surface, lift it up from underneath with one hand. Then you can take it out without any difficulty.
• Use a damp cloth for cleaning. Never immerse the appliance in water. Make sure that no water finds its way inside the appliance. Observe the safety instructions as well.
• Soak the gourmet pans in water with a little washing-up liquid for a while to soften if necessary.
• The Non-stick grill plate can likewise be washed up in water and washing-up liquid, but is also perfectly suitable for a dish-washing machine.

Put the appliances into operation

Important! Heat up the appliance for about 5 min. Every plate can be used separately.

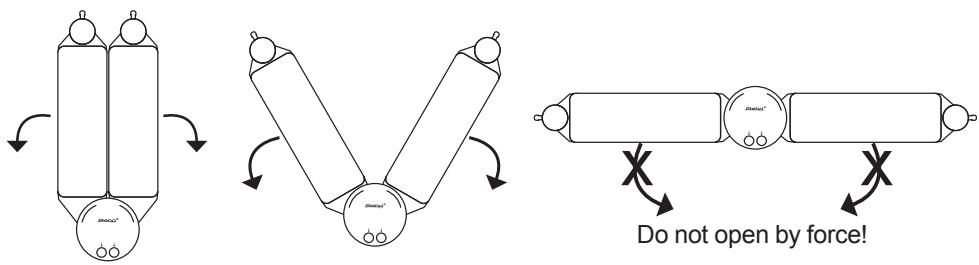

According to the form of the table, the device can be customized:

1. Grilling on the grilling plate

No-stick grilling plate:

You can grill dishes beautifully using the ribbed surface.

To avoid smoking and burning in of excessive fat or food residues, the grill plate should be wiped off repeatedly.

As the grill plate can be very hot, use ca 3-4pcs of scrunched paper towels and wipe off the grill area with a grill tong.

When planning the evening, reckon on about 200 to 250 grams of material per person. On the grillplate you can prepare meat (e.g. rump steak or mince), fish, and a wide variety of tasty dishes. A large number of side-dishes, sauces, and dips are suitable to accompany them.

• How well „done“ the dishes have to be depends on the type of meat or fish, the length of time it takes, its initial temperature, and its thickness. If you prefer your steaks not too „rare“, do not cut them too thick.
• The time you give meat or fish is a matter of your personal taste. Turn the meat or fish over from time to time.
• Finally, you can salt the meat or fish, or add a sauce to it. Do not salt before grilling as this draws the juice out.

2. Raclette dishes with the gourmet pans

You can fill the pans with all kinds of ingredients cut up small, whatever takes your fancy, cover it with cheese, and heat it under the grill until the cheese melts. Anything is suitable that you can think of for overbaking with cheese, e.g. meat cut into tiny pieces, poultry, fish, fruits de mer, sausage, fruit, and vegetables. There are specially selected raclette cheeses on the market, but you can try other kinds provided their tat content is over 45%.

3. Overbaking „au gratin“ with cheese

You can use this raclette grill to cover the dishes you have made on the grill with a delicious gratiné cheese crust. Simply scatter grated cheese, possibly mixed with caraway seeds, over the dish, or lay it on top in slices, and place the gourmet pan under the grill.

The gourmet pan will be heated from on top by radiant heat, just like under a grill. First the cheese will melt, then it goes dark in colour. Take the pan out as soon as the cheese is a crisp golden brown.

4. Old-original raclette cheese method

In this instance, the cheese is at the focal point of the raclette party. Plan about 200 to 250 grams of cheese and potatoes per person, and side-dishes as well. Place a slice of cheese about 5 mm (3/8th of an inch) thick in the pan, cut to fit, and push it in under the grill. Once the cheese has melted into a creamy mass, take the pan out and extract the cheese with the aid of a small wooden spatula and pour it onto boiled or foil potatoes, French bread, or toast.

Some Tips for grilling

In the interest of your health:

• Minced meat must be processed immediately
• Separate roasted poultry from raw meat, do not eat raw meat and always grill until fully cooked.
• Cured meat and sausages should not be grilled too much.
• Starches (eg, bread, potatoes) must not be grilled too dark

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:
