USER MANUAL ESA3245 HAIER

Important: Test power plug before each use:

1. Press “reset “button.

2 . Press “test “button, unit should trip.

3. Press “reset” button again for use .

Do not use if above test fail. In the event this device trips , the cause of the malfunction is to be corrected before further use of the device .

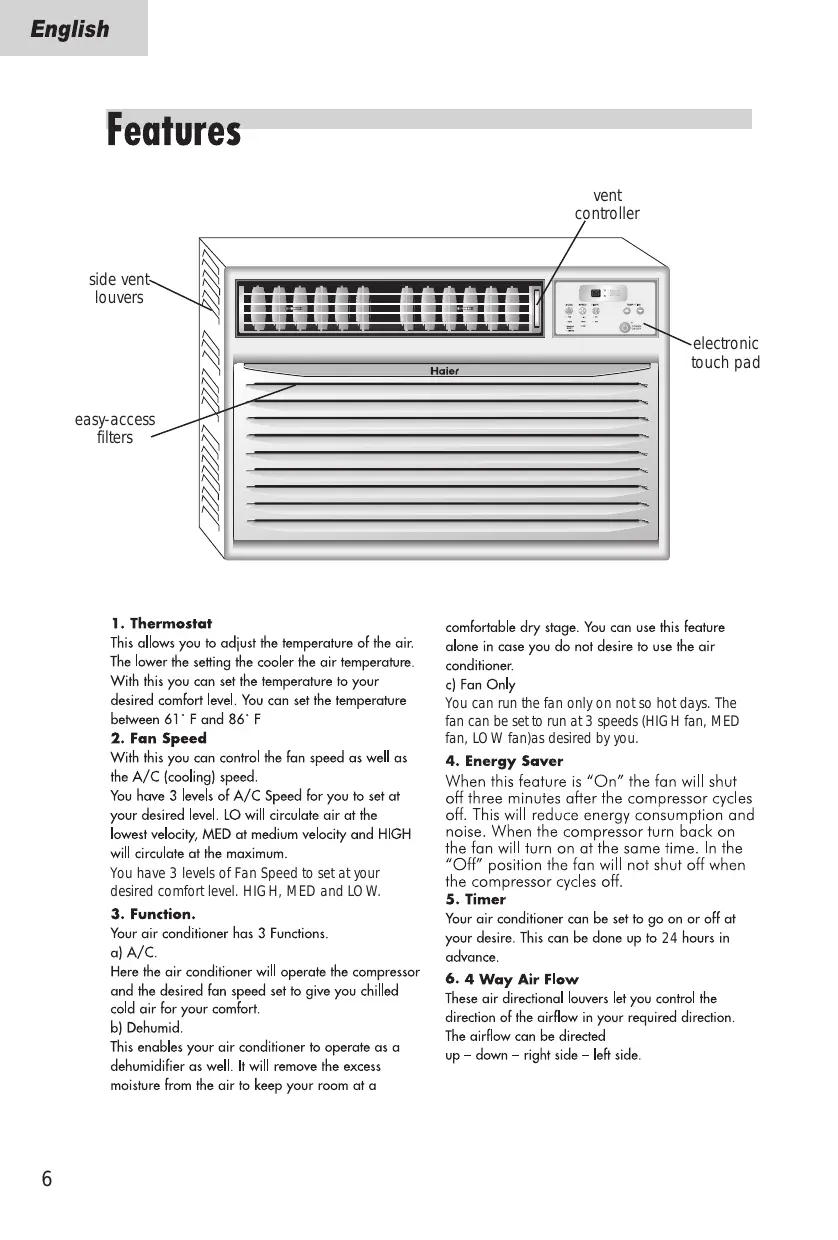

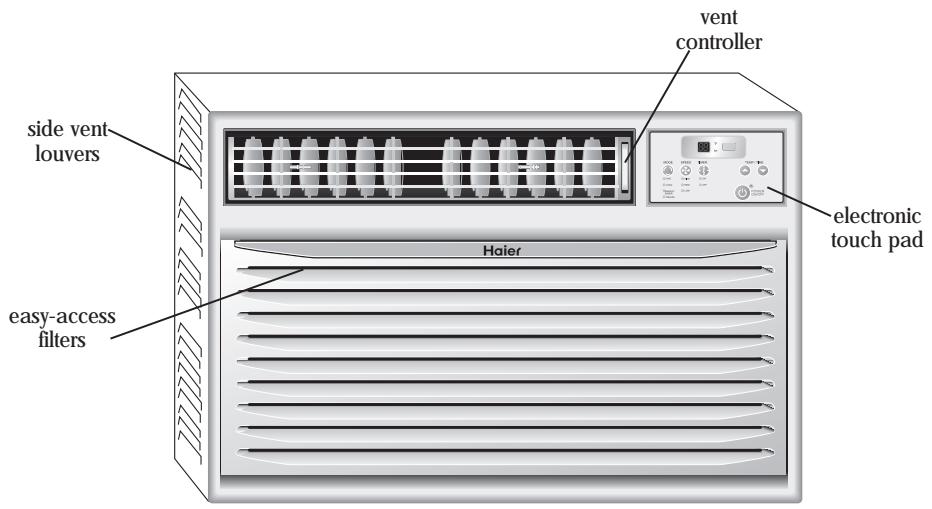

vent controller side vent louvers electronic touch pad easy-access filters You can run the fan only on not so hot days. The fan can be set to run at 3 speeds (HIGH fan, MED fan, LOW fan)as desired by you. You have 3 levels of Fan Speed to set at your desired comfort level. HIGH, MED and LOW.

The Fresh Air Vent allows the air conditioner to recirculate inside air, draw fresh air into the room and exhaust stale air to the outside .

12. Electrostatic Filter (not all models)

Being constructed of high efficiency purifying substance, active carbon fabric, electrostatic fabric, electrostatic active carbon net and other materials it purifies the air effectively. Its wavy structure increases the capability to filter dust and smoke effectively. Due to the retention of the active carbon it has a high purifying speed capable of strong airflow.

13. How The Unit Drains

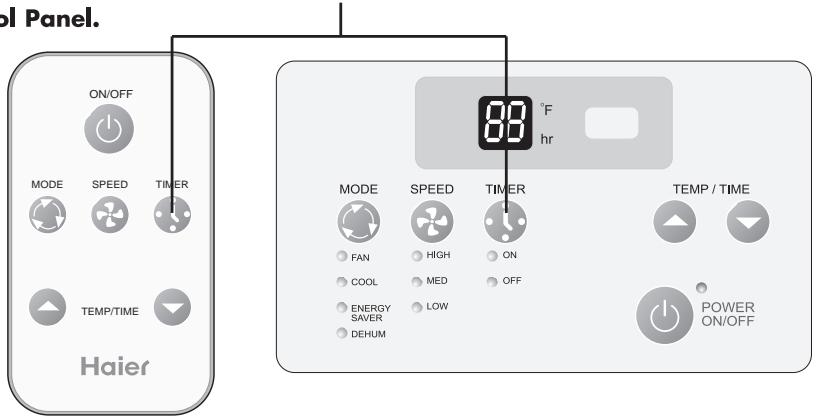

Remote control and control panel operations ON/OFF MODE SPEED TEMP/TIME

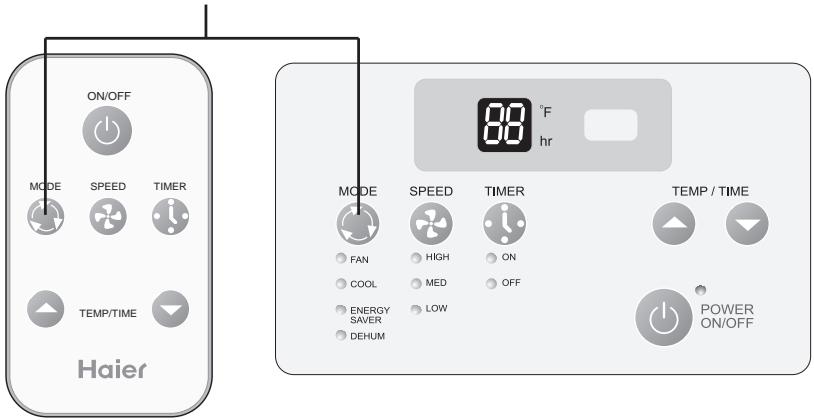

TIMER Having set the temperature you will set the function of the air conditioner. ON/OFF MODE SPEED TIMER TEMP/TIME Every time you press the MODE button, it will change between FAN, COOL, ENERGY SAVER and DEHUM. (See Fig. # 3)

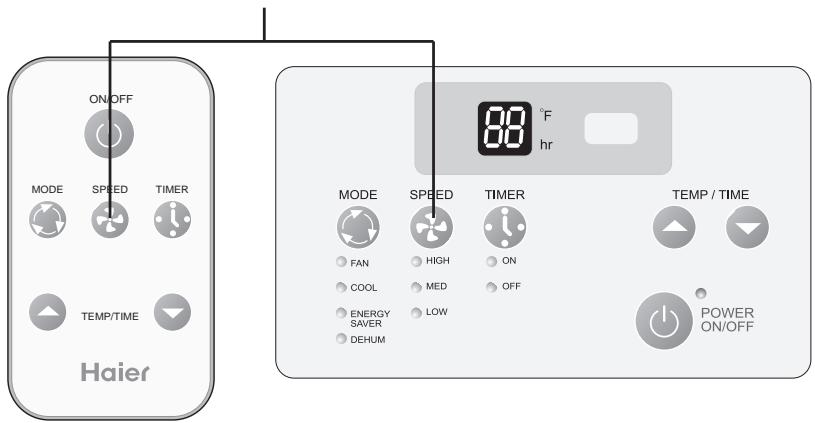

ON/OFF MODE SPEED TIMER TEMP/TIME Once the function mode is decided you will have to set the fan speed.(See fig. #4) Every time you press the SPEED button, fan speed will change between LOW, HIGH,MED.

1) If you choose the COOL mode you can run the fan in one of the 3 speeds HIGH,

2) For cool days you may want to run the "FAN" function. The fan can be set to run at

3 speeds (HIGH fan, MED fan, LOW fan)as desired by you.

3) If you choose to use the Dehumid function. This will remove excess moisture

from the air on excessively humid days. Tr: temperature inside the room. Ts: the set temperature. 1 ) When Tr>Ts+3 F, the compressor will run continuously the fan at the selected speed.

2)When Ts-1 F*Tr*Ts+3 F the compressor will cycle for 10 minutes on and 6 minutes off. 3)When Tr<Ts-1 F, the compressor will shut off. The dehumidification process takes place between the set temperature -1 and 3 F above the set temperature. 4)Energy Saver : The unit runs the same as COOL setting in the ENERGY SAVER mode. But the fan will be off 3 minutes after the compressor cycle off.

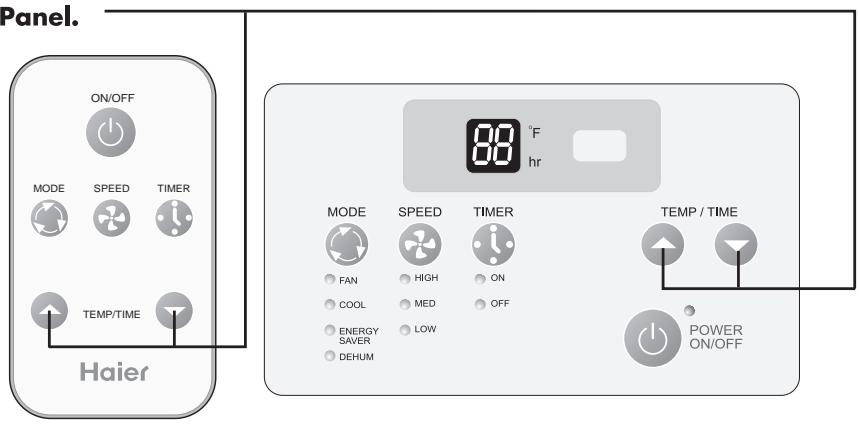

ON/OFF MODE SPEED TIMER TEMP/TIME Timer on or Timer off mode is used to pre-start or shut off your unit in advance. You can program this up to 24 hours in advance. You can use the Timer in 4 functions i.e. COOL, Energy saver, Dehumid or Fan . Timer on (See Fig. # 5) Unit must be on to set the timer. Unit will shut down automatically after it accepts the settings in 5 seconds. Use this mode to pre-set the start time of the unit 24 hours in advance. a) Press TIMER ON, LED display will show "XX" (time set last time) when power is connected first time, LED display will show "01". b) Set desired number of hours by pressing the ( ) pad of the Temp/Time buttons, one for each hour. If you passed the desired time use the ( ) pad key to lower the selection. c) After set TIMER ON, LED display will show the time. This time displayed: unit will starts after X hours. Timer off (See Fig. # 5) Unit must be running to set the timer off. Use this to preset the time you would like the unit to shut off. a) Press TIMER OFF, LED display will show "XX" (time set last time) when power is connected first time, LED display will show "01". b) Set desired number by pressing the ( ) pad of the Temp/Time buttons. One for each hour. If you passed the desired time, use the ( ) pad key to lower the selection. c) After set TIMER OFF, LED display will show the room temperature about 5 seconds later. When using the timer the unit will use/revert to the last COOL and fan settings when activated. The timer must be reset every time you choose to use it.

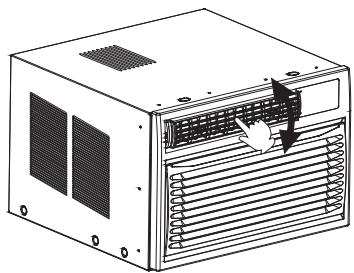

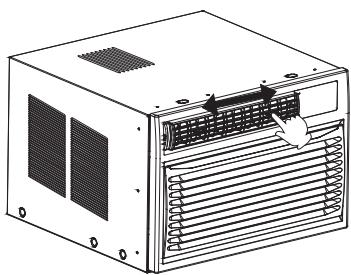

Fig. # 5 ON/OFF MODE SPEED TIMER TEMP/TIME Adjusting the Air Flow Direction Airflow can be adjusted by changing the direction of the air conditioner's louvers. This can also increase the cooling efficiency of the air conditioner. Adjusting Horizontal Air Flow Direction Adjusting the vertical louvers left and right will change horizontal airflow. Adjusting Horizontal Air Flow Adjusting Vertical Air Flow Direction Adjusting the Horizontal vane up and down will change vertical airflow. The vane can be adjusted by nudging the back or up and down of the vane. Adjusting Vertical Air Flow Recommended orientation of louvers Adjust louvers to face upwards when cooling to maximize cooling efficiency.

Parts Parts Supplied window seal gasket top rail wood screws 31/32" basepan angle curtain attachment screws 13/32" installation bracket (left and right) 19/32" long screw and locknut Remote control 2 1/2" long flat head bolt and locknut “CR2025“ battery Model: HWR18VC5, HWR24VC5, ESA3156,ESAX3186, ESA3245,ESA3185

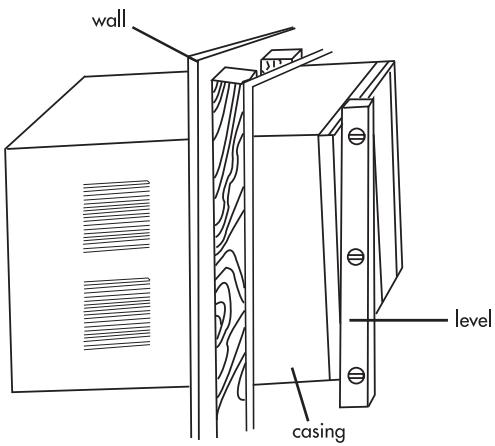

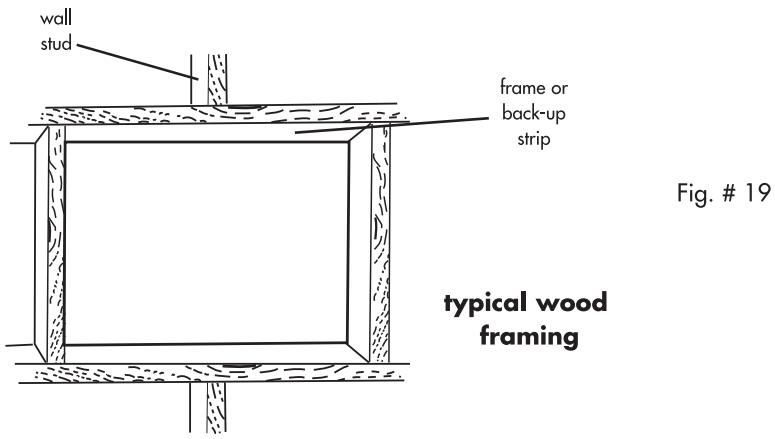

left and right side curtains Installing Unit into A Window Window Opening Requirements

The air conditioner is designed to fit into double or single hung sash type windows. Each of the units comes with an installation kit that provides adjustable mounting louvers, to fill the gaps between the sides of the unit, and the window frame. The chart below reflects the dimensions of the units with, and without installation kits. Measure your window opening width and compare it to the chart below to ensure that it meets the minimum and maximum window width requirements.

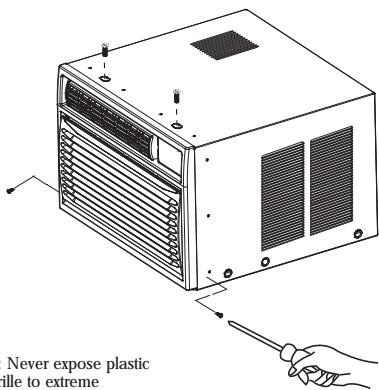

32 " Unpack unit on floor next to installation location. Remove two front attachment screws. Separate the outer case from the front with a putty knife at the catch points designated by the arrows. Remove the two screws on top of the outer case. Using the basepan handle, slowly and evenly pull chassis out from outer case. Note: Cover putty knife blade with masking tape to guard against damage of the unit finish. Caution: Never expose plastic front or grille to extreme temperatures.

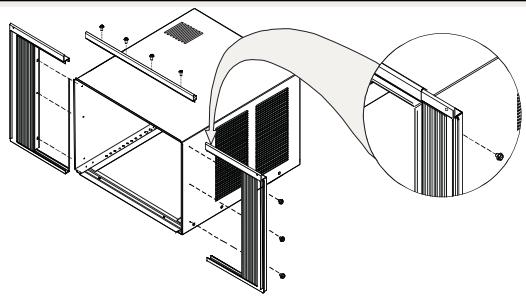

ASSEMBLE CURTAINS/TOP RAIL Install top rail with four 13/32" screws. Slide left-hand curtain assembly into left end of top and bottom rails. Repeat for right-hand curtain assembly. Fasten curtain retainer strips to sides of outer case with six 13/32" screws.

PREPARE WINDOW FOR INSTALLATION Storm window installation If storm window frame does not allow adequate clearance below sill (1/2" required), remove storm window frame or create clearance by adding a wood strip (at least 1 1/2" wide) along entire width of sill. Fasten wood strip to sill with at least three countersunk wood screws (not supplied with kit). This provides a smooth surface for mounting air conditioner. Inspect window track, sash, and sill for its ability to support the weight of air conditioner. Measure width between window moldings to ensure Instant Mount will fit window frame. Instant Mount models are designed for windows wide (the detail see page 15) 1/2" Minimum 1 1/2" Minimum Instant Mount kit supplied with unit is designed for mounting in most double-hung windows without storm windows.For installation in window frame with storm window, modify sill by adding wood strips(not included) to inner and outer sills. This raises unit and eliminates interference of storm window frame.

Mobile home window installation Add wood strip (at least 1 1/2" wide) along entire width of window sill. Thickness of wood strip should match height of front lip on window frame. Fasten wood strip to sill with a minimum of three countersunk wood screws (not supplied with kit). This provides a smooth surface for mounting air conditioner. Window Frame Wood Strip

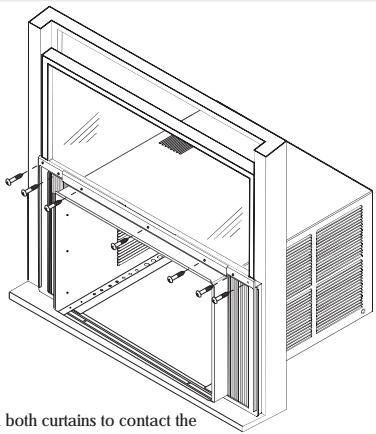

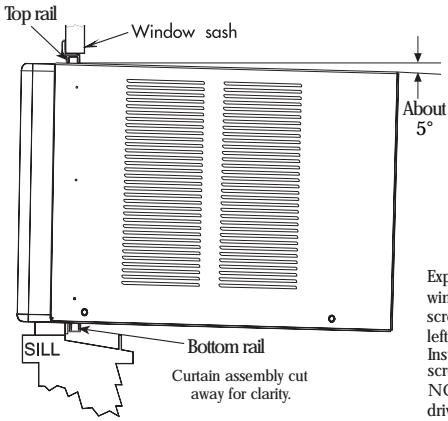

Place outer case in window. Lower sash until it rests behind front flange of top rail. Bottom rail must rest behind window sill. Top rail About

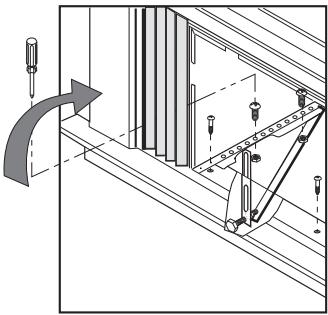

Bottom rail Curtain assembly cut away for clarity. Expand both curtains to contact the window frame. Install four wood screws 31/32". Two in each upper right and left of the curtains. Install three wood screws 31/32" top mounting rail screws. NOTE: To make screws easier to drive, drill a pilot hole into sash through clearance hole in curtains. Use two wood screws 31/32" to fix the case to windows sash. Install left & right installation bracket and as shown in fig. Install bolt(2 1/2" long flat head bolt and locknut) to the installation bracket and adjust them to proper length ,then use 4 (19/32")screws to fix the bracket on the case.

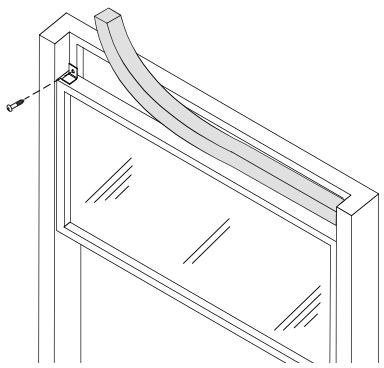

& SEAL GASKET Install sash bracket on top of indoor window sash with one wood screw 31/32" to prevent raising of window from the outside. Screw anchor directly into side of window frame. For hard wood or metal window frames, drill a pilot hole to start screw. Important:Be careful not to drill pilot hole too deep. Add a piece of tape to the drill bit as a depth gauge. Also stay clear of glass. Be careful not to damage the function of the window. Cut window seal gasket to width of window. Stuff window seal strip between outdoor window glass and top of indoor sash. This will stop air leakage which reduces efficiency.

Caution: For security purpose, reinstall screws at cabinet's sides, removed in step one.

Remove the 2 shipping screws on the top of the air conditioner that hold the chassis to the outer shell casing.

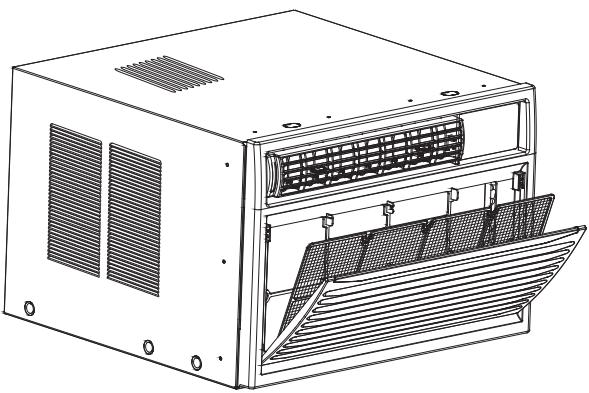

Always unplug your air conditioner before cleaning. The air filter behind the inlet grille should be checked and cleaned at least once every 2 weeks (or as necessary) to maintain optimal performance of the air conditioner. How to remove the air filter

1. The grille may be opened from the top for easy maintenance after installation.

2. Open the inlet grille by pulling off the exposed door on the top of the

unit(based on the installation).

3. Pull the tab slightly to release the filter. Pull the filter in the same direction

4. Clean the filter with warm, soapy water. The water should be below

5. Rinse off and gently shake off excess water from the filter. Let it dry before

replacing it. DO NOT use your air conditioner without the air filter in place. To clean the front panels or the cabinet DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach, concentrated detergents, solvents or metal scouring pads. Always use a soft cloth dampened with water or mild soap and water solution to wipe the front if the cabinet.
